USER MANUAL 21PT1557 PHILIPS

Modern bedroom interior with white walls, a TV, a vase of dried plants, and a patterned bed with a remote (no visible text or symbols)

PHILIPS

GB English p.3

FR Français p.7

NL Nederlands p.11

DE Deutsch s.15

IT Italiano p.19

DK Dansk side 23

NO Norsk side 27

SU Svenska sid.31

SF Suomi sivu 35

RU Русский стр.39

ES Español p.43

PT Português p.47

GR Ελληνικά σελ.51

TR Türkçe s.55

HU Magyar 59. o.

PL Polski str.63

CZ Čeština str.67

SK Slovenčina str.71

MODEL : ____

PROD. NO : ____

PROD. NO

GB Please note the reference numbers for your TV set located on the packaging or on the back of the set.

Installing your television set

1

Illustration of a vintage television set with antenna and cable (no text or symbols)

Insert the aerial plug into the ☐ socket at the rear of the set.

2

Insert the mains plug into a wall socket (220-240V / 50 Hz).

3

Illustration of a remote control device with two batteries inserted (no text or symbols)

Insert the two R6-type batteries (supplied) making sure that they are the right way round.

4

Illustration of a hand pressing a button on a computer monitor (no text or symbols visible)

To switch on the set, press the on/off key. If the television remains in standby mode, press P ⊕ on the remote control.

Quick installation

When you turn on the TV set for the first time, a menu is displayed on screen. This menu prompts you to select the country:

Country Autostore

If the menu is not displayed, press and hold down the △- and △+ keys on the TV set for 5 seconds to display the menu.

Use the ◀▶ keys on the remote control to select your country and validate with √. If your country does not appear in the list, select choice “...”

Plug & Play

② The search starts automatically. All the available TV programmes will be stored. This operation takes a few minutes. The display shows the progress of the search and the number of programs found. At the end of the search, the menu disappears.

To exit or interrupt the search, press Ⓜ. If no programme is found, see Tips chapter at the end of the instruction for use.

③ The programmes found are arranged by number 99, 98, 97, ...etc. You may now renumber these programmes as you wish. See Program sort below.

Program sort

1 Press key Ⓜ.The Main menu is displayed on the screen.

② With the ⬆ key, select Manual Store and press >.

③ Use the 0⑨ or -P+ keys to select the program you wish to renumber.
4 Then use the √ key to select Program No and enter the new number with the ◀ keys.
⑤ With the ⬇ key, select Store and press >.
⑥ Repeat steps ③ to ⑤ for each program you wish to renumber.
⑦ To quit the menus, press ⓘ+

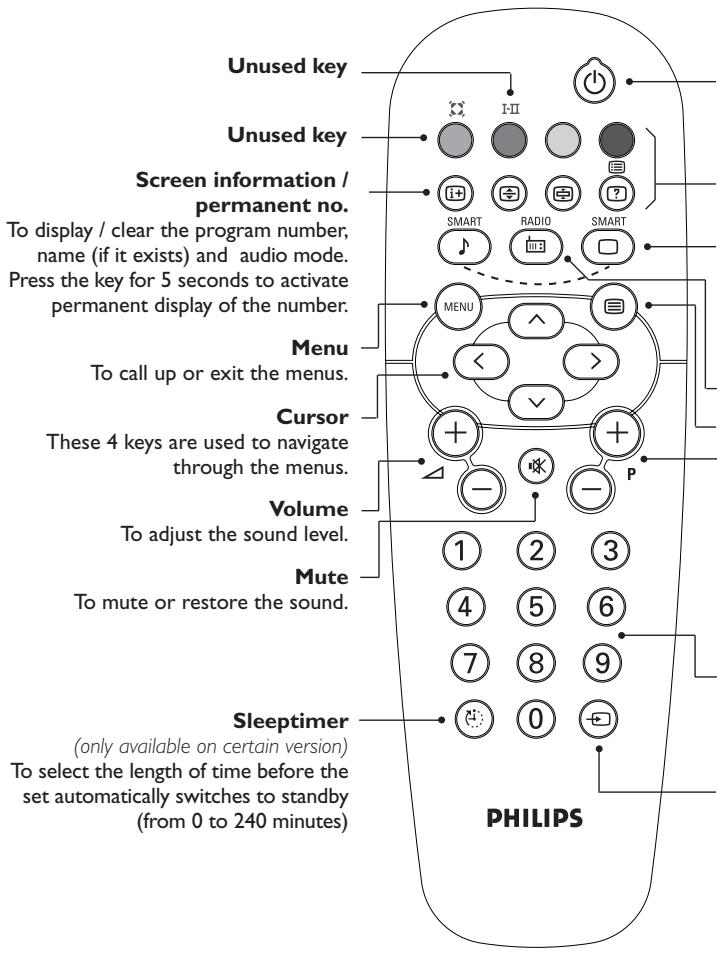

Remote control keys

Unused key Unused key Screen information / permanent no. To display / clear the program number, name (if it exists) and audio mode. Press the key for 5 seconds to activate permanent display of the number. Menu To call up or exit the menus. Cursor These 4 keys are used to navigate through the menus. Volume To adjust the sound level. Mute To mute or restore the sound. Sleeptimer (only available on certain version) To select the length of time before the set automatically switches to standby (from 0 to 240 minutes) PHILIPS

Standby

Lets you place the TV set on standby. To turn on the TV, press P ⊖ +, ⏻, Ⓞ to ⑨.

Teletext keys (teletext version)

Smart picture and sound

Used to access a series of predefined picture and sound settings. The personal position relates to settings selected from the menus.

Unused key

Teletext (teletext version)

Program selection

To access the next or previous programme. The number, (name) and sound mode are displayed for a few moments.

For some programs, the title of the program will be displayed at the bottom of the screen.

Digit keys

Direct access to the programmes. For a 2 digit programme, enter the 2nd digit before the dash disappears.

Selection of EXT socket

Teletext

(only available on certain versions)

Teletext call

Press the Ⓞ key to call teletext, change to transparent mode and then exit. The summary appears with a list of items that can be accessed.

If the channel selected does not broadcast teletext, the screen remain black.

Selecting a page

Enter the number of the page required using the ① to ⑨ or ⊖ P ⊕ keys (always 3 digits). The number is displayed top left, the counter turns and then the page is displayed. Repeat this operation to view another page. If the counter continues searching, the page is not transmitted.

Direct access to the items

Coloured areas are displayed at the bottom of the screen. The 4 coloured keys are used to access the items or corresponding pages.

Contents

Press Ⓗ to return to the contents page (usually page 100).

Enlarge a page

Press Ⓤ several time to enlarge the page.

Stop sub-page acquisition

Certain pages contain sub-pages which follow on automatically. Press ☑ to stop / resume the sequence.

Hidden information (games solutions)

Press ☐ to display or hide the concealed information.

Manual store

This menu is used to store the programmes one at a time.

① Press the Ⓜ MENU key.
2 With the ⬆ key, select Manual Store and press >. Use the ⬆ keys to select a setting and the <> keys to adjust.:

③ System: select Europe (automatic detection*) or West Europe (BG standard), East Europe (DK standard), UK (I standard) or France (LL' standard).

* Except for France (LL' standard), you must select choice France.

4 Search: press ⬤. The search starts. Once a programme is found, the scanning stops. Go to the next step. If you know the frequency of the required programme, this can be entered directly using the ① to ⑨ keys. If no programme is found, see Tips chapter at the end of the instruction for use.
5 Program No.: enter the required number with the ◀> or 0 to 9 keys.
6 Store: press ➤. The program is stored.
⑦ Repeat steps ④ to ⑥ for each programme to store.
⑧ To quit the menus, press ⓘ+

Other settings in the menu

1 Press the Ⓜ MENU key.
2 Use the ⬆√ keys to select a setting and the ◀> keys to adjust.:

Brightness Colour Contrast Sharpness Auto Store Manual Store

• Brightness: this changes picture brilliance.
  • Colour: this changes the intensity of the colour.
• Contrast: this changes the difference between the light and dark tones.
• Sharpness: this changes the picture definition.
• Auto Store: to start automatic search for all programmes available in your region. Then, you need to use the Manual Store menu to renumber the programmes (see p. 3). To quit or interrupt the search, press MENU.
• Manual Store: see top of page.

③ To quit the menus, press ⓘ.

Other functions

Illustration of a vintage television connected to a camera via cable and earphones (no text or symbols)

Connecting peripheral equipment

Use the euroconnector socket located at the back of the set or the front AV connections (when available).

To select connected equipment, press several times the ⏻ key.

Most equipment (decoder, VCR) carries out the switching itself.

Headphones socket (only available on certain versions)

When headphones are connected, the sound on the TV set will be cut.

The - + keys are used to adjust the volume level.

The headphone impedance must be between 32 and 600 Ohms.

The keys on the TV set

The TV set has 4 keys : VOLUME - + (- △ +) and PROGRAM - + (- P +).

To access or exit the menus, press simultaneously the △ - and △ + keys. Then use the - P + and - △ + keys to select and adjust.

Tips : see at the end of the booklet.

Tips

Positioning the television set

Place your TV on a solid, stable surface, leaving a space of at least 5 cm around the appliance. To avoid accidents, do not put anything on the set such as a cloth or cover, a container full of liquid (vase) or a heat source (lamp). The set must not be exposed to water.

Poor reception

The proximity of mountains or high buildings may be responsible for ghost pictures, echoing or shadows. In this case, modify the orientation of the aerial.

No picture or no sound

Have you connected the aerial socket properly? Have you chosen the right system? (p. 5).

Teletext

Are certain characters not displayed correctly? Press and hold down the - and + keys on the TV set for 5 seconds to display the Country menu. Then use the keys to select your country and validate with MENU.

Standby

If the set receives no signal for 15 mins, it automatically goes into standby mode. In stand-by mode, your TV consumes less than 5W depending on model. In order to be more environmentally friendly, please use the on/off (power) switch to turn the set off completely.

Still no results?

If your TV set breaks down, never attempt to repair it yourself: contact your dealer's after-sales service.

Recycling

This packaging of this set can be recovered or recycled. Apply to the local authorities in order to minimise environmental waste.

Disposal of your old product.

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.
