USER MANUAL AR1F62I ARDES

2006/95/EC e 2004/108/EC

ATTENTION : read this booklet carefully it contains important instructions for a safe installation, use and maintenance.

Important instructions to be kept for future reference.

Keep handy the guarantee, receipt of payment and these instructions for future use and reference.

After removing the packaging, check the appliance for any signs of damage. In case of visible damage, do not use it and contact a qualified technician.

Do not leave parts of the packaging with in the reach of children.

This appliance is not a children's toy: it is an electrical device and must be treated with the necessary caution.

Before connecting the appliance, make sure that the power supply voltage matches the indication on the data plate.

If the plug and socket are not compatible, the socket has to be replaced with a suitable type by skilled persons. Do not use adapters or extensioncables which do not meet current safety standards or that exceed the current carrying capacity limits.

When you don't use the appliance disconnect it from the power supply.

Do not tug on the power cable or on the appliance it self to remove the plug from the socket.

The use of any electrical appliance requires that a number of basic rules are observed, namely:

• Never touch the appliance with wet or humid hands.

• This appliance should not be used by people (including children) with limited physical, sensory or mental capacities or anyone who lacks

experience and knowledge, unless they are supervised or have been instructed on how to use the appliance by someone who is responsible for their safety. Children should not be allowed to play with appliance.

• Do not leave the appliance exposed to weathering (rain, sunlight).

• Do not subject it to rough handling.

In case of a breakdown or malfunctioning of the appliance, disconnect it at once. Do not attempt to repair it, but take it to a service centre approved by the manufacturer. If you decide you do not want to use this appliance any longer, disable it by cutting the power cable - of course, after disconnecting it from the socket.

The power cable should be extended to its full lenght to avoid overheating.

If the power cable gets damaged, it has to be replaced only at a service centre approved by the manufacturer.

For safety reasons, the appliance should never be opened.

If the surface of the hob should be broken or damaged, turn off the appliance and disconnect it from the mains to avoid the possibility of electric shock.

The appliance has been designed and manufactured to operate in the home. Any other use is considered inappropriate and dangerous. Do not use the appliance out of doors.

Do not place the appliance on unsuitable or non heat resistant surfaces.

To prevent children from accidentally touching hot components, use the hot plate on surfaces that are at least 85~cm high.

The accessible surfaces of the appliance may be hot when it is operating.

Surfaces are subject to becoming very hot during use.

Attention: the surfaces temperature could be elevated when the appliance is on.

The appliance must not be operated with an external timer or a separate remote control system.

This appliance has the ability to recognize small objects on the cooker plate without heating them; however, do not leave metal objects such as knives, forks, spoons or watches on the cooker plate because they may become hot and damaged.

Do not cover or block the air entry or air vents in any way to avoid the risk of electrical shock.

Make sure that the appliance is at least 10cm away from all walls when in use.

The appliance may not indicate that it is turned off if it is operating at maximum power or temperature and the pan is removed for a brief instant. This is normal and not a malfunction.

Although the appliance can cook food without liquid, this method may cause the pan to deform if the bottom is too thin.

Make sure that the cooker plate has completely cooled down before putting the appliance back in its box.

Warning!

If the user or anyone in close proximity has a pacemaker or other active medical implants, please consult a doctor before use to determine any possible incompatibility and prevent any risk to health.

This product has been manufactured in conformity with current 2006/95/EC and 2004/108/EC. Technical data indicated on the appliance.

INSTRUCTIONS FOR USE

OPERATING PRINCIPLE

The appliance works by generating short-range magnetic fields.

When the high-frequency current runs through the coil to excite the magnetic field, the magnetic line of force penetrates the molecules of the steel pan to create an infinite number of small vortices that generate heat.

ENVIRONMENTAL SAFETY

The cooker automatically enters a protective state if the pan overheats or there is a problem with the power supply.

Similarly, the hob will turn off if it has not received any instruction for two hours.

As opposed to gas or other conventional cookers, the induction cooker cooks without producing a visible flame or smoke, thus reducing the possibility of danger or accidents normally associated with the use of other heating methods and the reason why using the induction hob is more environmentally friendly.

TYPES OF PANS TO USE

Any pan with a flat bottom, a diameter between 12 and 26~cm , and made of a metal with magnetic properties such as cast iron, iron or steel may be used on the cooker plate to cook or heat food. Make sure that the pan contains the symbol below:

Containers that cannot be used to heat food include those made of aluminum or copper or aluminum, and with a diameter of less than 12cm .

USE OF THE APPLIANCE.

Insert the plug into the power socket, place the pot in the centre of the hob, and press the ON-OFF button. If the pot is not in place, the appliance will not run. The appliance bleeps when switched on. If the appliance does not receive any instructions for 30 seconds, it will turn off automatically.

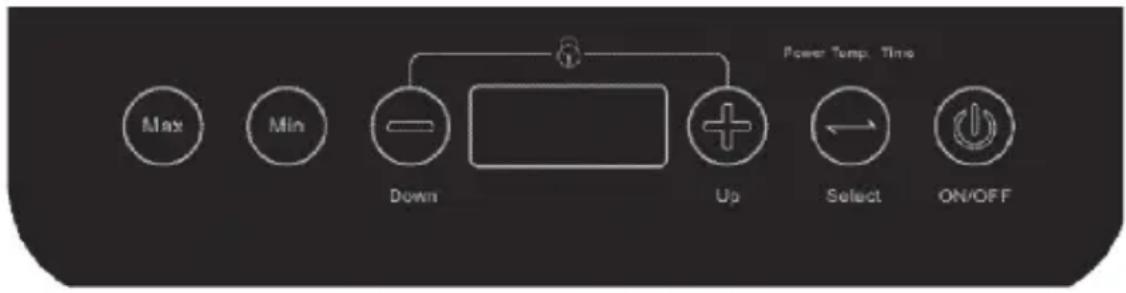

The control panel is "TOUCH", since the functions can be activated simply by touching the buttons, without applying pressure.

To use the stove, press the "SELECT" button and the POWER light will come on: the display will show a preset value of 1200W; you can now set the desired power by using the +/- buttons, from a minimum of 200W to a maximum of 2000W along with intermediate power values (400, 600, 800 W etc.), or alternatively, use the MIN or MAX button to go straight to the maximum or minimum power.

If the "SELECT" button is pressed again, the TIMER light will come on: the display will show 0; you can now set the time in which the appliance will turn off by using the +/- buttons, from a minimum of 5 min. to a maximum of 180 min. with time values in increments of 5 minutes.

If the "SELECT" button is pressed again, the TEMP light will come on: the display will show a preset value of 180^ ; you can now set the desired temperature by using the +/- buttons, from a minimum of 60^ to a maximum of 240^ with intermediate values in increments of 20^

MAINTENANCE

The high quality ceramic hob is easy to clean. Stains caused by food or water spills must be removed so that they do not cause a bad odor.Disconnect the plug from the socket and let the appliance cool down well before cleaning it.

In order to clean the appliance, use a soft or slight damp cloth.

Never use abrasives or chemical solvents.

NEVER IMMERSE THE APPLIANCE INTO THE WATER.

It is recommended to check periodically that the cable does not have cuts or burnings due to the nearness of the plate.

TROUBLESHOOTING

E01 - IGBT open or short-circuited.

Call an authorized service centre.

E02-Overheating (>180^)

For example if an empty pan is left on the hot device, the latter will overheat signalling the error.

Eliminate the cause of overheating by removing the pan, paying attention because it could be very hot, or switch off the device and let the pan cool down.

Once the hob has cooled, the device can be restarted.

If the fault persists, call an authorized service centre.

E03 - The supply voltage is too low or too high.

Check that the device is connected to the supply voltage indicated on the label plate data.

If the fault persists, call an authorized service centre.

AVERTISSEMENTS

Terms and Conditions

The guarantee is valid for 24 months.

This guarantee applies only if it has been duly filled in and is submitted with the receipt showing the date of purchase.

The guarantee covers the replacement or repair of parts making up the appliance which were faulty at source due to manufacturing faults.

After the guarantee has expired, the appliance will be repaired against payment.

The manufacturer declines any responsibility for damage to persons, animals or property due to misuse of the appliance and failure to observe the directions contained in the instructions.

Limits

All rights under this guarantee and any responsibility on our part will be avoided if the appliance has been:

• mishandled by unauthorized persons

• improperly used, stored or transported.

The guarantee does not cover damage to the outward appearance or any other that does not prevent regular operation.

If any faults should be found despite the care taken in selecting the materials and in creating the product, or if any information or advice are required, please contact your local dealer.

Date of sale SELLER'S STAMP

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.

At the end of its working life, the product must not be disposed of as urban waste.

It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain signifi-cant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.
