USER MANUAL Clio S21 Caffitaly

English Instruction book

B: "Long coffee" button;

C: "Filter coffee" button;

D: "Multifunction" indicator light;

E: Capsule compartment;

F: Water tank cover;

G: Lever for opening / closing capsule compartment;

H: Water tank;

I: Power cord;

J: Power on/off switch;

K: Dispensing spout;

L: Used capsule drawer;

M:Drip tray;

N: Cleaning capsule kit / descending.

Deutsch

A: Taste „Espresso“;

Following the instructions (Symbols) 16
- Your Caffitaly System contact 16
Safety warnings 17
- Instructions for use and disposal 18

Installation:

• First use or after a long period of disuse 18
• Turning on the appliance 19
  General operating indications 19
• Adjusting the cup/espresso cup height 19

Dispensing the product:

• Correct use of the buttons 20
  Dispensing coffee 20
• Programming the quantity of coffee in a cup 20

Cleaning and Maintenance:

Saving energy 21
Daily maintenance 21
- Descaling 21

Miscellaneous:

Troubleshooting 23
Technical data 23

Thank you for having chosen our product and for your confidence in our company.

You can savour your favourite hot beverages at any time of the day with our appliance by choosing one of the capsules that Caffitaly System offers you. For example: an espresso, a cocoa-flavoured beverage or a tea will be ready in just a few seconds.

Follow the instructions (Symbols)

Warning.

This is the safety warning symbol.

It is used to call your attention to potential personal injury hazards.

Abide by the safety messages provided in order to avoid possible injury or death.

Note.

the symbol used to highlight some actions that will optimise the machine.

Maintenance tips

Your Caffi taly System contact

[e-mail]

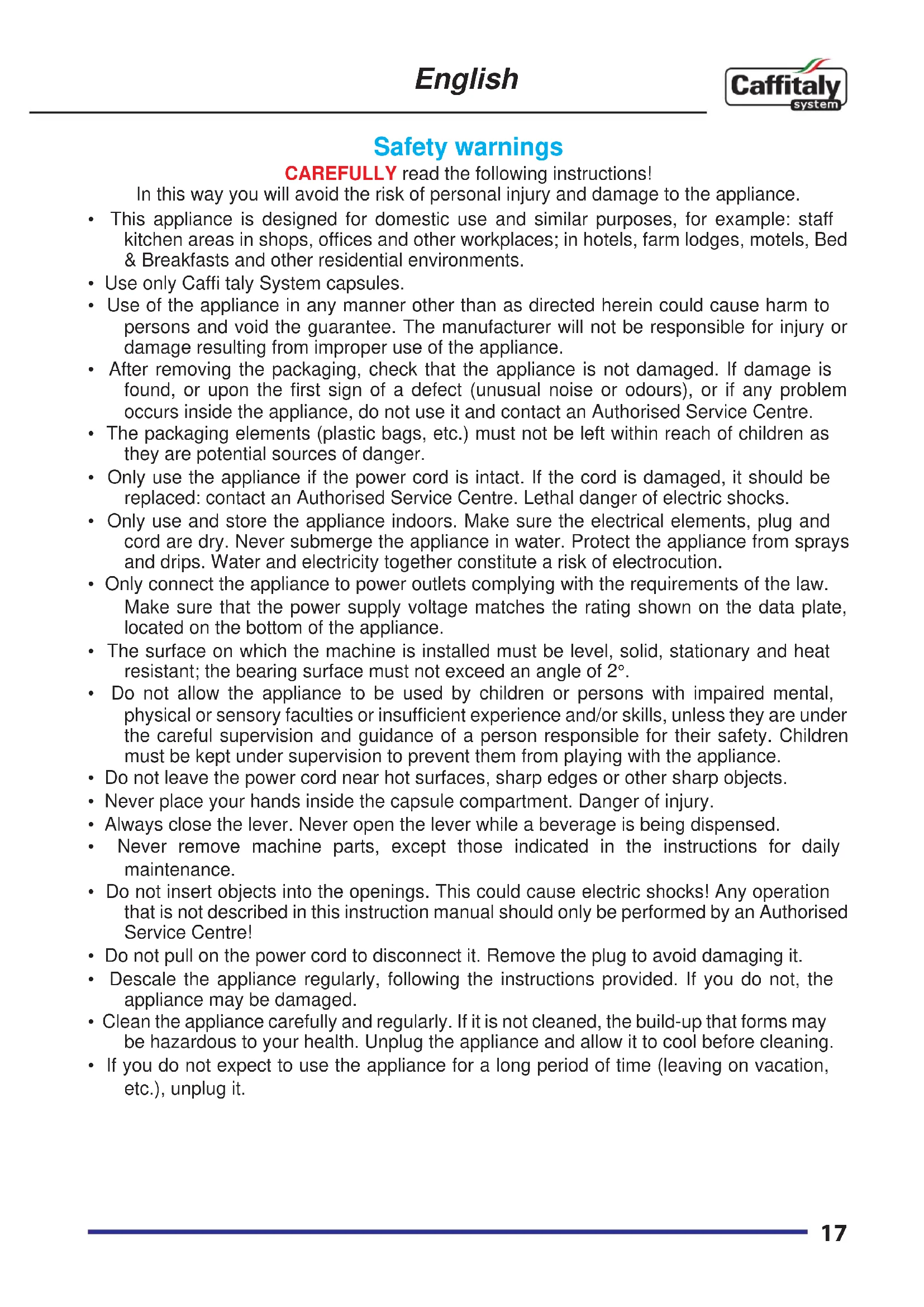

Safety warnings

CAREFULLY read the following instructions!

In this way you will avoid the risk of personal injury and damage to the appliance.

• This appliance is designed for domestic use and similar purposes, for example: staff kitchen areas in shops, offices and other workplaces; in hotels, farm lodges, motels, Bed & Breakfasts and other residential environments.
• Use only Caffi taly System capsules.
• Use of the appliance in any manner other than as directed herein could cause harm to persons and void the guarantee. The manufacturer will not be responsible for injury or damage resulting from improper use of the appliance.
• After removing the packaging, check that the appliance is not damaged. If damage is found, or upon the first sign of a defect (unusual noise or odours), or if any problem occurs inside the appliance, do not use it and contact an Authorised Service Centre.
• The packaging elements (plastic bags, etc.) must not be left within reach of children as they are potential sources of danger.
• Only use the appliance if the power cord is intact. If the cord is damaged, it should be replaced: contact an Authorised Service Centre. Lethal danger of electric shocks.
• Only use and store the appliance indoors. Make sure the electrical elements, plug and cord are dry. Never submerge the appliance in water. Protect the appliance from sprays and drips. Water and electricity together constitute a risk of electrocution.
• Only connect the appliance to power outlets complying with the requirements of the law. Make sure that the power supply voltage matches the rating shown on the data plate, located on the bottom of the appliance.
• The surface on which the machine is installed must be level, solid, stationary and heat resistant; the bearing surface must not exceed an angle of 2^ .
• Do not allow the appliance to be used by children or persons with impaired mental, physical or sensory faculties or insufficient experience and/or skills, unless they are under the careful supervision and guidance of a person responsible for their safety. Children must be kept under supervision to prevent them from playing with the appliance.
• Do not leave the power cord near hot surfaces, sharp edges or other sharp objects.
• Never place your hands inside the capsule compartment. Danger of injury.
  Always close the lever. Never open the lever while a beverage is being dispensed.
• Never remove machine parts, except those indicated in the instructions for daily maintenance.
• Do not insert objects into the openings. This could cause electric shocks! Any operation that is not described in this instruction manual should only be performed by an Authorised Service Centre!
• Do not pull on the power cord to disconnect it. Remove the plug to avoid damaging it.
• Descale the appliance regularly, following the instructions provided. If you do not, the appliance may be damaged.
• Clean the appliance carefully and regularly. If it is not cleaned, the build-up that forms may be hazardous to your health. Unplug the appliance and allow it to cool before cleaning.
• If you do not expect to use the appliance for a long period of time (leaving on vacation, etc.), unplug it.

Instructions for use and disposal

The appliance has been manufactured using high quality materials that can be reused or recycled. Dispose of the appliance in a suitable waste collection centre.

Directions for correct disposal of the product according to European Directive 2002/96/EC and Italian Legislative Decree no. 151 dated 25 July 2005. At the end of its useful life, the product should not be disposed of with unsorted household waste. It should be taken to a suitable selective waste collection centre set up by the local authorities or returned to a retailer who provides this service.

Separate collection of an electric household appliance avoids a potential negative impact on the environment and health arising from improper disposal and enables the materials it is made of to be recovered so as to achieve

significant savings in terms of energy and resources. The crossed-out wheelie bin symbol applied on the product highlights the need to dispose of electric appliances separately. Improper disposal of the product by the user shall be subject to specific administrative sanctions as provided for under current regulations.

The packaging is made from recyclable materials. Contact the relevant authorities for information regarding local regulations.

First use or after a long period of disuse

• Fill the tank with fresh, still water (Fig. 4).
• Plug in the appliance and turn it on (Fig. 13).
• As well as buttons A-B-C, warning light D also blinks RED.
• Raise the lever to open the capsule compartment (Fig. 1).
• Insert the cleaning capsule supplied (Fig. 2).
• Close the lever fully (Fig. 3).
• Place a large container (at least 250ml ) under the dispensing spout (Fig. 9).
• Press one of the buttons A-B-C. Wait for the machine to complete the priming cycle and fill with water. Indicator light D will switch off.

N.B.: if, after the filling procedure has ended, indicator light D continues to blink RED, repeat the previous steps.

• Buttons A-B-C will blink simultaneously to indicate that the machine is warming up.
• When buttons A-B-C turn on and remain steadily lit, perform a rinse by pressing button C. Press the button again to perform a second rinse. Wait for the machine to complete the rinse cycle.
• Raise the lever to eject the cleaning capsule into the drawer (Fig. 1).
• Close the lever (Fig. 3).
• At the end of this operation, empty out the water from the used capsule drawer (Fig. 6).

N.B.: the cleaning capsule can be used several times while it is still of the cleaning capsule supplied is lost or used up, you can used capsule after removing its contents.

Turning on the appliance

• Fill the tank with fresh, still water (Fig. 4).
• Switch on the appliance by pressing the power on/off switch (Fig. 14).
• Buttons A-B-C will blink simultaneously to indicate that the machine is warming up. When the buttons remain steadily lit, the appliance is ready for use.

General operating indications

DESCALING SIGNAL:

• When warning light D blinks YELLOW, a descending cycle should be carried out (see ch. Descaling).

HEATING UP:

• Buttons A-B-C blink simultaneously.

WHEN THE WATER RUNS OUT DURING OPERATION:

• The water tank is empty when indicator light D blinks RED and the appliance emits 3 beeps followed by a single intermittent beep.
• Fill the water tank with fresh, still water (Fig. 4).
• Press one of the buttons A-B-C. Wait for the machine to complete the water circuit filling cycle.
• When buttons A-B-C turn on and remain steadily lit, the appliance is ready for use.

IF THE LEVER IS RAISED WHILE DISPENSING:

• Raising the lever while dispensing a product (Fig. 1) may cause splashes of hot water. Danger of scalding!
• Warning light D blinks RED and the machine emits a single intermittent beep. The appliance will immediately stop dispensing.
• Close the lever (Fig. 3).
• Press one of the buttons A-B-C to reset the alarm.
  The appliance is ready for use again.

Adjusting the cup/espresso cup height

• The machine can be adjusted for the use of large cups or espresso cups.
• The machine is initially set for the use of large cups (Fig. 7).
• To achieve the best results when using espresso cups, you must lift and turn the grid on top of the drip tray (Fig. 10).
• At this point you may place an espresso cup under the coffee dispensing spout (Fig. 8).
• If using tall glasses, you will need to remove the drip tray (Fig. 15).
• At this point you may place a tall glass under the coffee dispensing spout (Fig. 16).

Correct use of the buttons

To dispense "Espresso" or "Caffé crema", use solely buttons A or B (1st and 2nd from the top respectively, lit in WHITE). The same buttons, depending on the quantity, are to be used for dispensing capsules of orzo, ginseng, cocoa or milk.

Button C (3rd from the top, lit in BLUE) must be used solely for "Filter coffee" or "Americano" (very mild). This same button can be used for capsules of tea, chamomile tea or herbal tea.

Do not use button C for espresso or any other coffee with an intense flavour. In this function the machine is set for low pressure and this reduces the "crema", diminishes the flavour of the coffee, and could cause a break in the flow.

Wee

NOTE: Traces of the product just dispensed may remain in the circuit of the machine. To retain maximum beverage flavour it is advisable - when dispensing milk, hot chocolate or instant drinks - to perform a short rinse. Rinsing this is performed using one of the cleaning capsule supplied and pressing any button (A, B or C).

Iuld advise you to carry out this procedure at least once a week in any case.

Dispensing coffee

• Raise the lever to open the capsule compartment (Fig. 1).
• Insert the capsule, pressing it gently into place (Fig. 2).
• Close the lever fully (Fig. 3).
• Place a cup or espresso cup under the coffee dispensing spout (Fig. 7 or 8).
  Press and release button A or B, depending on the desired coffee.
• The pressed button will blink. The machine will stop dispensing on reaching the programmed quantity and emit a beep.
• Raise the lever to eject the used capsule into the drawer (Fig. 1).
• Close the lever (Fig. 3).

NOTE: the quantities of coffee dispensed may be programmed according to personal taste, and the size of the cup or mug used.
Tb program the quantities, please refer to ch. "Programming the quantity of coffee in a cup".

Programming the quantity of coffee in a cup

• Raise the lever to open the capsule compartment (Fig. 1).
• Insert the capsule, pressing it gently into place (Fig. 2).
• Close the lever fully (Fig. 3).
• Place a cup or espresso cup under the dispensing spout (Fig. 7 or 8).
  Press and hold the desired coffee button.
• On reaching the desired amount of coffee, release the button. Now the button is programmed. The quantity of coffee dispensed can be programmed from a minimum of 20 up to a maximum of 250ml .
• Raise the lever to eject the used capsule into the drawer (Fig. 1).
• Close the lever (Fig. 3).

Saving energy

The machine will automatically reduce consumption after 10 minutes of inactivity. Buttons A-B-C blink slowly and sequentially. To restore normal operating conditions, press any button or raise the lever. The appliance will start warming up.

When buttons A-B-C turn on and remain steadily lit, the appliance is ready for use.

Daily maintenance

• Remove the drip tray and used capsule drawer (Fig. 6).
• Lift the used capsule drawer (Fig. 11); empty and rinse it.
• Remove the grid and its support (Fig. 12). Lift out the drip tray; empty and rinse it.
• Remove the water tank (Fig. 5): empty and rinse it.

NOTE: Traces of the product just dispensed may remain in the circuit of the machine. To retain maximum beverage flavour it is advisable - when dispensing milk, hot chocolate or instant drinks - to perform a short rinse. Rinsing this is performed using one of the cleaning capsule supplied and pressing any button (A ,B or C).

We would advise you to carry out this procedure at least once a week in any case.

When cleaning the surfaces of the The plastic components of the appliance use a soft cloth and neutral machine, including the water detergent. Do not use jets of water tank, ARE NOT dishwasher to clean the appliance. safe.

Descaling

Descaling signal: when indicator light D blinks YELLOW, a descending cycle should be carried out, as illustrated below.

The machine features an advanced program that monitors how much water is used to dispense beverages. This monitoring process provides the user with indications when the machine needs to be descaled.

It is advisable to use the Caffitaly System descending agent, designed to comply with the technical characteristics of the machine, in full observance of consumer safety. The descending agent must be disposed of in compliance with manufacturer instructions and/or with current regulations in force in the country where the appliance is used.

CAREFULLY read the directions for use on the packaging of the descaling agent. Avoid contact with eyes, skin and machine surfaces.

descaling do not turn the machine off and do not raise the lever. A person must be present during the operation.

Do not use vinegar: it could damage your machine!

• Switch the machine off by pressing the power on/off switch (Fig. 14).
• Empty and rinse out the used capsule drawer and drip tray (Fig. 6).
• Remove and empty the water tank (Fig. 5).
• Mix the contents of a bottle of Caffitaly System descaler with approximately 750 cc. of water (a total of 1 litre) and pour into the tank.
• Raise the lever to open the capsule compartment (Fig. 1).
• Insert the cleaning capsule supplied, pressing it gently into place (Fig. 2).
• Close the lever fully (Fig. 3).
• Remove the drip tray (Fig. 15).
• Place a container (at least 500ml ) under the dispensing spout (Fig. 16).
• Press and hold buttons A and B while switching the machine on by pressing the power on/off switch.
• Button B will light up, while warning light D blinks YELLOW and RED alternately.
• Press button B to start the descending cycle.
• The machine dispenses the descending solution at intervals (5 doses with a 4-minute pause between each one, for a total duration of about 25 minutes). During this step, when the buttons must not be pressed, warning light D blinks YELLOW and REDalternately.
  If the container fills up, empty it out.
• When the first stage is complete, the machine beeps and the button B comes on. The water tank is empty.
• Carefully rinse out the water tank and refill it with fresh water (Fig. 4).
• Empty and rinse the used capsule drawer and the container used and put them back in place (Fig. 16).
  Press button B to start the rinse cycle.
• Rinse water (about 500ml ) will be run through the machine. During this step warning light D blinks YELLOW and REDalternately.
• When the rinse cycle is complete, the machine beeps and buttons A-B-C blink simultaneously; the machine is warming up.
• When the buttons remain steadily lit, the appliance is ready for use.
• Raise the lever to eject the cleaning capsule into the drawer (Fig. 1).
• Carefully empty and rinse out the water tank and refill it with fresh, still water (Fig. 4).
• Empty and rinse out the used capsule drawer and put it back in place, along with the drip tray.

Troubleshooting

PROBLEM	POSSIBLE	CAUSE	SOLUTION
No coffee comes out. Warning light D blinks RED.	The water tank is empty. Fill	the tank with fresh water. Press a button to refill the circuit. When the buttons remain steadily lit, the appliance is ready for use.
The coffee is not hot enough.	- Cold cups / espresso cups. - Scale build-up in machine.	- Preheat cup. - Descale.
The lever cannot be lowered.	- The used capsule drawer is full. - Capsule stuck inside the machine.	- Empty out the used capsule drawer. - Remove the used capsule.
Warning light D is lit steadily in RED.	Heating problems. Turn off the machine, then turn it back on. If the problem persists, take the machine to an Authorised Service Centre.
When a button is pressed to dispense coffee, the machine seems to work but then stops without dispensing any coffee, or only dispenses a tiny amount.	Incorrect quantity programming.	Reprogram the quantity associated with that button. See ch. "Programming the quantity of coffee in a cup".
Coffee is dispensed very slowly, and is of poor quality.	Button C was used with an espresso capsule.	Use buttons A or B.

Technical data

kg	About 4 kg	~ See the data plate on the base of the machine.
	1.2 litres	P Max. 15 bar
	ambient temperature: 10°C - 40°C	<70 dB A
	377 mm 8 capsules
	148 mm 284 mm 364 mm
