TM2408 - Coffee machine Tomado - Free user manual and instructions

Product type	Filter coffee machine
Brand	Tomado
Model	TM2408
Capacity	1.2 L (2 to 12 cups)
Power	750 W
Power supply	220-240 V ~ 50/60 Hz
Net weight	1.3 kg
Dimensions (W x D x H)	Approx. 25 x 18 x 30 cm
Filter type	Permanent filter included, compatible with 1x paper filters
Hot plate	Yes, keeps warm for up to 2 hours
Water tank	With graduated scale, removable (not specified)
Carafe	Glass with lid
On/off button	Illuminated
Auto shut-off	Not specified
Warranty	2 years
Maintenance	Clean removable parts with soapy water; descale regularly
Safety	Do not immerse; unplug before cleaning; use on a stable surface
Repairability	Repair by a qualified electrician; spare parts not specified
Included accessories	Permanent filter, glass carafe
Standby power consumption	Not specified

Frequently Asked Questions - TM2408 Tomado

How to descale the Tomado TM2408 coffee machine?

Use a commercial descaling agent following its instructions. Fill the water tank with the solution, run several cycles, then rinse with clear water to avoid any taste alteration.

What is the maximum capacity of the coffee maker?

The coffee maker has a capacity of 1.2 liters, allowing you to brew 2 to 12 cups of coffee depending on cup size.

Can I use paper filters or the permanent filter?

Yes, you can use disposable paper filters (size 1x) or the included permanent filter. If using paper filters, place them in the permanent filter.

What if the coffee does not flow or flows slowly?

Check that the carafe is properly placed, the tank has enough water, and the filter is not clogged. Descaling may be necessary if the water is hard.

How to clean the Tomado TM2408 coffee maker?

Unplug the appliance. Wash the filter holder, permanent filter, carafe and its lid with warm soapy water. Wipe the exterior with a damp cloth. Never immerse the appliance.

Does the hot plate keep the coffee warm?

Yes, the hot plate keeps the coffee warm in the carafe. It is not recommended to leave coffee on the hot plate for more than 2 hours to preserve its aroma.

What is the warranty of this coffee machine?

Tomado offers a 2-year warranty against manufacturing and material defects from the purchase date. Keep your proof of purchase.

Can I use very finely ground coffee?

It is recommended to use a medium to coarse grind. If you find grounds in the carafe, switch to a coarser grind.

Does the appliance turn off automatically?

The manual does not mention an automatic shut-off. You must turn off the machine manually with the On/Off button and unplug after use.

What is the required power supply voltage?

The appliance operates on a voltage of 220-240 V ~ 50/60 Hz. Check that your outlet matches before plugging in.

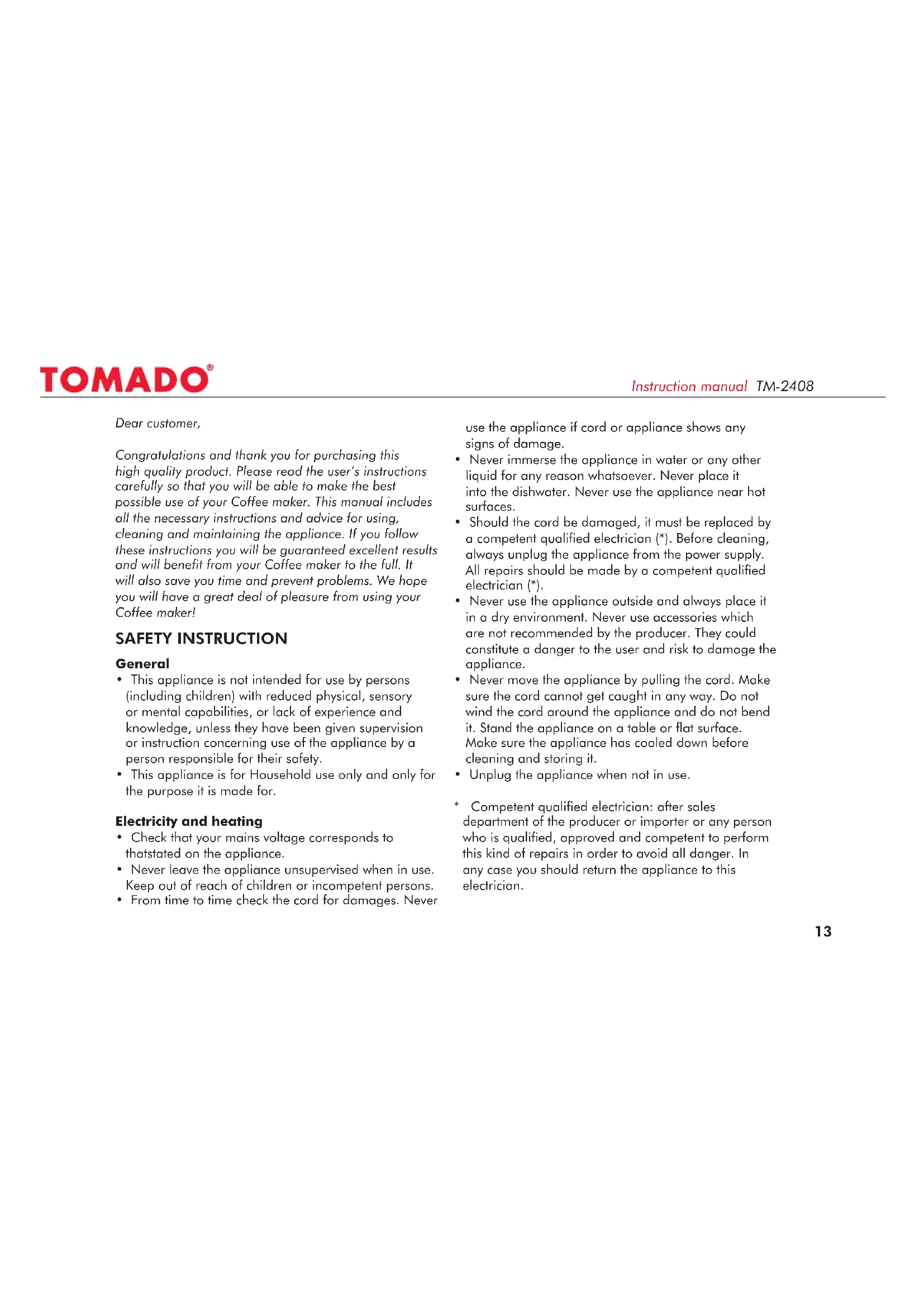

USER MANUAL TM2408 Tomado

Cherie clientele, cher client,

Congratulations and thank you for purchasing this high quality product. Please read the user's instructions carefully so that you will be able to make the best possible use of your Coffee maker. This manual includes all the necessary instructions and advice for using, cleaning and maintaining the appliance. If you follow these instructions you will be guaranteed excellent results and will benefit from your Coffee maker to the full. It will also save you time and prevent problems. We hope you will have a great deal of pleasure from using your Coffee maker!

SAFETY INSTRUCTION

General

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• This appliance is for Household use only and only for the purpose it is made for.

Electricity and heating

• Check that your mains voltage corresponds to that stated on the appliance.
• Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
  From time to time check the cord for damages. Never

use the appliance if cord or appliance shows any signs of damage.

• Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwater. Never use the appliance near hot surfaces.
• Should the cord be damaged, it must be replaced by a competent qualified electrician (^) . Before cleaning, always unplug the appliance from the power supply. All repairs should be made by a competent qualified electrician (^) .
• Never use the appliance outside and always place it in a dry environment. Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
• Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Stand the appliance on a table or flat surface. Make sure the appliance has cooled down before cleaning and storing it.
• Unplug the appliance when not in use.
  Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

Usage

Remove all packaging of the device. Check if the voltage of the appliance corresponds to the main voltage of your home. Rated voltage: AC220-240V 50Hz.

This new coffee maker has a capacity of 1,2 litre so you can make quickly and easily 2 to 12 cups of coffee. You can use the well-known paper disposable filters or the special permanent filter delivered with this coffee maker If you use disposable filters it is recommended that you place them in the permanent filter. Paper filter size:

1 x 2. The appliance has a warming plate to keep your coffee warm after brewing.

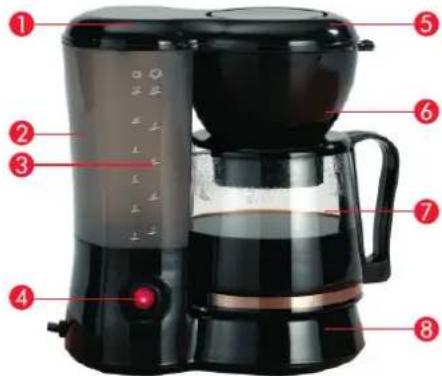

PARTS DESCRIPTION

1. Watertank lid
2. Watertank
3. Water level indicator
4. Illuminated on/off switch
5. Filter cover
6. Permanent filter holder
7. Glass carafe
8. Hot plate

INITIALUSE

First unplug the coffee maker before cleaning. Wash carafe, basket, and serving lid in hot, sudsy water. Rinse and dry. To thoroughly clean the inside of your new coffee maker, brew 2 carafes of tap water, if desired added by some vinegar. See section "How to brew coffee". Do not add coffee grounds to the basket. Throw the water away and clean with second carafe of clean water.

USAGE

Use carafe to pour water into water tank; add water to the water fill line on the carafe for the number of cups of coffee desired. Place the carafe with the cover on the warming plate. Place paper filter in basket. Add 1 spoon of drip or regular grind coffee to basket for each cup of coffee desired. Plug in the coffee maker and switch control to ON. When the coffee is brewed, you can leave the coffee on the hot plate until you want to serve it. To keep coffee hot, return carafe to the hot plate after serving. The coffee will be warm for at least 2 hours.

Remarks

Wait with turning the filter and taking away the carafe until brewing has stopped. When you use filtered water, scale is formed less quickly, and the taste will be better, especially in areas where the water is very hard. If you find coffee grains in your brewed coffee, use a less finely grind of coffee.

STORAGE

Make sure coffee maker is switched off and unplugged. Turn the filter and remove it from the coffee maker. Throw the paper filter away or empty the permanent filter. The carafe, serving lid, filter and filter holder can be washed in hot sudsy water. Rinse and dry. Wipe coffee maker base with a soft slightly damp cloth and dry. Never use abrasive scouring pads or cleaners as they will scratch and/or discolour the finish.

Decalcifying

You should decalcify your coffee maker every two months to prevent it from clogging. If the water in your area is especially hard, decalcify it once a month. When the coffee maker has to be cleaned you can (a) hear the coffee maker makes a lot of noise and (b) the coffee maker needs more time. Use a good decalcifying product that is specially made for this use. Follow the instructions exactly. Switch control to ON and let all the decalcifying solution (without using the permanent filter) to drip from the reservoir into the carafe. Throw the liquid away and clean the carafe with water. Then rinse the coffee maker by filling the water tank with a carafe of clean cold water and letting the machine operate twice with only water. All repairs should be executed by an official service center.

TECHNICAL DATA

Type nr.: TM-2408

Voltage: 230 50 / 60Hz

Power: 750W

Inhoud:1.2L

Net weight: 1.3kg

The coffee maker should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with EEC Directives 2004/108/EC and 2006/95/EC.

We would like to congratulate you on buying an appliance from the TOMADO product range.

Warranty regulations

TOMADO provides a 2-year warranty for all defects caused by hidden deficiencies which render the appliance useless for normal operation.
The warranty runs from the date of purchase; we advise you to carefully save your receipt.
- Within the warranty period any defects in production or material will be resolved free of charge, by means of reparation, replacement of parts or replacement of the appliance as a whole.
The warranty certificate has to be filled in by the sales person at the moment of purchase.
Repairs will only be made under warranty in case it can proven (by means of a filled in warranty card and the receipt) that the day the complaint is filed falls into the warranty period.
- The warranty does not apply when defects or damages result from an accident, misuse, negligence (e.g. incorrect cleansing), or when repairs of alterations have been executed outside the authorized TOMADO service centre (excl. disassembling, as stated in the instruction manual).
The warranty does not cover any defects arising when the appliance is connected to the wrong outlet voltage, not following the guidelines in the instruction manual and usual wear and tear.
- The warranty does not cover any defects arising from the lack of frequent descaling of appliances, whatever type of water has been used (especially for steam irons, coffee machines and water boilers).
TOMADO cannot be held responsible for any material damage or personal accident resulting from connecting

the appliance in breach of the locally applicable safety regulations and technical standards (for instance an inferior AC outlet). The warranty under no circumstances grants the right for any compensation.

• All other claims, including damages, are excluded unless the Law states otherwise.
• Other warranty regulations than the warranty regulations stated above are not applicable.

Service

For more information you can write to the following address (postage paid):

TOMADO Consumenservice

Antwoordnummer 19016

NL-1000VC Amsterdam

The Netherlands

What do you do in case your appliance does not work?

When your appliance shows defects, you can refer to your salesperson. Your salesperson will make sure any defect will be repaired as soon as possible.

Repairs outside the warranty period

You can always hand in your appliance to have it repaired outside the warranty period. This will of course not be free of charge.

Guidelines for protection of the environment

This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic

appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection..
