USER MANUAL XPR207 AIWA

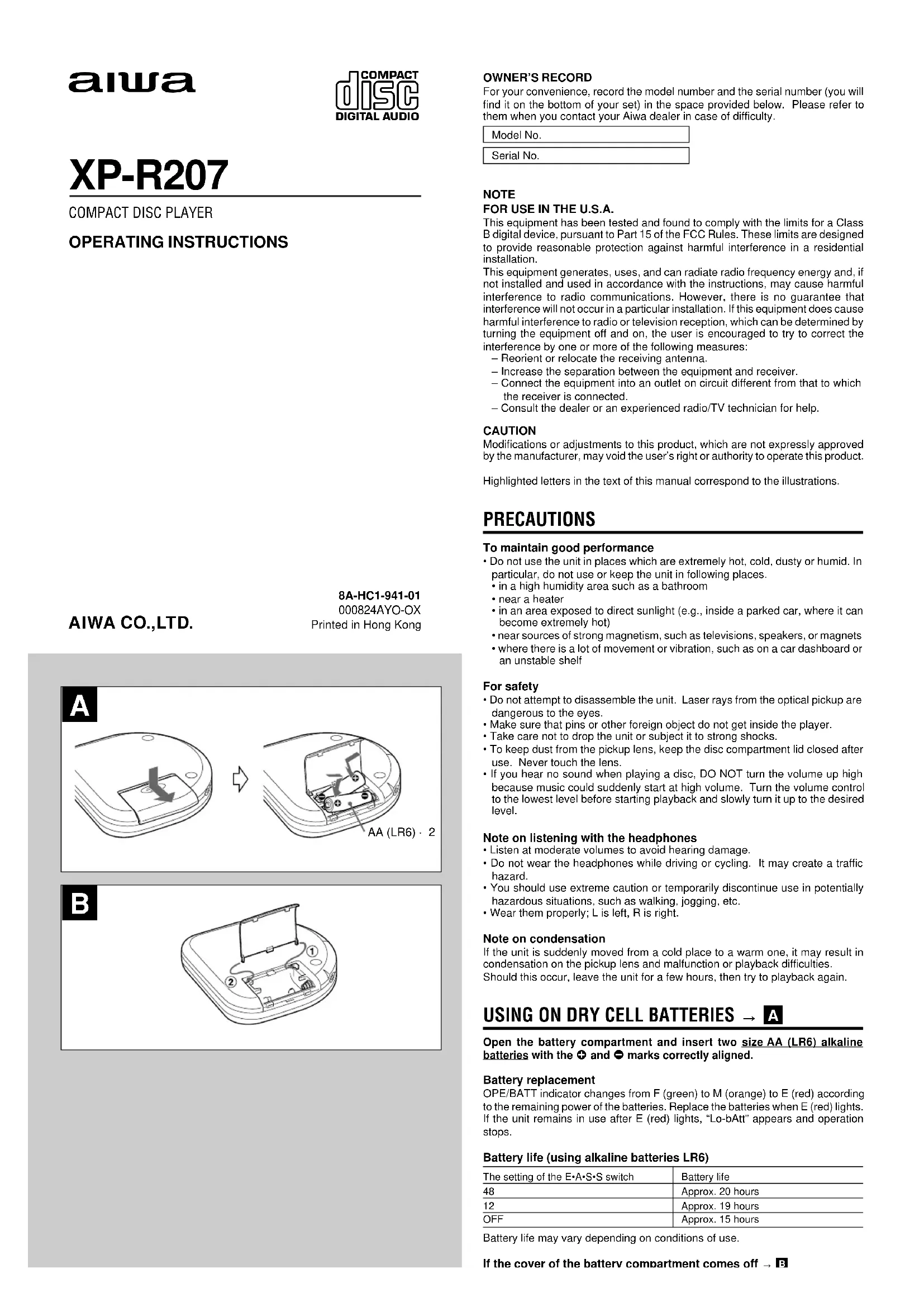

OWNER’S RECORDFor your convenience, record the model number and the serial number (you willfind it on the bottom of your set) in the space provided below. Please refer tothem when you contact your Aiwa dealer in case of difficulty.Model No.Serial No. NOTE FOR USE IN THE U.S.A.This equipment has been tested and found to comply with the limits for a ClassB digital device, pursuant to Part 15 of the FCC Rules. These limits are designedto provide reasonable protection against harmful interference in a residentialinstallation.This equipment generates, uses, and can radiate radio frequency energy and, ifnot installed and used in accordance with the instructions, may cause harmfulinterference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does causeharmful interference to radio or television reception, which can be determined byturning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures:– Reorient or relocate the receiving antenna.– Increase the separation between the equipment and receiver.– Connect the equipment into an outlet on circuit different from that to whichthe receiver is connected.– Consult the dealer or an experienced radio/TV technician for help.CAUTIONModifications or adjustments to this product, which are not expressly approvedby the manufacturer, may void the user’s right or authority to operate this product.Highlighted letters in the text of this manual correspond to the illustrations. PRECAUTIONS To maintain good performance• Do not use the unit in places which are extremely hot, cold, dusty or humid. Inparticular, do not use or keep the unit in following places.• in a high humidity area such as a bathroom• near a heater• in an area exposed to direct sunlight (e.g., inside a parked car, where it canbecome extremely hot)• near sources of strong magnetism, such as televisions, speakers, or magnets• where there is a lot of movement or vibration, such as on a car dashboard oran unstable shelfFor safety• Do not attempt to disassemble the unit. Laser rays from the optical pickup aredangerous to the eyes.• Make sure that pins or other foreign object do not get inside the player.• Take care not to drop the unit or subject it to strong shocks.• To keep dust from the pickup lens, keep the disc compartment lid closed afteruse. Never touch the lens.• If you hear no sound when playing a disc, DO NOT turn the volume up highbecause music could suddenly start at high volume. Turn the volume controlto the lowest level before starting playback and slowly turn it up to the desiredlevel.Note on listening with the headphones• Listen at moderate volumes to avoid hearing damage.• Do not wear the headphones while driving or cycling. It may create a traffichazard.• You should use extreme caution or temporarily discontinue use in potentiallyhazardous situations, such as walking, jogging, etc.• Wear them properly; L is left, R is right.Note on condensationIf the unit is suddenly moved from a cold place to a warm one, it may result incondensation on the pickup lens and malfunction or playback difficulties.Should this occur, leave the unit for a few hours, then try to playback again.

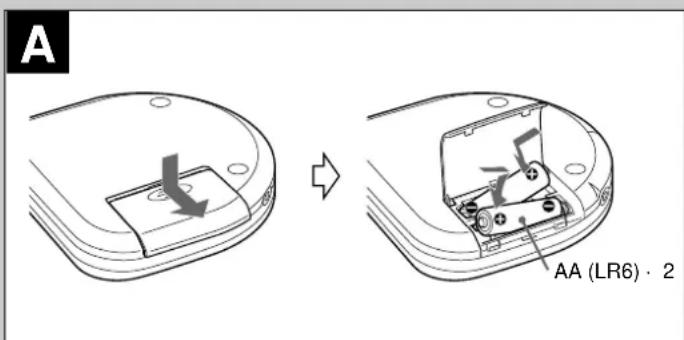

USING ON DRY CELL BATTERIES → A

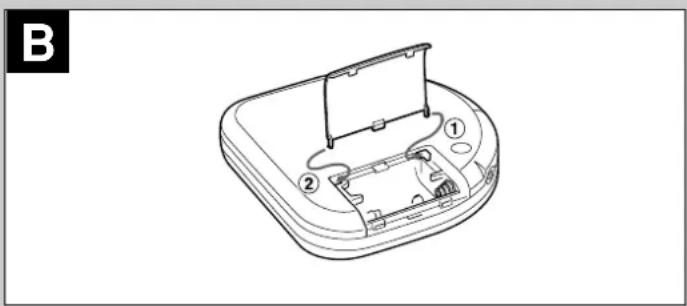

Open the battery compartment and insert two size AA (LR6) alkaline batteries with the 0 and 9 marks correctly aligned. Battery replacementOPE/BATT indicator changes from F (green) to M (orange) to E (red) accordingto the remaining power of the batteries. Replace the batteries when E (red) lights.If the unit remains in use after E (red) lights, “Lo-bAtt” appears and operationstops.Battery life (using alkaline batteries LR6)Battery life may vary depending on conditions of use. If the cover of the battery compartment comes off → B

The setting of the E•A•S•S switch Battery life 48 Approx. 20 hours 12 Approx. 19 hours OFF Approx. 15 hourshazard.

• You should use extreme caution or temporarily discontinue use in potentially hazardous situations, such as walking, jogging, etc.

• Wear them properly; L is left, R is right. Note on condensation If the unit is suddenly moved from a cold place to a warm one, it may result in condensation on the pickup lens and malfunction or playback difficulties. Should this occur, leave the unit for a few hours, then try to playback again.

USING ON DRY CELL BATTERIES → A

Open the battery compartment and insert two size AA (LR6) alkaline batteries with the 0 and 9 marks correctly aligned. Battery replacement OPE/BATT indicator changes from F (green) to M (orange) to E (red) according to the remaining power of the batteries. Replace the batteries when E (red) lights. If the unit remains in use after E (red) lights, “Lo-bAtt” appears and operation stops. Battery life (using alkaline batteries LR6) Battery life may vary depending on conditions of use. If the cover of the battery compartment comes off → B Note on dry cell batteries

• Make sure that the 0 and 9 marks are correctly aligned.

• Do not mix the different types of batteries, or an old battery with a new one.

• To prevent the risk of electrolyte leakage or explosions, never recharge the batteries, apply heat to them, or take them apart.

• When not using the batteries, remove them to prevent needless battery wear.

• If liquid leaks from the batteries, wipe thoroughly to remove.

The setting of the E•A•S•S switch Battery life 48 Approx. 20 hours 12 Approx. 19 hours OFF Approx. 15 hoursUSING ON RECHARGEABLE BATTERIES → C

• Be sure to use size AA Ni-Cd 1.2 V 700 mAh rechargeable batteries, which arecommercially available.• Be sure to read the instructions of the purchased rechargeable batteries before use.

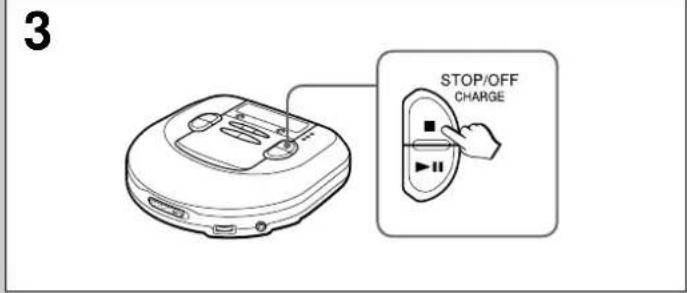

• When using on rechargeable batteries for the first time, charge them until thebattery indicator goes out.• Before charging the batteries, close the disc compartment. You cannot chargethe batteries while it is opened. 1 Insert the rechargeable batteries with the 0 and 9 marks correctly aligned.2 Connect the AC adaptor.1 to DC 5 ~ 6 V jack2 to a wall outlet 3 Keep sSTOP/OFF/CHARGE pressed for about 1 second to start charging. “C-On” appears, and OPE/BATT indicator blinks.When charging is completed, “C-OFF” flashes a few times, and OPE/BATTindicator goes out.After charging, disconnect the AC adaptor. Time to recharge the batteries Recharge the batteries when E (red) lights. If the unit remains in use after E(red) lights, “Lo-bAtt” appears and the current operation stops. To stop charging Press sSTOP/OFF/CHARGE during charging. ATTENTION: The product you have purchased can be powered bynickel cadmium batteries which is recyclable. At theend of their useful life, under various state and locallaws, it is illegal to dispose of these batteries into yourmunicipal waste stream.Please call 1-800-289-2492 for information on how torecycle these batteries.

USING ON AC HOUSE CURRENT

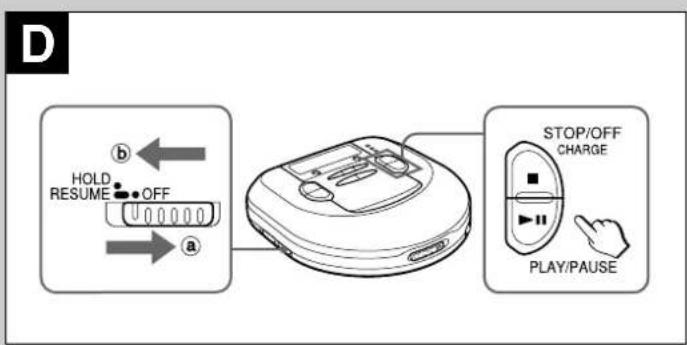

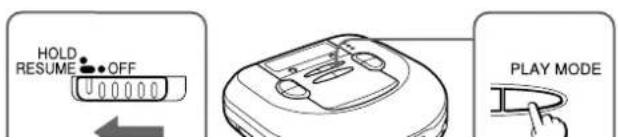

Connect the supplied AC adaptor in the same way as when recharging thebatteries.During operation on AC house current, all of OPE/BATT indicators light. BEFORE PLAYBACK HOLD switch → D Release the HOLD switch before playback. → a When not using the unit, set the HOLD switch to the HOLD position. → b Accidentally pressed button will not function.If buttons are pressed when the HOLD switch is set to the HOLD position, “HOLd”flashes in the display. Turning on and off → D Turning the power on Press ePLAY/PAUSE. Power is turned on and playback starts. Note “Err” appears on the display when you play a disc placed upside-down or adefective disc. Turning the power off If no new operations are done within 30 seconds from the end of last operation,the power is turned off automatically. (Auto power off function)

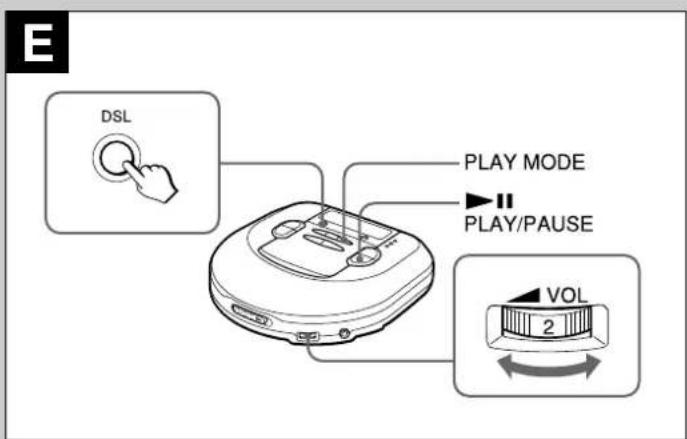

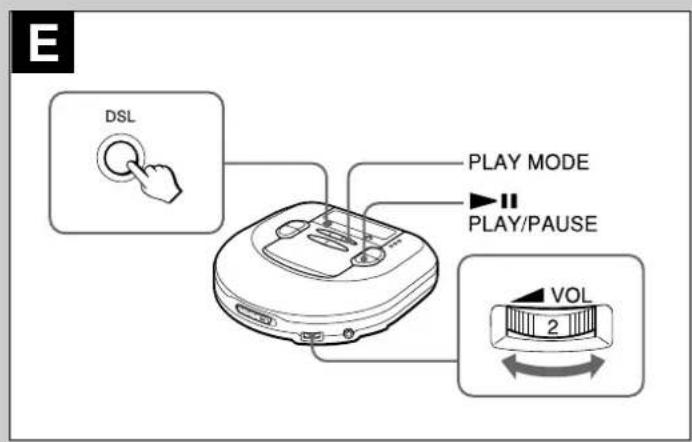

• You can turn off the power by pressing sSTOP/OFF/CHARGE before it is automatically turned off. Standby mode → D When an operation finishes, the unit goes into standby mode until the auto poweroff function automatically turns off the power. To enter standby mode, press ePLAY/PAUSE to start playback, then press sSTOP/OFF/CHARGE. Adjusting the sound → E Volume Turn the VOL control to adjust the volume. DSL Press DSL repeatedly for more powerful sound and deeper bass. : Deep bass is emphasized. : Deep bass is strongly emphasized. : Normal sound Signal sound function You can check the operation by beep sound when you press an operation button.The signal sound function is not activated when you purchase this unit.To use the signal sound function, press ePLAY/PAUSE while pressing PLAYMODE while in stop mode. The beep sound is heard when you press a button. To cancel the beep sound, repeat this procedure.

GXP-R207 (AU) E Page 1 defective disc. Turning the power off If no new operations are done within 30 seconds from the end of last operation,the power is turned off automatically. (Auto power off function)

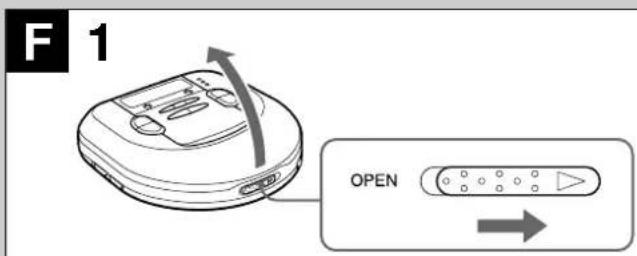

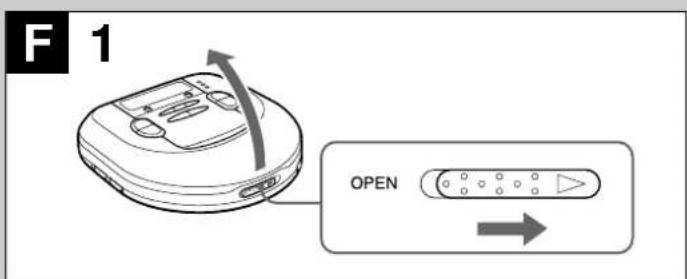

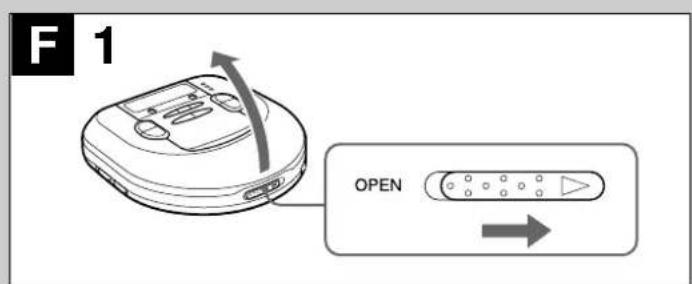

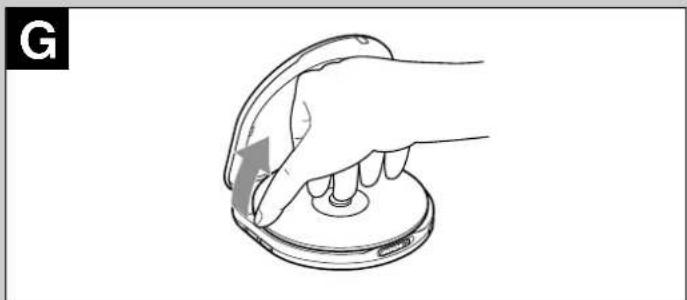

• You can turn off the power by pressing sSTOP/OFF/CHARGE before it is automatically turned off. Standby mode → D When an operation finishes, the unit goes into standby mode until the auto poweroff function automatically turns off the power. To enter standby mode, press e PLAY/PAUSE to start playback, then press sSTOP/OFF/CHARGE. Adjusting the sound → E Volume Turn the VOL control to adjust the volume. DSL Press DSL repeatedly for more powerful sound and deeper bass. : Deep bass is emphasized. : Deep bass is strongly emphasized. : Normal sound Signal sound function You can check the operation by beep sound when you press an operation button.The signal sound function is not activated when you purchase this unit.To use the signal sound function, press ePLAY/PAUSE while pressing PLAYMODE while in stop mode. The beep sound is heard when you press a button.To cancel the beep sound, repeat this procedure. Inserting a disc → F 1 Slide the OPEN switch to open the disc compartment.2 Place a disc in the center with the label side facing up.3 Close the disc compartment. To remove the disc → G Pick up the disc, holding its edge, while pressing the pivot gently. Note
• The unit may not play a CD-R/RW disc that is recorded on personal computersor some kinds of CD-R/RW recorders because of differences in recordingplatforms.• Do not attach any seal or label to either side (the recordable side or the labeledside) of a CD-R/RW disc. It may cause malfunction.

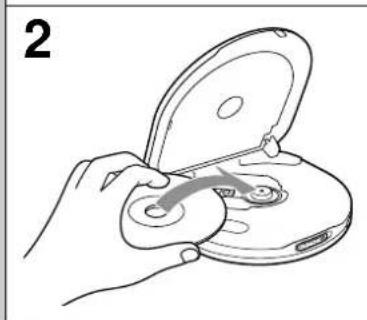

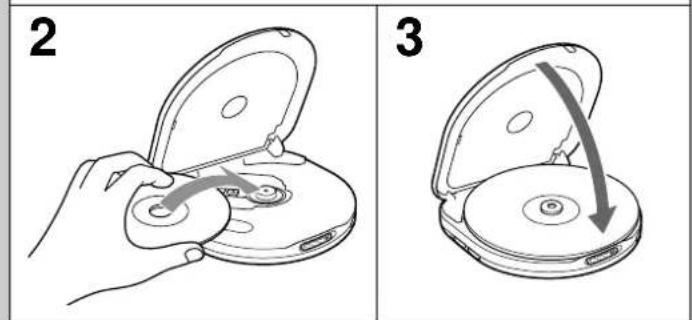

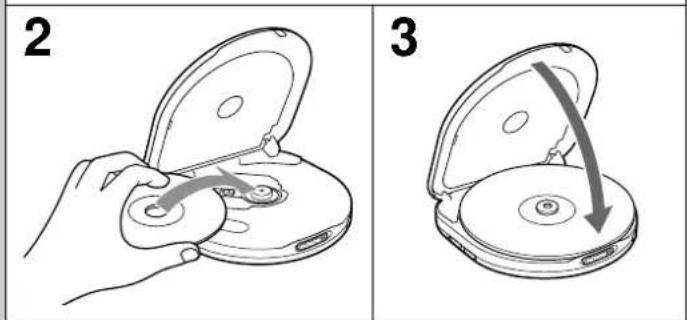

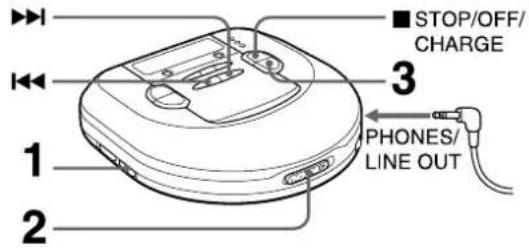

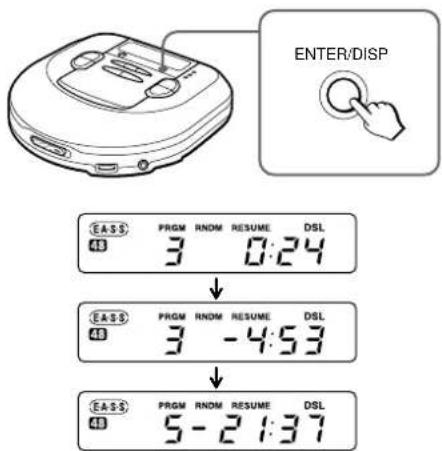

PLAYBACK → H Connect the supplied headphones to the PHONES/LINE OUT jack.1 Release HOLD.2 Place a disc.3 Press ePLAY/PAUSE.Playback starts from the first track.a track numberb elapsed playing time Basic operation Display during playback → I Press ENTER/DISP during playback to change the display as follows.1 Track display and elapsed playing time (normal display) 2 Track display and remaining playing time of the track in play 3 Remaining number of tracks and remaining playing timeThe time is not displayed in following cases.• When trying to program tracks beyond No.32.• When the total remaining time of the programmed tracks is over 100 minutes. E•A•S•S PLUS (Electronic Anti-Shock System) → J The E•A•S•S PLUS function reduces skipping or muting of the sound when theunit is subjected to shocks.The player keeps about 48 seconds or 12 seconds of playback sound in itsmemory.To keep 48 seconds in the memory, set the E•A•S•S switch to 48.To keep 12 seconds in the memory, set the E•A•S•S switch to 12.To cancel the E•A•S•S PLUS function, set the E•A•S•S switch to OFF. Note

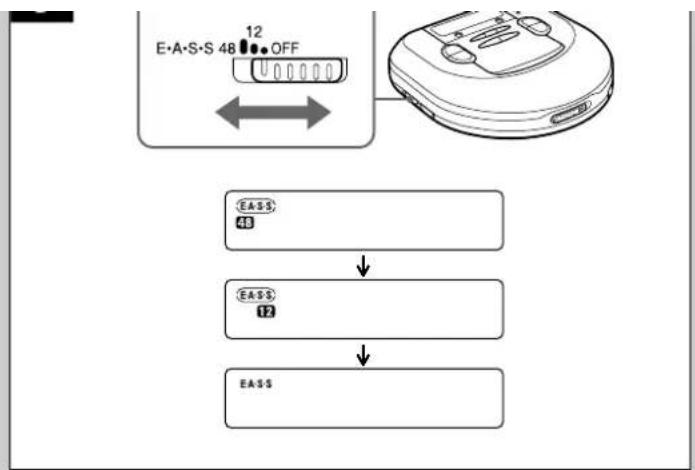

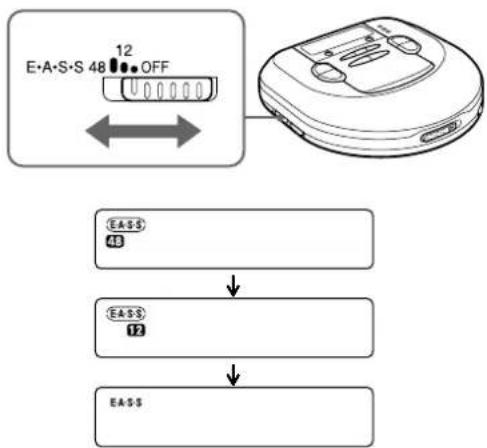

• Before jogging with this unit, allow sufficient time for the memory buffer to fill upcompletely (ideally 40 to 48 seconds).Continuous shock or vibration may cause the sound to be interrupted even ifthe E•A•S•S PLUS function is activated. This is normal and not a malfunction.Should you experience an interruption in sound, stabilize the unit for a fewseconds, then resume your activity.• When the E•A•S•S switch is slid during playback, the unit will pause for about2 seconds.• When you set the E•A•S•S switch to the 12 or OFF position, the quality of thesound will be better than the case that you set it to the 48 position. Resume function → K Set the HOLD switch to RESUME. appears, and you can start playback from the point where you stoppedplayback by pressing sSTOP/OFF/CHARGE.When the resume function is on, all-track repeat is selected automatically.To cancel resume play, set the HOLD switch to OFF. Note
• Resume play may start at a point about 30 seconds behind or ahead the stoppedpoint. Resume play may not operate if you stopped at the last 30 seconds ofthe final track.• Resume play will be canceled if you open the disc compartment. If the unit isturned off, resume play will not be canceled. In this case, be sure to set theHOLD switch to OFF before changing discs. Random play → K Press PLAY MODE while in standby mode to display .Tracks on the disc are played in random order.To cancel random play, press PLAY MODE while in standby mode. display changes to . Note

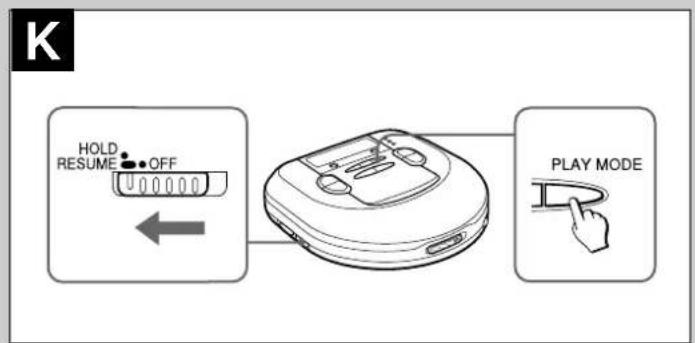

• You cannot back to previous track by pressing r during random play.• You cannot select one-track repeat during random play. Repeat play → K Press PLAY MODE during playback to select repeat play as follows. : one-track repeat

: all-track repeat no repeat play (normal play)

• Resume play may start at a point about 30 seconds behind or ahead the stoppedpoint. Resume play may not operate if you stopped at the last 30 seconds ofthe final track.• Resume play will be canceled if you open the disc compartment. If the unit isturned off, resume play will not be canceled. In this case, be sure to set theHOLD switch to OFF before changing discs. Random play → K Press PLAY MODE while in standby mode to display .Tracks on the disc are played in random order.To cancel random play, press PLAY MODE while in standby mode. display changes to . Note
• You cannot back to previous track by pressing r during random play.• You cannot select one-track repeat during random play. Repeat play → K Press PLAY MODE during playback to select repeat play as follows. : one-track repeat

: all-track repeat no repeat play (normal play)

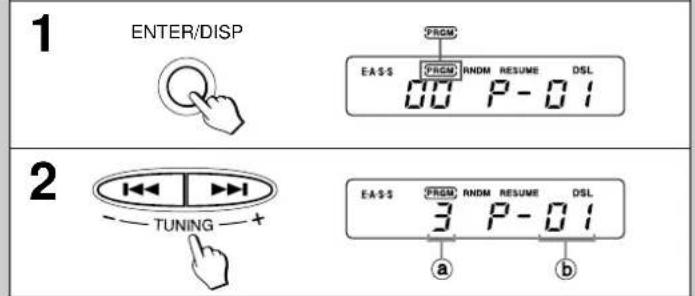

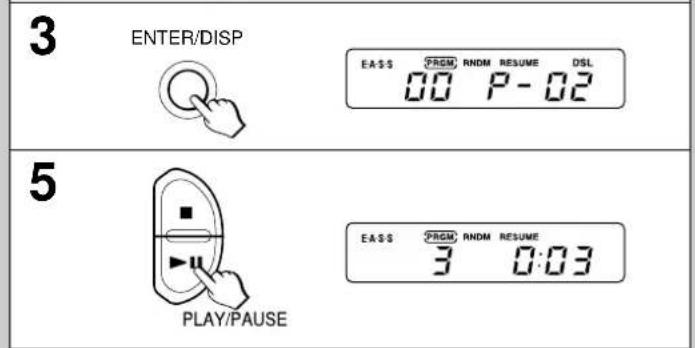

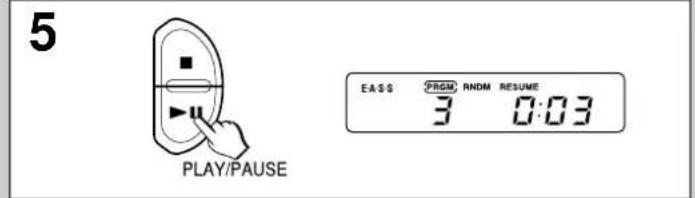

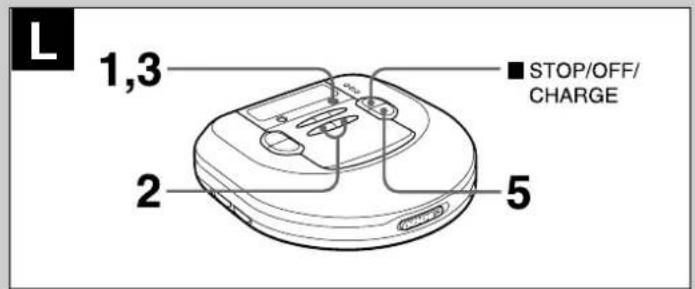

Up to 24 tracks can be chosen for program play.1 Press ENTER/DISP while in standby mode to display . 2 Select the desired track by pressing r and t. a track numberb program number3 Press ENTER/DISP within 8 seconds.If it is not pressed within 8 seconds, the track number changes to 00. Repeatthe procedure from step 2 again.4 Repeat steps 2 and 3 to program more tracks.5 Press ePLAY/PAUSE to start program play. To stop program play Press sSTOP/OFF/CHARGE. To add tracks to the program Repeat steps 2 and 3 before you proceed to step 5. You can add tracks to theend of the program. To erase the program Press sSTOP/OFF/CHARGE while in standby mode. To check the programmed tracks Press ENTER/DISP repeatedly before you proceed to step 5.The number of each programmed track will be displayed in order of playback. Note

• The program is also erased when the disc compartment is opened or the autopower off function turns the power off.• When 24 tracks are programmed, “P-FULL” appears, and no more tracks maybe added.• You cannot back to the previous track by holding r pressed during programplay.• Repeat play and random play can be performed during program play.

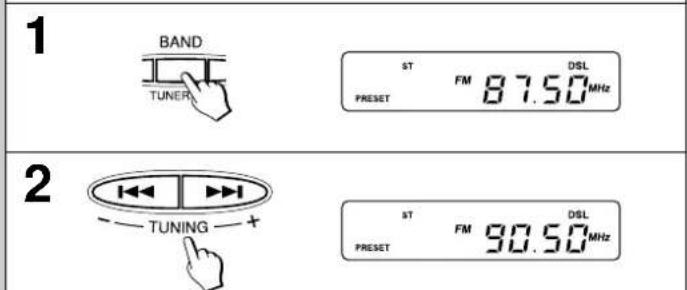

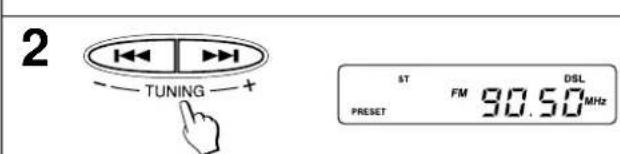

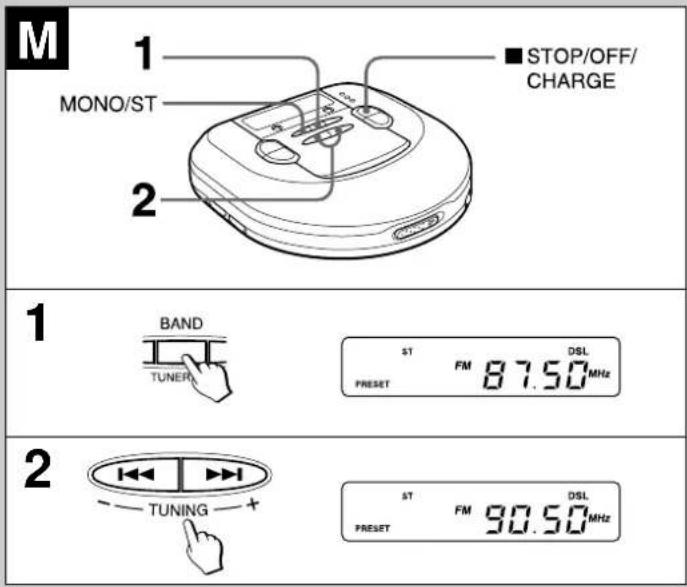

5RADIO RECEPTION Tuning in to a station → M 1 Press TUNER ON/BAND repeatedly to select AM or FM. 2 Press TUNING + (t) or - (r) to tune in to a station. After listening, press sSTOP/OFF/CHARGE to turn off the radio. For quick tuning Keep either TUNING + (t) or - (r) pressed for about 1 second. When a station is tuned in to, the frequency stops automatically. However, it does notstop if the broadcast signal is weak. For better reception → N FM: The headphone cord functions as the FM antenna. Keep it extended.AM: Turn the unit to find the position which gives the best reception. To listen to an FM stereo broadcasting When a tuned in station is in stereo, ST changes to .When the FM stereo signal is weak and distorted, press MONO/ST. ST goes outand the sound will be heard in monaural but distortion will be reduced. Note

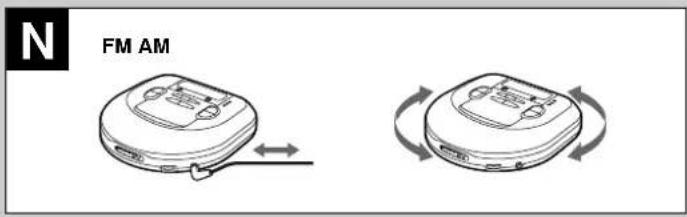

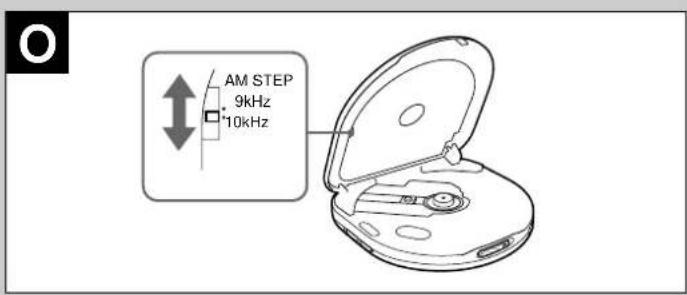

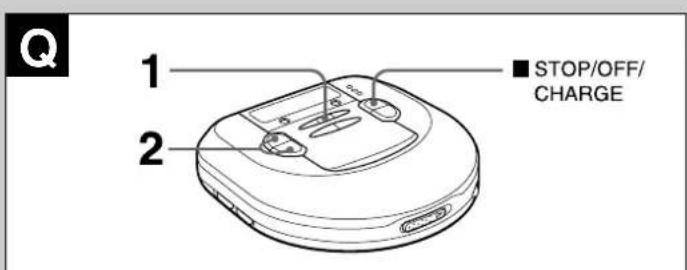

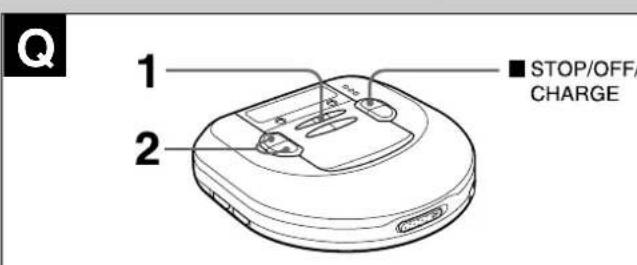

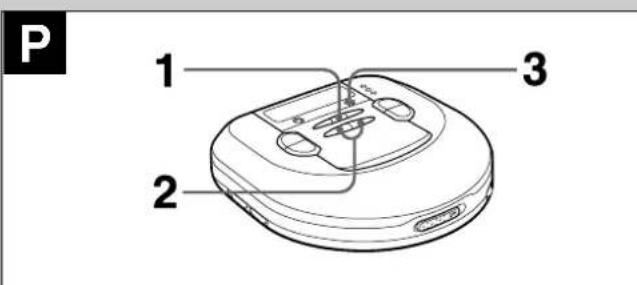

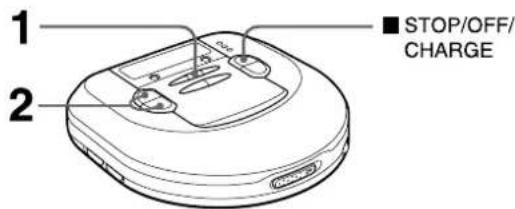

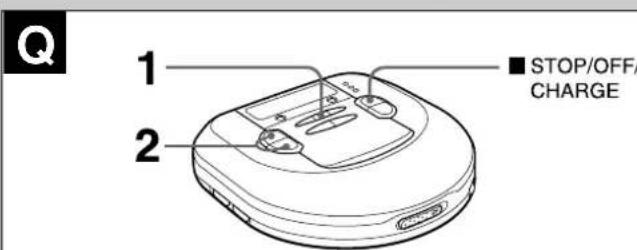

• Do not open the disc compartment during radio reception. The buttons will bedeactivated.• The power is turned off automatically if no operation is made after 180 minutesfrom the last operation during radio reception. AM steps → O Radio broadcasts have different frequency ranges and changes in different stepsin different countries.This unit is factory-set to 10 kHz steps on AM. When using the unit where the AMstep changes to 9 kHz, set the AM STEP switch on the inner side of the disccompartment to 9 kHz.• When the AM step is changed, stations that you preset are erased. Presetting stations → P You can preset up to total of 30 stations on AM and FM.1 Press TUNER ON/BAND repeatedly to select AM or FM. 2 Press TUNING + (t) or - (r) to tune in to a station. 3 Press ENTER/DISP to preset the station.a Preset numberTo preset more stations, repeat steps 2 and 3. Listening to preset stations → Q 1 Press TUNER ON/BAND repeatedly to select AM or FM.2 Press PRESET CALL

repeatedly to select the preset number.After listening, press sSTOP/OFF/CHARGE to turn off the radio. Changing the presetting 1 Press PRESET CALL

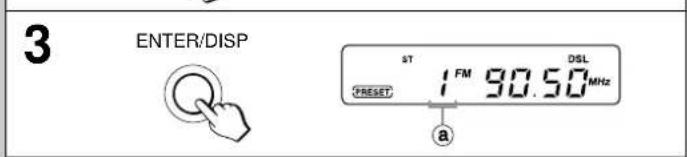

repeatedly to select the preset number youwish to change.2 Keep ENTER/DISP pressed for 1 or more seconds until the preset numberand the frequency flash. 3 While the preset number is flashing, press TUNING + (t) or - (r) to tune in to a station.4 Press ENTER/DISP to preset the station on the selected preset number.If the flashing stops, repeat the procedure from step 2. Erasing the presettings one by one Press sSTOP/OFF/CHARGE after step 2 in “Changing the presetting” above. Each preset station is erased. All the settings move up by one and the presetnumbers are refreshed. Erasing all of the presetting Keep ENTER/DISP pressed, then press TUNER ON/BAND when the frequencyand preset number starts flashing.

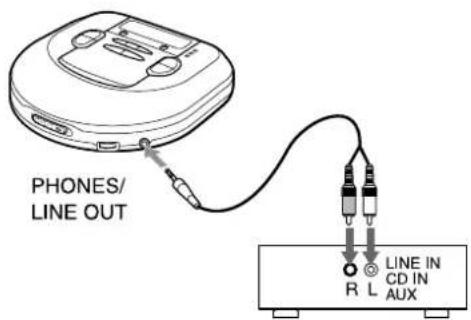

CONNECTING TO AN EXTERNAL UNIT → R

Use a commercially available connection cord which has a 3.5 ø stereo mini-plug at one end and two phono plugs at the other end.Connect the stereo mini-plug to the PHONES/LINE OUT jack of the unit andconnect the phono plugs to the analog input terminals of the external unit. Note

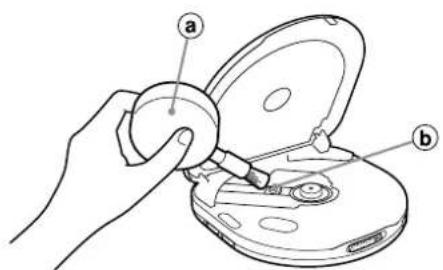

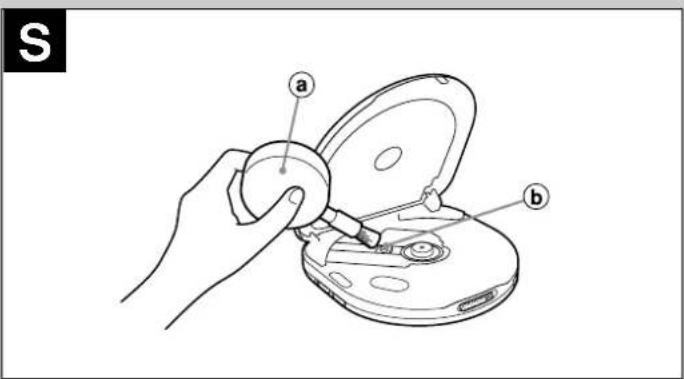

• Turn off the power of both units before connection.• DO NOT connect to the PHONO inputs of an amplifier (with a built-inphonoequalizer-amplifier).• Adjust the volume and DSL on this unit. MAINTENANCE To clean the lens → S If the lens becomes dirty, the player will skip or not play. If this occurs, clean thelens in the following manner. To remove dust or dry particles, first use a camera lens blower/brush a to blow a few times to loosen particles, then gently brush the lens b clean. Finish byblowing the lens again.To remove fingerprints use a cotton swab dipped in lens cleaning solution Wipe

Each preset station is erased. All the settings move up by one and the presetnumbers are refreshed.Erasing all of the presettingKeep ENTER/DISP pressed, then press TUNER ON/BAND when the frequencyand preset number starts flashing.

CONNECTING TO AN EXTERNAL UNIT → R

Use a commercially available connection cord which has a 3.5 ø stereo mini-plug at one end and two phono plugs at the other end.Connect the stereo mini-plug to the PHONES/LINE OUT jack of the unit andconnect the phono plugs to the analog input terminals of the external unit. Note

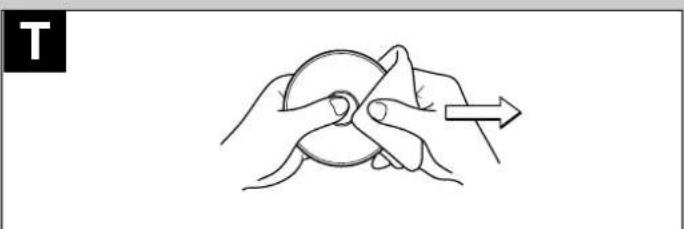

• Turn off the power of both units before connection.• DO NOT connect to the PHONO inputs of an amplifier (with a built-inphonoequalizer-amplifier).• Adjust the volume and DSL on this unit. MAINTENANCE To clean the lens → S If the lens becomes dirty, the player will skip or not play. If this occurs, clean thelens in the following manner. To remove dust or dry particles, first use a camera lens blower/brush a to blow a few times to loosen particles, then gently brush the lens b clean. Finish byblowing the lens again.To remove fingerprints, use a cotton swab dipped in lens cleaning solution. Wipegently from the center to the edge. Lens cleaning solution is commerciallyavailable. Note Take care not to get too much solution on the swab, which could flow into the unitand cause damage.Pressing too strongly with the swab could scratch or break the lens. To clean the discs → T Before playing, wipe the disc from the center outward with a cleaning cloth. Afterplaying, store the disc in its case. SPECIFICATIONS Tracking system 3-beam laserLaser pickup Semiconductor laserD/A conversion 4-times oversampling digital filter + 1-bit DACFrequency response 20 – 20,000 Hz (47 k ohms)Output PHONES/LINE OUT jack (stereo mini-jack)Frequency range AM: 530/531 kHz – 1,710/1,602 kHz(10 kHz/9 kHz steps)FM: 87.5 – 108 MHzMaximum output 12 mW + 12 mW (16 ohms at 1 kHz)500 mV (47 k ohms at 1 kHz)Power supply DC 3 V using two size AA (LR6) alkalinebatteriesDC 2.4 V using two commercially available(Ni-Cd 1.2 V 700 mAh) rechargeable batteriesAC house current using the supplied AC adaptorMaximum outside dimensions 128 (W) × 31.2 (H) × 129.5 (D) mm (excluding projecting parts and controls)

/8 × 1 /4 × 5 /8 in.)Weight Approx. 225 g (7.9 oz.) excluding batteriesAccessories AC adaptor AC-D603 (1)Stereo headphones (1)AC adaptor AC-D603U Rated input: AC 120 V, 60 HzThe specifications and external appearance of this unit are subject to changewithout notice.
