Product type	Wood stove (fireplace)
Brand	Wamsler
Model	Hera (variants Orpheus, Rona, Luna, Prisma, Wega, Opus, Komet)
Nominal power	8 kW
Efficiency	> 78 %
Authorized fuel	Logs (max length 35 cm, humidity < 20 %)
Average flue gas temperature	350 °C
Minimum required draft	11 Pa
Flue gas mass flow	7 g/s
CO at 13% O₂	< 0.11 %
Dimensions (H × W × D)	H: 892-1502 mm, W: 550-870 mm, D: 400-737 mm (depending on variant)
Weight	108 to 206 kg depending on model
Flue connection diameter	150 mm
Firebox insulation material	Vermiculite (consumable boards)
Cladding material	Soapstone (natural, possible variations)
Construction standard	EN 13240:2005
Safety distance – front (radiation zone)	1 m minimum (reducible to 40 cm with screen)
Safety distance – back	20 cm minimum
Safety distance – sides	30 cm minimum
Floor protection	Non-combustible plate under the appliance and 50 cm in front, 30 cm on sides
Regular maintenance	Glass cleaning (special product), emptying ash pan, vacuuming ashes
Chimney sweeping	At least 2 times per year
Vermiculite board warranty	6 months against manufacturing defects
Combustion air supply	Indoor air + mandatory outdoor air supply (free cross-section ≥ 50 cm²)

Frequently Asked Questions - Hera Wamsler

What type of wood should be used in the Wamsler Hera stove?

Use only logs with a maximum length of 35 cm and a humidity level below 20%. Hardwoods (oak, beech, ash) are recommended. It is forbidden to burn treated wood, coal, waste, or wet wood.

How to properly light the stove?

Open the door and the primary air intake. Place paper or a firelighter (sulfur-free) on the grate, then small kindling and larger logs. Light it and close the door. Never use flammable liquid.

What to do if the glass gets dirty quickly?

This is often due to wood that is too wet or insufficient combustion. Use dry wood (<20% humidity) and heat more strongly before reducing the power. Also check the chimney draft.

What safety distance must I maintain around the stove?

In front of the stove (radiation zone): 1 m minimum (reducible to 40 cm with a protective screen). Back: 20 cm. Sides: 30 cm. The floor must be protected by a non-combustible plate extending 50 cm in front and 30 cm on the sides.

Is it mandatory to install an outdoor air intake?

Yes, it is mandatory. The stove uses room air; an outdoor air intake (free cross-section ≥ 50 cm²) is necessary to avoid negative pressure and risks of carbon monoxide.

How to maintain the stove glass?

Use a special product for wood stove glass. Clean only the inner side of the glass. Avoid spraying product on painted parts. Dry wood and lively combustion help keep the glass clean longer.

What to do in case of odor or smoke during first use?

This is normal: the paint cures and oil residues evaporate. Heat the stove at reduced power for a few hours, then at nominal power for a few more hours. Ventilate the room well during this phase.

Can I burn coal or lignite in this stove?

No, only logs are allowed. Using any other fuel, including briquettes, may damage the appliance and void the warranty.

How to adjust the primary air intake?

Adjustment is made via the primary air selector (see figure in the manual). For lighting: open fully. For nominal power: intermediate position. For reduced mode: partially close. Never operate with the door open.

What annual maintenance is recommended?

At the end of the season, empty the firebox and ash pan, close the door and air inlets. Have the chimney flue swept at least twice a year. Have the entire system checked by a professional before each heating season.

USER MANUAL Hera Wamsler

GFireplace user instruction

Line drawing of a simple open box with internal compartments and a handle (no text or symbols)

KF 101-O...

Line drawing of a simple kitchen sink with a lid and door (no text or symbols)

KF 101 KOMET

Line drawing of a cylindrical device with internal compartments and a lid (no text or symbols)

KF 101-R...

Line drawing of a traditional arched structure with internal compartments and a handle (no text or symbols)

KF 101-L...

Line drawing of a simple 3D cabinet with lid and door, showing internal compartments and ventilation slots (no text or symbols)

KF 101 WEGA

Technical line drawing of a mechanical cabinet or enclosure with internal compartments and a central hub (no text or symbols)

KF 101-P...
KF 101-P ECK
KF 101 OPUS

Vorwort

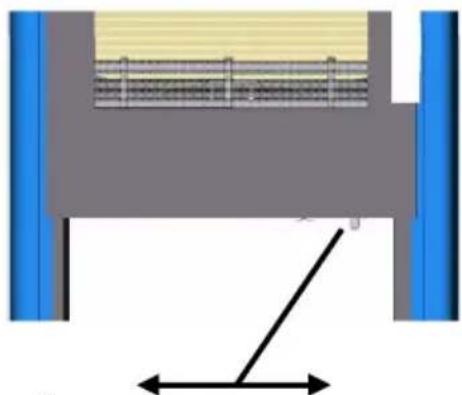

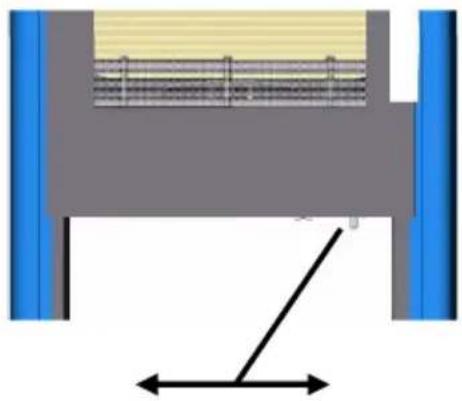

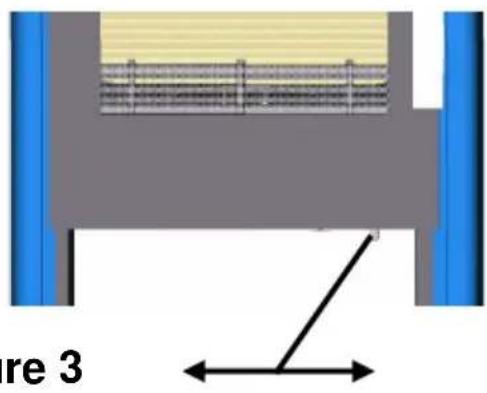

Diagram of a door or cabinet with a curved arrow indicating rotation or movement (no text or symbols present)

Bild 2

K H

Bild 3

Pure mechanical assembly diagram showing a structural component with blue and gray parts and a central spring-like structure (no text or symbols)

3D diagram of a mechanical assembly with arrows indicating direction (no text or symbols)

Bild 4

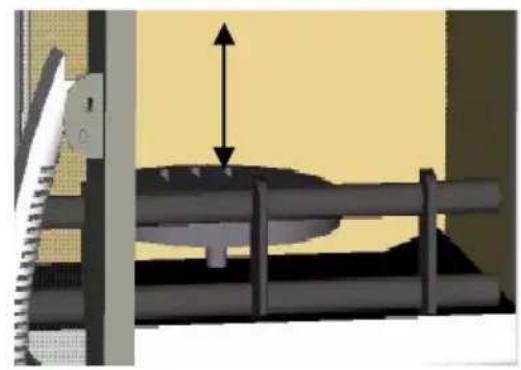

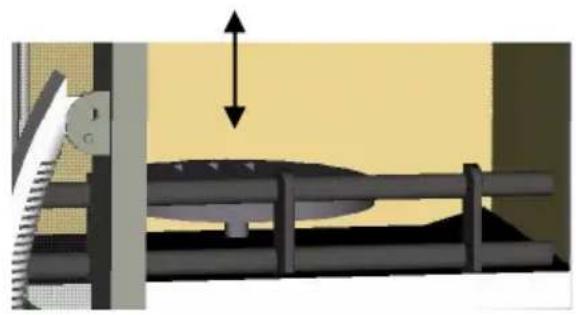

Mechanical assembly diagram showing a piston and roller mechanism (no text or symbols)

Bild 5

Technical line drawing of a mechanical assembly with cross-section hatching and dimension lines (no text or symbols)

Bild 6
entfernen

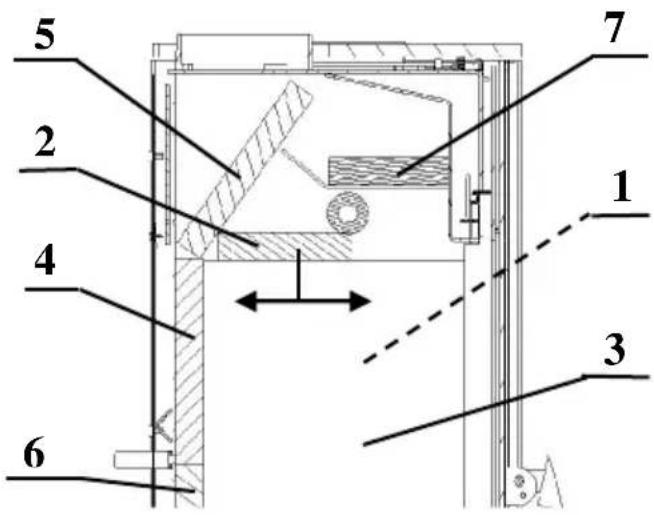

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating movement or force.

Bild 7

Thank you for choosing our product!

By purchasing this product you receive guarantee for

• good quality originating from the usage of the finest and proven materials,
- operating security which is controlled according to German and European norms (Corresponds to the standards DIN 18891 Construction Shape 1 and EN 13240.),

- long life ensured by the robust structure.

In order to be able to use your new fireplace for a long time please read the following instructions manual. You will find all the necessary information in it and some additional advice.

ATTENTION! It is necessary to quote the article number and the serial number on the model plate when ordering parts!

Contents

Foreword 18

Contents 18

SAFETY INSTRUCTIONS.... 19

1. Usage 21

1.1 Structure of the equipment 21
1.2 Installation.... 22
1.3 Putting out of operation.... 23
1.4 Heating instructions 23
1.5 Cleaning and maintenance 24
1.6 Potential problems and how to tackle them.... 26

1. Placing.... 27

2.1 Prescriptions.... 27
2.2 Place of installation.... 27
2.3 Distances 27
2.4 Connection of the fireplace.... 28

1. Technical specification .... 30

3.1 Dimensional drawings.... 30
3.2 Dimension.... 31
3.3 EC Declaration of Conformity 33

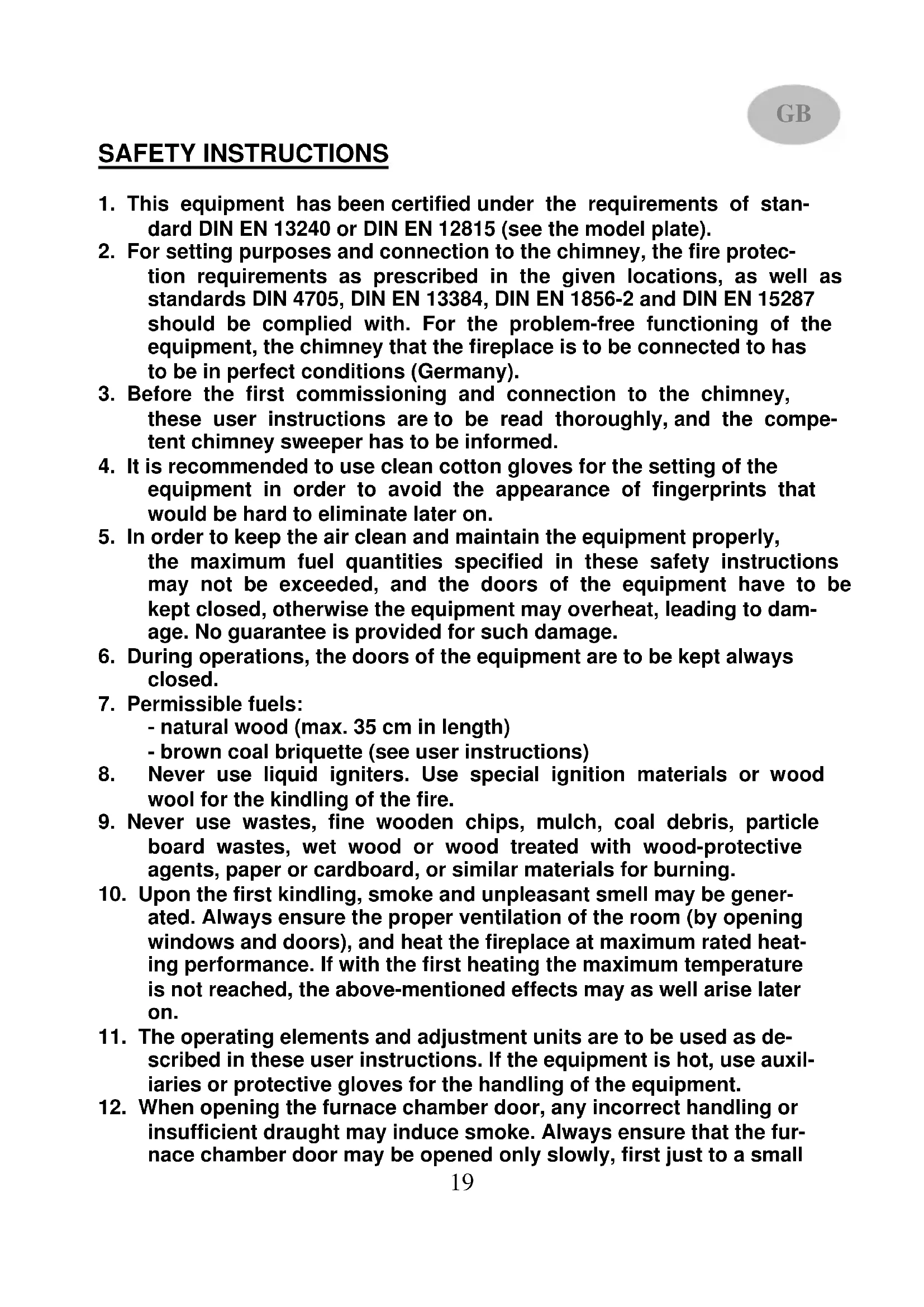

SAFETY INSTRUCTIONS

1. This equipment has been certified under the requirements of standard DIN EN 13240 or DIN EN 12815 (see the model plate).
2. For setting purposes and connection to the chimney, the fire protection requirements as prescribed in the given locations, as well as standards DIN 4705, DIN EN 13384, DIN EN 1856-2 and DIN EN 15287 should be complied with. For the problem-free functioning of the equipment, the chimney that the fireplace is to be connected to has to be in perfect conditions (Germany).
3. Before the first commissioning and connection to the chimney, these user instructions are to be read thoroughly, and the competent chimney sweeper has to be informed.
4. It is recommended to use clean cotton gloves for the setting of the equipment in order to avoid the appearance of fingerprints that would be hard to eliminate later on.
5. In order to keep the air clean and maintain the equipment properly, the maximum fuel quantities specified in these safety instructions may not be exceeded, and the doors of the equipment have to be kept closed, otherwise the equipment may overheat, leading to damage. No guarantee is provided for such damage.
6. During operations, the doors of the equipment are to be kept always closed.
7. Permissible fuels:
8. natural wood (max. 35 cm in length)
9. brown coal briquette (see user instructions)
10. Never use liquid igniters. Use special ignition materials or wood wool for the kindling of the fire.
11. Never use wastes, fine wooden chips, mulch, coal debris, particle board wastes, wet wood or wood treated with wood-protective agents, paper or cardboard, or similar materials for burning.
12. Upon the first kindling, smoke and unpleasant smell may be generated. Always ensure the proper ventilation of the room (by opening windows and doors), and heat the fireplace at maximum rated heating performance. If with the first heating the maximum temperature is not reached, the above-mentioned effects may as well arise later on.
13. The operating elements and adjustment units are to be used as described in these user instructions. If the equipment is hot, use auxiliaries or protective gloves for the handling of the equipment.
14. When opening the furnace chamber door, any incorrect handling or insufficient draught may induce smoke. Always ensure that the furnace chamber door may be opened only slowly, first just to a small

extent, and then fully after a few seconds. In addition, if you intend to put additional fuel into the fire, before the opening of the door only there may be only ember bed in the burning space, i.e. no flames may be visible.

1. In heating mode, the surfaces, inspection glasses and handles may become very hot. Warn children of these threats, and keep them away from the fireplace when heated.

2. Ensure that the ashtray should be fully inserted, and in particular never remove hot ash from the fireplace (fire risk).

3. In transitional periods, chimney draught may drop, resulting in the imperfect suction of the generated flue gases. In such cases, the fireplace is to be filled with smaller quantities of fuel, preferably wooden chips or wood wool, and it is to be commissioned under control with the stabilization of the chimney draught. The fire grate should always be kept clean.

4. After the heating season, it is recommended to have the equipment inspected by an expert. It is also advisable to clean the routes of flue gases and pipes.

5. Should repairs or reconditioning be needed, please, contact your dealer in a timely manner with the accurate specification of the article and serial number. Only original Wamsler parts may be used.

6. As the air needed for burning is drawn from the room where the fireplace is located, ensure that sufficient air supply is received via the gaps by the windows and external doors. Make sure that 4 m^3 of air should be provided to each kW of rated performance. For this fireplace, it means that the room has to be at least 32 m^2 in volume. If the room is smaller, sufficient air supply can be secured by opening air connections to other rooms with air openings (at least 150 cm^2 ).

7. Ensure to keep proper lateral and rear distances from combustible parts and materials. The associated values are specified in these user instructions or the model plate.

8. The fireplace may not be modified.

9. The connection of the fireplace to the chimney is not permissible if the effective height of the chimney is less than 4 m, or 5 m with multiple loading. To the chimney that the fireplace uses, a maximum of two other fireplaces, ovens may be connected.

10. In the event of any chimney fire, immediately close all the openings of the equipment, and call the fire service. Never try to extinguish the fire with water. Thereafter, always have the chimney inspected by an expert.

1. Usage

1.1 Structure of the equipment

Fuel selector Model plate on the rear wall Smoke tube end Furnace chamber door Furnace chamber walling Door knob Ash bin Primary air regulator Fuel storage 21

1.2 Installation

Fuels

The equipment can be used with fuels detailed in the followings. This way the “low-smoke” and trouble-free operation can be secured. Use only dry wood with moisture of maximum 20%.

Types of fuels	Heating value appr. KJ/kg
Hard wood 19.500
Soft wood 14.600
Brown-coal 11.500

Filling quantities

-Split billet: max. length: 35 cm
max. 2 billets per filling, appr. 2,1 kg
-Lignite briquette: max. 2,2 kg

Fuel		Setting of the primary air regulator		Setting of the fuel selector
		KF 101 O, R, L, Wega	KF 101 P, Opus, Komet	KF 101 O, R, L, P, Opus, Wega, Komet
Warning up, kindling		III III		H
Wood	Nominal heating performance	II II		H
Brown-coal	Nominal heating performance	III III		K
Putting out of working order		I	I	K

Table 2

IT IS NOT ALLOWED to burn waste, fine chipping, bark, wood handled with preventive chemicals, furthermore paper and cardboard. For kindling please use wood scrapings or grill starter but never use liquid auxiliaries!

The first kindling

- At the first fire set-up could be a little smoke, but is not dangerous, normal! In this time, please ventilate the room carefully!

Warning! Upon the first kindling, smoke and unpleasant smell may be generated. Always ensure the proper ventilation of the room (by opening windows and doors), and heat the fireplace at maximum rated heating performance. If with the first heating the maximum temperature is not reached, the above-mentioned effects may as well arise later on.

- Before installation pull out the delivery securer off the refractory brick through the furnace chamber (picture no. 6). Open the door by raising the handle (Picture 2). If the equipment is hot, you can use insulated gloves. Adjust the primary air regulator and the fuel switch (Picture 3) according to the Table 2. Put coal lighter or wood wool onto the fire grate, followed by wood chips. First insert small pieces of wood, and then larger ones, light them and close the door again. When the wood burns quickly, and leaves sufficient glowing embers, put additional fuel on the fire. Thereafter, adjust the primary air regulator and the fuel switch according to the Table 2 („Adjustment of the burning air“). The first kindling should be performed “finely” with little fuel only, so that the parts of the fireplace be adapted to heat. During the first kindling, the generation of smell is normal and absolutely undangerous.

1.3 Putting out of operation

- Let the glowing ember burn to ashes and the fire-place get cold.

• Empty the furnace chamber and the ash bin.

- Close the doors, and shut off the primary air regulator (position I) and the fuel switch (position K).

1.4 Heating instructions

The fireplace should be operated only with closed furnace chamber door. Fireplaces belonging to type 1 have self-locking furnace chamber doors. These doors may be opened only for kindling, loading or when cleaning the furnace chamber (otherwise draught problems may occur with other equipment connected to the same chimney).

Warning!

When opening the furnace chamber door, any incorrect handling or insufficient draught may induce smoke. Always ensure that the furnace chamber door may be opened only slowly, first just to a small extent, and then fully after a few seconds. In addition, if you intend to put additional fuel into the fire, before the opening of the door only there may be only ember bed in the burning space, i.e. no flames may be visible.

Led into the burning space in correspondence with the existing conditions, the secondary air provides for the follow-up burning of the combustible components of in the burning space. This in fact means smoke and soot-poor burning, which contributes to the protection of the environment. If you wish to commission the fireplace in a transitional period, please, please first examine the chimney draught, as it can be especially weak at high external temperatures. Towards this end, hold a burning match in the slightly opened feeding door. If the flame is not drawn significantly by the draught, then a so-called starting fire is to be set first. Towards this end, burn wood chips/wool in the fireplace or the cleaning hole of the chimney. The fire grate is to be cleaned before every kindling to ensure the proper inflow of air for burning. The ashtray is to be emptied regularly (Figure 4). Should the equipment be extremely hot, use the gloves provided. Please, be careful not to dispose glowing materials into the waste bin.

Ensure that the ashtray should be fully pushed into the equipment.

Warning! In order to keep the air clean and safeguard the fireplace, do not exceed the specified maximum fuel quantity, otherwise overheating may occur, which potentially damage the equipment. Such damage is not covered with any guarantee. Only a single layer of fuel is allowable to be prepared in the fireplace. Try to reach lower heating performance only by decreasing the quantity of fuel, and not by cutting the primary air supply.

1.5 Cleaning and maintenance

After the heating season, it is recommended to clean the fireplace and the flue gas pipes carefully. Any dropping heating performance is almost always the consequence of the strong contamination of the flues. For cleaning, the baffle plate (Picture7) is to be pulled forward. This way, the flues can be cleaned from the inside or – after removing the flue gas pipe – from above. After cleaning, the baffle plate (Picture 7) is be pushed back fully again.

Warning!

Following every heating season you are advised to examine the fireplace thoroughly. If any repair or reconditioning is needed, please, contact your local dealer in a timely manner, and specify the model number and serial number of your equipment (as seen on the model plate). External surfaces may be maintained only after the fireplace cooled down, and following the first commissioning. Use cold water for cleaning, or soap, washing ingredient in extraordinary cases, then wipe it dry. Before its first use, clean the ROBAX inspection glass with a wet and clean cloth, and then put a few drops of glass-ceramics cleaner onto both sides of the glass, and spread them with the use of kitchen paper tissues. It provides an invisible film on the valuable surface of the Robax glass. This film helps to keep the glass clean, and facilitates regular cleaning operations. ROBAX S for slightly contaminated surfaces – a commercially available glass surface cleaning agent – may as well be used for the cleaning of the medium or strongly contaminated glass surfaces of the fireplace. Towards this end, spray small quantities of the agent to the cold surfaces, spread it, and wash it down with a wet cloth, followed by drying with a clean, soft cloth. In case there are sticky fuel deposits on these surfaces, first scale simply them with a ceramic-plate scraper held in flat angle, and then clean the surfaces as described above.

Cleaning of the ceramic surfaces dirt and grease are to be removed with soap and water.

Cleaning of the soapstone: the soapstone is a natural stone, therefore minor colour differences may occur; as it is normal, they may not serve as a basis for quality complaints! To clean the soapstone from dirt and fat with water and soap, as well as small scratches, use sand paper (grain size 240).

Warning: Under no circumstances you may use sponge, scouring, aggressive or scratching cleaning agents! If the grate is blocked so that the equipment cannot serve the intended function, the grate is to be removed for cleaning.

Exterior view of a blue industrial cabinet or enclosure with a curved arrow indicating rotation (no text or symbols)

picture 2

K H

picture 3

Diagram of a mechanical assembly with blue and gray components, no visible text or symbols

3D mechanical assembly diagram showing internal components and a directional arrow (no text or symbols)

picture 4

Mechanical assembly diagram showing a shaft and housing with directional arrows indicating motion (no text or symbols)

picture 5

Protection corrugated paper for transportation

picture 6

5 2 4 6 7 1 3

picture 7

1.6 Potential problems and how to tackle them

Kind of operating problem	Possible reasons Solution
Odour formation Curing	of the applied preventive lacquer.Steaming oil remains.
Too little heating performance	We chose too little performanceChimney draught is slight
	Too long and leaky smoke tube
	Leakage at the door glass
	Usage of wet wood.Use well dried wood only.

Actions to be in chimney fire

Chimney fire may occur upon the improper cleaning of the chimney, the use of inappropriate fuels (e.g. excessively wet wood) or the inadequate setting of the burning air. In such cases, close the burning air at the fire, and call the fire service.

Never try to extinguish the fire with water!

2. Placing

2.1 Prescriptions

When placing the fire-place and jointing the smoke tube side the fire protection requirements of the relevant construction provisions must be taken into consideration.

For the problem-free functioning of the equipment the chimney which the fire-place uses must be in perfect condition.

2.2 Place of installation

As the air needed for burning is drawn from the room where the fireplace is located, ensure that sufficient air supply is received via the gaps by the windows and external doors. Make sure that 4 m^-3 of air should be provided to each kW of rated performance. For this fireplace, it means that the room has to be at least 32 m^-1 in volume. If the room is smaller, sufficient air supply can be secured by opening air connections to other rooms with air openings (at least 150 cm^2 ).

2.3 Distances

All the combustible materials, furniture or e.g. decoration materials that are in the close environment of the fireplace should be protected from the heat.

Furnishing in the radiation area

Keep a minimal distance of 80 cm (A) between the front edge of the fireplace and the combustible equipment, furniture or e.g. decoration materials in the building. The security distance can be reduced to 40 cm (B) if a heat shield is placed in front of the object to be protected (see example in Picture 8).

Furnishing beyond the radiation area

The walls beside and behind the fireplace may not be made of combustible materials, and they cannot be covered with such materials if the distance on the sides is under 30 cm, or 20 cm on the rear side. Similarly, the distance to wooden and plastic furniture on the sides should be at least 30 cm (see Picture 9).

Technical diagram of a mechanical component with labeled sections A and B, showing cross-sectional views and centerlines.

picture 8

20cm 30cm 30cm

picture 9

Floor in front of and under the fireplace

Floors made from combustible materials, such as carpets, parquet floors or cork is to be protected by a shield of non-combustible material – for example ceramics, stone, glass or steel – placed under the fireplace so that it should reach out to 50 cm in front and 30 cm besides.

2.4 Connection of the fireplace

WARNING:

Before connecting the fireplace to the chimney, seek advice from the competent chimney sweeper!

The connecting elements should be attached to the equipment and to each other in a properly sealed and stable manner. They may not hang into the unobstructed cross-section of the chimney. The interconnecting piece between the chimney and the fireplace should be of the same cross-section size as the pipe stub of the fireplace. Horizontal connecting pieces should ascend to the chimney in 10^ . Pipes that are not heat-protected or not led vertically may not be longer than 1 m.

There should be a minimum distance of 40 cm kept between the connection pieces of the fireplace and combustible materials in the building. Provided that the interconnecting pieces have a non-combustible coating of minimum 2 cm, the distance from combustible materials may be at least 10 cm. If the interconnecting pieces are led through equipment or furnishing made from combustible materials, they have to be covered with a protecting tube made from any non-combustible material in a distance of at least 20 cm, or they have to be coated with any non-combustible material with low heat conductance in a minimum range of 20 cm.

Smaller distances to combustible materials are permissible if it is ensured that at the rated performance of the fireplace the temperature cannot rise over 85^ C at the combustible equipment and furnishings.

WARNING:

The connection of the fireplace to the chimney is not permissible if the effective height of the chimney is less than 4 m, or 5 m with multiple loading (see the details of chimney calculations on page 30).

To the chimney that the fireplace uses, a maximum of two other fireplaces, ovens may be connected.

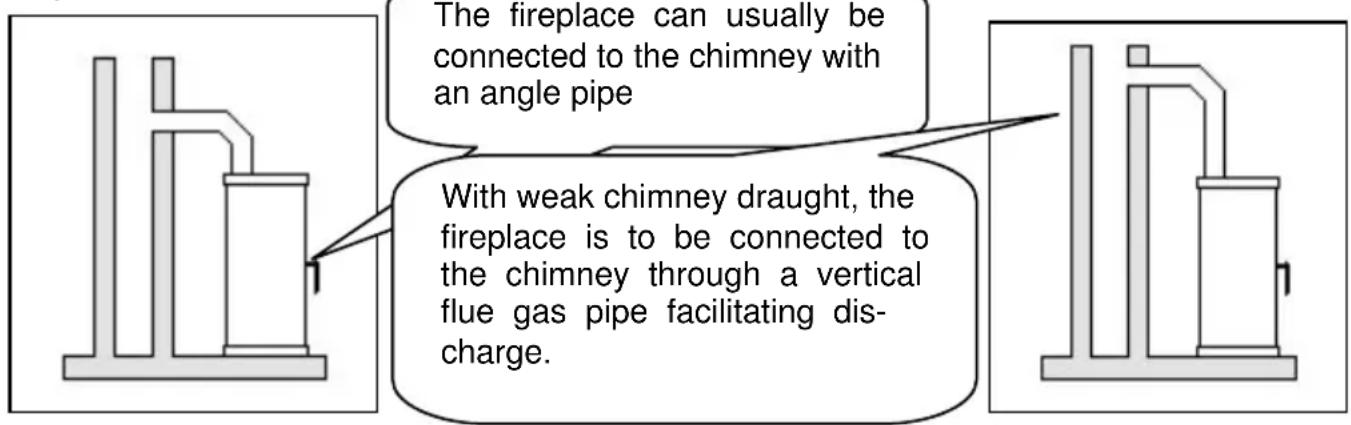

The fireplace can usually be connected to the chimney with an angle pipe With weak chimney draught, the fireplace is to be connected to the chimney through a vertical flue gas pipe facilitating discharge.

Correct	Incorrect
		Tightening cross section of the chimney because the smoke tube is pushed into the chimney too much
min.		Obstruction because the smoke tubes are led as facing each other
	Faulty d because fire-plac door (n use) is o
	Fals oper
	Fals beca leak
		False air because of open fire-place door

3. Technical specification

3.1 Dimensional drawings

0 1 2 3 E F E C

A B F

D150 D

Type 0010180 Orpheus	0010181 Rona0010182 Luna0010183 Prisma0010186 Wega0010187 Opus0010189 Komet
Nominal performance 8 kW
Heating capacity (m3)-under favourable-less favourable-not favourable heating circumstances according to 18893/TAB2 DIN standard	18010572
Flue gas values: fuel:Flue gas stream:Flue gas temperature:Min. blast pressure at nominal performance:	BB7"/wood7 g/s350 °C11 Pa

3.2 Dimension

Art. No.		A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	Weight
W20001018000		1044 5	50 400	10 997	894 108	kg
W20001018005		1044 5	50 400	10 997	894 108	kg
W20001018006		1044 5	50 400	10 997	894 108	kg
W20001018060		1044 5	50 400	10 997	894 108	kg
W20001018068		1044 5	50 400	10 997	894 108	kg
W20001018075		1044 5	50 400	10 997	894 108	kg
W20001018020		1044 5	50 400	10 997	894 166	kg
W20001018021		1044 5	50 400	10 997	894 166	kg
W20001018040		1069 5	50 400	10 997	894 188	kg
W20001018048		1069 5	50 400	10 997	894 188	kg
W20001018065		1069 5	50 400	10 997	894 130	kg
W20001018003		1069 5	50 400	10 997	894 120*	kg
W20001018082		1069 5	50 400	10 997	894 120*	kg
W20001018083		1069 5	50 400	10 997	894 120*	kg
W20001018081		1069 5	50 400	10 997	894 120*	kg
W20001018084		1069 5	50 400	10 997	894 120*	kg
W20001018009		1069 5	50 400	10 997	894 130	kg
W20001018004		1208 5	50 400	10 997	894 120	kg
W20001018045		1203 5	50 400	10 997	894 128	kg
W20001018100		1044 6	600 524	134 997	894 112	kg
W20001018160		1044 6	600 524	134 997	894 112	kg
W20001018164		1044 6	600 524	134 997	894 112	kg
W20001018166		1044 6	600 524	134 997	894 112	kg
W20001018168		1044 6	600 524	134 997	894 112	kg
W20001018170		1044 6	600 524	134 997	894 112	kg
W20001018103		1069 6	10 524	134 997	894 140*	kg
W20001018180		1069 6	10 524	134 997	894 140*	kg
W20001018190		1069 6	10 524	134 997	894 140*	kg
W20001018140		1069 6	10 524	134 997	894 199	kg
W20001018165		1069 6	600 524	134 997	894 134	kg
W20001018101		1044 6	600 524	134 997	894 112	kg
W20001018205		1160 6	600 400	107 833	730 112	kg
W20001018220		1160 6	600 400	107 833	730 159	kg
W20001018260		1160 6	600 400	107 833	730 112	kg
W20001018270		1160 6	600 400	107 833	730 112	kg
W20001018200		1160 6	600 400	107 833	730 115	kg
W20001018240		1160 6	600 400	107 833	730 164	kg
W20001018245		1160 6	600 400	107 833	730 164	kg
W20001018265		1160 6	600 400	107 833	730 115	kg
W20001018206		1160 6	600 400	107 833	730 115	kg
W20001018215		892 6	600 400	107 833	730 106	kg
W20001018248		1210 6	600 400	107 833	730 195	kg
W20001018203		1197 6	663 400	107 833	730 111*	kg
W20001018280		1197 6	663 400	107 833	730 111*	kg
W20001018290		1197 6	663 400	107 833	730 111*	kg
W20001018249		1210 6	600 400	107 833	730 153	kg
Art. No.		A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	Weight
W20001018202	1322 600	400 110	997 894	119 kg
W20001018246	1322 600	400 110	997 894	172 kg
W20001018208	1101 605	400 107	833 730	124 kg
W20001018305	1043 600	490 110	997 894	112 kg
W20001018300	1043 600	490 110	997 894	112 kg
W20001018340	1068 640	490 110	997 894	180 kg
W20001018360	1068 600	490 110	997 894	133 kg
W20001018341	1043 640	490 110	997 894	165 kg
W20001018325	1068 600	490 110	997 894	133 kg
W20001018320	1068 600	490 110	997 894	133 kg
W20001018342	1502 870	737 110	997 894	172 kg
W20001018343	1234 600	490 110	997 894	206 kg
W20001018228	1160 600	400 107	833 730	174 kg
W20001018216	1264 600	400 107	997 894	108 kg
W20001018226	1264 600	400 107	997 894	170 kg
W20001018014	1208 550	511 110	997 894	133 kg
W20001018023	1208 550	511 110	997 894	188 kg
W20001018740	1054 610	528 110	997 869	172 kg
W20001018745	1054 610	528 110	997 869	146 kg
W20001018710	1054 610	528 110	997 869	131 kg
W20001018910	1070 580	522 110	999 894	135 kg
W20001018181	1064 612	530 132	994 891	89 kg*
W20001018182	1064 612	530 132	994 891	141 kg
W20001018183	1064 612	530 132	994 891	141 kg
W20001018184	1064 612	530 132	994 891	141 kg
W20001018185	1064 612	530 132	994 891	141 kg
W20001018204	1381 600	400 110	1058 955	126 kg*
W20001018281	1381 600	400 110	1058 955	151 kg
W20001018282	1381 600	400 110	1058 955	151 kg
W20001018102	1205 600	546 132	997 1000	130 kg
W20001018600	1045 560	525 127	997 894	115 kg
W20001018605	1045 560	525 127	997 894	115 kg
W20001018640	1070 560	525 127	997 894	130 kg

* Basic equipment without ceramics.

The specified dimensions and weights are approximate values, and thus have only informative purposes.

We reserve the right to modify the designs as required in terms of technology or quality!

3.3 EC Declaration of Conformity

Description of the product: Fireplace

Type: 00101 80 Orpheus

00101 81 Rona

00101 82 Luna

00101 83 Prisma

00101 86 Wega

00101 87 Opus

00101 89 Komet

The said products are compliant with the specifications of the following European directives:

89/106/EEC Requirements for construction products

The compliance of the said products with the requirements of the above-referenced directives and the following standards is hereby certified:

EN 13240 : 2005

Munich, 14.05.2008

Wuun L-jahy R. ppa.

Proper, binding signature

This Declaration certified compliance with the above-referenced directives, yet cannot guarantee certain properties. The enclosed product documentation has to be taken into account, as well. Should any third person modify the said equipment, this Declaration shall be deemed as null and void.

Préambule

Cher Client,

2.3 Distances minimum 45

Cross-sectional diagram of a mechanical assembly with labeled components (no readable text or symbols)

fig. 4

Mechanical assembly diagram showing a shaft and housing with a vertical double-headed arrow indicating motion (no text or symbols)

fig. 5

2.3 Distances minimum

Diagram of a window or door mechanism with a curved arrow indicating rotation (no text or symbols present)

Fig. 2

K H

Fig. 3

Pure mechanical assembly diagram showing a structural component with blue and gray parts and a black directional arrow (no text or symbols)

Diagram of a mechanical device with labeled components and directional arrows, no readable text or symbols present.

Cross-sectional diagram of a mechanical device with internal components and a vertical arrow indicating motion (no text or symbols)

Fig. 5

Technical line drawing of a mechanical assembly with hatched areas and a circular component, no visible text or symbols

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating movement or force.

Fig. 7
