Brand	Wamsler
Model	Pluto (types 108 60-67, 108 40-47)
Product type	Wood stove
Authorized fuels	Logs (max length 25 cm, moisture < 20%) and lignite briquettes
Nominal power	6 kW
Dimensions (approx.)	Height 867 mm, Width 300 mm, Depth 300 mm
Weight (approx.)	80 kg
Flue connection	Diameter Ø 150 mm or Ø 160 mm depending on type
Minimum required draft	12 Pa
Efficiency	≥ 80 %
Average flue gas temperature	343 °C (wood) / 245 °C (lignite)
Flue gas mass flow rate	7.4 g/s (wood) / 7.6 g/s (lignite)
CO emissions (at 13% O₂)	≤ 40 mg/m³
Dust emissions (at 13% O₂)	1206 mg/m³ (wood) / 761 mg/m³ (lignite)
Air supply	Adjustable primary air; external air supply mandatory (min. cross-section 50 cm²)
Safety distance (front, radiating part)	80 cm (reducible to 40 cm with protection)
Safety distance (rear)	20 cm
Safety distance (sides)	30 cm
Floor protection	Non-combustible plate under and in front of the appliance (50 cm front, 30 cm sides)
Routine maintenance	Glass cleaning, ash pan emptying, flue sweeping 2 times/year
Wear parts	Vermiculite plates (6-month warranty), door and glass gaskets
Standards	EN 13240, DTU 24.1
Warranty	See terms; not covered in case of overload or misuse

Frequently Asked Questions - Pluto Wamsler

What fuels can I use in the Wamsler Pluto stove?

You can use natural firewood (logs of maximum 25 cm long) and lignite briquettes. The wood must have a moisture content below 20%. It is forbidden to use treated wood, waste, paper, cardboard, or flammable liquids.

How to properly light the stove?

Open the primary air intake and the door. Place paper or a firelighter (sulfur-free) on the grate, then small kindling wood, and then larger logs. Light it and close the door. Never use flammable liquids. After lighting, adjust the primary air according to the table provided in the manual.

Why are there odors during the first fires?

During initial uses, the paint cures and oil residues evaporate, which may release odors and smoke. It is recommended to ventilate the room well (doors and windows open) and heat at high power for at least one hour. These odors will disappear after a few fires.

How to clean the stove glass?

Use a special cleaner for wood-burning appliance glass. Apply only to the inner face of the glass. For other glass surfaces, use a damp cloth or regular glass cleaner. Avoid spraying product on painted parts. To reduce soiling, use dry wood, small logs, and avoid placing the fire too close to the glass.

What safety distances must be observed around the stove?

In front of the stove (radiation zone): 80 cm minimum (reducible to 40 cm with ventilated protection). Rear: 20 cm. Sides: 30 cm. The floor under and in front of the stove must be protected by a non-combustible material with 50 cm at the front and 30 cm on the sides.

How to adjust the primary air for optimal combustion?

The primary air adjustment is done via the selector located at the back of the stove. For lighting, open the primary air (position A or H depending on fuel). At nominal power, set to the corresponding position (H for wood, K for lignite). For extinction, close the primary air (position K). Follow the table in the manual.

What to do in case of chimney fire?

Immediately close all openings of the appliance (door, air intakes) and alert the fire department. Do not attempt to extinguish the fire yourself. After the incident, have the chimney checked by a specialist.

How to maintain the stove and chimney?

Regularly empty the ash pan (watch out for hot embers). Clean the glass with a suitable product. Painted surfaces are cleaned with a soft damp cloth (no detergent). Soapstone is cleaned with soapy water or sandpaper grit 240 for stubborn stains. The chimney flue must be swept at least twice a year.

Why does the glass get dirty quickly?

A glass that gets dirty quickly is often due to wood that is too wet, too low combustion power, insufficient chimney draft, or insufficient room ventilation. Use dry wood (moisture < 20%), heat more intensely at the beginning then reduce, check the sweeping, and ensure an external air supply.

How to order replacement parts?

For any order of replacement parts, provide the type number, reference number, and serial number from the rating plate of the appliance (located at the back). Use only original Wamsler parts.

USER MANUAL Pluto Wamsler

GFireplace user instruction

Line drawing of a cabinet with open lid and internal compartments (no text or symbols)

MARS SATURN KASAR

Line drawing of a portable kitchen appliance with a curved top and side door (no text or symbols)

Line drawing of a mechanical device with a curved top and rectangular opening (no text or symbols)

Line drawing of a cabinet or storage unit with open doors and a curved top (no text or symbols)

ZÜRICH / SALZBURG RADIANT / LILITH COUNTRY GRON

Line drawing of a simple gas stove or boiler cabinet with no text or symbols

Line drawing of a cylindrical device with a lid and front panel (no text or symbols)

Line drawing of a small cabinet with a lid and front panel, no text or symbols present

Line drawing of a cabinet or enclosure with no visible text, numbers, or symbols

EOS JAVA CALYPSO / ZINITH MORITH

Line drawing of a simple cabinet or storage unit with open door and lid (no text or symbols)

Line drawing of a cabinet with lid and front panel (no text or symbols)

Line drawing of a cabinet with lid and door, no text or symbols present

Line drawing of a simple open door with arched top and front panel (no text or symbols)

D

Vorwort

Stacked wooden planks with visible grain and wood texture (no text or symbols)

Simple line drawing of a door with a glass panel and a hanging tool, no text or symbols present

Bild 2

KH

Bild 4

Technical diagram showing a mechanical assembly with labeled component '2' and directional arrows indicating motion or force.

Bild 6

H A

Bild 3

Diagram of a storage or rack system with directional arrows indicating movement or flow (no text or symbols)

Bild 5

6.7 30.0 80.0 A B C 40.7 Ø150 13.1 Ø0000000000 Ø0000000000 Ø0000000000 Ø0000000000

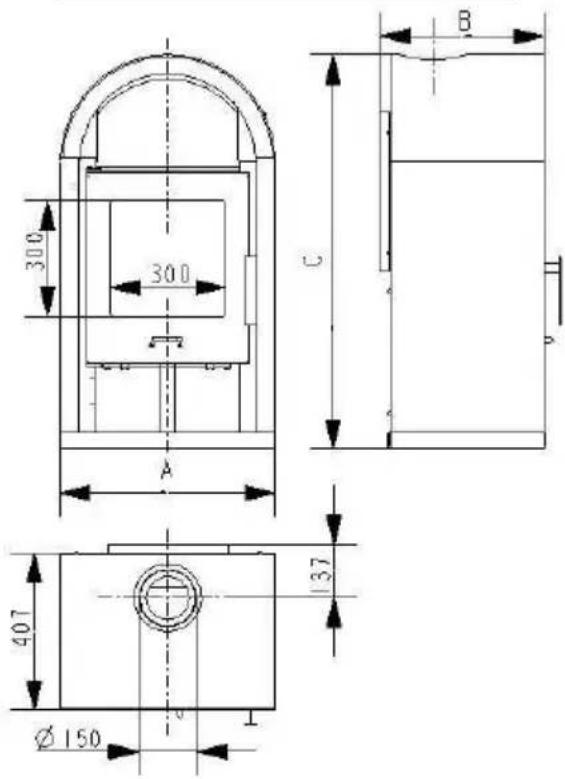

TYP 108 61 Mars

300 300 A C B 407 Ø150 137

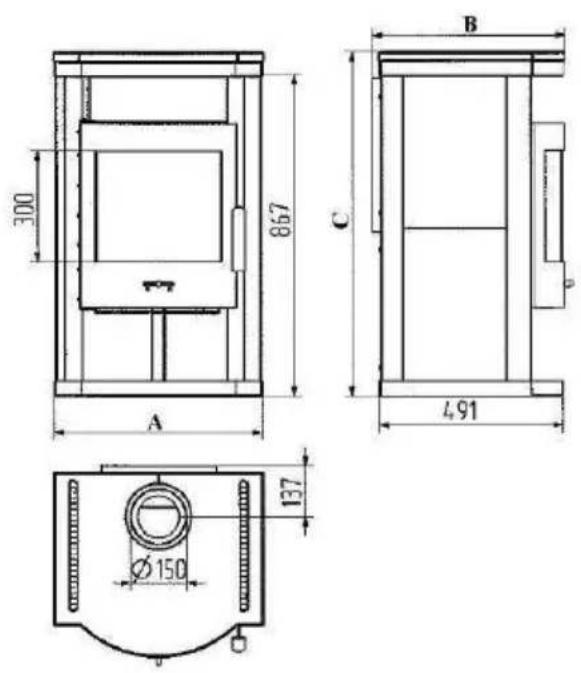

TYP 108 60 Radiant

300 867 A C 507 Ø150 14.8 B

TYP 108 60 Zürich

337 300 867 C A Ø150 137 B 497

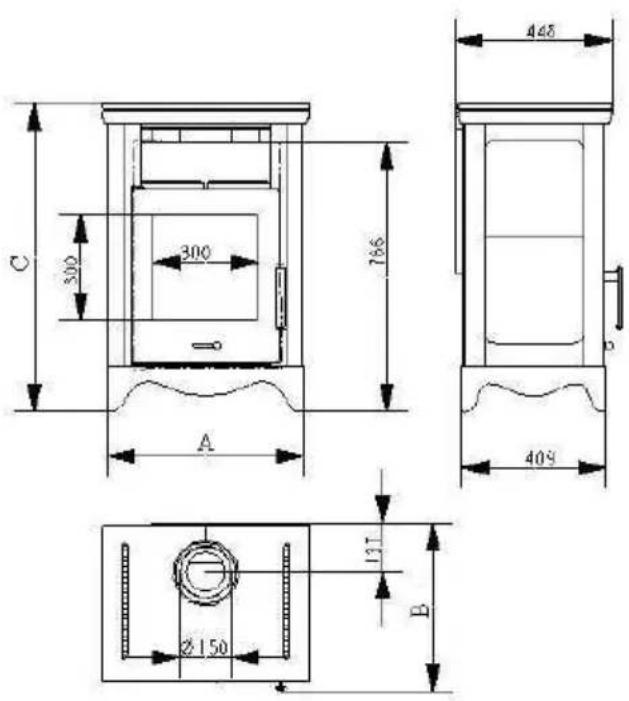

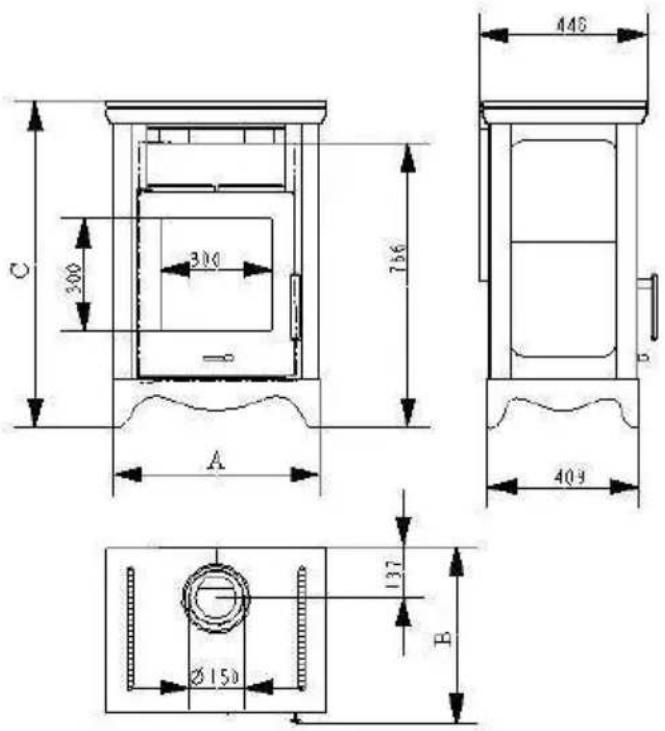

TYP 108 60 Country

C 300 300 766 A 448 409 Ø150 131 B

TYP 108 66 Eos

300 867 A C B 467 137 Ø150

TYP 108 67 Calypso

300 867 A C B 4.91 137 Ø150

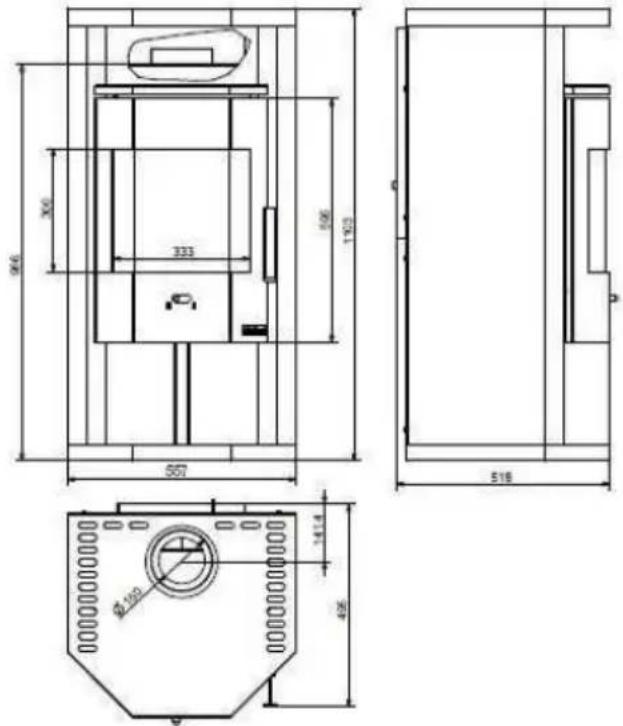

TYP 108 40 Yuna / Eres TYP 108 40 Salzburg

300 962 300 557 1104 488 Ø160 Ø160 Ø160

306 333 567 426 1103 518 Ø100

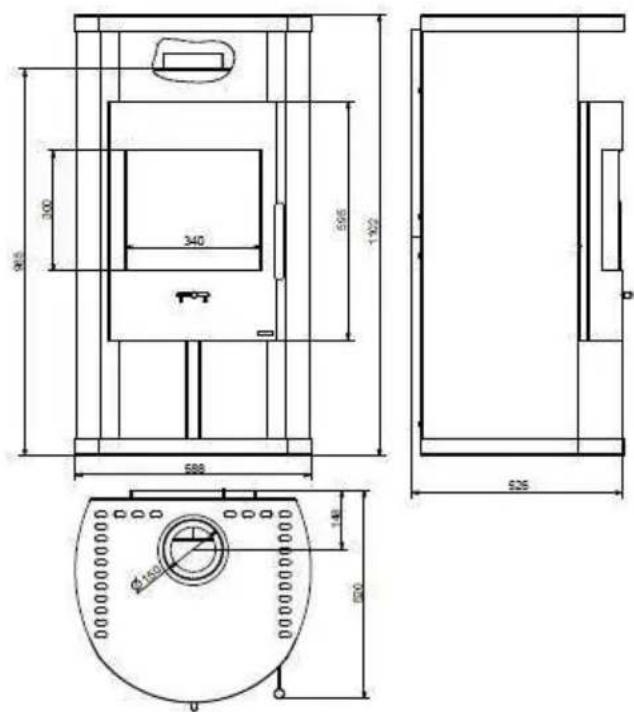

TYP 108 40 Lilith

300 340 595 1/22 588 526 Ø1500 Ø00000000000 Ø00000000000 Ø00000000000

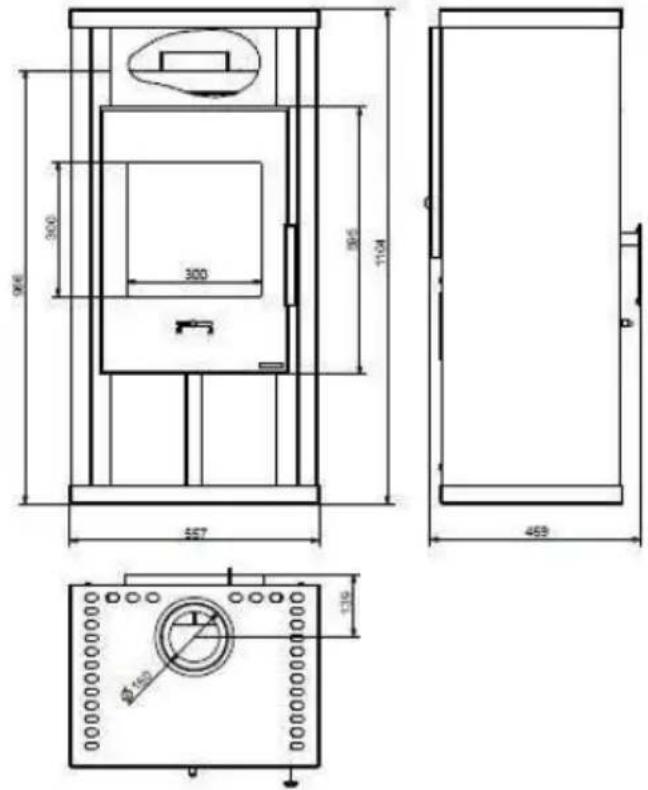

TYP 108 43 Nino / Jupiter Grande / Taurus Grande

300 300 1104 557 459 Ø150

TYP 108 47 Zinith TYP 108 42 Kasar

300 967 340 695 1123 557 816 Ø120 120 511

300 565 1181 906 300 567 487 d 100 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

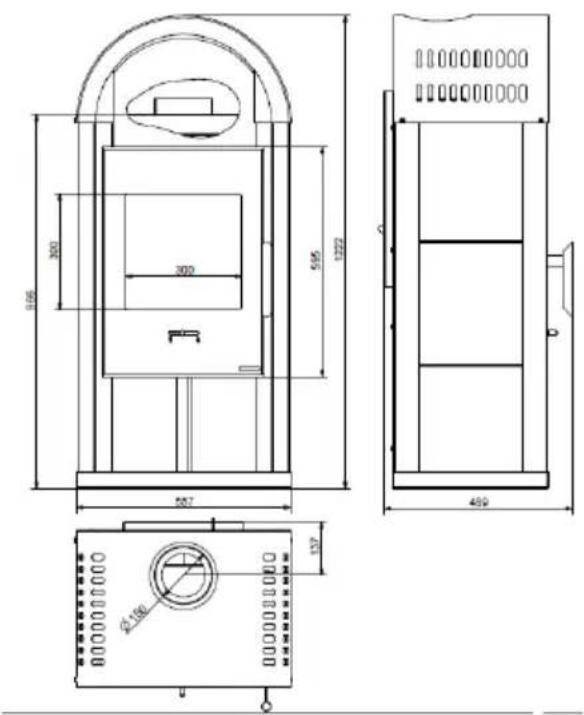

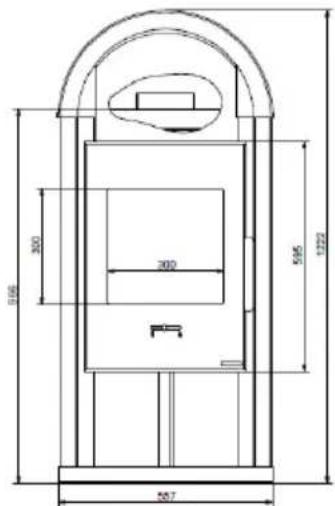

TYP 108 42 Gron TYP 108 42 Morith

300 556 1187 300 558 482 138

300 300 595 1222 8.66 587 489 21.50

Bank: UnCredit Bank Hungary 26

1081020-2000666-17517010

Managing Detector

Gábor Matávar M.Sc.

Phone: [phone]

Fax: [phone]

特别提示

(38) TUV 5001-49

TEN 500 GON

NEPMAI Department

H.1042 Shakigwif

Dugeneus U. 15

13.62026

Note 3/11

Geprüfter Typ:

10860 - Pluto (Raumhalzer)

Vizsgál típus

Thank you for choosing our product!

By purchasing this product you receive guarantee for

• good quality originating from the usage of the finest and proven materials,
• operating security which is controlled according to German and European norms (Corresponds to the standards EN 13240)
- long life ensured by the robust structure.

In order to be able to use your new fireplace for a long time please read the following instructions manual. You will find all the necessary information in it and some additional advice.

PLEASE NOTE:

When ordering replacement parts, the Article No. and Serial No. shown on the identification plate must be quoted.

Contents

Foreword....24

Contents....24

SAFETY INSTRUCTIONS.... 25

1. Usage.... 27
   1.1 Structure of the equipment 27
   1.2 Installation.... 28
   1.3 Putting out of operation.... 29
   1.4 Heating instructions 29
   1.5 Cleaning and maintenance 30
   1.6 Potential problems and how to tackle them.... 32
2. Placing 33
   2.1 Prescriptions ...... 33
   2.2 Place of installation....33
   2.3 Distances 33
   2.4 Connection of the fireplace 34
3. Technical specification.... 36

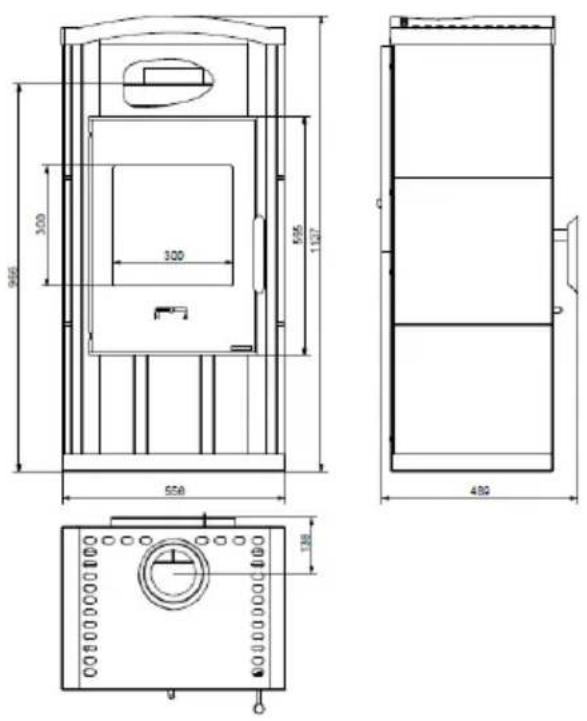

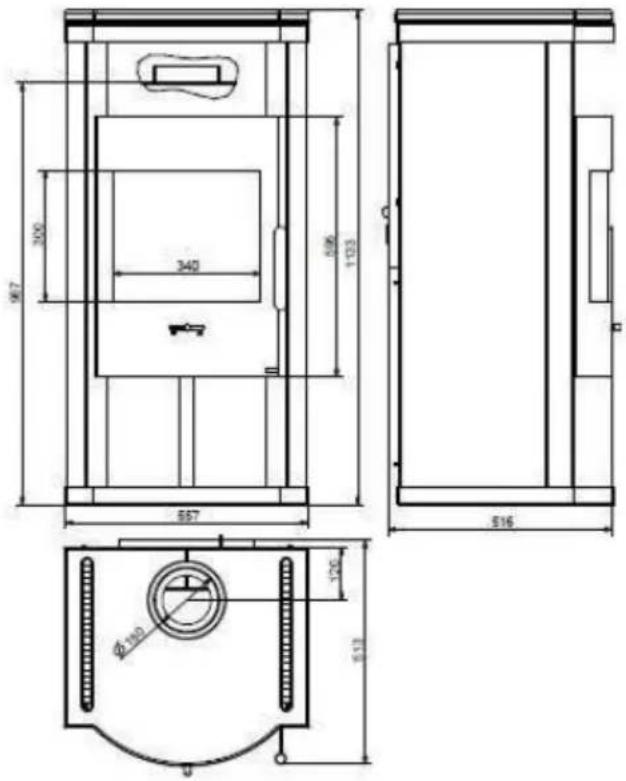

   3.1 Dimensional drawings.... 36
   3.2 Dimension 38
   3.3 Datas.... 41

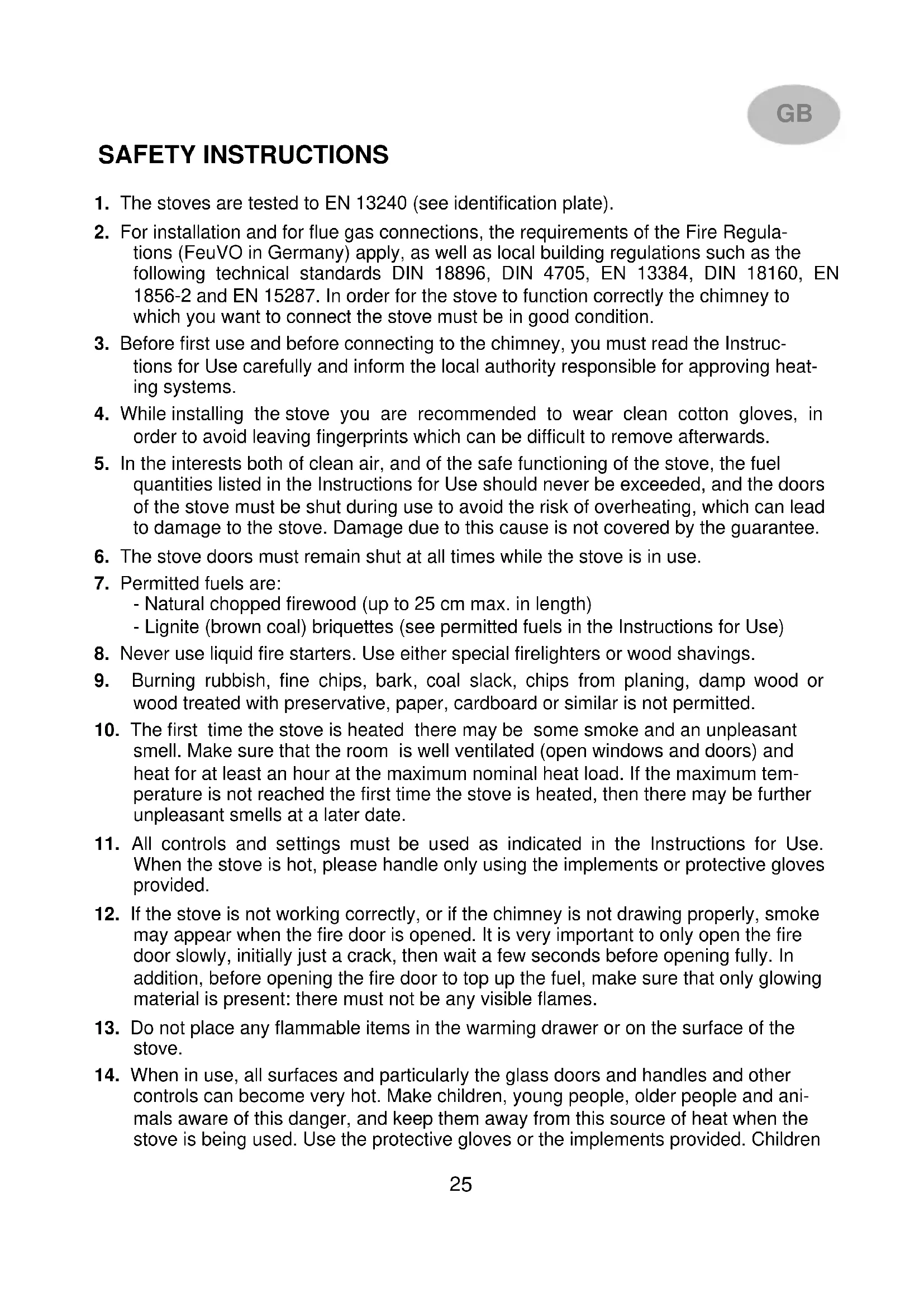

SAFETY INSTRUCTIONS

1. The stoves are tested to EN 13240 (see identification plate).
2. For installation and for flue gas connections, the requirements of the Fire Regulations (FeuVO in Germany) apply, as well as local building regulations such as the following technical standards DIN 18896, DIN 4705, EN 13384, DIN 18160, EN 1856-2 and EN 15287. In order for the stove to function correctly the chimney to which you want to connect the stove must be in good condition.
3. Before first use and before connecting to the chimney, you must read the Instructions for Use carefully and inform the local authority responsible for approving heating systems.
4. While installing the stove you are recommended to wear clean cotton gloves, in order to avoid leaving fingerprints which can be difficult to remove afterwards.
5. In the interests both of clean air, and of the safe functioning of the stove, the fuel quantities listed in the Instructions for Use should never be exceeded, and the doors of the stove must be shut during use to avoid the risk of overheating, which can lead to damage to the stove. Damage due to this cause is not covered by the guarantee.
6. The stove doors must remain shut at all times while the stove is in use.
7. Permitted fuels are:

- Natural chopped firewood (up to 25 cm max. in length)

- Lignite (brown coal) briquettes (see permitted fuels in the Instructions for Use)

1. Never use liquid fire starters. Use either special firelighters or wood shavings.
2. Burning rubbish, fine chips, bark, coal slack, chips from planing, damp wood or wood treated with preservative, paper, cardboard or similar is not permitted.
3. The first time the stove is heated there may be some smoke and an unpleasant smell. Make sure that the room is well ventilated (open windows and doors) and heat for at least an hour at the maximum nominal heat load. If the maximum temperature is not reached the first time the stove is heated, then there may be further unpleasant smells at a later date.
4. All controls and settings must be used as indicated in the Instructions for Use. When the stove is hot, please handle only using the implements or protective gloves provided.
5. If the stove is not working correctly, or if the chimney is not drawing properly, smoke may appear when the fire door is opened. It is very important to only open the fire door slowly, initially just a crack, then wait a few seconds before opening fully. In addition, before opening the fire door to top up the fuel, make sure that only glowing material is present: there must not be any visible flames.
6. Do not place any flammable items in the warming drawer or on the surface of the stove.
7. When in use, all surfaces and particularly the glass doors and handles and other controls can become very hot. Make children, young people, older people and animals aware of this danger, and keep them away from this source of heat when the stove is being used. Use the protective gloves or the implements provided. Children

and young people under 16 must not use the stove unless supervised by an adult who is responsible for them.

1. Make sure that the ash pan is always fully pushed in, until it touches the back. Never remove ashes while still hot (fire risk).
2. In spring and autumn the chimney may no longer draw correctly, so that gases produced by combustion are not completely removed. The fire chamber should then be filled with a small quantity of fuel, ideally with wood shavings, and lit under supervision, in order to stabilise the chimney draught. The grate must be clean.
3. After each prolonged period of use for heating, have the stove checked by a professional. The flues and pipes for the evacuation of fumes must also be thoroughly cleaned.
4. If repairs or replacements are necessary, please contact your supplier with the necessary article numbers and serial numbers in good time. Only original WAM-SLER replacement parts may be used.
5. Work such as installation, setup, commissioning and services, as well as repairs, must only be carried out by qualified personnel (heating system or space heating technicians). Intervention by non-qualified persons invalidates the warranty and guarantee.
6. As the solid fuel oven/stove draws the air required for combustion from the surrounding room, you must ensure that sufficient air can be drawn in through non-sealed windows and outside doors. It can be assumed that is this is provided by a room volume of at least 4 m^3 per kW nominal heat capacity. If the volume is less than this, then air vents can be used to provide access to further air in other rooms (min. 150 cm^2 ).
7. You must ensure that the correct safety distance is maintained from all flammable components and materials – to the side, rear and front. These distances can be found in the Instructions for Use or the identification plate.
8. The fire chamber must not be modified.
9. Connection to a chimney whose functional height is less than 4 m, or if multiple stoves are installed, 5 m, is not permitted. A maximum of two other fires can be connected to the chimney which is to be connected the stove.
10. If the chimney catches fire immediately close all doors and openings and call the fire brigade. Do not attempt to extinguish the fire yourself. Afterwards have the chimney thoroughly checked out by a professional.
11. Solid fuels naturally create soot, so it is always possible that the window glass will become dirty: this does not mean there is a malfunction.

1. Usage

1.1 Structure of the equipment

Fuel selector on the rear wall smoke tube end heat storage part furnance chamber door model plate on the rear wall door knob primary air regulator furnace chamber walling ash bin fuel storage

picture 1

1.2 Installation

Fuels

Low smoke, trouble-free operation of the stove and a supply of heat at the nominal level with a chimney draught of 12 Pa are only guaranteed when you use the following fuels and no others.

Only use natural, dry chopped firewood with a remaining humidity of max. 20%, and lignite (brown coal) briquettes.

Types of fuels	Heating value appr. kWh/kg
Brown-coal	5,3 – 5,5
Hard wood	4,0 – 4,2
Soft wood	4,3 – 4,5

With the primary air damper, do you adjust the rated output. There may be engaged in only the settings and fuel quantities are given that correspond to your licensed or purchased device.

Adjustment:

		Setting of the primary air regulator Fuel	Setting of the fuel selector	Burning time
		6 kW
Warning up, kindling		A H -
Wood	Nominal heating performance	H H ca. 0,75 h
Brown-coal	Nominal heating performance	A K ca. 1 h
Putting out of working order		H K -

Table 2

Filling quantities 6 kW

• Split billet: max. length: 33 cm, max. 2 billets per filling, appr. 1,4 kg
• Lignite briquette: max. 1,7 kg

IT IS NOT ALLOWED to burn waste, fine chipping, bark, wood handled with preventive chemicals, furthermore paper and cardboard. For kindling please use wood scrapings or grill starter but never use liquid auxiliaries!

The first kindling

- At the first fire set-up could be a little smoke, but is not dangerous, normal!

In this time, please ventilate the room carefully!

Warning! Upon the first kindling, smoke and unpleasant smell may be generated. Always ensure the proper ventilation of the room (by opening windows and doors), and heat the fireplace at maximum rated heating performance. If with the first heating the maximum temperature is not reached, the above-mentioned effects may as well arise later on.

- Before installation pull out the delivery securer off the refractory brick through the furnace chamber (picture 6).

Open the door by raising the handle (picture 2). If the equipment is hot, you can use insulated gloves. Adjust the primary air regulator and the fuel switch (picture 3) according to the Table 2. Put coal lighter or wood wool onto the fire grate, followed by wood chips. First insert small pieces of wood, and then larger ones, light them and close the door again. When the wood burns quickly, and leaves sufficient glowing embers, put additional fuel on the fire. Thereafter, adjust the primary air regulator and the fuel switch according to the Table 2 („Adjustment of the burning air”). The first kindling should be performed “finely” with little fuel only, so that the parts of the fireplace are adapted to heat. During the first kindling, the generation of smell is normal and absolutely undangerous.

1.3 Putting out of operation

• Let the glowing ember burn to ashes and the fire-place get cold.
  • Empty the furnace chamber and the ash bin.
• Close the doors, and shut off the primary air regulator (position I) and the fuel switch (position K).

1.4 Heating instructions

The fireplace should be operated only with closed furnace chamber door. Fireplaces belonging to type 1 have self-locking furnace chamber doors. These doors may be opened only for kindling, loading or when cleaning the furnace chamber (otherwise draught problems may occur with other equipment connected to the same chimney).

Warning!

When opening the furnace chamber door, any incorrect handling or insufficient draught may induce smoke. Always ensure that the furnace chamber door may be opened only slowly, first just to a small extent, and then fully after a few seconds. In addition, if you intend to put additional fuel into the fire, before the opening of the door only there may be only ember bed in the burning space, i.e. no flames may be visible.

Led into the burning space in correspondence with the existing conditions, the secondary air provides for the follow-up burning of the combustible components of in the burning space. This in fact means smoke and soot-poor burning, which contributes to the protection of the environment. If you wish to commission the fireplace in a transitional period, please, please first examine the chimney draught, as it can be especially weak at high external temperatures. Towards this end, hold a burning match in the slightly opened feeding door. If the flame is not drawn significantly by the draught, then a so-called starting fire is to be set first. Towards this end, burn wood chips/wool in the fireplace or the cleaning hole of the chimney. The fire grate is to be cleaned

before every kindling to ensure the proper inflow of air for burning. The ashtray is to be emptied regularly (picture 5). Should the equipment be extremely hot, use the gloves provided. Please, be careful not to dispose glowing materials into the waste bin.

Ensure that the ashtray should be fully pushed into the equipment.

Warning! In order to keep the air clean and safeguard the fireplace, do not exceed the specified maximum fuel quantity, otherwise overheating may occur, which potentially damage the equipment. Such damage is not covered with any guarantee. Only a single layer of fuel is allowable to be prepared in the fireplace. Try to reach lower heating performance only by decreasing the quantity of fuel, and not by cutting the primary air supply.

1.5 Cleaning and maintenance

After the heating season, it is recommended to clean the fireplace and the flue gas pipes carefully. Any dropping heating performance is almost always the consequence of the strong contamination of the flues. For cleaning, the baffle plate (picture 6 No. 2) is to be pulled forward. This way, the flues can be cleaned from the inside or – after removing the flue gas pipe – from above. After cleaning, the baffle plate (picture 6 No. 2) is be pushed back fully again.

Warning!

Following every heating season you are advised to examine the fireplace thoroughly. If any repair or reconditioning is needed, please, contact your local dealer in a timely manner, and specify the model number and serial number of your equipment (as seen on the model plate). External surfaces may be maintained only after the fireplace cooled down, and following the first commissioning. Use cold water for cleaning, or soap, washing ingredient in extraordinary cases, then wipe it dry. Before its first use, clean the ROBAX inspection glass with a wet and clean cloth, and then put a few drops of glass—ceramics cleaner onto both sides of the glass, and spread them with the use of kitchen paper tissues. It provides an invisible film on the valuable surface of the Robax glass. This film helps to keep the glass clean, and facilitates regular cleaning operations. ROBAX S for slightly contaminated surfaces – a commercially available glass surface cleaning agent – may as well be used for the cleaning of the medium or strongly contaminated glass surfaces of the fireplace. Towards this end, spray small quantities of the agent to the cold surfaces, spread it, and wash it down with a wet cloth, followed by drying with a clean, soft cloth. In case there are sticky fuel deposits on these surfaces, first scale simply them with a ceramic-plate scraper held in flat angle, and then clean the surfaces as described above.

Cleaning of the ceramic surfaces dirt and grease are to be removed with soap and water.

Cleaning of the soapstone: the soapstone is a natural stone, therefore minor colour differences may occur; as it is normal, they may not serve as a basis for quality complaints! To clean the soapstone from dirt and fat with water and soap, as well as small scratches, use sand paper (grain size 240).

Warning: Under no circumstances you may use sponge, scouring, aggressive or scratching cleaning agents! If the grate is blocked so that the equipment cannot serve the intended function, the grate is to be removed for cleaning.

Simple line drawing of a window with a handle and scroll, no text or symbols present

picture 2

H A

picture 3

KH

picture 4

Diagram of a storage or rack system with directional arrows indicating movement or flow (no text or symbols)

picture 5

Protection corrugated paper for transportation

Technical diagram showing a mechanical assembly with labeled component '2' and directional arrows indicating motion or force.

picture 6

1.6 Potential problems and how to tackle them

Kind of operating problem	Possible reasons Solution
Odour formation Curing	of the applied preventive lacquer.Steaming oil remains.	Operate the fire-place on a low heating level according to the instructions manual for a few hours. Then heat up for maximal performance for a few hours.
Too little heating performance	We chose too little performanceChimney draught is slight	Have the heating requirement of the room examined by an expertChimney draught shall be at least 12 Pa, max. for a short time 18 Pa.Check the tightness of your chimney and also that the doors of other fire-places leading to the same chimney are closed and sealed properly. Make sure that the chimney-cleaning joints are sealed properly.
	Too long and leaky smoke tube	All the smoke tube joints must be well sealed and fireproof-isolated
	Leakage at the door glass	Check the sealing, close the door properly. May have to have the tightening flap re-newed.
	Usage of wet wood. Use	well dried wood only.

Actions to be in chimney fire

Chimney fire may occur upon the improper cleaning of the chimney, the use of inappropriate fuels (e.g. excessively wet wood) or the inadequate setting of the burning air. In such cases, close the burning air at the fire, and call the fire service.

Never try to extinguish the fire with water!

2. Placing

2.1 Prescriptions

For installation and for connection of flue, the requirements of the Fire Regulations (FeuVO in Germany) apply, as well as local building regulations such as the following technical standards DIN 18896, DIN 4705, EN 13384, DIN 18160, EN 1856-2 and EN 15287. In order for the stove to function correctly the chimney to which you want to connect the stove must be in good condition.

2.2 Place of installation

The stove draws the air required for burning from the surrounding room. You must ensure that sufficient air can be drawn in through non-sealed windows and outside doors. In addition you must ensure that a room volume/heat capacity ratio of at least 4 m^3 per kW nominal heat capacity is available. If the volume is less than this, then air vents can be used to provide access to further air supply in other rooms (connecting vents min. 150 cm^2 ).

2.3 Distances

All the combustible materials, furniture or e.g. decoration materials that are in the close environment of the fireplace should be protected from the heat.

Furnishing in the radiation area

Keep a minimal distance of 80 cm (A) between the front edge of the fireplace and the combustible equipment, furniture or e.g. decoration materials in the building. The security distance can be reduced to 40 cm (B) if a heat shield is placed in front of the object to be protected (see example in Picture 8).

Furnishing beyond the radiation area

The walls beside and behind the fireplace may not be made of combustible materials, and they cannot be covered with such materials if the distance on the sides is under 30 cm, or 20 cm on the rear side. Similarly, the distance to wooden and plastic furniture on the sides should be at least 30 cm (see Picture 9).

B A

picture 8

20 cm 30cm 30cm

picture 9

Floor in front of and under the fireplace

Floors made from combustible materials, such as carpets, parquet floors or cork is to be protected by a shield of non-combustible material – for example ceramics, stone, glass or steel – placed under the fireplace so that it should reach out to 50 cm in front and 30 cm besides.

2.4 Connection of the fireplace

The connection for attaching to the chimney must be able to withstand at least 400^ C.

PLEASE NOTE:

Before connecting the stove the local authority responsible for approving heating systems must be consulted!

Connection pieces must be firmly connected to the stove and to each other and must not leak. They must not project into the open diameter of the chimney. The connection piece between the stove and the chimney must have the same diameter as the pipe socket on the stove. Horizontal connection pieces of over 0.5 m must rise towards the chimney at an angle of 10 degrees. Any pipes which are not heat insulated or vertical must not be longer than 1 metre.

The requirements of the Fire Regulations (FeuVO) apply, as well as local building regulations such as for the chimney standards DIN 18896, DIN 4705, EN 13384, DIN 18160 and EN 15287. Connection pieces must be tested to EN 1856-2. Measurement X (distance from flammable construction and other materials) must be as defined by the manufacturer of the connection piece.

X

PLEASE NOTE:

Fitting to a chimney with a functional height of less than 4 m, or if several stoves are being fitted, less than 5 m, is not permitted.

(See: Data for chimney calculations / Chapter 3.) A maximum of two other fires can be connected to the chimney to be connected to the stove.

For safety reasons it is not permitted to use a steam extractor hood to remove air when the stove is producing heat.

The fireplace can usually be connected to the chimney with an angle pipe With weak chimney draught, the fireplace is to be connected to the chimney through a vertical flue gas pipe facilitating discharge.

Correct	Incorrect
		Tightening cross section of the chimney because the smoke tube is pushed into the chimney too much
		Obstruction, because the smoke tubes are led as facing each other
	[Faulty d because fire-plac door (nc use) is c ]
	Fals an c
	Fals beca leak
		False air, because a open fire-place door

3. Technical specification

3.1 Dimensional drawings

TYP 108 63 Jupiter TYP 108 65 Java

300 300 867 C A B Ø150 137 427

TYP 108 62 Saturn / Stella Kosmos

867 300 800 A B C 407 Ø150 131 Ø0000000000 Ø0000000000 Ø0000000000 Ø0000000000

TYP 108 61 Mars

300 300 A B C 407 Ø150 137

TYP 108 60 Radiant

300 867 A C B 507 Ø150 14.8 Ø

TYP 108 60 Zürich

337 300 867 C A Ø 150 137 B 497

TYP 108 60 Country

C 300 310 766 A 446 409 Ø150 137 B

TYP 108 66 Eos

300 867 A C B 467 Ø150 137

TYP 108 67 Calypso

300 867 A C B 491 Ø150 137 Ø

TYP 108 40 Yuna / Eres TYP 108 40 Salzburg

300 962 300 557 1104 488 Ø160 Ø160 Ø160

306 333 567 426 1103 518 Ø100

TYP 108 40 Lilith

300 340 595 1/22 588 526 Ø1500 Ø00000000000 Ø00000000000 Ø00000000000

TYP 108 43 Nino / Jupiter Grande / Taurus Grande

300 300 1104 557 459 Ø150

TYP 108 47 Zinith TYP 108 42 Kasar

300 967 340 128 557 516 Ø100 120 511

300 300 557 487 2.150 138

TYP 108 42 Gron TYP 108 42 Morith

300 596 1127 946 300 300 558 482 138

Technical drawing of a mechanical device with dimensional annotations and component labels

3.2 Dimension

Art.No.			width (mm) A	draugh (mm) B	height (mm) C	weight netto: (kg)	weight brutto: (kg)
W20001086009	557	427	924 98	110
W20001086012	588	531	904 84	97
W20001086032	557	516	919 110	122
W20001086037	557	516	904 81,5	93,5
W20001086045	557	468	904 118	132
W20001086075	557	427	904 98	110
W20001086076	557	427	1022 100	112
W20001086101	557	427	1022 80	92
W20001086103*	610	452	1050 82	94
W20001086140	557	427	1022 112	124
W20001086175	557	427	1022 88	100
W20001086200	557	427	980 80	83
W20001086201	557	427	980 80	83
W20001086241	557	427	980 112	115
W20001086245	557	427	980 126	138
W20001086271	557	427	940 100	103
W20001086300	557	427	904 80	83
W20001086301	557	427	904 80	83
W20001086305	557	427	904 80	83
W20001086308	557	427	904 80	83
W20001086340	557	427	929 136	148
W20001086344	557	427	904 124	136
W20001086348	557	468	904 110	113
W20001086500	557	427	904 80	83
W20001086615	557	492	930 114	126
W20001086715	557	516	929 142	156
W20001086721	557	516	929 118	132
W20001084012	588	520	1102
W20001084024	588	520	1122
W20001084032	557	518	1103 141	156
W20001084037	557	518	1124 90	104
W20001084050	557	488	1104
W20001084051	557	488	1104
W20001084053	557	488	1104
W20001084054	557	488	1104
W20001084300	557	488	1104
W20001084301	557	469	1104 90	104
W20001084302	557	488	1104
W20001084340	557	469	1124 153	166
W20001084721	557	513	1133
W20001084140	726	595	1325 110	124,5
W20001084201	726	595	1325 90	103,5
W20001084255	726	595	1325 144	157,5

* Basic equipment without ceramics

The specified dimensions and weights are approximate values, and thus have only informative purposes. We reserve the right to modify the designs as required in terms of technology or quality!

3.3 Datas

Type	108 60 / 61 / 62 / 63 / 65 / 66 / 67108 40 / 108 42 / 108 43 / 108 47
Nominal performance 6 kW
Heating capacity (m3)
-under favourable	132
-less favourable	78
-not favourable heating circumstances according to 18893/TAB2 DIN standard	52
Flue gas values: fuel:	wood / brown coal
Flue gas stream:	7,4 / 7,6 g/s
Flue gas temperature:	343 / 245 °C
Min. blast pressure at performance:	12 Pa
CO (relating to 13% O2)	≤ 40 mg/m3
dust (relating to 13% O2)	1206 / 761 mg/m3
	0,096 / 0,061%
efficiency	≥ 80 % / 80,5 %

All information provided by the exhaust gas values are based on the EN 13240 under stationary laboratory conditions reserve the right to make changes which relate to technical advances and / or to an improvement in quality. We accept no liability for printing errors and changes which occur after printing

WAMSLER

Simple line drawing of a door with a window and a hanging tool, no text or symbols present

Fig. 2

KH

Fig. 4

H A

Fig. 3

Diagram of a storage or processing unit with two boxes and directional arrows indicating flow or movement (no text or symbols)

Fig. 5

2.3 Distances minimum

Technical drawing of a mechanical device with dimensional annotations and component labels

3.2 Dimensions

Art.No	la largeu (mm) A	la profen (mm) B	l'alti-tude (mm) C	poids netto: (kg)	poids brutto: (kg)
W20001086009 557	427 924 98	110
W20001086012 588	531 904 84	97
W20001086032 557	516 919 110	122
W20001086037 557	516 904 81,5	93,5
W20001086045 557	468 904 118	132
W20001086075 557	427 904 98	110
W20001086076 557	427 1022	100	112
W20001086101 557	427 1022	80	92
W20001086103* 610	452 1050	82	94
W20001086140 557	427 1022	112	124
W20001086175 557	427 1022	88	100
W20001086200 557	427 980 80	83
W20001086201 557	427 980 80	83
W20001086241 557	427 980 112	115
W20001086245 557	427 980 126	138
W20001086271 557	427 940 100	103
W20001086300 557	427 904 80	83
W20001086301 557	427 904 80	83
W20001086305 557	427 904 80	83
W20001086308 557	427 904 80	83
W20001086340 557	427 929 136	148
W20001086344 557	427 904 124	136
W20001086348 557	468 904 110	113
W20001086500 557	427 904 80	83
W20001086615 557	492 930 114	126
W20001086715 557	516 929 142	156
W20001086721 557	516 929 118	132
W20001084012 588	520 1102
W20001084024 588	520 1122
W20001084032 557	518 1103	141	156
W20001084037 557	518 1124	90	104
W20001084050 557	488 1104
W20001084051 557	488 1104
W20001084053 557	488 1104
W20001084054 557	488 1104
W20001084300 557	488 1104
W20001084301 557	469 1104	90	104
W20001084302 557	488 1104
W20001084340 557	469 1124	153	166
W20001084721 557	513 1133
W20001084140 726	595 1325	110	124,5
W20001084201 726	595 1325	90	103,5
W20001084255 726	595 1325	144	157,5

Simple line drawing of a door with a window and a hanging tool, no text or symbols present

Fig. 2

H A

Fig. 3

KH

Fig. 4

Diagram of a storage or rack system with two boxes and directional arrows indicating movement (no text or symbols)

Fig. 5

Pure technical line drawing of a rectangular frame with dimension标注 (no text or symbols)

Technical line drawing of a rectangular electronic device with a central circular component and mounting holes (no text or symbols)

300 300 586 1222 587

Technical line drawing of a door with dimensions and ventilation slots (no text or symbols)

Ø150 Ø25

3.2 Dimensioni

N° art.		Largh ezza (mm) A			Profondi-tá (mm) B	Altezza (mm) C	Peso netto: (kg)	Peso brutto: (kg)
W20001086009	557	427	924	98	110
W20001086012	588	531	904	84	97
W20001086032	557	516	919	110	122
W20001086037	557	516	904	81,5	93,5
W20001086045	557	468	904	118	132
W20001086075	557	427	904	98	110
W20001086076	557	427	1022	100	112
W20001086101	557	427	1022	80	92
W20001086103*	610	452	1050	82	94
W20001086140	557	427	1022	112	124
W20001086175	557	427	1022	88	100
W20001086200	557	427	980	80	83
W20001086201	557	427	980	80	83
W20001086241	557	427	980	112	115
W20001086245	557	427	980	126	138
W20001086271	557	427	940	100	103
W20001086300	557	427	904	80	83
W20001086301	557	427	904	80	83
W20001086305	557	427	904	80	83
W20001086308	557	427	904	80	83
W20001086340	557	427	929	136	148
W20001086344	557	427	904	124	136
W20001086348	557	468	904	110	113
W20001086500	557	427	904	80	83
W20001086615	557	492	930	114	126
W20001086715	557	516	929	142	156
W20001086721	557	516	929	118	132
W20001084012	588	520	1102
W20001084024	588	520	1122
W20001084032	557	518	1103	141	156
W20001084037	557	518	1124	90	104
W20001084050	557	488	1104
W20001084051	557	488	1104
W20001084053	557	488	1104
W20001084054	557	488	1104
W20001084300	557	488	1104
W20001084301	557	469	1104	90	104
W20001084302	557	488	1104
W20001084340	557	469	1124	153	166
W20001084721	557	513	1133
W20001084140	726	595	1325	110	124,5
W20001084201	726	595	1325	90	103,5
W20001084255	726	595	1325	144	157,5

Simple line drawing of a door with a window and a hanging tool, no text or symbols present

2.kép

KH

4.kép

Diagram of a storage or rack system with directional arrows indicating movement (no text or symbols)

5.kép

Technical drawing of a rectangular enclosure with circular components and dimension lines (no text or symbols)

Pure technical line drawing of a rectangular frame with dimension标注 (no text or symbols)

566 300 300 595 1222 587

0.00000000000 Ø150 0.0000000000 Ø25

1100000000 1100000000 489

3.2 Méret adatok

Késztermék kód			Szél. (mm) A	Mélys. (mm) B	Mag. (mm) C	súly nettó: (kg)	súly bruttó: (kg)
W20001086009	557	427	924 98	110
W20001086012	588	531	904 84	97
W20001086032	557	516	919 110	122
W20001086037	557	516	904 81,5	93,5
W20001086045	557	468	904 118	132
W20001086075	557	427	904 98	110
W20001086076	557	427	1022 100	112
W20001086101	557	427	1022 80	92
W20001086103*	610	452	1050 82	94
W20001086140	557	427	1022 112	124
W20001086175	557	427	1022 88	100
W20001086200	557	427	980 80	83
W20001086201	557	427	980 80	83
W20001086241	557	427	980 112	115
W20001086245	557	427	980 126	138
W20001086271	557	427	940 100	103
W20001086300	557	427	904 80	83
W20001086301	557	427	904 80	83
W20001086305	557	427	904 80	83
W20001086308	557	427	904 80	83
W20001086340	557	427	929 136	148
W20001086344	557	427	904 124	136
W20001086348	557	468	904 110	113
W20001086500	557	427	904 80	83
W20001086615	557	492	930 114	126
W20001086715	557	516	929 142	156
W20001086721	557	516	929 118	132
W20001084012	588	520	1102
W20001084024	588	520	1122
W20001084032	557	518	1103 141	156
W20001084037	557	518	1124 90	104
W20001084050	557	488	1104
W20001084051	557	488	1104
W20001084053	557	488	1104
W20001084054	557	488	1104
W20001084300	557	488	1104
W20001084301	557	469	1104 90	104
W20001084302	557	488	1104
W20001084340	557	469	1124 153	166
W20001084721	557	513	1133
W20001084140	726	595	1325 110	124,5
W20001084201	726	595	1325 90	103,5
W20001084255	726	595	1325 144	157,5
