USER MANUAL Zurich Wamsler

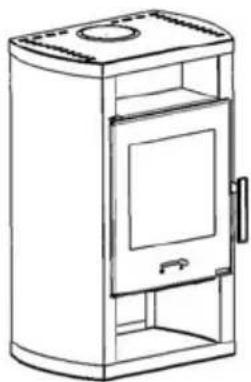

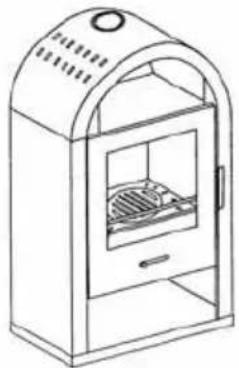

GB Fireplace user instruction

Line drawing of a cabinet with open door and internal compartments (no text or symbols)

MARS

Line drawing of a portable air conditioner unit with arched top and side panel (no text or symbols)

SATURN

Line drawing of a mechanical device with a central opening and top handle (no text or symbols)

LUXOR

Line drawing of a simple industrial machine with control panel and door (no text or symbols)

PANORAMA ZÜRICH

Line drawing of a simple gas stove or boiler cabinet with no text or symbols

RADIANT

Line drawing of a cylindrical device with a top handle and internal compartments (no text or symbols)

COUNTRY

Line drawing of a simple nightstand cabinet with open door and side table (no text or symbols)

RONDO / RADIUSEOSCOUNTRY - H

Line drawing of a simple cabinet with open door and top shelf (no text or symbols)

Line drawing of a cylindrical industrial or storage unit with a lid and front panel (no text or symbols)

Line drawing of a vintage-style nightstand cabinet with open door and front panel (no text or symbols)

CALYPSO

Line drawing of a multi-tiered refrigerator with lid, front panel, and side door (no text or symbols)

D

Vorwort

Simple line drawing of a door with a window and a hanging tool, no text or symbols present

Bild 2

H A

Bild 3

KH

Bild 4

Diagram of a mechanical assembly with two stacked components and directional arrows indicating motion (no text or symbols)

Bild 5

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force.

Bild 6

Technical diagram showing a mechanical or electrical component with labeled dimension 'X' and directional arrow, likely representing a valve or actuator.

ACHTUNG:

86.7 30.0 80.0 A B C 40.7 13.2 Ø 1.56 V

TYP 108 51 Mars

300 300 A C Ø7 137 Ø150 B

TYP 108 50 Panorama / Zürich

337 300 861 C A 25 150 137 B 497

TYP 108 50 Country

C 300 380 A 465 286 409 Ø150 137 B0

TYP 108 50 Luxor

Φ150 409 300 300 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z X1 Y1 Z2 X2 Y2 Z3 X3 Y3 Z4 X4 Y4 Z5 X5 Y5 Z6 X6 Y6 Z7 X7 Y7 Z8 X8 Y8 Z9 X9 Y9 Z10 X10 Y10 Z11 X11 Y11 Z12 X12 Y12 Z13 X13 Y13 Z14 X14 Y14 Z15 X15 Y15 Z16 X16 Y16 Z17 X17 Y17 Z18 X18 Y18 Z19 X19 Y19 Z20 X20 Y20 Z21 X21 Y21 Z22 X22 Y22 Z23 X23 Y23 Z24 X24 Y24 Z25 X25 Y25 Z26 X26 Y26 Z27 X27 Y27 Z28 X28 Y28 Z29 X29 Y29 Z30

TYP 108 50 Country-H

300 300 917 443 A 409 Ø150 137 B

TYP 108 50 Radiant

TYP 108 50 Rondo / Radius

TYP 108 56 Eos

TYP 108 57 Calypso

300 867 A

B C 4.91

Ø 150 137

Handwritten signature or scribble on white background, possibly a signature or artistic mark

.i.V.

Thank you for choosing our product!

By purchasing this product you receive guarantee for

• good quality originating from the usage of the finest and proven materials,
- operating security which is controlled according to German and European norms (Corresponds to the standards EN 13240)
- long life ensured by the robust structure.

In order to be able to use your new fireplace for a long time please read the following instructions manual. You will find all the necessary information in it and some additional advice.

PLEASE NOTE:

When ordering replacement parts, the Article No. and Serial No. shown on the identification plate must be quoted.

Contents

Foreword 21

Contents....21

SAFETY INSTRUCTIONS.... 22

1. Usage 24

1.1 Structure of the equipment 24

1.2 Installation.... 25

1.3 Putting out of operation.... 26

1.4 Heating instructions 26

1.5 Cleaning and maintenance 27

1.6 Potential problems and how to tackle them.... 29

1. Placing 30

2.1 Prescriptions 30

2.2 Place of installation 30

2.3 Distances 30

2.4 Connection of the fireplace 31

1. Technical specification ...... 33

3.1 Dimensional drawings.... 33

3.2 Dimension 36

3.3 Datas.... 37

3.4 EC Declaration of Conformity 38

SAFETY INSTRUCTIONS

1. The stoves are tested to EN 13240 (see identification plate).
2. For installation and for flue gas connections, the requirements of the Fire Regulations (FeuVO in Germany) apply, as well as local building regulations such as the following technical standards DIN 18896, DIN 4705, EN 13384, DIN 18160, EN 1856-2 and EN 15287. In order for the stove to function correctly the chimney to which you want to connect the stove must be in good condition.
3. Before first use and before connecting to the chimney, you must read the Instructions for Use carefully and inform the local authority responsible for approving heating systems.
4. While installing the stove you are recommended to wear clean cotton gloves, in order to avoid leaving fingerprints which can be difficult to remove afterwards.
5. In the interests both of clean air, and of the safe functioning of the stove, the fuel quantities listed in the Instructions for Use should never be exceeded, and the doors of the stove must be shut during use to avoid the risk of overheating, which can lead to damage to the stove. Damage due to this cause is not covered by the guarantee.

6. The stove doors must remain shut at all times while the stove is in use.

7. Permitted fuels are:

8. Natural chopped firewood (up to 33 cm max. in length)

9. Lignite (brown coal) briquettes (see permitted fuels in the Instructions for Use)

10. Never use liquid fire starters. Use either special firelighters or wood shavings.

11. Burning rubbish, fine chips, bark, coal slack, chips from planing, damp wood or wood treated with preservative, paper, cardboard or similar is not permitted.

12. The first time the stove is heated there may be some smoke and an unpleasant smell. Make sure that the room is well ventilated (open windows and doors) and heat for at least an hour at the maximum nominal heat load. If the maximum temperature is not reached the first time the stove is heated, then there may be further unpleasant smells at a later date.

13. All controls and settings must be used as indicated in the Instructions for Use. When the stove is hot, please handle only using the implements or protective gloves provided.

14. If the stove is not working correctly, or if the chimney is not drawing properly, smoke may appear when the fire door is opened. It is very important to only open the fire door slowly, initially just a crack, then wait a few seconds before opening fully. In addition, before opening the fire door to top up the fuel, make sure that only glowing material is present: there must not be any visible flames.

15. Do not place any flammable items in the warming drawer or on the surface of the stove.

16. When in use, all surfaces and particularly the glass doors and handles and other controls can become very hot. Make children, young people, older people and animals aware of this danger, and keep them away from this source of heat when the stove is being used. Use the protective gloves or the implements provided. Children

and young people under 16 must not use the stove unless supervised by an adult who is responsible for them.

1. Make sure that the ash pan is always fully pushed in, until it touches the back. Never remove ashes while still hot (fire risk).
2. In spring and autumn the chimney may no longer draw correctly, so that gases produced by combustion are not completely removed. The fire chamber should then be filled with a small quantity of fuel, ideally with wood shavings, and lit under supervision, in order to stabilise the chimney draught. The grate must be clean.
3. After each prolonged period of use for heating, have the stove checked by a professional. The flues and pipes for the evacuation of fumes must also be thoroughly cleaned.
4. If repairs or replacements are necessary, please contact your supplier with the necessary article numbers and serial numbers in good time. Only original WAM-SLER replacement parts may be used.
5. Work such as installation, setup, commissioning and services, as well as repairs, must only be carried out by qualified personnel (heating system or space heating technicians). Intervention by non-qualified persons invalidates the warranty and guarantee.
6. As the solid fuel oven/stove draws the air required for combustion from the surrounding room, you must ensure that sufficient air can be drawn in through non-sealed windows and outside doors. It can be assumed that is this is provided by a room volume of at least 4 m^3 per kW nominal heat capacity. If the volume is less than this, then air vents can be used to provide access to further air in other rooms (min. 150 cm^2 ).
7. You must ensure that the correct safety distance is maintained from all flammable components and materials – to the side, rear and front. These distances can be found in the Instructions for Use or the identification plate.
8. The fire chamber must not be modified.
9. Connection to a chimney whose functional height is less than 4 m, or if multiple stoves are installed, 5 m, is not permitted. A maximum of two other fires can be connected to the chimney which is to be connected the stove.
10. If the chimney catches fire immediately close all doors and openings and call the fire brigade. Do not attempt to extinguish the fire yourself. Afterwards have the chimney thoroughly checked out by a professional.
11. Solid fuels naturally create soot, so it is always possible that the window glass will become dirty: this does not mean there is a malfunction.

1. Usage

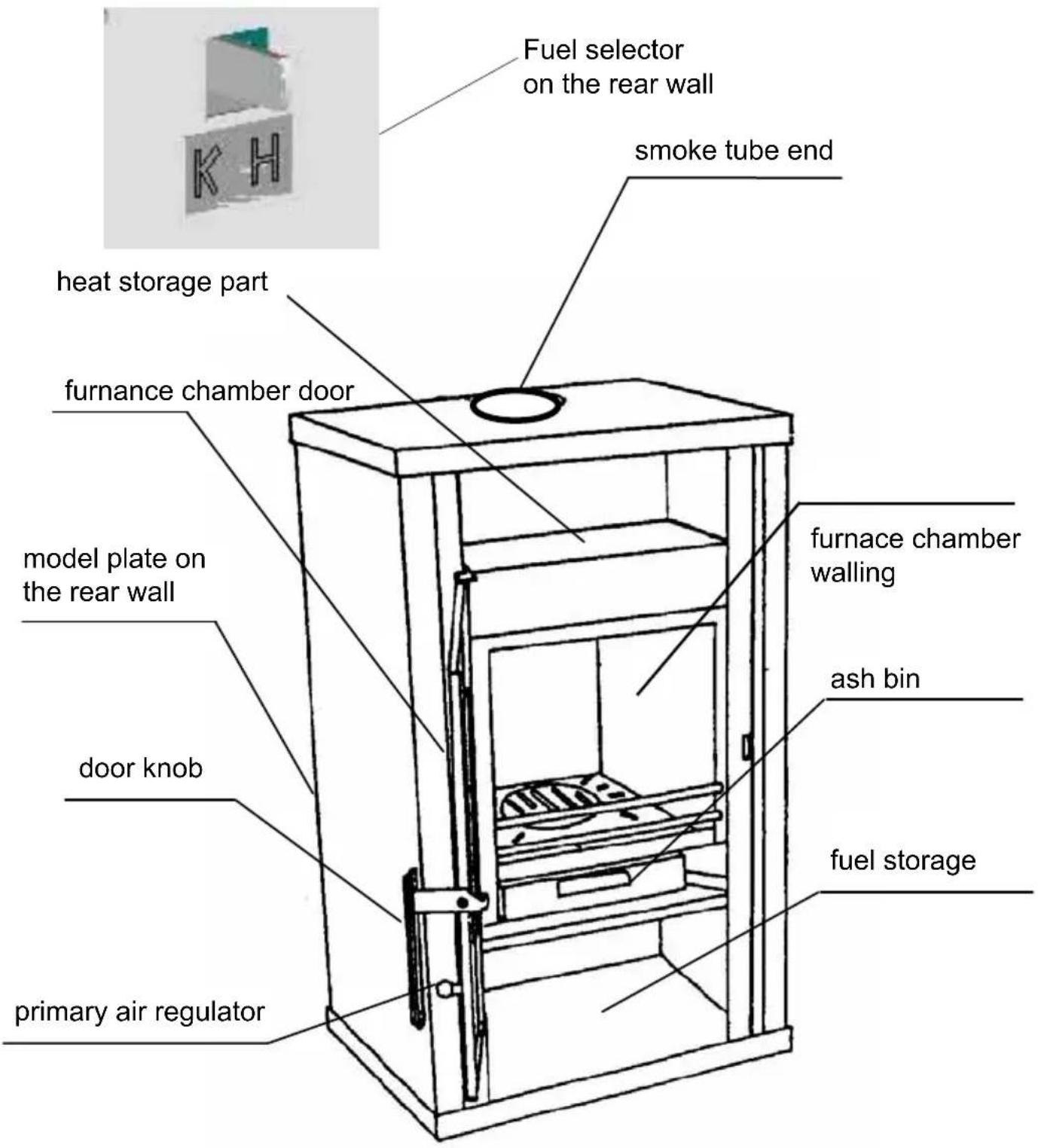

1.1 Structure of the equipment

Fuel selector on the rear wall smoke tube end heat storage part furnance chamber door model plate on the rear wall door knob primary air regulator furnace chamber walling ash bin fuel storage

picture 1

1.2 Installation

Fuels

Low smoke, trouble-free operation of the stove and a supply of heat at the nominal level with a chimney draught of 12 Pa are only guaranteed when you use the following fuels and no others.

Only use natural, dry chopped firewood with a remaining humidity of max. 20%, and lignite (brown coal) briquettes.

Types of fuels	Heating value appr. kJ/kg
Hard wood	19.500
Soft wood	15.900
Brown-coal	11.500

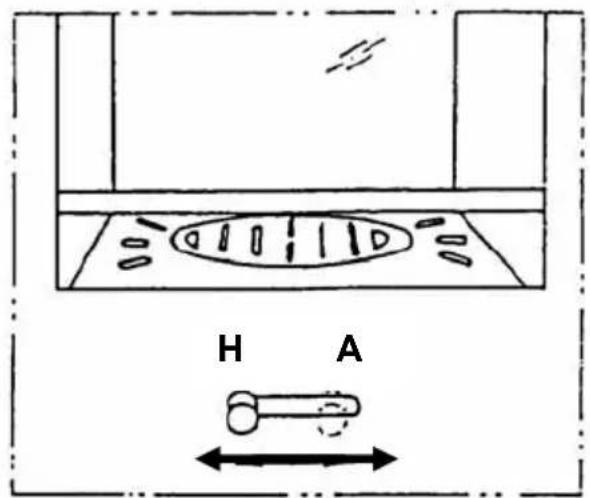

With the primary air damper, do you adjust the rated output. There may be engaged in only the settings and fuel quantities are given that correspond to your licensed or purchased device.

Adjustment:

Fuel		Setting of the primary air regulator	Setting of the fuel selector	Burning time
		6,5 kW
Warning up, kindling		A	H	-
Wood	Nominal heating performance	H H ca. 0,75 h
Brown-coal	Nominal heating performance	A K ca. 1 h
Putting out of working order		H	K	-

Table 2

Filling quantities 6,5 kW

-Split billet: max. length: 33 cm, max. 2 billets per filling, appr. 1,5 kg

-Lignite briquette: max. 1,7 kg

IT IS NOT ALLOWED to burn waste, fine chipping, bark, wood handled with preventive chemicals, furthermore paper and cardboard. For kindling please use wood scrapings or grill starter but never use liquid auxiliaries!

The first kindling

- At the first fire set-up could be a little smoke, but is not dangerous, normal!

In this time, please ventilate the room carefully!

Warning! Upon the first kindling, smoke and unpleasant smell may be generated. Always ensure the proper ventilation of the room (by opening windows and doors), and heat the fireplace at maximum rated heating performance. If with the first heating the maximum temperature is not reached, the above-mentioned effects may as well arise later on.

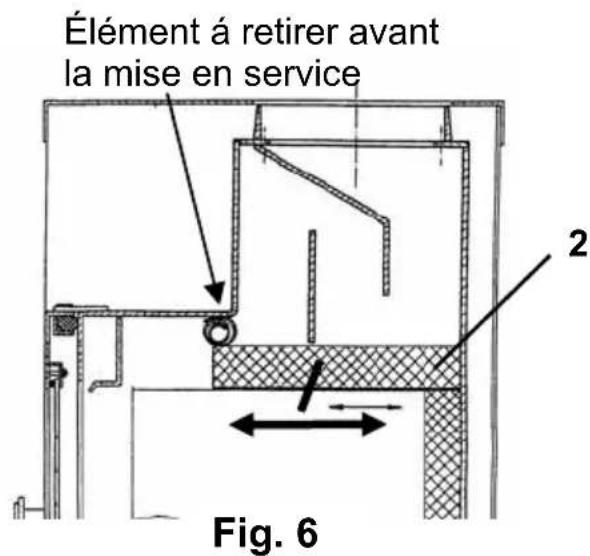

- Before installation pull out the delivery securer off the refractory brick through the furnace chamber (picture 6).

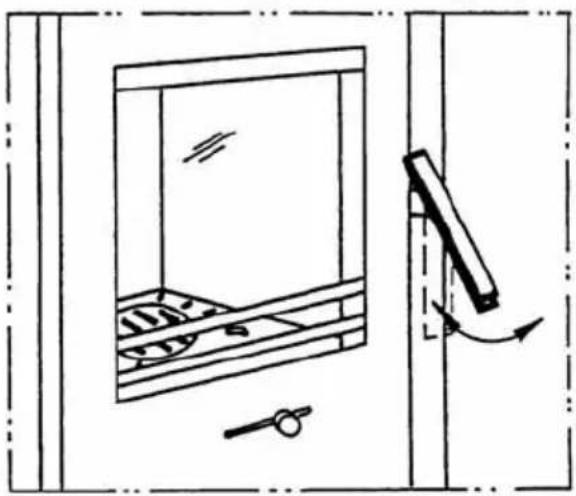

Open the door by raising the handle (picture 2). If the equipment is hot, you can use insulated gloves. Adjust the primary air regulator and the fuel switch (picture 3) according to the Table 2. Put coal lighter or wood wool onto the fire grate, followed by wood chips. First insert small pieces of wood, and then larger ones, light them and close the door again. When the wood burns quickly, and leaves sufficient glowing embers, put additional fuel on the fire. Thereafter, adjust the primary air regulator and the fuel switch according to the Table 2 ("Adjustment of the burning air"). The first kindling should be performed "finely" with little fuel only, so that the parts of the fireplace are adapted to heat. During the first kindling, the generation of smell is normal and absolutely undangerous.

1.3 Putting out of operation

• Let the glowing ember burn to ashes and the fire-place get cold.
  • Empty the furnace chamber and the ash bin.
• Close the doors, and shut off the primary air regulator (position I) and the fuel switch (position K).

1.4 Heating instructions

The fireplace should be operated only with closed furnace chamber door. Fireplaces belonging to type 1 have self-locking furnace chamber doors. These doors may be opened only for kindling, loading or when cleaning the furnace chamber (otherwise draught problems may occur with other equipment connected to the same chimney).

Warning!

When opening the furnace chamber door, any incorrect handling or insufficient draught may induce smoke. Always ensure that the furnace chamber door may be opened only slowly, first just to a small extent, and then fully after a few seconds. In addition, if you intend to put additional fuel into the fire, before the opening of the door only there may be only ember bed in the burning space, i.e. no flames may be visible.

Led into the burning space in correspondence with the existing conditions, the secondary air provides for the follow-up burning of the combustible components of in the burning space. This in fact means smoke and soot-poor burning, which contributes to the protection of the environment. If you wish to commission the fireplace in a transitional period, please, please first examine the chimney draught, as it can be especially weak at high external temperatures. Towards this end, hold a burning match in the slightly opened feeding door. If the flame is not drawn significantly by the draught, then a so-called starting fire is to be set first. Towards this end, burn wood chips/wool in the fireplace or the cleaning hole of the chimney. The fire grate is to be cleaned

before every kindling to ensure the proper inflow of air for burning. The ashtray is to be emptied regularly (picture 5). Should the equipment be extremely hot, use the gloves provided. Please, be careful not to dispose glowing materials into the waste bin.

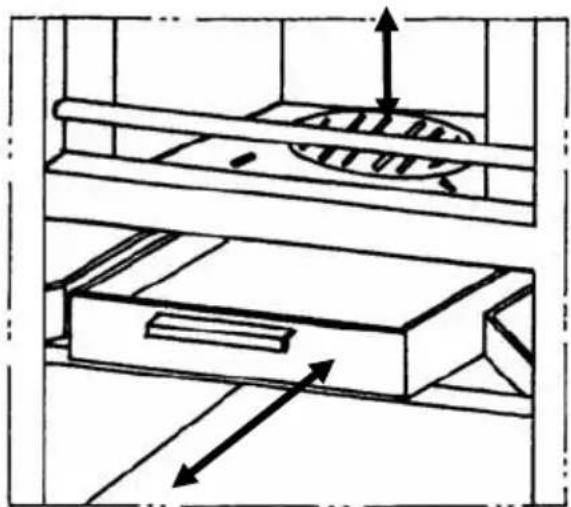

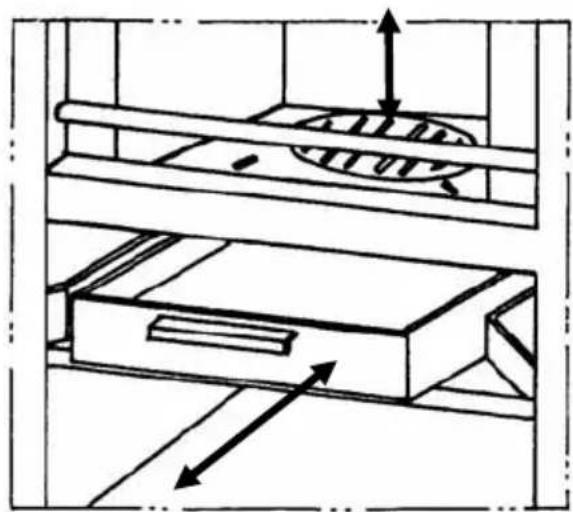

Ensure that the ashtray should be fully pushed into the equipment.

Warning! In order to keep the air clean and safeguard the fireplace, do not exceed the specified maximum fuel quantity, otherwise overheating may occur, which potentially damage the equipment. Such damage is not covered with any guarantee. Only a single layer of fuel is allowable to be prepared in the fireplace. Try to reach lower heating performance only by decreasing the quantity of fuel, and not by cutting the primary air supply.

1.5 Cleaning and maintenance

After the heating season, it is recommended to clean the fireplace and the flue gas pipes carefully. Any dropping heating performance is almost always the consequence of the strong contamination of the flues. For cleaning, the baffle plate (picture 6 No. 2) is to be pulled forward. This way, the flues can be cleaned from the inside or – after removing the flue gas pipe – from above. After cleaning, the baffle plate (picture 6 No. 2) is be pushed back fully again.

Warning!

Following every heating season you are advised to examine the fireplace thoroughly. If any repair or reconditioning is needed, please, contact your local dealer in a timely manner, and specify the model number and serial number of your equipment (as seen on the model plate). External surfaces may be maintained only after the fireplace cooled down, and following the first commissioning. Use cold water for cleaning, or soap, washing ingredient in extraordinary cases, then wipe it dry. Before its first use, clean the ROBAX inspection glass with a wet and clean cloth, and then put a few drops of glass-ceramics cleaner onto both sides of the glass, and spread them with the use of kitchen paper tissues. It provides an invisible film on the valuable surface of the Robax glass. This film helps to keep the glass clean, and facilitates regular cleaning operations. ROBAX S for slightly contaminated surfaces – a commercially available glass surface cleaning agent – may as well be used for the cleaning of the medium or strongly contaminated glass surfaces of the fireplace. Towards this end, spray small quantities of the agent to the cold surfaces, spread it, and wash it down with a wet cloth, followed by drying with a clean, soft cloth. In case there are sticky fuel deposits on these surfaces, first scale simply them with a ceramic-plate scraper held in flat angle, and then clean the surfaces as described above.

Cleaning of the ceramic surfaces dirt and grease are to be removed with soap and water.

Cleaning of the soapstone: the soapstone is a natural stone, therefore minor colour differences may occur; as it is normal, they may not serve as a basis for quality complaints! To clean the soapstone from dirt and fat with water and soap, as well as small scratches, use sand paper (grain size 240).

Warning: Under no circumstances you may use sponge, scouring, aggressive or scratching cleaning agents! If the grate is blocked so that the equipment cannot serve the intended function, the grate is to be removed for cleaning.

Simple line drawing of a door with a window and a tool, showing no text or symbols

picture 2

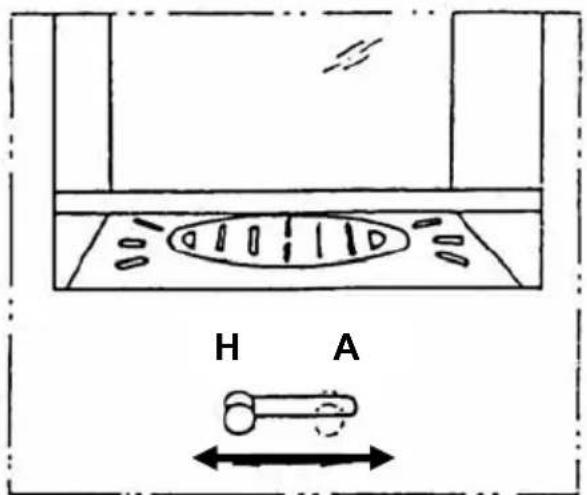

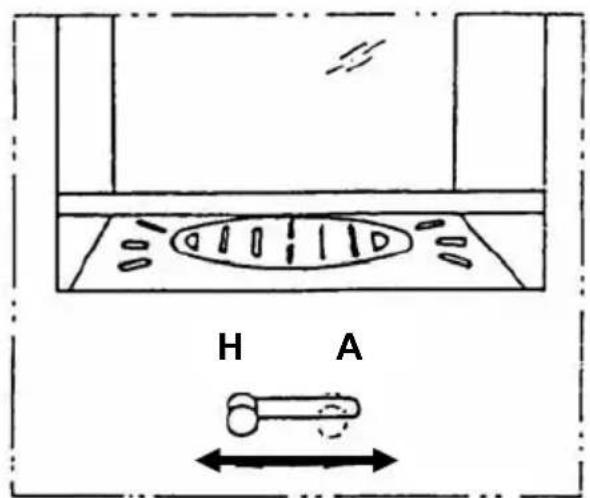

H A

picture 3

KH

picture 4

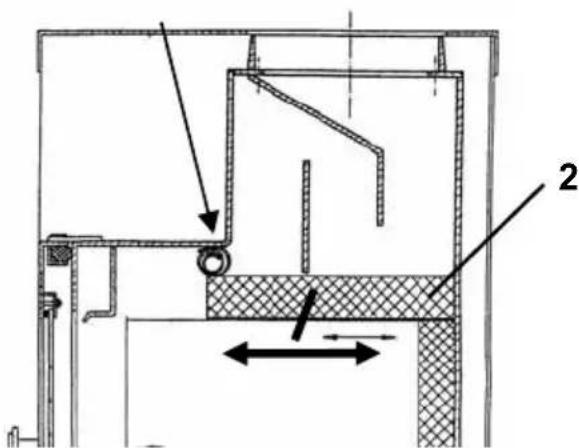

Diagram of a mechanical assembly with two stacked compartments and directional arrows indicating movement (no text or symbols)

picture 5

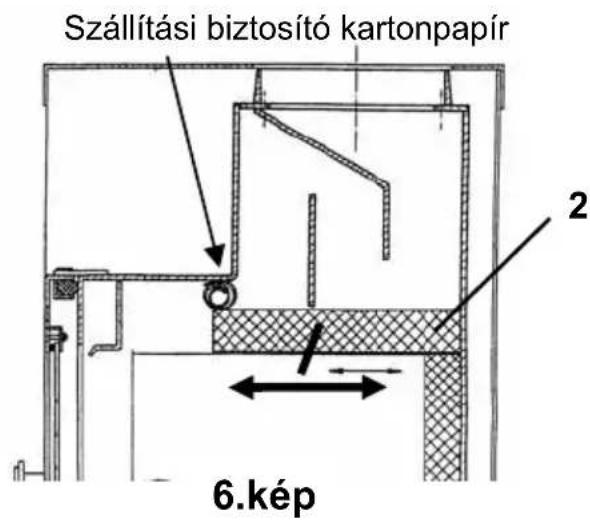

Protection corrugated paper for transportation

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or force.

picture 6

1.6 Potential problems and how to tackle them

Kind of operating problem	Possible reasons Solution
Odour formation Curing	of the applied preventive lacquer.Steaming oil remains.	Operate the fire-place on a low heating level according to the instructions manual for a few hours. Then heat up for maximal performance for a few hours.
Too little heating performance	We chose too little performanceChimney draught is slight	Have the heating requirement of the room examined by an expertChimney draught shall be at least 12 Pa, max. for a short time 18 Pa.Check the tightness of your chimney and also that the doors of other fire-places leading to the same chimney are closed and sealed properly. Make sure that the chimney-cleaning joints are sealed properly.
	Too long and leaky smoke tube	All the smoke tube joints must be well sealed and fireproof-isolated
	Leakage at the door glass	Check the sealing, close the door properly. May have to have the tightening flap renewed.
	Usage of wet wood.	Use well dried wood only.

Actions to be in chimney fire

Chimney fire may occur upon the improper cleaning of the chimney, the use of inappropriate fuels (e.g. excessively wet wood) or the inadequate setting of the burning air. In such cases, close the burning air at the fire, and call the fire service.

Never try to extinguish the fire with water!

2. Placing

2.1 Prescriptions

For installation and for connection of flue, the requirements of the Fire Regulations (FeuVO in Germany) apply, as well as local building regulations such as the following technical standards DIN 18896, DIN 4705, EN 13384, DIN 18160, EN 1856-2 and EN 15287. In order for the stove to function correctly the chimney to which you want to connect the stove must be in good condition.

2.2 Place of installation

The stove draws the air required for burning from the surrounding room. You must ensure that sufficient air can be drawn in through non-sealed windows and outside doors. In addition you must ensure that a room volume/heat capacity ratio of at least 4 m^3 per kW nominal heat capacity is available. If the volume is less than this, then air vents can be used to provide access to further air supply in other rooms (connecting vents min. 150 cm^2 ).

2.3 Distances

All the combustible materials, furniture or e.g. decoration materials that are in the close environment of the fireplace should be protected from the heat.

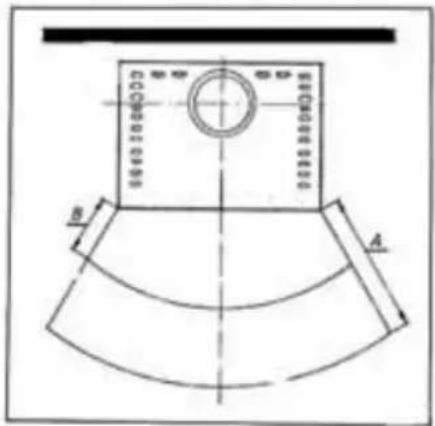

Furnishing in the radiation area

Keep a minimal distance of 100 cm (A) between the front edge of the fireplace and the combustible equipment, furniture or e.g. decoration materials in the building. The security distance can be reduced to 50 cm (B) if a heat shield is placed in front of the object to be protected (see example in Picture 8).

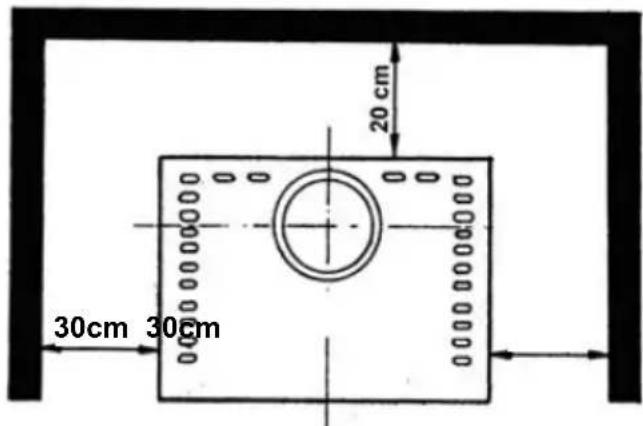

Furnishing beyond the radiation area

The walls beside and behind the fireplace may not be made of combustible materials, and they cannot be covered with such materials if the distance on the sides is under 30 cm, or 20 cm on the rear side. Similarly, the distance to wooden and plastic furniture on the sides should be at least 30 cm (see Picture 9).

B A

picture 8

20 cm 30cm 30cm

picture 9

Floor in front of and under the fireplace

Floors made from combustible materials, such as carpets, parquet floors or cork is to be protected by a shield of non-combustible material – for example ceramics, stone, glass or steel – placed under the fireplace so that it should reach out to 50 cm in front and 30 cm besides.

2.4 Connection of the fireplace

The connection for attaching to the chimney must be able to withstand at least 400^ C.

PLEASE NOTE:

Before connecting the stove the local authority responsible for approving heating systems must be consulted!

Connection pieces must be firmly connected to the stove and to each other and must not leak. They must not project into the open diameter of the chimney. The connection piece between the stove and the chimney must have the same diameter as the pipe socket on the stove. Horizontal connection pieces of over 0.5 m must rise towards the chimney at an angle of 10 degrees. Any pipes which are not heat insulated or vertical must not be longer than 1 metre.

The requirements of the Fire Regulations (FeuVO) apply, as well as local building regulations such as for the chimney standards DIN 18896, DIN 4705, EN 13384, DIN 18160 and EN 15287.

Connection pieces must be tested to EN 1856-2. Measurement X (distance from flammable construction and other materials) must be as defined by the manufacturer of the connection piece.

X

PLEASE NOTE:

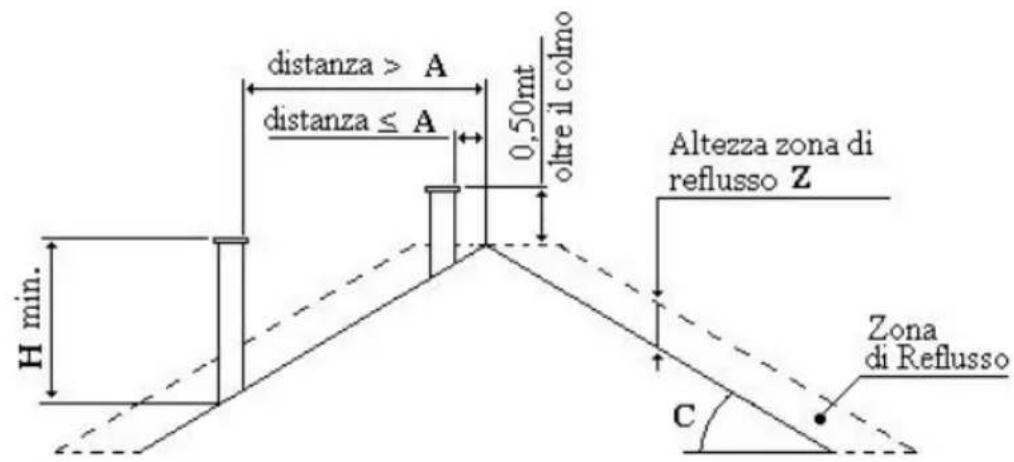

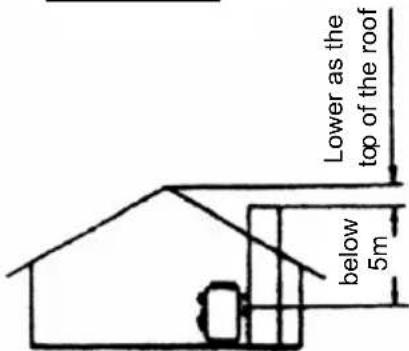

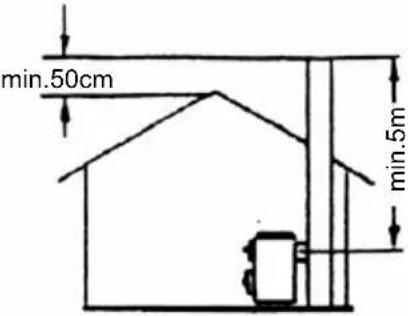

Fitting to a chimney with a functional height of less than 4 m, or if several stoves are being fitted, less than 5 m, is not permitted.

(See: Data for chimney calculations / Chapter 3.) A maximum of two other fires can be connected to the chimney to be connected to the stove.

For safety reasons it is not permitted to use a steam extractor hood to remove air when the stove is producing heat.

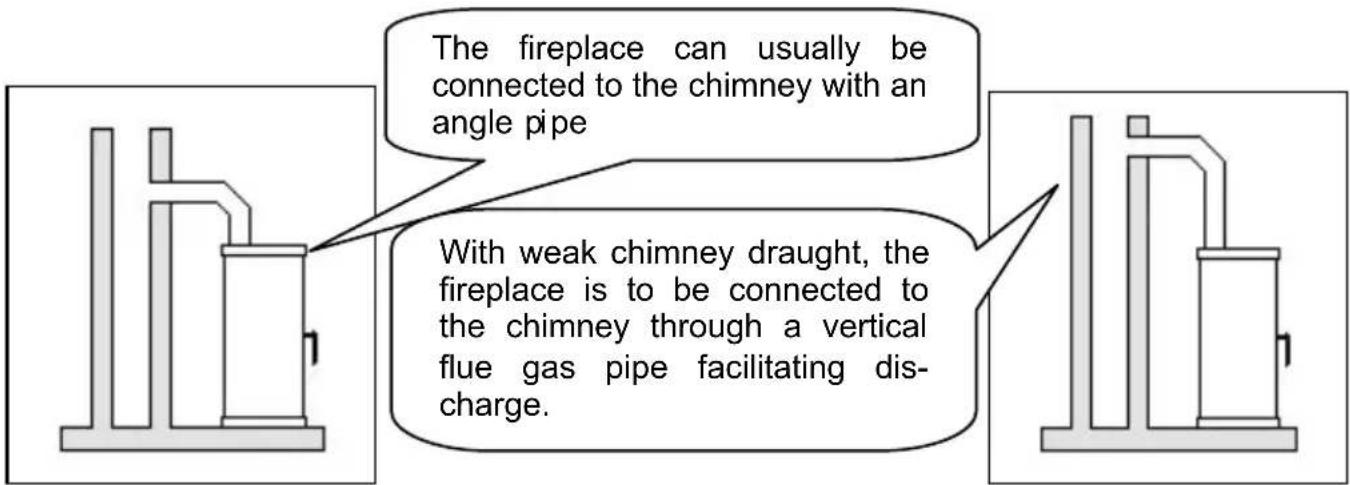

The fireplace can usually be connected to the chimney with an angle pipe With weak chimney draught, the fireplace is to be connected to the chimney through a vertical flue gas pipe facilitating discharge.

Correct	Incorrect
		Tightening cross section of the chimney because the smoke tube is pushed into the chimney too much
		Obstruction, because the smoke tubes are led as facing each other
	[Faulty d because fire-plac door (no use) is c
	Fal:
	Fals beca leak
		False air, because a open fire-place door

3. Technical specification

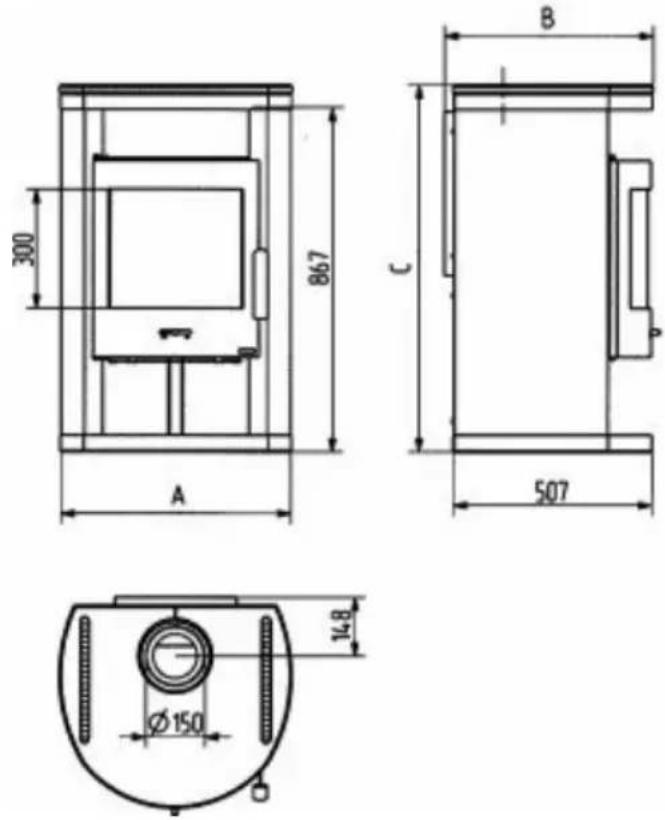

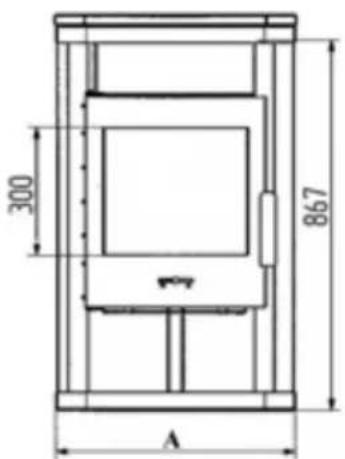

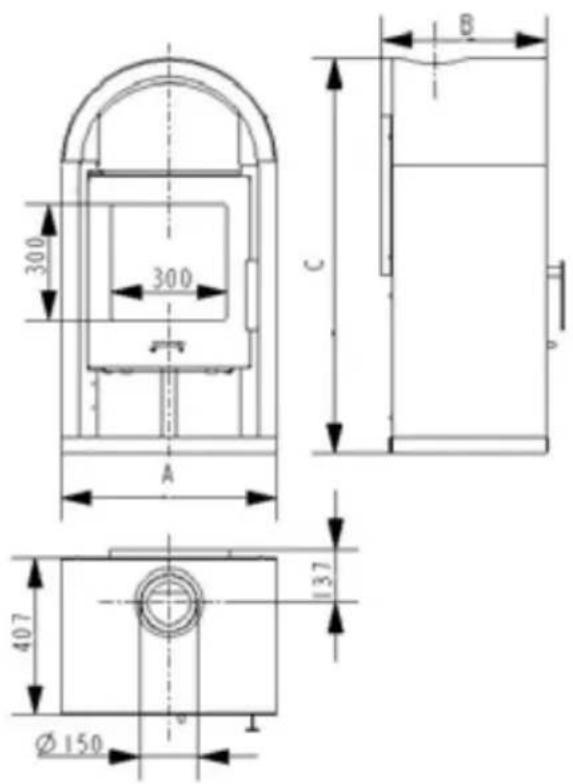

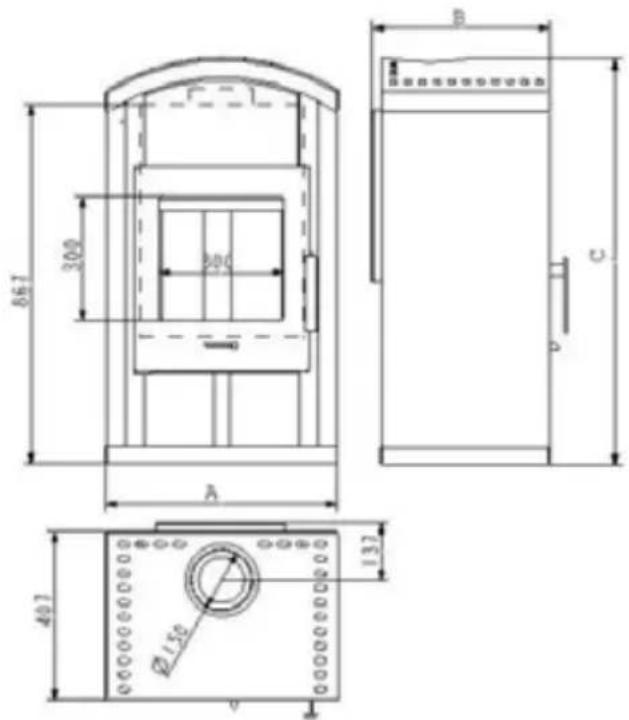

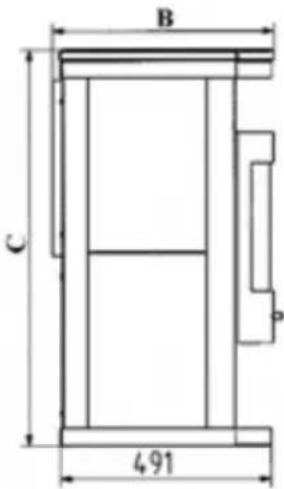

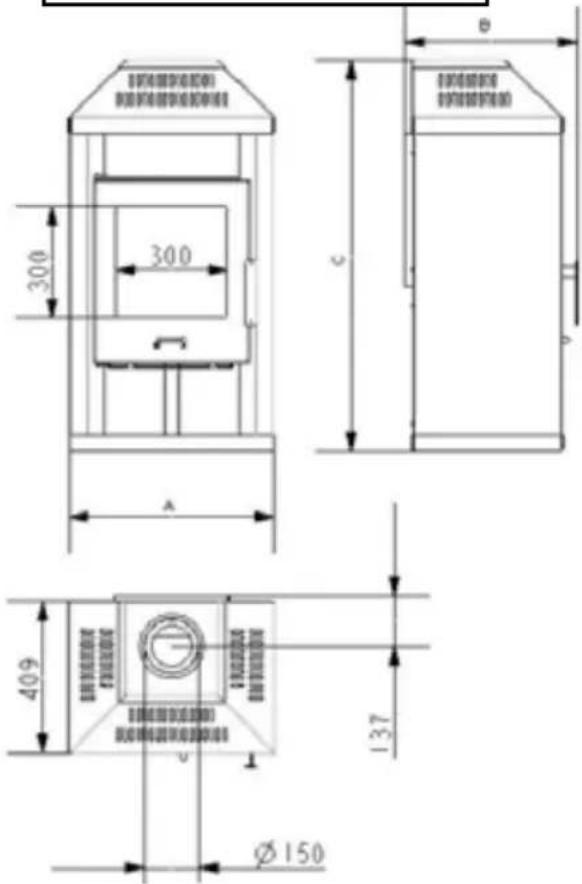

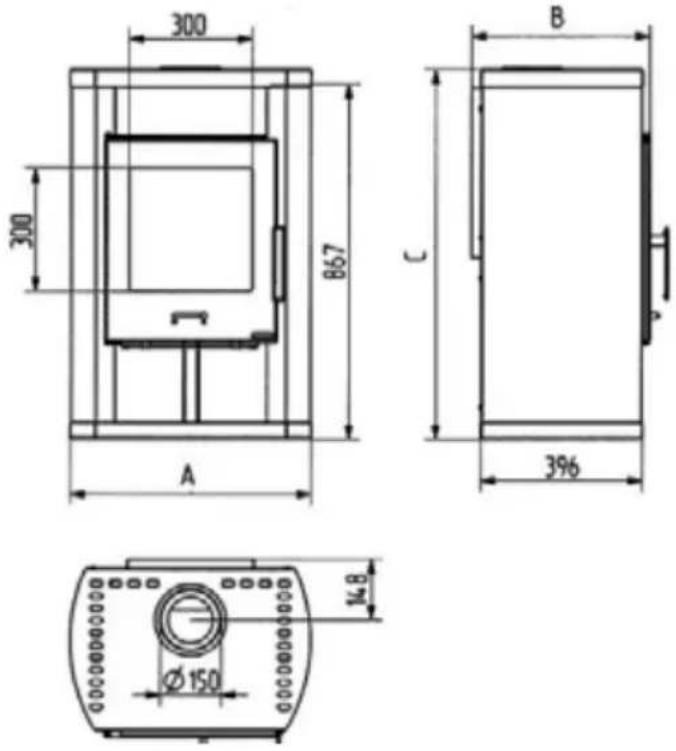

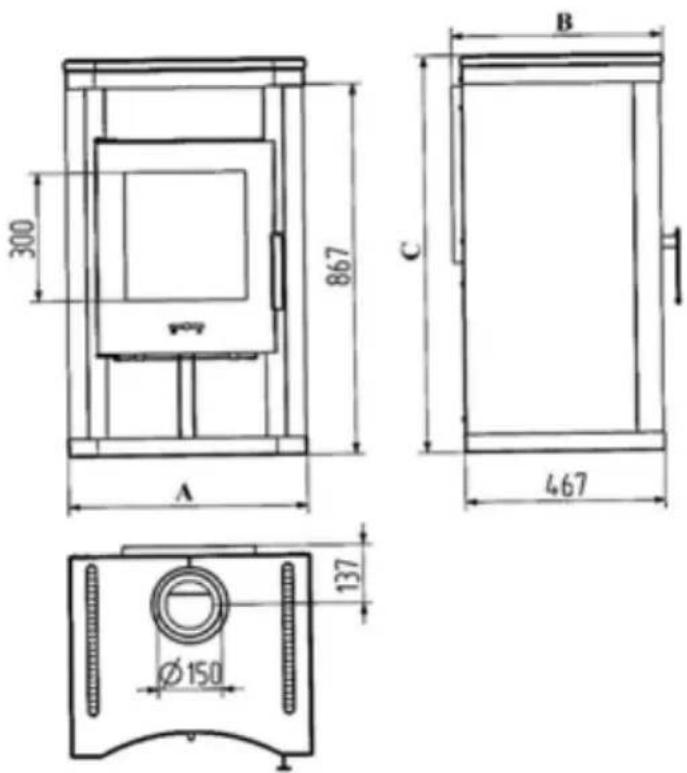

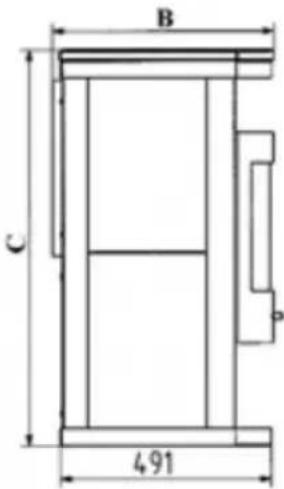

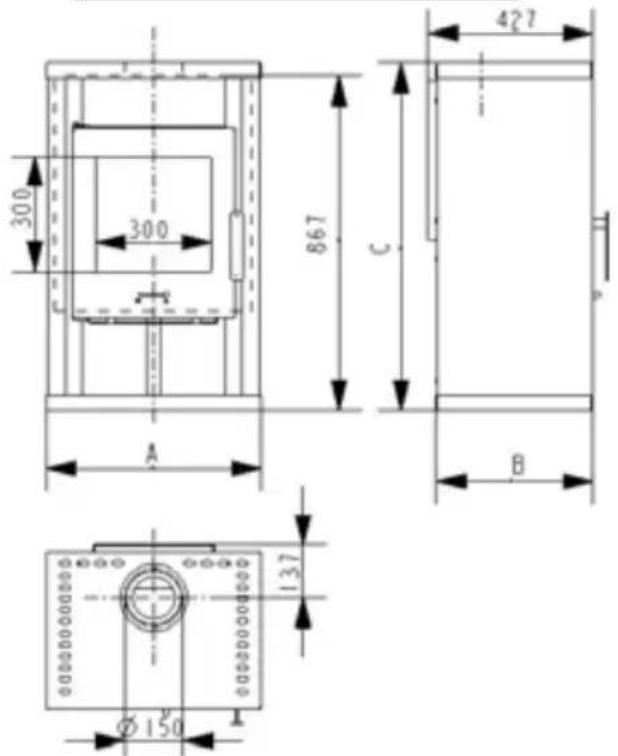

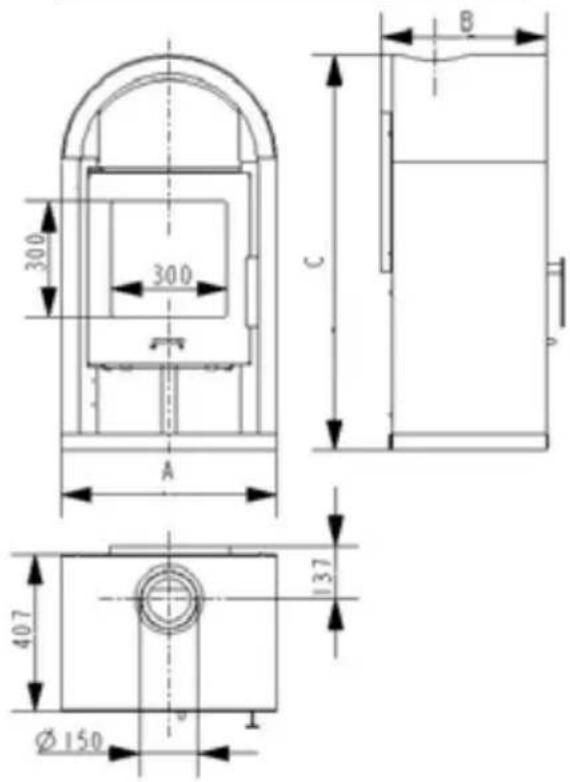

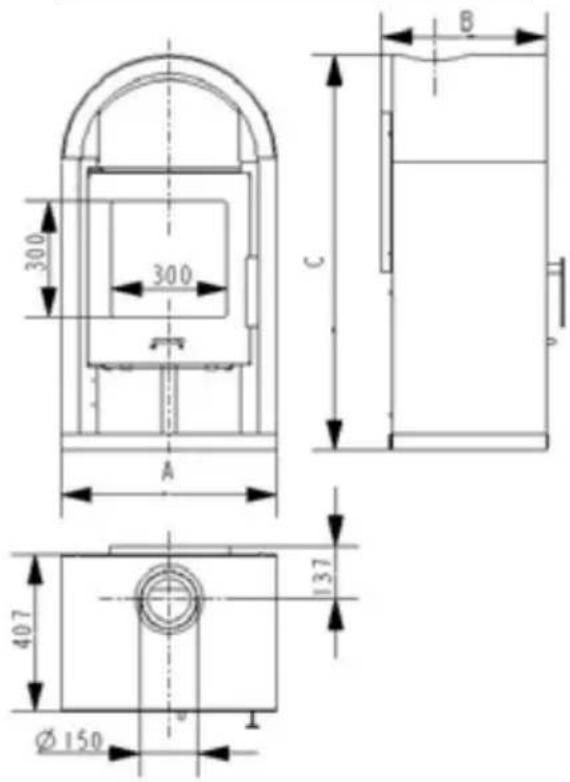

3.1 Dimensional drawings

TYP 108 50 Pluto TYP 108 53 Jupiter

300 300 867 427 C A B 137 Ø150

TYP 108 52 Saturn / Stella Nova / Kosmos

86.7 30.0 80.0 A D C 40.7 Ø150 137

TYP 108 51 Mars

300 300 A C B 407 Ø150 137

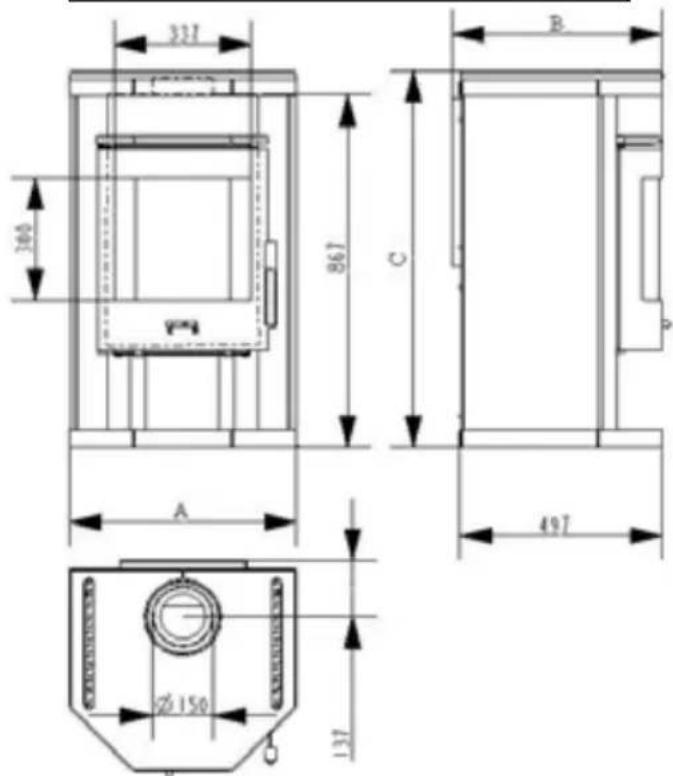

TYP 108 50 Panorama / Zürich

337 300 861 C A 25 150 137 B 497

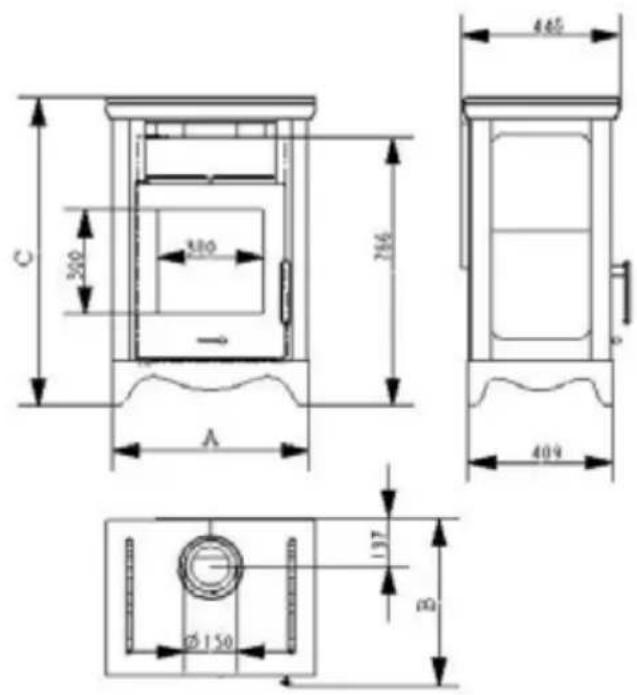

TYP 108 50 Country

C 300 380 A 465 286 409 Ø150 137 B0

TYP 108 50 Luxor

Φ150 409 300 300 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z X1 Y1 Z2 X2 Y2 Z3 X3 Y3 Z4 X4 Y4 Z5 X5 Y5 Z6 X6 Y6 Z7 X7 Y7 Z8 X8 Y8 Z9 X9 Y9 Z10 X10 Y10 Z11 X11 Y11 Z12 X12 Y12 Z13 X13 Y13 Z14 X14 Y14 Z15 X15 Y15 Z16 X16 Y16 Z17 X17 Y17 Z18 X18 Y18 Z19 X19 Y19 Z20 X20 Y20 Z21 X21 Y21 Z22 X22 Y22 Z23 X23 Y23 Z24 X24 Y24 Z25 X25 Y25 Z26 X26 Y26 Z27 X27 Y27 Z28 X28 Y28 Z29 X29 Y29 Z30

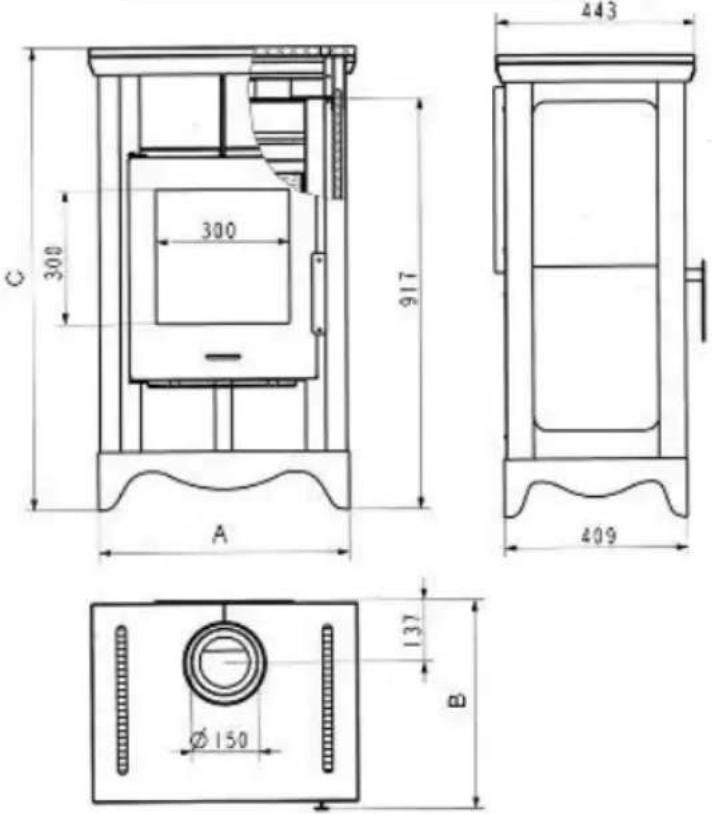

TYP 108 50 Country-H

300 300 917 443 A 409 Ø150 137 B

TYP 108 50 Radiant

TYP 108 50 Rondo / Radius

TYP 108 56 Eos

TYP 108 57 Calypso

300 867 A

B C 491

Ø 150 137

3.2 Dimension

Art.No.W20...	width(mm)	draught(mm)	height(mm)	weight netto:(kg)	weight brutto(kg)
001085000	557	427	904	88	98
001085004	557	427	904	88	98
001085005	557	427	904	88	98
001085006	557	427	904	88	98
001085009	557	427	904	88	98
001085010	557	468	1057	85	95
001085011	557	468	1057	131	141
001085012	588	531	904	84	97
001085014	557	427	904	93	103
001085015	588	435	904	80	92
001085020	557	427	904	114	124
001085022	588	531	924	96	109
001085024	588	531	924	96	109
001085026	588	531	924	96	109
001085030	557	516	924	151	163
001085035	557	516	904	87	99
001085038	557	516	924	98	110
001085040	851	408	1254	112	132
001085045	557	468	904	130	140
001085048	593	468	1032	135	145
001085050	557	427	904	123	133
001085051	557	427	904	101	111
001085052	557	427	904	101	111
001085053	557	427	904	101	111
001085054	557	427	904	101	111
001085055	557	427	904	123	133
001085060	557	427	904	88	98
001085066	557	427	1022	85	100
001085070	557	427	904	88	98
001085080	557	427	904	101	111
001085085	557	427	904	101	111
001085100	557	427	1022	85	100
001085101	557	427	1022	85	100
001085103	610	452	1050	103	118
001085140	557	427	1022	118	133
001085160	557	427	1022	115	130
001085175	557	427	1022	103	118
001085170	557	427	1022	85	100
001085185	610	452	1050	103	118
001085190	610	452	1050	103	118
001085200	557	427	980	86	88
001085201	557	427	980	86	88
001085202	557	427	980	86	88

Art.No.W20...	width(mm)	draught(mm)	height(mm)	weight netto:(kg)	weight brutto(kg)
001085203	557	427		980	86
001085204	557	427		980	86
001085205	557	427		980	86
001085211	557	427		980
001085221	557	427		980	112
001085222	557	427		980	117
001085225	557	427		980	86
001085241	557	427		980	124
001085242	557	427		980	124
001085245	557	427		980	124
001085252	557	427		940	89
001085255	557	427		940	112
001085260	557	427		940
001085300	557	427		904	83
001085301	557	427		904	83
001085302	557	427		904	83
001085304	557	427		929	119
001085305	557	427		904	88
001085306	557	427		904	83
001085307	557	427		904	83
001085310	557	427		924	131
001085340	557	427		929	152
001085344	557	427		904	131
001085345	557	427		904	131
001085346	557	427		929	119
001085348	557	468		904	118
001085380	557	427		904	101
001085500	557	427	1023	88	96
001085505	557	427	1023	88	96
001085508	557	427	1023	88	96
001085520	557	427	1023	119
001085525	557	427	1023	119
001085540	557	427	1023	119
001085550	557	427	1023	102
001085610	557	492		930	113
001085615	557	492		930	113
001085621	557	492		930	113
001085701	557	516		905	85
001085711	557	516		929	100
001085715	557	516		929	147
001085721	557	516		929	112
001085740	557	516		905	122

* Basic equipment without ceramics

The specified dimensions and weights are approximate values, and thus have only informative purposes. We reserve the right to modify the designs as required in terms of technology or quality!

3.3 Datas

Type TYP108 50 / 51 / 52 / 53 / 56 / 57
Nominal performance 6,5 kW
Heating capacity (m3)
-under favourable	132
-less favourable	78
-not favourable heating circumstances	52
according to 18893/TAB2 DIN standard
Flue gas values: fuel:	wood / brown coal
Flue gas stream:	7,5 g/s
Flue gas temperature:	290 °C
Min. blast pressure at performance:	12 Pa
CO (relating to 13% O2)	≤ 40 mg/m3
dust (relating to 13% O2)	959 / 813 mg/m3
efficiency	≥ 78 % / 74,5 %

All information provided by the exhaust gas values are based on the EN 13240 under stationary laboratory conditions

3.4 EC Declaration of Conformity

EC-Declaration of Conformity

Product description: Solid fuel stove

Model no: TYP 108 50 / 51 / 52 / 53 / 56 / 57

The products listed above conform to the requirements of the following European Directive:

89/106/EC: Construction Products Directive

This is attested by test reports No. FSPS-Wa 1807-EN of 27.01.2009 from the state-accredited test centre RWE Power AG Frechen Germany (notified body number 1427), tested under EN 13240.

Munich, 19.09.2011

K.D. Knabel A. Freund

Guo et al. i.V. Guo et al.

Managing Director Technical Director

This declaration certifies conformity to he above-named Directives but does not provide any guarantee of product characteristics. The safety notices in the product documentation supplied must be adhered to. This declaration is no longer valid if the equipment is modified by a third party.

We reserve the right to make changes which relate to technical advances and / or to an improvement in quality. We accept no liability for printing errors and changes which occur after printing.

Préambule

Cher Client,

Simple line drawing of a door with a window and a hanging tool, no text or symbols present

Fig. 2

KH

Fig. 4

H A

Fig. 3

Diagram of a mechanical assembly with two stacked compartments and directional arrows indicating motion (no text or symbols)

Fig. 5

2.3 Distances minimum

Simple line drawing of a door with a window and a hanging tool, no text or symbols present

Fig. 2

KH

Fig. 4

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force.

Fig. 6

H A

Fig. 3

Diagram of a mechanical assembly with two stacked components and directional arrows indicating motion (no text or symbols)

Fig. 5

d ≥ 5m 0,50m d ≤ 5m 0,50m

Simple line drawing of a window with a scroll and directional arrow, no text or symbols present

2.kép

KH

4.kép

Diagram of a mechanical or electrical assembly with two stacked blocks and directional arrows indicating movement (no text or symbols)

5.kép

86.7 30.0 80.0 A D C 40.7 Ø150 132

TYP 108 51 Mars

300 300 A C B 137 407 Ø150

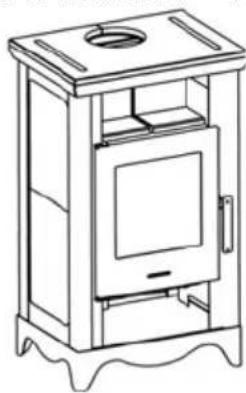

TYP 108 50 Panorama / Zürich

337 300 861 C A 25 150 137 B 497

TYP 108 50 Country

C 200 380 A 465 216 409 137 B Ø150

TYP 108 50 Luxor

Φ150 409 300 300 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z X1 Y1 Z2 X2 Y2 Z3 X3 Y3 Z4 X4 Y4 Z5 X5 Y5 Z6 X6 Y6 Z7 X7 Y7 Z8 X8 Y8 Z9 X9 Y9 Z10 X10 Y10 Z11 X11 Y11 Z12 X12 Y12 Z13 X13 Y13 Z14 X14 Y14 Z15 X15 Y15 Z16 X16 Y16 Z17 X17 Y17 Z18 X18 Y18 Z19 X19 Y19 Z20 X20 Y20 Z21 X21 Y21 Z22 X22 Y22 Z23 X23 Y23 Z24 X24 Y24 Z25 X25 Y25 Z26 X26 Y26 Z27 X27 Y27 Z28 X28 Y28 Z29 X29 Y29 Z30

TYP 108 50 Country-H

300 300 917 443 A 409 Ø150 137 B

TYP 108 50 Radiant

TYP 108 50 Rondo / Radius

TYP 108 56 Eos

TYP 108 57 Calypso

300 867 A

B C 4.91

Ø 150 137

3.2 Méret adatok

Késztermék-KódW20...	Szél.(mm)	Mélys.(mm)	Mag.(mm)	Súlynetto(kg)	Súlybrutto(kg)
001085000	557	427		904	88
001085004	557	427		904	88
001085005	557	427		904	88
001085006	557	427		904	88
001085009	557	427		904	88
001085010	557	468	105	7 85	95
001085011	557	468	105	7 131	141
001085012	588	531		904	84
001085014	557	427		904	93
001085015	588	435		904	80
001085020	557	427		904	114
001085022	588	531		924	96
001085024	588	531		924	96
001085026	588	531		924	96
001085030	557	516		924	151
001085035	557	516		904	87
001085038	557	516		924	98
001085040	851	408	125	4 112	132
001085045	557	468		904	130
001085048	593	468	103	2 135	145
001085050	557	427		904	123
001085051	557	427		904	101
001085052	557	427		904	101
001085053	557	427		904	101
001085054	557	427		904	101
001085055	557	427		904	123
001085060	557	427		904	88
001085066	557	427	102	2 85	100
001085070	557	427		904	88
001085080	557	427		904	101
001085085	557	427		904	101
001085100	557	427	102	2 85	100
001085101	557	427	102	2 85	100
001085103	610	452	105	0 103	118
001085140	557	427	102	2 118	133
001085160	557	427	102	2 115	130
001085175	557	427	102	2 103	118
001085170	557	427	102	2 85	100
001085185	610	452	105	0 103	118
001085190	610	452	105	0 103	118
001085200	557	427		980	86
001085201	557	427		980	86
001085202	557	427		980	86

	Késztermék-KódW20...	Szél.(mm)	Mélys.(mm)	Mag.(mm)	Súlynetto(kg)	Súlybrutto(kg)
98	001085203	557	427		980	86
98	001085204	557	427		980	86
98	001085205	557	427		980	86
98	001085211	557	427		980
98	001085221	557	427		980	112
	001085222	557	427		980	117
	001085225	557	427		980	86
97	001085241	557	427		980	124
103	001085242	557	427		980	124
92	001085245	557	427		980	124
24	001085252	557	427		940	89
109	001085255	557	427		940	112
109	001085260	557	427		940
109	001085300	557	427		904	83
63	001085301	557	427		904	83
99	001085302	557	427		904	83
110	001085304	557	427		929	119
	001085305	557	427		904	88
40	001085306	557	427		904	83
	001085307	557	427		904	83
33	001085310	557	427		924	131
11	001085340	557	427		929	152
11	001085344	557	427		904	131
11	001085345	557	427		904	131
11	001085346	557	427		929	119
33	001085348	557	468		904	118
98	001085380	557	427		904	101
	001085500	557	427	1023		88
98	001085505	557	427	1023		88
11	001085508	557	427	1023		88
11	001085520	557	427	1023		119
	001085525	557	427	1023		119
	001085540	557	427	1023		119
	001085550	557	427	1023		102
	001085610	557	492		930	113
	001085615	557	492		930	113
	001085621	557	492		930	113
	001085701	557	516		905	85
	001085711	557	516		929	100
	001085715	557	516		929	147
88	001085721	557	516		929	112
88	001085740	557	516		905	122
88
