USER MANUAL SKG 1700 A1 SILVERCREST

Operating instructions

SE

KONTAKTGRILL

Bruksanvisning

FR BE

GRIL MULTI-USAGE

Mode d'emploi

DE AT CH

KONTAKTGRILL

Bedienungsanleitung

IAN 90859

F

PARILAGRILLI

Käytloohje

DK

KONTAKTGRILL

1. Overview 2
2. Intended purpose 3
3. Safety information 3
4. Items supplied 5
   5.How to use 6
5. Operation 6

6.1 Heating up.. 6
6.2 Preparation 7
6.3 Grill plate setting 7
6.4 Switching off 8

1. Cleaning 8
2. Storage 8
3. Disposal 9
4. Trouble-shooting 9
5. Technical specifications 9
6. Recipes 9
7. Warranty of the HOYER Handel GmbH 12

1. Overview

1 Control light of grill plate in lid
2 Handle
3 Base (foldable)
4 Lid
5 Grip clamps for grill plates
6 Power cable with mains plug
7 Cable spool on device base
8 Oil/fat runoff on lower grill plate
9 Thermostat control for lower grill plate
10 Handle
11 Control light for the lower grill plate
12 Grill plates
13 Oil/fat runoff on grill plate in lid
14 Thermostat control on grill plate in lid

Figure A: contact grill / Figure B: barbecue / Figure C: grill oven

2

GB

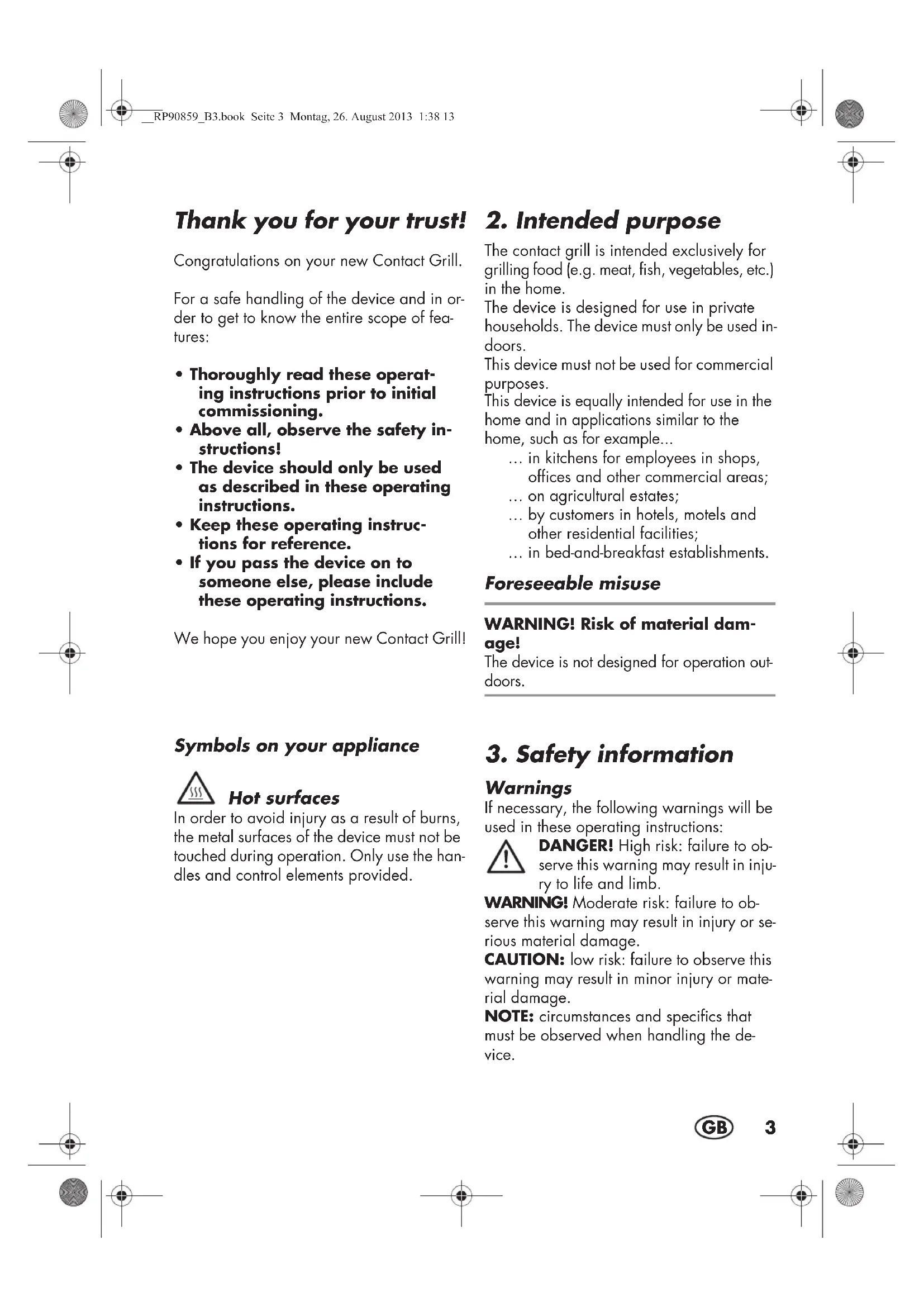

Thank you for your trust!

Congratulations on your new Contact Grill.

For a safe handling of the device and in order to get to know the entire scope of features:

• Thoroughly read these operating instructions prior to initial commissioning.
• Above all, observe the safety instructions!
  The device should only be used as described in these operating instructions.
• Keep these operating instructions for reference.
• If you pass the device on to someone else, please include these operating instructions.

We hope you enjoy your new Contact Grill!

2. Intended purpose

The contact grill is intended exclusively for grilling food (e.g. meat, fish, vegetables, etc.) in the home.

The device is designed for use in private households. The device must only be used indoors.

This device must not be used for commercial purposes.

This device is equally intended for use in the home and in applications similar to the home, such as for example...

... in kitchens for employees in shops, offices and other commercial areas;
... on agricultural estates;
... by customers in hotels, motels and other residential facilities;
... in bed-and-breakfast establishments.

Foreseeable misuse

WARNING! Risk of material damage!

The device is not designed for operation outdoors.

Symbols on your appliance

Hot surfaces

In order to avoid injury as a result of burns, the metal surfaces of the device must not be touched during operation. Only use the handles and control elements provided.

3. Safety information

Warnings

If necessary, the following warnings will be used in these operating instructions:

DANGER! High risk: failure to observe this warning may result in injury to life and limb.

WARNING! Moderate risk: failure to observe this warning may result in injury or serious material damage.

CAUTION: low risk: failure to observe this warning may result in minor injury or material damage.

NOTE: circumstances and specifics that must be observed when handling the device.

Instructions for safe operation

• This device can be used by children from the age of 8 and people with restricted physical, sensory or intellectual abilities or people without adequate experience and/or understanding, if they are supervised or instructed on how to use this device safely and if they are aware of the resulting risks.
  Children must not play with the device.
• Cleaning and user maintenance must not be performed by unsupervised children unless they are older than 8 years and supervised.
  Children under the age of 8 must be kept away from the device and the power cable.
• This device is not intended to be operated using an external timer clock or a separate remote control system.
• If the power cable of this device should become damaged, it must be replaced by the manufacturer, the manufacturer's customer service department or a similarly qualified specialist, in order to avoid any hazards.
• Charcoal and similar fuels must not be used in this device.
• The heating spirals must not be wiped with a damp cloth.

！

DANGER for children

• Packing materials are not children's toys. Children should not be allowed to play with the plastic bags: There is a risk of suffocation.
• Please ensure that children are not able to pull the device down from the work surface with the power cable.
• Keep the device out of the reach of children.

4

DANGER! Risk of electric shock due to moisture

The device, the power cable and the mains plug must not be immersed in water or any other liquids.
- Protect the device from moisture, water drops and water spray.

• If liquid gets into the device, remove the mains plug immediately. Have the device checked before reusing.
• Never touch the device with wet hands.
  If the device falls into water, disconnect the mains plug immediately. Only then is it safe to retrieve the device.

4

DANGER! Risk of electric shock

• Only plug the mains plug into the wall socket after the device has been completely assembled.
• Only connect the mains plug to a properly installed and easily accessible wall socket whose voltage corresponds to the specifications on the rating plate. The wall socket must continue to be eas

ily accessible after the device is plugged in.

• Ensure that the power cable cannot be damaged by sharp edges or hot points. Do not wrap the power cable around the device.
  The device is not fully disconnected from the power supply, even after it is switched off. In order to fully disconnect it, pull out the mains plug.
• When using the device, ensure that the power cable cannot be trapped or crushed.
• When removing the mains plug, always pull the plug and never the cable.
• Disconnect the mains plug from the wall socket... ... if there is a fault, ... ... when you are not using the device, ... ... before you clean the device, and ... ... during thunderstorms.
• To avoid any risk, do not make modifications to the device.
• Do not use the device if there is visible damage to the device or the power cable.

DANGER! Risk of fire

• The device must not be operated close to flammable liquids or materials, or in a potentially explosive environment. Keep at a distance of at least 30~cm from walls. In order to prevent overheating of the device or a potential fire, the device must not be covered. The grill plates must under no circumstances be covered with aluminium foil, aluminium containers or heat-resistant materials.

• The power cable must not touch the metal surfaces during operation.

DANGER! Risk of injury through burning!

• The metal surfaces become very hot during operation. Only touch the handles and control elements of the device during operation.
  The device remains very hot after it is switched off, and must not be touched.
• Only transport the device when it has cooled down, and when doing so only use the handles intended.

WARNING! Risk of material damage

• Ensure that the device is switched off before you plug it into a wall socket (turn both thermostat controls to "●" until they go no further).
• Only use the original accessories.
• Do not use kitchen utensils made of metal to lift grilled food from the grill plate. Use e.g. a wooden spatula.
• The device and its accessories are not suitable for dishwashers.
• Do not use any astringent or abrasive cleaning agents.
• The device is fitted with non-slip plastic feet. As furniture is coated with a wide array of varnishes and synthetics, and is also treated with different care products, it cannot be fully ruled out that some of these materials contain ingredients that could attack and soften the non-slip plastic feet. If necessary, place a non-slip mat under the device.

4. Items supplied

1 Contact grill with two grill plates
1 Set of operating instructions

5. How to use

FIRE HAZARD!

• Place the device on a dry, level, non-slip and heat-resistant surface.
  The device must not be operated close to flammable liquids or materials, or in a potentially explosive environment. Keep at a distance of at least 30~cm from walls.

NOTE: when in operation for the first time, some smoke and odour may be generated by the device. This is related to materials used on the heating elements during assembly, and is not a defect with the product. Ensure adequate ventilation.

• Remove all packing material.
• Check to ensure that all parts are present and undamaged.

• Clean the device prior to its first use! (see "Cleaning" on page 8)

• Open the lid 4 of the contact grill upwards. Be careful not to raise the lid any further after it is vertical.

• Before plugging in the device, check that both thermostat controls 9 + 14 are set to the marking "●".
• Insert the mains plug 6 into a wall socket corresponding to the specifications of the rating plate.
• Rotate the thermostat controls 9 + 14 to temperature setting 5. The device then heats up the grill plates 12, and the control lights 1 and 11 are illuminated.
• Switch the device off after approx. 15 minutes by turning both thermostat controls 9 + 14 to the marking "●".
• Clean the appliance again. (see "Cleaning" on page 8)

6. Operation

DANGER! Risk of injury through burning!

The metal surfaces become very hot during operation. Only touch the handles and control elements of the device during operation.

6.1 Heating up

1. Open the lid 4 of the contact grill upwards. Be careful not to raise the lid any further after it is vertical.
2. Grease the grill plates 12 with vegetable oil or butter if appropriate.
3. Place a heat-resistant spill tray (not included in scope of delivery) under the oil/fat runoff of the lower grill plate 8.
4. Close the lid 4 downwards in order to close the contact grill.
5. Before plugging in the device, check that both thermostat controls 9 + 14 are set to the marking "●".
6. Insert the mains plug 6 into a wall socket corresponding to the specifications of the rating plate.

7. Turn the thermostat controls 9 + 14 to the desired temperature setting 1, 2, 3, 4 or 5.

8. Setting 1: thaw

9. Setting 2: warm
10. Settings 3 and 4: moderate grill settings

11. Setting 5: highest grill setting
    The device then heats up the grill plates 12, and the control lights 1 and 11 are illuminated.

12. Depending on setting, the control lights 1 and 11 switch off when the device has reached the temperature setting selected.

6.2 Preparation

NOTE: we recommend preparing a maximum of 2 hamburgers/sandwiches at the same time.

The preparation table on the lid of the device informs you about the settings for the thermostat controls and approximate preparation times. The guideline values relate to quantities of 100g in each case. The preparation time depends, however, on the type of meat, the thickness of the pieces of meat, and how cooked you want them.

Symbols on the preparation table

min	Grilling / cooking time
temp	Temperature setting 1 - 5
	Thaw
	Warm
	Vegetables
	Prawns
	Fish
	Hamburger, sandwich
	Meat (e.g. steaks, spare ribs)
	Sausages
	Poultry (e.g. chicken, turkey)

6.3 Grill plate setting

Depending on what you wish to prepare, there are 3 different ways to set up the grill plates.

Contact grill (Figure A)

NOTE: please note that opening the lid 4 may cause any oil or fat present to drip from the lid onto the work surface.

This contact setting of the grill plate allows double-sided, rapid grilling of pieces of meat, e.g. filet steak, rump steak, cutlets, sausages, or of vegetables.

1. Preheat the grill plates 12.
2. Open the lid 4 of the contact grill upwards. Be careful not to raise the lid any further after it is vertical.
3. Place the food to be grilled on the lower grill plate 12.
4. Close the lid 4 and press it down gently onto the food to be grilled, so that both grill plates 12 are in contact with the food.

Barbecue (Figure B)

The open position of the grill plates is suitable ...

... for slow grilling of comparatively thick food,
... for preparing food with different temperature settings simultaneously, and
... for preparing comparatively large quantities of food.

1. Preheat the grill plates 12.
2. Fold out the base 3.
3. Open the lid 4 upwards, lift it up, and open it further until it is horizontal.
4. Place a further spill tray under the oil/fat runoff 13 of the grill plate 12 in the lid.
5. Place the food to be grilled on both grill plates 12.

Grill oven (Figure C)

The oven function is particularly suitable for the gratinating of food.

1. Preheat the grill plates 12.
2. Open the lid 4 of the contact grill upwards. Be careful not to raise the lid any further after it is vertical.
3. Place the food to be grilled on the lower grill plate.
4. Lift the lid 4 up and pull it forwards and down, until it is parallel to the lower grill plate 12.

6.4 Switching off

1. Set both thermostat controls 9 + 14 to the setting "●".
   2.Pull out the mains plug 6.
2. Lift the grilled food off the grill plate 12 using a suitable kitchen utensil. Use e.g. a spatula made from wood or heat-resistant plastic, but never from metal.

7. Cleaning

Clean the device prior to its first use!

DANGER! Risk of electric shock!

Pull the mains plug 6 out of the wall socket before you clean the contact grill.

• The device, the power cable and the mains plug 6 must not be immersed in water or any other liquids.

DANGER! Risk of injury through burning!

Allow all the parts to cool down before cleaning.

WARNING! Risk of material damage!

Do not use any astringent or abrasive cleaning agents.

Clean the device after each use and remove all food residues.

Outer surfaces

• Clean the outer surfaces using a soft, damp cloth with a mild soap solution.

Grill plates

For purposes of cleaning, remove the grill plates 12 from the device after it has cooled down.

1. Press the grip clamps 5 to the side and remove the grill plates 12 from their brackets.
2. Clean the grill plates 12 using mild detergent and dry them.
3. Place the grill plates into the device and press them against the grip clamps 5 until the grill plates click into position.

NOTE: burnt-on food or fat residue is often easier to remove if you leave a damp washcloth on the baked-on residue overnight to soften it.

8. Storage

DANGER for children!

Keep the contact grill out of the reach of children.

• Clean all parts, and allow them to dry properly before you put the contact grill away.
  Figure D: wind the power cable 6 around the cable spool 7 when the device is upright.
• Select a location where neither high temperatures nor moisture can affect the device.

9. Disposal

The symbol showing a wheelix bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked

with this symbol. Products identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recycling electric and electronic appliances. Recycling helps to reduce the consumption of raw materials and protect the environment.

Packaging

When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country.

10. Trouble-shooting

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself.

DANGER! Risk of electric shock! Do not attempt to repair the device yourself under any circumstances.

Fault	Possible causes/Action
No function	• Has the device been connected to the power supply? • Check the connection. • Are the thermostat controls 9 and 14 set to the marking "●"?

11. Technical specifications

Model: SKG 1700 A1
Mains voltage: 230 V	~ 50 Hz
Protection class: I	#
Power rating: Max. 1700 W

Subject to technical modification.

C

12. Recipes

Sirloin beef steaks

2 sirloin beef steaks
- SaI t
- Pepper, freshly ground
- 1 sprig of rosemary (leaves plucked off)
- Olive oil

1. Remove the steaks from the refrigerator around 1 hour before cooking them, so that they reach room temperature.

2. Preheat the contact grill to setting 5.

3. Rub both sides of the steaks with a little olive oil, then season them with salt and pepper, and sprinkle with rosemary.

4. Place the steaks into the preheated contact grill.

5. Grill plate setting: contact grill
   -Grilling time: approx. 4 - 7 minutes

NOTE: the grilling time varies depending on the thickness and size of the steaks, and on how you want them cooked (rare, medium, well done).

1. Remove the steaks from the contact grill, cover them, and let them rest for a little while.

1. Do not place the tomato slices inside the pita bread until after grilling it.

Aubergine rolls

• 1 small onion
  1 clove of garlic
  A little olive oil
• 2 tins of tomatoes (in pieces)
• 2 tsp tomato paste
  Salt, pepper, dried Italian herbs
  2 small aubergines
• 1 ball of mozzarella
• 50g of Parmesan (freshly grated)

Tomato sauce

1. Finely dice the onions and garlic, and fry them lightly in olive oil.
2. Add the tinned tomatoes and the tomato paste, and season with salt, pepper and the Italian herbs.
3. Allow everything to simmer lightly for around 1 hour, initially in a closed saucepan, then later with the pot open.

Aubergine rolls

1. In the meantime, cut the aubergines into thin slices lengthwise, and cut the mozzarella into strips.
2. Preheat the contact grill to setting 3.

3. Grill the aubergine slices in the lightly greased contact grill.

4. Grill plate setting: contact grill
   -Grilling time:approx.3-4minutes

5. After cooling, roll each of the mozzarella strips into a slice of aubergine to make rolls.

Gratinating

1. Heat the oven to 175^
2. Pour the tomato sauce into an ovenproof dish.
3. Place the aubergine rolls on the sauce, and sprinkle with the grated Parmesan.
4. Bake everything for approx. 30 minutes in the oven, until the cheese has melted.

Prawn skewers with lemon-garlic marinade

King prawn tails (deep-frozen, approx. 450 g drained weight)
Salt, pepper
- Olive oil
- 1 untreated organic lemon
- 4 cloves of garlic
- 2 sprigs of lemon thyme
Woodens skewers

Marinating

1. Allow the prawn tails to thaw, rinse them with cold water, and drain, then season with salt and pepper.
2. Prepare a marinade from olive oil, finely chopped lemon, finely chopped garlic, and the lemon thyme, in a container that closes well.
3. Place the prawn tails into the marinade, and allow to marinate in the refrigerator for approx. 12 hours.

Grilling

1. Remove the prawn tails from the marinade, allow them to drip dry a little, and then place them on the wooden skewers. Season a little more to taste.
2. Preheat the contact grill to setting 4.

3. Place the skewers on the open contact grill and have them grilled from all sides.

4. Grill plate setting: barbecue
   -Grilling time:approx.5-8 minutes

Gilthead seabream in aluminium foil

Salt, pepper
- 2 sprigs of thyme
1 clove of garlic
- Olive oil
- 1 gilthead seabream
1 slice of lemon
- 1 small onion (in thin slices)
- 2 tomatoes (in slices)
- Tear-resistant aluminium foil

1. Mix the salt, pepper, thyme leaves and finely chopped garlic with a little oil.
2. Wash the inside and outside of the seabream, dab it dry, and make two diagonal incisions along each side.
3. Thoroughly rub the inside and outside of the seabream with the mixture of seasonings.
4. Insert the slice of lemon into the abdominal cavity.
5. Brush the aluminium foil with olive oil, distribute the slices of tomato and onion over it, and place the seabream on top.
6. Wrap the aluminium foil tightly around the seabream.
7. Preheat the contact grill to setting 4.
8. Carefully place the aluminium foil wrap onto the lower grill plate.
9. Grill plate setting: contact grill
   -Grilling time: approx. 14 - 20 minutes

13. Warranty of the HOYER Handel GmbH

Dear Customer, your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following.

Warranty conditions

The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is required to verify the purchase.

If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or replaced by us - at our discretion - free of charge to you. This warranty implies that within the period of three years the defective device and the purchase receipt are presented, including a brief written description of the defect and the time it occurred.

If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product.

Warranty period and statutory claims for defects

The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge.

Warranty coverage

The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery.

The warranty applies to material or factory defects. This warranty does not include prod

uct parts that are subject to standard wear and therefore can be considered wear parts; the same applies to damages at fragile parts, e.g. switches, rechargeable batteries or parts made of glass.

This warranty expires if the product is damaged, not used as intended or not serviced. For the proper operation of the product, all instructions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided.

The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Service Centre, the warranty shall cease.

Handling in case of a warranty claim

In order to ensure prompt processing of your matter, please observe the following notes:

Please keep the article number IAN:90859 and the purchase receipt as a purchase verification for all inquiries.
- If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.
- Then, you are able to send a product reported as defective free of charge to the service address specified to you, including the purchase receipt and the information on the defect and when it occurred.

Please visit www.lidl-service.com to download this and many other manuals, product videos and software.

Service Centre

GB Service Great Britain Tel.:[phone] ( 已 0.10/Min.) E-Mail: [e-mail]

IE Service Ireland Tel.:[phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN: 90859

Supplier

Please note that the following address is no service address. First contact the aforementioned Service Centre.

HOYER Handel GmbH

Kühnhöfe 5

22761 Hamburg

Germany

Sisälto

Four-grill (figure C)
