USER MANUAL Lavas RAC 500 Maybaum

Operating Instructions

Mode D'Emploi

Gebruiksaanwij zing

maybaum

Lavas

Lieber Kunde!

EN Operating Instructions

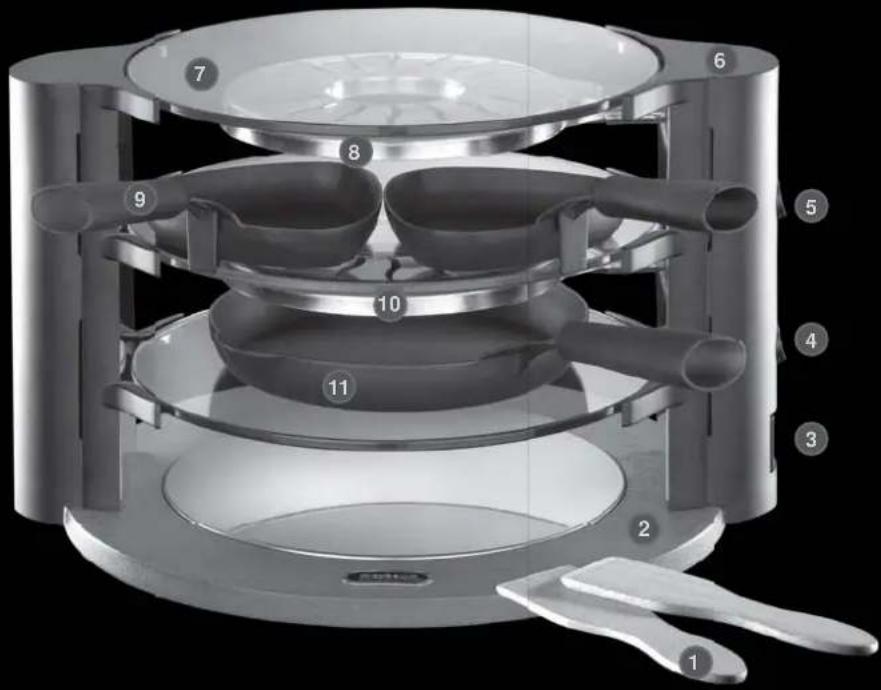

1. Wooden spattle
2. base plate made of wood with stainless insert
3. Socket for connecting line
4. On-/ Off-switch for lower heating layer
5. On-/ Off-switch for the top heating layer
6. Stand made of temperature-resistant material
7. Warming plate made of glass
8. Upper heating element with cover
9. Small pan for scraped cheese
10. Bottom heating element with cover
11. Small pan for Reblochon

F Mode D'Emploi

Operating Instructions

IMPORTANT SAFEGUARDS

Please read these instructions carefully before using the appliance.
:Only use the appliance in the way indicated in this instruction manual. Never use the appliance as a heating device.
:Should you hand over the appliance to another user, make sure to hand over the instruction manual togetherswith the appliance.
:: Check that your mains voltage corresponds to that stated on the appliance.
: Never leave the appliance unsuper vised when it is being used.
: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance without supervision or instructions of a responsible person.
: Close supervision is necessary if children are near the appliance in order to avoid that they use it as a toy.
:From time to time check the appliance for damages. If it is damaged it should be repaired by a competent quali ed electrician (^) Should the cord be damaged, it must be replaced by a competent quali ed electrician (^)
Always unroll the cord completely before use. Insert the cord plug into a 10/16 A outlet with earthing contact.
:Only use the appliance for domestic purposes and in the way indicated

in these instructions. Do not let switched-on the appliance if it is not in use.

: Stand the appliance on a table or fl at surface.
: Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
: Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
: Never use the appliance near hot surfaces. Never place it on hot surfaces (e.g. hotplates) or near a fl ame.
Make sure the appliance has cooled down before cleaning and storing it.
: Never use the appliance outside and always place it in a dry environment.
: Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Always handle the appliance only by its wooden tray.
::Caution! The temperature of the accessible surfaces may be very high (metal parts or glass trays) when the appliance is in use. Do not touch these surfaces. (PICTURE E)

Never touch those surfaces during usenor before the appliance has totally cooled down. Always handle the appliance only by its wooden tray.

Always use the plastic handles; do not touch the hot parts of the appliance.
::: Make sure the cord never comes into contact with the hot parts of the appliance.
::: Make sure the appliance never comes into contact with infl ammable materials, such as curtains, cloth, etc... when it is in use, as a fire might occur.
Make sure not to scratch the special coating of the pans as you might get pieces of this coating in the food. Use a classical wooden spatula or a heat resistant plastic one.
:: Unplug the appliance when not in use, even if the thermostat is already in MIN position.
:Only cook consumable food.
It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food.
:Be extremely cautious as oil and fat preparations might catch fire if overheated.
: Never place this appliance near to a wall. Always provide proper ventilation all around the appliance when using it.

(*) Competent quali ed electrician: after sales department of the producer or importer or any person who is quali ed, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

Technical Specifications

• Varnished wood base with stainless steel insert (to hold/ store pans)
  Thermodur supports
• 3 removable glass trays
• Two independent on/off switches with lighted indicators
• Detachable cord
  230 Volts 50 Hz 900 Watts
• 2 reblochonnade pans Ø 16 cm with anti-stick coating
• 8 raclette pans with anti-stick coating
  The cord supplied is type HO5RR-F 3 0.75mm^2 fitted with a high-temperature plug. Any replacement cord MUST be of the same type and specifi cation .

ASSEMBLING

• Unpack all parts
• Place appliance on a flat surface

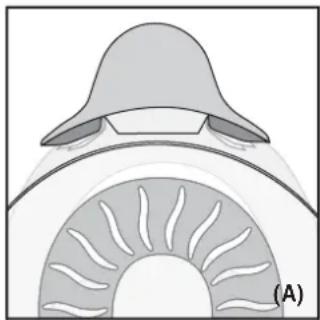

• Place the glass trays in the adapters of the supports (PICTURE A)

OPERATION AND USE

First use

• When unpacking the appliance, take care to remove and check all packing for parts.
  It is recommended to clean the pans before using them for the first time.

GB

Hint: A new appliance may smoke slightly when used for the first time. To reduce the chance of smoking, heat the appliance for 10 minutes and then let cool for approximately half an hour.

Use

• Place appliance on a fl at surface
• Unroll the cord completely and connect to appliance (3).
• Plug cord into a mains outlet.

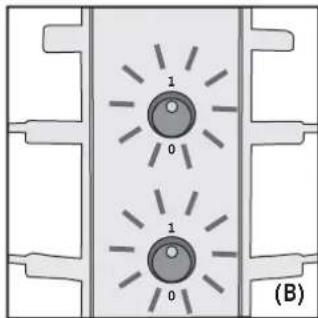

• Turn on one or both switches (the corresponding indicators will light), noting that the two switches operate independently (PICTURE B).

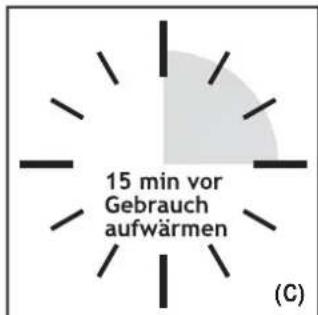

• Preheat the appliance for 15 minutes before inserting pans (PICTURE C).

• Place the food in the pans (9;11), (raclette and/or rebrochonade)
• Place the pans in the appliance.

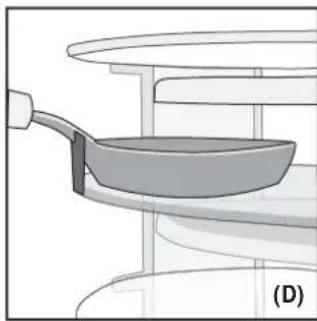

They possess a small block, so that the pans can be pushed not too far into the appliance (PICTURE D).

If the food is well grilled remove the pans. Use a wooden spatula to remove the food from the pans.
- You can grill toasts in the raclette pans, cook fruit through or over, fry eggs or potatoes and many other things.
- You may serve the grilled meat with different sauces, salad. Raclette is also served with raw ham or "Bündner" meat, little oignons and pickles, as well as a dry wine.
- On the upper glass tray (7) can be placed a heating resistant bowl with potatoes, pasta, noodles or other ingredients to keep warm (PICTURE E).

• The wood base with stainless steel insert may be used to hold the pans during the meal or for storage afterward.

CARE & CLEANING

Always unplug the appliance and let cool completely before cleaning.

• Pans: clean with a non-abrasive sponge using hot water and liquid detergent. Rinse. Do not scrub the pans with metal pads or brushes or abrasive products to avoid scratching the non-stick coating.

Note: the pans may be left to soak or placed in a dishwasher.

Glass trays: clean with a non-abrasive sponge using hot water and liquid detergent. The trays may be left to soak or placed in a dishwasher.
- Resistor unit: clean with a damp sponge (with appliance unplugged and unit cool).
Supports for glass trays: clean using only a soft, damp, non-abrasive sponge. Wipe with a dry cloth.
- Base with stainless steel insert: clean using only a soft, damp, non-abrasive sponge. Wipe with a dry cloth.

Take care not to allow electrical parts to come into contact with water. Never submerse the appliance in water.

GARANTEE

Our products are covered by a guarantee of 2 years from date of purchase. This guarantee which covers all material and manufacturing defects. No guarantee claims will be accepted for

broken accessories, defects resulting from inappropriate use, excessive wear due to intensive use, wrong use due to the non-observation of the instruction manual, or failure to descale where appropriate or otherwise clean/ maintain your item in line with the instructions and good practice. No guarantee claims will be accepted if the appliance has been modified or if some attempts have been made to repair the appliance. In such case, the vendor cannot be held responsible in case of accidents.

In the event of claim, in the first instance, please contact your vendor and return him your complete appliance in its original packaging together with the receipt/guarantee card. The guarantee will only be valid if the date of purchase and signature of the vendor is clearly indicated on the guarantee card or if a copy of the receipt is sent with the appliance that needs repair.

Or send the appliance well packed and freight prepaid to our customer service with a short description of the default in capital letters with the mention, "Repair under guarantee" together with the guarantee card or receipt. In case of a defective accessory, the complete appliance will not be exchanged, but only the accessory will be sent free of charge. In such case, do not return the complete appliance but only order the accessory! In case of glass damages, glass spare parts will be charged.

Pieces undergoing wear and tear (e.g. Motor brushes, dough hooks, driving belts, spare remote controls, spare toothbrushes, lighting, etc.) as well as cleaning and maintenance or the exchange of worn out pieces are not covered by the guarantee and will thus be charged!

GB

After the guarantee period

Repairs after the guarantee period can be performed at a charge by a competent qualified technician or a repair service.

PROTECTION OF THE ENVIRONMENT-DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with

the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it free of charge to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

Should you have any question, please contact our customer service.

CUSTOMER SERVICE

Germany 036741 70268/70266

International 00493674170268/70266

Fax:

Germany 036741 70273

International 00493674170273

RECIPES

Using Reblochonnade Pans

Note: for these recipes, use the large round pans, placing one pan on each cooking element.

Reblochon Cheese:

A little background...

Reblochon cheese was first made in the 13th century in the Thones Valley of France's Savoy region. Farmers of that time rented their mountain pastures and gave the landowner a proportion of the milk they produced as rent. On days when the owner came to measure production, farmers milked their cows incompletely in order to pay less rent. Once the landowner had gone, they would then finish milking. Milk from this second milking ("re-blocher" means "to pinch a cow's udder again") came eventually to be known for its use in an excellent cheese, Reblochon. Appellation d'origine contrôlee Of the more than 300 cheeses made in France today, only 38 have the coveted Appellation d'origine contrôlee designation. The AOC designation guarantees that a cheese is produced at specific sites following traditional farming, production and aging methods. Reblochon de Savoie cheese is the product of time-honoured tradition, sound practices and local wisdom.

What Is Reblochon Cheese Like?

• Reblochon, fruitier is made year-round in the Savoy using milk produced within the AOC zone. It is identified by use of a red casein (a milk component) tag pressed into the face of the cheese.

• Reblochon, fermier is made exclusively on farms in the winter and mountain pastures in the summer. Twice a day immediately after milking, producers make this traditional cheese using only the milk from their own herds. This type of cheese bears a green casein tag. Here are some recipes to make using your Tour à Fromages®. Reblochon de Savoie cheese goes well with a wide range of foods, making for endless possible combinations and culinary creations. You are limited only by your imagination!

RECIPPE OF REBLOCHONNADE

Serves 6

Ingredients: 2 Reblochon de Savoie cheeses; 12 potatoes; variety of cold meats (e.g., cured raw ham, smoked ham, dried meats, Grisons meat, sausage); side dishes as desired (cocktail onions, pickles/ chutneys, salad, etc.). Cook the potatoes in their skins and then place them on the upper glass tray in a heat-resistant dish containing enough water to cover the bottom. Slice the Reblochon cheese in two horizontally. Place one piece in each large round pan with the cut side (fl esh of the cheese) facing up. Put the pan on the element and allow the cheese to heat for several minutes. Remove the pan and use a spoon to scoop the melted portion of the Reblochon onto a plate of peeled cooked potatoes. Return the pan to heat and continue melting the remaining cheese. Serve with cured raw ham, dried meat, sausage, salad, cocktail onions and pickles. Reblochon cheese goes well with a dry white Savoy wine (consume with moderation).

GB

RECIPHE OF TARTIFLETTE

Serves 6

Ingredients: 1.5kg potatoes; 250g lardoons, cubed; 1 onion, minced; 2 Reblochon de Savoie cheeses. In a separate pan, brown the lardoons and onion in a little margarine. Add the potatoes, diced or finely sliced, and cook for approximately 20 minutes. Add salt and pepper to taste. Transfer the mixture to a heat-resistant dish and place on the upper tray to keep warm.

Slice the Reblochon in two horizontally. Place one piece in each pan with the cut side facing up. Put the pan on the element and allow the cheese to heat for several minutes. Remove the pan and use a spoon to scoop the melted portion of the Reblochon onto a plate with the meat and potato mixture.

Return the pan to heat and continue melting the remaining cheese. Serve with cured raw ham, dried meat, sausage, salad, cocktail onions and pickles along with a dry white Savoy wine.

Chef's hint: try adding a dash of fresh cream to the lardoon and potato mixture...

REBLOCHE WITH APPLES

Serves 6

An original recipe combining sweet and salty fl avours...

Ingredients: 2 Reblochon de Savoie cheeses; 10 Russet or similar apples. Cut the apples into rounds, removing all pieces of core and seeds. Brown in a lightly greased pan. Transfer the apples to a heat-resistant dish and place on the upper tray to keep warm.

Slice the Reblochon in two horizontally. Place one piece in each pan with the cut side facing up. Put the pan on the element and allow the cheese to heat for several minutes. Remove the pan and use a spoon to scoop the melted portion of the Reblochon onto a plate with some of the cooked apple mixture. Sprinkle with a little cinnamon if desired. Return the pan to heat and continue melting the remaining cheese.

RECIPES

USING RACLETTE PANS

Suggestions: Select a nice Raclette cheese. Plan for approximately 200 g of cheese per person.

LA RACLETTE

Serves 6

Ingredients: 1.2kg Raclette cheese cut into thin slices; 12 potatoes; variety of cold meats (e.g., cooked ham, cured raw ham, smoked ham, dried meats, Grisons meat cut into thin strips, sausage); side dishes as desired (cocktail onions or other pickles/ chutneys).

Cook the potatoes in their skins and then place them on the upper glass tray in a heat-resistant dish containing enough water to cover the bottom. Add one or more slices of Raclette cheese to each pan. Heat the cheese until its surface forms a thin, golden crust. Serve with the cold meats, salad, cocktail onions, pickles and chutneys, mushrooms, a dash of ground white pepper on the cheese, sliced tomatoes or aubergines, etc., accompanied by a dry white Savoy wine (Apremont, Abymes, Chignin or Roussette).

LA RACLETTE 4 SAISONS

Serves 6

Ingredients: 1.2kg Raclette cheese; variety of cold meats (e.g., Grisons meat, cooked or cured raw ham, sausage); salad; quail eggs; smoked lardoons, cubed.

Steam or boil the potatoes in their skins. Halve the potatoes and place them on the upper glass tray to keep warm in a heat-resistant dish containing enough water to cover the bottom. Heat the cheese in the pans until it begins to melt and add the smoked lardoons.

Serve with side dishes depending on the season:

• Spring: asparagus tips, cherry tomatoes, carrots, turnips, potatoes...
• Summer: celery stalks, grilled sweet peppers, basil leaves, pineapple pieces, courgettes, cauliflower over...
• Autumn: sweet corn, nuts, hazelnuts, raisins, sliced chestnuts, artichoke hearts, smoked lard, cocktail onions...
• Winter: meatballs, sliced roasted veal or chitterlings...

Further fecipes ideas:

Provencale tomatoes:

Make a paste of crushed garlic, salt, chopped parsley and olive oil. Spread onto halved tomatoes. Place in the Raclette pans and cook for 10 minutes.

Minted courgettes:

Brush slices of courgette with olive oil, sprinkle on finely chopped mint and cook in the Raclette pans for 15 minutes.
