SRWK 2400 A1 - Kettle SILVERCREST - Free user manual and instructions

Frequently Asked Questions - SRWK 2400 A1 SILVERCREST

USER MANUAL SRWK 2400 A1 SILVERCREST

Last Information Update

03/2015-Iden-No:3RAN 2400A1032015-

(1)
(64)
Stainless Steel Kettle
User manual and service information

Specifications techniques

Fabricant: TARGA GmbH

Puisance:2000Wa2400W

Introduction 34
Intended use. 34
Package contents 35
Controls and displays 35
Technical specifications 36
Safety instructions 36
Copyright 41
Before you start 41
Getting started 42
Boiling water 42
Maintenance/cleaning. 43
Dscaling the electric kettle 44
Cleaning the scale filter 44
Storing the electric kettle 45
Troubleshooting 45
Environmental regulations and disposal information 45
Conformity 46
Warranty information 46

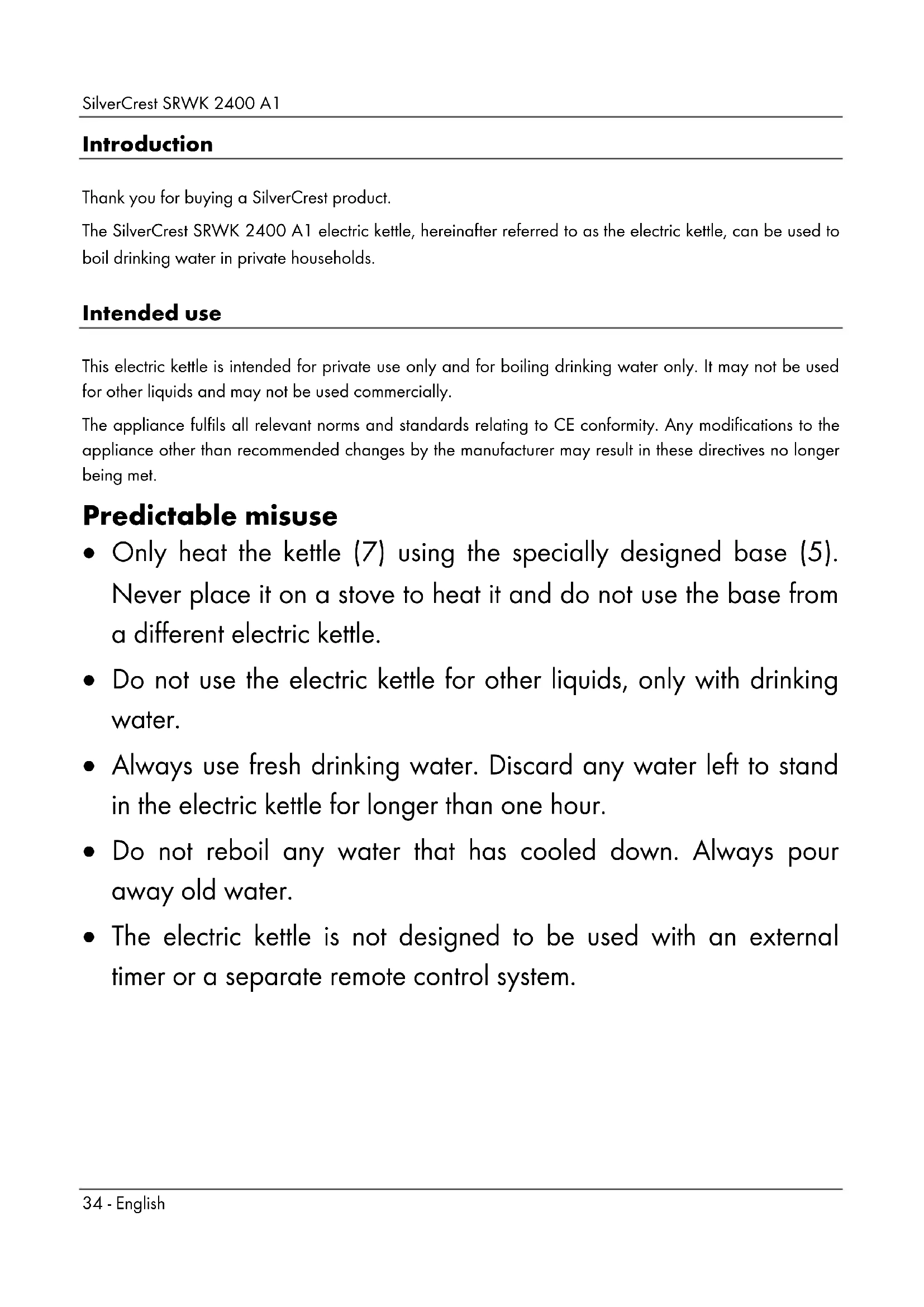

Introduction

Thank you for buying a SilverCrest product.

The SilverCrest SRWK 2400 A1 electric kettle, hereinafter referred to as the electric kettle, can be used to boil drinking water in private households.

Intended use

This electric kettle is intended for private use only and for boiling drinking water only. It may not be used for other liquids and may not be used commercially.

The appliance fulfils all relevant norms and standards relating to CE conformity. Any modifications to the appliance other than recommended changes by the manufacturer may result in these directives no longer being met.

Predictable misuse

• Only heat the kettle (7) using the specially designed base (5). Never place it on a stove to heat it and do not use the base from a different electric kettle.
• Do not use the electric kettle for other liquids, only with drinking water.
• Always use fresh drinking water. Discard any water left to stand in the electric kettle for longer than one hour.
• Do not reboil any water that has cooled down. Always pour away old water.
• The electric kettle is not designed to be used with an external timer or a separate remote control system.

Package contents

SilverCrest SRWK 2400 A1 electric kettle with lid

Base with power cord

These operating instructions (linear illustration)

Controls and displays

These operating instructions have a fold-out cover. On the inside of the cover, the electric kettle is shown with figures indicated. The meanings of the numbers are as follows:

1 Lid
2 Power cord
3 Water level indicator
4 On/Off Switch
5 Base (with cord wrap underneath)
6 Power indicator: lights up when the kettle is being heated
7 Kettle
8 Handle
9 Scale filter

Technical specifications

Manufacturer:

TARGA

GmbH

Model: SilverCrest SRWK 2400 A1

Operating voltage: 220 to 240 V AC, 50 Hz

Power: 2000 W to 2400 W

Power cord length: 75cm

Capacity: 0.7 (minimum) to 1.8 (maximum) litres

Indicators: power indicator when kettle is switched on

Dimensions: including base approx. 224 × 193 × 285 ~mm

excluding base approx. 224 × 193 × 265 ~mm

Weight: kettle approx. 867 g, base approx. 250 g

Safety class I

Safety instructions

Before you use this appliance for the first time, please read the following notes in this manual and heed all warnings, even if you are familiar with handling electronic devices and household appliances. Keep these operating instructions in a safe place for future reference. If you sell the appliance or give it away, pass on the user manual at the same time. It forms part of the product.

Explanation of symbols

In this user manual, warnings are used as follows.

Risk of electric shock!

This symbol warns of risks which could, if left unheeded, cause damage to life and limb through electric shock.

Risk of burns!

This symbol warns of hot surfaces.

WARNING!

This symbol denotes important information for the safe operation of the product and user safety. It warns against risks which could, if left unheeded, cause danger to life and limb, injuries or material damage.

Risk of fire!

This symbol warns that fires could start if the warning is left unheeded.

This symbol denotes further information on the topic.

This symbol points out that you should never immerse the base (5) in water.

Children and persons with disabilities

• This appliance may be used by children older than 8 years as well as by persons with reduced physical, sensory or mental capacities or those persons who have lack of knowledge or experience, as long as they are supervised or they have received instructions regarding the proper use of the appliance and they understand the associated risks.

• Do not allow children to play with the appliance.

• Any cleaning or maintenance of the product must not be performed by children unless they are supervised.

• Children under the age of 8 must be kept away from the appliance and the power cord.

Warning, risk of suffocation!

Packaging material is not a toy. Do not allow children to play with plastic bags. There is a risk of suffocation.

Keep the appliance out of the reach of children.

General safety instructions

Risk of burns!

• Never touch the kettle (7) during or immediately after operation. Only hold or carry the kettle (7) using the handle (8).
• When the water boils, hot steam will be emitted. Be careful not to burn yourself. Wear oven gloves if necessary. Rotate the kettle (7) so that the steam is directed away from you.
• Only hold or carry the kettle (7) using the handle (8).
• Clean the appliance only after it has completely cooled down.

• Fill the kettle (7) with 1.8L of water maximum (see water level indicator (3)). Overfilling can result in the kettle (7) boiling over and could cause burns or damage to property.

• Only boil water with the lid (1) closed. Otherwise the kettle could boil over and cause burns and property damage.

• Do not open the lid (1) while the water is being heated.

Warning about property damage

• The kettle (7) should only be used with the base (5) provided.
• Never place any objects on the base (5).
• Place the electric kettle on an even, stable and heat-resistant surface only. If the electric kettle is not placed on an even surface the movement of the boiling water could make it tip over possibly causing damage to property and burns.
• Never leave the electric kettle unattended during operation.

Risk of electric shock!

• The power cord must not be damaged. Never replace a damaged power cord, instead contact our hotline (see "Warranty information" on page 46). There is a risk of electric shock in the case of damaged power cords.

• Do not open the base (5) housing - it contains no serviceable parts. Opening the housing can expose you to the risk of electric shock.

• If you notice any smoke, unusual noises or strange smells, switch off the appliance immediately and remove the plug from the wall outlet. If this occurs, do not continue to use the appliance and have it checked out by an expert. Never inhale smoke from a possible appliance fire. If you do inadvertently inhale smoke, seek medical attention. Smoke inhalation can be damaging to your health.

• Make sure that the power cord cannot be damaged by sharp edges or hot spots. After use, always wind the power cord back around the cord wrap underneath the base (5).
• Make sure that the power cord cannot get crushed or squashed.
• The appliance must always be disconnected from the mains when left unsupervised and before assembly, disassembly or cleaning.
• When disconnecting the power supply, always pull on the plug and never on the power cord itself.

• If you notice visible damage to the electric kettle or the power cord, switch the appliance off, disconnect the mains plug from the wall outlet and contact our hotline (see "Warranty information" on page 46).

• Only connect the electric kettle to a properly installed, easily accessible wall outlet whose mains voltage corresponds to that on the rating plate. After connecting the appliance, the wall outlet must still be easily accessible so that you can remove the mains plug quickly in the event of an emergency.

• Never immerse the base (5) in water or other liquids. If liquid does penetrate the base (5), disconnect the mains plug from the wall outlet immediately and contact our hotline (see "Warranty information" on page 46).

Risk of fire!

Fill the kettle (7) with a minimum of 0.7L of water (see metal strip inside the kettle). If insufficient water is added, there is a risk of fire due to overheating.

Copyright

All the contents of this user manual are protected by copyright and provided to the reader for information only. Copying data and information without the prior explicit written consent of the author is strictly forbidden. This also applies to any commercial use of the contents and information. All texts and diagrams are up-to-date as of the date of printing.

Before you start

Unpack the appliance. First check whether all the parts are complete and undamaged (see "Package contents" on page 35). If any items are missing or damaged, please phone our hotline (see "Warranty information" on page 46). Keep the packaging material away from children and dispose of appropriately.

Getting started

Before preparing water for consumption, you must first clean the kettle (7) to remove dust and any residues from the packaging materials. Proceed as follows:

1. Remove the lid (1) and rinse the kettle (7) with clean water.
2. Fill the kettle (7) with drinking water up to the "1.8L MAX" mark.
3. Replace the lid (1), allow the water to boil once (see next step "Boiling water") and pour it away.
4. Repeat steps 1 to 3 once more. The kettle is then clean and disinfected and ready for use.

Boiling water

Risk of electric shock!

Keep the base (5) away from water. This could result in potentially fatal electrocution.

Warning

On the very first use, boil and pour away water twice (see previous step "Getting started").

Warning

Always use fresh drinking water. Discard any water left to stand in the electric kettle for longer than one hour.

1. Unwind the power cord (2) underneath the base (5).
2. Place the base (5) on an even, non-slip and dry surface. In so doing, make sure that the power cord (2) is fed through one of the notches provided on the underside of the base (5).

Warning

If the power cord (2) is not fed through one of the notches provided on the underside of the base (5), the base (5) and kettle (7) will not be stable. Thus the movement of the boiling water could make the appliance tip over causing severe damage to property and personal injury!

1. Remove the lid (1).
2. Fill the kettle (7) with drinking water, at least 0.7L (see metal strip inside the kettle) and up to the "1.8L MAX" mark on the water level indicator (3) at most, and replace the lid (1) on the kettle (7).

When the kettle (7) is placed on the base (5), it can be freely rotated 360^ around the vertical axis. It does not need to engage in a certain position. This allows you to rotate the kettle (7) such that you can easily check the water level indicator (3) and rotate the kettle (7) so that the steam is directed away from you.

1. Connect the power cord (2) to a wall outlet.
2. Place the kettle (7) on the base (5) and press the On/Off Switch (4) down into the "l" position to switch the electric kettle on.

Risk of burns!

• Rotate the kettle (7) so that the steam is directed away from you. Otherwise you could get burnt.

• Only boil water with the lid (1) closed. Otherwise the kettle could boil over and cause burns and property damage.

• The power indicator (6) lights up and the electric kettle heats the water.

The electric kettle will make noises during the heating process. This is not a malfunction.

1. As soon as the water in the kettle (7) boils, the electric kettle turns off. The On/Off Switch returns to the "0" position automatically and the power indicator (6) goes out.
2. Disconnect the power cord (2) plug from the wall outlet, remove the kettle (7) from the base (5) and pour the water.

Risk of burns!

• Never touch the kettle (7) during or immediately after operation. Only hold or carry the kettle using the handle (8).

• When the water boils, hot steam will be emitted. Be careful not to burn yourself. Wear oven gloves if necessary. Rotate the kettle (7) so that the steam is directed away from you.

• Pour the hot water. It is recommended to hold the handle further back.

Maintenance/cleaning

Risk of burns!

Wait until the electric kettle is completely cool before cleaning it. Otherwise you could get burnt.

Risk of electric shock!

• Always remove the mains plug from the socket before cleaning. Failure to do so could cause an electric shock.
• Do not pour or spray any liquids onto the base (5) and do not immerse it in water or other liquids. This could cause short circuits which could cause electric shocks or burns.

Warning about property damage

Do not use abrasive or astringent detergents or tools which could scratch the surface (e.g. metal sponges). These could damage the electric kettle.

• Rinse the kettle (7) out with clean water.

• Clean the exterior of the kettle (7) and the base (5) with a slightly damp cloth. For stubborn dirt add a little detergent to the damp cloth. Make sure there are no detergent residues on the kettle (7) or the base (5) before operating the electric kettle again. Dry the kettle (7) and base (5) well before using the electric kettle again.

To remove stubborn dirt inside the kettle (7) you can use a long-handled dishwashing brush or bottle brush.

Dscaling the electric kettle

Over time, limescale can build up in the kettle (7). This can result in energy loss and reduce the lifespan of the electric kettle. Limescale should therefore be removed as soon as it becomes visible.

1. Use a descending agent suitable for coffee machines and other household appliances. Proceed as described in the instructions for using the descending agent.
2. After descending, rinse the kettle out multiple times with plenty of clean water.

Cleaning the scale filter

A scale filter (9) is installed in the kettle (7) that needs to be cleaned from time to time. Clean the scale filter (9) as follows:

1. Remove the cooled kettle (7) from the base (5).
2. Remove the lid (1).

Risk of injury

The inside of the top of the kettle (7) has sharp edges. Be careful not to injure yourself when you reach into the kettle!

1. Carefully reach into the kettle and hold your hand underneath the scale filter (9) so it can not fall into the kettle (7).
2. Push your finger or a spoon handle from the outside into the spout of the kettle (7) to loosen the scale filter (9). It should then fall in to your hand.
3. Place the filter into a warm descending solution for household appliances (e.g. for coffee machines) for a few hours and then rinse it well in clean water.
4. Insert the filter back into the kettle (7) from the inside.

When installing the filter, look into the spout of the kettle (7) from the front. This will enable you to position the filter correctly. Once you have aligned the filter centrally, press it gently against the spout until it clicks into position.

1. Place the lid (1) back on to the kettle (7).

Storing the electric kettle

1. Allow the electric kettle to cool completely before storing it.
2. Wrap the power cord (2) around the cord wrap under the base (5) and store the electric kettle in a safe and dust-free place.
3. Store the electric kettle in a dry, dust-free place.

Troubleshooting

If your electric kettle does not work as normal, follow the instructions below to try to solve the problem. If working through the tips below does not fix the fault, please contact our hotline (see "Warranty information" on page 46).

Problem	Possible causes	yRemed
Electric kettle does not work.	The mains plug is not connected.	Connect the mains plug to a live wall outlet.
	The electric kettle is not switched on.	Press the On/Off Switch (4) down into the "l" position to switch on the electric kettle.
	The appliance has overheated and the overheating protection is preventing it from switching on.	Wait until the electric kettle has cooled down. Fill the kettle (7) with at least 0.7 litres of water up to the "0.7L MIN" metal strip located inside the kettle (7).
On/Off Switch (4) not engaging in "l" position.	The kettle (7) is not correctly placed on the base (5).	Place the kettle (7) correctly on the base (5).

Environmental regulations and disposal information

A symbol depicting a crossed-out rubbish bin on a product means it is subject to European Directive 2012/19/EU. All electrical and electronic devices must be disposed of separately from household waste at official disposal centres.

Do not dispose of the appliance in household waste or bulky waste collections. Information on collection points and pick-up times can be obtained from your local council or waste disposal company.

Dispos of all packaging in an environmentally friendly manner. Cardboard packaging can be taken to paper recycling centres or public collection points for recycling. Any film or plastic contained in the packaging should be taken to your public collection points for disposal.

Conformity

This appliance complies with the basic and other relevant requirements of the EMC Directive 2004/108/EC, the Low-voltage Directive 2006/95/EC, the ErP Directive 2009/125/EC and the RoHS Directive 2011/65/EU. The corresponding Declaration of Conformity can be found at the end of this User Manual.

Warranty information

This device is sold with three years warranty from the date of purchase. Please keep the original receipt in a safe place as proof of purchase. Before using your product for the first time, please read the enclosed documentation. Should any problems arise which cannot be solved in this way, please call our hotline. Please have the article number and, if available, the serial number to hand for all enquiries. If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault. Within the warranty period the product will be repaired or replaced free of charge as we deem appropriate. No new warranty period commences if the product is repaired or replaced. Consumables such as batteries, rechargeable batteries and lamps are not covered by the warranty.

Your statutory rights towards the seller are not affected or restricted by this warranty.

Service

IAN: 111621

Phone: [phone]

E-Mail: [e-mail]

Manufacturer

Phone: [phone]

E-Mail: [e-mail]

TARGA

GmbH

Phone: [phone]

E-Mail: [e-mail]

Coesterweg 45

59494 SOEST

Phone: [phone]

GERMANY

CE

EU Declaration of Conformity

Address:

Targa GmbH

Coesterweg 45

59494 Soest, Germany

Product:

water kettle

Model:

SRWK2400A1

Identification number:

IAN 111621

The product complies with the requirements of the following European directives:

2004/108/EC

Electromagnetic Compatibility

2006/95/EC

Low Voltage

2009/125/EC

Energy Relating Products

This declaration of conformity is issued under the sole responsibility of the manufacturer

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

Compliance was proved by the application of the following standards:

EMC:

EN 55014-1:2006 + A1:2009 + A2:2011

EN 55014-2:1997 + A1:2001 + A2:2008

EN 61000-3-2:2006 + A1:2009 + A2:2009

EN 61000-3-3:2013

LVD:

EN 60335-1:2012 + A11:2014

EN 60335-2-15:2002 + A1:2005 + A2:2008

+A11:2012

EN62233:2008

ErP:

Regulation 1275/2008

RoHS:

EN 62321:2009

Year of CE marking:

2015

Soest, 30^th of June 2015

Matthias Klauke, Managing Director
