USER MANUAL SWKK 3000 C3 SILVERCREST

Two kitchen wafes, one black and one white, displayed against a plain background (no text or symbols visible)

WASSERKOCHER SWKK 3000 C3 KETTLE SWKK 3000 C3 BOUILLOIRE SWKK 3000 C3

06 E KETTLE Operating instructions and safety instructions

Three warning symbols: lightning bolt, exclamation mark, and triangle with exclamation mark

Simple line drawing of a mechanical bracket or bracket with a labeled dimension line (no text or symbols beyond the number 1)

2

Icon showing a document and a recycling bin with a circular arrow (no text or symbols)

FR

https://www.targa.gmbh/downloads/conformity/501016_2404.pdf

1. Intended use 21
2. Package contents.... 21
3. Technical data 22
4. Safety instructions 22
5. Copyright....27
6. Before initial use....28
7. Initial use 28
   7.1 Boiling the water 28
8. Maintenance/cleaning 29
   8.1 Descaling the kettle (4)....30
   8.2 Cleaning the limescale filter (1) 30
   8.3 Storing the device when not in use 31
9. Troubleshooting....31
10. Environmental and waste disposal information 32
11. Marks of conformity 33
12. Warranty information.... 34

Congratulations!

By purchasing the SilverCrest SWKK 3000 C3 wireless kettle, hereinafter referred to as kettle, you have opted for a high quality product.

Familiarise yourself with the kettle before using it for the first time and read these operating instructions carefully. Observe the safety instructions and only use the kettle in the manner described in these operating instructions and for the indicated fields of application.

Keep this operating manual in a safe place. Hand over all documents in the event that you pass on the kettle to a third party.

1. Intended use

This kettle is a household device and is only intended for heating water. It must not be used outside of closed rooms or in regions with a tropical climate. The kettle is not intended for business or commercial use. Use the kettle solely for private purposes in living areas; any other use is deemed improper. The kettle meets the requirements of all relevant standards related to CE conformity. Compliance with these standards is no longer guaranteed if a change is made to the kettle without the authorisation of the manufacturer. The manufacturer shall not be liable for any damages or faults arising as a result. Only use the accessories provided by the manufacturer.

Please observe the national regulations and/or laws of the country in which the device is used.

2. Package contents

Unpack the kettle and all of the accessories. Remove all packaging materials and check all of the components for completeness and signs of damage. If any parts are missing or damaged, please contact the manufacturer.

• SilverCrest SWKK 3000 C3 kettle
- Device base
- Quick start guide (the complete operating manual is available online)

This operating manual also has a cover that can be unfolded. The inside of the cover provides a numbered schematic of the SilverCrest SWKK 3000 C3 kettle and all controls. This cover page can remain unfolded while you read other sections of the operating instructions. This provides you with a reference to the controls at all times. The numbers identify the following parts/functions:

1	Limescale filter
2	Spout
3	Water level gauge
4	Kettle
5	Base (with integrated cable rewind)
6	Power cable
7	ON/OFF switch (with integrated white status display)
8	Handle
9	Lid release button
10	Lid

3. Technical data

Manufacturer TARGA GmbH
Designation SilverCrest SWKK 3000 C3
Power supply	220-240 V~, 50/60 Hz
Power consumption 2550-3000 W
Capacity 0.5 (minimum) to 1.7 (maximum) litres
Protection class	I

The specifications and design are subject to change without notice.

4. Safety instructions

Before using the device for the first time, please read the following instructions carefully and observe all warnings, even if you are familiar with using electronic and household devices. Keep this operating manual in a safe place for future reference. If you give the device away or sell it, please ensure that you also pass on this operating manual. It is part of the device.

Key to symbols

DANGER! This signal word indicates a hazard involving a high level of risk, which if not avoided, may result in severe injury or death.

WARNING! This signal word indicates a hazard involving a medium level of risk, which if not avoided, may result in severe injury or death.

DANGER! This symbol indicates hazards to health and/or property posed by an electric shock, potentially including risk of death.

Danger, hot surface!

DANGER! This symbol warns against injuries/burns caused by contact with hot surfaces.

Do not immerse the device in liquids

A high-quality controller from the company STRIX is installed in this kettle.

This symbol indicates products whose physical and chemical composition have been tested and found to be safe for use in contact with foodstuffs in accordance with Regulation EC 1935/2004.

This symbol indicates further information on the topic.

ON/OFF

Manufacturer's address

Foreseeable misuse

• Only heat the kettle (4) with the base (5) developed for this purpose. Do not under any circumstances place it on a hob to heat it and do not use the base of any other kettle.
• Do not use the kettle (4) for other liquids; only use it for drinking water.
• Always use fresh drinking water. Do not drink water that has been in the kettle (4) for longer than an hour. Do not reheat water that has cooled down. Always pour away old water. Otherwise germs may form.

The kettle should not be operated with an external timer or a separate remote control system.

Children and people with disabilities

• This device may be used by children aged eight and over and by people with reduced physical, sensory or mental abilities or who lack experience and knowledge, provided that they are supervised or have been instructed in the safe use of the device and understand the resulting dangers.
  • Children must not play with the device.
• Children must not clean or carry out maintenance on the device unless they are over eight years of age and supervised by an adult.
• Children under eight years of age are to be kept away from the device and the power cable (6).

DANGER! The packaging material is not a toy. Children must not play with plastic bags. There is a risk of suffocation.

Store the device out of reach of children.

General safety instructions

DANGER of burns

• Never touch the housing of the kettle (4) during and immediately after operation. Only use the handle (8) to hold or carry the kettle (4).
• Hot steam is released when the water boils. Be careful not to burn yourself. Wear an oven glove, if necessary. Turn the kettle (4) so that the steam is directed away from you.
• The surface of the heating element is still hot after use.
• Only clean the kettle (4) once it has cooled down completely.
• Fill the kettle (4) with a maximum of 1.7 litres of water. Refer to the water level gauge (3). If you pour in too much water, it can boil over and cause burn injuries and damage to property.
• Only boil the water with the lid (10) closed. Otherwise water can escape and cause burn injuries and damage to property.
• Do not open the lid (10) while the water is being heated.

WARNING – potential damage to property

• Only use the kettle (4) with the corresponding base (5).
• Do not put any objects on the base (5).
• Only operate the kettle on a flat, stable and fire-proof surface. If the kettle is not placed on a level surface, it can tip over due to the movement of the boiling water and cause damage to property and under certain circumstances may also cause burn injuries.
• Never leave the kettle unattended when in use.
• Unplug the plug from the socket when the kettle is unattended.

DANGER of electric shock

• If the device's power cable is damaged, it must be replaced by the manufacturer, their service department or by a similarly qualified person in order to prevent any hazards.
• Never open the housing of the base (5), as this does not contain any parts to be maintained. If the housing is open, there is a risk of electric shock.
• If you notice any smoke, unusual noises or smells, switch off the kettle immediately and remove the plug from the socket. If this happens, you must stop using the kettle until it has been checked by a specialist. If the device catches fire, do not inhale any resulting smoke. If you do inhale any smoke, seek medical attention. Inhaling smoke can be harmful to your health.
• Ensure that the power cable (6) cannot be damaged by sharp edges or hot surfaces. Always wrap the power cable (6) around the cable rewind under the base (5) after use.
• Ensure that the power cable (6) is not jammed or squashed.
• The device must always be disconnected from the mains network if left unattended, prior to assembly and disassembly or cleaning.
• Never remove the plug from the power socket by pulling the power cable (6); only ever pull the plug.
• If you find visible damage on the kettle or the power cable (6), switch off the device immediately, remove the plug from the power socket and contact the service department.
• Only plug the base (5) into a power socket that is properly installed and easily accessible and whose mains voltage corresponds with the rating plate specifications. The user does

not have to do anything to switch the product between 50 and 60 Hz. The product is suitable for both 50 and 60 Hz supplies. Following connection, the power socket must continue to be easily accessible so that the plug can be quickly removed in an emergency.

• Do not spill liquid on the plug for the device.
• Never immerse the base (5) in water or any other liquid. If liquid enters the base (5), immediately remove the plug from the power socket and contact the customer service department.

RISK of fire

Fill the kettle (4) with a minimum of 0.5 litres of water. If you do not pour in enough water, there is a risk of fire due to overheating.

Keep the kettle at least 50 cm away from flammable and combustible materials. There is a risk of fire.

5. Copyright

All contents of this operating manual are subject to copyright law and are provided to the user solely as a source of information. Any form of copying or reproduction of data and information without the express written permission of the author is prohibited. This also concerns commercial use of the content and data. The text and illustrations correspond to the technical standards at the time of printing. Subject to alterations.

6. Before initial use

Remove the SWKK 3000 C3 kettle and all accessories from the packaging and check the completeness of the delivery. Remove the protective film. Keep the packaging material away from children and dispose of it in an environmentally-friendly manner.

7. Initial use

Before you prepare water for consumption for the first time, you must first clean the kettle (4) and the limescale filter (1) in order to remove dust and any remnants of the packaging material. Proceed as follows to clean the kettle:

1. Open the lid (10) by pressing the lid release button (9) and remove the limescale filter (1). Rinse the inside of the kettle (4) with clear water and clean the limescale filter (1) under running water.
2. Fill the kettle (4) with drinking water up to '1.7 | MAX' on the water level gauge.
3. Close the lid (10) by pressing it down. Boil the water once (see 'Boiling the water' section) and pour it away.

Repeat steps 1-3. Reinstall the limescale filter (1). The kettle (4) is now clean. You can now use the kettle.

7.1 Boiling the water

DANGER of electric shock

Keep the base (5) away from water. There is danger of electric shock.

WARNING

Boil the water and pour it away twice before you use the kettle for the first time (see the previous section on 'Initial use').

WARNING

Always use fresh drinking water. Do not drink water that has been in the kettle (4) for longer than an hour.

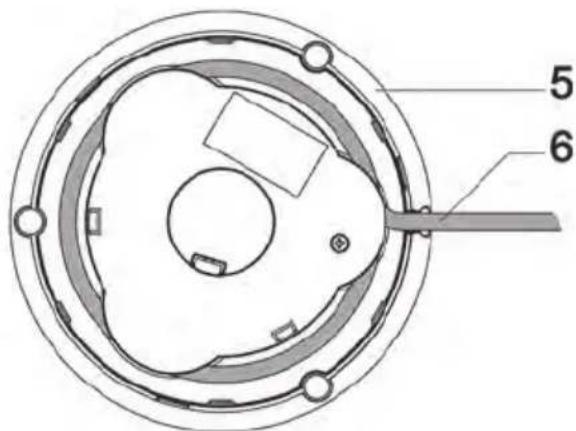

Cable rewind

An integrated cable rewind is located on the underside of the base (5). You can adapt the length of the power cable (6) to the conditions at the location in which you are using the kettle.

You can minimise the length of the cable when you are not using the kettle.

5 6

• Unwind the power cable (6) on the underside of the base (5).

- Place the base (5) on a flat, non-slip and dry surface. Make sure that the power cable (6) passes through the opening on the underside of the base (5). This is to ensure that the kettle is positioned securely.

WARNING

If the power cable (6) does not pass through the opening on the underside of the base (5), the base (5) and kettle (4) are not positioned securely. The movement of the boiling water can make the kettle tip over and cause serious damage to property and cause injuries!

• Open the lid (10) by pressing the lid release button (9).
• Fill the kettle (4) with drinking water up to a minimum of '0.5 | MIN' and a maximum of '1.7 | MAX' on the water level gauge (3) and close the lid (10) by pressing it down.

You can freely rotate the kettle (4) by 360^ around its vertical axis when you place it on the base (5). The kettle does not need to be locked into a particular position. This way, you can turn the kettle (4) so that the water level gauge (3) is easy to see or to direct the steam from the kettle away from you.

• Plug the connector into a power socket, which is always easily accessible.
• Place the kettle (4) on the base (5) and press the ON/OFF switch (7) down in order to switch on the kettle (4). The ON/OFF switch (7) integrated into the status display lights up white. The kettle makes noise during the heating process. This is not due to a malfunction.

DANGER of burns

Turn the kettle (4) so that the steam is directed away from you. Otherwise you could burn yourself.

Only boil water with the closed lid (10) on. Otherwise the kettle (4) can tip over and cause burn injuries and damage to property.

• As soon as the water boils, the kettle (4) switches off. The ON/OFF switch (7) automatically returns to the upper position and the integrated status display goes out.
• Pull out the power cable (6) plug from the socket, remove the kettle (4) from the base (5) and pour out the water.

DANGER of burns

Never touch the housing of the kettle (4) during and immediately after operation. Only use the handle (8) to hold or carry the kettle (4).

Hot steam is released when the water boils. Be careful not to burn yourself. Wear an oven glove, if necessary. Turn the kettle (4) so that the steam is directed away from you.

8. Maintenance/cleaning

DANGER of burns

Wait until the kettle (4) has cooled down completely before cleaning it. Otherwise you could burn yourself.

DANGER of electric shock

Always remove the plug from the power socket before cleaning commences. Otherwise, there is a risk of electric shock.

Do not pour or spray any liquids onto the base (5) or immerse it into water or any other liquids. Otherwise, there is a risk of electric shock and a fire hazard due to short circuits.

WARNING - potential damage to property

Do not use any scratching or abrasive cleaning agents or abrasive objects (such as a metal scourer) for cleaning purposes. Otherwise the kettle may be damaged.

- Rinse the inside of the kettle (4) with clear water.

- Clean the outer surfaces of the kettle (4) or base (5) with a slightly damp cloth. Use some washing up-liquid on the damp cloth for stubborn stains. Make sure to remove any detergent residue from the kettle (4) and base (5) before using the kettle again. Dry the kettle (4) and base (5) thoroughly before the next use.

You can use a cleaning or bottle brush with a long handle to remove stubborn stains from inside the kettle (4).

8.1 Descaling the kettle (4)

Limescale may build up in the kettle (4) over time. This can lead to loss of energy and shorten the kettle's service life. You should therefore remove the limescale as soon as it becomes visible.

• Use a descaling agent that is used for coffee machines and other household devices. Proceed as described in the instructions for the descaling agent.
• Rinse the kettle (4) with plenty of clear water several times after descaling it.

8.2 Cleaning the limescale filter (1)

A limescale filter (1) is installed in the kettle (4). You should clean the limescale filter from time to time.

Proceed as follows to clean the limescale filter (1):

• Remove the cooled down kettle (4) from the base (5).

• Open the lid (10) by pressing the lid release button (9).

• Reach carefully into the kettle (4) with your hand. Pull the limescale filter (1) by its upper end out of the guide on the spout (2) and remove it.

• Place the limescale filter (1) in a warm descaling solution for household appliances (such as for coffee machines) for several hours and then rinse it thoroughly with clear water.
• Replace the limescale filter (1) by first inserting the lower end into the guide on the spout (2). Slide the limescale filter (1) down as far as it will go.

Simple line drawing of a mechanical bracket or bracket with a labeled dimension line (no text or symbols beyond the number 1)

2

- Close the lid (10) by pressing it down.

8.3 Storing the device when not in use

If the kettle will not be used for a longer period of time, store it in a clean and dry place.

• Let the kettle (4) cool down fully before you store it.
• Wrap the power cable (6) around the cable rewind under the base (5) and store the kettle in a safe, dust-free place.

9. Troubleshooting

If your kettle does not work as usual, use the following instructions to try and solve the problem. If working through the following tips does not eliminate the fault, please contact our hotline.

The kettle is not working

• The plug is not inserted. Insert the plug into a power socket.
• The power socket is faulty. Try the appliance in another power socket which definitely works.
• The kettle (4) is not switched on. Press the ON/OFF switch (7) down in order to switch on the kettle (4).
• The kettle (4) has overheated and the overheating protection is preventing the device from switching on. Wait until the kettle (4) has cooled down completely. Fill the kettle (4) with at least 0.5 litres of drinking water up to '0.5 l MIN' mark.

The ON/OFF switch (7) does not engage when switched on

- The kettle (4) is not properly placed on the base (5). Place the kettle (4) properly onto the base (5).

10. Environmental and waste disposal information

	Devices marked with this symbol are subject to the European Union Directive 2012/19/EU. Electrical and electronic devices may not be put in the household waste, but must be disposed of via designated public disposal centres. By properly disposing of the old device, you can avoid environmental damage and hazards to health. Further information regarding proper disposal of the old device can be obtained from your local authority or the shop where you purchased the device.
	The crossed-out bin symbol on batteries indicates that they are not permitted to be disposed of with household waste, rather they must be collected separately.With batteries that contain harmful substances, you will also find the chemical symbol of the harmful substance under the crossed-out bin symbol. These symbols mean the following:- Pb: Battery contains lead- Cd: Battery contains cadmium- Hg: Battery contains mercuryYou are legally obligated to return disposable and rechargeable batteries. Old batteries may contain harmful substances that can be harmful to your health or the environment when stored or disposed of improperly. Batteries also contain important raw materials, such as iron, zinc, manganese or nickel.You can return old batteries to us or at collection points in your immediate vicinity (for example, at shops or municipal collection points) Please note that you should only dispose of batteries in collection containers for old batteries when they are fully discharged. If the batteries are not completely dead, you need to take precautionary measures before disposal to prevent short circuits.
	Make sure that the packaging is disposed of in an environmentally friendly manner. Cardboard packaging can be put out for waste-paper collection or taken to public collection points for recycling. The plastic packaging used for your device will be collected by your local waste management company and disposed of in an environmentally friendly manner.
ES/PT
Relevant for Spain and Portugal only:Please separate the packaging material and dispose of it in the relevant collection containers in accordance with the symbols on the packaging:

Relevant for France only:

FR ÉLÉMENTS D'EMBALLAGE

FR O

'Sorting made easier'

This product, including all accessories, its printed material and packaging components, can be recycled. They are subject to an extended producer responsibility and are sorted and collected separately.

Please pay attention to the labels on packaging materials when you separate waste; these are marked with abbreviations (a) and numbers (b) that mean the following:

1-7: Plastics/20-22: Paper and cardboard/80-98: Composite materials.

Symbol	Material	This product contains the following packaging components
	High-density polyethylene	Plastic bag within sales packaging
	Corrugated cardboard	Sales packaging and transport protection between base and kettle

11. Marks of conformity

This product meets the requirements specified in the applicable European and national policies. This product's conformity has been verified. The declarations and documents are stored with the manufacturer.

This product fulfils the requirements specified in the applicable national policies for the Republic of Serbia.

You can download the full EU declaration of conformity and any other relevant declarations of conformity under the following link:

https://www.targa.gmbh/downloads/conformity/501016_2404.pdf

Contact address according to the Product Safety Regulation (EU) 2023/988: [e-mail]

12. Warranty information

Warranty of TARGA GmbH

Dear Customer,

This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below.

Warranty conditions

The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate.

Warranty period and legal warranty rights

The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge.

Scope of warranty

The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced.

Submitting warranty claims

To ensure speedy handling of your complaint, please note the following:

Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline.

- Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase.

- If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.

- You can find this and many more manuals, product videos and installation software available for download at www.lidl-service.com. This QR code takes you directly to the LIDL service page (www.lidl-service.com). There, you can enter the item number (IAN) to access your operating manual.

PDF ONLINE www.lidl-service.com

Service

Phone: [phone]

E-Mail: [e-mail]

Phone: 1800

101010

E-Mail: [e-mail]

Phone: 800

62230

E-Mail: [e-mail]

Phone: 8009

4241

E-Mail: [e-mail]

IAN: 501016_2404

Manufacturer

Please note that the following address is not a service address. First contact the service point stated above.

TARGA

GmbH

Coesterweg 45

59494 Soest

GERMANY

Table des matières

Attention, surface chaude!

Simple line drawing of a mechanical bracket or support structure with no text or symbols

2

https://www.targa.gmbh/downloads/conformity/501016_2404.pdf

Cher client, chère cliente,

Cher client, chère cliente,

Simple line drawing of a mechanical bracket or bracket with a labeled dimension line (no text or symbols beyond the number 1)

2

https://www.targa.gmbh/downloads/conformity/501016_2404.pdf

Contactadres volgens 2023/988 Verordening Productveiligheid: [e-mail]

12. Garantiebepalingen

Simple line drawing of a mechanical bracket or bracket with a labeled dimension line (no text or symbols beyond the number 1)

2

Simple line drawing of a mechanical bracket or support structure with no text or symbols

2

https://www.targa.gmbh/downloads/conformity/501016_2404.pdf

Simple line drawing of a mechanical bracket or bracket with a labeled dimension line (no text or symbols beyond the number 1)

2

Two icons: a notepad and a recycling bin with an arrow, both without any text or symbols.

FR

Strix TECHNOLOGIES The World's Leading Kemble Center

Simple line drawing of a mechanical bracket or support structure with no text or symbols

2

https://www.targa.gmbh/downloads/conformity/501016_2404.pdf

Simple line drawing of a mechanical bracket or bracket with a labeled dimension line (no text or symbols beyond the number 1)

2

https://www.targa.gmbh/downloads/conformity/501016_2404.pdf

Simple line drawing of a mechanical bracket or bracket with a labeled dimension line (no text or symbols beyond the number 1)

2

https://www.targa.gmbh/downloads/conformity/501016_2404.pdf

https://www.targa.gmbh/downloads/conformity/501016_2404.pdf
