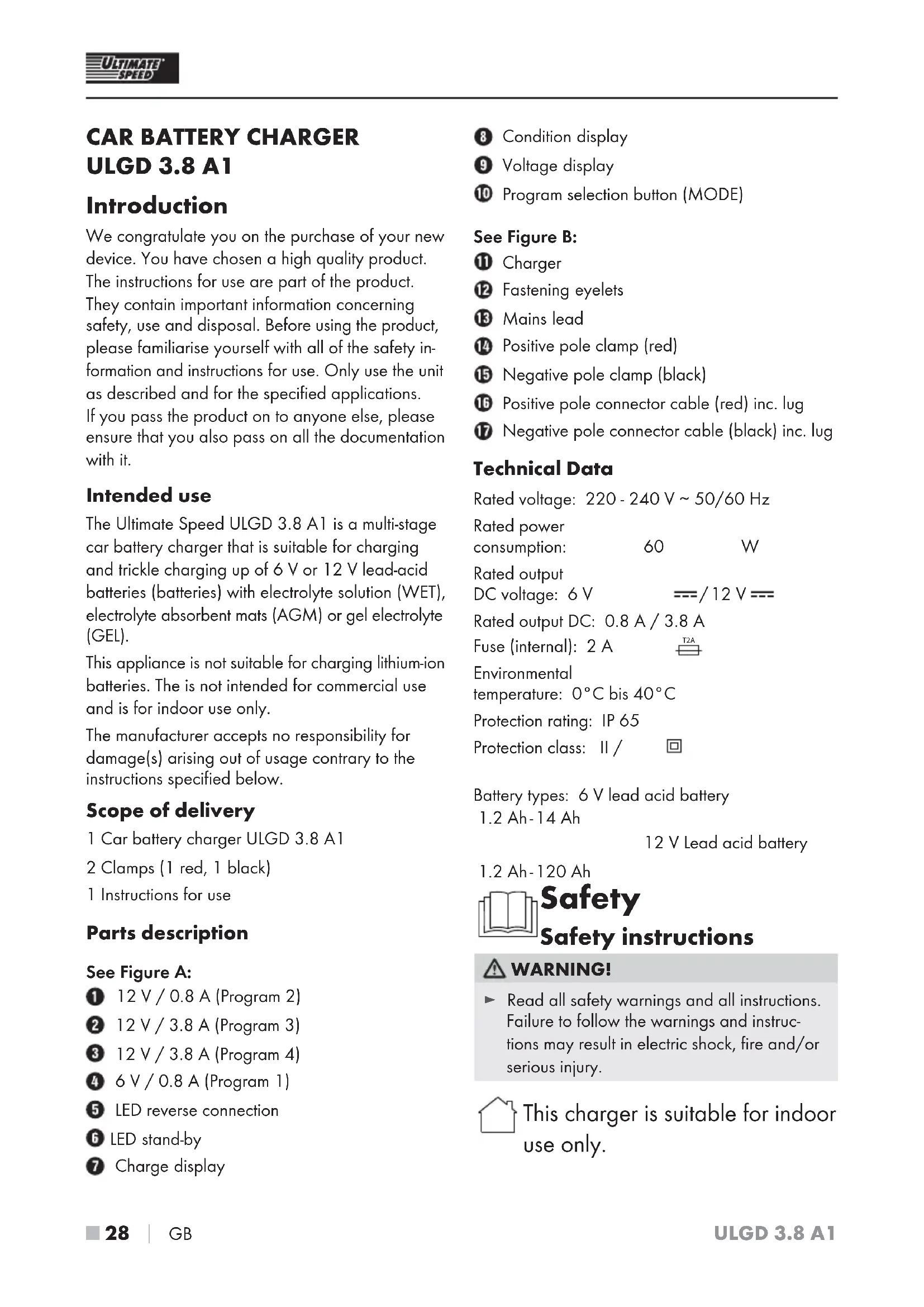

CAR BATTERY CHARGER ULGD 3.8 A1
Introduction
We congratulate you on the purchase of your new device. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
Intended use
The Ultimate Speed ULGD 3.8 A1 is a multi-stage car battery charger that is suitable for charging and trickle charging up of 6V or 12V lead-acid batteries (batteries) with electrolyte solution (WET), electrolyte absorbent mats (AGM) or gel electrolyte (GEL).
This appliance is not suitable for charging lithium-ion batteries. The is not intended for commercial use and is for indoor use only.
The manufacturer accepts no responsibility for damage(s) arising out of usage contrary to the instructions specified below.
Scope of delivery
1 Car battery charger ULGD 3.8 A1
2 Clamps (1 red, 1 black)
1 Instructions for use
Parts description

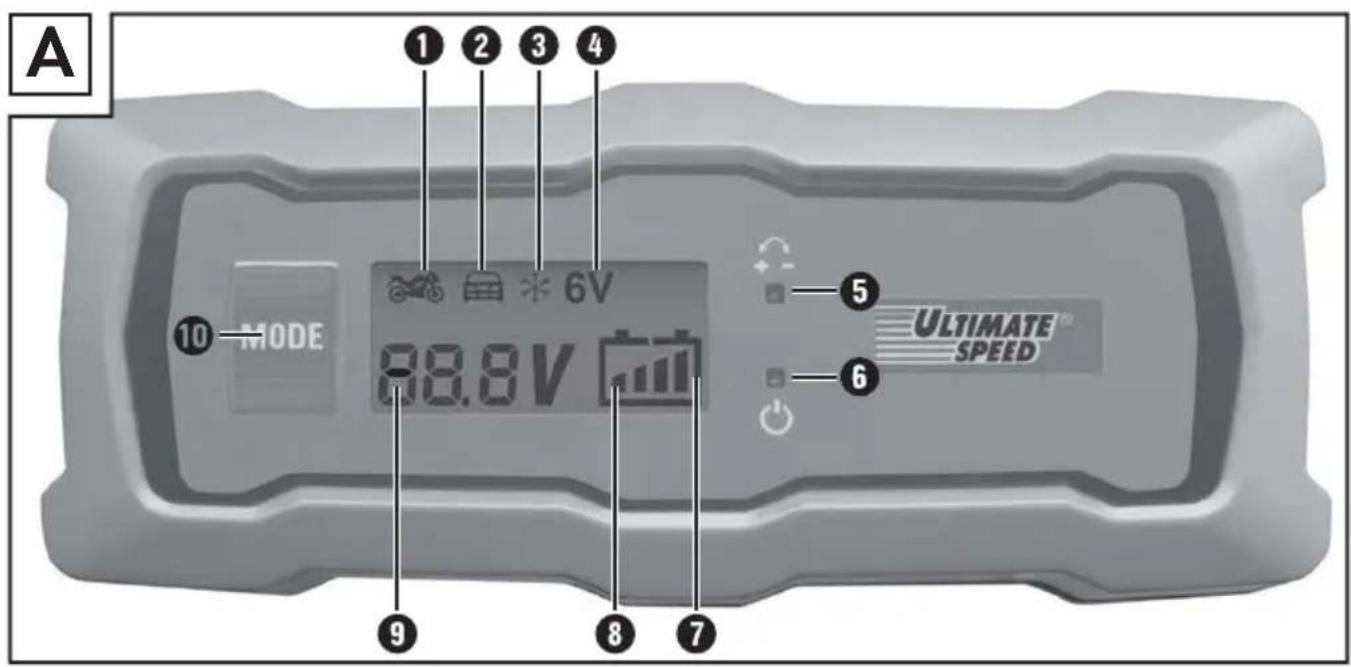

See Figure A:
12V/0.8A(Program2)
12V/3.8A(Program3)
12V/3.8A(Program4)
4 6V / 0.8A (Program 1)
5 LED reverse connection
LED stand-by
Charge display
Condition display
Voltage display
10 Program selection button (MODE)

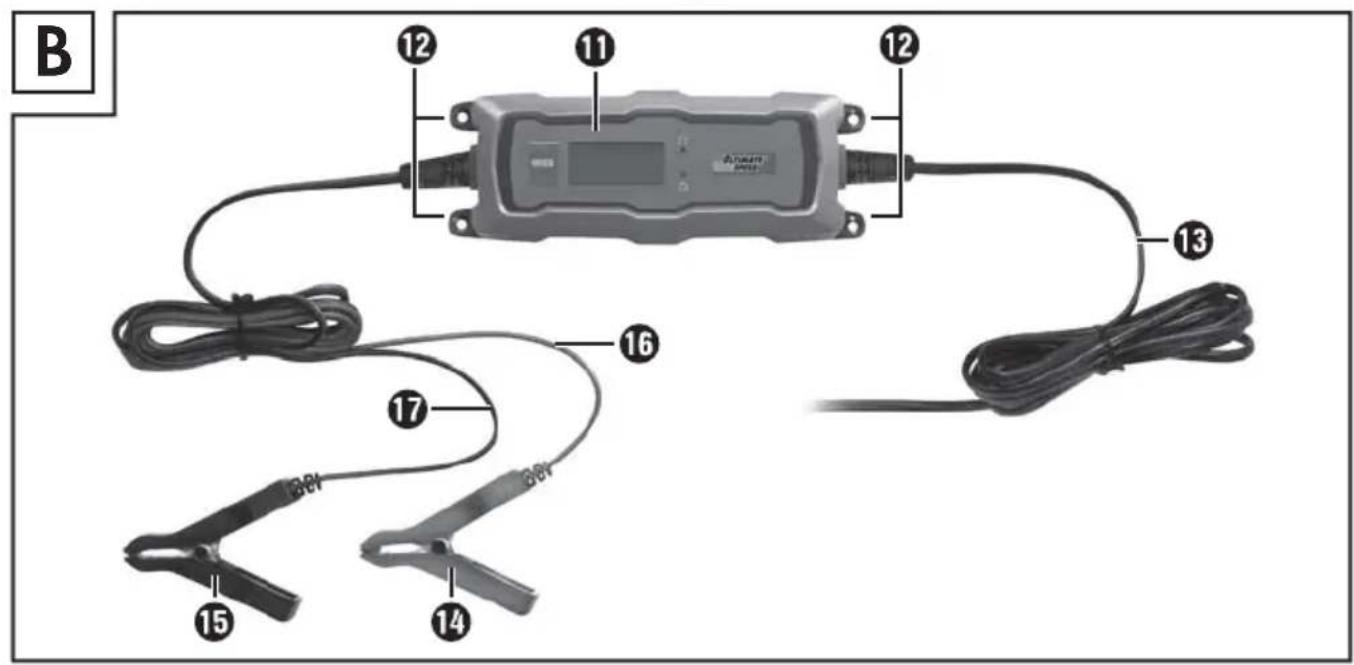

See Figure B:
1 Charger
12 Fastening eyelets
13 Mains lead
14 Positive pole clamp (red)
Negative pole clamp (black)
16 Positive pole connector cable (red) inc. lug
Negative pole connector cable (black) inc. lug
Technical Data
Rated voltage: 220 - 240V 50 / 60Hz
Rated power
consumption: 60 W
Rated output
DC voltage: 6V = /12V = =
Rated output DC: 0.8 A / 3.8 A
Fuse (internal): 2 A
Environmental
temperature: 0^ C bis 40^ C
Protection rating: IP 65
Protection class: II/
Battery types: 6 V lead acid battery
1.2Ah-14Ah
12 V Lead acid battery
1.2 Ah-120 Ah
Safety
Safety instructions
WARNING!
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
This charger is suitable for indoor use only.
This appliance may be used by children aged 8 over and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Children must not use the appliance as a plaything. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Additional safety instructions
Do not use the charger for charging non-rechargeable batteries.
Do not use the charger for charging lithium-ion batteries.
Place the removed battery in a well-ventilated location during charging.
The automatic mode of operation and usage restrictions are explained below in these operating instructions.
DANGER OF ELECTRIC SHOCK!
Do not operate the appliance with a damaged cable, supply cord or mains plug. A damaged power cord causes danger to life by electric shock.
Before connecting to the power, ensure that the power connection is earthed, is 230V 50Hz, and is 16 A fused and equipped with an RCCB switch (residual current circuit breaker) in accordance with the current regulations!
- Disconnect the charger from the grid, before you make or break connections to the battery.
Always connect the positive terminal clamp (red) first.
The negative terminal clamp (black) must be connected to the chassis at least 10cm away from the battery and the fuel line.
Now connect the charger to the power supply.
After charging, disconnect the charger from the grid. Only after this remove the clamp from the bodywork. Following this, remove the clamp from the battery.
DANGER OF EXPLOSION AND FIRE HAZARD!
Protect yourself from a highly explosive hydrogen-oxygen reaction!
Ensure that during charge and charge retention procedures, there are no naked lights (flames, cinders or sparks)!
Ensure that the plus cable does not come into contact with fuel lines (e.g. petrol pipe)!
Ensure that there is no possibility of ignition of explosive or flammable substances, such as petrol or solvents, while using charger!
Ensure that there is adequate ventilation during charging.
DANGER OF CHEMICAL BURNS!
Wear protective glasses! Wear protective gloves! If eyes or skin has come into contact with battery acid, rinse the affected body region off with a large amount of clean water and consult a doctor straight away!
- Avoid causing a short circuit when connecting the charger to the battery. Connect the negative pole connector cable only to the negative battery or to the body work. Connect the positive pole connector cable only to the plus pole of the battery!
- Do not place the charger close to fire, heat or to places with long-term exposure to temperatures over 50^
Ensure that no fuel lines, electric cables, hydraulic or water pipes are damaged by the screws during assembly of the charger!
- Do not cover the charger with any objects!
- Protect the electrical contact surfaces of the battery from short circuiting!
Only use the charger for charging and for charge retention of 6V/ 12 V lead batteries. Do not charge frozen batteries.
Operation
Before use
Before connecting the charger, the operating instructions must be observed.
Furthermore, the instructions of the vehicle manufacturer regarding a permanently connected vehicle battery must be observed. Secure the vehicle, switch off the ignition.
Clean the battery poles. Take care that while doing so, your eyes do not come into contact with the dirt.
Ensure sufficient ventilation.
Connecting
NOTES
There are two options for connecting the charger. Connect the negative terminal connecting cable (black) either directly to the negative terminal of the battery or to the bodywork. Please also bear in mind the vehicle manufacturer's instructions.
Before starting the charging or trickle charging procedure on a permanently installed battery in a vehicle, first disconnect the negative terminal connecting cable (black) of the vehicle from the negative terminal of the battery. The negative terminal of the battery is usually connected to the vehicle's coachwork.
Connect the positive pole clamp (red) of the charger to the positive pole of the battery.
Connect the negative pole clamp (black to the negative pole of the battery or to the bodywork.
Connect the mains cable of the charger to the mains socket.
The battery voltage displays the current battery voltage.
Should the connection of the clamps be swapped, the LED "reverse connection" lights up.
Disconnect
Disconnect the appliance from the mains supply.
Remove the negative pole clamp (black)5 from the negative pole of the battery or from the bodywork.
Remove the positive pole clamp (red) 14 from the positive pole of the battery.
Measuring STANDBY / Battery voltage
After connection to the grid, the appliance is on STANDBY. The standby display lights up. When the clamps are connected, the battery voltage is shown in the LCD (voltage display) The segments of the condition display are empty.
If the voltage is below 3.8V or above 15V , the battery will not be charged. The display briefly shows the error message "Err". The appliance goes on standby.
6 V battery:
If the voltage range of the battery is measured as between 3.7-7.3 V, only program 1 can be selected.
12 V batteries:
If a battery is recognised in the critical voltage range of between 7.3-10.5 V, the appliance checks whether a fully charged 6 V battery, or a discharged 12 V battery is present. After pressing the program selection button to select a program, the appliance carries out a control measurement for about 90 sec.
The display shows:
If after about 90 sec. between 7.3-7.5 V are detected, the 12 V battery is defective. The appliance goes on standby.
Revitalising
If after about 90 sec. between 7.5-10.5 V are detected, a 12 V battery is present.
Charging starts with a pulse charge for revitalising. The voltage display ⑨ flashes. Once 10.5V are reached, the appliance switches to the other charge steps.
Revitalising is the same for all the 12 V charge programmes.
Program selection
NOTES
If a battery is detected in the voltage range of between 3.7-7.3 V, the programmes 2-3-4 can not be selected. The charging process takes place automatically. Depending on the selected program, the characteristic charge curve is monitored for voltage, time and temperature. Included are the diagnostics program, revitalising mode and retention charge.

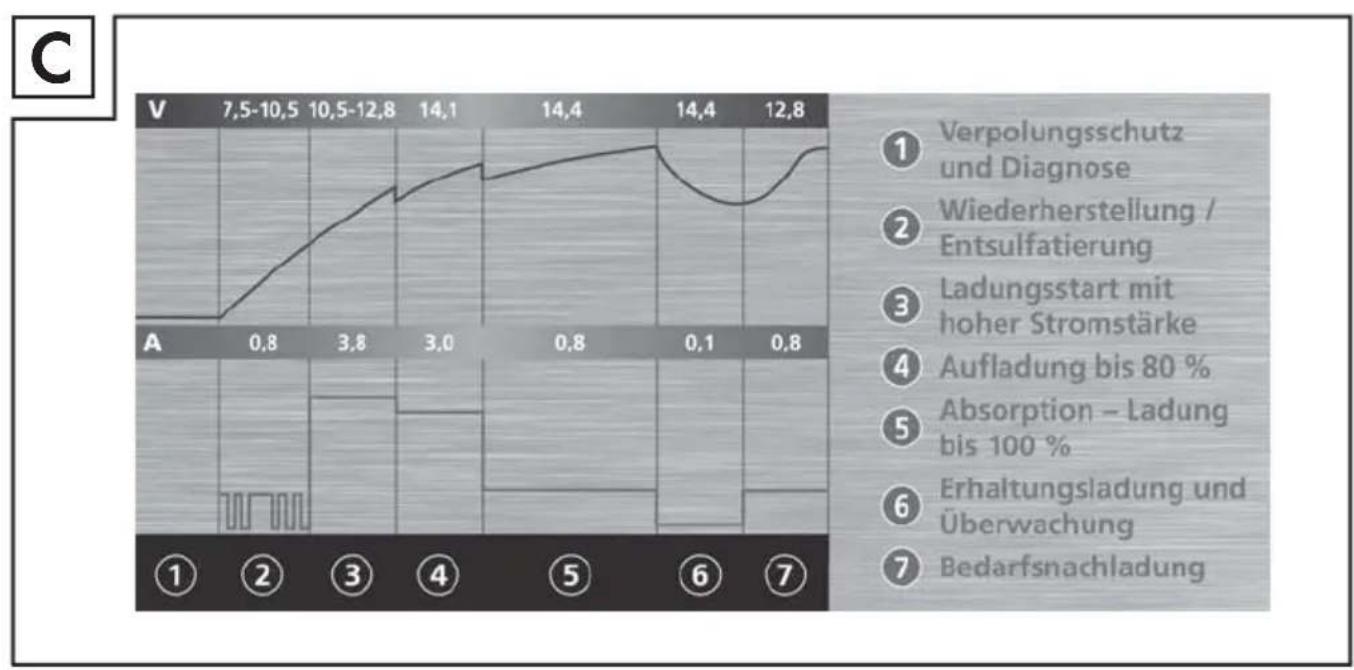

(See principle representation program 3 Fig. C)
For charging 6 V batteries with a capacity of less than 14 Ah.
Press the program selection button to select program 1. The symbol ^ 6V^ is displayed on the LCD. During charging, the charge display 7 flashes and shows the progress of the charge procedure (1-4 bars). When the battery is fully charged, the condition display 8 shows 4 bars. The flashing stops and the appliance automatically switches to retention charge.
Program 2 2 V" (14,4 V / 0,8 A)
For charging 12V batteries with a capacity of less than 14 Ah.
Press the program selection button to select program 2. The symbol is displayed on the LCD. During charging, the charge display 7 flashes and shows the progress of the charge procedure (1-4 bars). When the battery is fully charged, the condition display 8 shows 4 bars. The flashing stops and the appliance automatically switches to retention charge.
Program 3 2 ~V'' (14,4 ~V / 3,8 ~A)
For charging 12V batteries with a capacity of between 14 Ah-120 Ah.
Press the program selection button to select program 3. The symbol is displayed on the LCD. During charging, the charge display ⑦ flashes and shows the progress of the charge procedure (1-4 bars). When the battery is fully charged, the condition display ⑧ shows 4 bars. The flashing stops and the appliance automatically switches to retention charge.
Program 4 12V'' (14,7 V / 3,8 A)
For charging 12V batteries with a capacity of between 14 Ah-120 Ah under cold conditions or for charging AGM batteries.
Press the program selection button to select program 4.
NOTE
This program may start with a minute delay. The symbol is displayed on the LCD. During charging, the charge display ⑦ flashes and shows the progress of the charge procedure (1-4 bars). When the battery is fully charged, the condition display ⑧ shows 4 bars. The flashing stops and the appliance automatically switches to retention charge.
Retention charge
As described under programmes, this appliance features the automatic retention charge. Depending on the voltage drop of the battery, caused by selfdischarge, the appliance reacts with different charge currents.
The battery can remain connected to the charger for longer periods of time.
Appliance protection function
The charger switches the electronics off and switches the system instantly to the basic setting, as soon as there is an abnormal situation, such as short circuit, critical voltage drop during charging, broken circuit or swapped connection of the connector clamps is detected.
Should the appliance become too hot during charging, the output current is automatically reduced. This protects the appliance from damage.
Maintenance and care
WARNING! Before you carry out any work on the battery charger always pull the mains plug out of the mains socket.
The appliance is maintenance-free.
Do not under any circumstances use solvents or other aggressive cleaning agents.
Clean the plastic surfaces of the device with a dry cloth.
This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.
Warranty conditions
The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.
If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.
If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.
The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.
This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
-
Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
-
You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
- You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
You can download these instructions
along with many other manuals, product videos and software on www.lidl-service.com.
Service
GB Service Great Britain
Tel.: 0871 5000 720 (£ 0.10/Min.)
E-Mail: kompernass@lidl.co.uk
IAN279744
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Disposal
The packaging is made from environ- mentally friendly material and can be disposed of at your local recycling plant.
dispose of power tools in your normal domestic waste!
European Directive 2012/19/EU requires that worn-out power tools are collected separately and fed into an environmentally compatible recycling process.
Your local community or municipal authorities can provide information on how to dispose of the worn-out appliance.
Translation of the original Conformity Declaration
We, KOMPERNASS HANDELS GMBH, Custodian of Documents: Mr. Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and the EC directives:
EU Low Voltage Regulations (2014/35/EU)
EMC (Electromagnetic Compatibility) (2014/30/EU)
RoHS Directive (2011/65/EU)
Related harmonised standards:
EN 60335-2-29:2004/A2:2010
EN 60335-1:2012
EN 62233:2008
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
Type designation of machine:
Car battery charger ULGD 3.8 A1
Year of manufacture: 06 - 2016
Serial number: IAN 279744
Bochum, 30/05/2016
CE
Semi Uguzlu
- Quality Manager -
Subject to technical changes in the course of further developments.
