USER MANUAL 22197 GREENWORKS

FR DE ES IT PT NL SV DA NO FI HU CS RU RO PL SL HR ET LT LV SK BG Your hedge trimmer has been engineered and manufactured to Greenworks Tools’s high standard for dependability, ease of operation, and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance. Thank you for buying a Greenworks Tools product.

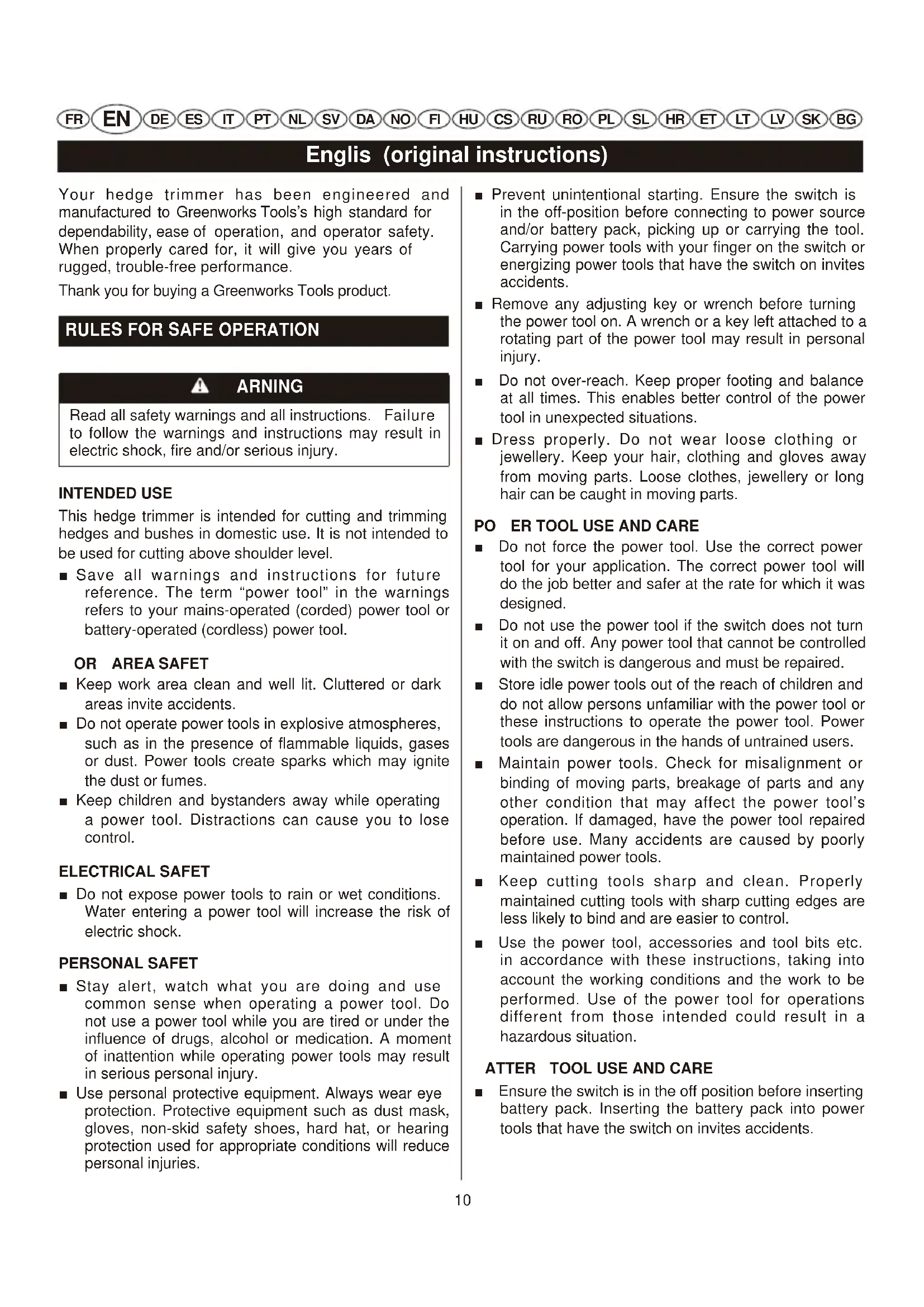

RULES FOR SAFE OPERATION

ARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. INTENDED USE This hedge trimmer is intended for cutting and trimming hedges and bushes in domestic use. It is not intended to be used for cutting above shoulder level. Ƶ Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Ƶ Keep work area clean and well lit. Cluttered or dark areas invite accidents. Ƶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. Ƶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. ELECTRICAL SAFET Ƶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. PERSONAL SAFET Ƶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. Ƶ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, gloves, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. Ƶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents. Ƶ Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. Ƶ Do not over-reach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Ƶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

PO ER TOOL USE AND CARE

Ƶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. Ƶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. Ƶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Ƶ Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Ƶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Ƶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

ATTER TOOL USE AND CARE

Ƶ Ensure the switch is in the off position before inserting battery pack. Inserting the battery pack into power tools that have the switch on invites accidents.11 English (original instructions)

FR DE ES IT PT NL SV DA NO FI HU CS RU RO PL SL HR ET LT LV SK BG ■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. ■ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. ■ When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or fire. ■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with plenty of soap and water. If liquid contacts eyes, immediately seek medical help. Liquid ejected from the battery may cause irritation or burns. SERVICE ■ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

HEDGE TRIMMER SAFETY WARNINGS

■ Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material.A moment of inattention while operating the hedge trimmer may result in serious personal injury. ■ Carry the hedge trimmer by the handle with the cutter blade stopped. When transporting or storing the hedge trimmer always fit the cutting device cover. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades. ■ Hold the power tool by insulated gripping surfaces only, because the cutter blade may contact hidden wiring. Cutter blades contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

READ ALL INSTRUCTIONS BEFORE OPERATING

■ Read the instructions carefully. Be familiar with the controls and proper use of the unit. ■ Do not operate this unit when tired, ill, or under the influence of alcohol, drugs, or medication. ■ Inspect the unit before use. Replace damaged parts. Check for battery pack leaks. ■ Make sure all fasteners and guards are in place and secure. Replace cutting blades or any other parts that are cracked, chipped, or damaged. Make sure the cutting blade is properly installed and securely fastened. Failure to do so can result in personal injury to the operator and bystanders, as well as damage to the unit. ■ Use the right tool. Only use this hedge trimmer for the purpose intended. ■ Do not use hedge trimmer if switch will not turn the unit on or off. A unit that cannot be controlled with the switch is dangerous and must be repaired. ■ Clear the area to be cut before each use. Remove all objects such as cords, lights, wire, or string which can become entangled in the cutting blade. ■ Clear the area of children, bystanders, and pets. At a minimum, keep all children, bystanders and pets outside a 15 m radius; there still may be a risk to bystanders from thrown objects. If you are approached, stop the unit immediately. ■ Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. ■ To avoid the risk of electric shock, do not operate unit in damp or wet locations. ■ Do not handle the unit with wet hands. ■ Do not allow children or untrained individuals to use this hedge trimmer. ■ To reduce the risk of injury, always wear full eye protection, footwear, goggles and clothing when using this machine. ■ Wear a face or dust mask if the operation is dusty. ■ Dress properly. Do not wear loose clothing or jewellery; they can be caught in moving parts. Use of rubber gloves, substantial footwear and long trousers is recommended when working outdoors. ■ To prevent hair from being drawn into nearby air vents and becoming entangled in moving parts, wear protective hair covering to contain long hair or secure covered hair above shoulder level. ■ When transporting or storing the machine always fit with blade cover. ■ Always be aware of your surroundings and stay alert for possible hazards that you may not hear due to the noise of the machine. ■ Form the habit of checking to see that keys and adjusting wrenches are removed from the tool before turning it on. ■ Always ensure all the handles and guards are fitted when using the tool. ■ Never attempt to use an incomplete machine or one fitted whith an unauthorised modification.12 English (original instructions)

FR DE ES IT PT NL SV DA NO FI HU CS RU RO PL SL HR ET LT LV SK BG ■ The vibration level during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used. ■ It has been reported that vibrations from hand-held tools may contribute to a condition called Raynaud’s Syndrome in certain individuals. Symptoms may include tingling, numbness and blanching of the fingers, usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking and work practices are all thought to contribute to the development of these symptoms. It is presently unknown what, if any, vibrations or extent of exposure may contribute to the condition. There are measures that can be taken by the operator to possibly reduce the effects of vibration:

• Keep your body warm in cold weather. When operating the unit wear gloves to keep the hands and wrists warm. It is reported that cold weather is a major factor contributing to Raynaud’s Syndrome.

• After each period of operation, exercise to increase blood circulation.

• Take frequent work breaks. Limit the amount of exposure per day. If you experience any of the symptoms of this condition, immediately discontinue use and see your physician about these symptoms. WHILE OPERATING ■ Do not use trimmer without front handle in place. Keep both hands on handles when unit is in use. ■ To avoid accidental starting, never carry your unit with your finger on the trigger. ■ Stay alert and pay attention to what you are doing. Use common sense when using this hedge trimmer. ■ Wear heavy, long pants, substantial footwear and well fitting gloves. Do not wear short pants, sandals or go barefoot. ■ Do not operate in poor lighting. Use the unit only in daylight or good artificial light. ■ Do not overreach or stand on unstable support. Keep good footing and balance at all times. Do not use on ladder. ■ Do not force the hedge trimmer. It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed. ■ Release the trigger, allow the motor to stop, and remove the battery pack before performing maintenance, repair, or making adjustments. ■ This hedge trimmer is to be used for cutting hedges, bushes, and shrubs only. Do not use for any other purpose. ■ Before starting the unit, make sure the cutting blades will not come in contact with anything. ■ If the machine strike or become entangled with foreign objects, stop the unit immediately, remove the battery pack and check for damage. Do not operate before repairing damage. Do not operate the unit with loose or damaged parts. ■ Watch what you are doing. Use common sense. ■ Maintain hedge trimmer with care. Keep cutting edge sharp and clean for best performance and to reduce the risk of injury. Follow instructions for lubricating and changing accessories. Keep handles dry, clean, and free from oil and grease. ■ Check damaged parts. Before further use of the hedge trimmer, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform it’s intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect it’s operation. A guard or other part that is damaged should be properly repaired or replaced by a Authorised Service Centre unless indicated elsewhere in this manual. ■ Risk of cut. Keep hands away from blades. Do not attempt to remove cut material or hold material to be cut when blades are moving. Make sure battery pack is removed and the trigger is released when clearing jammed material from blades. Do not grasp the exposed cutting blades or cutting edges when picking up or holding the unit. CAUTION Blades continue to move for a short time after unit is turned off. ■ Keep hands, face, and feet at a safe distance from moving parts. Do not touch or try to stop the cutting blades when they are moving. ■ Always stop the motor when cutting is delayed or when walking from one cutting location to another. ■ Keep unit clean of hedge clippings and other materials. They may become lodged in the cutting blades. ■ Store the unit inside in a dry place, either locked up or up high to prevent unauthorised use or damage. Keep out of the reach of children or untrained individuals. ■ Replace blade cover when unit is not in use. ■ Never douse or squirt the unit with water or any other liquid. Keep handles dry, clean and free from debris. Clean after each use, see Storage instructions. ■ Be sure to secure the unit while transporting.13 English (original instructions)

FR DE ES IT PT NL SV DA NO FI HU CS RU RO PL SL HR ET LT LV SK BG ■ Keep these instructions. Refer to them often and use them to instruct other users. If you loan someone this unit, also loan them these instructions. SERVICE ■ Service on unit must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury to the user, or damage to the unit. It may also void your warranty. ■ When servicing a unit, use only identical replacement parts. Follow instruction in the Maintenance section of this manual. Use of unauthorised parts or failure to follow Maintenance Instructions may create a risk of shock or serious injury to the user, or damage to the unit. It may also void your warranty. WARNING If any parts are missing, do not operate unit until the missing parts are replaced. Failure to do so could result in possible serious personal injury.

SAVE THESE INSTRUCTIONS. REFER TO THEM

FREQUENTLY AND USE THEM TO INSTRUCT OTHERS WHO MAY USE THIS UNIT. IF YOU LOAN SOMEONE

THIS UNIT, LOAN THEM THESE INSTRUCTIONS

ALSO.14 English (original instructions)

FR DE ES IT PT NL SV DA NO FI HU CS RU RO PL SL HR ET LT LV SK BG Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

SYMBOL DESIGNATION/EXPLANATION

Precautions that involve your safety. Read the operation manual and follow all warnings and safety instructions. Wear eye and hearing protection. Thrown objects can ricochet and result in personal injury or property damage. Wear protective clothing and boots. Wear non-slip, heavy duty gloves.

Keep all bystanders at least 15m away. Do not expose to rain or in damp conditions. The following signal words and meanings are intended to explain the levels of risk associated with this product.

Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury. CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result in property damage. SYMBOLSEnglish (original instructions)

SPECIFICATIONS FEATURES OPERATION For complete charging instructions, refer to the Operator’s Manuals for your battery pack and charger models. NOTE: To avoid serious personal injury, always remove the battery pack and keep hands clear of the lock-out button when carrying or transporting the tool.

INSTALL BATTERY PACK

Ƶ Place the battery pack in the hedge trimmer. Align raised rib on battery pack with groove in hedge trimmer. See Figure 2. Ƶ Make sure the latch on the battery pack snaps in place and that battery pack is secured in hedge trimmer before beginning operation.

Ƶ Locate the latch on the battery pack and depress to release the battery pack from the hedge trimmer. See Figure 2. Ƶ Remove battery pack from the hedge trimmer. CAUTION When placing battery pack in your hedge trimmer, be sure raised rib on battery pack aligns with groove in hedge trimmer and latch snaps in place properly. Improper assembly of battery pack can cause damage to internal components.

STARTING THE HEDGE TRIMMER

Ƶ Remove the blade cover.Ƶ For added safety, there is a micro switch in the front handle. See Fig. 3. When operating, hold the trimmer with both hands, one hand to pull the trigger lock button backward and squeeze the trigger, and the other hand to squeeze the front handle. Ƶ Release the trigger lock button and continue to squeeze the trigger for extended operation.

STOPPING THE HEDGE TRIMMER

Ƶ Release the trigger to stop the hedge trimmer.Ƶ Upon release of the trigger, the trigger lock button will be automatically reset to the lock position. Ƶ Remove battery pack from the hedge trimmer. OPERATING TIPS Ƶ Do not force the hedge trimmer through heavy shrubbery. This can cause the blades to bind and slow down. If the blades slow down, reduce the pace. Product Specifications Model Voltage No load speed Blade speed Blade length Cutting capacity Weight with Battery pack Battery pack Charger

1400 /minEnglish (original instructions)

Ƶ Do not try to cut stems or twigs that are larger than 15 mm thick, or those obviously too large to feed into the cutting blade. Use a non-powered hand saw or pruning saw to trim large stems.

If desired, you can use a string to help cut your hedge level. Decide how high you want the hedge. Then, stretch a piece of string along the hedge at this height. Trim the hedge just above this guide line of string. See Figure 4. Trim the side of a hedge so that it will be slightly narrower at the top. See Figure 5. More of the hedge will be exposed when shaped this way, and it will be more uniform. If blades do become jammed, stop the motor, allow the blades to stop and remove the battery pack before attempting to remove the obstruction.

Wear gloves when trimming thorny or prickly growth. When trimming new growth, use a wide sweeping action, so that the stems are fed directly into the cutting blade. Older growth will have thicker stems and will be trimmed easiest by using a sawing movement. DANGER If blade jams on any electrical cord or line, DO NOT TOUCH THE BLADE! IT CAN BECOME ELECTRICALLY LIVE AND VERY DANGEROUS. Continue to hold the hedge trimmer by the insulated rear handle or lay it down and away from you in a safe manner. Disconnect the electrical service to the damaged line or cord before attempting to free the blade from the line or cord. Failure to heed this warning will result in serious personal injury or possible death. WARNING Clear the area to be cut before each use. Re-move all objects such as cords, lights, wire, or string which can become entangled in the cutting blade and create a risk of serious personal injury. WARNING CAUTION Do not at any time let brake fluids, gasoline, petroleum based products, penetrating oils, etc., come in contact with plastic parts. They contain chemicals that may damage, weaken, or destroy plastics.

WARNING Battery units do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. To prevent serious personal injury, always remove the battery and take extra precautions and care when performing maintenance, service or for changing the cutting blade. WARNING To prevent serious personal injury, remove the battery pack before servicing, cleaning, or removing material from the unit. BLADE CARE Lubricate the cutting blades after each use. Periodically inspect the blades for damage and wear. Always use the manufacturer's specified replacement blades.

See figure 6 Remove battery pack from hedge trimmer. For easier operation and longer blade life, lubricate the hedge trimmer blade before and after each use. Before lubricating, remove the battery pack and lay hedge trimmer on a flat surface. Apply light weight machine oil along the edge of the top blade. See Figure 8. Occasionally, you should oil your hedge trimmer during prolonged use. Before oiling, stop hedge trimmer, remove battery pack, then oil. You then can resume trimming. Do not oil while hedge trimmer is running. Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use a clean cloth to remove dirt, oil,grease, etc. When servicing use only identical Greenworks Tools replacement parts. Use of any other parts can create a hazard or cause product damage.17 English (original instructions)

All of the bearings in this tool are lubricated with a VXI¿FLHQW amount of high-grade lubricant for the life of the unit under normal operating procedures. Therefore, no further lubrication is required. WARNING Do not attempt to modify this unit or create or mount any accessory not specifically recommended in this manual for use with this hedge trimmer. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury. WARNING Examine hedge trimmer frequently to assure all parts are unbroken and securely attached. Make sure all screws and fasteners are securely tightened to prevent the risk of serious personal injury.

CLEANING THE HEDGE TRIMMER

WARNING To prevent serious personal injury, remove the battery pack before servicing, cleaning, or removing material from the unit. Remove the battery pack. Clean the unit using a damp cloth with a mild detergent. Do not use any strong detergents on the plastic housing or the handle. They can be damaged by certain aromatic oils such as pine and lemon, and by solvents such as kerosene. Moisture can cause a shock hazard. Wipe off any moisture with a soft dry cloth. Use a small brush or the air discharge of a small vacuum cleaner brush to clean the air vents on the battery pack housing and motor housing. Keep the air vents free of obstructions.

TORING THE HEDGE TRIMMER

See figure 8 Clean the hedge trimmer thoroughly before storing. Store the hedge trimmer in a dry, well-ventilated place that is inaccessible to children. Keep away from corrosive agents such as garden chemicals and de- icing salts. Always place blade cover on cutting blades before storing. See Figure 8. Store and charge your batteries in a cool area. Temperatures above or below normal room temperature will shorten battery pack life. Store the battery pack where the temperature is below 27°C, and away from moisture. Never store batteries in a discharged condition. Wait for battery pack to cool and fully charge immediately. All batteries gradually lose their charge. The higher the temperature, the quicker they lose their charge. If you store your unit for long periods of time without using it, recharge the batteries every month or two. This practice will prolong battery pack life. DI PO AL Waste electrical products should not be disposed of together with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
