USER MANUAL Pizza oven Steel Cucine

______________________________________________________________________Thank you for choosing one of our products. From now on cooking will be a creative pleasure with your new oven. We recommend carefully reading all the instructions given in this manual as it provides information on the proper and safe use of your oven. These instructions will also familiarise you with all the various parts of your oven. Tips are provided on the use of pans and utensils, the position of runners and the setting of controls. The correct cleaning operations described in this manual will enable you to keep your oven in good working order over time. The individual paragraphs are designed to give a step by step description of all of the oven's functions. The clear and easy to understand text is accompanied by detailed images and widely used symbols. Reading this manual in depth will provide you will the answers to any questions that may arise regarding the correct use of your new oven.

INSTRUCTIONS FOR THE INSTALLER: intended for the qualified technician carrying out the installation, start-up and testing of the appliance.

INSTRUCTIONS FOR THE USER: include suggestions, the description of the controls and the correct cleaning and maintenance operations for the appliance.Contents

Warnings for safety and use _______________________________ 31

This user’s manual is an integral part of the product purchased. The user must conserve the manual correctly so that it is always available for consultation during the use and maintenance of the product. Keep this user’s manual for future reference. If the product is resold, the manual must be transferred to any subsequent owner or user of the product.

The manufacturer is not liable for any inaccuracies in this booklet resulting from printing or transcription errors. The manufacturer reserves the right to modify its products as it considers necessary or in the interests of the user, without compromising their essential safety and operating characteristics.

CLASSES OF APPLIANCES

The cooking appliances described in this use manual belong to the installation class stated below:

Class 3: built-in cooking appliances.

This product was manufactured in compliance with the following directives:

• 2006/95/EC relating to electrical equipment designed for use within certain voltage limits.

• 2004/108/EC relating to electromagnetic compatibility.

• EC Regulation no. 1935 of 27/10/2004 on materials and articles intended to come into contact with food.

• 2011/65/EC (RoHS) on restricting the use of hazardous substances in manufacturing materials.

1.1 Technical service

Before leaving the factory, this appliance has been tested and set up by qualified, specialist personnel, so as to guarantee the best operating results. Each repair or adjustment that may subsequently be necessary must be carried out with the utmost care and attention. We therefore recommend always contacting the Dealer where the appliance was purchased or your nearest Service Centre, specifying the type of problem and the appliance model.Warnings

2. Warnings for safety and use

THIS PRODUCT IS DESIGNED AND MANUFACTURED TO OPERATE SAFELY AND DOES NOT POSE ANY DANGERS TO PEOPLE, ANIMALS, AND OBJECTS.

The manufacturer declines any responsibility for damage incurred by persons or objects that is caused by not following the above guidelines or by tampering with any part of the appliance or by using non-original spare parts.Instructions for the installer

The following operations must be carried out by a qualified installing technician. The installing technician is responsible for correctly installing the appliance according to current safety standards. Before using the appliance, remove the protective plastic on the control panel, stainless steel parts, etc...

The manufacturer declines any responsibility for damage incurred by persons, animals or objects that is caused by not following the above guidelines (cfr. chapter “2. Warnings for safety and use”). The technical data is indicated on the plate located on the back of the appliance. The adjustment conditions are shown on a label applied to the packing and the appliance.Instructions for the installer

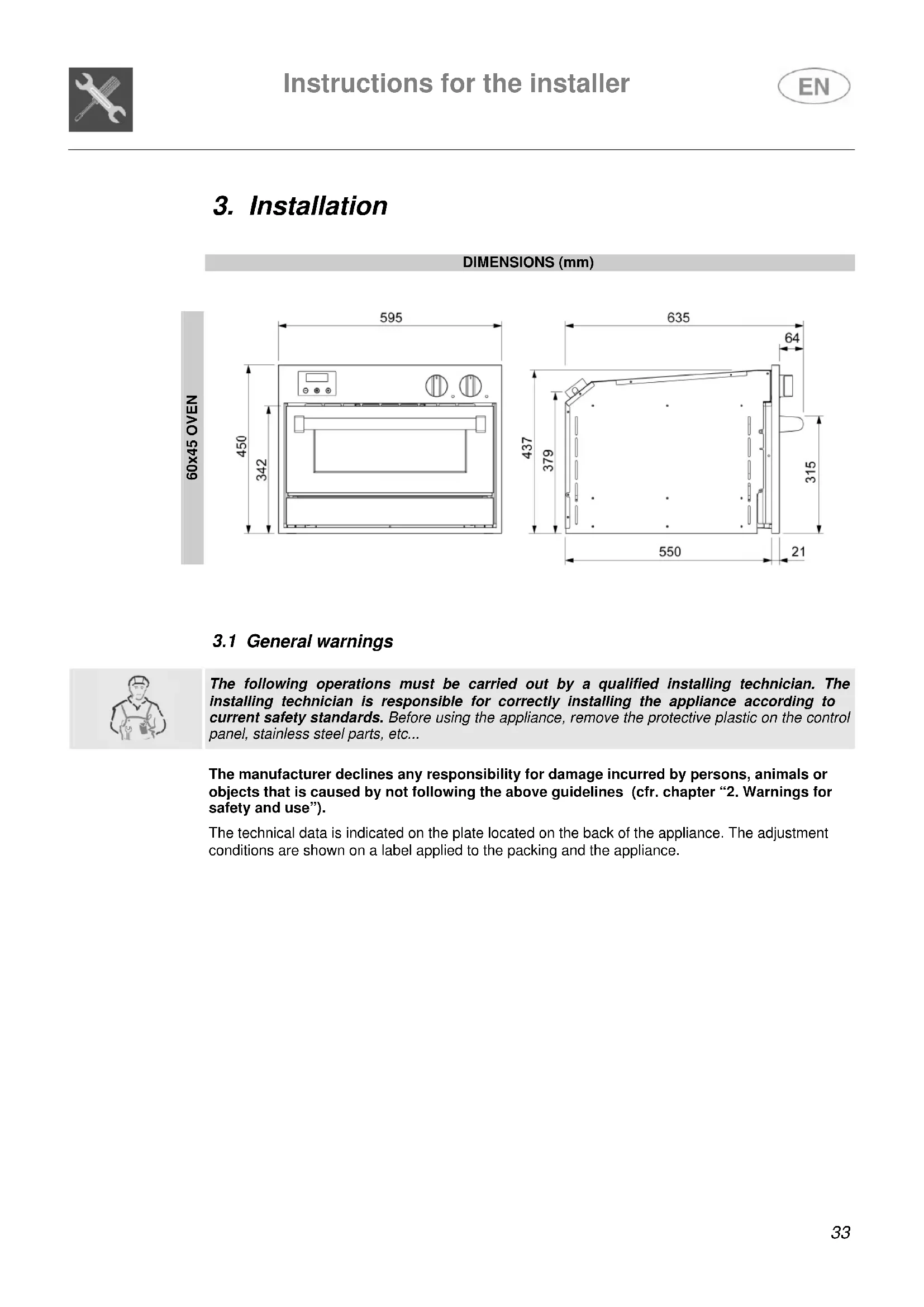

3.2 Fastening the oven to the unit

Do not use the oven door handle for lifting or handling, including while unpacking the oven.

The oven must be positioned by two people. The unit must be coated with heat-resistant material (minimum 90°C). Leave the minimum clearances suggested in the following diagram.

• lighten the oven by removing the box containing the accessories; if necessary, the door can also be removed by following the instructions in paragraph “8.1 Removing the oven door”;

• rest the back of the oven inside the recess and after having freed the electric cable and inserted the plug into the socket, push the oven into its final position, ensuring that the electric cable is not crushed; if the oven door has been removed, refit it by following the instructions in paragraph “8.1”;

• fasten the oven to the unit using the wood screws provided, in the 2 holes on the oven front, as shown in the figure below.

mmInstructions for the installer

Proceed as follows to install:

• remove the telescopic guides A from the packing and remove all protective film;

• remove all the accessories that are inside the oven;

• position the telescopic guide to the required height by coupling the upper side to the frame (detailed drawing 1) and then rotate it until the lower side couples; repeat this operation for the opposite side and the other levels;

• slide the telescopic guides forward and position the chosen accessory as shown in detailed drawing 2;

• reinsert the previously removed accessories into the oven.

3.4 Adjustment of the drawer height

The clips of height adjustment are located in the lower side and at the right and left ends of the drawer. By turning the lever A the drawer will raise of 3 mm.Instructions for the installer

3.5 Electric connection

Make sure that the voltage and the size of the mains corresponds to the specifications shown on the plate located on the back of the appliance. A second plate, giving the model and serial number, is visible on opening the oven door: depending on the model, it may be positioned on the inside left, on the door edge or on the upper inner edge. These plates must never be removed.

The plug at the end of the power supply cable and the wall socket must be the same type and must comply with current electric standards. Check that the mains is adequately earthed. Once the appliance has been installed make sure that the plug is accessible to allow the periodical check-up.

Prepare an omni-polar cutoff device on the power supply line of the appliance with a contact opening distance equal to or more than 3 mm, located in a convenient position near the appliance.

Do not use reducers, adapters or shunts. Before making the electric connection, make sure of the efficiency of the earthing. Make sure that the relief valve and the home wiring system are able to withstand the appliance load. The yellow/green earth cable must not be subject to cutoffs. The electric cable must not come into contact with parts whose temperature is more than 50°C higher than room temperature.

All our ovens are supplied with a single-phase electrical connection. For greater practicality, we suggest fitting a plug to the oven according to the following wire colours:

• blue: neutral.Instructions for the installer

3.5.2 Type of power supply

To replace the electric cable, it is necessary to access the terminal board. It is located on the back of the appliance, at the top left, as shown in the figure.

To replace the cable, proceed as follows:

• open the terminal board box;

• unscrew the screw A that locks the cable;

• loosen the screw contacts and replace the cable with one of the same length and conforming to current regulations;

• the "yellow-green" earth wire must be connected to the terminal and must be approximately 20 mm longer than the line cables;

• the neutral "blue" wire must be connected to the terminal marked with the letter N;

• the line wire must be connected to the terminal marked with the letter L.

4. Description of controls

All the oven controls are grouped together on the front panel.

To activate the variable grill function, turn the “cooking functions” knob (C) to the symbol . The “variable grill” knob features an incremental graduated scale that regulates the grill heating element operating time: turn the knob clockwise (starting from “0” position) to increase operating time; turn anticlockwise to decrease it. Turn it all the way clockwise to heat the grill for the maximum time. An orange light below the knob switches o n and off to indicate when the grill heating element is in operation; the orange light switches off when the maximum temperature is reached.Instructions for the user

The oven is controlled using a single knob. By positioning the knob appropriately and by setting the required temperature, both upper and lower heating elements will switch on. It is po ssible to set one of the functions described in the table, but in this case the temperature of the chosen heating element will be automatically set to the MAX temperature value.

Below the oven knob there is an orange light, which indicates when the oven has reached the set temperature. The orange light switches on and off to indicate when the heating automatically kicks in to maintain the temperature inside the oven at the level set. The oven has an internal light. The light is always on while the oven is working: it can be switched on while the oven is off, for cleaning purposes, by turning the knob to the symbol .

USING AND PROGRAMMING THE DIGITAL CLOCK

The digital clock enables the oven to be set to automatically switch on and off.

This programmer works like a touch screen; rest the tip of the finger on the key for a few seconds to activate it.

When first powering on the appliance or following a power failure, and the word AUTO flash on the display. Touch the “Mode” key to stop the flashing and use the / keys to set the time (hold down the / keys to scroll rapidly). To adjust the time under normal operating conditions, i.e. when the clock is already on, touch both keys / simultaneously for at least two seconds and then set the time as described previously.

This function is for using the oven without any programming.

It is always possible to switch from a programmed function to “Manuale” (Manual) function, by touching the “Mode” key; choose “Manuale” if no cooking programmes are to be used.

This function activates an audible alarm after a preset time, without interfering with the operation of the oven.

The digital clock can also be used as a timer:

• touch the “Mode” key for at least 2 seconds to enter the programming menu; the flashing symbol will appear;

• use the / keys to set the required time and the display will show the time remaining. The timer starts automatically and the symbol will stop flashing. When the set time is reached, an audible alarm sounds for 7 minutes and the symbol will flash;

• touch any key to stop the alarm or the “Mode” key to delete the programme.Instructions for the user

This function is for programming the cooking duration after which the oven switches off automatically.

• Set the required cooking function and temperature using the control knobs;

• touch the “Mode” key to enter the programming menu, touch again and the word “Dur” appears;

• use the / keys to set the cooking duration. The word “Auto” flashes for the duration of the programming phase. After 7 seconds the cooking programme starts and the symbol appears, while the word “Auto” stops flashing. At the end of the set cooking time, an audible alarm sounds for 7 minutes, and the symbol AUTO will flash and symbol will turn off, switching the oven off automatically;

• touch any key to stop the alarm or the “Mode” key to delete the programme.

PROGRAMMING THE COOKING DURATION AND COOKING END

This function is for programming the oven to switch on at a set time and switch off automatically after cooking.

• Set the required cooking function and temperature using the control knobs;

• touch the “Mode” key to enter the programming menu, touch again and the word “Dur” appears;

• use the / keys to set the cooking duration;

• touch the “Mode” key to display “end”, use the / keys to set the cooking end time. The word “Auto” flashes for the duration of the programming phase. After 7 seconds the programme exits the menu and the word “Auto” stops flashing. When the cooking start time is reached, the symbol appears and the oven switches on automatically. At the end of the set cooking time, an audible alarm sounds for 7 minutes, and the symbol AUTO will flash and symbol will turn off, switching the oven off automatically;

• touch any key to stop the alarm or the “Mode” key to delete the programme.

BEEPER At the end of each preset function, an audible alarm sounds which turns off automatically after

7 minutes; touch the “Mode” key to turn the beeper off immediately. Three different types of audible alarm are available on the appliance; to choose between them touch the / keys simultaneously, then touch the “Mode” key until “Tone” appears, then choose the required tone by touching the key .Instructions for the user

When the oven or grill is operating, the outer walls and oven door can become very hot. Keep children away from the appliance. Do not allow children to sit on the oven door or play with it. Do not use the door as a stool. Never stand aluminium pots or foil on the base of the oven, as this may seriously damage the oven enamel.

When using the oven for the first time, or after a power cut, the display flashes regularly indicating . To set the display, refer to section “INITIAL POWER-ON AND SETTING THE TIME” on page 40. Do not attempt to disassemble the oven door without consulting the relative instructions carefully (refer to section “8.1 Removing the oven door”): the hinges on the oven door may injure the hands.

If during normal operation the oven interrupts heating and the programmer display begins to flash and goes to zero, check whether:

there has been a current interruption. If the block occurs again after the cooking programme has been restarted, this means that the safety device has been tripped. This device intervenes in the event of a thermostat fault and prevents oven overheating. In such case, we recommend that you not try to light the oven again and that you contact your nearest service centre.

The storage drawer is located at the bottom of the oven. To use the “push-pull” mechanism, push at the exact point indicated by the label (see 1) and then pull out

the drawer (see 2). The drawer is designed for storing metal utensils only.

The drawer becomes hot while the oven is in use; avoid contact with the internal parts to prevent scalding. Do not use the drawer to store inflammable materials such as cloths, paper or the like.Instructions for the user

5.3 Use of the pizza oven

• a lower heating element;

• a heating element on the roof of the oven;

• refractory stone (on the bottom) for cooking pizza and bread.

• Some cooking with high water content combined with the use of certain functions can cause the formation of condensation on the door's inner glass. To prevent this occurring, open the oven door for a few seconds once or twice while cooking.

• Do not leave food to cool in the oven after cooking to prevent condensation forming on the door's inner glass,

which may drip out of the oven when the door is opened.

5.3.2 Switching on the oven for the first time

The first time it is used, the oven may smoke or give off an acrid smell caused by oily residue from manufacturing that may give unpleasant odours or flavours to food. Before putting food in the oven, heat the oven to the maximum temperature for 30-40 minutes with the door closed and wait until the smoke or odour has stopped. It is possible to switch on the heating of the oven by turning the knob to the required temperature (from 100°C to MAX) or function.

5.3.3 Cooking with the variable grill

To activate the variable grill function, turn the “cooking functions” knob to the symbol ; then turn the “variable grill” knob clockwise to increase the time the grill heating element is active: during this phase, the “variable grill” orange light switches on and off to indicate when the heating element is active. Turning the “variable grill” knob all the way clockwise heats the grill for the maximum time. On reaching maximum grill temperature, both orange lights below the “cooking functions” and “variable grill” knobs switch off.

5.3.4 Traditional cooking

Turn the knob to the required temperature and place the food to be cooked at the required level; in this way the food will be cooked from the top and bottom by the two heating elements. To cook the food using only one element, move the functions selector to (top element) or (bottom element).

The oven is equipped with an automatic cooling system regulated by the temperature of the door. When the limit temperature is reached, the cooling fan automatically activates and then deactivates when the temperature of the door goes below the preset limit. The cooling fan may stay on after the oven has turned off. In case that does not happen, switch off the appliance and contact the Technical Service immediately.Instructions for the user

Turn the knob to position MAX. After preheating the oven for approximately 25 minutes, place the pizza directly in contact with the refractory stone on the bottom, using the spatula provided. It is advisable to use baking parchment to prevent the pizza sticking to the stone.

5.3.6 Switching off the oven

The oven is switched off by returning the knob to position "0".

6. Cooking suggestions

6.1 Suggestions for using the oven correctly

6.1.1 Traditional cooking

100÷MAX With this type of cooking, the heat comes from the top and the bottom. If the cooking requires a hotter temperature from the bottom or from the top, use the lower or upper guides. Traditional cooking is recommended for all food that requires high cooking temperatures, or long brazing times. This system is also recommended when cooking with recipients made of terracotta, porcelain and similar materials.

6.1.2 Cooking with the variable grill

The heat comes from the top. Almost all meat can be grilled, with the exception of lean game and dishes such as meat-loaf. Meat and fish to be grilled should be lightly drizzled with oil and placed on the grid bars, which should be placed in the guides closest to or farthest away from the grill element, depending on the thickness of the meat, so as to avoid burning the surface and cooking too little inside.

Position the grill pan on the lowest level to collect the juices and fat; pour one glass of water into the grill pan to prevent smoke forming due to fat overheating.Instructions for the user

• The values indicated in the table refer to the preparation of food just out of the fridge and placed in a cold, non-preheated oven, unless indicated otherwise.Instructions for the user

7. Cleaning and maintenance

Before performing any operations, switch off the power supply to the appliance.

Do not clean the surfaces of the appliance when they are still hot. Use only suitable detergents to clean the surfaces of the appliance. The manufacturer declines all responsibility and is not liable for damage arising from the use of unsuitable and/or other detergents than those indicated. Do not use pressure or steam spray guns to clean the appliance.

7.1 Cleaning the stainless steel surfaces

To clean and preserve the stainless steel surfaces, use a solution of warm water and vinegar or neutral soap. Pour the solution onto a damp cloth and wipe the steel surface, in the direction of the satin finish, rinse thoroughly and dry with a soft cloth or chamois leather. Do not under any circumstances use metallic sponges or sharp scrapers that may damage the surfaces. Only use non-scratch, non-abrasive sponges and, if necessary, wooden or plastic utensils.

7.2 Cleaning the enamelled surfaces

Clean with a non-scratch, non-abrasive sponge dampened with neutral soap and water. Grease stains can easily be eliminated with hot water or a product specifically made for cleaning enamel. Rinse carefully and dry with a soft cloth or a piece of deerskin. Do not use products containing abrasives, scouring pads, steel wool or acid, which may spoil the surfaces. Do not leave acid or alkaline substances on the enamel (lemon juice, vinegar, salt, etc.).

7.3 Cleaning the polished surfaces

Clean with a non-abrasive, scratchproof sponge dampened with warm water and neutral soap or with a standard detergent for polished surfaces. Rinse and dry carefully with a soft cloth. Abrasive pastes, coarse wire pads, steel wool or acid will damage the surfaces. Do not use alcohol.

7.4 Cleaning the knobs and the control panel

Clean the knobs and the control panel with a damp cloth.Instructions for the user

7.5 Cleaning the oven

In order to preserve the oven well, it should be cleaned regularly, each time it is used if possible, after leaving it to cool: in this way it is possible to remove any residue more easily, preventing it from burning the next time the oven is used. Clean the stainless steel parts and enamelled parts as described in the corresponding sections “7.1 Cleaning the stainless steel surfaces” and “7.2 Cleaning the enamelled surfaces”. Take out all the removable parts and wash them separately. Rinse and dry thoroughly with a clean cloth.

Never use detergent products to clean this type of oven. The walls of the oven can be cleaned using white vinegar and wiped with a cloth dampened with water. Subsequently, heat the oven for at least one hour at 150°C to facilitate cleaning. When the oven has cooled, wipe it again with a damp cloth.

We recommend always keeping the oven door clean. Use kitchen roll and on tougher dirt use a damp cloth and household detergent.

Spray cleaning products must not be used to clean the thermostat sensors inside the oven.Instructions for the user

Periodically, it is necessary to maintain or replace some parts that are subject to wear and tear. Specific instructions are given below for each type of maintenance.

Before performing any operations, switch off the power supply to the appliance.

8.1 Removing the oven door

The oven door can be completely removed to enable more thorough cleaning.

Though this operation is possible, it should not be performed by everyone, as it requires the strength to hold up the door and a minimum of expertise to re-fit it. If you are not sure of being able to do this, we recommend that you clean the door without taking it off or, in special cases, that you contact the nearest authorised service centre.

To remove the door, proceed as follows:

• open the oven door and release the safety catches of the hinges by turning the respective pins A (one for each hinge) backward;

• partially close the door until there is no more load tension on the springs (the door will form an angle of about 30°);

• using both hands, accompany the movement of the door towards closure and simultaneously lift it upward;

• turn the lower part of the door towards the outside to free the hinges B from their seats.

The inner glass can be removed for more thorough cleaning.

• loosen screw C by half a turn to enable the catch to be lifted from right to left;

• lift the two catches and slide out the inner glass;

• to refit the glass, follow the above instructions in reverse order.Instructions for the user

To clean the area between the outer glass and the intermediate glass, use a soft brush in the space between the glass panels, as shown on p. 48. To refit the door, follow the instructions on p. 48 in reverse order. When the hinges B are back in their seats, open the door all the way and re-fit the safety catches of the hinges, lowering the respective pins A (one for each hinge).

CAUTION: After re-fitting the door, always be sure to re-fit the hinge safety catches.

8.2 Removing the side rack-holder frames

The rack-holder frames can be removed to clean them separately and to facilitate cleaning the oven walls. The frames are hooked to the oven wall in the three points indicated by the arrows in the figure (detail 1).

• Press downward with your fingers as shown in detail 2 of the figure to release the frame from the upper pin;

• lift the frame upward and take it out. To re-fit proceed in the inverse direction. Set the lower part of the frame on the respective pins and press the upper part against the oven wall until it hooks onto the pin.Instructions for the user

8.3 Replacing the oven light bulb

Before performing any operations, switch off the power supply to the appliance.

• unscrew the glass safety cap anticlockwise;

• unscrew the bulb and replace it with another one for high temperatures (300°C) with the following characteristics: Voltage: 230 V / 50 Hz Power: 25 W (halogen bulb) Attachment: G9

• Refit the glass cap and switch on the power. It is possible to check that the oven light is working even when the door is closed by turning the function switch knob.Notes
