USER MANUAL LI596 JATA

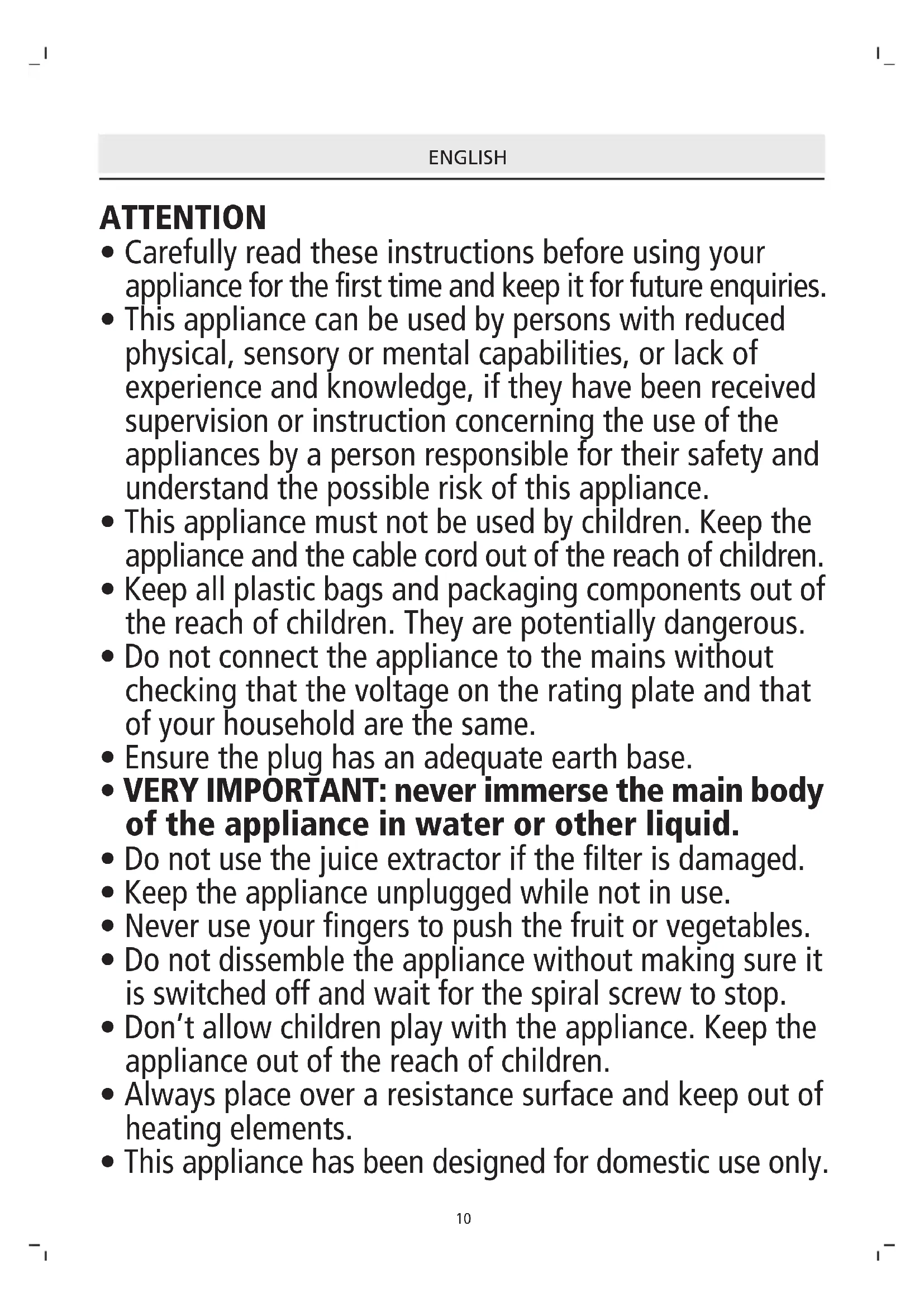

• Carefully read these instructions before using your appliance for the first time and keep it for future enquiries.

• This appliance can be used by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been received supervision or instruction concerning the use of the appliances by a person responsible for their safety and understand the possible risk of this appliance.

• This appliance must not be used by children. Keep the appliance and the cable cord out of the reach of children.

• Keep all plastic bags and packaging components out of the reach of children. They are potentially dangerous.

• Do not connect the appliance to the mains without checking that the voltage on the rating plate and that of your household are the same.

• Ensure the plug has an adequate earth base.

• VERY IMPORTANT: never immerse the main body of the appliance in water or other liquid.

• Do not use the juice extractor if the filter is damaged.

• Keep the appliance unplugged while not in use.

• Never use your fingers to push the fruit or vegetables.

• Do not dissemble the appliance without making sure it is switched off and wait for the spiral screw to stop.

• Don’t allow children play with the appliance. Keep the appliance out of the reach of children.

• Always place over a resistance surface and keep out of heating elements.

• This appliance has been designed for domestic use only.11 Do not use it for more than 10 minutes. After this period of time let it to rest.

• Always disconnect it from the mains when you do not use it and before assembling / disassembling or when cleaning.

• To unplug, pull from the plug, never from the cable.

• If the cable were to deteriorate it must be changed by an Authorised Service Centre.

BEFORE ITS FRIST USE

• Clean and dry all the pieces of the juice extractor, except the main body (14). If necessary, clean it with a slightly dampened cloth. To disassemble the appliance

• Release the closing clips (9) taking out form its lower part.

• Remove the lid (3) turning it anti-clockwise till the indication ( ) of the lid coincides with the indication ( ) of the container (6). Take out the spiral screw (4), the filter (5) and the container (6). To assemble the appliance

• Follow inversely the previous steps.

1. Place the container (6) over the main body .

2. Fit the filter (5) making coincide the indication ( ) of the filter with the indication ( )

of the container (6).

3. Next place the spiral screw (4), press and turn it to leave it correctly fixed.

4. Place the lid (3). To do that make coincide the indication ( ) of the lid with the indication

( ) of the container (6) and turn it clockwise till the end.

5. Place the closing clips (9) by lift them up, hook the lid and press the closing clips form its

• Clean all the fruit and vegetables you are going to use. If necessary, you may cut them up into small pieces to help you put them through the food opening. You must bear in mind: - The stone must be taken out of peaches, cherries, apricots, plumbs, etc. - Oranges, lemons, kiwis, tangerines, melons, etc. must be peeled. - The pips of melons, cucumbers, water melons must be taken out. - Spinach, fresh kale, tomatoes, onions, peppers, parsley, carrots and similar foods, need no special preparation. - It is not possible to obtain any juice from bananas, avocados, aubergines, etc.

• Before switching on the appliance place the juice cup (12) and the pulp cup (11) under the outlets (7 and 8).

• Plug the appliance into the mains and press the on switch (10) to the “I” position.

• Put the fruit or vegetables in the feed tube (2) and press them with the pusher (1).

• Remember: never use your fingers and bear in mind that when putting food into the appliance the motor must always be running.

• Once the juice has been obtained place the on switch (10) in the off position (0) and switch off the appliance from the mains.12 ATTENTION: If the food is obstructed place the switch in the off position (0). Wait for 5 seconds and next KEEP PRESSED THE SWITCH IN ITS “II” POSITION for some seconds. Once done this operation place the switch in the “0” position, wait for 5 seconds and place it again in its position “I” to continuous working with the appliance.

• Although it is advisable to consume the natural juice immediately after it is made, with this appliance and due to the slow extraction, the juice will keep all the vitamins and antioxidants more time.

• If you wish to keep them for some hours we recommend you add lemon juice to them.

• The following table shows the calories and nutritional values of the most common fruit and vegetables.

MAINTENANCE AND CLEANING

• Before you proceed to cleaning it, ensure the appliance is unplugged and the motor is not running.

• Take out the lid (3), remove the spiral screw (4), the filter (5) and the container (6) to proceed with the cleaning.

• All the components except the main body (14) may be cleaned with water and if necessary you may use a liquid detergent.

• Never clean them in the dishwasher.

• Do not use chemical or abrasive products, such as metallic scourers, which may deteriorate the surfaces of the appliance.

• The main body of the appliance may be cleaned with a slightly dampened cloth.

• It is important to clean the appliance as soon as you have finished, to avoid the pigments of some fruits or vegetables staining the plastic. ENVIRONMENT PROTECTION

• Dispose the appliance according to the local garbage regulations.

• Never throw it away to the rubbish. So you will help to the improvement of the environment. Fruit and vegetables Apricot Strawberry Kiwi Lemon Tangerine Apple Peach Melon Orange Cucumber Pear Pineapple Grapefruit Water melon Grape Tomato Carrot Calories per 100 g.
