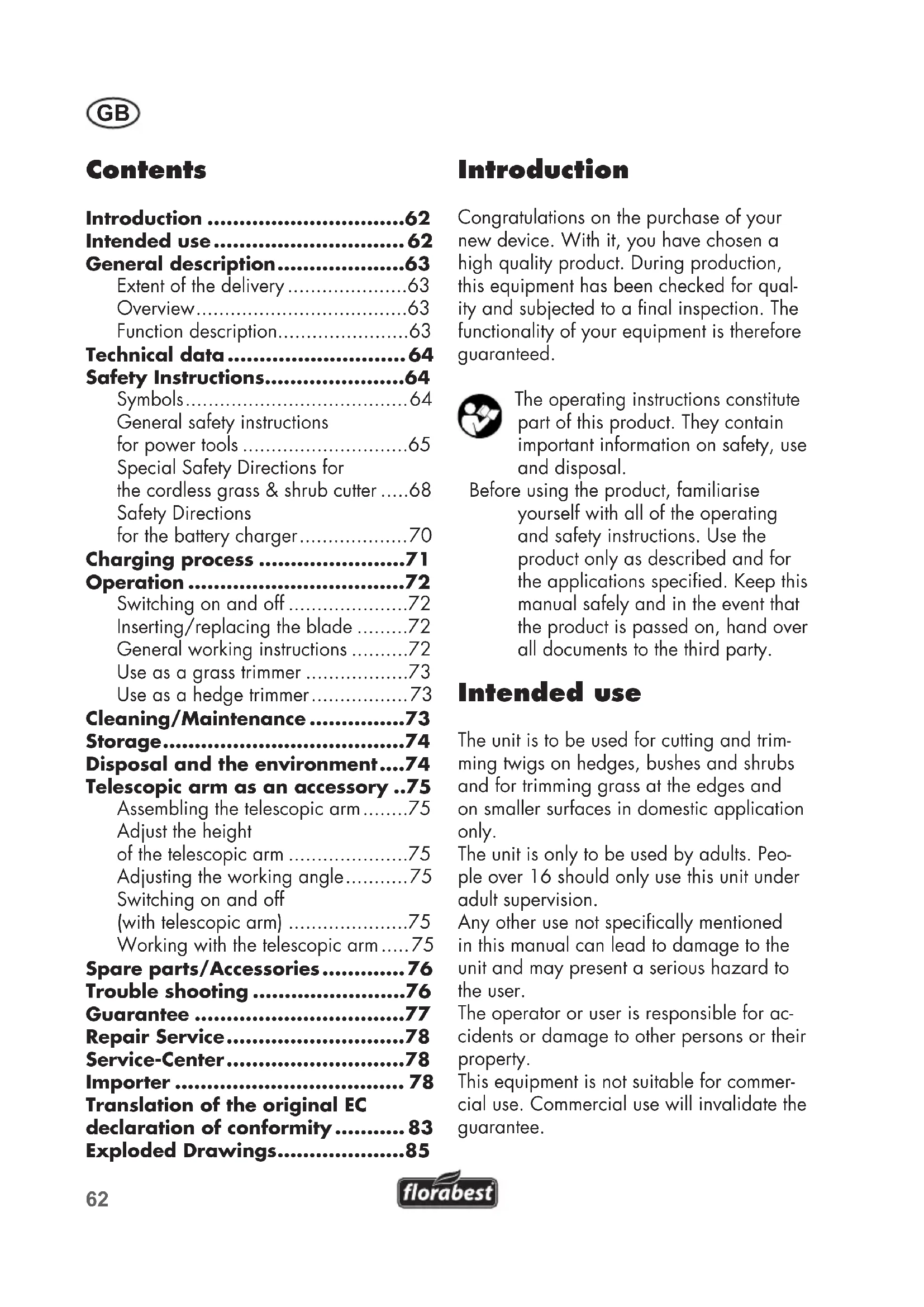

Inhalt

Einleitung. 4

Bestimmungsgemäß

Verwendung 4

Chere cliente, cher client,

General description. 63

Extent of the delivery. 63

Overview. 63

Function description. 63

Technical data. 64

Safety Instructions. 64

Symbols 64

General safety instructions

for power tools 65

Special Safety Directions for

the cordless grass & shrub cutter ....68

Safety Directions

for the battery charger. 70

Charging process 71

Operation 72

Switching on and off 72

Inserting/replacing the blade 72

General working instructions 72

Use as a grass trimmer 73

Use as a hedge trimmer. 73

Cleaning/Maintenance 73

Storage. 74

Disposal and the environment....74

Telescopic arm as an accessory .75

Assembling the telescopic arm. 75

Adjust the height

of the telescopic arm 75

Adjusting the working angle. 75

Switching on and off

(with telescopic arm) 75

Working with the telescopic arm.....75

Spare parts/Accessories. 76

Trouble shooting 76

Guarantee 77

Repair Service. 78

Service-Center. 78

Importer 78

Translation of the original EC declaration of conformity 83

Exploded Drawings. 85

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended use

The unit is to be used for cutting and trimming twigs on hedges, bushes and shrubs and for trimming grass at the edges and on smaller surfaces in domestic application only.

The unit is only to be used by adults. People over 16 should only use this unit under adult supervision.

Any other use not specifically mentioned in this manual can lead to damage to the unit and may present a serious hazard to the user.

The operator or user is responsible for accidents or damage to other persons or their property.

This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.

The manufacturer will not be held responsible for damage or injuries caused by use outside that stipulated by the manual or by improper handling.

General description

The illustration of the principal functioning parts can be found on the front and back foldout pages.

Extent of the delivery

Carefully unpack the appliance and check that it is complete.

Dispose of the packaging material correctly.

Device with mounted grass shear blade,blade guard,safety key
- Shrub shear blade + blade guard
- Recharger
- Instruction Manual

Device is delivered without a telescopic arm. Alternatively, a telescopic arm including wheels can be ordered (see "Spare parts/accessories").

Overview

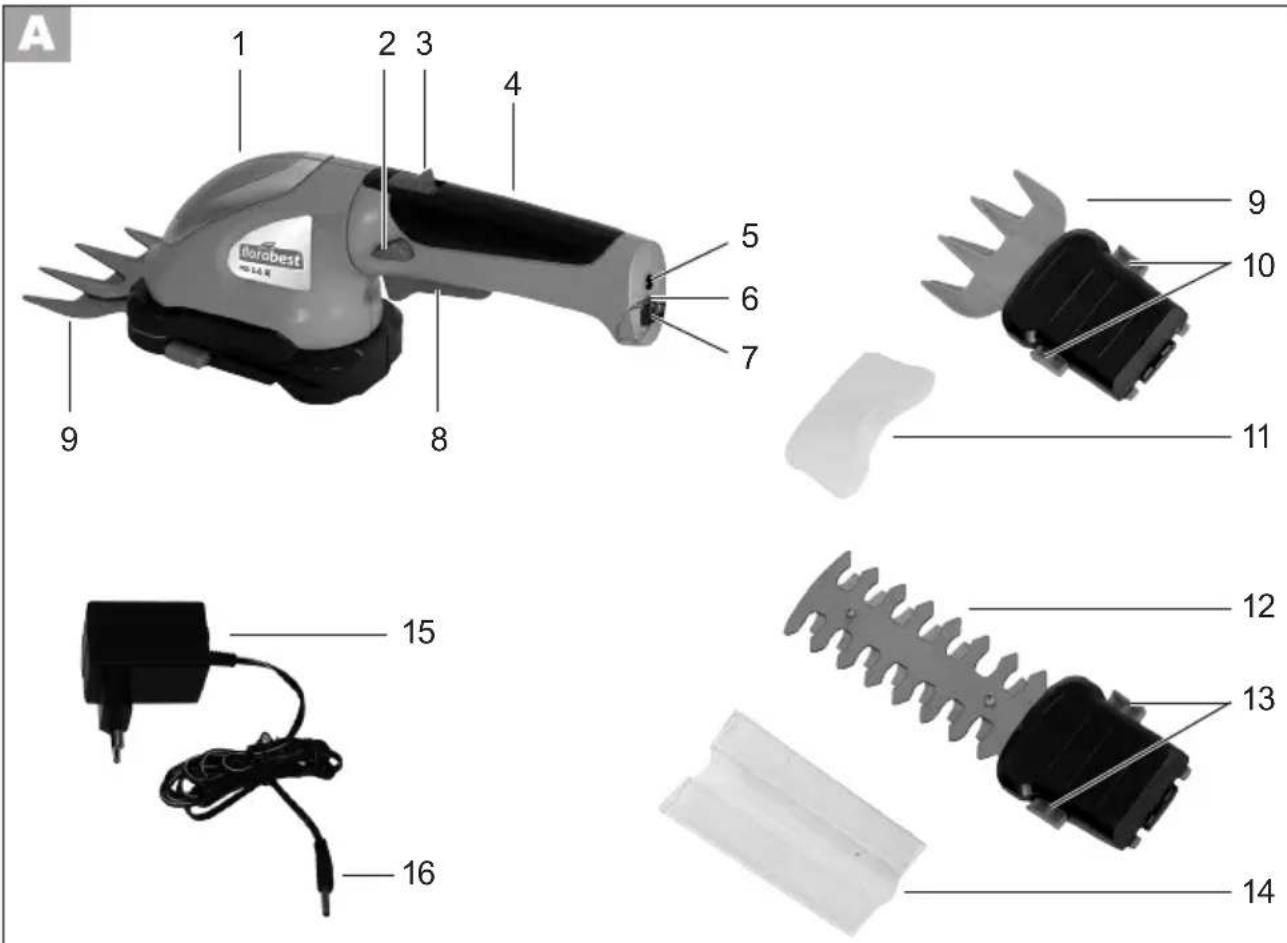

Equipment

1 Cutter head
2 Switch lock, unit
3 Lever to turn the cutter head
4 Unit handle
5 Charging socket + plug socket for plug connection telescopic arm
6 Charge display (LED)
7 Safety key
8 On/off switch, unit

Cutter

9 Grass cutter blade

10 Unlock buttons for grass cutter blade
11 Blade guard for grass cutter blade
12 Shrub shear blade
13 Unlock buttons for shrub shear blade
14 Blade guard for shrub shear blade

Battery charger

15 Power supply unit
16 Recharger cable plug

17 Telescopic arm with wheels (not included in the scope of delivery)

18 Guide rail

19 Equipment holder
20 Plug connection

21 Adjusting screw for length adjustment

22 Release switch

23 Switch lock, telescopic shaft

24 On/off switch, telescopic shaft

Function description

The cordless grass & shrub trimmer is a combination unit with two interchangeable cutting devices. These are coated with plastic (Teflon non-stick coating) to prevent rust. For use as a shrub trimmer, a double-sided blade block is used as the cutting head. The catching blades are round off at the side to prevent accidents, and positioned in an offset arrangement to reduce the risk of injury. A cutting head with several blades is provided for use as a grass trim

mer. The safety key protects the devices from being started unintentionally. Please read the following descriptions for the function of the various controlling parts of the unit.

Technical data

Unit

Motor voltage. 3.6 V=

Rated speed 1000 min

Protection class . Ⅲ

Protection category.. IP21

Grass-trimming blade

Cutting width. 73 mm

Blade width 80 mm

Shrub-trimming blade

Cutting length 120 mm

Distance between teeth...approx. 8 mm

Weight (incl. accessories) ..approx 0.85 kg

Sound pressure level

L_pA 55.1 dB(A), K_pA = 3 dB

measured.75.1 dB(A); K_WA = 3 dB

Vibration (a_h)

at handle 1.2 m/s², K=1.5 m/s²

Battery (Li-Ion)

Nominal voltage.....3.6 V = 1.3Ah

Loading time approx. 3-5 h

Charger.. JLH030600400G

Voltage input.....100-240 V\~, 50-60 Hz

Nominal consumption. 8 W

Voltage output . 6 V

Recharging current. 400 mA

Protection class . II

Protection category.. IPX0

The noise and vibration levels have been calculated according to the norms stated in the conformity statement. Technical and optical alterations to serve progress may be made without notice. All measurements, in

structions and other data given in this manual are therefore given without guarantee of correctness. Legal claims made on the basis of this manual are therefore excluded.

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another. The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning: The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used. Safety precautions aimed at protecting the user should be based on estimated exposure under actual usage conditions (all parts of the operating cycle are to be considered, including, for example, times during which the power tool is turned off and times when the tool is turned on but is running idle).

Safety Instructions

This unit can cause serious injury if not used correctly. Before using the unit, carefully read through the instruction manual and familiarise yourself with all of its controls.

Symbols

Symbols on the unit

Before using for the first time, carefully read through the user manual.

Attention!

Remember that the cutting equipment will continue to move after switching the unit off.

Do not use the unit during rain, bad weather damp surroundings or on wet grass or hedges.

Danger due to materials blown out of machine!

Remove persons in the vicinity from the danger area.

Guaranteed sound power level

Protection class III

Cutting length Shrub shear blade

Do not dispose of the device with the battery installed in household waste.

Symbols on the recharger

Read the manual.

Pole orientation

The recharger is for indoor use only.

Protection class II

Machines do not belong with domestic waste.

Disconnect the power plug from the socket when the power cable is damaged or entangled and before maintenance and repair work.

Symbols in the manual

Warning symbols (instead of the exclamation mark, the danger may be explained) with information on damage and injury prevention.

Instruction symbols (the instruction may be explained at the place of the exclamation mark) with information on preventing damage.

Help symbols with information on improving tool handling.

General safety instructions for power tools

WARNING! Read all safety directions and instructions. Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries.

Retain all safety directions and instructions for future use.

The term "Power Tools" used in the safety instructions refers to mains-operated power tools (with power cord) and to battery-operated power tools (without power cord).

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This applies especially when working on slopes. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Walk when holding the device in your hand. Do not run.
i) Do not touch any of the dangerous moving parts before you have removed the battery and all moving parts have come to a complete standstill. There is a risk of injury.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjust-ments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding

of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5) CAREFUL HANDLING AND USE OF BATTERY DEVICES
a) Charge the batteries only in chargers that are recommended by the manufacturer. Risk of fire if a charger that is suitable for a specific type of battery is used with other batteries.
b) In the power tools, use only the batteries designed for the purpose. The use of other batteries may result in injuries and risk of fire.
c) Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or fire.
d) If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical

assistance. Leaking battery fluid may cause skin irritations or burns.

6) SERVICE
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Special Safety Directions for the cordless grass & shrub cutter

1) SPECIAL SAFETY DIRECTIONS FOR HEDGE TRIMMERS

a) Keep all body parts away from the blade. Do not attempt to remove clippings while the blade is operating or to hold on to material which is to be cut. Only remove trapped clippings when the tool is switched off. One moment of carelessness in the usage of the hedge trimmer can lead to severe injury.
b) Carry the hedge trimmer at the handle with an idle blade. Always pull on the protective cover during transport and storage of the hedge trimmer.

Careful handling of the tool reduces the risk of injury from the blade.

c) Hold the power tool only on the insulated handle surfaces, as the cutting blade may come into contact with concealed power

cables. Contact between the cutting blade and a live cable may render metallic components live and result in an electric shock.

d) Before the work, search the hedge for concealed objects, e.g. cable etc. To avoid damaging the equipment.
e) Hold the hedge trimmer correctly, e.g. with both hands on the handles, if there are two handles. Loss of control of the equipment may result in injuries.
f) Wear suitable clothing and work clothes when working with the equipment. Do not hold the equipment by the cutting blade or lift it on the cutting blade. Contact with the cutting blade can cause injuries.
2) SPECIAL SAFETY DIRECTIONS FOR BATTERY-OPERATED TOOLS

a) To reduce the electric shock hazard, unplug the battery charger from the mains before cleaning the charger.
b) Do not subject the battery to strong sunlight over long periods and do not leave it on a heater. Heat damages the battery and there is a risk of explosion.
c) Allow a hot battery to cool before charging.
d) Do not open up the battery and avoid mechanical

damage to the battery.

Risk of short circuit and fumes may be emitted that irritate the respiratory tract. Ensure fresh air and seek medical assistance in the event of discomfort.

3) FURTHER SAFETY DIRECTIONS

Warning! Children, individuals with limited physical, sensory or mental capabilities, as well as those who have insufficient experience or knowledge or are not familiar with the instructions must never be permitted to use the device. Local regulations may specify an age restriction for the user.

The device must never be used if people - especially children - or pets are nearby.

For your personal safety:

ear suitable work clothes such as boots with non-slip soles, sturdy long trousers, gloves and goggles. Hearing protection must be used in case the device is used over prolonged periods of time. Do not wear long flowing clothing or jewellery, as this may be caught by moving parts. Do not use this tool while walking barefooted or while wearing open sandals.

a) Only switch on the tool when hands, feet and all other body parts are at

a secure distance to the tool. Risk of injury from cuts.

b) Take care that you do not injure your hands and feet with the cutting elements.
c) Remove the power supply unit before working with the equipment. Do not use extension cables. The power supply unit is to be used only in enclosed spaces. Water entry increases the risk of electric shock.
d) Do not use the shrub cutter in combination with the telescopic shaft. There is a risk of cut wounds.
e) The tool is designed to trim hedges. Do not use the tool to cut branches, hard wood or other. To avoid damaging the equipment.
f) Do not attempt to dislodge a blocked/trapped blade before switching the tool off. There is a risk of injury.
g) Always switch off the device fi rst and remove the safety key

• if you leave the tool unsupervised
• before removing jams
• before control- maintenance- or cleaning tasks
• if you have come into contact with a foreign object
• whenever the machine starts to vibrate uncontrollably low to avoid accidents and injuries.

h) In the case of an accident or malfunction during operation, the device must

be switched off immediately. Injuries must be properly treated or medical assistance sought. Read the "Trouble shooting" section to correct any malfunctions or contact our Service Centre.

i) Operation of the machine in bad weather is to be avoided, especially if there is a risk of lightning. There is a risk of personal injury from an electric shock.

4) RESIDUAL RISKS

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:

a) Cuts
b) Ear damage if working without ear protection.
c) Eye damage if suitable eye protection is not worn.
d) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly.

Warning! During operation, this electric tool generates an electromagnetic field which, under certain circumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we recommend that persons with medical implants consult their doctor and the manufacturer

of their medical implant before operating the machine.

Safety Directions for the battery charger

1) CORRECT HANDLING OF THE BATTERY CHARGER

a) The charger must only be connected to a mains socket via a residual-current circuit breaker (RCD) with a rated leakage current of not more than 30mA . Fuse: at least 13 ampere.
b) To charge the battery, use only the charger supplied. Risk of fire and explosion. This ensures that the safety of the device is maintained.
c) Before each use, check the charger, cable and plug and have them repaired by qualified professionals and only with original parts. Do not use a defective charger and do not open it up yourself. This ensures that the safety of the device is maintained.
d) Ensure that the mains voltage matches the specifications on the charger rating plate. Risk of electric shock.
e) Disconnect the charger from the mains before closing or opening connection to the battery / power tool / device. This ensures that the battery and charger are not damaged.
f) Keep the charger clean and away from wet and rain. Do not use the char

ger outdoors. Dirt and the entry of water increase the risk of electric shock.

g) Operate the charger only with the appropriate original batteries. Charging other batteries may result in injuries and risk of fire.
h) Avoid mechanical damage to the charger. This can result in internal short circuits.
i) Do not operate the charger on a combustible surface (e.g. paper, textiles). Risk of fire due to heating during charging.
k) If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.
I) Do not use the charger to charge non-rechargeable batteries.
m) Do not connect a damaged cable to the power supply. Do not touch a damaged cable before it has been disconnected from the power supply, as you could come into contact with active parts.

Charging process

Do not expose the battery to extreme conditions such as heat and impact. There is a risk of injury from leaking electrolyte solution! In case of contact, rinse with water or neutraliser and consult a

doctor if contact has occurred with eyes etc.

Charge the battery only in dry areas.

Do not switch on the device while charging it and make sure that the safety key (A 7) has been removed. There is a risk of injury from electric shock.

Ensure that the equipment is charged for no longer than 3-5 hours without interruption. The battery and equipment could be damaged and they consume energy unnecessarily in case of longer charging time. Overcharging invalidates the guarantee.

• The device may only be powered with SELV (Safety Extra Low Voltage) as marked on the device.
• Before initial use, charge the battery installed in the equipment. Do not charge the battery for several short periods in succession.
• Use the charger supplied to charge the Li-ion battery installed in the equipment.
• Recharge the battery if the equipment runs too slowly.
• In all cases, observe the applicable safety information as well as the regulations and directions for environmental protection.
  Defects resulting from improper handling are not subject to the guarantee.

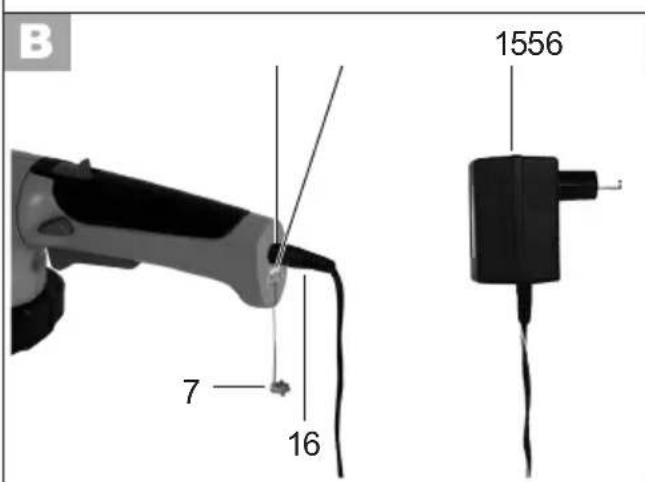

1. Remove the safety key (7). Connect the charger cable plug (16) with the charger socket on the tool (5).

2. Connect the power supply unit (15) to a socket.

The charging indicator (6) lights up:

Red: Equipment charging.

Green: Charging finished.

The recommended charging time is max. 3 - 5 hours.

1. After the recharging process is completed, first unplug the charger from the wall outlet, and then remove the charger cable plug (16) from the tool.

Operation

Keep to noise abatement regulations and other by-laws.

Switching on and off

1. Remove the blade guard (11/14) before switching the unit on.

2. Insert the safety key (7) into the device.

3. To switch on, hold the switch lock (2) depressed and operate the on/off switch (8). Then release the switch lock. The equipment runs at top speed.
4. In order to switch off, let go of the on/off switch (8).

After switching the unit off, the blades take a short time to stop moving. Let the blades come to a complete standstill. Do not touch the blades or slow them down before the moving parts have come to a standstill.

Inserting/replacing the blade

Prior to each exchange of the blades, make sure the device is switched off and the safety key and in order to avoid danger and injuries!

Remove blade

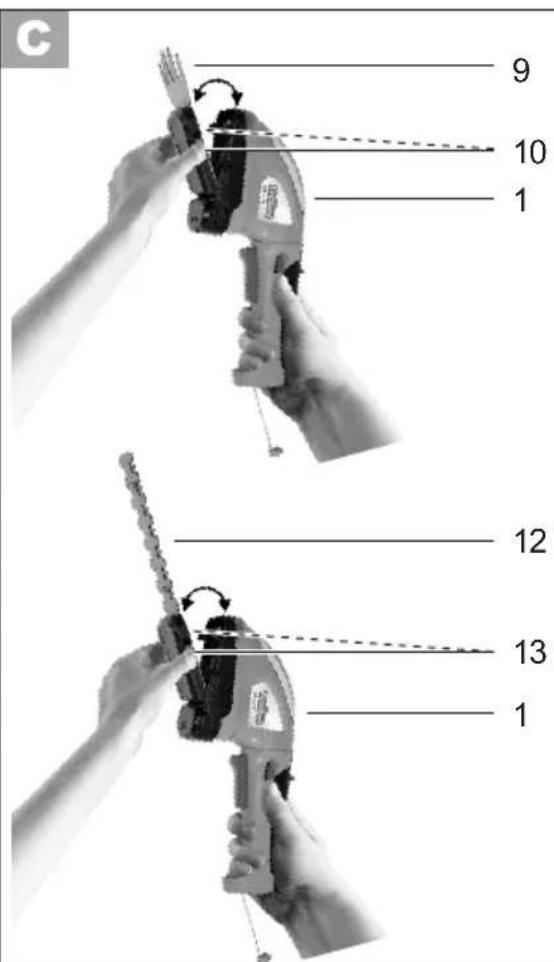

Press the unlock buttons (10/13) on the blade and remove the entire blade.

Insert blade

1. Insert the grass shear blade (9) or the shrub shear blade (12) into the recess in the cutter head (1).
2. Press the blade into the direction of the cutter head (1). It locks into place audibly.

General working instructions

While trimming, take care that there are no objects such as wire, metal parts, stones etc. come into contact with the blades. This can lead to cutting head damage. If the blades become blocked by solid objects, switch off the unit at once.

• Check the grass and bush trimmer blades for obvious defects such as loose, worn or damaged parts. Check that the screws are seated firmly in the blade block.
• Remove the power supply unit (A 15) before working with the equipment. Do not use extension cables. The power supply unit is to be used only in enclosed spaces.

• Only use sharp blades to achieve a good cutting performance and preserve the battery.

• Do not work the unit so hard that it comes to a standstill.

• Pay attention to the instructions on unit maintenance and cleaning.

Use as a grass trimmer

• Grass is best cut when dry and not too long.

Adjusting the working angle

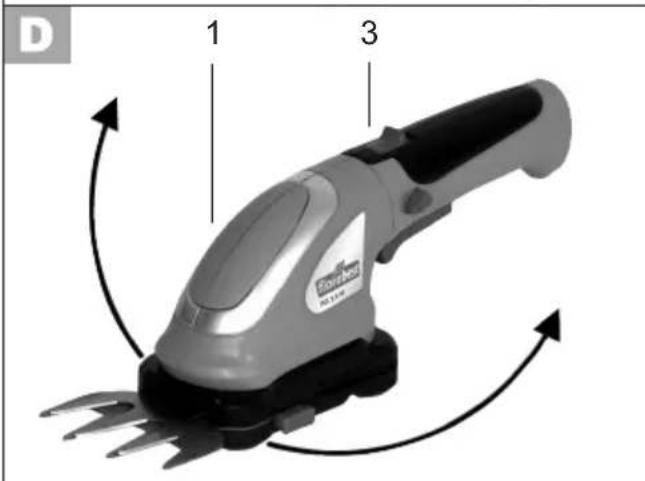

For a comfortable edge cut, the cutter head (1) can be rotated by 90^ to the right or left.

1. Operate the lever (3) and turn the cutter head (1) into the desired position.

2. Release the lever (3), the cutter head locks into place.

Use as a hedge trimmer

• Move the unit forward evenly.
• The double-sided cutting heads enable cutting in both directions or by swinging the unit from side to side.

Cleaning/Maintenance

Leave any work not covered in this manual to our Service Centre. Only use original parts. There is a risk of injury!

Ensure that the safety key (Z) is removed before all tasks.

Never use cleaning agents or solvents, which can cause irreparable damage to the unit. Chemicals can attack the plastic components on the unit.

Wear gloves when handling the blades (A 9/12). There is a risk of injury from cuts!

Clean and service the unit regularly as follows. This guarantees a long life for your unit:

• Check the covers and guards for damage and correct position. If necessary, replace.
• Never operate the machine with defective guards or covers or without protection or with damaged or worn cables.
• Keep the ventilation slits, motor housing and handles on the equipment clean. To do this, use a damp cloth or brush.
  Always keep the blade clean.

After using the equipment, it is impera

tive to:

Clean the blade (with an oily cloth);
- Oil the blade shaft with an oil can or spray.

• Slight notches on the blades can be evened out. For this, sand down the blades with an oil stone. Only sharp blades can cut properly.
• Blunt, bent or damaged blades must be changed.

We are not liable for damage caused by the use of the unit if the original cause was improper repair or the use of non-original parts or through use other than that designated in this manual.

Storage

• Keep the equipment in the blade guard supplied, dry and out of reach of children.
• Store the battery only in a partially charged state. The state of charge should be 40 - 60% over a longer storage period.
• Store the equipment between 10^ C and 25^ C. During storage, avoid extreme cold or heat so the battery does not lose power.
• During a longer storage period, check the state of charge of the battery and recharge if necessary roughly every 3 months.

Disposal and the environment

Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.

Machines do not belong with domestic waste.

Do not dispose of the device with the battery installed in household waste, fire (risk of explosion) or water. Damaged batteries may damage the environment and your health if toxic fumes or liquids leak out.

• Dispose of the equipment with the battery discharged. Do not open the equipment or the battery.
• Dispose of the equipment in accordance with the local regulations. Take the equipment to a collection point, where it will be recycled in an environmentally friendly manner. For information about this, ask your local waste management company or our service centre.
  Defective units returned to us will be disposed of for free.
• Place cut branches in compost and not in the dustbin.

Telescopic arm as an accessory

Ensure that the safety key (7) is removed before all tasks.

Caution! Device is delivered without a telescopic arm. Alternatively, a telescopic arm including wheels can be ordered (see "Spare parts/accessories").

Assembling the telescopic arm

Putting the telescopic arm together:

1. Put both parts of the telescopic arm (17) together and tighten the screw.

Make sure that the cabSwitching on and off not clamped. (with telescopic arm)

Assembling/dismantling the telescopic arm:

1. Push the device along the guide rail (18) into the equipment holder (19) of the telescopic arm. It locks into place audibly.
2. Plug the plug connection (20) into the charging socket (5) on the back of the equipment handle (4).
3. To dismantle, release the plug connection (20). Press the unlock button on the bottom side of the equipment holder (19) of the telescopic arm and pull the device out (see small image).

Adjust the height of the telescopic arm

Adjust the length of the telescopic arm for your size with the help of the adjusting screw (21).

Adjusting the working angle

For a comfortable edge cut, the equipment holder (19) of the telescopic arm can be rotated to the right or left (90^) .

Set the desired position by pulling the release switch (22) and rotating the equipment holder (19) of the telescopic arm. The equipment holder locks into the desired position when the release switch is released.

1. Remove the blade guard (A 11/14) before switching the device on.

2. Insert the safety key ( the device.
   A7) into

3. To switch on, hold the switch lock (23) on the handle of the telescopic arm and simultaneously press the on/off switch (24). Release the switch lock, device runs at top speed.
4. To turn it off, release the on/off switch (24).

Working with the telescopic arm

• Slowly push the device on the wheels over the floor. By doing so, you will achieve an even cutting height.

Spare parts/Accessories

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you do not have internet access, please contact the Service Centre via telephone (see "Service-Center" page 78). Please have the order number mentioned below ready.

Item Order No.
Description

A 7	Safety key	91103520
A 9	Grass shear blade 13700005
A 11	Blade guard for grass shear blade	91103523
A 12	Shrub shear blade	13700023
A 14	Blade guard for shrub shear blade	91103524
A 15/16	Battery charger EU 80001064
E 17	Telescopic shaft with carrier	80002070

Trouble shooting

Problem Possible	Cause Error correction
Device doesn't start	Equipment is not charged	Charge equipment (see „Charging process“)
	Switch lock (A 2) has not been operated properly	Switch on (see „Operation“)
	On/off switch (A 8) may be defective	Repair by Service Centre
	Safety key (A 7) not inserted	Insert safety key (see "Operation")
Bad cutting results	Too much friction due to lack of lubrication	Lubricate blade (A 9/12) (see „Cleaning/Maintenance“)
	Dirty blade (A 9/12)	Clean blade (see „Cleaning/Maintenance“)
	Blade (A 9/12) is blunt or has nicks	Sharpen blade (see „Cleaning/Maintenance“) or replace (see „Spare parts/Accessories“)
	Blade (A 9/12) is damaged	Replace blade (see „Spare parts/Accessories“)

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase.

In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace - at our choice - the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. cutter bars and carbon brushes) or to cover damage to breakable parts (e.g. switches, batteries).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure quick handling of you issue, please follow the following directions:

• Please have the receipt and identification number (IAN 280350) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate.

• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain Tel.:[phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

IAN 280350

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

201610000001-201701040000

D-63762 GroBostheim,

GERMANY

31.01.2017

Volker Lappas (Charge de documentation)

Translation of the original EC declaration of conformity
We declare that the unit Cordless Grass & Shrub Trimmer model FGS 3.6 A1 Serial number: 201610000001 - 201701040000 conforms with the following applicable relevant version of the EU guidelines:
2006/42/EC • 2014/30/EU 2000/14/EC • 2005/88/EC • 2011/65/EU* • 2009/125/EC
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 60745-1:2009/A11:2010 • EN 60745-2-15:2009/A1:2010 EN 60335-1:2012/A11:2014 • EN 50636-2-94:2014 • EN 62233:2008 EN 55014-1:2006/A2:2011 • EN 55014-2:1997/A2:2008 EN 61000-3-2:2014 • EN 61000-3-3:2013 • EN 60335-2-29:2004/A2:2010 EN 62321:2009 • (EC) 278/2009
We additionally confirm the following in accordance with the 2000/14/EC emissions guideline: Sound power level Guaranteed: 92 dB(A) Measured: 75.1 dB(A) Compliance evaluation process carried out in accordance with Appendix V / 2000/14/EC
This declaration of conformity is issued under the sole responsibility of the manufacturer:
CE Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 D-63762 Großostheim, GERMANY 31.01.2017	Volker Lappas (Documentation Representative)

• The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
