USER MANUAL FBM 550 A1 FLORABEST

Green and black lawn mower on a grassy field, no visible text or symbols on the main subject

GB IE

Petrol Lawnmower

Translation of original operation manual

GB IE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

Content

Symbols and icons ......6

Symbols on the device ....6

Symbols in the manual .....7

Safety Instructions ....7

Intended Use 9

General Description ....10

Summary 10

Functional Description .....10

Safety Equipment 10

Delivery Contents 11

Initial Operation ....11

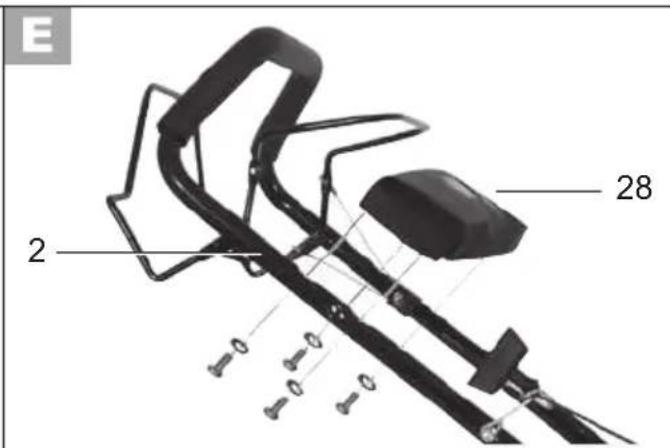

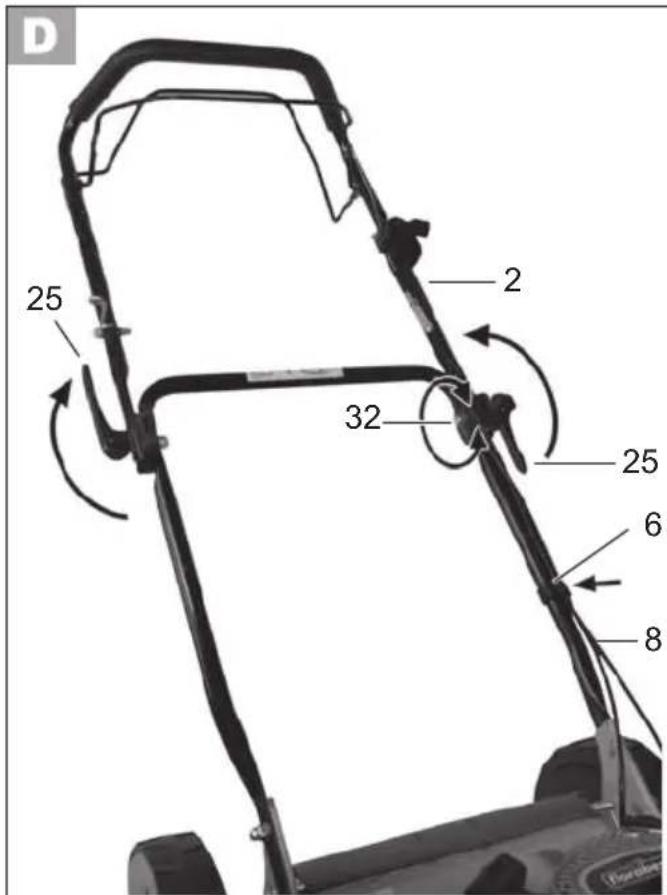

Installing the Handle Bar 11

Installing the Starter Cord 11

Installing the Grass Collection Box ...12

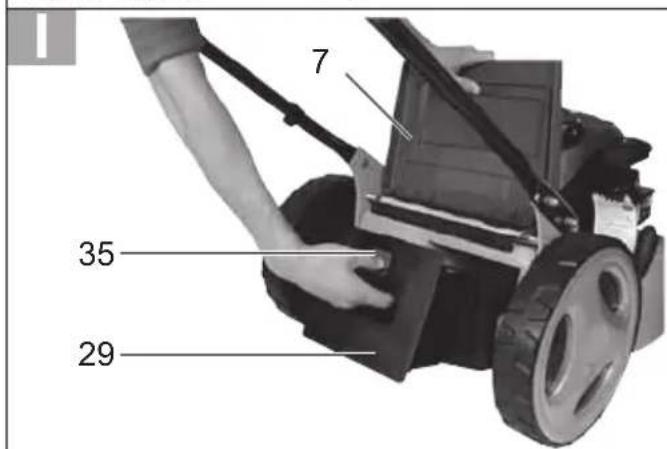

Installing the Mulch Kit ....12

Filling with Engine Oil and Checking

the Oil Level 12

Filling with Petrol 13

Operation 13

Starting and Stopping the Engine .....13

Mowing 14

Working Instructions ....14

General Working Instructions .....14

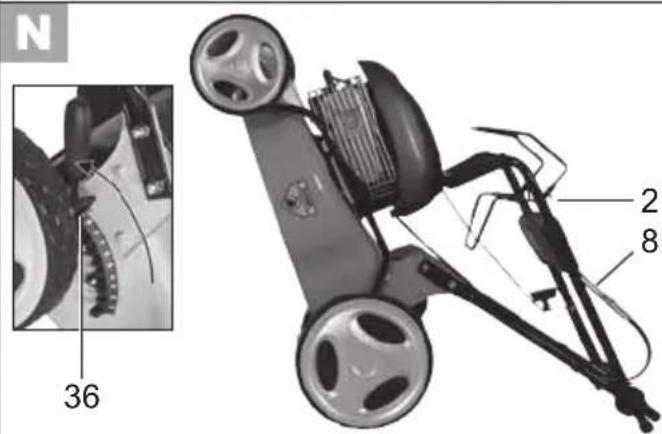

Setting the Cutting Height .....14

Emptying the Grass Collection Box ... 14

Mowing with the Mulch Kit .....15

Cleaning and Maintenance ....15

Cleaning and General Maintenance Work ....15

Cleaning / Replacing the Air Filter .....16

Maintaining the Spark Plug ....16

Changing the Engine Oil .....16

Adjusting the Bowden Cable .....17

Maintenance Intervals ......17

Checking/Sharpening/Replacing the Blade ....18

Adjusting the Carburettor ....18

Storage 18

General Storage Instructions .....18

Storage During Longer Breaks from Operation ....18

Technical Specifications ....19

Disposal / Environmental Protection .. 19

Replacement parts ....20

Guarantee 20

Troubleshooting 21

Translation of the original

EC declaration of conformity .....22

Exploded Drawings ......23

Grizzly Service-Center 25

Before initial use, please read these operating instructions and the Briggs & Stratton instruction manual carefully in order to avoid incorrect handling. Keep the instructions in a safe place and pass them on to any subsequent user, so the information is available at all times.

Symbols and icons

Symbols on the device

tion!

Read the instruction manual.

Risk of injury from parts being flung out.

bystanders away from the equipment.

Risk of injury from sharp blades. feet and hands away.

Caution – toxic fumes!

it operate the equipment in enclosed areas.

Caution – petrol is flammable!

it smoke and keep away from heat sources.

Caution – risk of injury!

e maintenance work, switch off the engine and take out the spark plug connector.

Caution – hot surfaces! ning.

Caution – risk of injury! and ear protection.

Danger!

Keep hands and feet away.

Information of the acoustic power level L_wa in dB.

Symbols on the handle bar:

Diagram of a car ramp with an upward arrow and motion arrows indicating speed (no text or symbols)

Stop the equipment: Release the safety catch

Wheel drive on: Pull up the drive catch

Symbols on the filler cap:

Note on the petrol filler

Caution! Before starting, check the oil level.

Symbols on the oil filler cap:

Note on the oil filler

Symbols on the Tank:

Attention!

Read the instruction manual.

Caution – petrol is flammable! the engine to cool for at least 2 min. before refuelling.

Caution – toxic CO fumes! Do not operate the equipment in enclosed areas.

Pictorial Symbols on the Petrol Pump:

Press the petrol pump (primer) 3x before starting.

Fill Level Indicator on the Grass Collection Box:

Fill level indicator open: Grass collection box empty

Fill level indicator closed: Grass collection box full

Symbols in the manual

Warning symbols with information on damage and injury prevention.

Instruction symbols (the instruction is explained at the place of the exclamation mark) with information on preventing damage.

Help symbols with information on improving tool handling.

Safety Instructions

This section deals with the basic safety procedures when working with the equipment.

WARNING! Read all of the safety instructions and directions. Failure to observe the safety instructions and directions may result in electric shock, fire and/or serious injury.

Instructions:

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

- Read the operating instructions carefully. Familiarise yourself with the controls and with the correct use of the equipment.

- Do not allow children or other people

who are unfamiliar with the operating instructions to use the equipment. Local regulations may set a minimum age for the user.

• Do not mow whilst people – especially children – or animals are nearby. If distracted, you may lose control of the equipment.
• The operator or user is responsible for accidents or damage to other persons or their property.
• Observe noise control and local regulations.

Preparatory Measures:

• When mowing, always wear sturdy shoes and long trousers. Do not mow barefoot or in light sandals. Loose clothing, jewellery or long hair can become caught in moving parts. Wearing suitable clothing reduces the risk of injury.
• Check the area on which the equipment is to be used and remove all objects (stones, sticks, wires) that could be caught and flung out.

• Warning: Petrol is highly flammable. Fire or explosions can result in serious burns:

• Keep petrol only in containers intended for this purpose;

• Only refuel outdoors and do not smoke whilst refuelling;
• Fill with petrol before starting the engine. Do not open the filler cap or refill with petrol whilst the engine is running or the equipment is hot:
• If petrol is spilled, do not attempt to start the engine. Instead, remove the equipment from the surface on which the petrol has been spilled. Avoid any ignition attempt until the petrol fumes have evaporated;

GB IE

- For reasons of safety, replace petrol and other filler caps in the event of damage.

• Replace defective silencers.
• Before use, always carry out a visual inspection to check whether the cutting tools, mounting bolts and entire cutting unit are worn or damaged. To avoid imbalance, only replace worn or damaged tools and bolts in sets.
  • Take care with equipment that has several cutting tools, as the movement of one blade may result in rotation of other blades.
• Use only replacement parts and accessories supplied and recommended by the manufacturer. The use of parts from other manufacturers may result in injuries and will result in immediate invalidation of the guarantee.

Handling:

• Do not run the combustion engine in enclosed spaces, in which dangerous carbon monoxide can collect.
• Mow only in daylight or with good artificial lighting. An unlit working area can result in accidents.

• If possible, avoid using the equipment on wet grass.
  • Always ensure a safe stance, particularly on slopes. This will give you better control of the equipment in unexpected situations.

• Always work across the slope, never upwards or downwards.

• Take particular care when changing the direction of travel on the slope.
• Do not mow on excessively steep slopes.

- Run the equipment only at walking speed.

• Take particular care when turning the equipment around or pulling it towards

you.

• Stop the cutting tool if the equipment has to be tipped up for transportation over a surface other than grass and when moving the equipment from and to the surface to be mown.
• Do not use the equipment with damaged safety equipment or guards or with no safety equipment attached, e.g. impact protection and/or grass catchers. This ensures that the equipment remains safe.
• Do not change the engine regulator setting and do not over-rev it. This may damage the equipment.
• Before starting, the engine, disengage all cutting tools and drives.
• Start or operate the start switch with care and in accordance with the manufacturer's instructions. Ensure sufficient space between feet and the cutting tool. Risk of injury.
• When starting or activating the engine, do not tip the equipment unless the equipment has to be lifted for this procedure. In this case, tip the equipment only as far as is absolutely necessary and lift only the side that is away from the user.
• Do not start the engine when standing in front of the ejection channel.
• Switch on the engine in accordance with the instructions and only if your feet are a safe distance away from the cutting tools.
• Do not place hands or feet under rotating parts. Always keep away from the ejection opening. A moment of carelessness when using the equipment may result in serious injury.
• Do not leave or carry the equipment when the engine is running.
• Switch off the engine, take out the spark plug connector and ensure that

all moving parts are still:

• Before releasing blockages or removing obstructions in the ejection channel;
• Before checking, cleaning or working on the equipment;
• If a foreign body is struck. Look for damage to the equipment and carry out the necessary repairs before re-starting and working with the equipment;

• If the equipment starts to vibrate unusually strongly, an immediate check is required.

• Switch off the engine

• When leaving the equipment;
• Before refuelling;
• Close the throttle valve when stopping the engine.
• Do not leave the equipment unattended in the workplace.
• Do not work with equipment that is damaged or incomplete or has been converted without the approval of the manufacturer.

Using machines for applications other than those intended may result in dangerous situations.

Maintenance and Storage:

• Ensure that all nuts, bolts and screws are tightened firmly and the equipment is in safe working condition. Many accidents are caused by poorly maintained equipment.
• Do not keep the equipment with petrol in the tank inside a building in which petrol fumes could potentially come into contact with open fire or sparks.
• Allow the engine to cool before placing the equipment in enclosed spaces. Risk of fire.
  • To avoid the risk of fire, keep the engine, exhaust and area around the fuel

tank free of grass, leaves or leaking grease (oil).

• Check the grass catcher regularly for wear or loss of function.
• For reasons of safety, replace worn or damaged parts. Replace defective silencers.
• If the fuel tank is to be drained, do this outdoors.
• Handle your equipment with care. Keep the tools sharp and clean to enable you to work better and more safely. Follow the maintenance directions.
• Do not attempt to repair the equipment yourself unless you are trained to do so. Any work not specified in these instructions is to be carried out only by customer service centres authorised by us.
• Keep the equipment in a dry place and out of reach of children. Machines are dangerous if used by inexperienced people.

Intended Use

The equipment is intended only for mowing lawns and grass areas up to 1200 m² in domestic use.

This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.

Any use other than specifically permitted in these instructions may result in damage to the equipment and represent a serious risk to the user.

The equipment is intended for use by adults. Children or other people who are unfamiliar with the operating instructions must not use the equipment.

The operator or user is responsible for accidents or damage to other persons or their property.

General Description

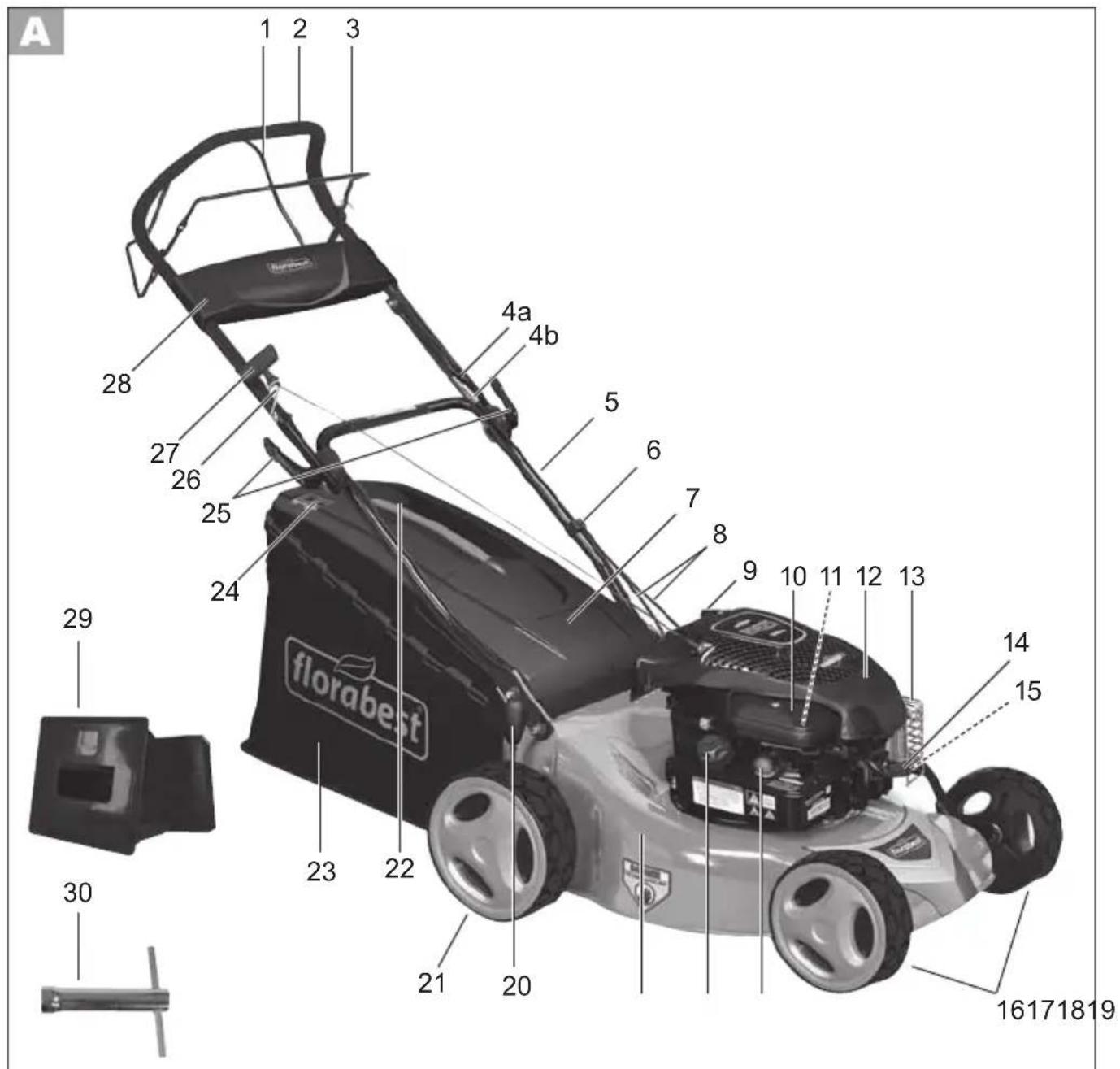

The illustration of the principal functioning parts can be found on the front and back foldout pages.

Summary

1 Drive catch

2 Upper handle bar

3 Safety catch

4a Bowden cable lock nut

4b Bowden cable adjusting nut

5 Lower handle bar

6 Cable clamp

7 Rear impact protection

8 Bowden cables

9 Oil filler cap with dipstick

10 Air filter box with

11 Air filter (no illustration)

12 Engine cover (finger protection)

13 Exhaust guard

14 Spark plug connector with

15 spark plug (no illustration)

16 2 front wheels

17 Petrol pump (primer)

18 Filler cap

19 Sheet steel housing

20 Lever for cutting height adjustment

21 2 rear wheels

22 Grass collection box carrying handle

23 Grass collection box

24 Fill level indicator

25 2 quick-release levers for fixing the bar

26 Starter cord guide

27 Starter handle with starter cord

28 Screen

29 Mulch kit

30 Spark plug wrench

31 Bar slot

32 Nut on tensioning lever

33 Grass collection box protective caps

34 Grass collection box suspension bracket

35 Mulch kit button

36 Cut height position

37 Ventilations holes

Functional Description

The equipment is driven by a powerful four-stroke engine (Briggs & Stratton 550 series). The ball bearing mounted wheels, the rear wheel drive and the blade braking function make the equipment easier to operate.

The equipment is fitted with a high quality sheet steel housing and collapsible handle bar. There are two modes of operation available to the user: mowing with the grass collection box or mulch mowing. Refer to the following descriptions for a functional description of the controls.

Safety Equipment

3 Safety catch

The equipment stops when the safety catch is released.

7 Rear and side impact protection

protect the operator from parts that are flung out and from accidentally touching the blades when mowing with no grass collection box.

13 Exhaust guard

prevents hands or combustible materials from coming into contact with a hot exhaust.

Delivery Contents

Carefully unpack the appliance and check that it is complete:

• Petrol lawn mower (pre-assembled)
• Collapsed handle bar
• Grass collection box
• Mulch kit (already mounted)
• Cable clamp
• Assembly accessories for fixing the bar
• 5l transport can
• Spare spark plug
• Spark plug wrench
• Quick guide
• Operating instructions
• Briggs & Stratton operating instructions
• Briggs & Stratton dealer list

Initial Operation

Caution! Risk of injury from rotating blades. Carry out work on the equipment only when the blade is switched off and stationary.

Observe the Briggs & Stratton instruction manual supplied.

Before starting the equipment, you must

• Install the handle bar
• Install the grass collection box / mulch kit
• Install the starter cord
• Fill with engine oil
• Fill with petrol

Installing the Handle Bar

Caution! When installing the handle bar, ensure that the Bowden cables (A 8) are not squashed.

1. Position the ends of the bottom handle bar (5) in the two bar slots (31) on the lawnmower.

2. Use the enclosed assembly accessories to screw the bottom handle bar (5) to the bar slot (31).

1. Fold out the top handle bar (2).

1. Lock the quick release tensioning levers (25) by pressing them towards the top handle bar (2). The tensioning levers must be tightened and in contact with the bar such that tensioning is possible with average force.

To loosen the tensioning lever, turn the nut (32) on the tensioning lever anticlockwise.

To tighten the tensioning lever, turn the nut (32) on the tensioning lever clockwise.

1. Fix the Bowden cables (8) to the bar using the cable clamp (6).

1. Use the enclosed assembly accessories to screw the screen (28) onto the top handle bar (2).

Installing the Starter Cord

1. Pull the safety catch (3) towards the handle bar (2) and hold it.

2. Slowly pull the starter cord on the starter handle (27) towards the bar and hook the starter cord into the starter cord guide (26).

3. Release the safety catch (3).

Installing the Grass Collection Box

Caution: Do not operate the equipment with the grass collection box or impact protection installed incompletely. Risk of injury!

The mulch kit must be removed before using the grass collection box (see 1).

Remove the Protective Caps:

1. Remove the protective caps (33) on the grass collection box (23).

Fixing the Grass Collection Box onto the Equipment:

1. Lift the rear impact protection (7).
2. Remove the mulch kit ( 29) if it is plugged in.
3. Hook the grass collection box (23) into the mounting provided for this (34) on the rear of the equipment.
4. Release the impact protection (7). It holds the grass collection box in position.

Dismantling the Grass Collection Box:

1. Lift the impact protection (7) and remove the grass collection box (23).

Installing the Mulch Kit

The grass collection box must be removed before using the mulch kit (see H)

Fixing the Mulch Kit:

1. Lift the impact protection (7).
2. Remove the grass collection box (H 23) if it is installed.
3. Push down the button (35) on the mulch kit and plug in the mulch kit (29). The button clicks into place.

Removing the Mulch Kit:

1. Lift the impact protection (7).
2. Push down the button (35) and remove the mulch kit (29).

Filling with Engine Oil and Checking the Oil Level

Place the equipment on a level base.

1. Unscrew the oil filler cap and dipstick (9) and pour oil into the tank. The oil tank holds 0.6 l oil. Use brand oil (e.g. SAE 30).

2. To check the oil level, wipe the dipstick (9) on a clean cloth and replace it in the tank until it stops.

3. After pulling it out, read off the oil level on the dipstick. The oil level should be in the marked area between the minimum and maximum marks.

4. Wipe off any spilt oil and close the oil filler cap (9).

Check the oil level every time before mowing and add oil when the lower marking point is reached.

Filling with Petrol

Warning! Petrol is flammable and hazardous to health:

• Keep petrol in containers intended for this purpose;
• Only refuel outdoors and never with the engine running or when the machine is hot;
• Open the filler cap carefully to allow excess pressure to escape;
• Do not smoke whilst refuelling;
• Avoid skin contact and inhalation of the fumes;
• Remove spilt petrol;
• Keep petrol away from sparks, open flames and other ignition sources;
• Dispose of leftover petrol in an environmentally friendly way (see "Disposal / Environmental Protection").

- Do not use petrol/oil mixtures;
e normal or super unleaded petrol;

• Only use clean, fresh petrol;

• Do not store petrol for longer than one month, as its quality deteriorates.

• Unscrew the filler cap (A 18) and pour in the petrol to the lower edge of the filler.

Do not fill the tank entirely, to allow the petrol room to expand.

1. Wipe away petrol residues around the filler cap and close the filler cap.

Operation

Observe the noise protection and local regulations.

Starting and Stopping the Engine

Warning! Petrol is flammable. Start the engine at least 3 m away from the filling location.

Check the petrol and oil levels regularly (see "initial operation") and refill in time.

Start the equipment on a sturdy, level base, if possible not in long grass. Ensure that the cutting tool is touching neither objects nor the ground.

Start the Engine:

1. For a cold start, press the petrol pump ( A 17) (

1. Pull the safety catch (3) towards the handle bar and hold it.
2. Pull the starter cord (23) and the engine starts.
3. When the engine starts, allow the starter handle (27) to slowly slide back into the starter cable guide (26).

Stopping the Engine:

1. Release the safety catch (3), the engine stops and the blade is slowed.

Mowing

1. Start the engine (see

1. Wheel drive on: pull the drive catch (1) towards the handle bar (2). The mower moves forwards.

2. Wheel drive off: release the drive catch (1). The equipment stops.

Working Instructions

General Working Instructions

• As far as possible, mow the lawn when it is dry in order to protect the turf.
• Set the cutting height such that the equipment is not overloaded.
• Run the equipment at walking speed in lines that are as straight as possible. For uninterrupted mowing, the lines should always overlap by a few centimetres.
• Do not move backwards.
• On slopes, always work across the slope.
• If the blade comes into contact with a foreign body, switch off the engine immediately. Wait until the blade is stationary and check the equipment for damage. Restart work only if the equipment is undamaged.
• Switch off the equipment during longer breaks and for transportation and wait until the blade is stationary.
• Clean the equipment after each use, as described in the “cleaning and maintenance” chapter.

Setting the Cutting Height

The equipment has 10 positions for setting the cutting height (30-75 mm):

1. Pull the lever (20) outwards and push it to the desired position (36).

2. Push the lever (20) back in.

The correct cutting height is around 30 – 45 mm for an ornamental lawn and around 40 – 65 mm for a utility lawn.

Select a greater cutting height for the first cut of the season.

Emptying the Grass Collection Box

Fill Level Indicator:

The fill level indicator (A 24) attached to the side of the grass collection box (A 23) shows when the grass collection box is full.

Fill level indicator open: Grass collection box empty

Fill level indicator closed: Grass collection box full

1. Stop the engine and wait until the blade is stationary.

2. Lift the rear impact protection (7) and remove the grass collection box (23).

3. Empty (see "disposal / environmental protection") and reassemble the grass collection box (23).

Mowing with the Mulch Kit

When mulch mowing, the grass is cut, chaffed and spread on the lawn all in one go. The cut grass serves as a natural fertiliser.

Tips for Mulch Mowing:

• Cut the grass back by 2 ~cm from a grass height of 4 - 6 ~cm .
  • Use sharp cutting blades.
• Do not mow wet grass.

Cleaning and Maintenance

Have any repair and maintenance work not described in these instructions carried out by a specialist workshop. Use only original Grizzly replacement parts. Risk of accidents!

Carry out maintenance and cleaning work strictly with the engine switched off and spark plug connectors removed. Risk of injury!

Allow the equipment to cool before any maintenance and cleaning work. Elements of the engine are hot. Risk of burning!

Wear gloves when handling the blade.

For cleaning and maintenance work, also observe the Briggs & Stratton instruction manual supplied.

We recommend contacting an authorised Briggs & Stratton dealer for maintenance work on the engine.

Cleaning and General Maintenance Work

Tip the Equipment Service Position):

To clean the underside of the equipment, tip the equipment backwards on the upper handle bar (2).

To prevent the equipment from tipping back,

• remove the grass collection box (23) if it is installed.
• set the cut height to the highest position (36),
• loosen the quick release tensioning levers (25) and fold the top handle bar (2) towards the equipment (see "Assembling the Handle Bar").

The Bowden cables (9) must not be caught when doing this.

Ensure that the quick release tensioning levers (25) come to a stop on the side.

When cleaning or servicing the appliance, ask someone to hold the tilted appliance.

Risk of injury if the equipment tilts back.

Do not tilt the equipment sideways or forwards. Operating fluids could leak out and the engine could be damaged.

• Always keep the equipment clean. To clean, use a toothbrush or cloth but no corrosive cleaning agents or solvents.
Do not use water to clean the engine as it could contaminate the fuel system.
- After mowing, remove plant remains that are stuck to the equipment by using a piece of wood or plastic. Clean the vent holes (☐ 37), ejection hole

GB IE

and blade area especially. Do not use hard or pointed objects, which could damage the equipment.

• Oil the wheels from time to time.
• Before each use, check the lawnmower for obvious defects such as loose, worn or damaged parts. Check that all nuts bolts and screws are sitting firmly.
• Check covers and guards ( A 3, 7, 12, 13) for damage and that they are sitting correctly. Replace if necessary.

Cleaning / Replacing the Air Filter

Do not operate the equipment without the air filter otherwise dust and dirt will get into the engine and result in damage to the machine.

1. Loosen the screw on the air filter box (10) and remove the box.

2. Open the air filter box and remove the air filter (11).

3. Clean the air filter (11) in soap solution and allow it to dry. Knead a few drops of fresh oil into the air filter.
4. Replace a defective air filter with a new filter (see "Spare Parts").
5. To install, place the air filter (11) in the air filter box (10) and re-close it.
6. Screw the air filter box back onto the equipment.

Maintaining the Spark Plug

A worn spark plug or a spark gap that is too large will result in a reduction of engine performance.

1. Disconnect the spark plug connector (14) from the spark plug by simultaneously pulling and turning.

2. Unscrew the spark plug (15) an- ticlockwise using the enclosed spark plug wrench (A 30).

3. Check the spark gap using a feeler gauge (available from specialist shops). The spark gap must be at least 0.76 mm.
4. If necessary, adjust the gap by carefully bending the ground electrode on the spark plug.
5. Clean the spark plug with a wire brush.
6. Insert the cleaned and adjusted spark plug or replace a damaged spark plug with a new one (recommended torque 20 Nm, determined with a torque wrench) (see "replacement parts").

Changing the Engine Oil

Change the engine oil with the petrol tank empty and the engine warm.

- Change the engine oil for the first time after around 5 operating hours then every 50 operating hours or annually.

• Change the engine oil when the engine is warm.

• Dispose of the used oil in an ecofriendly manner (see "disposal / environmental protection").

• Remove the spark plug terminal (P 14).

• • Lay the mower on its side, open the oil tank cap (A 9) and drain the engine oil into a suitable collecting vessel;

- Or open the oil tank cap ( A 9) and pump out the engine oil with an oil pump.

1. Refill with engine oil (see "Initial Operation").

Adjusting the Bowden Cable

If the Bowden cable becomes misplaced for the drive and has too much play, it can be adjusted.

1. Loosen the small lock nut (4a).

2. • Turn the adjusting nut (4b) anticlockwise:

The Bowden cable shortens.

- Turn the adjusting nut (4b)

clockwise:

The Bowden cable lengthens.

Maintenance Intervals

Regularly carry out the maintenance work listed in the “maintenance intervals” table. Regular maintenance prolongs the life of the equipment. It also gives optimum cutting performance and avoids accidents.

Maintenance Work(See “cleaning and maintenance”)	Before	After	After 1st5 Hrs.	After 8 Hrs.	After 50 Hrs.	Annual
	Work
Check and tighten screws, nuts and bolts	✓
Check the engine oil level / petrol level and refill with engine oil / petrol if required	✓			✓
Clean operating elements / the area around the silencer		✓		✓
Clean the finger protectionb				✓
Change the engine oil			✓ ✓	✓
Replace the air filtera						✓
Clean/adjust the spark plug Replace the spark plug				✓		✓
Check the silencer and spark catcherb					✓	✓
Clean the air cooling systema,b						✓

^a Clean more often if there is a high level of dust or heavy dirt
^b See Briggs & Stratton instruction manual

Checking/Sharpening/Replacing the Blade

• Take off the spark plug (14) and check the blade for wear and damage.
- Always have a blunt blade resharpened by a specialist workshop, as an imbalance check can be carried out there.
• Always have a specialist workshop change a damaged or imbalanced blade.

Incorrect installation can result in serious injury.

Adjusting the Carburettor

The carburettor has been preset in the factory for optimum performance. If readjustments are required, have the adjustments made by a specialist workshop.

Storage

General Storage Instructions

Do not store the equipment with a full collection box. In hot weather, the grass begins to ferment when heat is generated. Risk of fire.

• Clean and service the equipment before storage.
• Allow the engine to cool before storing the equipment in enclosed areas.
• Use suitable and authorised containers for storing fuel.
• Keep the equipment in a dry place that is protected from dust and out of reach of children.
• Do not wrap the equipment in nylon bags as damp and mould could form.

For space-saving storage, the upper handle bar (2) can be folded down (see small image). Release the quick-release lever (25) and fold down the handle bar so the equipment takes up less space. The Bowden cables (8) must not be squashed when doing this.

Storage During Longer Breaks from Operation

Non-observance of the storage instructions may cause starting problems or permanent damage as a result of fuel residues in the carburettor.

• Start the engine and allow it to run until it stops due to running out of petrol.

• Change the oil (see “changing the engine oil”).

• Preserve the engine:

• Unscrew the spark plug (P 15) (see "cleaning and maintenance");
• Pour a tablespoon of engine oil through the spark plug hole into the engine compartment;
• Pull the starter cord (F 27) slowly several times with the safety catch (F 3) pulled in order to distribute the oil inside the engine;
• Screw the spark plug ( P 15) tight.

- Dispose of used oil and petrol residues in an ecofriendly manner (see "disposal / environmental protection").

There is no need to drain the petrol tank if a fuel stabiliser is added to the petrol (see “replacement parts” and Briggs & Stratton instruction manual).

Technical Specifications

Engine ....4-stroke Briggs&Stratton ....550 Series (XHQ)

B&S Engine design number .. 10T8020201H1

Engine size ....158 cm ^4

Power input 1,83 kW

Blade rotation speed.... 2800 min ^1

Blade torque 45 Nm

Wheel drive.... max. 3.3 km/h

Petrol tank volume 0.8 l

Octane rating 95-98

Engine oil tank volume 0.6 l

Spark plug ....Champion RJ19LM

Cutting circle 460 mm

Cutting height .....10-stage, 30-75 mm

Grass collection box volume......65 l

Weight (inc. collection box) ......30.3 kg

Sound pressure level (LpA) ....82.2 dB(A); K=3.0 dB(A)

Sound power level (LWA) measured.....93.4 dB(A); K=2.14 dB(A) guaranteed.....96 dB(A)

Vibration at the handle (a_n) 4.644 m/s ^2 ; K=1.5 m/s ^2

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another.

The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning:

vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used.

Safety precautions aimed at protecting the user should be based on estimated exposure under actual usage conditions (all parts of the operating cycle are to be considered, including, for example, times during which the power tool is turned off and times when the tool is turned on but is running idle).

Noise and vibration values were determined according to the standards and stipulations mentioned in the declaration of conformity.

Technical and optical changes can be carried out in the course of further development without notice. All dimensions, references and information of this instruction manual are therefore without guarantee. Legal claims, which are made on the basis of the instruction manual, cannot thus be considered as valid.

Disposal / Environmental Protection

- Return the tool, accessories and packaging to a recycling centre when you have finished with them.

• Carefully drain the petrol and oil tanks and take your equipment to a recycling centre. The plastic and metal parts that are used can be separated by type and thus recycled.
• Take used oil and petrol residues to a disposal point and do not pour them into the sewer system or down the drain.
• Ask our Service-Center for details.

- Defective units returned to us will be disposed of for free.

- Do not throw cut grass in the dust-bin but rather compost it or spread it under bushes and trees as a mulch layer.

Replacement parts

Replacement parts can be ordered directly from our service centre. Please indicate the machine type and the number of the spare part with your order.

Replacement blade....91099462

Blade screw 91099460

Grass collection box .....91099561

Air filter 30250011

Spark plug 30220210

B&S fuel stabiliser, 125 ml.....30230028

B&S Engine oil, 600 ml ......30230029

Maintenance set

(air filter, 30 ml fuel stabiliser,

600 ml engine oil, spark plug) .....30270001

Replacement parts and accessories for the engine (e.g. air filters and spark plugs) can also be ordered directly from Briggs & Stratton.

If further spare parts should be necessary, please find the part number on the exploded drawing.

Guarantee

- The guarantee period for this equipment is 3 years from the date of purchase and it is applicable only for the initial buyer.

- Please note any different guarantee conditions for the motor and read the enclosed operating instructions from motor manufacturer “Briggs & Stratton” carefully. This guarantee does not affect your legal guarantee rights. The responsible “Briggs & Stratton” service is responsible for motor problems on your lawn mower in accordance with the enclosed dealer list. Should another problem occur, please contact

our central service points (see page 25 for tel. no., fax no., e-mail address).

• The guarantee does not include:

- Damage caused by natural wear, overloading or improper use.

- Equipment employed for commercial use.

- Damages arising as the result of non-compliance with the operating instructions or if the cleaning intervals have not been observed.

- Equipment on which technical interventions have been undertaken.

- The following parts are subject to normal wear and therefore not covered by the guarantee: cutter, spark plugs, air filter, starter cord.

- Please do not send equipment to our service points without prior agreement by telephone, as you could otherwise incur costs for non-acceptance.

- The repair or replacement of the equipment will neither result in extension of the guarantee period nor the commencement of a new guarantee period for the equipment or any replacement parts installed as a result of this work. This also applies if on-site service is used.

- Defective units returned to us will be disposed of for free.

Troubleshooting

Problem Possible	Cause Fault Correction
Engine does not start	Too little petrol in the tank Fill with petrol
	Incorrect starting sequence	Follow the instructions for starting the engine (see "operation")
	Spark plug connector (P 14) not put on correctly Sooted spark plug	Attach the spark plug connector Clean, adjust or replace the spark plug (see "cleaning and maintenance")
	Incorrectly adjusted carburet-tor mix	Have the carburettor adjusted by a specialist workshop
Engine starts but equipment does not run at full power	Dirty air filter (O 11)	Replace the air filter (see "cleaning and maintenance")
	Incorrectly adjusted carburet-tor mix	Have the carburettor adjusted by a specialist workshop
Engine splutters, stops	Incorrectly adjusted carburet-tor mix	Have the carburettor adjusted by a specialist workshop
	Sooted spark plug (P 15)	Clean, adjust or replace the spark plugs (see "cleaning and maintenance")
Engine overheats	Ventilation holes (O 37) blocked	Clean the ventilation slot
	Incorrect spark plug (P 15)	Change the spark plug
	Too little engine oil in the en-gine	Fill with engine oil (see "initial opera-tion")
Engine smokes	Dirty air filter (O 11)	Replace the air filter (see "Cleaning and Maintenance")
	Too little engine oil in the en-gine	Fill with engine oil (see "initial opera-tion")
Drive does not switch on	Bowden cables (A 8) misad-justed	Adjust the Bowden cables or have them adjusted by a specialist work-shop
Output unsatis-factory or engine labouring	Grass too short or too long	Change the cutting height (see "setting the cutting height")
	Blade blunt	Have the blade sharpened or replaced by a specialist workshop
	Blade blocked with grass, grass collection box full, ejec-tion channel blocked	Remove the grass (see "cleaning and maintenance")
Blade does not turn	Blade blocked with grass Remove the grass
	Blade not installed correctly	Have the blade installed by a specialist workshop
Abnormal noises, rattling or vibra-tions	Blade not installed correctly	Have the blade installed by a specialist workshop
	Blade damaged

Translation of the originalEC declaration of conformity

We herewith confirm that thePetrol lawn mowerSeries FBM 550 A1Serial number 201112000001 - 201201020562is compliant with the current versions of the following relevant EU guidelines:

2006/42/EC • 2004/108/EC • 2000/14/EC • 2005/88/EC

In order to guarantee compliance, the following harmonised standards, national standards and regulations have been applied:

EN 836/A3:2004 • EN ISO 14982:2009

The following are also confirmed as being compliant with Noise Emissions Directive 2000/14/EC:Guaranteed sound power level: 96 dB(A);Measured sound power level: 93.4 dB(A)The conformity evaluation procedure employed is compliant with appendix VI of 2000/14/EC and 2005/88/EC.Registered Office: TÜV Süd,Industrie-Service GmbH, Westendstr. 199, 80686 München,NB 0036

Grizzly Gartengeräte GmbH & Co. KGAm Gewerbepark 264823 Groß-Umstadt, 10.2.2012CEOliver Christ(Documentation Representative)

Exploded Drawings

informative

Grizzly Service-Center

Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

IAN 71990

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 71990

IAN71990
