USER MANUAL PHD 150 E4 PARKSIDE

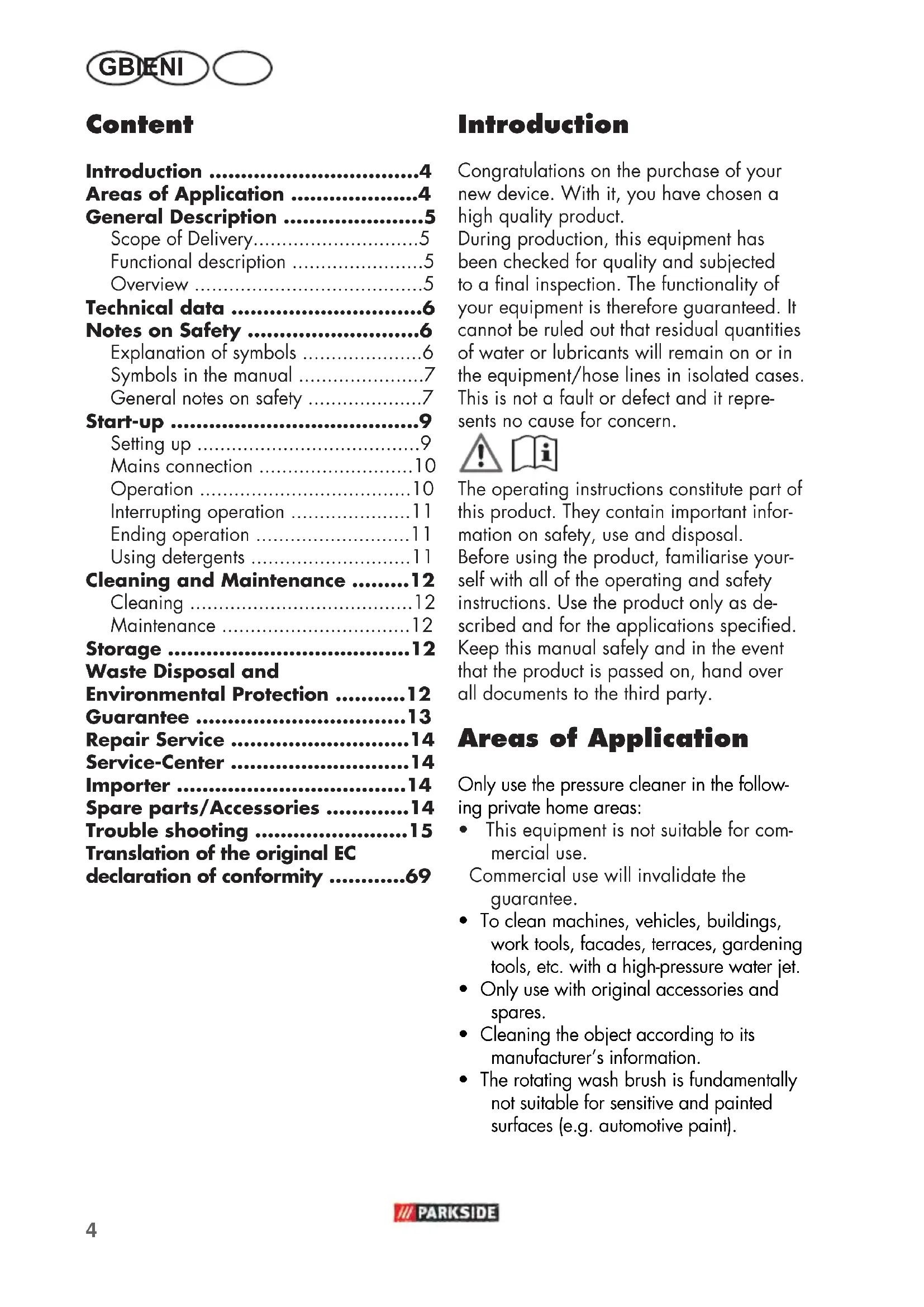

GB IE NI Introduction Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a nal inspection. The functionality of your equipment is therefore guaranteed. It cannot be ruled out that residual quantities of water or lubricants will remain on or in the equipment/hose lines in isolated cases. This is not a fault or defect and it repre- sents no cause for concern. The operating instructions constitute part of this product. They contain important infor- mation on safety, use and disposal. Before using the product, familiarise your- self with all of the operating and safety instructions. Use the product only as de- scribed and for the applications specied. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party. Areas of Application Only use the pressure cleaner in the follow- ing private home areas:

• This equipment is not suitable for com- mercial use. Commercial use will invalidate the guarantee.

• To clean machines, vehicles, buildings, work tools, facades, terraces, gardening tools, etc. with a high-pressure water jet.

• Only use with original accessories and spares.

• Cleaning the object according to its manufacturer’s information.

1 Jet gun 2 Locking lever 3 Starting lever 4 High-pressure tting (gun) 5 Release button 6 Holder for spray gun 7 Accessories holder 8 On/Off switch 9 Jet lance 10 Turbo dirt blaster 11 Water connection coupling with strainer insert 12 Water connection 13 Wheels 14 Rotatable holder for mains cable 15 Fixed holder for mains cable 16 Carrying handle 17 Hose reel crank 18 Rotating wash brush 19 High-pressure hose on hose reel 20 Bow-type handle 21 Quick connector for garden hose adaptor 22 Cleaning agent container with nozzle 23 Nozzle cleaning needle 24 Standard Vario nozzle 25 Holder for nozzles 26 Cleaning agent

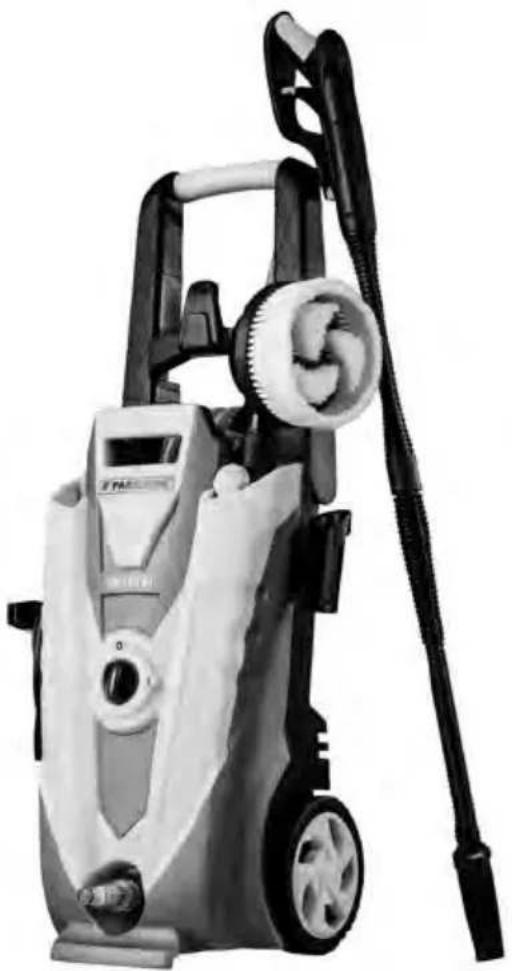

• 1 Jet gun 2 Locking lever 3 Starting lever General Description The diagram of the most im- portant functional elements can be found on the foldout side. Scope of Delivery Unpack the pressure cleaner and verify the contents: - Pressure cleaner with mains cable - High-pressure hose on hose reel - Holder for mains cable - Jet gun holder - Quick connector for garden hose adaptor - Jet gun - Turbo dirt blaster - Standard Vario nozzle - Rotating wash brush - Nozzle cleaning needle - Cleaning agent container with nozzle - 0.5 l cleaning agent - Instructions for use Dispose of the packaging material correctly. Functional description The pressure cleaner cleans by means of a water jet, with a choice of high or low pres- sure operation. A detergent can be added if this is required. For the functions of the operating elements please refer to the subsequent description. Ensure that the safety instructions are always observed!6 GB IE NI Technical data Pressure cleaner
• PHD 150 E4 Mains connection p. 230
• V~, 50 Hz Power consumption p. 2100
• W Mains cable length p. 5
• m Weight (without accessories) .83 kg Safety class p. 10

= 3 dB Sound power level (L

measured ..........91.7 dB(A); K

; K=0.15 m/s² The values for noise and vibration were determined according to EN 60335-2-79:2009. Do not exceed the maximum permitted network impedance of 0.277 Ohms at the electrical connection point. The user must ensure that the device is operated only on a power supply network that fulls this requirement. If necessary, the local power supply com- pany can be asked for the system imped- ance. Technical and optical changes can be carried out in the course of further develop- ment without notice. All dimensions, refer- ences and information of this instruction manual are therefore without guarantee. Legal claims, which are made on the basis of the instruction manual, cannot thus be considered as valid. The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to com- pare one power tool to another. The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning: The vibration emission

value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used. Safety precautions aimed at protect- ing the user should be based on esti- mated exposure under actual usage conditions (all parts of the operating cycle are to be considered, includ- ing, for example, times during which the power tool is turned off and times when the tool is turned on but is running idle). Notes on Safety This section is concerned with the basic safety rules when working with the pres- sure cleaner. Explanation of symbols Attention! Before beginning work, familiarise yourself thoroughly with all the op- erating elements, particularly with how they function and operate. Ask a specialist if necessary. Attention: Remove the plug from the socket as soon as the power lead is damaged or cut. Also disconnect the plug from the socket when connecting to the water supply or trying to eliminate leaks.7

IEGB The pressure cleaner is not suitable for direct connection to the drinking water supply system. Safety class II Electric appliances should not be dis- posed of in the domestic garbage. CAUTION. pressure cleaners can be dangerous if they are not operated correctly! The jet must never be directed at people, animals, electric equipment connected to the power supply or against the actual pressure cleaner. Operate the equipment only in an upright and never in a reclined position. Noise level specication L

in dB. Symbols in the manual Warning symbols with in- formation on damage and injury prevention. Instruction symbols (the instruction can be explained at the place of the exclamation mark) with informa- tion on preventing damage. Help symbols with information on improving tool handling. General notes on safety

• Machines shall not be used by chil- dren. Children should be supervised to ensure that they do not play with the machine.

• This machine can be used by people with reduced physical, sensory or men- tal capabilities or lack of experience and knowledge if they have been giv- en supervision or instruction concern- ing use of the machine in a safe way and understand the hazards involved.

• People who are unfamiliar with the op- erating instructions are not permitted to use the equipment.

• High pressure cleaner may not be operated by non-trained persons Working with the equipment Caution: to avoid accidents and injuries: CAUTION. pressure cleaners can be dangerous if they are not operated correctly! The jet must never be directed at people, animals, electric equipment connected to the power supply or against the actual pressure cleaner.

• Use the equipment only when standing and on a level, stable base.

• Use the equipment only on a at, sta- ble surface.

• Do not direct the jet at yourself or oth- ers in order to clean clothes and shoes.

• To protect against water or dirt splash- ing back, wear suitable protective clothing and safety goggles.

• Do not operate the pressure cleaner when other people are in the immedi- ate vicinity, other than they are also wearing protective clothes.

• Take appropriate measures to keep children away from the equipment whilst it is running.

• Do not use the equipment in the vicinity of ammable liquids or gases. Non- observance will result in a risk of re or explosion.8 GB IE NI Electrical safety: Caution: to avoid accidents and injuries from electric shocks:

• The plug and socket of an extension cable must be water-tight! Unsuitable extension cables can be dangerous as people can be harmed by an electric shock!

• Protect the electric plug connections against moisture.

• If there is a risk of ooding, x the plug connections in an area that is safe from ooding.

• Ensure that the mains voltage matches the specications on the rating plate.

• Connection to the mains must be carried out by an experienced electri- cian and meet the requirements of IEC60364-1.

• The electrical installation shall be ac- cording to national wiring rules.

• The device must only be connected to a mains socket via a residual-current circuit breaker (RCD) with a rated leak- age current of not more than 30 mA. Fuse: at least 13 ampere.

• Before each use, check the equipment, cable and plug for damage.

• If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualied per- son in order to prevent hazards.

• Do not pull the plug from the socket by the cable. Protect the cable from heat, oil and sharp edges.

• Do not carry or x the equipment by the cable.

• Use only extension cables that are pro- tected from spray water and designed for outdoor use. Always fully unroll a

• Do not spray combustible liquids. Risk of explosion.

• If you come into contact with cleaning agents, rinse with plenty of clean wa- ter.

• Store the equipment in a dry place and out of reach of children. Caution! To avoid damage to the equipment and any pos- sible person injury resulting from this:

• Do not work with damaged or incom- plete equipment, or with equipment that has been converted without the approval of the manufacturer. Before initial operation, have a specialist check that the required electrical pro- tection measures are in place.

• Do not operate the equipment if the mains cable, water supply or other im- portant parts such as the high-pressure hose or gun are damaged/leaking.

• Protect the pressure cleaner from frost and dry running.

• High-pressure hoses, ttings and couplings are important for machine safety. Use only high-pressure hoses, ttings and couplings recommended by the manufacturer.

• Use only original accessories and do not carry out conversion work on the equipment.

• Please read the notes in the operating instructions on the topic of “mainte- nance and cleaning”. Any measures above and beyond these, particularly opening the equipment, are to be car- ried out by an authorised electrician. In the case of repairs, always contact our service centre.9

IEGB cable drum before use. Check the ca- ble for damage.

• Before any work on the equipment, during work breaks and in the case of non-use, remove the plug from the socket.

• The cross-section of the power sup- ply cable must not be less than 2x2,5mm².

• Wear sturdy footwear to protect against electric shock.

• To protect against electric shock, oper- ate the equipment only in an upright position. Start-up In keeping with current regulations a pressure cleaner must never be oper- ated off the drinking water mains supply without a controllable back- ow preventer. A suitable backow preventer in conformity with EN 12729 type BA must be used. Water that has passed through a backow preventer is classied as undrinkable. A backow preventer is available in spe- cialist shops.

• Employ an ordinary garden hose for the water intake and ensure sufcient length.

• Use the device on a domestic water connection with an output of at least 450 l/h.

• Irrespective of the water pipe, you can also use the device (for example, rain barrel) through the integrated water suction function. This function must only be used with a suction hose with a l- ter basket. The device itself must not be immer- sed in open water sources. There is a risk of personal injury from an electric shock. Do not draw in any water from na- tural accumulations. There is a risk of contamination from backwashed cleaning agent. Setting up

1. Fold the handle after upwards until

it engages with a resistor. Insert the crank of the reel (17) to the stop into the hose drum. The handle clicks into place. Fold out the handle of the crank. It xed via a resistor. If the crankshaft of the hose drum (17) can not simply be pushed as far as it will go, pull out the cranks- haft of the hose drum (17) and turn the crankshaft of the hose drum (17) to a different position before retur- ning it.

2. Slide the holder for mains cable

(14/15) and the jet gun holder (6) onto the guides on the device housing.

3. Connect the high-pressure tting (jet

gun) (4) to the jet gun (1). Ensure that the hose runs to the front, so as not to impede the handle (20).

4. Connect the feed hose to the water

supply and allow water to escape from the other end of the feed hose with no bubbles, in order to expel the air from the feed hose. Switch off the water tap.

5. Connect the feed hose with the help of

the quick connector for garden hose adapter (21) with the water connection coupling (11) and the water connec- tion (12) on the device.

6. Connect to the spray gun (1) by insert-

ing and screwing in the jet pipe (9).

7. If the jet pipe (9) is mounted, connect

either the turbo dirt mill (10) or the standard Vario nozzle (24) by screw- ing in with the jet pipe (9).10 GB IE NI

8. Screw in to connect the detergent con-

tainer with nozzle (22) directly to the spray gun (1). With using the cleaning agent container with the nozzle (22), pour only cleaning agent into the con- tainer. It is sucked in automatically. The roles of the unit, use the handle (20) only in conjunction with the wheels (13). For lifting and carrying use the carrying handle (16). The width of the jet can be in- creased by turning the end of the nozzle to the left. To reduce the width of the jet, turn the end of the nozzle to the right. Mains connection The pressure cleaner you have acquired is already tted with a mains plug. The equipment is designed for connection to an earthed wall socket with a residual current operated device (RCD switch) at 230V~50Hz. Only operate the pressure cleaner after all the above points have been observed.

1. Ensure that the pressure cleaner is

turned off by its ON / OFF switch (8).

2. Insert the mains plug into the mains

socket Operation Be prepared for the recoil force of the emitted wa- ter jet! Ensure that you are standing rmly and that you are holding the gun (1) se- curely, otherwise you could injure yourself or other people. Never operate the pressure cleaner with a closed water tap. Dry run- ning will damage the pressure cleaner!

1. Turn on the water tap entirely.

2. Switch on the pressure cleaner with the

ON / OFF switch (8). Only ever switch on the pressure clean- er once you have connected all of the water pipes and they do not leak. The motor switches on until the re- quired pressure has built up. After the pressure has built up, the motor switches off.

3. Press the gun (1) starting lever (3). The

nozzle operates by pressure and the motor switches back on. Releasing the starting lever (3) causes the equipment to switch off. The system remains pressurised.

• The turbo dirt blaster (10) produces a rotating water jet and is designed for low water consumption work.

• The standard Vario nozzle (24) pro- duces a at wide jet particularly suited for large surfaces. Turn the tip of the nozzle left to reduce the width of the jet. Turn the tip of the nozzle right to expand the width of the jet.

IEGB Start afresh with making the water connections (cf. “Start- up / Operation” from point 4.). If there is still air in the device, please proceed as follows: To vent the supply hose:

1. Remove the quick connector for gar-

den hose adapter (21) on the water connection coupling (11) and turn the water tap on until the water comes out without bubbles.

2. Switch off the water tap.

3. Connect the supply hose to the water

connection (12) on the equipment us- ing the quick connector for garden hose adapter (21).

4. Fully open the water tap.

To vent the equipment:

5. Switch on the on/off switch (8) until

pressure has built up.

6. Switch off the on/off switch (8).

7. Press the on lever on the gun (1) until

the pressure has gone.

8. Please repeat process 5. to 7. a few

times until there is no more air in the device.

• You can lock the engaging lever (3) of the spray gun (1) by fold- ing out of the locking lever (2). Lock the starting lever (3) to pre- vent the pressure cleaner from being inadvertently / acciden- tally started. Interrupting operation

• Release the lever of the gun (1).

• During prolonged work intervals turn off the pressure cleaner by its ON / OFF switch (8). If the equipment falls over, switch off the equipment immediately at the on/off switch (8) and disconnect the equipment from the mains at the mains power cord. Risk of electric shock! Only now should the equipment be re- turned to an upright position. For your own safety, wait approx. 5 minutes before re- connecting to the electricity. Ending operation

1. After having worked with a detergent

rinse the pressure cleaner with clear water.

2. Release the lever of the gun (1).

3. Turn off the pressure by its ON / OFF

switch (8). Disconnect the mains plug.

4. Turn off the water tap.

5. Disconnect the pressure cleaner from

6. Pull the lever of the gun (1) to vent the

pressure existing within the system. Using detergents The pressure cleaner was designed for operation with a neutral detergent based on a biologically decomposable anionic tenside. Other detergents or chemical sub- stances could impair the safety of the pres- sure cleaner and damage it. Such damage to the equipment is not covered by the guarantee.12 GB IE NI Cleaning and Maintenance Pull out the power plug before eve- ry maintenance operation. This also includes connecting to the water supply or trying to eliminate leaks. There is a risk of electrocution or of injury from moving parts. Cleaning Never direct the water jet against the pressure cleaner, nor clean the pressure clean- er under owing water. This could give rise to the danger of electric shock and damage the pressure cleaner! Always keep the pressure cleaner clean. Do not use any detergents or solvents.

• Always keep the ventilation slots clean and free.

• Only clean the pressure cleaner with a soft brush or a slightly moist cloth.

• If the standard Vario nozzle (24) is soiled or blocked, you can remove any foreign bodies in the nozzle using the nozzle cleaning needle (23). Rotate the nozzle tip to move the two metal plates in the nozzle away from each other. This enables you to reach the water outlet opening with the nozzle cleaning needle (23). Rinse the stand- ard Vario nozzle with water to remove the foreign body. The nozzle cleaning needle (23) is located in a slot on the housing on the side of the bracket for the mains cable above the wheel (13). Maintenance The pressure cleaner is maintenance free. Ask our service centre to car- ry out any work that is not described in these instruc- tions. Use only original parts. Storage

• Drain all the water from the pressure cleaner. Disconnect the unit from the water sup- ply. Press the On/Off switch (8) to turn on the pressure cleaner for no longer than 1 minute until no more water es- capes from the jet gun(1) or from the attaching parts (10/18/24). Turn off the unit.

• Store all add-ons (10/18/24) verti- cally with the connection side facing downwards.

• Protect the pressure cleaner and its ac- cessories from frost when they have not been completely drained of all water.

• Store the pressure cleaner and its ac- cessories in a frost-free room. Waste Disposal and Environmental Protection Be environmentally friendly. Return the tool, accessories and packaging to a recy- cling centre when you have nished with them. Electric appliances should not be disposed of in the domestic gar- bage. Hand the tool in at a recycling centre. The plastics and metal parts can be separated and recycled. Ask your Service Center about this.13

IEGB Guarantee Dear Customer, This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below. Terms of Guarantee The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of pur- chase to be presented within the three-year period with a brief written description of what constitutes the defect and when it oc- curred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee pe- riod begins on repair or replacement of the product. Guarantee Period and Statutory Claims for Defects The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately af- ter unpacking. Repairs arising after expiry of the guarantee period are chargeable. Guarantee Cover The equipment has been carefully pro- duced in accordance with strict quality guidelines and conscientiously checked prior to delivery. The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may there- fore be considered as wearing parts (e.g. lters or attachments) or to cover damage to breakable parts (e.g. switches, batteries, or parts made of glass). This guarantee shall be invalid if the prod- uct has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specied in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or inter- ventions not undertaken by our authorised service branch. Processing in Case of Guarantee To ensure efcient handling of your query, please follow the directions below:

• Please have the receipt and item num- ber (IAN 280206) ready as proof of purchase for all enquiries.

• Please nd the item number on the rat- ing plate.

• Should functional errors or other de- fects occur, please initially contact the service department specied below by telephone or by e-mail. You will then receive further information on the pro- cessing of your complaint.

• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and speci- cation of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the ad- dress communicated to you. Ensure that14 GB IE NI Item Description ....................................................... Product No. 1 Jet gun ..........................................................................91103757 19 High-pressure hose ..........................................................91103755 21 Quick connector for garden hose adaptor .........................91097401 9 Jet lance ........................................................................91103758 10 Turbo dirt blaster ............................................................91103753 24 Standard Vario nozzle.....................................................91103754 18 Rotating wash brush ........................................................91103750 11 Water connection w/ strainer frame.................................. 91103746 26 Cleaning agent ...............................................................30990010 the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure ad- equate, safe transport packaging. Repair Service For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with adequate packaging and postage. Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect. Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted. We will dispose of your defective devices free of charge when you send them to us. Service-Center Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: grizzly@lidl.co.uk IAN 280206 Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: grizzly@lidl.ie IAN 280206 Importer Please note that the following address is not a service address. Please initially con- tact the service centre specied above. Grizzly Tools GmbH & Co KG Stockstädter Straße 20 63762 Großostheim Germany www.grizzly-service.eu Spare parts/Accessories Spare parts and accessories can be obtained at www.grizzly-service.eu If you do not have internet access, please contact the Service Centre via telephone. Please have the order number mentioned below ready.

IEGB Trouble shooting Problem Possible cause Remedy Severe pres- sure uctua- tions Standard Vario nozzle (24) is soiled Rinse the standard Vario nozzle (24) with water. If required, clean the nozzle bore hole with a needle (see chapter en- titled cleaning). Standard Vario nozzle (24) is blocked Remove the Standard Vario nozzle (24) and ensure that the water can discharge from the jet gun (1) unimpeded. In other words, the device is working perfectly. The turbo dirt blaster (10) and the rotat- ing wash brush (18) do not normally get blocked. Pressure cleaner is not operating ON / OFF switch (8) is turned off Check ON / OFF switch (8) Damaged power supply cable Switch off the equipment and disconnect from the mains. Check power supply cable for damage. If necessary have the power supply cable replaced by a quali- ed electrician. Mains fault Check the electrical system for conform- ity with the data on the rating plate. Pressure clean- er does not generate any pressure Air trapped in the pressure cleaner Switch on the equipment with the jet gun and with no nozzle until bubble-free wa- ter comes out. Drop in the water mains pressure Check the water mains. Leaks in the water system Connections not tted cor- rectly Switch off the equipment and disconnect from the mains. Reconnect the equipment to the water pipes (cf. “Initial Operation/ Set-Up”) Water connection (12) leaks Switch off the equipment and discon- nect from the mains. Replace the water connection (12) inc. gasket (cf. “Spare Parts”)16

CH69 Volker Lappas Documentation Representative Translation of the original EC declaration of conformity We hereby conrm that the Pressure Cleaner Design Series PHD 150 E4 Serial Number 201610000001 - 201610286000 conforms with the following applicable relevant version of the EU guidelines : 2014/30/EU • 2000/14/EC • 2006/42/EC • 2005/88/EC • 2011/65/EU* In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied: EN 60335-1:2012+A11:2014 • EN 60335-2-79:2012 • EN 62233:2008 EN 55014-1:2006+A2:2011 • EN 55014-2:2015 EN 61000-3-2:2014 • EN 61000-3-11:2000 We additionally conrm the following in accordance with the 2000/14/EC emissions guideline: Sound power level guaranteed: 98.0 dB(A) measured: 91.7 dB(A) Compliance evaluation process carried out in accordance with Appendix V, 2000/14/EC This declaration of conformity is issued under the sole responsibility of the manufacturer: Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim Germany

• The object of the declaration described above satises the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances
