USER MANUAL SEMK 105 A1 SILVERCREST
EISWÜRFELMASCHINE / ICE MAKER FABRIQUE À GLAÇONS SEMK 105 A1
DE AT CH
EISWÜRFELMASCHINE
Bedienungsanleitung
FR BE
FABRIQUE À GLAÇONS
Mode d'emploi
PL
KOSTKARKA DO LODU
Instrukcja obstugi
SK
VÝROBNÍK L'ADU
Návod na obsluhu
GB IE
ICE MAKER
Operating instructions
NL BE
IJSBLOKJESMACHINE
Gebruiksaanwijzing
CZ
VÝROBNÍK LEDU
Návod k obsluze
IAN 331074_1907
DE AT CH
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
FR BE
Inhaltsverzeichnis
Einführung 2
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DEUTSCHLAND
www.kompernass.com
Contents
Introduction 20
Intended use 20
Package contents 21
Operating elements 26
Preparations 26
Unpacking 26
Disposal of the packaging 27
Operation 27
Operation and use 28
Filling the appliance 28
Starting ice cube production 28
Stopping ice cube production 29
Cleaning and maintenance 30
Storage 31
Disposal 31
Troubleshooting 32
Appendix 33
Technical data 33
Kompernass Handels GmbH warranty 34
Service 35
Importer 35

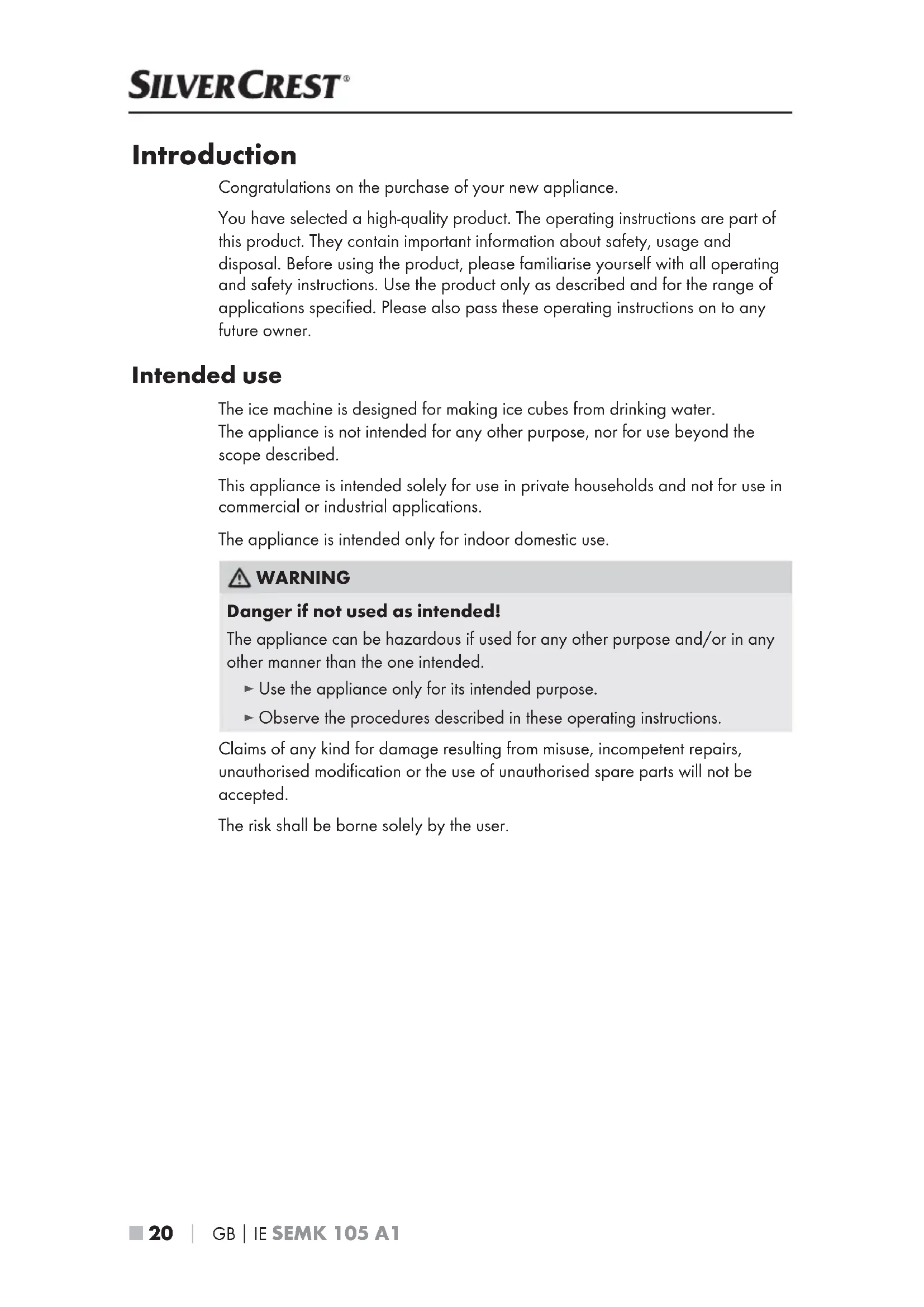

Introduction
Congratulations on the purchase of your new appliance.
You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.
Intended use
The ice machine is designed for making ice cubes from drinking water.
The appliance is not intended for any other purpose, nor for use beyond the scope described.
This appliance is intended solely for use in private households and not for use in commercial or industrial applications.
The appliance is intended only for indoor domestic use.
WARNING
Danger if not used as intended!
The appliance can be hazardous if used for any other purpose and/or in any other manner than the one intended.
▶ Use the appliance only for its intended purpose.
▶ Observe the procedures described in these operating instructions.
Claims of any kind for damage resulting from misuse, incompetent repairs, unauthorised modification or the use of unauthorised spare parts will not be accepted.
The risk shall be borne solely by the user.
Package contents
The appliance is supplied with the following components as standard:
- Ice maker
- Ice basket
- Ice scoop
- Operating instructions
NOTE
▶ Check the package for completeness and signs of visible damage.
▶ If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the Service hotline (see section Service).
DANGER! RISK OF ELECTRIC SHOCK
▶ Prior to use, check the appliance for visible external damage. Do not use the appliance if the mains cable or appliance show any signs of visible damage or if the appliance itself has been dropped.
The appliance may only be used in dry indoor rooms.
▶ Ensure that the power cable never becomes wet or damp when the appliance is in use. Route the cable so that it cannot be trapped or damaged in any way.
- Arrange for defective power plugs and/or cables to be replaced as soon as possible by a qualified technician or by our Customer Service Department to avoid the risk of injury.
▶ All repairs must be carried out by authorised specialist workshops or by the Customer Service department. Improper repairs may put the user at risk. It will also invalidate any warranty claims.
DANGER! RISK OF ELECTRIC SHOCK
To disconnect the appliance completely from the mains power, the mains plug must be removed from the power socket. The appliance must be positioned so that you have unrestricted access to the mains socket at all times and can pull out the plug immediately in an emergency.
▶ Always remove the plug from the power socket before moving the appliance, in the event of faults, before cleaning the appliance and when it is not in use! Never pull on the power cord; always pull directly on the plug itself. Never touch the appliance plug with wet or moist hands.
Never immerse the appliance in water or any other liquids! There is a risk of fatal electric shock if residual liquids come into contact with live components during operation. If the appliance ever falls into any liquid, remove the power plug from the socket immediately. Stop using the appliance and contact the Service Hotline (see section Service).
DANGER! RISK OF FIRE!
This appliance contains a small amount of isobutane as a coolant (R600a). This is a natural and environmentally sound gas that is flammable. In the event of a leak, pull out the plug, avoid any open flames or sources of ignition, ventilate the room where the appliance is located and contact customer service.
Warning: Risk of fire! Flammable material!
- Do not store any explosive substances in this appliance, such as aerosol containers containing flammable propellant.
- Do not operate any electrical appliances inside the refrigerator compartment that do not correspond to the types recommended by the manufacturer.
DANGER! RISK OF FIRE!
- Do not use an external timer switch or a separate remote control system to operate the appliance.
- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Set up the appliance so that neither the ventilation openings on the left and rear side of the appliance nor the blower outlet on the right are blocked. The appliance requires a free space of around 20 cm on all sides.
- Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
▶ WARNING: When setting up the appliance, make sure that the power cable is not caught or damaged.
▶ WARNING: Do not use an extension cable to operate the appliance.
WARNING! RISK OF INJURY!
▶CAUTION - RISK OF SUFFOCATION! If you consume drinks containing ice cubes, take care not to swallow these accidentally. Ensure that children in particular are aware of this risks!
The appliance does not need to be monitored continuously during use, but it should be checked regularly.
- Do not allow children to use the appliance as a toy.
- This appliance may be used by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks.
WARNING! RISK OF INJURY!
This appliance may be used by children aged 8 years or over if they are supervised or have been told how to use the appliance safely and are aware of the potential risks.
Cleaning and user maintenance tasks must not be carried out by children unless they are supervised. The appliance and its connecting cable must be kept away from children younger than 8 years old.
▶ Children between 3 and 8 years may fill and empty the device.
- Do not add any liquids apart from drinking water to the appliance.
▶ WARNING! Only fill the device with drinking water!
- Do not use any other equipment or other means not recommended by the manufacturer to speed up the defrosting process.
▶ WARNING! Do not damage the cooling circuit of the appliance.
CAUTION! PROPERTY DAMAGE!
Before connecting the appliance, compare the connection data of the appliance (voltage and frequency) on the rating plate with that of your electrical supply. This data must correspond in order to prevent damage to the appliance.
- Ensure that the appliance, the mains cable and the plug do not come into contact with heat sources such as hotplates or naked flames.
▶ Never place the appliance near sources of heat.
▶ Use only the supplied accessories.
▶ Never open the casing. This can lead to risks and also in validates the warranty.
▶ Never fill hot water into the water tank!
- Do not turn the appliance upside down! This can cause damage to the appliance.
▶ If you have moved the appliance, wait around 2 hours before using it again.
- Comply with all local regulations regarding appliances containing flammable refrigerant/propellant gas when disposing of the appliance.
▶ Do not store any food in this appliance!
Operating elements
1 Lid
② Ice basket
3 Water tank
4 button
5 Control lamp
6 "Ice full" lamp
⑦ Fan outlet
8 Drain opening
9 "Add water" lamp
10 Air vent
11 Air vent
12 Power cable
13 Ice scoop
Preparations Unpacking
◆ Remove all parts of the appliance and the operating instructions from the box.
◆ Remove all packaging materials and any protective film from the appliance.
NOTE
▶ Check the package for signs of visible damage.
In the event of damage caused by defective packaging or transport, contact the Service Hotline (see section Service).
WARNING
Risk of suffocation!
▶ Do not allow children to play with packaging materials. Risk of suffocation.
Disposal of the packaging
The packaging protects the appliance from damage during carriage.
The packaging materials have been selected for their environmental friendliness and ease of disposal, and are therefore recyclable.
Returning the packaging to the material cycle conserves raw materials and reduces the amount of waste that is generated. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.
Dispose of the packaging in an environmentally friendly manner.
Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:
1-7: Plastics,
20-22: Paper and cardboard,
80-98: Composites.
NOTE
If possible, keep the original packaging during the warranty period so that the appliance can be properly packed for returning in the event of a warranty claim.
Operation
Before starting to use the appliance, ensure that ...
- the appliance, power plug and mains cable 12 are in perfect condition and ... - all packaging materials and protective films have been removed from the appliance.
- Clean all parts of the appliance as described in the section entitled "Cleaning and care".
Insert the plug into a suitable mains power socket. The control lamp 5 flashes green. The appliance is in standby mode.
The appliance is now ready for use.
CAUTION! PROPERTY DAMAGE!
▶ If you have moved the appliance, wait around 2 hours before using it again.
▶ Make sure that the ambient temperature is between 10 and 32 °C.
Operation and use
Filling the appliance
CAUTION! PROPERTY DAMAGE!
▶ Never fill hot water into the water tank ③! The water temperature should be between 8 and 25 °C.
NOTE
Before filling the appliance, make sure that the cap is firmly in the drain opening 8 in the underside of the appliance. Otherwise, the filled water will flow straight out again.
◆ Open the lid ① and take out the ice basket ②.
Use a container such as a measuring cup to fill the water tank ③ Never exceed the MAX marking.
Replace the ice basket ② in the appliance and close the lid ①.
Starting ice cube production
WARNING
▶ Always use fresh drinking water to prepare ice cubes. Never reuse the water from thawed ice cubes!
- Press the button to start ice production.
The control lamp lights up permanently green.
After around 7 - 15 minutes, depending on the water and ambient temperature, you will hear ice cubes start to fall into the ice basket ② To remove ice cubes, open the lid ① and remove the required amount of ice cubes using the ice scoop ⑬. Then close the lid ① again.
If the "Ice full" lamp lights up red, the ice basket is full. Ice cube production is stopped and the appliance stops cooling. As soon as you have removed enough ice cubes, the appliance will resume production.
NOTE
▶ Sometimes, the finished ice cubes pile up and obstruct the light sensor. Ice cube production is then stopped, even though the ice basket ②s not yet full. If this happens, use the ice scoop ③b redistribute the ice cubes in the ice basket ②o that the light sensor is no longer obstructed. Ice cube production will resume automatically.
If the "Add water" lamp 🔊 lights up red, the water fill level is too low. Ice cube production is interrupted and the appliance stops cooling. If you want to continue producing ice cubes, fill the water tank ③ as described in the section "Filling the appliance".
NOTE
The first production phase may last a little longer than the following ones.
The ice cubes do not reach full size until around the third production phase, depending on the water and ambient temperature.
The production time is dependent on the water and ambient temperature.
Stopping ice cube production
WARNING
- Drain the water from the water tank ③ after a maximum of 24 hours. Otherwise, bacteria can start to build up!
Press the ⏻ button ④ to stop ice production. The control lamp ⑤ flashes green.
To switch off the appliance completely, remove the ice cubes and pull the plug from the mains power socket.
Allow the appliance to defrost and check whether there is any water left in the rear part of the appliance. To do this, tip the appliance slightly forwards so that the water runs into the water tank ③
To let the water out of the water tank 3 pull the appliance forward so that it juts out over the edge of the worktop and you have access to the drain opening 8 in the underside of the appliance. Ensure, however, that the front feet still have a firm foothold.
Hold a container that is suitably large to hold the expected amount of water under the drain opening and pull out the cap.
Once the water has drained out, push the cap firmly back into the drain opening 8
Cleaning and maintenance
DANGER! RISK OF ELECTRIC SHOCK!
▶ Before manually cleaning the appliance, disconnect the power plug from the mains power socket! Otherwise, there is a risk of electric shock!
▶ Never open any parts of the housing. There are no serviceable parts whatsoever inside. When the housing is open, there is a risk of a potentially fatal electrical shock.
WARNING
Drain the water from the water tank ③ after a maximum of 24 hours. Otherwise, bacteria can start to build up!
CAUTION! PROPERTY DAMAGE!
▶ Do not use abrasive or caustic cleaning agents. These can attack the surface and damage the appliance beyond repair.
▶ Do not use boiling water to clean the appliance.
▶ Do not clean the metal pins in the rear of the appliance with a cloth or similar. Scratches could negatively affect the production results.
◆ Activate the appliance's self-cleaning function:
- If the appliance is still in operation, follow the instructions in the section "Stopping ice cube production".
- Insert the plug into a mains power socket.
- Fill the appliance with fresh water up to the MAX mark, as described in the section "Filling the appliance".
- Press and hold down the ⏻ button ④ for 10 seconds. The appliance starts self-cleaning, the "Add water" lamp 🔊 ⑨ the "Ice full" lamp 🔒
⑥ and the control lamp ⑤ vill light up red or green one after the other. After 15 minutes, the appliance switches to standby mode, the control lamp ⑤ ashes green.
- Pull the plug from the mains power socket and allow the water flow through the drain opening 8 is described in the section "Stopping ice cube production".
Remove the ice basket ② and wipe out the inside of the appliance with a damp cloth. Make sure that you do not damage the metal pins in the rear of the appliance. These should not be cleaned with a cloth.
For stubborn dirt or deposits, add a little mild vinegar to the cloth. Rinse the water tank with fresh water and allow this water to run out through the drain opening in the underside of the appliance. Afterwards, wipe off with a cloth moistened only with water.
- Clean the ice scoop ⑬ and the ice basket ② in warm water and little washing-up liquid.
Wipe off the housing and the mains cable 12 with a damp cloth. For more stubborn dirt, add a mild detergent to the cloth. Afterwards, wipe the appliance clean with a cloth moistened only with water to ensure that no detergent remains. Make sure that the appliance and the mains cable 12 are completely dry on the outside before the next use.
Storage
Allow the appliance to dry completely before putting it away. To do this, leave the lid ① open for a while to allow any moisture to escape.
◆ Wind up the power cable and fasten it with the cable clip.
- Store the appliance in a dry and clean location. Close the lid ① when you store the appliance. Otherwise, dust can accumulate in the appliance and the contaminate the next batch of ice cubes.
Disposal
The symbol shown on the left of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU.
This directive states that this appliance may not be disposed of in normal household waste at the end of its useful life, but must be taken to a specially set-up collection point, recycling depot or disposal company.
This disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.
The coolant used in this appliance must be disposed of with the appropriate care. You can obtain further information from your local disposal company or the city or local authority.
of doubt, please contact your waste disposal centre.
Your local community or municipal authorities can provide information on how to dispose of the worn-out product.
The product is recyclable, subject to extended producer responsibility and is collected separately.
Troubleshooting
| Malfunction Cause Remedy | |
| The appliance is not working. | The plug is not inserted into a mains power socket. | Connect the plug to the power supply. |
| The appliance is defective. | Contact the Customer Service department. |
| The "Add water" lamp lights up. | There is not enough water in the water tank 3. | Fill the water tank 3 as described in the section "Filling the appliance". |
| The water filter in the water tank 3 is blocked. | Remove any deposits or objects that are blocking the water filter.If necessary, you can remove the water filter by pulling it straight upwards. Replace it before using the appliance again.To deal with stubborn deposits, proceed as described in the section "Cleaning and care". |
| The pump is defective. | Contact the Customer Service department. |
The "l lamp  lights up. | The ice basket 2 is full. | Remove some ice cubes from the ice basket 2. |
| The infra red sensors above the ice basket 2 are dirty. | Clean the infra red sensors with a soft cloth. |
| The infrared sensors above the ice basket 2 are defective. | Contact the Customer Service department. |
| The "Add water" lamp and the "Ice full" lamp light up. | The ice cube tray in the rear part of the appliance is blocked. | Check whether the ice cube tray is blocked, e.g. by an ice cube, and remove the blockage.Pull the plug from the mains socket and plug it back in again, then restart the appliance. |
| No ice cubes are produced. | The water or ambient temperature is too high. | Make sure that the ambient temperature is no higher than 32°C.Make sure that the water used is between 8 and 25°C. |
| The cooling system is leaky. | Contact the Customer Service department. |
| The cooling system is blocked. | Contact the Customer Service department. |
| The ice cubes produced are too small. | Poor heat dissipation. | Set up the appliance so that it has a free space of around 20 cm on all sides. |
| The water temperature is too high. | Make sure that the water used is between 8 and 25°C. |
| The ambient temperature is too high. | Make sure that the ambient temperature is between 10 and 32°C. |
Appendix
Technical data
| Input voltage 220-240 V ~ (alternating current), 50 Hz |
| Nominal current 0.8 A | |
| Rated power 105 W | |
| Production volume 11 - 12 kg/24 hours |
| Capacity of the water tank3 | 1,8 L |
| Capacity of the ice basket2 | 800 g |
| Refrigerant R600a, 29g | |
| Climate class SN, N, ST, T | |
| Heat insulating material Cyclopentane |
 | All of the parts of this appliance that come into contact with food are food-safe. |
This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.
Warranty conditions
The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.
If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.
If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.
The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.
This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.
This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 123456.
Service
GB Service Great Britain
Tel.: 0800 404 7657
E-Mail: kompernass@lidl.co.uk
IE Service Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: kompernass@lidl.ie
IAN 331074_1907
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Table des matières
Introduction 38
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALLEMAGNE
www.kompernass.com
Inhoud
Inleiding 58
WAARSCHUWING! LETSELGEVAAR!
WAARSCHUWING! LETSELGEVAAR!
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DUITSLAND
www.kompernass.com
Spis treści
Wstep 76
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NIEMCY
www.kompernass.com
Obsah
Úvod....94
POZOR! HMOTNÉ ŠKODY!
POZOR! HMOTNÉ ŠKODY!
POZOR! HMOTNÉ ŠKODY!
POZOR! HMOTNÉ ŠKODY!
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NĚMECKO
www.kompernass.com
Obsah
Úvod....112
Použivanie podl'a určenia 112
Rozsah dodávky 113
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NEMECKO
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Stand der Informationen · Last Information Update · Version des informations
