USER MANUAL STS 850 A1 SILVERCREST

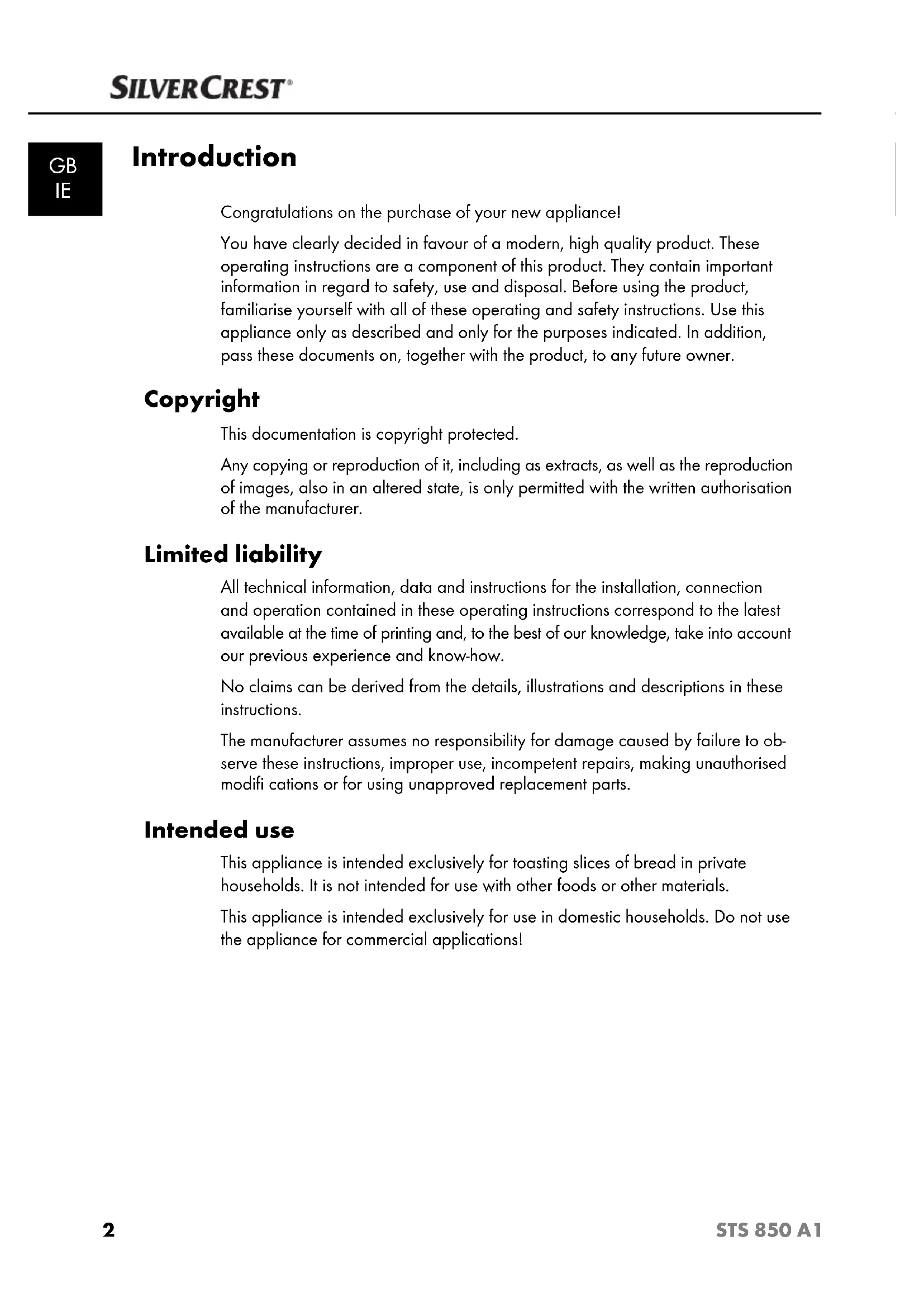

Introduction Congratulations on the purchase of your new appliance! You have clearly decided in favour of a modern, high quality product. These operating instructions are a component of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use this appliance only as described and only for the purposes indicated. In addition, pass these documents on, together with the product, to any future owner. Copyright This documentation is copyright protected. Any copying or reproduction of it, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer. Limited liability All technical information, data and instructions for the installation, connection and operation contained in these operating instructions correspond to the latest available at the time of printing and, to the best of our knowledge, take into account our previous experience and know-how. No claims can be derived from the details, illustrations and descriptions in these instructions. The manufacturer assumes no responsibility for damage caused by failure to ob- serve these instructions, improper use, incompetent repairs, making unauthorised modifi cations or for using unapproved replacement parts. Intended use This appliance is intended exclusively for toasting slices of bread in private households. It is not intended for use with other foods or other materials. This appliance is intended exclusively for use in domestic households. Do not use the appliance for commercial applications!3 STS 850 A1

Items supplied The appliance is delivered with the following components as standard: ▯ Toaster ▯ Operating instructions

emove the appliance and the operating instructions from the carton.

2) Remove all packing material.

NOTICE ► Check the contents to ensure everything is present and for visible damage. ► If the delivery is not complete or has been damaged due to defective packaging or tr ansportation, contact the Service Hotline (see section Warranty and Service). Disposal of the packaging The packaging protects the appliance from transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable. The recirculation of packaging into the material circuit saves on raw material and reduces the amount of waste generated. Dispose of packaging material that is no longer needed as per the regionally established regulations. NOTICE ► If possible preserve the appliance's original packaging during the warranty period so that, in the ev ent of a warranty claim, you can pack the appliance ideally for its return. Appliance description Illustration A: 1 Toasting dial 2 Cable clamp 3 “Stop” button 4 “Warm up” button 5 “Defrost” button Illustration B: 6 Toasting slots 7 Operating button 8 Cable winder 9 Crumb tray4 STS 850 A1

► Arrange for damaged power cables and/or plugs to be replaced as soon as possible by a qualifi ed specialist or by Customer Services. ► Use the appliance only in dry indoor areas, not outdoors. NEVER submerse the appliance in water or other liquids! If you do, then you could receive a potentially fatal electric shock. ► NEVER insert cutlery items or other metallic objects into the toaster slots. ► Ensure that the appliance can never come into contact with water. NEVER use the appliance adjacent to water or close to vessels containing liquids. ► Ensure that the power cable never gets wet or moist when the appliance is in use. Lay the cable such that it cannot be clamped or otherwise damaged. ► After use, always remove the plug from the mains power socket, this prevents the unintentional switching on of the appliance.5 STS 850 A1

WARNING! RISK OF INJURY! ► The appliance can be used by children aged from 8 years and above and persons with re- duced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and under- stand the hazards involved. ► Children should not play with the appliance. ► Cleaning and user maintenance should not be performed by children, unless they are older than 8 years of age and are supervised. Children younger than 8 years of age are to be kept away from the appliance and the power cable. ► The appliance can become hot when it is in use. Therefore, only touch the operating elements. ► Use the appliance only on a stable, non-slippery and level surface. ► Do not use an external timing switch or a separate remote control system to operate the appliance. ► Unwind the power cable completely from the cable winder before using the appliance.6 STS 850 A1

WARNING! ► Risk of burning if you do not use standard toast bread! Because of the smaller size or shape, there is a risk of touching hot parts when removing the toasted bread. CAUTION - RISK OF FIRE! ► Bakery products can burn! You should therefore NEVER locate the appliance close to or under- neath infl ammable objects, especially not under curtains or suspended cupboards. ► This appliance may not be used in close vicinity to fl ammable material. ► NEVER cover the toaster when it is in use. Tips for use ■ Avoid using slices that are too big or too thick, as these can easily become jammed in the appliance. Should slices of bread become jammed, fi rst disconnect the plug from the mains power socket. Release jammed slices of bread with a blunt wooden object (e.g. a wooden spatula or spoon). Thereby, do NOT touch the heater elements. ■ Diff erences in bread sorts, moisture content and the thickness of individual slices infl uence the browning of the toast. Therefore the bread for toasting should be kept in sealed packaging until required. Always initially try out a lower level of browning. ■ Use a lower level of browning if you are toasting dry bread, as dry bread bro wns faster than fresh bread. ■ Select a higher level of browning for dark bread than for light bread, for

ample, wheat bread. ■ The numbers on the toasting dial 1 are not time indications. The y serve only as a guide for the browning.7 STS 850 A1

■ To avoid an overheating of the toaster and to obtain an even browning of bread, wait for about 15 seconds between two toasting processes. ■ You should only use the highest level on the toasting dial 1 for large slices of dark br ead. With this browning level light bread will scorch and become inedible. In addition, it may cause the generation of smoke. If this occurs, press the button “Stop” 3 immediately and disconnect the power cable from the mains power socket. Setting up

CAUTION – RISK OF FIRE

► You should therefore NEVER locate the appliance close to or underneath infl ammable objects, especially not under curtains or suspended cupboards. ■ Unwind the cable completely from around the cable winder 8 and lead it through the cable clamp

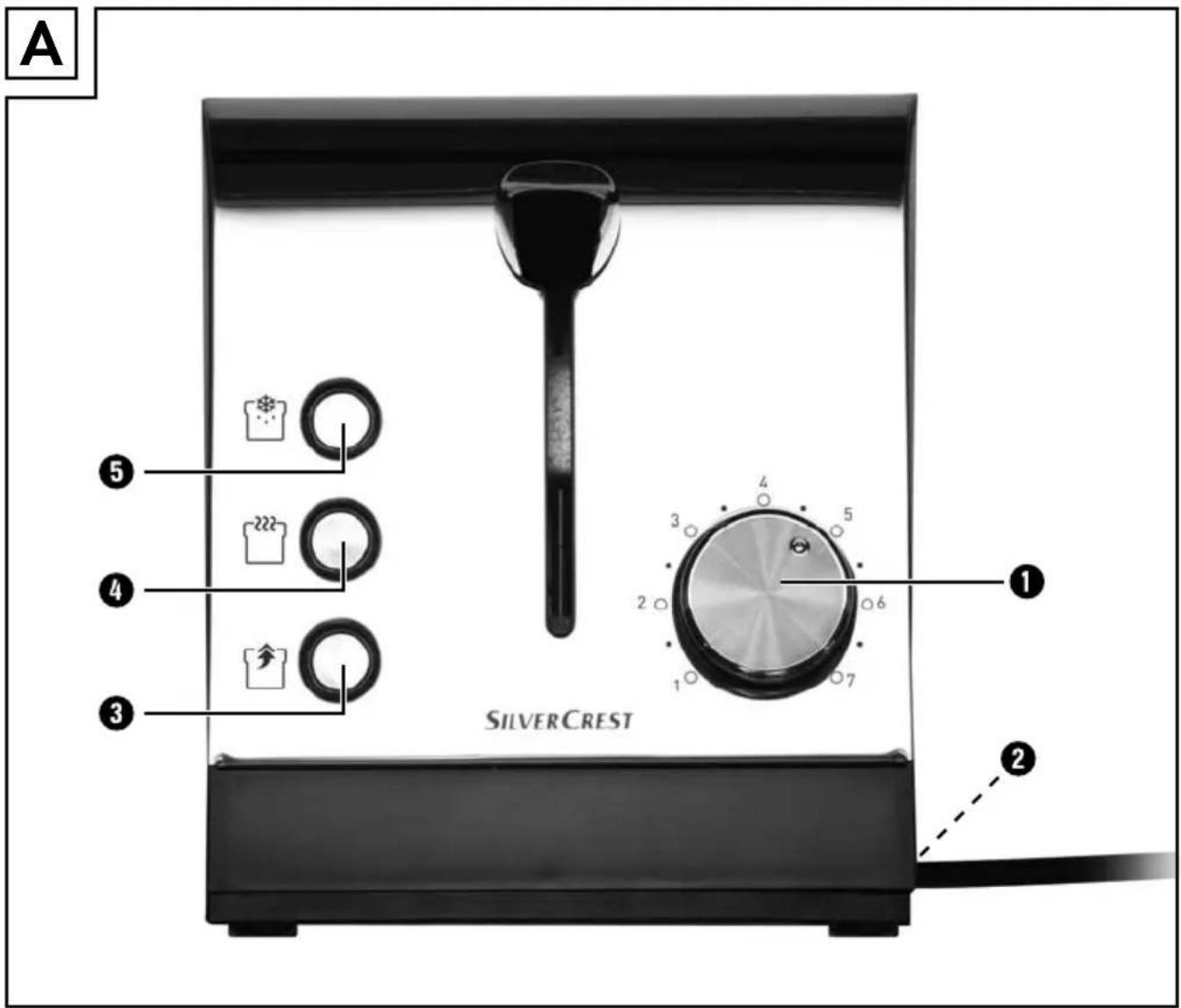

■ Place the appliance on a level and heat-resistant surface. ■ Insert the plug into a mains power socket. Before taking into use ■ Operate the toaster without bread for 5 times at the maximum browning level “7“. ■ Afterwards, clean the toaster as described in the chapter “Cleaning”. NOTICE ► The operating slide 7 only engages when the cable is connected to a mains pow er socket. ► With the fi rst usage a slight smell can arise (minimal smoke development is also possible). This is normal and dissipates after a shor t time. Provide for suffi cient ventilation. For example, open a window. Operation Adjusting the browning level The desired level of browning, from “light” (1) to “dark” (7), can be adjusted infi nitely with the toasting dial 1.8 STS 850 A1

Toasting CAUTION - RISK OF FIRE! ► When the appliance is in operation, do NOT cover the toasting slots 6. There will be a risk of fi re! The appliance could be irreparably damaged!

1) After setting the desired browning level, insert the bread into the toaster

2) Press the operating slide 7 downwards. The automatic bread centring device

centres the inserted bread in the toaster slots 6. During the toasting process the control lamp integrated in the “Stop” button 3 glows.

3) When the desired level of browning has been reached the toaster switches

itself off automatically, the slices are ejected to the top and the control lamp goes out. Interrupting the toasting process If you wish to interrupt the toasting procedure, press the button “Stop” 3. The toaster switches itself off and the bread slices are ejected upwards. Warming function The warming function enables you to warm bread without browning it. As an example, for toast that has gone cold. The bread is only briefl y warmed.

1) Insert the bread and press the operating slide 7 downwards.

2) Press the “Warm up” button

4. The integrated control lamp lights up.

3) When the bread has been reheated, the appliance switches itself off

automatically and the slices are ejected upwards.9 STS 850 A1

Defrost function By pressing the button “Defrosting” 5, also frozen bread can be thawed and toasted. With this, the toaster slowly warms the bread.

1) After setting the desired browning level, insert the bread into the toaster

2) Press the operating slide 7 downwards.

3) Press the button “Defrosting”

5. The integrated control lamp glows.

4) When the defrosting and toasting process is fi nished, the toaster switches itself

off automatically, the control lamp integrated in the button “Defrosting”

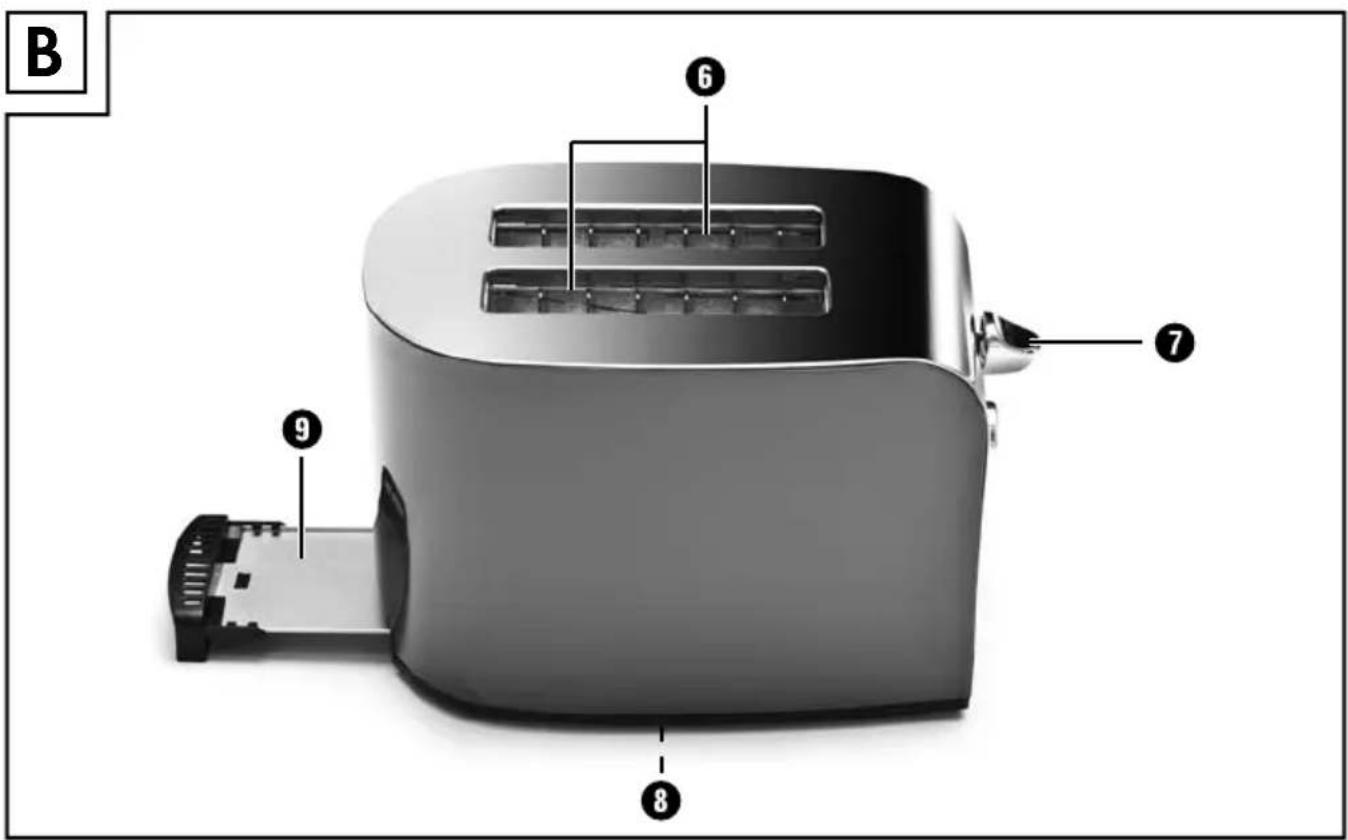

goes out and the bread slices are ejected to the top. Crumb tray When toasting, crumbs that fall from the bread are collected in the crumb tray 9.

1) To empty crumbs from the crumb tray 9, simply pull it out.

2) Tip out the crumbs.

3) Slide the crumb tray 9 back into the toaster so that it palpably engages.

► Disconnect the plug from the mains power socket before cleaning the appliance. NEVER submerse the appliance in w ater or other liquids! If you do, then you could receive a potentially fatal electric shock . WARNING! RISK OF INJURY! ► Allow the toaster to cool before cleaning it. Risk of Burns! CAUTION - PROPERTY DAMAGE! ► Do not use aggressive or abrasive cleaning agents. These can damage the upper surfaces of the appliance. ■ Clean the appliance housing only with a dry or lightly moistened cloth. ■ To avoid the risk of fi re, empty the crumb tray 9 at regular inter vals.10 STS 850 A1

Storage ■ Clean the toaster as described in the chapter “Cleaning”. ■ Wrap the power cable around the cable winder 8 on the underside of the toaster

■ Store the toaster in a dry location. Troubleshooting Problem Cause Remedy The appliance does not function. The plug is not inserted into a mains power socket. Connect the power cable into a mains power socket. The appliance is defective. In this case, contact Customer Services. The slices of toast are too dark. The level of browning is set too high. Set the toasting dial 1 somewhat lower. The slices of bread are not toasted. The level of browning is set too low. Set the toasting dial 1 somewhat higher. The operating slide 7 does not engage when it is pressed down. The plug is not inserted into a mains power socket. Insert the plug into a mains power socket. The appliance is defective. In this case, contact Customer Services.11 STS 850 A1

Disposal Do not dispose of the appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU (Waste Electrical and Electronic Equipment). Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre. Warranty and Service You receive a 3-year warranty for this appliance as of the purchase date. This appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the case of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured. NOTICE ► The warranty covers only claims for material and manufacturing defects, not for transpor t damages, worn parts or for damage to fragile components, e.g. buttons or batteries. This product is for domestic use only and is not intended for commercial applica- tions. In the event of misuse and improper handling, use of force and modifi cations not carried out by our authorised service agents, the warranty will become void. Your statutory rights are not restricted in any way by this warranty. The warranty period is not extended by repairs eff ected under warranty. This applies also to replaced and repaired parts. Damages or defects discovered after purchase are to be reported directly after unpacking, at the latest two days after the purchase date. Repairs carried out after lapse of the warranty period are subject to charge. The warranty period is not extended by repairs eff ected under warranty. This applies also to replaced and repaired parts. Damages or defects discovered after purchase are to be reported directly after unpacking, at the latest two days after the purchase date. Repairs carried out after lapse of the warranty period are subject to charge.12 STS 850 A1
