USER MANUAL SLB 1.2 B2 SILVERCREST

Operating instructions

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

GB Operating instructions

Inhaltsverzeichnis

Einführung 2

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND / GERMANY

www.kompernass.com

Table des matieres

Introduction 14

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Indice

Introduzione 26

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhoud

Inleiding 38

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Table of contents

Introduction 50

Information concerning these operating instructions 50
Copyright 50
Limitation of liability 50
Warnings 50
Intended use 51

Safety 51

Basic safety instructions 51

Initial operation 53

Safety instructions 53

Check scope of delivery 53

Disposal of packaging 53

Fitting the support feet 54

Installation site requirements 54

Controls 54

Handling and use 55

System requirements 55

Connecting the loudspeaker 55

Switching on/off and adjusting the volume 55

Switching the light on and off 55

Switching bass and treble boost on/off 56

Connecting headphones 56

Fault rectification 57

Malfunction causes and remedies 57

Cleaning. 58

Safety instructions 58

Storage/Disposal 58

Storage 58

Disposal of the device 58

Appendix 59

Technical details 59

Notes on the Declaration of Conformity 59

Warranty 59

Service 60

Importer 60

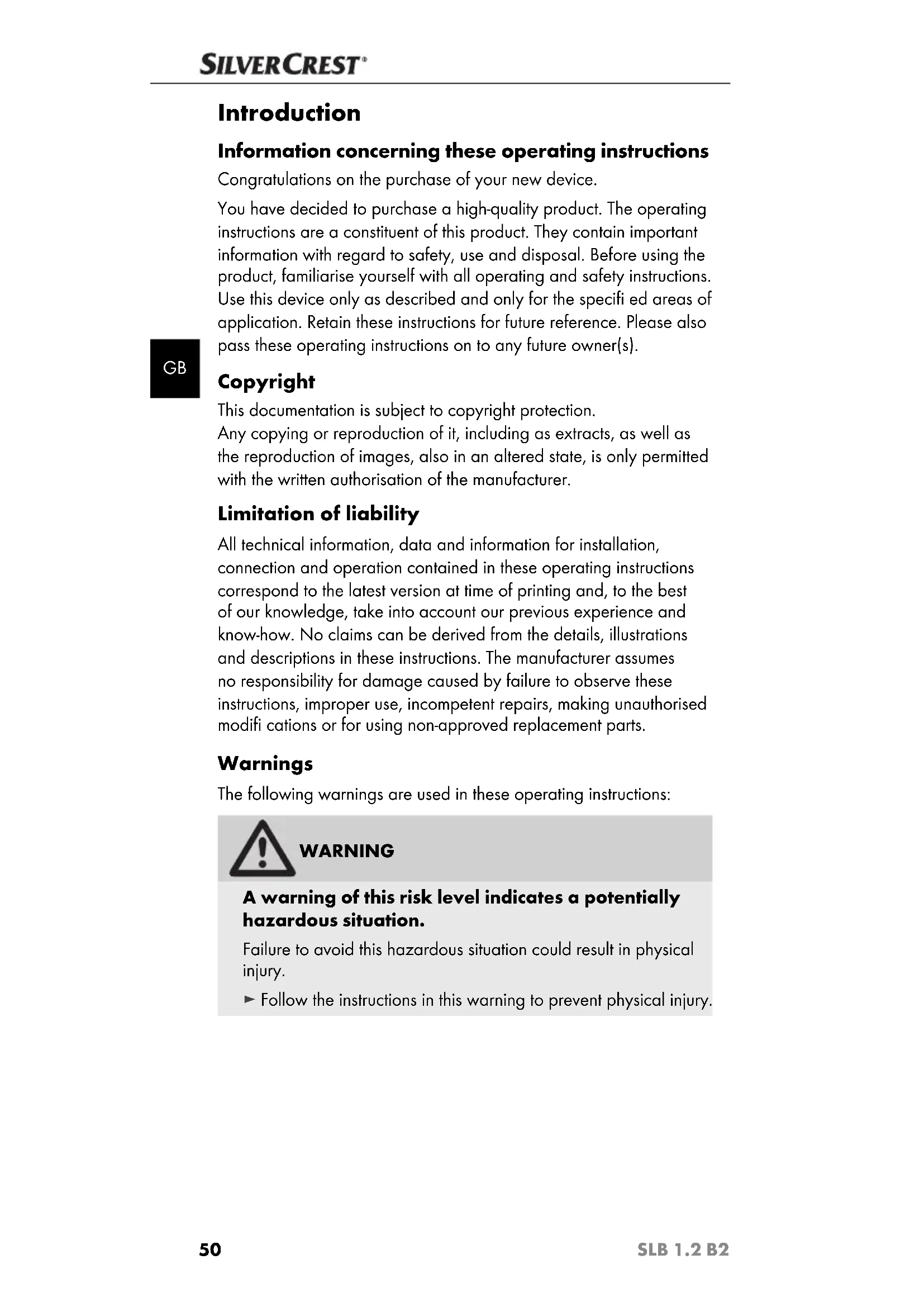

Introduction

Information concerning these operating instructions

Congratulations on the purchase of your new device.

You have decided to purchase a high-quality product. The operating instructions are a constituent of this product. They contain important information with regard to safety, use and disposal. Before using the product, familiarise yourself with all operating and safety instructions. Use this device only as described and only for the specified areas of application. Retain these instructions for future reference. Please also pass these operating instructions on to any future owner(s).

GB

Copyright

This documentation is subject to copyright protection.

Any copying or reproduction of it, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer.

Limitation of liability

All technical information, data and information for installation, connection and operation contained in these operating instructions correspond to the latest version at time of printing and, to the best of our knowledge, take into account our previous experience and know-how. No claims can be derived from the details, illustrations and descriptions in these instructions. The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, making unauthorised modifi cations or for using non-approved replacement parts.

Warnings

The following warnings are used in these operating instructions:

WARNING

A warning of this risk level indicates a potentially hazardous situation.

Failure to avoid this hazardous situation could result in physical injury.

Follow the instructions in this warning to prevent physical injury.

CAUTION

A warning of this risk level indicates potential damage to property.

Failure to avoid this situation could result in damage to property.

• Follow the instructions in this warning to prevent damage to property.

NOTE

A note indicates additional information that will assist you in handling the device.

Intended use

The loudspeaker is designed exclusively for connection to a PC, a notebook, or an audio device* (e.g. MP3 player) using a 3.5 mm jack plug. This device is exclusively for private use, and is not intended for industrial or commercial purposes. The device is not intended for any other use or for uses extending beyond those stated. Claims of any kind for damage arising as a result of non-intended use will not be accepted. The user is the sole bearer of the risk.

• If the loudspeaker is to be connected to a device without a USB connection, an external power supply with USB output is required (not included in delivery).

Safety

This section provides you with important safety information regarding the handling of the device. The device complies with the statutory safety regulations. Incorrect usage can lead to personal injury and property damage.

Basic safety instructions

For safe handling of the device, follow the safety information below:

Check device for visible external damage before use. Do not use devices that have been damaged or dropped.
Damaged cables or connections should be replaced by the Customer Service department.
Always grasp the connection cable by the plug. Do not pull on the power cable itself!
- Do not place any objects, furniture or similar on the connection cable and make sure that the cable is not trapped.

Never make a knot in the connection cable and do not bind it together with other cables. The power cable should be routed so that it cannot be stepped on or tripped over.

This device is not intended for use by persons (including children) with limited physical, physiological or intellectual abilities or lack of experience and/or knowledge unless they are supervised by a person who is responsible for their safety, or receive instructions from this person on how to use the device.

Children should be supervised to ensure that they do not play with the device.

Only have repairs carried out by authorised specialist companies or the Customer Service department. Improper repairs can pose signifi cant risks to the user. Warranty claims also become void.

Repairs to the device during the warranty period may only be carried out by a customer service department authorised by the manufacturer. Otherwise no additional warranty claims can be considered for subsequent damage.

Defective components must always be replaced with original replacement parts. It can only be guaranteed that safety requirements are complied with if original replacement parts are used.

Never attempt to open the device. There are no parts which can be cleaned or maintained inside the device. Do not perform any modifi cations or changes to the device yourself.

Never operate the device in the vicinity of naked fl ames, and do not place candles on or next to the device.

• Protect the device from moisture, spray and dripping water and the penetration of liquids. Do not place objects containing liquid (e.g. flower vases) on or near the device.

If liquid penetrates the device, switch it off, disconnect it from the power supply and have it inspected by qualified specialists before using it again.

If the device is moved from cold to warm surroundings, wait for approx. 2 hours until the device has reached the ambient temperature before switching it on.

If you are using a USB power supply, the mains socket used must always be easily accessible so that the USB power supply can be quickly disconnected from the socket in a hazardous situation.

Initial operation

Safety instructions

WARNING

• Packaging materials such as plastic fi lm or polystyrene must not be used by children as a plaything. Risk of suff ocation!

Check scope of delivery

This device is supplied with the following components as standard:

• Loudspeakers
• 2 support feet
  This operating manual

NOTE

• Check the contents for completeness and for signs of visible damage.
  If the contents are incomplete or damaged due to defective packaging or through transportation, contact the Service Hotline (see chapter Service).

Disposal of packaging

The packaging protects the device from transport damage.

The packaging materials have been selected in accordance with their environmental friendliness and disposal attributes, and are therefore recyclable.

The recirculation of packaging into the material cycle saves raw materials and reduces the amount of waste generated. Dispose of packaging material that is no longer needed in accordance with applicable local regulations.

NOTE

If possible, keep the original packaging during the warranty period so that the device can be properly packed for returning in the event of a warranty claim.

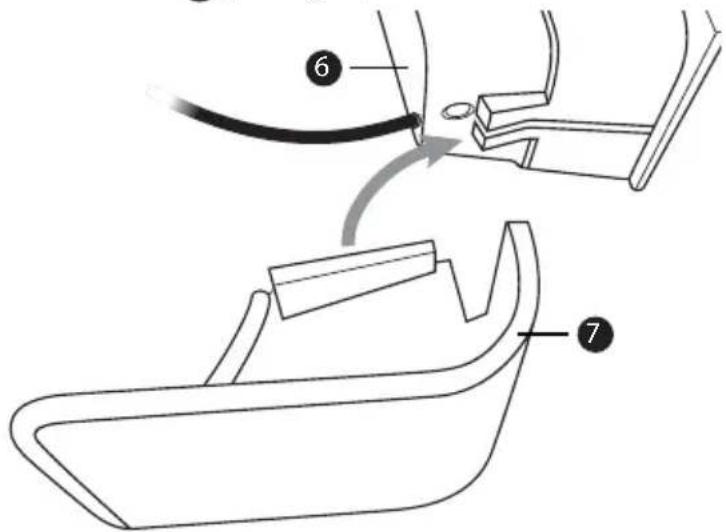

Fitting the support feet

Slide the support feet onto the loudspeaker guide rails from behind 6 (see fig. 1).

Fig. 1

Installation site requirements

For safe and trouble-free operation of the device, the installation site must fulfil the following requirements:

The device must be placed on a firm, flat and level surface.
Do not place the device in a hot, wet or extremely moist environment or in the vicinity of flammable materials.
Place the device so that it is not exposed to direct sunlight, strong artificial light or heated air.

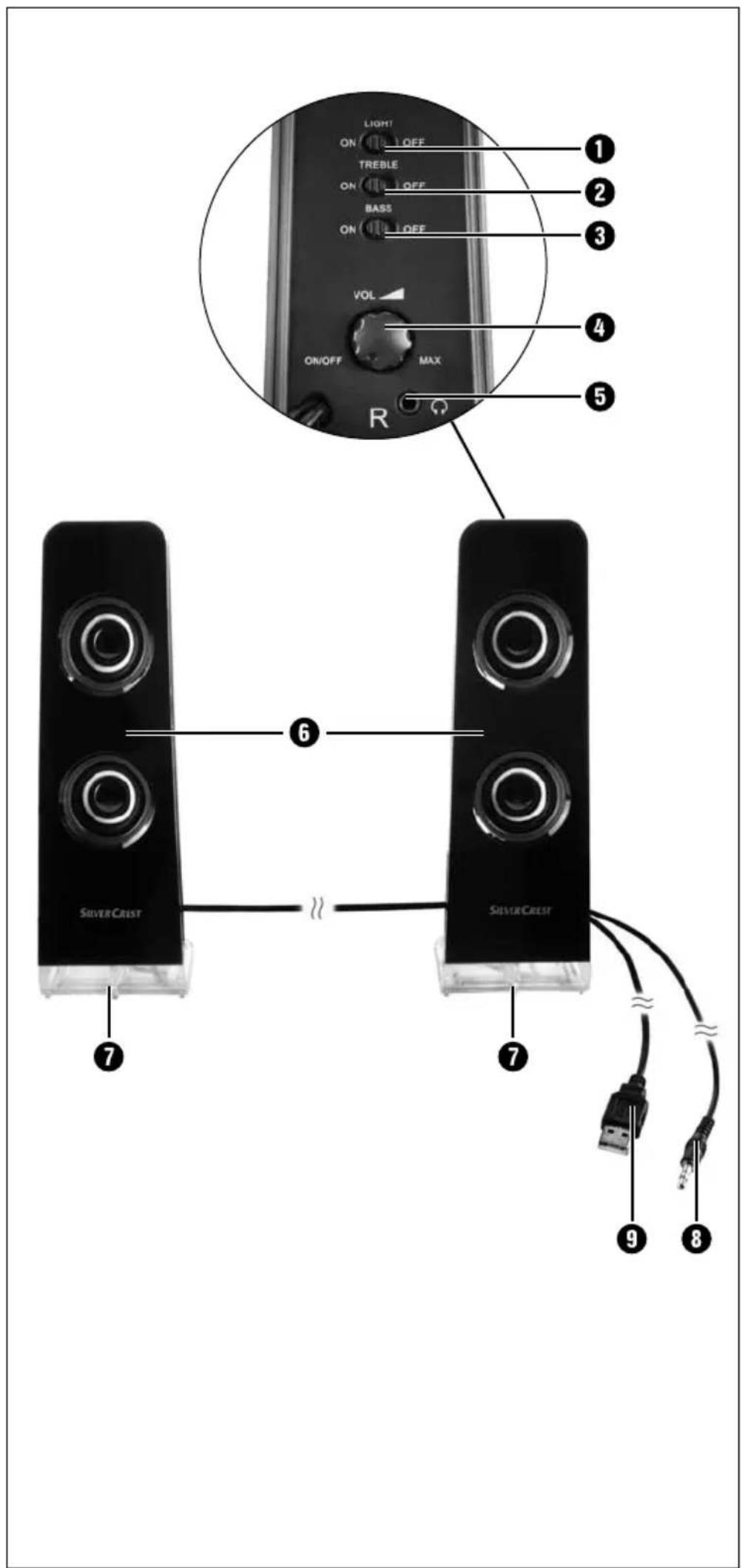

Controls

LIGHT switch (ON/OFF)
2 TREBLE switch (ON/OFF)
BASS switch (ON/OFF)
4 Rotary switch (on/off and volume control)
Headphone socket (3.5 mm jack plug)
Loudspeaker
Support foot
8 Loudspeaker cable with 3.5mm jack plug
9 Power supply cable with USB plug

Handling and use

This section provides you with important information on handling and using the device.

System requirements

• Computer with sound card and USB connection

or

• audio device with audio output (3.5 mm jack plug) and USB connection (alternatively with external USB power supply).

Connecting the loudspeaker

Ensure that the rotary switch 4 is in the "OFF" position.
Plug the 3.5mm jack plug into the line out or headphone socket of your audio device (e.g. notebook, MP3 player). The audio signals are transmitted via this connection.
Plug the USB plug 9 into a USB socket of your audio device (alternatively into the USB socket of an external USB power supply). The power supply for the loudspeaker 6 is provided via this connection.

NOTE

The loudspeaker do not work without a USB connection!

Switching on/off and adjusting the volume

Turn the rotary switch 4 clockwise until a click is heard in order to switch the loudspeakers 6 on.
Turn the rotary switch 4 further in a clockwise direction to increase the volume.
Turn the rotary switch 4 anticlockwise to decrease the volume.
Turn the rotary switch 4 anticlockwise until a click is heard (OFF position) in order to switch the loudspeakers 6 off.

Switching the light on and off

Turn the LIGHT switch 1 to the "ON" position in order to switch the loudspeaker 6 light on.
Turn the LIGHT switch 1 to the "OFF" position in order to switch the loudspeaker 6 light off.

Switching bass and treble boost on/off

Turn the BASS switch 3 to the "ON" position in order to switch the loudspeaker 6 bass boost on.
Turn the BASS switch 3 to the "OFF" position in order to switch the loudspeaker 6 bass boost off.
Turn the TREBLE switch 2 to the "ON" position in order to switch the loudspeaker 6 treble boost on.
Turn the TREBLE switch 2 to the "OFF" position in order to switch the loudspeaker 6 treble boost off.

GB

Connecting headphones

WARNING

Loud music can lead to hearing damage.

• Avoid extremely loud sound levels, especially over long periods of time, when you are using headphones.

Ensure that the rotary switch 4 is in the OFF position.
Insert the 3.5mm jack plug of the headphones into the headphone socket 5.
Before placing the headphones on your head, switch the loudspeaker 6 on again and carefully increase the volume.

NOTE

As soon as you connect the headphones, the loudspeakers will be muted.
The headphone output is passive, which means that the volume can be controlled using the rotary switch 4, but the maximum volume is specified by the computer or audio device. Please note that headphones may only be connected if the audio device has the necessary standard volume limitation applied to its output. Please refer to your audio device instruction manual for more information.

Fault rectification

This section contains important information on fault localisation and rectification. Observe the instructions in order to avoid risks and damage.

Malfunction causes and remedies

CAUTION

The loudspeakers may not be opened!

There are no parts which can be cleaned or maintained inside the device. Opening the loudspeakers will result in irreparable damage to the device.

The following table will help with localising and remedying minor malfunctions:

Defect Possible	cause Rectifi cation
No sound.	The volume control of the player or the loud-speaker 6 is set to the minimum volume.	Increase the volume at the audio device or the loudspeaker 6
	The audio device has been muted.	Switch the audio device muting off again.
	Audio device or loudspeaker 6 not switched on.	Ensure that all devices are switched on.
	The 3.5 mm jack plug 8 is not fully inserted into the audio device's headphone socket.	Insert the 3.5 mm jack plug 8 fully into the socket.
No sound or volume too low on connected headphones.	The volume control of the audio device is set to the minimum volume.	Increase the volume at the audio device.
	Headphones defective.	Check the head- phone function on the audio device itself.

NOTE

If the aforementioned solutions do not resolve the problem, please contact Customer Service (see chapter Service).

Cleaning

Safety instructions

CAUTION

Possible damage to the device

Penetrating moisture can cause damage to the device.

To avoid irreparable damage, ensure that no moisture penetrates the device during cleaning.

Clean the housing of the device with a lightly moistened cloth and a mild detergent only.

GB

Storage/Disposal

Storage

Store the device in a dry environment.

Disposal of the device

Do not dispose of the device in the normal domestic waste. This product is subject to the provisions of European Directive 2002/96/EC-WEEE (Waste Electrical and Electronic Equipment).

Dispose of the device via an approved disposal centre or at your community waste facility. Please observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Appendix

Technical details

Output power 2 x 0.6 W
Voltage supply - input voltage - current consumption	via USB-A plug 5 V = max. 500 mA
Audio connection: 3.5 mm jack plug
Headphone connection 3.5 mm jack socket
Operating temperature +5 - +35°C
Storage Temperature 0 - +40°C
Humidity (no condensation) 15 - 75 %
Dimensions (W × H × D) approx. 6.9 × 21.8 × 6.5 cm
Weight 450 g approx.

Notes on the Declaration of Conformity

With regard to conformity with the basic requirements and other relevant provisions, this device complies with the Electromagnetic Compatibility Directive 2004/108/EC and the RoHS Directive 2011/65/EU.

The full original Declaration of Conformity is available from the importer.

Warranty

The warranty provided for this device is 3 years from the date of purchase. This device has been manufactured with care and inspected meticulously prior to delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact Customer Service by telephone. This is the only way to guarantee free return of your goods.

NOTE

The warranty only covers claims for material and manufacturing defects, not for transport damage, worn parts or damage to fragile components such as switches or batteries.

This device is intended solely for private use and not for commercial purposes. The warranty is deemed void if this product has been subjected to improper or inappropriate handling, abuse or modifi cations that were not carried out by one of our authorised service centres.

Your statutory rights are not restricted in any way by this warranty. The warranty period is not prolonged by repairs made under the warranty. This also applies to replaced and repaired parts. Damage and defects present at the time of purchase must be reported immediately after unpacking, or no more than two days after the date of purchase. Repairs made after expiry of the warranty period are chargeable.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 89655

Hotline availability: Monday to Friday 08:00 - 20:00 (CET)

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com
