Product Type	Analog display kitchen scale
Maximum capacity	5 kg (11 lb)
Graduation	kg/g and lb/oz
Display	Analog (needle)
Functions	Weighing, zero reset (manual tare)
Power	None (mechanical)
Cleaning	Wipe with a damp cloth; plate dishwasher safe
Safety	Do not exceed 5 kg; avoid shocks, moisture, and high temperatures
Warranty	3 years from date of purchase
After-sales service	FR: 0800 919270 (Mon-Fri 8am-8pm); BE: (service hours)
Delivery contents	Scale, stand, plate, 2 screws, 2 nuts, manual
Materials	Plastic, metal (stand, screws)
Usage	Household only, for food items
Repairability	Repairs exclusively by authorized after-sales service
Disposal	Follow local regulations

Frequently Asked Questions - Ernesto EKWR 5 A1 SILVERCREST

How to assemble the Ernesto EKWR 5 A1 scale?

Place the scale on a flat surface. Unscrew the outer screws of the stand, then place the stand on the weighing mechanism aligning the holes. Screw in the screws from above and the nuts from below. Finally, place the plate on the stand. Use the appliance only when fully assembled.

What is the maximum weighing capacity?

The maximum capacity is 5 kg (11 lb). Never exceed this load to avoid irreparably damaging the scale.

How to reset the needle to zero?

Turn the zero reset knob located under the plate until the needle points exactly at zero on the scale.

Can I weigh liquids?

Yes, provided you put them in a suitable container. Be careful not to spill liquid on the scale as this could damage it. Use a stable container and do not exceed the maximum capacity.

How to clean the scale plate?

Remove the plate from the stand and wash it with hot water and mild dish soap. You can also wash it in the dishwasher. Rinse and dry thoroughly. For the scale itself, wipe it with a damp cloth.

Can I use the scale outdoors?

No, the scale is designed for indoor household use. Protect it from moisture, dust, and temperature variations. Do not expose it to direct sunlight or rain.

What to do if the needle does not return to zero?

Check that the scale is on a flat and stable surface. Use the zero reset to manually adjust the needle. If the problem persists, contact after-sales service.

Is the scale under warranty?

Yes, the warranty is 3 years from the date of purchase. It covers material and manufacturing defects. Keep your receipt as proof of purchase.

Where can I find after-sales service for France?

In France, contact after-sales service at 0800 919270 (toll-free) or by email at [e-mail]. Opening hours: Monday to Friday from 8am to 8pm (CET). Provide the IAN number 273415.

Can I weigh objects exceeding 5 kg?

No, that would irreparably damage the scale. Never exceed the maximum load of 5 kg. Use another instrument for heavier objects.

USER MANUAL Ernesto EKWR 5 A1 SILVERCREST

Operating instructions

NL BE

KEUKENWEEGSCHAAL "RETRO"

Gebruiksaanwijzing

PT

BALANCA DE COZINHA "RETRO"

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Contents

Introduction 10

Information concerning these operating instructions 10
Intended use 10

Package contents 10

Components. 11

Technical data 11

Safety guidelines 11

Preparation 12

Unpacking 12

Disposal of packaging materials 12

Installation 13

Weighing food 13

Cleaning and care 14

Storage 14

Disposal of the appliance 14

Warranty and service 15

Importer 15

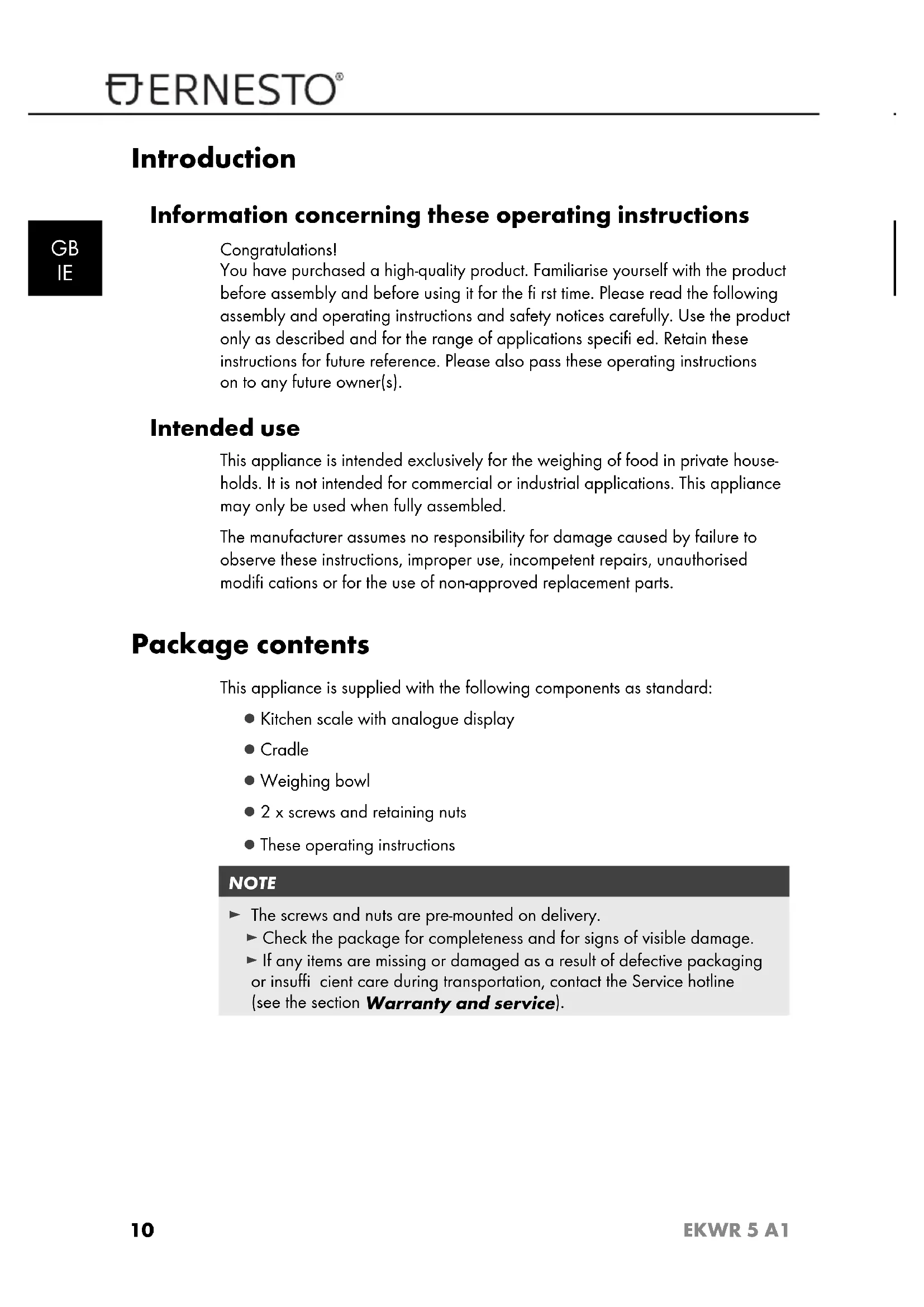

Introduction

Information concerning these operating instructions

Congratulations!

You have purchased a high-quality product. Familiarise yourself with the product before assembly and before using it for the first time. Please read the following assembly and operating instructions and safety notices carefully. Use the product only as described and for the range of applications specified. Retain these instructions for future reference. Please also pass these operating instructions on to any future owner(s).

Intended use

This appliance is intended exclusively for the weighing of food in private households. It is not intended for commercial or industrial applications. This appliance may only be used when fully assembled.

The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, unauthorised modifi cations or for the use of non-approved replacement parts.

Package contents

This appliance is supplied with the following components as standard:

• Kitchen scale with analogue display
  Cradle
• Weighing bowl
• 2 × screws and retaining nuts
  These operating instructions

NOTE

The screws and nuts are pre-mounted on delivery.

• Check the package for completeness and for signs of visible damage.
  If any items are missing or damaged as a result of defective packaging or insufficient care during transportation, contact the Service hotline (see the section Warranty and service).

Components

Weighing bowl
Screw
3 Cradle
Nut
Zero setting wheel
6 Pointer
Scale

Technical data

Maximal weighing capacity 5kg (11 lbs)

Weight increments 20 g (1 oz)

Capacity: Weighing bowl 1

1 liter

Safety guidelines

To ensure safe operation of the appliance, follow the safety guidelines set out below:

WARNING - RISK OF INJURY!

Prior to use, check the appliance for visible external damage. Do not operate an appliance which has been damaged or dropped.
People who, due to their physical, intellectual or motor abilities, are incapable of operating the appliance safely may only use the appliance under the supervision or direction of a responsible person.
■ Do not allow children to use the appliance unless they are being supervised.
■ Ensure that you do not put your fingers between the bowl and the scale when you are fi lling the bowl. Risk of crush injuries!
All repairs must be carried out by authorised specialist companies or by the Customer Service department. Improper repairs can pose significant risks to the user. They will also invalidate any warranty claim.

GB IE

CAUTION - PROPERTY DAMAGE

Defective components must always be replaced with original replacement parts. Compliance with safety requirements can only be guaranteed if original replacement parts are used.
Do not allow any liquids or moisture to get into the appliance.
Do not place any objects on the scale when it is not in use.
- Protect the appliance against knocks, dust, chemicals, extremes of temperature, etc. and keep it away from sources of heat (ovens, radiators).
Do not press down on the weighing mechanism.
Do not press on the plastic cover of the weight display.
Do not expose the appliance to high temperatures.
- Do not load the scale with more than 5kg . The scale could be irreparably damaged.

Preparation

Unpacking

1. Remove all parts of the scale and the operating instructions from the box.
2. Remove all packing material from the scale. Remove the cable ties and the paper from below the weighing mechanism.
3. Clean the appliance as described in the section "Cleaning and Care".

WARNING - RISK OF SUFFOCATION!

• Do not allow children to play with packaging materials. There is a risk of suffocation.

Disposal of packaging materials

The packaging protects the appliance from damage during carriage. The packaging materials have been selected for their environmental friendliness and ease of disposal, and are therefore recyclable.

Returning the packaging to the materials cycle conserves raw materials and reduces the amount of waste that is generated. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

NOTE

If possible, keep the original packaging of the appliance during the warranty period so that the appliance can be packed properly for returning in the event of a warranty claim.

Installation

1. Place the scale on a flat and stable surface.
2. Remove the two screws 2 from the cradle 3 using a spanner and a screwdriver.
3. Place the cradle ③ on the weighing mechanism so that the holes for the screws ② are arranged one above the other and the bent arms of the cradle ③ are pointing upwards.
4. Push the screws ② through the holes in the cradle ③ and screw the nuts ④ onto them from below (see fold-out page).
5. Place the weighing bowl ① onto the cradle ③.

NOTE

The appliance may only be used when fully assembled.

Weighing food

CAUTION - PROPERTY DAMAGE!

• Do not load the scale with more than 5kg . The scale could be irreparably damaged.

• If you have not done this already: place the weighing bowl ① on the cradle ③

• Turn the zero setting wheel 5 until the pointer 6 points to zero.
• Place the food in the weighing bowl 1

The pointer 6 shows the weight on the scale 7.

• Read the outer digits on the scale ⑦ for the weight in kilograms/grams.
• Read the inner digits on the scale ⑦ for the weight in pounds (lb)/ ounces (oz).

Cleaning and care

CAUTION - PROPERTY DAMAGE!

Do not allow any liquids to get into the scale.

This could impair the functionality of the appliance.

Do not use abrasive cleaners or solvents.

These could damage the upper surfaces of the appliance.

1. Wipe the scales with a damp cloth. For stubborn soiling use a mild detergent on the cloth. Wipe off any detergent residue using a cloth moistened with clean water only.
2. Remove the weighing bowl ① from the cradle and wash it in warm water and a mild detergent. Afterwards, rinse it with plenty of clean water to remove all detergent residues. Dry the weighing bowl ① thoroughly.

NOTE

You can also wash the bowl ① in the dishwasher!

Storage

Store the scales in a clean and dry location.
Do not place any objects in the weighing bowl 1 during storage.

Disposal of the appliance

Dispose of the appliance in an environmentally friendly manner.

Dispose of the appliance via an approved waste disposal company or your municipal waste disposal facility. Please observe applicable regulations.

Please contact your waste disposal facility if you are in any doubt.

Warranty and service

You are provided a 3-year warranty on this appliance, valid from the date of purchase. This appliance has been manufactured with care and inspected meticulously prior to delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact your Customer Service unit by telephone. This is the only way to guarantee free return of your merchandise.

NOTE

The warranty only covers claims for material and manufacturing defects, not for damage sustained during carriage, components subject to wear and tear or damage to fragile components such as switches or batteries.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in the case of misuse or improper handling, use of force or interventions which were not carried out by one of our authorised Service centres. Your statutory rights are not restricted by this warranty. The warranty period is not prolonged by repairs made under the warranty. This also applies to replaced and repaired components. Any damage or defects present at the time of purchase must be reported immediately after unpacking, but no later than two days after the date of purchase. Repairs carried out after expiry of the warranty period shall be subject to charge.

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.) E-Mail: [e-mail] IAN 273415

IE Service Ireland

Tel.: [phone]
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: [e-mail]
IAN 273415

Hotline availability: Monday to Friday 08:00 - 20:00 (CET)

Importer

KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
