USER MANUAL SKIL 16 A1 SILVERCREST

pdf online www.lidl-service.com IN-EAR-KO IN-EAR HE ÉCOUTEUR SKIL 16 A

IN-EAR-KOPFHÖRER IN-EAR HEADPHONES ÉCOUTEURS INTRA-AURICULAIRES SKIL 16 A1

DE AT CH

IN-EAR-KOPFHÖRER

Bedienungs- und

Sicherheitshinweise

GB IE

IN-EAR

HEADPHONES

Operation and safety notes

FR BE

ÉCOUTEURS INTRA- AURICULAIRES

GB/IE Operation and safety notes Page 14

Diagram of a handheld audio device with labeled parts including earbuds, knobs, and speakers

Introduction Page 15
Intended use Page 15
Warnings and symbols used .... Page 16
Safety instructions.... Page 16
Scope of delivery Page 19
Description of parts ...... Page 20
Technical data Page 21
Before use.... Page 21
Operation Page 21
Storage when not in use ...... Page 23
Cleaning Page 23
Disposal...... Page 24
Simplified EU declaration of conformity ... Page 24

IN-EAR HEADPHONES

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Intended use

This product is a consumer electronics device. This product may only be used privately and not for industrial or commercial purposes. Furthermore, this product may not be used in tropical climates. Any other use is considered improper. Any claims resulting from improper use or due to unauthorised modification of the product will be considered un-warranted. Any such use is at your own risk.

Warnings and symbols used

These instructions for use contain the following warnings:

DANGER!

This symbol with the signal word indicates a hazard with a high level of risk which, if not avoided, will result in serious injury or death.

WARNING!

This symbol with the signal word indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury or death.

NOTE:

A note provides additional information to improve product use.

Take care when using headphones. Listening at high-volume for prolonged periods of time can damage your hearing. Before using the headphones, Set the volume to lowest level.

Safety instructions

Before using the product, please familiarize yourself with all of the safety instructions and instructions for use! When passing this product on to others, please also include all the documents!

⚠ WARNING! DANGER TO LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!

⚠️ DANGER! RISK OF SUFFOCATION! Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. The packaging material is not a toy.

This product may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities or lacking experience and / or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Do not allow children to play with the product.

Cleaning and user maintenance should not be performed by children without supervision. The product is not a toy.

RISK OF PROPERTY DAMAGE

This product does not contain any parts which can be serviced by the user.
- Do not place burning candles or other open fire on or next to the product.
- Check the product before every use! Discontinue use if any damage to the product or the charging cable is detected!
If you notice smoke or unusual noise or odour, disconnect the product immediately from the headphones socket.

■ Sudden temperature changes may cause condensation inside the product. In this case, allow the product to acclimate for some time before using it again to prevent short circuits!

- Do not operate the product near heat sources, e.g. radiators or other devices emitting heat!

- Do not throw the product into fire and do not expose to high temperatures.

■ Ensure that no direct heat sources (e.g. heating) can affect the headphones.

■ Make sure that any contact with splashed and dripping water and corrosive liquids is avoided and the headphones are not operated in the vicinity of water. In particular, the headphones should never be submerged in liquid; do not place any vessels filled with liquid, for example, vases or drinks, on or near the headphones.

The headphones should not be used in the immediate vicinity of magnetic fields (e.g. speakers).

■ Ensure that no fire sources (e.g. burning candles) are placed on or near the headphones.

The headphones should never be subjected to extreme temperature fluctuations as this could result in condensation and electrical short circuits. If the headphones were subjected to extreme temperature fluctuations, however, wait (approx. 2 hours) until the headphones have reached ambient temperature before use.

■ Make sure that he headphones are never subjected to excessive shocks and vibrations.
■ Ensure that no objects are placed on the connected cable and that the cable is not connected over sharp edges because it could be damaged otherwise.
- Do not try to open the product! It has no internal parts requiring maintenance.

Remember that excessive sound pressure or volumes from headphones or earphones can lead to damage to the hearing. Always adjust the volume to a pleasant, not too loud level. If you have adjusted the volume of the headphones to be too high and use that for an extended period, it can damage the listener's hearing.

- Scope of delivery

1 In ear headphones
2 Ear cushions - large
2 Ear cushions - medium (pre-installed)
2 Ear cushions - small
1 Instructions for use

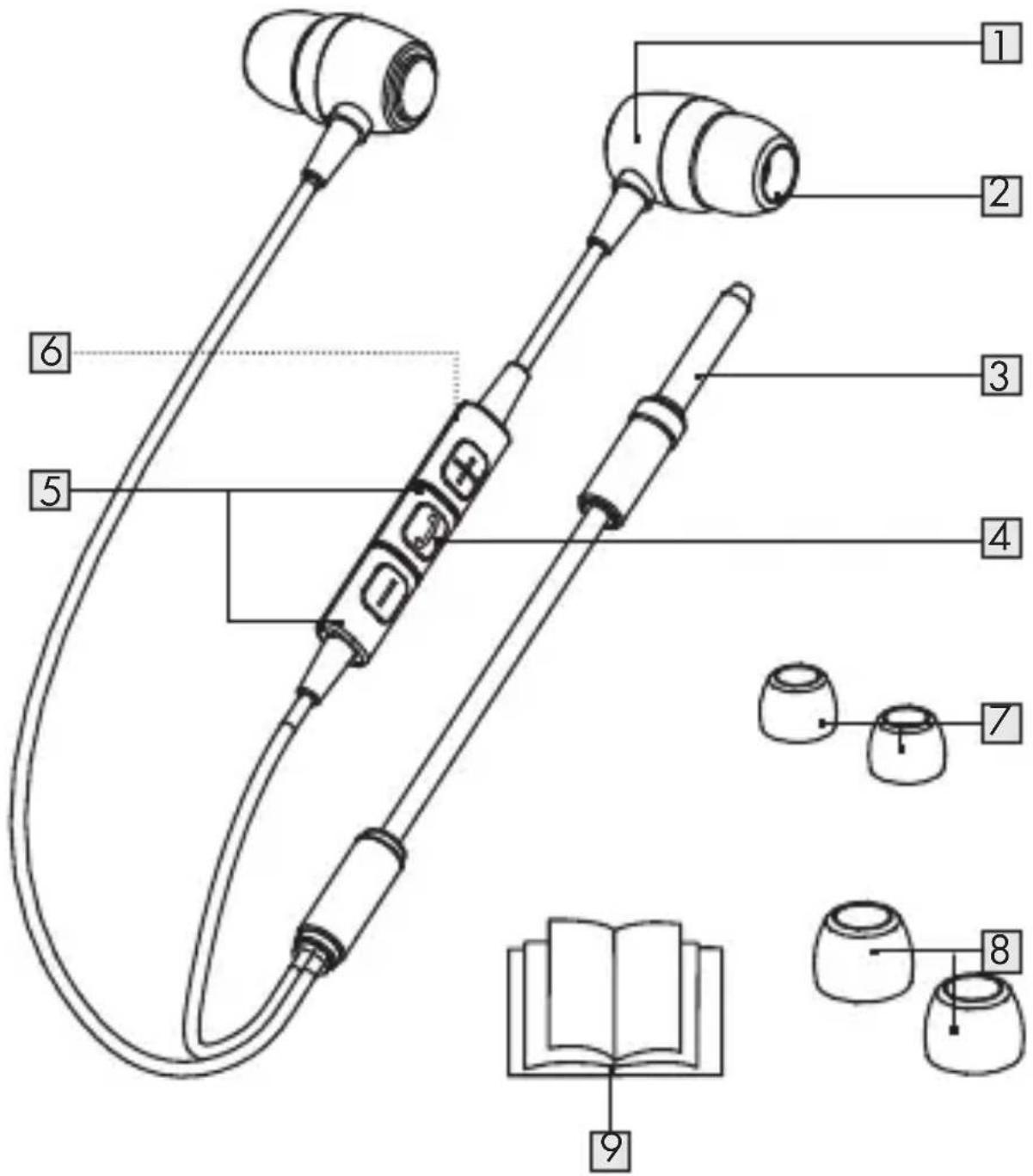

Description of parts

Diagram of a handheld earphone with labeled parts including earphones, knobs, and an open book.

1 Earbud
2 Ear cushions - medium
3 3.5 mm plug
4 Multi function button
5 Volume buttons +/-

6 Microphone
(at the back of the control)

7 Ear cushions - small

8 Ear cushions - large

9 Instructions for use

● Technical data

Impedance: 16 Ω +/- 4 Ω

Frequency response: 20 Hz - 20 kHz

Power handling capacity: 50 mW / 1000 Hz

Connector: 3.5 mm plug

Weight: 15 g

Cord length: 1.2 m

Operating temperature: 5 to 35 °C

The specification and design may be changed without notification.

Before use

NOTES:

All parts have to be unpacked and the packaging material has to be removed completely.

Before use, verify the package contents are complete and undamaged!

Operation

Function Operation

Pause / start playback.	Briefly press 4 during audio playback.
Select next track. Press 4 2x in quick succession during audio playback.
Select previous track.	Press 4 3x in quick succession during audio playback.
Function Operation
Accepting a call / mute the microphone during conversation.	Briefly press 4.
Ending / rejecting a call.	Press and hold press 4.
Controlling volume.	Briefly press or press and hold the volume buttons +/- 5 to increase (+) or decrease (-) the volume.

- Optional – Changing ear cushions

A

2 1 7 18

B

B

Remove the medium size ear cushion from the ear buds ① (fig. A).
■ Select the small or large size ear cushions 8 and push them on to the earbuds 1 (fig. B).

● Storage when not in use

■ Store the product in a dry location from dust, protected from direct sunlight.

Cleaning

■ Disconnect the product before cleaning.
No acid, chafing or solvent cleaning agents should be used or the product can be damaged.
■ Only clean the outside of the product using a soft, dry cloth!
At persistent soiling, a mild cleaning agent can be used.
It is necessary to repair the product if it has been damaged

in any way, for example, if the housing is damaged, if liquid or objects have penetrated the device or if the product has been exposed to rain or moisture.

Repair work is also required if the device is not working properly or has been dropped. If smoke is produced, or there are any unusual sounds or smells, disconnect the product immediately. In such cases, the product should not be used until if it has been inspected by authorised service personnel. Only have the device repaired by qualified personnel. Never open the housing of the product.

● Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Contact your municipality for information on how to dispose of your worn-out product.

The adjacent symbol of a crossed out dustbin on wheels indicates this device is subject to Directive 2012/19/EU. This directive states at the end of the life this device must not be disposed of through regular household refuse but must be returned to special collection sites, recycling depots or waste management companies.

This disposal is free of charge to you. Protect the environment and dispose properly.

Please contact your local waste management company or the city / municipal administration for more information.

● Simplified EU declaration of conformity

We, OWIM GmbH & Co. KG, Stiftsbergstraße 1, DE-74167 Neckarsulm, GERMANY, declare the product IN EAR HEAD PHONES HG03080A, HG03080B, to meet the fundamental requirements and other relevant provisions of EMC Directive 2014/30/EU and RoHS Directive 2011/65/EU.

The complete declaration of conformity can be viewed at: www.owim.com

Introduction Page 26

Diagram of a handheld earphone with labeled parts including earphones, knobs, and an open book.

Diagram of a handheld earphone with labeled parts including earphones, knobs, and an open book.

1 Oordopje
4 Oorkussens - medium
3 3,5 mm stekker
4 Multifunctionele knop
5 Volumeknoppen +/-

Diagram of a handheld earphone with labeled parts including earphones, knobs, and an open book.
