USER MANUAL SOM 6 A1 SILVERCREST

FUNKMAUS WIRELESS MOUSE SOURIS SANS FIL SOM 6 A1

DE AT CH

FUNKMAUS

Operation and safety notes

FR BE

SOURIS SANS FIL

GB/IE Operation and safety notes Page 22

TRAGEN SIE SCHUTZHANDSCHUHE!

Intended use Page 23

Warnings and symbols used . Page 23

Trademark notices. Page 25

Scope of delivery. Page 25

Safety instructions. Page 25

Description of parts . 30

Technical data Page 32

Before use. Page 32

Operation. 35

Storage when not in use. Page 37

Cleaning 37

Troubleshooting 38

Disposal. Page 38

Simplified EU declaration of conformity 39

WIRELESS MOUSE

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is an information technology device and is designed as an input device for computers. This product must not be used outside of closed rooms. This product is not intended for use in companies or for other commercial uses (e.g. office productivity applications). Use this product only in the home for private purposes Any other use is considered improper. Any claims resulting from improper use or due to unauthorised modification of the product will be considered un-warranted. Any such use is at your own risk.

-Warnings and symbols used

These instructions for use contain the following warnings:

DANGER!

This symbol with the signal word indicates a hazard with a high level of risk which, if not avoided, will result in serious injury or death.

WARNING!

This symbol with the signal word indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury or death.

CAUTION!

This symbol with the signal word indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

This icon alerts about a strong light source.

NOTE:

A note provides additional information to improve product use.

CAUTION! EXPLOSION HAZARD!

A warning with this symbol and word "CAUTION!

EXPLOSION HAZARD" indicates the potential

threat of explosion. Failure to observe this warning may result in serious or fatal injuries and potential property damage. Follow the instructions in this warning to prevent serious injuries, a danger to life or property damage!

This action sign indicates to wear suitable protective gloves! Follow the instructions to avoid hands striking or being struck by objects or being in contact with thermal or chemical materials!

Trademark notices

■ USBRegistered trademark of USB Implementers Forum, Inc.
Windiswasregistered trademark of Microsoft Corporation in the United States and other countries.
All trademarks are the property of their respective owners and all rights are acknowledged.
The SilverCrest trademark and trade name is the property of their respective owners.
Any other names and products may be trademarks or registered trademarks of their respective owners.

Scope of delivery

1 Wireless mouse
1 Battery (AA)
1 USB dongle
1 Instructions for use

Safety instructions

Before using the product, please familiarize yourself with all of the safety instructions and instructions for use! When passing this product on to others, please also include all the documents!

WARNING! DANGER TO LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!

DANGER! RISK OF SUFFOCATION! Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. The packaging material is not a toy.

This product may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance should not be performed by children without supervision. The product is not a toy.

RISK OF PROPERTY DAMAGE

This product does not contain any parts which can be serviced by the user.
- Do not place burning candles or other open fire on or next to the product.
Check the product before every use! Discontinue use if any damage to the product is detected!
Sudden temperature changes may cause condensate inside the product. In this case, allow the product to

acclimate for some time before using it again to prevent short circuits!

• Do not operate the product near heat sources, e.g. radiators or other devices emitting heat!

• Do not throw the product into fire and do not expose to high temperatures.

• Do not try to open the product! It has no internal parts requiring maintenance.

DANGER! Radio interference

• Switch the product off on aeroplanes, in hospitals, service rooms, or near medical electronic systems. The wireless signals transmitted could impact the functionality of sensitive electronics.
• Keep the product at least 20~cm from pacemakers or implantable cardioverter defibrillators, as the electromagnetic radiation may impair the functionality of pacemakers.
  The radio waves transmitted could cause interference in hearing aids.
• Do not place the product near flammable gasses or potentially explosives areas (e.g. paint shops) with the wireless components on, as the radio waves emitted can cause explosions and fire.
  The range of the radio waves varies by environmental conditions. In the event of wireless data transmission, unauthorised third parties receiving the data cannot be excluded.
  The OWIM GmbH & Co KG is not responsible for interference with radios or televisions due to unauthorised modification of the product. The OWIM GmbH & Co KG further assumes no liability for using or replacing cables and products not distributed by OWIM.

The user of the product is fully responsible for correcting interference caused by such unauthorised modification of the product, as well as replacement of such products.

CAUTION! EXPLOSION HAZARD!

Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result. Never throw batteries / rechargeable batteries into fire or water. Do not exert mechanical loads to batteries / rechargeable batteries.

Risk of batteries / rechargeable batteries leakage

Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.

Avoid contact with the skin, eyes and mucous membranes. In the event of contact with battery acid, thoroughly flush the affected area with plenty of clean water and seek immediate medical attention.

WEAR PROTECTIVE GLOVES!

Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

Battery

Insert the battery with the correct polarity.
Never try to recharge the batteries and under no circumstances throw them into fire.

Remove the battery when the device is not to be used for a long time.
Improper use may cause explosions and danger to life.

WARNING!

Ensure that no direct heat sources (e.g. heating) can affect the product.
Make sure that any contact with splashed and dripping water and corrosive liquids is avoided and the product is not operated in the vicinity of water. In particular, the product should never be submerged in liquid; do not place any vessels filled with liquid, for example, vases or drinks, on or near the product.
The product should not be used in the immediate vicinity of magnetic fields (e.g. speakers).
Ensure that no fire sources (e.g. burning candles) are placed on or near the product.
The product should never be subjected to extreme temperature fluctuations as this could result in condensation and electrical short circuits. If the product were subjected to extreme temperature fluctuations, however, wait (approx.

2 hours) until the product have reached ambient temperature before use.

Make sure that the product is never subjected to excessive shocks and vibrations.

Avoid damages to your eyes! Do not look into the laser rays.

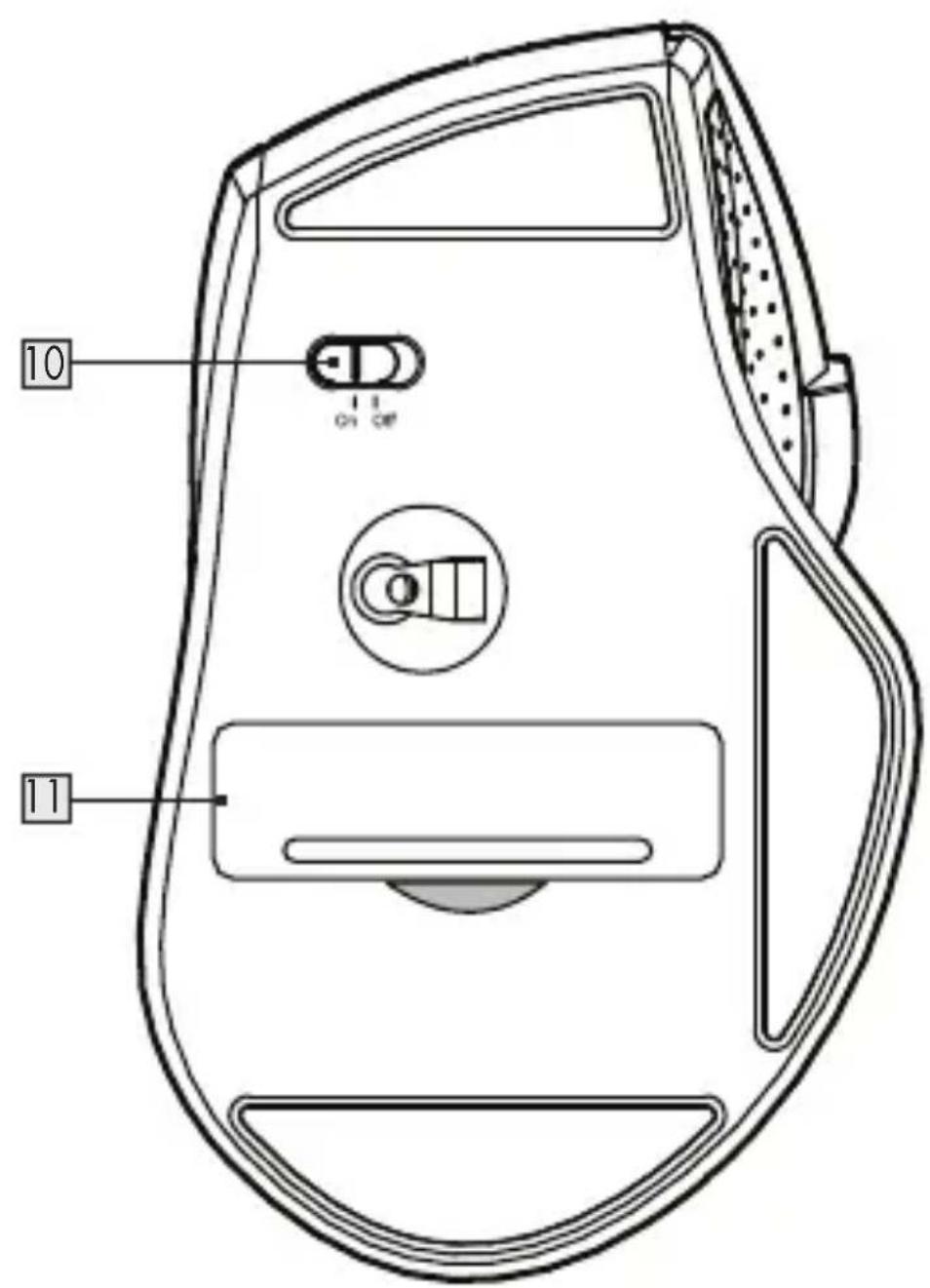

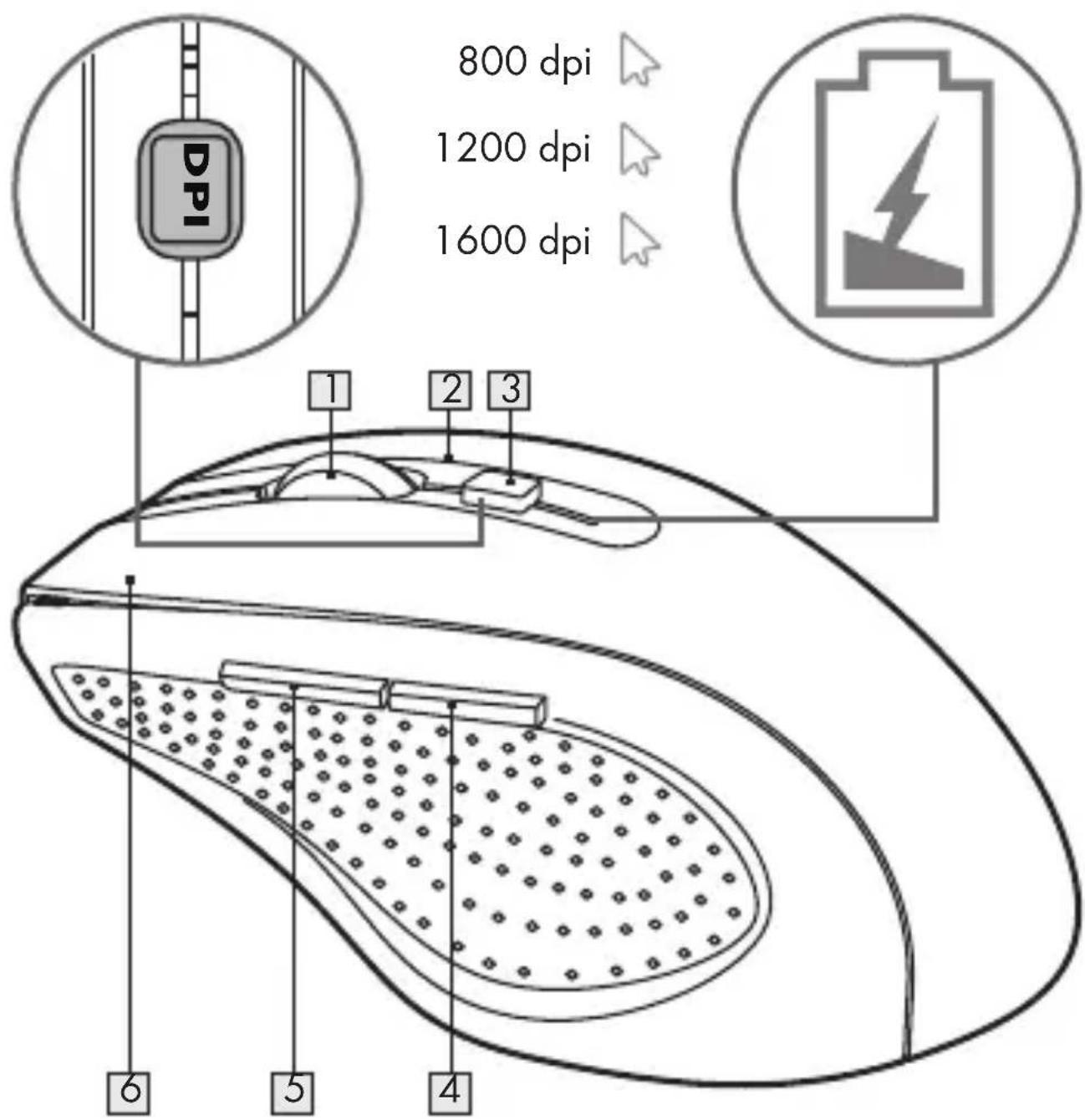

Description of parts

1 Scroll wheel
2 Right button
3 DPI button
4 Backward button
5 Forward button

6 Left button
7 AA battery
USB dongle

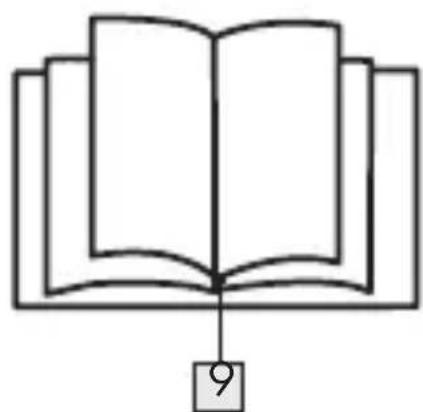

9 Instructions for use

10 ON/OFF switch

Battery compartment cover

Technical data

Voltage supply: 1 × 1.5V , AA battery

Operation time: 3 to 6 months (Alkaline battery)

Operating Systems: Windows® 7/8/10, MAC® OS X, Windows® XP, Vista

Resolution: 800/1200/1600 dpi

Wireless range: 8 m

Radio frequency band: 2.405 - 2470 MHz

Max. transmitted power: 4 dBm

USB version: 2.0

Weight: approx. 85 g

Dimensions: approx. 129 × 80 × 39 ~mm

The specification and design may be changed without notification.

Before use

NOTES:

All parts have to be unpacked and the packaging material has to be removed completely.
Before use, verify the package contents are complete and undamaged!

Setting up your mouse - erting/replacing the battery

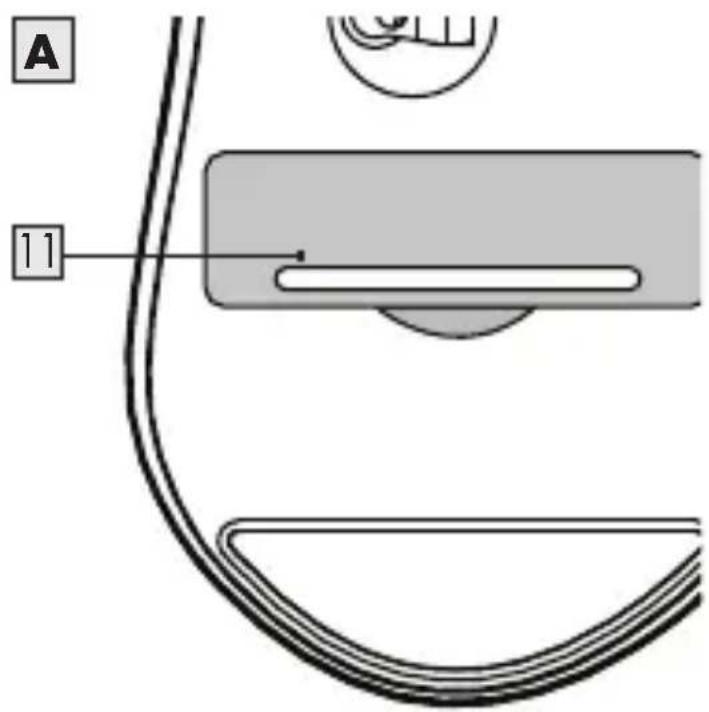

Remove the battery compartment cover [1] (fig. A).
Remove the USB dongle 8 from the battery compa mment 11.

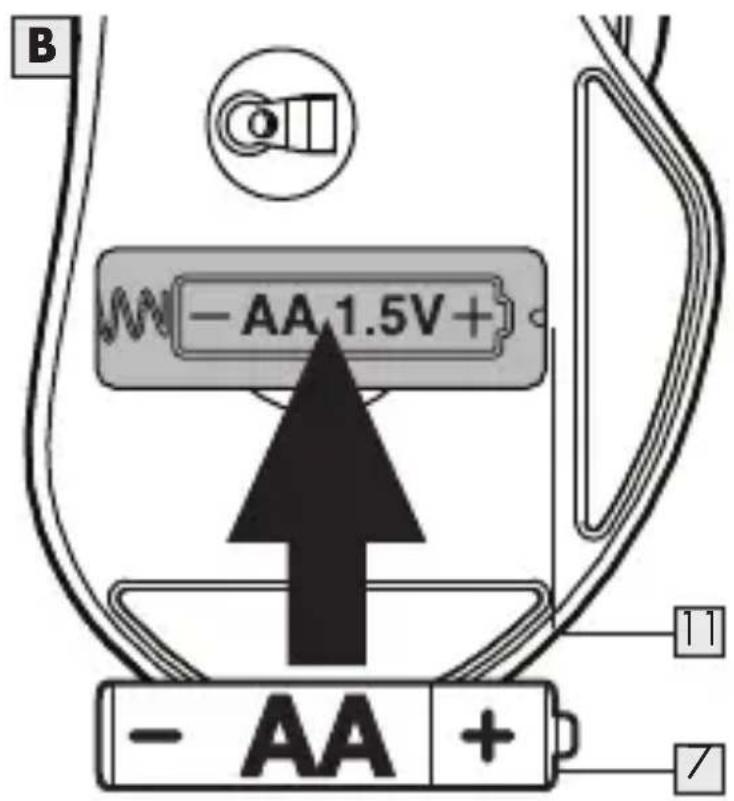

Insert the AA battery into the battery compartment [1] (fig. B).
Ensure that the polarities are correct (+ / - )

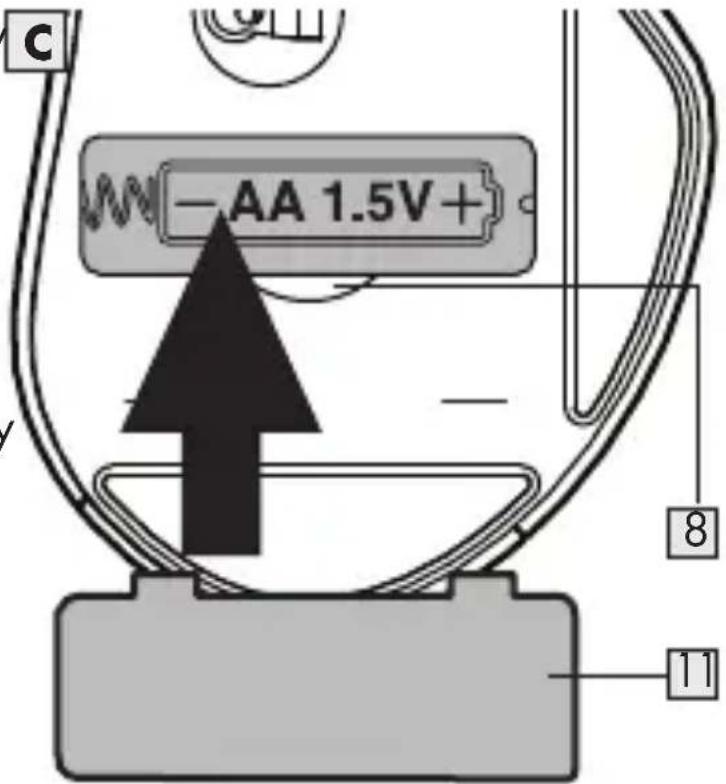

Reinsert the battery compartment cover [11] and push it down to lock in place (fig. C).

NOTE:

Replace the battery with a new one when the icon starts flashing in red colour.

Connecting the mouse to your computer

Make sure that the USB dongle nearby and accessible.
Turn your computer on.
Slide the ON/OFF switch to the ON position.
Slot the USB dongelto a spare port on your computer.

Advanced connections of the mouse

Ensure that the ON/OFF switch is in the ON position.
Make sure the computer is switched on.
Remove the USB dong from the computer's USB port. Then, insert it into a different USB port. If this is not working: Replace the battery with a new one and start again.

Operation

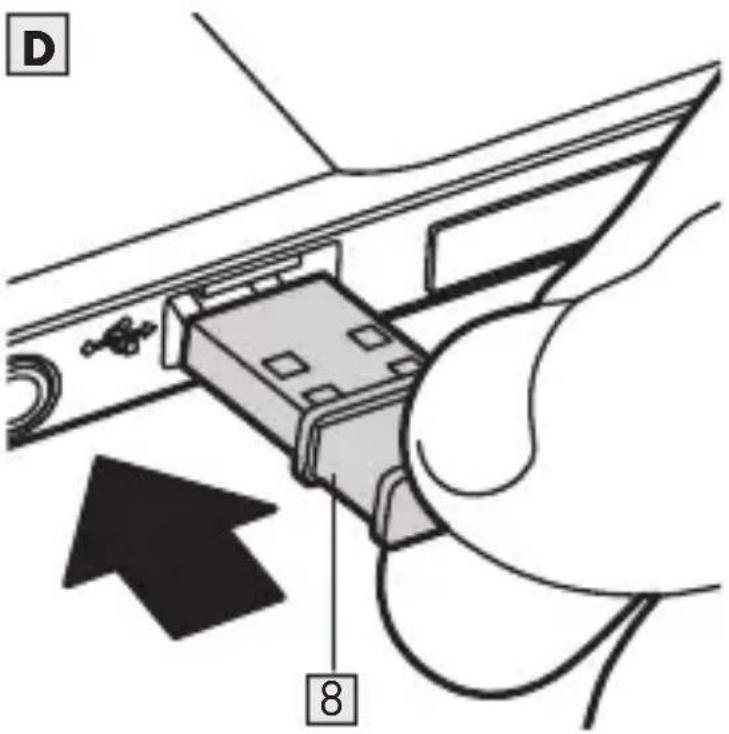

Connecting the USB dongle 8: Slot the USB dongle into a spare USB port on your computer (fig. D).

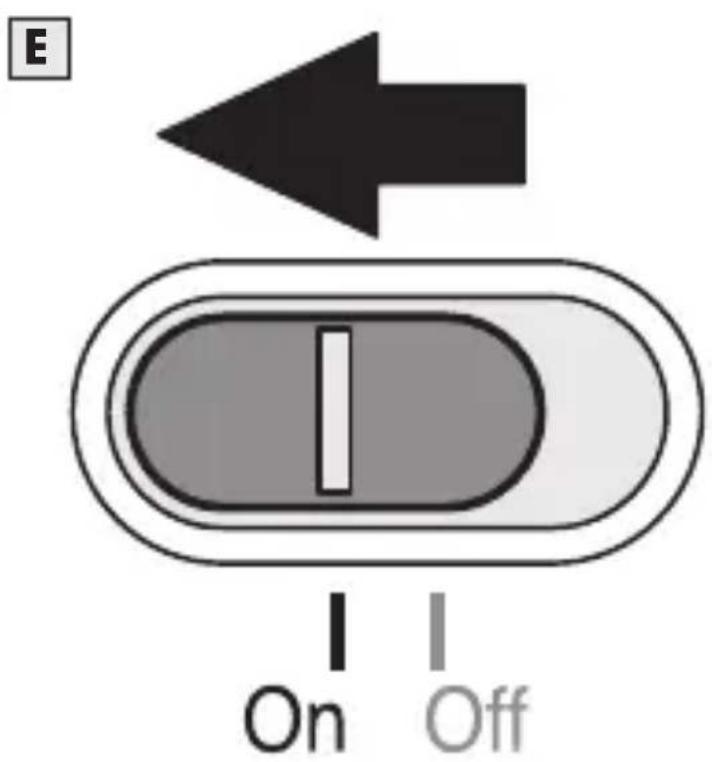

Switching the mouse on and off: Slide the ON/OFF switch to the left or right to turn it on or off (fig. E).

Fig. F:

A Left button: Provides traditional mouse functions like click, double click and drag.

B Scroll wheel: Roll up or down to scroll through pages or documents.

C Right button:

Provides traditional mouse click functions.

D Additional

buttons: Provides additional mouse click functions:

DPI button (800/1200/1600 - Click button once, then change DPI setting to next DPI value),

Forward button Backward button

Storage when not in use

Store the appliance in a dry indoor location protected from direct sunlight, preferably in its original packaging.

Cleaning

Switch the product off before cleaning!
No acid, chafing or solvent cleaning agents should be used or the product can be damaged.
Only clean the outside of the product using a soft, dry cloth!
At persistent soiling, a mild cleaning agent can be used.
It is necessary to repair the product if they have been damaged in any way, for example, if the housing is damaged, if liquid or objects have penetrated the device or if the product has been exposed to rain or moisture.
Repair work is also required if the device is not working properly or has been dropped. If smoke is produced, or there are any unusual sounds or smells, turn the product off immediately.

In such cases, the product should not be used until they have been inspected by authorised service personnel. Only have the device repaired by qualified personnel. Never open the housing of the product.

Troubleshooting

Problem Solution

The

apppliance

does not

work

properly.

Option 1: Check if the battery is properly fitted.
Option 2: Set the ON/OFF sw to the ON position.
Option 3: The battery needs to be replaced by a new one.
Option 4: Remove any other mouse connected to your computer and reconnect your mouse.

Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Contact your municipality for information on how to dispose of your worn-out product.

The adjacent symbol of a crossed out dustbin on wheels indicates this device is subject to Directive 2012/19/EU. This directive states at the end of the life this device must not be disposed of through regular household refuse but must be returned to special collection sites, recycling depots or waste management companies.

This disposal is free of charge to you. Protect the environment and dispose properly.

Please contact your local waste management company or the city / municipal administration for more information.

Think about the environment and your personal health. Dispose empty batteries in separate collecting boxes. These can be found in many public buildings or in shops where batteries are sold.

Improper disposal of batteries can harm the environment!

Never dispose of batteries in your household waste. They may contain toxic heavy metals and are subject to hazardous waste regulations. The chemical symbols of the heavy metals are:

Cd = cadmium, Hg = mercury, Pb = lead. Therefore dispose of used batteries through your local collection site.

- Simplified EU declaration of conformity

Hereby, OWIM GmbH & Co. KG, Stiftsbergstraße 1, DE-74167 Neckarsulm, GERMANY, declares that the product, WIRELESS MOUSE HG03076, is in compliance with Directives 2014/53/EU and 2011/65/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.owim.com
