USER MANUAL XD8N iDance

HOME PARTY MACHINE with SOUND AND LIGHT

Thank you for purchasing iDance Audio System.

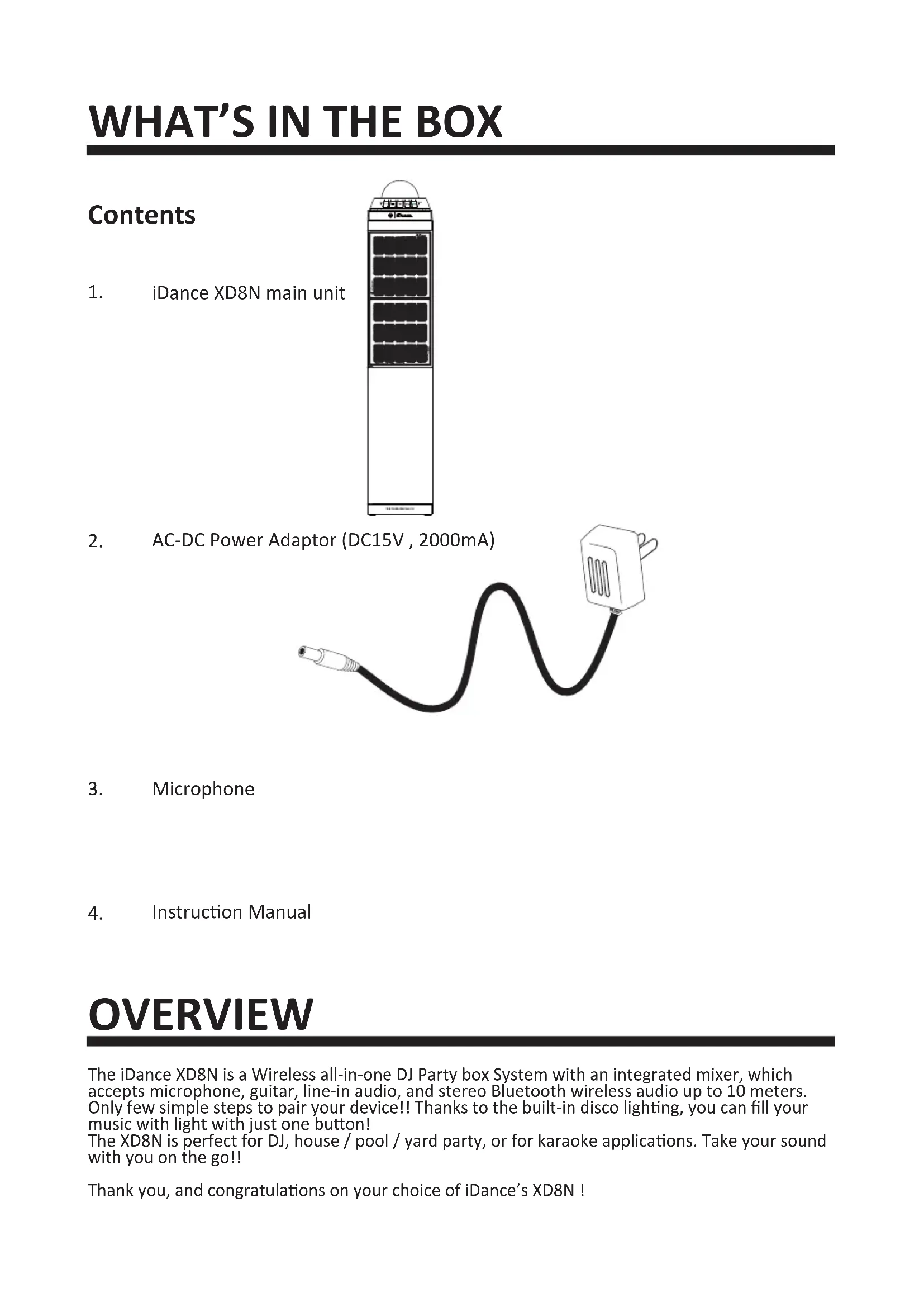

Contents

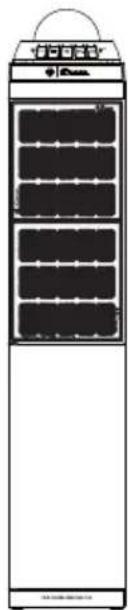

1. iDanceXD8N main unit

1. AC-DC Power Adaptor (DC15V, 2000mA)

1. Microphone

2. Instruction Manual

OVERVIEW

The iDance XD8N is a Wireless all-in-one DJ Party box System with an integrated mixer, which accepts microphone, guitar, line-in audio, and stereo Bluetooth wireless audio up to 10 meters. Only few simple steps to pair your device!! Thanks to the built-in disco lighting, you can fill your music with light with just one button! The XD8N is perfect for DJ, house / pool / yard party, or for karaoke applications. Take your sound with you on the go!!

Thank you, and congratulations on your choice of iDance's XD8N!

WARNING TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER OR BACK. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.

Class II equipment symbol

This symbol indicates that the unit has a double insulation system.

The exclamation mark inside an equilateral triangle is intended to alert user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

The lightning flash with arrowhead symbol inside an equilateral triangle is intended to alert User of the presence of un-insulated "hazardous voltage" within the product's enclosure, which may be of sufficient magnitude to induce a risk of electric shock to persons.

NOTES

Please do not attempt to open the back cover or power adapter as opening or removing the covers may expose you to dangerous voltage or other hazards, and it will also cause the restricted servicing to be disabled: There are no user servicing components inside.

NOTES

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of Industry Canada. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

NOTES

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
Consult the dealer or an experienced radio/TV technician for assistance.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Portable Cart Warning

1. Unplug this apparatus during lightning storms or when unused for long periods of time.
2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
3. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
4. The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

5. The MAINS plug is used as the disconnect device, which shall remain readily operable.

6. Bluetooth wireless stereo audio streaming
   Support A2DP Profiles for most smart phones / laptops
   Line In input (3.5 mm Stereo Mini Jack)

7. Microphone inputs (1/4" Jack)
8. disco Ball / Panel with disco light effect.
   4" Full range Driver X2
9. Included power adapter for unit AC power

CONTENTS

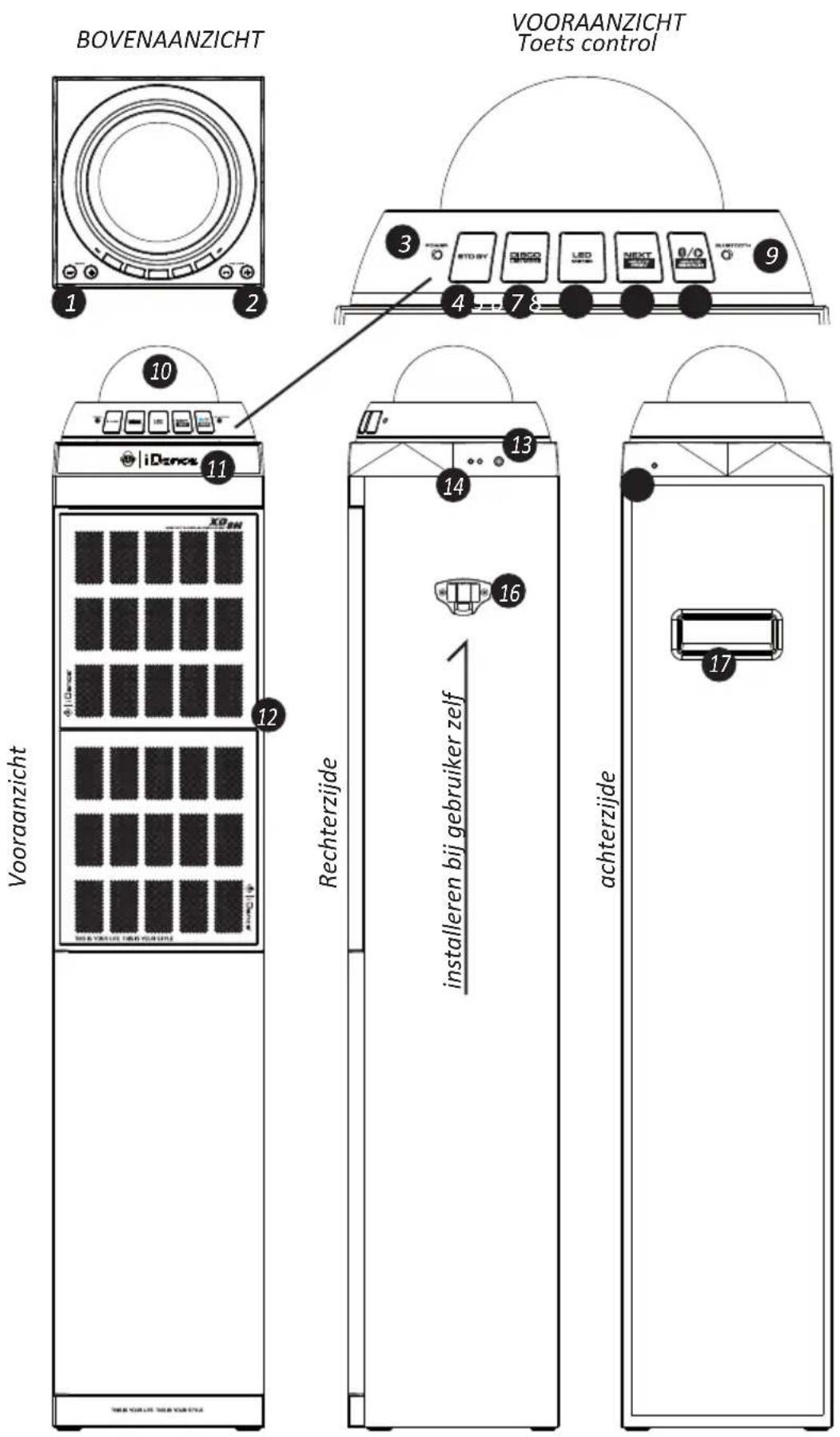

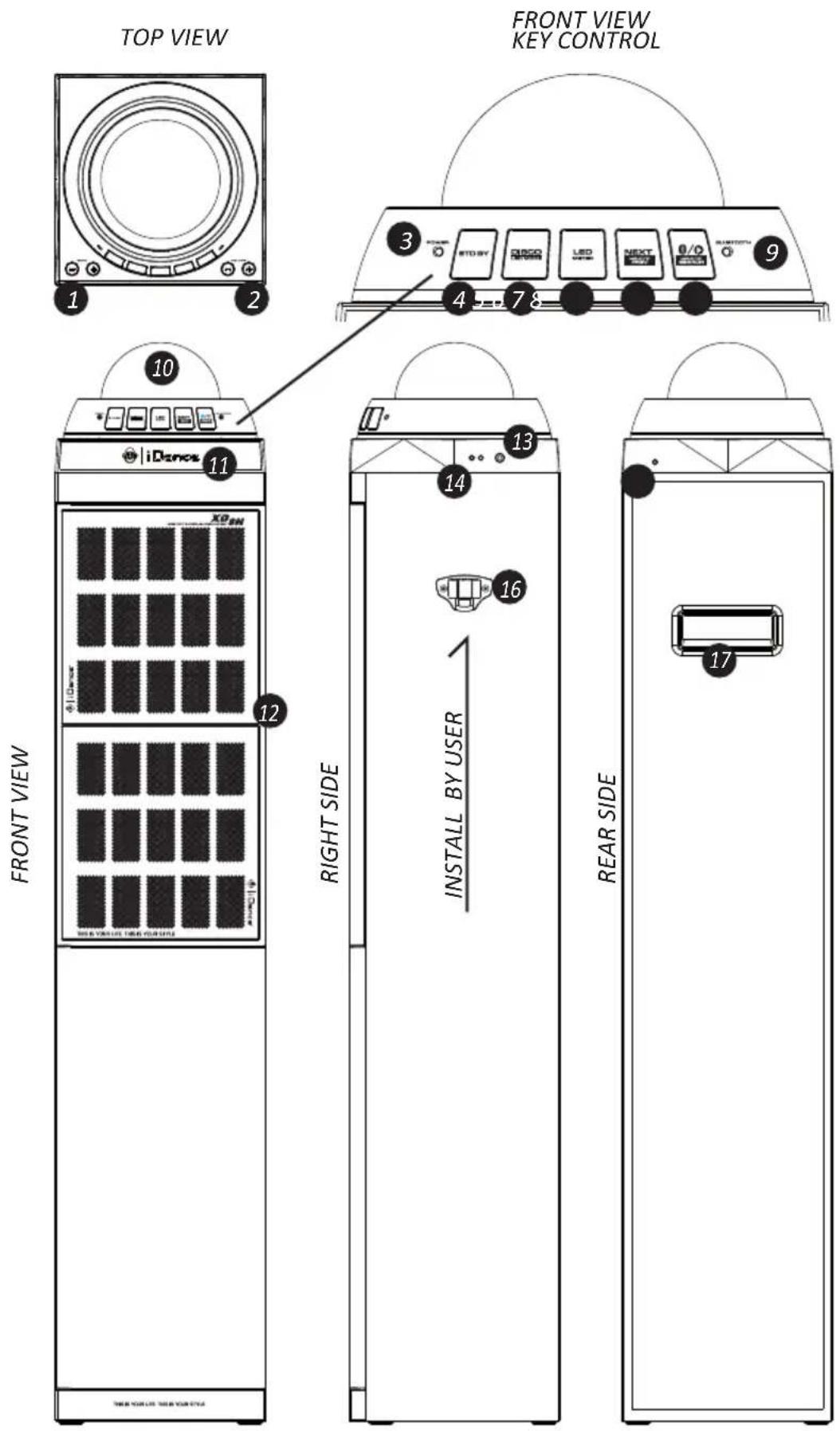

CONTROL LOCATION E1-E2

1. ECHO Buttons Press the ^ 十 + ^ 一 or - button to adjust the microphone echo level
2. VOLUME Buttons Press the ^ 一 + " or - button to adjust the master volume level
3. POWER Indicator The Indicator will be lighten when unit at standby mode.
4. STD BY Button Press the button to turn on unit or enter standby mode.
5. DISCO LED MODE Button Press the button to select different light effect for all light show. Hold the button to turn on or off disco ball light effect.
6. LED METER Button Press to select different light effect on light panel
7. NEXT AND PREV BUTTON Press the button to select next track in Bluetooth mode. Hold the button to select previous track in Bluetooth mode.
8. PAIRING & PLAY Button Hold to enter Bluetooth pairing connection. XD8N will search for new Bluetooth device. Press to play/pause Bluetooth music when Bluetooth device is connected
9. BLUETOOTH Indicator The indicator will light when Bluetooth successfully paired The indicator will flash when Bluetooth start pairing.
10. DISCO BALL Color LED light show.
11. iDance Logo Logo will be lightening when unit is turned on.
12. LED LIGHT SHOW PANEL Different color LED light show.
13. LINE IN (Aux In / Audio Input) Input Connect a music device to this socket with a 3.5mm audio cable.
14. MIC 1/2 IN (1/4" Jack) Input
    6.3mm unbalanced jack for connecting microphone.
15. DC IN Jack Connect the included power adapter to this plug to power up the XD8N. (Note: please only use the adaptor included in the XD8N package, using other adaptor may cause damage to the unit)
16. MIC Holder
17. CARRY HANDLE

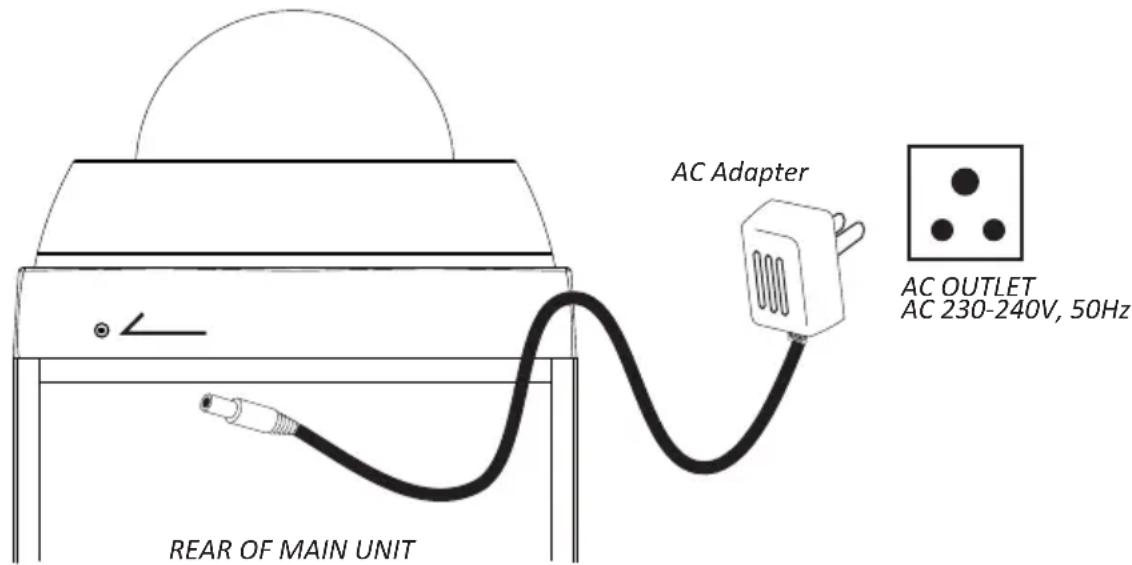

Connect the adapter to the main unit and plug the included adapter into AC wall socket. Press the STD BY button to turn on power. Press again turn unit to standby.

NOTES

If the adapter does not fit properly, turn it over and again.
Unplug the power adapter when the unit not operation or unused for long periods of the time.

Connecting Bluetooth to your smartphone / tablet

1. Press the STD BY button to turn on, hold the PAIRING button to connect your external Bluetooth device.
2. On your smartphone / Tablet, turn on Bluetooth and enable device scanning.
3. When XD8N shows on the your smartphone / tablet, select it to connect it to XD8N
4. When both devices are successfully connected, you are ready to play music wirelessly from your device.
5. Press the PLAY button to start music playback.
6. Press / hold the NEXT / PREV button of unit or press the NEXT / PREV of external Bluetooth device to switch between music tracks.
7. Hold the PAIRING button to reconnect other Bluetooth device.

Power Management Function:

Unit will automatically go to standby mode after 15 minutes without sound output or operation. To resume operation, simply press the STD BY button to turn on unit

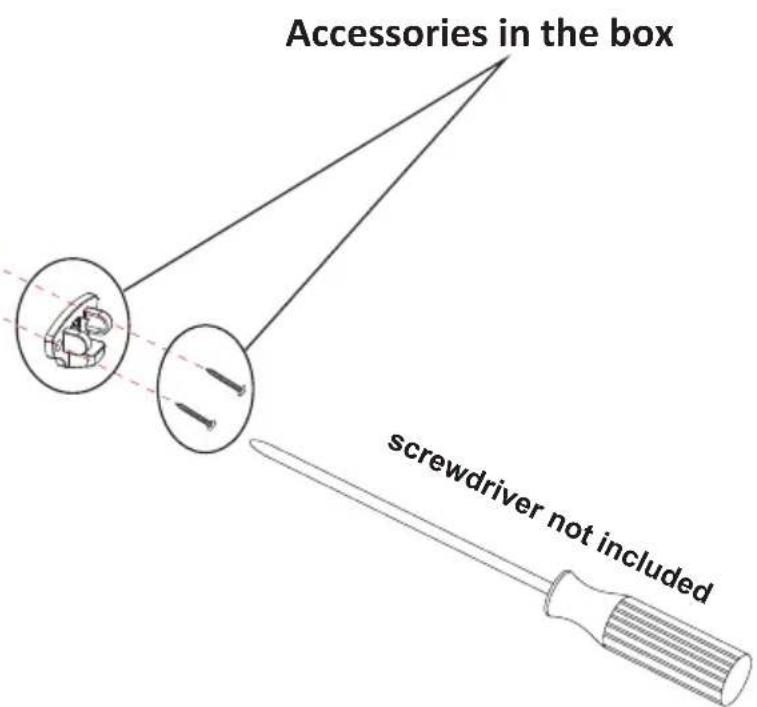

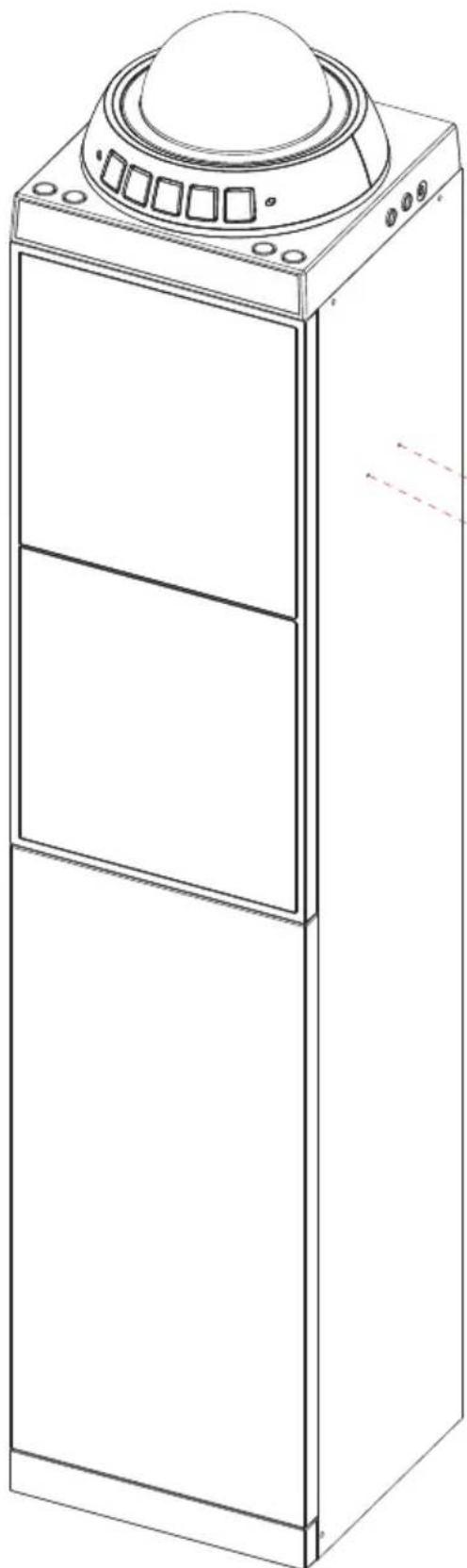

The mic holder and screws accessory are included in the box.
Use the screwdriver to fixing the mic holder on the right side of cabinet.
The proposed mic holder location is under MIC-JACK 8 inches (200mm).

If you have followed the instructions and are having difficulty operating the unit, locate the PROBLEM in the left column below. Check the corresponding POSSIBLE CAUSE AND SOLUTION column to locate and fix the problem.

PROBLEM POSSIBLE CAUSE AND SOLUTION
Noise on speaker output when microphone is connected and turn on XD8N	Make sure your microphone or microphone cable is in good condition, grounded and shielded. Internal gain of voice processing could cause vibration from poor ground noise.
Bluetooth cannot connect to XD8N Make sure no other device from your friend or family is connected to XD8N. When XD8N Bluetooth is connected, press BLUETOOTH button would stay ON. So make sure XD8N indicating Bluetooth is ready to connect. Also make sure your smartphone / tablet is located close to XD8N less than 2 meters when pairing. ■ Hold the BLUETOOTH button to reconnect again.
Intermittent Bluetooth music streaming	The wireless Bluetooth distance of XD8N is about 7-10 meter in open area. Below conditions could block you Bluetooth signal and please ensure you would get rid of those: ■ Metal protection on case for your phone/tablet ■ Metal or wall is blocking in between your phone / tablet and XD8N ■ Another Bluetooth device is working close toXD8N
No sound on selected source	■ Ensure that the XD8N is powered ON ■ Check the master volume on the XD8N ■ Check the volume level on paired Bluetooth device ■ Remove the power adapter and reconnect again.

SPECIFICATIONS

AC ADAPTER AC Input :AC~ 100-240V 50/60HzDC Output = 15V , 2000mA

SOUND SOURCE INPUT Bluetooth, 1/4 ″ Microphone, Aux-In

Total Harmonic Distortion Below 10% at Standard Output

Signal to Noise Ratio Over 45dB

Speaker Size 4 ″ Full range driver X 2

Speaker Power Output 14W X2 RMS Power Output

Specifications are typical, individual units might vary. They are subject to continuous improvement without notice and without incurring any obligation.

contenu

1. Apparel principal iDance XD8N

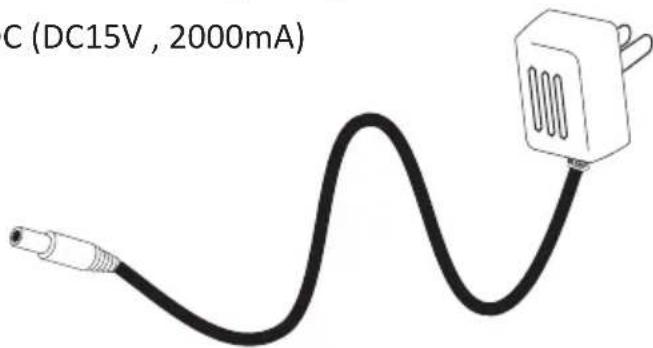

1. Adaptateur AC-DC (DC15V, 2000mA)

WARNING TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER OR BACK. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.

Class II equipment symbol

This symbol indicates that the unit has a double insulation system.

Installer le support microphone FR4

DEPANNAGE FR5

SPECIFICATIONS FR6

EMPLACEMENT DES COMMANDES(1.1)

1. Boutons ECHO

1. iDance XD8N HOOFD UNIT

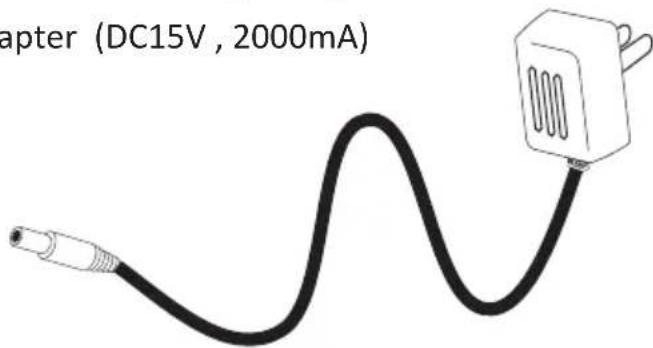

1. AC-DC Power Adapter (DC15V, 2000mA)
