Product type	Robotic lawnmower
Brand	WORX
Model	Landroid WG792E
Power supply	Lithium 28 V battery (rechargeable)
Cutting height range	2 cm to 6 cm (adjustable)
Rain sensor	Yes, with programmable restart delay (0-180 minutes)
Blade type	Reversible blades with 4 cutting edges
Number of blades	3 (spare kit included)
Connectivity	WiFi (smartphone app)
Charger included	Yes (charging station and adapter)
Boundary wire included	Yes (with pegs and connectors)
Safety	STOP button, PIN code, automatic stop when lifted
Maintenance	Monthly blade rotation, cleaning with damp cloth, check charging contacts
Software update	Yes (via WORX website)
Hibernation period	Recommended in winter (charged battery, cleaning, dry storage)
Battery replacement	Possible (WORX spare part)
Protection class	Class III (very low voltage)

Frequently Asked Questions - Landroid WG792E WORX

How to install the boundary wire for my Landroid WG792E?

Use the supplied distance gauge to position the wire more than 45 cm from the lawn edge. Bury it after an adjustment phase. Leave at least 0.5 m space between the wire and neighboring property if another Landroid is used.

How to adjust the cutting height?

Open the cutting height adjustment cover and turn the dial between 2 cm and 6 cm. For first use, set to maximum height (6 cm) after mowing the grass to 9 cm.

How often should I turn or replace the blades?

If the mower runs daily, turn the blades every month to use a new edge. Replace all blades every 4 months or so, or as soon as they are dull. Always use new screws.

How to clean my robotic mower?

Turn off the mower with the on/off button. Do not use a water jet or pressure washer. Clean the housing with a damp cloth, the underside with a soft brush. Clean the contact pins and charging strips regularly.

What to do in case of an error message on the screen?

Press STOP, open the keypad, turn on the device if necessary, resolve the issue (e.g., blade jammed, broken boundary wire), then press the confirm key and close the keypad. If the error persists, consult the troubleshooting guide.

How to program the mowing schedule?

Use the smartphone app (WiFi) or the integrated keypad. You can set daily time slots and adjust the working duration. The programming guide details settings by lawn area.

Does the robot work in the rain?

The Landroid is equipped with a rain sensor. When it rains, it returns to its base and waits for the sensors to dry. You can program a restart delay from 0 to 180 minutes.

How to update the robot software?

Download the latest version from www.worxlandroid.com. Follow the instructions on the download page. The current version is displayed by pressing button 2 on the home screen.

How to store the robot for winter?

Thoroughly clean the robot, fully charge the battery, turn it off and store it in a dry, cool place (garage, shed). The boundary wire can stay outside, but protect the ends.

How to change the battery?

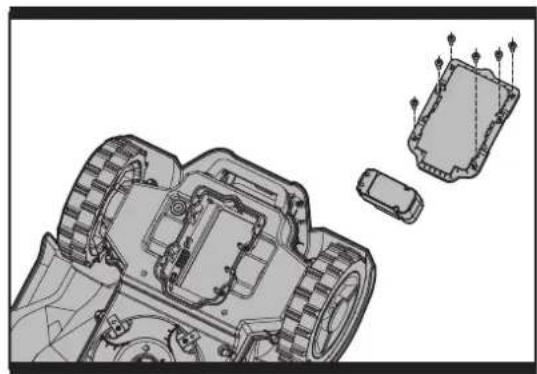

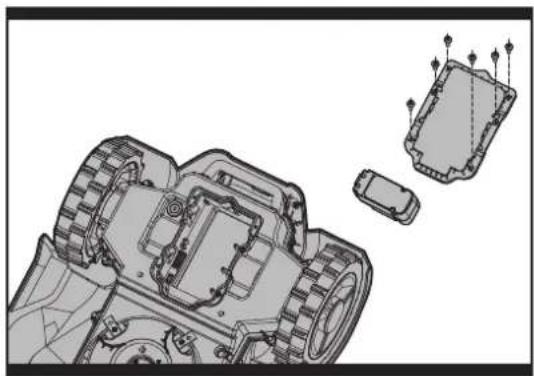

Turn off the mower and turn it over. Remove the screws of the battery compartment, take out the old battery, insert the new compatible WORX battery, then screw back. Ensure the battery is correctly installed.

USER MANUAL Landroid WG792E WORX

Black and white photo of a LiDARO-LAW mobile robot with visible branding (no text or symbols on body)

LANDROID®

UNMANNED MOWING VEHICLE

Lawn Mowing Robot	EN	P02
Roboter-Rasenmäher	D	P16
Robot de fauchage à pelouse	F	P30
Robot tosaerba	I	P44
Robot cortacesped	ES	P57
Robotgrasmaaier	NL	P71
Robot do koszenia trawy	PL	P84
Robotická sekačka	CZ	P98
Robotická kosačka	SK	P112
Robot za košnjo trave	SL	P126

ORIGINAL INSTRUCTIONS

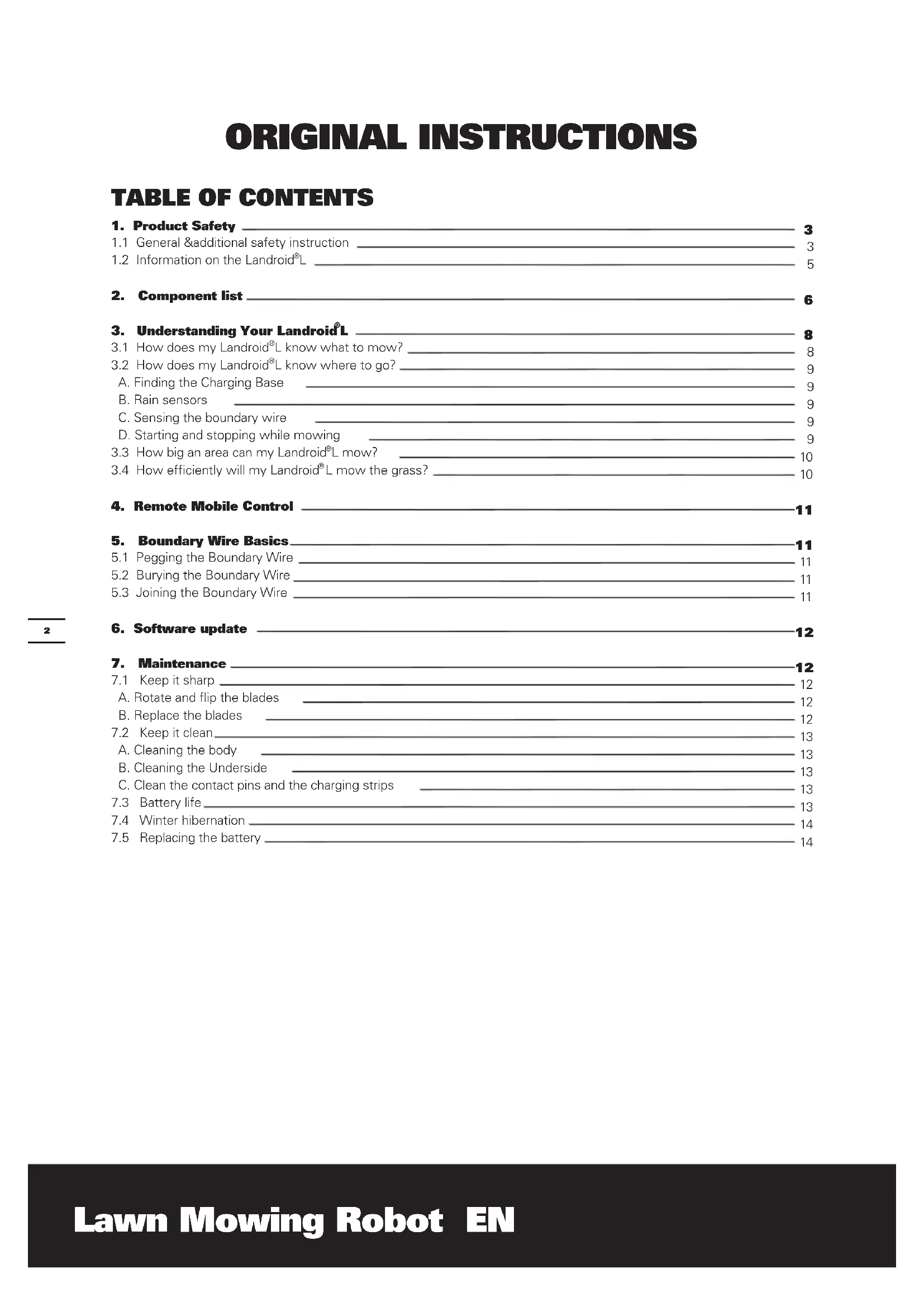

TABLE OF CONTENTS

1. Product Safety 3

1.1 General & additional safety instruction 3
1.2 Information on the Landroid^®L 5

2. Component list 6

3. Understanding Your Android ^® L \_\_\_\_ 8

3.1 How does my Landroid^®L know what to mow? ____ 8
3.2 How does my Landroid^®L know where to go? ____ 9

A. Finding the Charging Base 9
B. Rain sensors 9
C. Sensing the boundary wire 9
D. Starting and stopping while mowing 9

3.3 How big an area can my Landroid^®L mow? 10
3.4 How efficiently will my Landroid^®L mow the grass? 10

4. Remote Mobile Control 11

5. Boundary Wire Basics 11

5.1 Pegging the Boundary Wire 11
5.2 Burying the Boundary Wire 11
5.3 Joining the Boundary Wire 11

6. Software update 12

7. Maintenance 12

7.1 Keep it sharp ____ 12

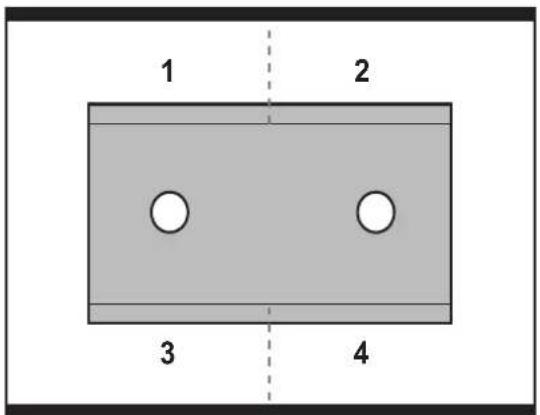

A. Rotate and flip the blades 12
B. Replace the blades 12

7.2 Keep it clean 13

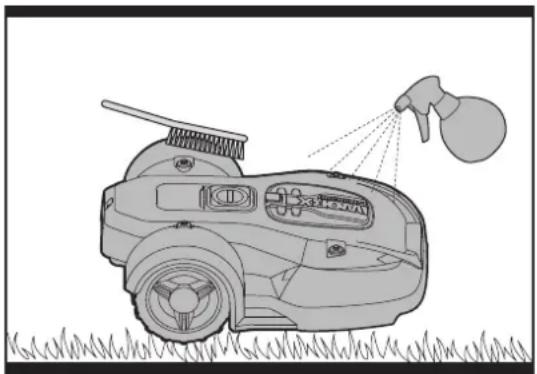

A. Cleaning the body 13
B. Cleaning the Underside 13
C. Clean the contact pins and the charging strips 13

7.3 Battery life 13
7.4 Winter hibernation 14
7.5 Replacing the battery 14

1. Product Safety

1.1 General & additional safety instruction

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Carefully read the instructions for the safe operation of the machine.

Save all warnings and instructions for future reference.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The appliance is only to be used with the power supply unit provided with the appliance.

IMPORTANT

READ CAREFULLY BEFORE USE

KEEP FOR FUTURE REFERENCE

SAFE OPERATION PRACTICES

Training

a) Read the instructions carefully. Make sure you understand the instructions and be familiar with the controls and the proper use of the appliance;
b) Never allow people unfamiliar with these instructions or children to use the appliance. Local regulations can restrict the age of the operator;
c) The operator or user is responsible for accidents or hazards occurring to other people or their property

Preparation

a) Ensure the correct installation of the boundary wire as instructed.
b) Periodically inspect the area where the appliance is to be used and remove all stones, sticks, wires, bones, and other foreign objects.
c) Periodically visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.
d) On multi-spindle appliances, take care as rotating one blade can cause other blades to rotate.
e) WARNING! The lawnmower shall not be operated without the guard in place.

OPERATION

1. GENERAL

a) Never operate the appliance with defective guards, or without safety devices, for example deflectors, in place;
b) Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times;
c) Never pick up or carry an appliance while the motor is running;
d) Operate the disabling device from the appliance
– Before clearing a blockage;
– Before checking, cleaning or working on the appliance;
e) It is not permitted to modify the original design of robotic lawnmower. All modifications are made at your own risk.
f) Start robotic lawnmower according to the instructions. When the power key is switched on, make sure you keep your hands and feet away from the rotating blades. Never put your hands and feet under the mower.
g) Never lift up robotic lawnmower or carry it when the power key is switched on.
h) Do not let persons who do not know how robotic lawnmower works and behaves use the mower.
i) Do not put anything on top of robotic lawnmower or its charging station.
j) Do not allow robotic lawnmower to be used with a defective blade disc or body. Neither should it be used with defective blades, screws, nuts or cables.
k) Always switch off robotic lawnmower when you do not intend to use the mower. Robotic lawnmower can only start when the power key is switched on and the correct PIN code has been entered.

2. ADDITIONALLY WHEN THE APPLIANCE IS OPERATING AUTOMATICALLY

a) Do not leave the machine to operate unattended if you know that there are pets, children or people in the vicinity.

MAINTENANCE AND STORAGE

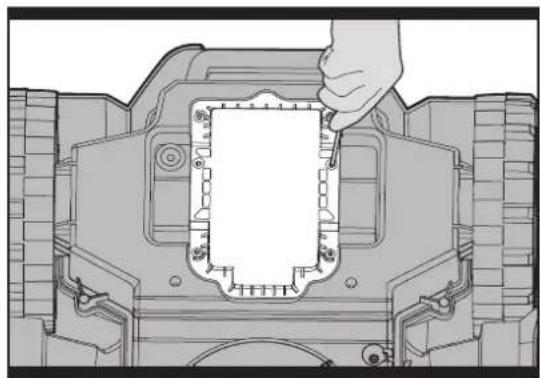

WARNING! When the mower is turned upside down, the power key must always be switched off.

The power key should be switched off during all work on the mowers under frame, such as

cleaning or replacing the blades.

a) Keep all nuts, bolts and screws tight to be sure the appliance is in safe working condition;
b) Inspect the robotic lawnmower each week and replace worn or damaged parts for safety;

c) Check especially that the blades and blade disc are not damaged. Replace all blades and screws at the same time if necessary so that the rotating parts are balanced.
d) Ensure that only replacement cutting means of the right type are used;
e) Ensure that batteries are charged using the correct charger recommended by the manufacturer. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery;
f) In the event of leakage of electrolyte flush with water/neutralizing agent, seek medical help if it comes into contact with the eyes etc;
g) Servicing of the appliance should be according to manufacturers instructions.

Transport

The original packaging should be used when transporting robotic lawnmower over long distances.

To safely move from or within the working area:

a) Press the STOP button to stop the mower.

b) You select the four digit PIN code when you start the mower for the first time.

c) Always switch off robotic lawnmower if you intend to carry the mower.

d) Carry the mower by the handle at the rear under the mower. Carry the mower with the blade disc away from the body.

Safety warnings for battery pack

a) Do not dismantle, open or shred cells or battery pack.

b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.

d) Do not subject battery pack to mechanical shock.

e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.

f) Seek medical advice immediately if a cell or battery pack has been swallowed.

g) Keep battery pack clean and dry.

h) Battery pack gives its best performance when it is operated at normal room temperature (20°C ± 5°C).

i) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.

j) Recharge only with the charger specified by WORX. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

k) Do not use any battery pack which is not designed for use with the equipment.

I) Keep battery pack out of the reach of children.

m) Retain the original product literature for future reference.

n) Dispose of properly.

1.2 Information on the Landroid®L

WARNING - Robotic lawnmower can be dangerous if incorrectly used.

Read through the Operator's manual carefully and understand the content before using your robotic lawnmower.

WARNING - Keep a safe distance from the machine when operating.

WARNING - Operate the disabling device before working on or lifting the machine.

WARNING - Do not ride on the machine.

Do not burn

Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.

Batteries should be recycled. Do not dispose of batteries, Return exhausted batteries to your local collection or recycling point.

Do not wash the machine with a high pressure washer

Class III appliance

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.

2. Component list

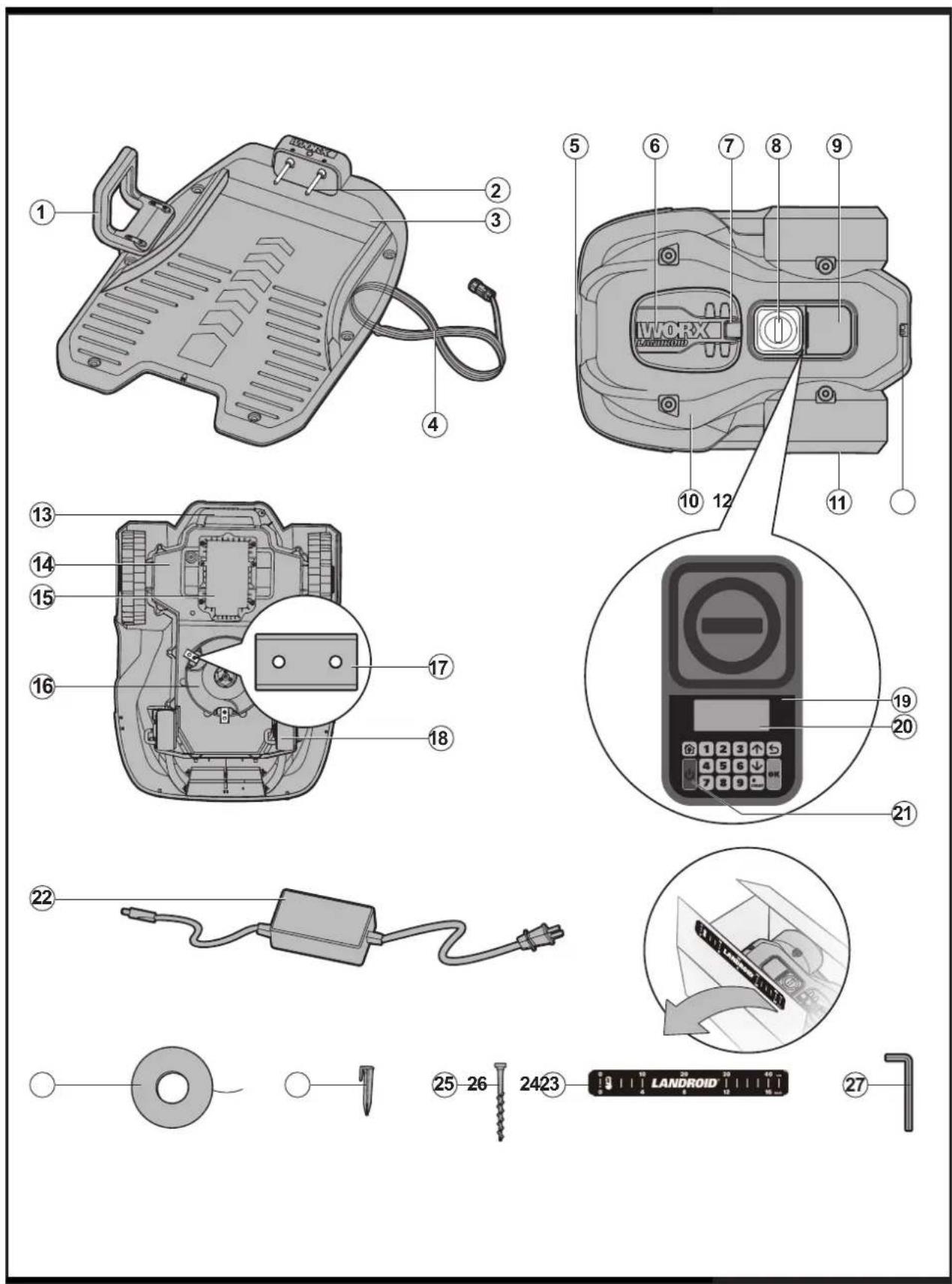

Exploded view diagram of a device with numbered parts and labeled components such as a WORX controller, power supply, and an Android controller.

1. HANDLE BAR
2. CONTACT PINS
3. CHARGING BASE
4. LOW VOLTAGE CABLE
5. CHARGING STRIP

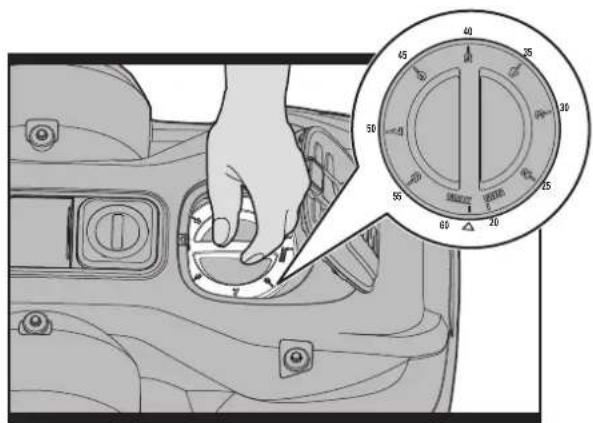

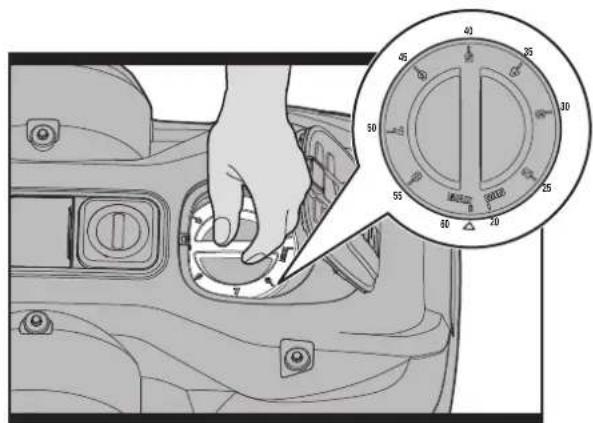

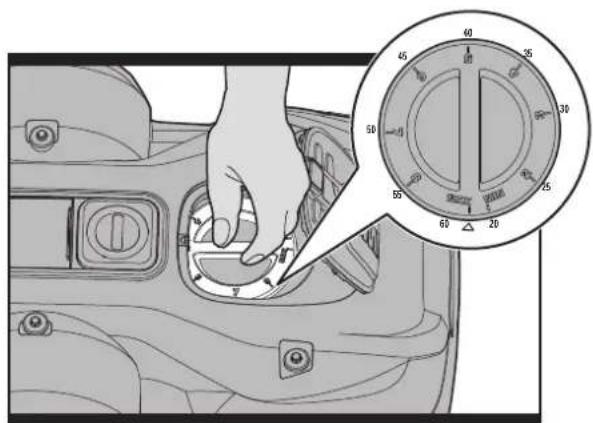

6. GRASS CUTTING HEIGHT ADJUSTMENT COVER
7. ACCESS POINT - TO OPEN HEIGHT ADJUSTMENT COVER.
8. STOP BUTTON
9. KEYPAD WINDOW
10. Landroid®L DECK
11. REAR DRIVING WHEEL
12. RAIN SENSOR
13. HANDLE
14. MAIN HOUSING - CONTAINS MOTOR, ELECTRONICS AND BATTERY.
15. BATTERY PACK
16. BLADE TURNING DISC
17. CUTTING BLADES
18. FRONT WHEEL
19. KEYPAD
20. DISPLAY
21. ON/OFF KEY
22. POWER ADAPTOR
23. BOUNDARY WIRE
24. WIRE PEGS
25. CHARGING BASE FIXING NAILS
26. BOUNDARY WIRE DISTANCE GAUGE
27. HEX KEY

3. Understanding Your Android ^® L

We would like to congratulate you on your new purchase of the Android ^® L and entering into the care-free life of automatic mowing. In the following, we would like to help you better understand how your Android ^® L thinks.

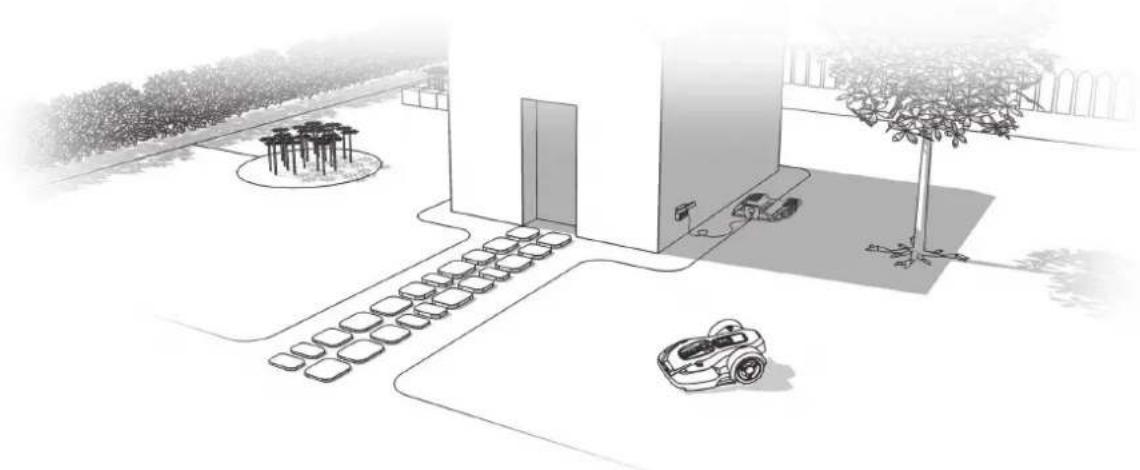

Architectural sketch of a modern building entrance with parked cars and a robotic arm, surrounded by trees and outdoor furniture (no text or symbols)

3.1 How does my Landroid®L know what to mow?

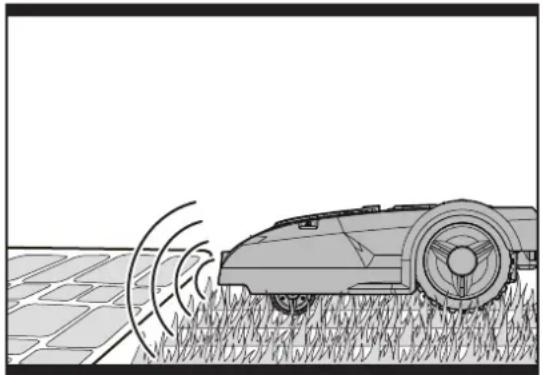

The Landroid^®L chooses its direction at random. It will make sure your entire lawn is evenly mowed without leaving behind any unattractive mowing paths (See Fig. A).

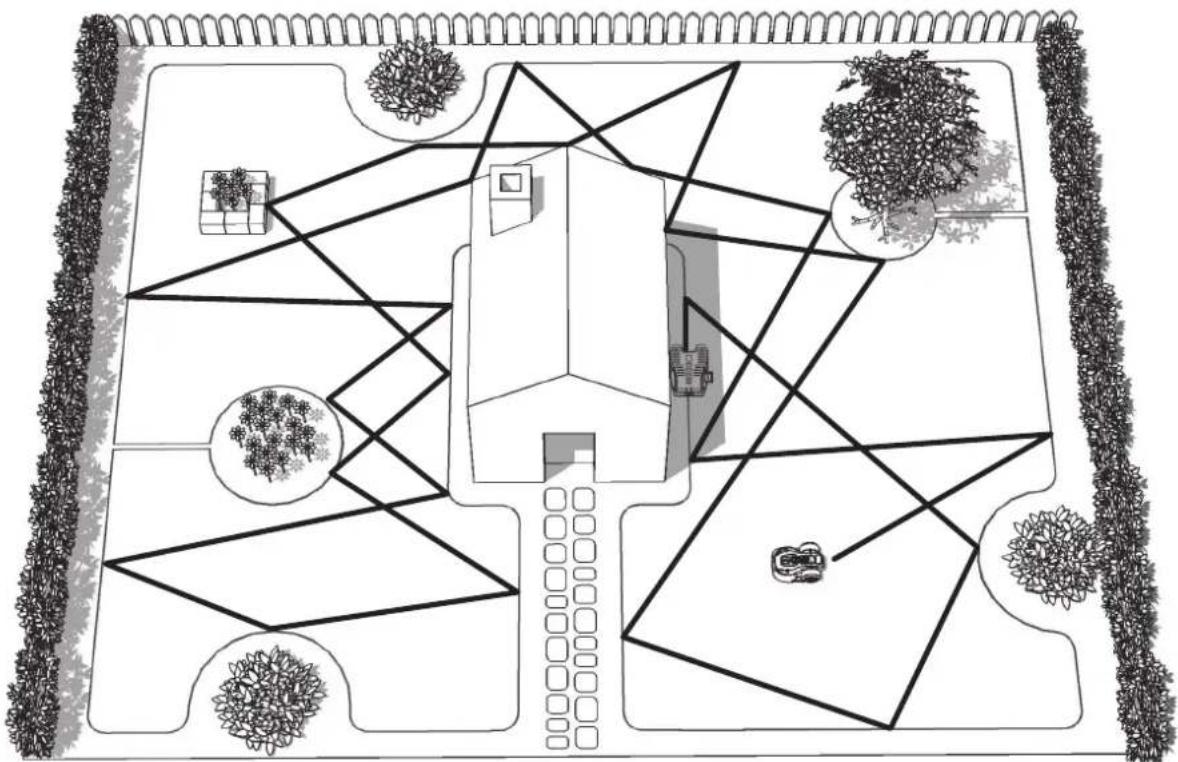

Top-down architectural layout diagram showing a central building surrounded by geometric pathways and surrounding plants (no text or symbols)

A

3.2 How does my Landroid®L know where to go?

Your Android ^® L is capable of doing things on its own. The Android ^® L knows when it needs to go to its Charging Base (3) to charge, can sense when it is raining, can stop itself if it senses a problem, and knows to stop, drawback, and then turn around when it bumps into something blocking its path or other object. The Android ^® L will also automatically stop its Blade Turning Disc (16) from rotating if it is lifted off the ground to prevent an accident.

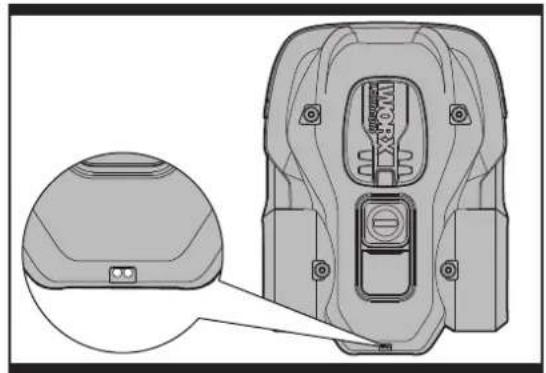

A. Finding the Charging Base

When your Landroid^®L needs to recharge, it will stop mowing and follow the Boundary Wire (23) in an anti-clockwise direction back to its Charging Base. Landroid^®L is pre-programmed to mow the grass near the boundary wire once a week.

If you want to mow the grass near the boundary wire at other times, open the keypad window, press the home button and close the keypad window. Landroid^ will stop mowing, locate the boundary wire and mow the grass near the boundary wire while it locates the charging station. We suggest you use this function when the battery power is more than 75%. You can check the battery power in the display.

B. Rain sensors

The L and L^ is fitted with a Rain Sensor (12) that will detect rain drops and tell the L and L^ to stop mowing and follow the Boundary Wire back to its Charging Base. (See Fig. B) The L and L^ is programmable to have a delay start function (0 – 180 mins) when it rains. When the rain sensors are wet, the L and L^ returns to its docking station. Only when the rain sensors become dry will the L and L^ begin the delay start countdown or return to mowing immediately. See the Programming and Troublesh

Technical illustration of a device housing with an inset view showing a dome-shaped component (no text or symbols)

B

Line drawing of a robotic lawn with signal waves, no text or symbols present

C

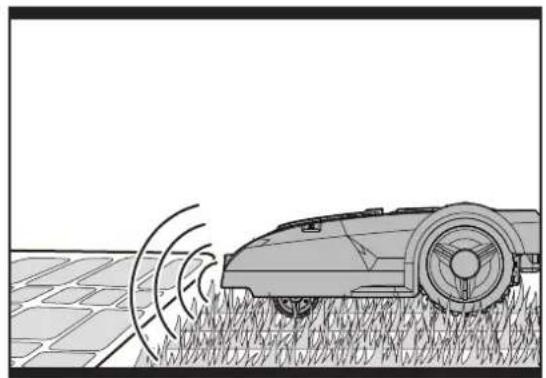

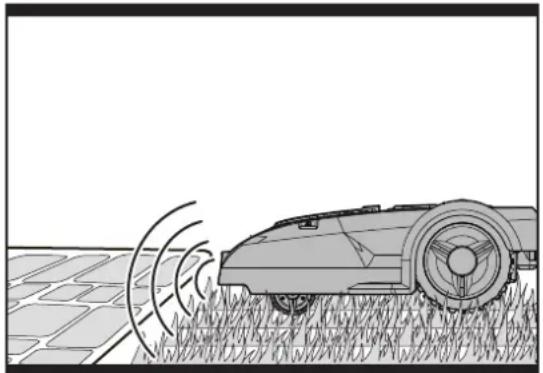

C. Sensing the boundary wire

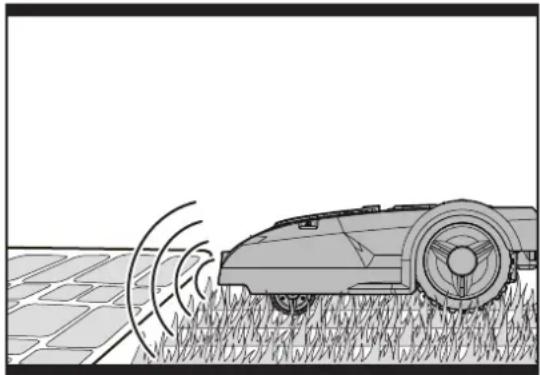

The Landroid^ L always obeys the border set by the Boundary Wire and uses two sensors at its front to sense when it is getting close (See Fig. C). Before changing direction, the Landroid^ L will overrun the Boundary Wire up to 25cm*. *This is the recommended distance. Use the provided distance gauge to ensure proper installation.

D. Starting and stopping while mowing

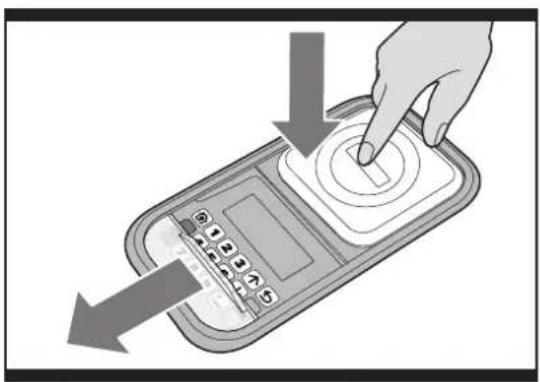

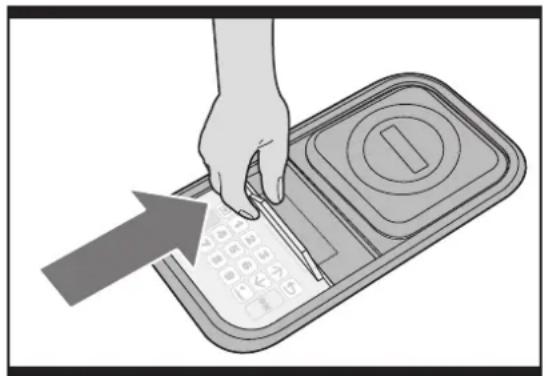

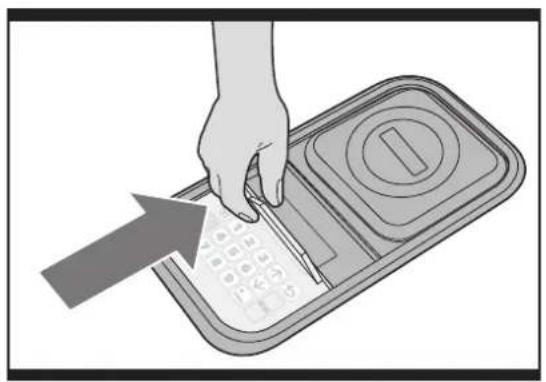

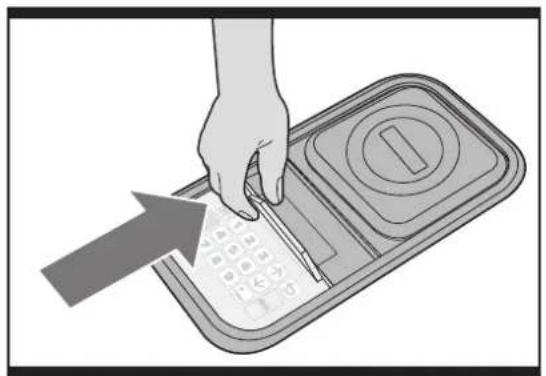

If you would like to command the Landroid^®L to stop mowing, then simply press the STOP button (8) on top of the mower. It will not begin mowing again until you have pressed and closed its Keypad Window. (See Fig. D, E) If the Landroid^®L senses that something is wrong, it will display a fault message on the Display (20), and will turn itself off if it does not receive any input from the user within 20 min (for information on fault messages refer to the Programming and Troubleshooting Guide).

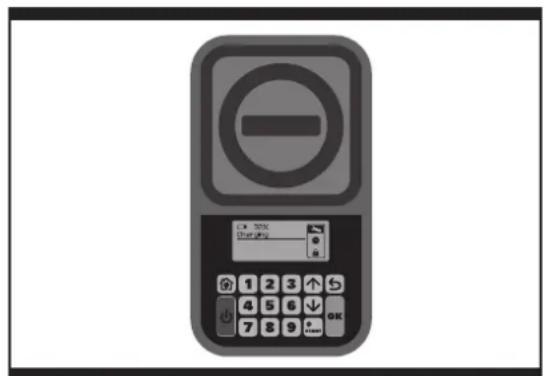

Illustration of a hand pressing down on a device with arrows indicating motion (no text or symbols)

D

Illustration of a hand placing a small object into a tray with a circular button, no text or symbols present

E

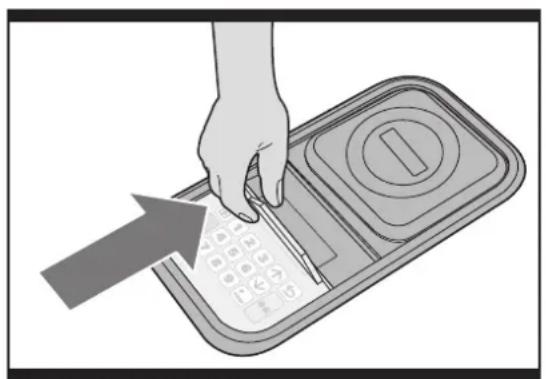

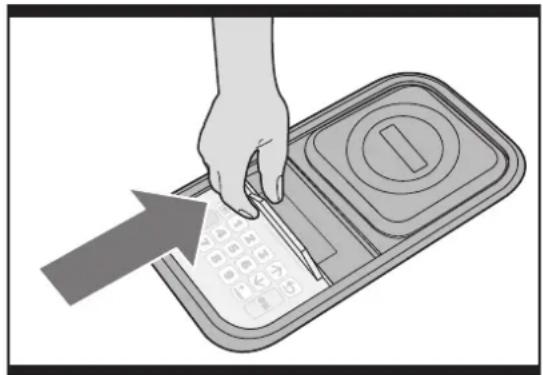

To resume:

Scene 1: STOP – Auto Shutdown after 20 mins

• Press the STOP Button

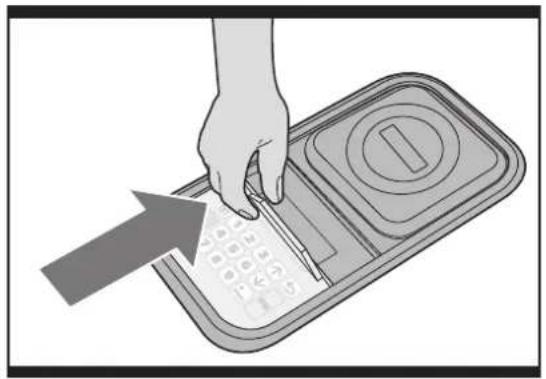

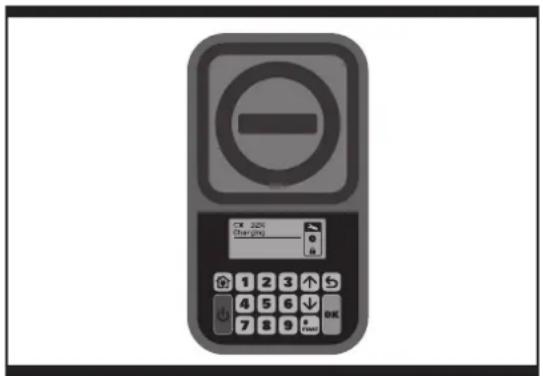

• Open the Keypad Window
• Press the ON/OFF Key (21) to ON
• Press key to correct the problem
• Press key again and Close the Keypad Window
• Now the Android ^® L will begin to mow!
  Scene 2: STOP- Without Auto Shutdown
• Press the STOP Button
• Open the Keypad Window
• Press key to correct the problem
• Press key again and Close the Keypad Window
• Now the Android ^ L will begin to mow!

3.3 How big an area can my Landroid®L mow?

Your Landroid^®L is capable of mowing areas of up to different size areas, although this depends on various factors, such as:

• Species of grass in your lawn and its growth rate
• Sharpness of the Blades (17)
- Humidity
• Surrounding temperature
• Amount of obstacles in your Lawn

If the surrounding temperature is very hot where you live then your Landroid^®L may charge at a slightly slower rate. The Landroid^®L uses less energy in open areas that have fewer obstacles, such as flower beds, fountains, walkways, etc... You can find the default work time of Landroid^®L for different lawn size in programming guide

Mowing times are different for every lawn depending on the factors mentioned previously. Gradually adjust the time you allow your Landroid^ to mow each day until you find the most suitable setting.

You can also program Android® L working time to suit your schedule – refer to Programming Guide.

3.4 How efficiently will my Landroid®L mow the grass?

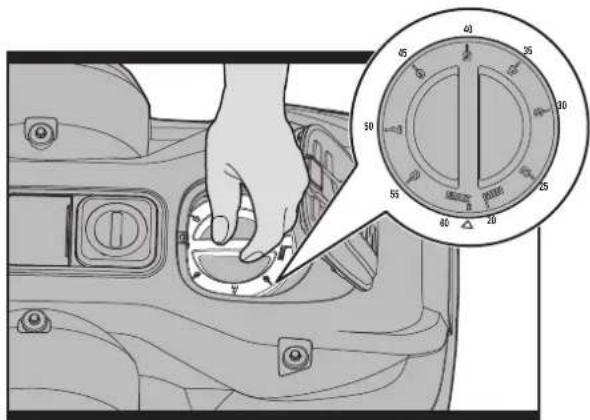

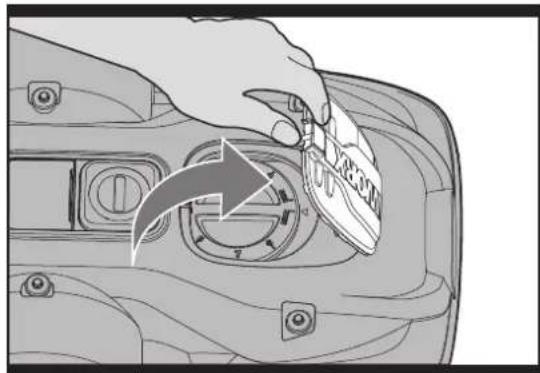

The Landroid^ L's cutting height can be adjusted between 2cm - 6cm. Before starting your Landroid L for the first time, you should cut the grass to the height not more than 9 cm. Then make sure you open the GRASS CUTTING HEIGHT ADJUSTMENT COVER (6) and set the cutting height to its maximum cutting height of 6cm (See Fig. F, G). Your Landroid^ L will cut its best in dry weather. It does not like wet grass, which can build up on the Blade Turning Disc (16) and within the motor, and can also cause loose traction and slippage while working.

Your Landroid^®L is afraid of Lightening Storms. In case of a Lightening Storm, protect the Landroid^®L by unplugging the Charging Base (3), disconnecting the Boundary Wire (23), and making sure the Landroid^®L is not allowed to charge. Your Landroid^®L loves mowing grass and requires the Cutting Blades (17) to be kept in good condition to cut its best. The Landroid^®L can do most things by itself, but will need your help sometimes to prevent damage to itself.

• Never let the Landroid ^ L travel over gravel.
• Remove or prevent access to obstacles that the Landroid ^® L could accidentally climb and damage its Blade Disc.
• Remove all debris and foreign objects from your lawn.

Diagram of a hand inserting a device into a car's front panel, showing the circular dial and adjustment arrow (no text or symbols)

F

Diagram showing a hand pressing down a dial into a car's air vent, with an inset zooming view highlighting the dial's measurement.

G

4. Remote Mobile Control (only for specific model, please check Technical data & Declaration of Conformity)

Your Android ^® L could be connected to smart phone. All the general settings could be set on your phone. It will also show the current working status, even errors. For the details settings, please refer to the Android ^® L Wifi Connection Guide.

5. Boundary Wire Basics

5.1 Pegging the Boundary Wire

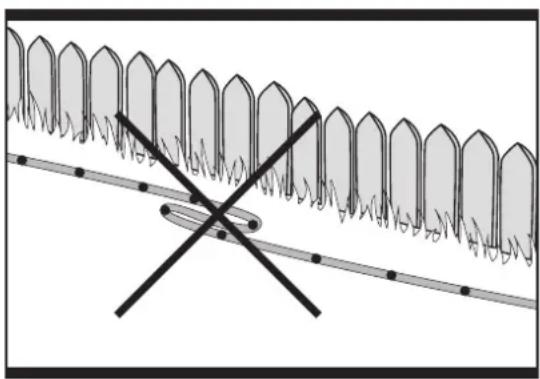

Use the Boundary Wire Distance Gauge (26) to set the correct distance from the border of your lawn (More than 45cm *).

* This is the recommended distance. Use the provided distance gauge to ensure proper installation.

If your neighbor also uses a Landroid^®L , then you must keep a spacing of at least 0.5 metres between your Boundary Wire and your neighbors.

The boundary wire must outline the intended mowing area exactly. Your Landroid^®L will become confused by extra bends or coils of Boundary Wire that are not part of its mowing area (See Fig. H). If

Diagram of a mechanical or structural assembly with layered components and intersecting lines (no text or symbols)

H

there is excess Boundary Wire after the mowing area has been outlined, then cut it off and store this additional wire in a separate location. However, it is important to leave the necessary length where it connects to the Charging Base so it can be connected and still remain buried.

5.2 Burying the Boundary Wire

If you are planning to bury the Boundary Wire then it should be noted that when entering its Charging Base for the first time, your Landroid^®L may find problems with the way you have laid the wire. It is recommended to first peg down the Boundary Wire to the lawn so it is easy to make adjustments if necessary. This will allow the Landroid^®L to become adjusted to its new environment and ensures it will successfully work with the charging base before the Boundary Wire is buried.

When you have completed installing the boundary wire, it is recommended that you ask L to follow the boundary wire by pressing the home button.

Whilst observing Landroid^ locating the charging station you can then make alterations to the boundary wire route to ensure trouble free tracking of the boundary wire by Landroid^ when locating the charging station.

5.3 Joining the Boundary Wire

The Boundary Wire (23) can be extended simply by splicing the ends and connecting it to the ends of another piece of wire. You can use insulating tape to secure the joined part of the wire. (See Fig. I)

Diagram showing four different types of cable or wire connection setups labeled 1 to 4, with numbered annotations.

I

6. Software update

Your Android®L software can be updated when new versions become available. The software version will be displayed in the diagnosis page by pressing button 2 on homepage. The latest software can be downloaded from our website www.worxlandroid.com. See the detailed guideline on download page.

The manual in box is based on the default software in the mass production. Some new features/functions in the new version may not exist in the manual. If you found some settings not in the manual, please visit www.worxlandroid.com to download the latest manual.

7. Maintenance

Your Android ^® L needs to be checked from time to time. The Android ^® L works hard and after time needs a good cleaning as well as to have its parts replaced, as they can become worn. In the following we want to let you know how to take care of your Android ^® L.

7.1 Keep it Sharp

WARNING: Before cleaning, adjusting, or replacing the Blades, turn your Landroid® L OFF and put on protective gloves.

WARNING! When fitting new blades, make sure you replace ALL the blades. Always use new screws when fitting blades. This is important to ensure blade retention. Failure to use new screws could cause serious injury.

The Landroid^®L does not cut grass like other mowers. Its Blades (17) are razor sharp on all 4 edges and spin in both directions for maximum cutting capacity (See Fig. J). Each blade of your Landroid^®L has 4 cutting edges. Depending on the frequency the Landroid^®L mows your lawn, the cutting blades will need to be flipped/rotated periodically for a new cutting edge. If your

1 2 3 4

Landroid^® L is programmed to mow the lawn every day then the cutting blades will need to be rotated monthly for the best mowing results. Each cutting blade will last up to 4 months when it is programmed to mow every day. When the cutting blades are dull and worn out, they should be replaced with the spare blades provided with your Landroid^® L. Spare blades are also available at your nearest WORX retailer.

A. Rotate and Flip the Blades

Your Android ^® L carries the Blades that are all screwed onto the Blade Disc (16). The Blades allow the Android ^® L to do its job and need care and attention. Every once in awhile, you should simultaneously rotate and flip all blades for a perfect cut. When rotating and flipping the Blades, make sure all the Blades are adjusted at the same time or else it could make the Blade Disc off balance. If your Android ^® L mows on a normal schedule (daily) then the Blades should last one season if they are rotated and flipped every month. Always check to see if the Blades are chipped or damaged and replace them if they are.

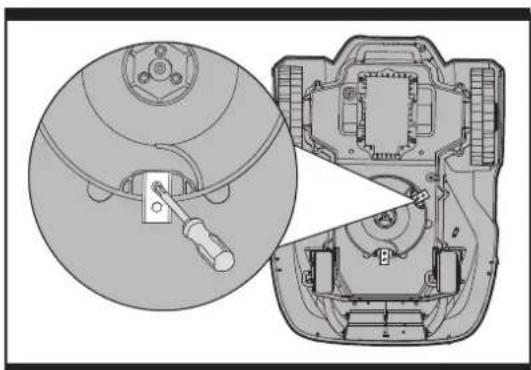

B. Replace the Blades (See Fig. K)

After some time, usually every season, your Landroid^®L 's Blades will need to be replaced. Your Landroid^®L does not like mowing while using Blades of different age and quality. So when replacing the Blades, make sure to replace all of them at the same time. You can replace them with one of the three spare Blade kits and extra Blade screws supplied with your Landroid^®L .

Before attempting to replace your Landroid^®L ’s Blades, turn the power off and put on protective gloves. Then follow these steps:

1. Gently flip the Landroid ^® L over
2. Remove the battery cover and remove the battery.
3. Take the screws off the Blades with a screwdriver
4. Firmly screw on the new Blades
5. Refit the battery and battery cover.

IMPORTANT: After screwing the Blade to the Blade Disc, make sure the Blade is able to spin freely.

Technical diagram of a mechanical assembly showing internal components and a close-up view of a component (no text or symbols present)

K

7.2 Keep it Clean

WARNING! Before cleaning turn your Landroid® L OFF. Put on protective gloves before cleaning the Blade Disc (16) and do not use running water. (See Fig. L)

A. Cleaning the Body

Your Landroid^ L will live a much happier and longer life if it is cleaned regularly. Although, as your Landroid^ L is an electric machine, you will need to take care when cleaning, so DO NOT use a hose, high pressure washers or otherwise pour running water on your Landroid^ L, it is best to use a spray bottle filled with water. When cleaning the machine body use a soft brush or clean cloth and avoid using solvents or polishes (See Fig. L). Lastly, make sure that you remove all build up of grass clippings and debris.

Line drawing of a robotic lawn spray system emitting spray from a spray bottle onto grass (no text or symbols)

L

B. Cleaning the Underside

Again, it is important that you power the Landroid^ OFF using the ON/Off Button and wear protective gloves before touching the Blade Disc (16).

First, flip your Landroid ^® L upside down to expose its underside. Here you will see the Blade Disc, the Main Housing (14), and the Front (18) and Drive (11) Wheels. Clean everything thoroughly with a soft brush or moist cloth.

Rotate the Blade Disc to ensure it rotates freely. Check the blades spin freely around the fixing screws. Remove any obstructions.

IMPORTANT: Remove any lodged debris so that it does not cause a crack in the Blade Disc. Even the tiniest crack can decrease your Landroid®L's mowing output.

C. Clean the contact pins and the charging strips

Clean the Contact Pins (2) located on the Charging Base (3) and the Charging Strip (5) located on the Landroid ^® L using a cloth. Remove any build up of grass clippings and debris around the contact pins and charge strips periodically to ensure the Landroid ^® L successfully charges each time.

7.3 Battery Life

The heart of the Landroid®L is its 28-volt lithium-ion battery. No maintenance is required. For proper storage of the battery, make sure it is fully charged in kept in a cool dry place between (20°C-60°C).

The life-span of the Landroid^®L ’s battery depends on various factors, such as:

• The time span of the mowing season in your region.
• Amount of hours the Landroid ^ L mows per day.
• Battery maintenance during storage.

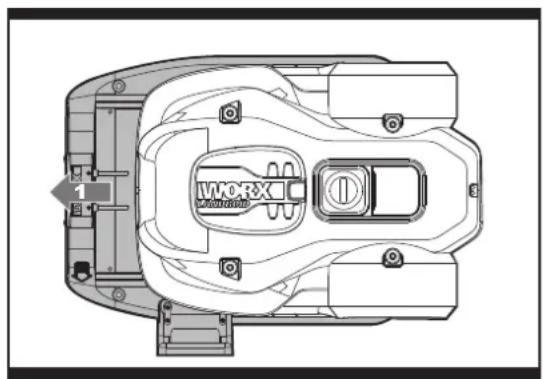

  Landroid^ can be charged manually without the boundary wire.

To manually charge the battery without connecting the boundary wire to the charging base;

1. Connect the Charging Base to a suitable power supply.
2. Manually dock the Landroid^®L into the Charging Base while the Landroid^®L is powered off. (See Fig.M1)
3. The charging base red light will turn on.

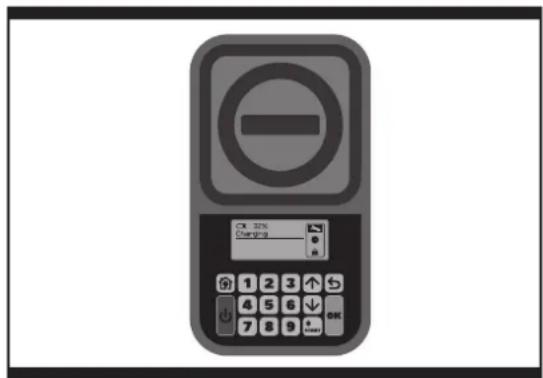

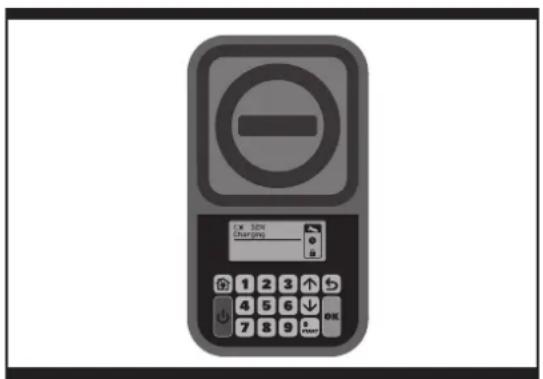

4. While "charging" is shown on the screen. (See Fig. M2), LandroidL will begin to charge.

Top-down technical diagram of a mechanical device with labeled components (no readable text or symbols)

M1

SUN Charging

M2

7.4 Winter Hibernation

Your Android ^® L will live longer and healthier if it is allowed to hibernate. So even though it is tough, we would recommend that you store your Android ^® L in your shed or garage during the winter.

Before you prepare your Android®L for winter hibernation, we recommend you:

• Thoroughly clean your Android ^® L.
• Fully charge the battery.
- Turn the mower off.

To maximize the battery life, it is recommended to fully charge the battery before storage during winter.

The Boundary Wire can be left in the ground although its ends should be protected, such as placed in a tin can with grease.

If the Charging Base is left outside for winter, leave the Boundary Wire connected.

NOTE: When bringing the Landroid^®L back to life after winter hibernation, make sure the Charging Strips (5) and Contact Pins (2) are clean, it is best to use a fine grade emery cloth. Then make sure the date and time are correct and send the Landroid^®L back to what it loves doing: mowing.

7.5 Replacing the Battery

WARNING! Press the ON/OFF Key to OFF before attempting any adjustment, replacement or repair.

If you need to replace the Battery, follow these steps:

1. Gently Turn your Landroid ^® L upside down.
2. Remove the six screws on the battery cover. (See Fig. N)
3. Take out the old battery. (See Fig. O)
4. Put in the new battery.
5. Firmly replace the screws.

Technical line drawing of a mechanical component with a hand adjusting a slot (no text or symbols)

N

Technical illustration of a mechanical assembly with exploded view and internal components (no text or symbols)

0

Environmental Protection

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

Plug Replacement (UK & Ireland Only)

If you need to replace the fitted plug then follow the instructions below.

IMPORTANT

The wires in the mains lead are colored in accordance with the following code:

Blue - Neutral

Brown - Live

As the colors of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. The wire which is coloured blue must be connected to the terminal which is marked with N. The wire which is coloured brown must be connected to the terminal which is marked with L.

WARNING: Never connect live or neutral wires to the earth terminal of the plug. Only fit an approved BS1363/A plug and the correct rated fuse.

NOTE: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket.

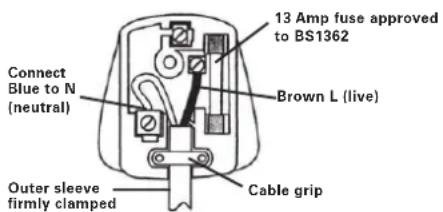

13 Amp fuse approved to BS1362 Brown L (live) Connect Blue to N (neutral) Outer sleeve firmly clamped Cable grip

BEDIENUNGSANLEITUNG

INHALT

Exploded view diagram of a device with numbered parts and labeled components such as a WORX controller, power supply, and an Android controller.

Architectural sketch of a modern building with parked cars and a small robot, surrounded by trees and outdoor furniture (no text or symbols)

Top-down architectural layout diagram showing a central building surrounded by geometric pathways and surrounding plants (no text or symbols)

A

Technical illustration of a device housing with an inset close-up view (no text or symbols)

B

Illustration of a robotic lawn mower on grass, emitting sound waves (no text or symbols)

C

Illustration of a hand pressing down on a device's control panel with arrows indicating motion (no text or symbols)

D

Illustration of a hand placing food into a tray with a bag, no text or symbols present

E

Diagram of a hand inserting a device into a car's front panel, showing mechanical components and a circular dial (no text or symbols)

F

Diagram showing a hand pressing a button on a vehicle's side panel with an inset dial view highlighting the 20-40 range.

G

Diagram showing a mechanical or structural assembly with layered components and intersecting lines (no text or symbols)

H

Diagram showing four different types of cable or wire connection setups with numbered labels

Technical diagram of a mechanical assembly showing internal components and a close-up view of a component (no text or labels)

K

7.2 Sauber Halten

Line drawing of a robotic lawn mower with spray nozzle emitting mist, no text or symbols present

L

Technical line drawing of a mechanical component with no visible text or symbols

M1

32% Charging

M2

7.4 Überwintern

Technical line drawing of a mechanical component with a hand adjusting a slot (no text or symbols)

N

Technical illustration of a mechanical assembly with exploded view and internal components (no text or symbols)

0

Umweltschutz

PRATIQUES DE TRAVAIL SÛRES

Apprentissage

Exploded view diagram of a device with numbered parts and labeled components such as a WORX controller, power supply, and an Android controller.

Architectural sketch of a modern building entrance with parked cars and a robotic arm, surrounded by trees and outdoor furniture (no text or symbols)

Top-down architectural layout diagram showing a central building surrounded by geometric pathways and surrounding plants (no text or symbols)

A

Illustration of a hand pressing down on a device with arrows indicating motion (no text or symbols)

D

Technical illustration of a device casing with internal components and a close-up view of its lid (no text or symbols)

B

Illustration of a robotic lawn mower with signal waves on grass, no text or symbols present

C

Illustration of a hand placing a grid on a tray with an arrow pointing to it (no text or symbols)

E

Hand placing a small object into a device casing with a circular dial (no text or symbols visible)

F

Diagram showing a hand pressing a button on a vehicle's side panel, with an inset dial indicating the 30-degree angle.

G

Diagram of a mechanical or structural assembly with layered components and intersecting lines (no text or symbols)

H

Diagram showing four steps of wire winding connection, labeled 1 to 4 with corresponding schematic illustrations.

|

7. Entretien

Technical diagram of a mechanical assembly showing internal components and a close-up view of a component (no text or symbols present)

K

7.2 Nettoyage

Illustration of a robotic lawn mower with spray nozzle emitting mist, no text or symbols present

L

Top-down technical diagram of a mechanical device with labeled components (no readable text or symbols)

M1

OK 32% Changgng 是

M2

7.4 Hibernation

Technical illustration of a mechanical assembly with a hand adjusting a component (no text or symbols visible)

N

Technical illustration of a mechanical assembly with exploded view and internal components (no text or symbols)

0

PROTECTION DE L'ENVIRONNEMENT

Exploded view diagram of a device with numbered parts and labeled components such as a WORX controller, power supply, and an Android controller.

1. MANIGLIA DI PROTEZIONE
2. PIN DI CONTATTO
3. BASE DI RICARICA
4. CAVO DI BASSA TENSIONE
5. STRISCIA DI RICARICA
6. COPERCHIO DI REGOLAZIONE DELL'ALTEZZA DI TAGLIO DELL'ERBA
7. PUNTO DI ACCESSO - PER APRIRE IL COPERCHIO DI REGOLAZIONE DELL'ALTEZZA DI TAGLIO DELL'ERBA.
8. TASTO STOP
9. FINESTRA TASTIERA
10. ELEMENTO TAGLIAERBA
11. RUOTA POSTERIORE
12. SENSORE PIOGGIA
13. MANIGLIA
14. ALLOGGIAMENTO PRINCIPALE - CONTIENE IL MOTORE, I COMPONENTI ELETTRONICI E LA BATTERIA.
15. PACCO BATTERIA
16. DISCO SUPPORTO LAME
17. LAMA
18. RUOTA ANTERIORE
19. TASTIERA
20. DISPLAY
21. TASTO ON/OFF
22. TRASFORMATORE
23. FILO PERIMETRALE
24. PICCHETTO FILO PERIMETRALE
25. CHIODI DI ANCORAGGIO DELLA BASE DI RICARICA
26. DISTANZIATORE PER IL FILO PERIMETRALE
27. CHIAVE A BRUGOLA

3. Per comprendere Landroid ^® L

Architectural sketch of a modern building with parked cars and a small robot, surrounded by trees and outdoor furniture (no text or symbols)

Top-down architectural layout diagram showing a central building surrounded by geometric pathways and surrounding plants (no text or symbols)

A

Robot tosaerba I

Technical illustration of a device casing with a close-up inset showing a dome component (no text or symbols)

B

Illustration of a robotic lawn mower on grass, emitting sound waves (no text or symbols)

C

Illustration of a hand pressing down on a device with arrows indicating motion (no text or symbols)

D

Illustration of a hand placing a small object into a tray with a circular button, no text or symbols present

E

Robot tosaerba I

Per riavviarlo:

Diagram of a hand inserting a device into a car's front panel, showing the circular dial and adjustment arrow (no text or symbols)

F

Diagram showing a hand pressing a button on a vehicle's side panel, with an inset dial view highlighting the 20-40 range.

G

Robot tosaerba I

Diagram showing a mechanical or structural assembly with layered components and intersecting lines (no text or symbols)

H

Diagram showing four different types of cable or wire connection setups labeled 1 to 4, with numbered annotations.

|

Technical diagram of a mechanical assembly showing internal components and a close-up view of a component (no text or symbols present)

K

Line drawing of a robotic lawn spray system emitting spray from a spray bottle onto grass (no text or symbols)

L

Technical line drawing of a mechanical device with no visible text or symbols

M1

320 Charging

M2

Technical illustration of a mechanical component with a hand adjusting a rectangular part (no text or symbols visible)

N

Technical illustration of a mechanical assembly with exploded view and internal components (no text or symbols)

0

Tutela Ambientale

Exploded view diagram of a WORX device with numbered parts and labeled components

Architectural sketch of a modern building with parked cars and a small robot, surrounded by trees and outdoor furniture (no text or symbols)

Top-down architectural layout diagram showing a central building surrounded by geometric pathways and surrounding plants (no text or symbols)

A

Technical illustration of a device housing with a close-up inset showing a dome component (no text or symbols)

B

Illustration of a robotic lawn mower on grass, emitting sound waves (no text or symbols)

C

Illustration of a hand pressing down on a device with arrows indicating motion (no text or symbols)

D

Illustration of a hand placing a small object into a tray with a circular button, no text or symbols present

E

Hand inserting a device into a car's front panel, showing the circular dial and adjustment knob (no text or symbols)

F

Diagram showing a hand pressing a button on a vehicle's side panel, with an inset dial indicating the 30-degree angle.

G

Diagram of a mechanical or structural assembly with layered components and intersecting lines (no text or symbols)

H

Diagram showing four different types of cable or wire connection setups labeled 1 to 4, with numbered annotations.

1

7. Mantenimiento

Technical diagram of a mechanical assembly showing internal components and a close-up view of a component (no text or labels)

K

Line drawing of a robotic lawn mower with spray nozzle emitting mist, no text or symbols present

L

Top-down technical line drawing of a mechanical assembly with labeled components (no readable text or symbols)

M1

Image of a mobile phone with a display screen showing a minus sign and keypad

M2

7.4 Hibernación

Technical line drawing of a mechanical component with a hand adjusting a rectangular part (no text or symbols)

N

Technical illustration of a mechanical assembly with exploded view and internal components (no text or symbols)

0

Robot cortacesped ES

Exploded view diagram of a WORX device with numbered parts and labeled components

1. HANDVAT

2. CONTACTPINNEN

3. LAADSTATION

4. LAAGSPANNINGSKABEL

5. LAADSTRIP

6. KAP VOOR DE GRASMAAIHOOGTEAFSTELLING

7. TOEGANGSPUNT - OM DE HOOGTEAFSTELLINGSKAP TE OPENEN.

8. STOPKNOP

9. TOETSENBORDVENSTER.

10. Landroid®L-KAP

11. ACHTERSTE RIJWIEL

12. REGENSENSOR

13. HANDVAT

14. HOOFDBEHUIZING - BEVAT MOTOR, ELEKTRONICA EN ACCU.

15. BATTERIJPAKKET

16. MESDRAAIENDE SCHIJF

17. SNIJMES

18. VOORWIEL

19. TOETSENBORD

20. SCHERM

21. AAN-UITKNOP

22. VOEDINGSAPPARAAT

23. GRENSDRAAD

24. DRAADPENNEN

25. BEVESTIGINGSCHROEVEN VOOR LAADSTATION

26. AFSTANDMAL VOOR GRENSDRAAD

27. INBUSSLEUTEL

Architectural sketch of a modern building entrance with parked cars and a robotic arm, surrounded by trees and outdoor furniture (no text or symbols)

Top-down architectural layout diagram showing a central building surrounded by geometric pathways and surrounding plants (no text or symbols)

A

Technical illustration of a device housing with an inset view showing a dome-shaped component (no text or symbols)

B

Illustration of a robotic lawn mower on grass, emitting sound waves (no text or symbols)

C

Illustration of a hand pressing down on a device with arrows indicating motion (no text or symbols)

D

Illustration of a hand placing a small object into a tray with a patterned plate (no text or symbols)

E

Hand inserting a device into a car interior (no text or symbols visible)

F

Diagram showing a hand pressing down a component with an inset dial view highlighting the 60°–20° range.

G

Diagram showing a patterned structure with intersecting lines and dots, no text or symbols present

H

Diagram showing four different types of cable or wire connection setups labeled 1 to 4, with numbered annotations.

|

6. Software-update

Technical diagram of a mechanical assembly showing internal components and a close-up view of a component (no text or labels)

K

Line drawing of a robotic lawn mower with spray nozzle emitting mist, no text or symbols present

L

Top-down technical diagram of a vehicle or device component with no visible text or symbols

M1

CK 20% Chang 1 2 3 ↑ 5 4 5 6 ↓ 7 8 9 替机

M2

Technical illustration of a mechanical assembly with a hand adjusting a component (no text or symbols visible)

N

Technical illustration of a mechanical assembly with exploded view and internal components (no text or symbols)

0

Exploded view diagram of a device with numbered parts and labeled components such as WORX, landroid, and control buttons.

1. UCHWYT
2. WTYKI
3. STACJA LADOWANIA
4. PRZEWÓD NISKIEGO NAPIĘCIA
5. TAŚMA ŁADOWANIA
6. POKRYWA REGULACJI WYSOKOŚCI CIĘCIA TRAWY
7. PUNKT DOSTĘPU – ABY OTWORZYĆ POKRYWĘ REGULACJI.
8. PRZYCISK ZATRZYMANIA
9. OKNO KLAWIATURY
10. POWIERZCHNIA ROBOTA Landroid®L
11. TYLNE KOŁO NAPEDOWE
12. CZUJNIK DESZCZU
13. RĄCZKA
14. OBUDOWA GŁÓWNA – ZAWIERA SILNIK, ELEMENTY ELEKTRYCZNE I AKUMULATOR.
15. AKUMULATOR
16. TARCZA OBROTOWA Z OSTRZEM
17. OSTRZE TNACE
18. PRZEDNIE KOŁO
19. KLAWIATURA NUMERYCZNA
20. WYŚWIETLACZ
21. PRZYCISK ON/OFF (WŁ./WYŁ.)
22. ZASILACZ SIECIOWY
23. PRZEWÓD GRANICZNY
24. SZPILKI DO PRZEWODÓW
25. ŚRUBY MOCUJĄCE STACJI ŁADOWANIA
26. MIERNIK ODLEGŁOŚCI PRZEWODU GRANICZNEGO
27. KLUCZ IMBUSOWY

Architectural sketch of a modern building with parked cars and a small robot, surrounded by trees and outdoor furniture (no text or symbols)

Top-down architectural layout diagram showing a central building surrounded by geometric pathways and surrounding plants (no text or symbols)

A

Technical line drawing of a mechanical device with a close-up inset showing a dome-shaped component (no text or symbols)

B

Line drawing of a robotic lawn with sound waves, no text or symbols present

C

Illustration of a hand pressing down on a device with arrows indicating motion (no text or symbols)

D

Illustration of a hand placing a small object into a tray with a patterned surface, no text or symbols present

E

Diagram of a hand inserting a device into a car's front panel, showing the circular component and arrow (no text or symbols)

F

Diagram showing a hand pressing a button on a vehicle's side panel with an inset dial view highlighting the 20-40 range.

G

Diagram of a mechanical or structural assembly with repeating hexagonal elements and intersecting lines (no text or symbols)

H

Diagram showing four steps of wire winding connection, labeled 1 to 4 with corresponding schematic illustrations.

Technical diagram of a mechanical assembly showing internal components and a close-up view of a cylindrical component (no text or labels)

K

Line drawing of a robotic lawn mower with spray nozzle emitting mist, no text or symbols present

L

Top-down technical diagram of a mechanical device with labeled components (no readable text or symbols)

M1

Illustration of a mobile phone with a digital display and keypad (no text or symbols visible)

M2

Technical illustration of a mechanical component with a hand adjusting a slot (no text or symbols visible)

N

Technical illustration of a mechanical assembly with exploded view and internal components (no text or symbols)

0

OCHRONA ŚRODOWISKA

Exploded view diagram of a device with numbered parts and labeled components such as WORX, landroid, and control buttons.

1. RUKOJEČT
2. KONTAKTNÍ KOLÍKY
3. NABÍJECÍ ZÁKLADNA
4. KABEL PRO NÍZKÉ NAPĚTÍ
5. NABÍJECÍ PÁSEK
6. KRYT OVLÁDACÍHO PANELU PRO NASTAVENÍ VÝŠKY SEKÁNÍ
7. PŘÍSTUPOVÝ BOD – PRO OTEVŘENÍ KRYTU OVLÁDACÍHO PANELU.
8. TLAČÍTKO STOP
9. KRYT OVLÁDACÍHO PANELU
10. ZÁKLADNA Landroid ^® L
11. ZADNÍ HNACÍ KOLEČKO
12. DEŠTOVÝ SENZOR
13. RUKOJEČT
14. HLAVNÍ KRYT - OBSAHUJE MOTOR, ELEKTRONIKU A AKUMULÁTOR.
15. BATERIE
16. NOŽOVÝ KOTOUČ
17. NÜŽ
18. PŘEDNÍ KOLEČKO
19. KLÁVESNICE
20. DISPLEJ
21. TLAČÍTKO ZAPNUTO/VYPNUTO
22. NAPÁJECÍ ADAPTÉR
23. VYMEZOVACÍ DRÁT
24. DRÁTĚNÉ KOLÍKY
25. UPEVŇOVACÍ KOLÍKY NABÍJECÍ ZÁKLADNY
26. MĚŘIDLO VZDÁLENOSTI VYMEZOVACÍHO DRÁTU
27. ŠESTIHRANNÝ KLÍČ

3. Poznejte sekačku Landroid ^® L

Architectural sketch of a modern building with parked cars and a small robot, surrounded by trees and outdoor furniture (no text or symbols)

3.1 Jak moje sekačka Landroid®L pozná, co má sekat?

Top-down architectural layout diagram showing a central building surrounded by geometric pathways and surrounding plants (no text or symbols)

A

Technical illustration of a device casing with internal components and a close-up view of its lid (no text or symbols)

B

Illustration of a tracked agricultural robot with signal waves, positioned on a grassy field (no text or symbols)

C

Illustration of a hand pressing down on a device with arrows indicating motion (no text or symbols)

D

Illustration of a hand placing a small object into a tray with a lid, showing no text or symbols.

E

Diagram of a hand inserting a device into a car's front panel, showing mechanical components and a circular dial (no text or symbols)

F

Diagram showing a hand pressing a button on a vehicle's side panel, with an inset dial view highlighting the 25-30 range.

G

Diagram showing a mechanical or structural assembly with layered components and intersecting lines (no text or symbols)

H

Diagram showing four steps of wire winding connection: straight, twisted, twisted, and twisted with coiled cable.

Technical diagram of a mechanical assembly showing internal components and a close-up view of a component (no text or labels)

K

Line drawing of a robotic lawn mower with spray nozzle emitting mist, no text or symbols present

L

Top-down technical diagram of a mechanical device with labeled components (no readable text or symbols)

M1

Image of a mobile phone with control panel and display screen showing 'OK', 'Cancel', and 'OK' buttons

M2

7.4 Uložení v zimě

Technical illustration of a mechanical component with a hand inserting a tool into a housing (no text or symbols visible)

N

Technical line drawing of a mechanical assembly with exploded view and internal components (no text or symbols)

0

USCHOVAJTE PRE ĐALŠIE POUŽITIE

POSTUPY TÝKAJÚCE SA BEZPEČNÉHO POUŽITIA

Zaškolenie

Exploded view diagram of a device with numbered parts and labeled components such as a WORX controller, power supply, and an Android controller.

1. RUKOVÄT
2. KONTAKTNÉ KOLÍKY
3. NABÍJACIA ZÁKLADŇA
4. KÁBEL PRE NÍZKE NAPÄTIE
5. NABÍJACIA PÁSKA
6. KRYT OVLÁDACIEHO PANELU NA NASTAVENIE VÝŠKY KOSENI
7. PRÍSTUPOVÝ BOD – NA OTVORENIE KRYTU OVLÁDACIEHO PANELU.
8. TLAČIDLO STOP
9. KRYT OVLÁDACIEHO PANELU
10. ZÁKLADŇA Landroid ^® L
11. ZADNÉ HNACIE KOLIESKO
12. SENZOR DÁŽDA
13. RUKOVÄT
14. HLAVNÝ KRYT – OBSAHUJE MOTOR, ELEKTRONIKU A AKUMULÁTOR.
15. BATÉRIA
16. NOŽOVÝ KOTÚČ
17. NÔŽ
18. PREDNÉ KOLIESKO
19. KLÁVESNICA
20. DISPLEJ
21. TLAČIDLO ZAPNUTÉ/VYPNUTÉ
22. NAPÁJACÍ ADAPTÉR
23. OHRANIČUJÚCI DRÔT
24. DRÔTENÉ KOLÍKY
25. UPEVŇOVACIE KOLÍKY NABÍJACEJ ZÁKLADNE
26. MERADLO VZDIALENOSTI OHRANIČUJÚCEHO DRÔTU
27. ŠESTHRANNÝ KLÚČ

3. Zoznámte sa s kosačkou Landroid ^® L

Architectural sketch of a modern building with parked cars and a small robot, surrounded by trees and outdoor furniture (no text or symbols)

Top-down architectural layout diagram showing a central building surrounded by geometric pathways and surrounding plants (no text or symbols)

A

3.2 Ako moja kosačka Landroid®L vie, kam má íst'?

Technical line drawing of a mechanical device with a close-up inset showing a dome-shaped component (no text or symbols)

B

Line drawing of a robotic lawn with sound waves, no text or symbols present

C

Illustration of a hand pressing down on a device with arrows indicating motion (no text or symbols)

D

Illustration of a hand placing a tray with icons into a tray (no text or symbols)

E

Diagram of a hand inserting a device into a car's door panel, showing the circular dial and handle (no text or symbols present)

F

Diagram showing a hand pressing a button on a vehicle's side panel, with an inset dial view highlighting the 20-40 range.

G

Diagram of a mechanical or structural assembly with layered components and intersecting lines (no text or symbols)

H

Diagram showing four steps of wire winding connection: straight, twisted, twisted, and twisted with coiled cable.

Technical diagram of a mechanical assembly with cross-sectional view and close-up detail (no text or labels)

K

Line drawing of a robotic lawn mower with spray nozzle emitting mist, no text or symbols present

L

Top-down technical diagram of a mechanical device with labeled components (no readable text or symbols)

M1

Illustration of a mobile phone with a digital display and keypad (no text or symbols visible)

M2

Diagram of a mechanical assembly with a hand inserting a component into a housing (no text or symbols visible)

N

Technical line drawing of a mechanical assembly with exploded view and internal components (no text or symbols)

0

SHRANITE ZA KASNEJŠO UPORABO

VARNA UPORABA

Usposabljanje

Exploded view diagram of a device with numbered parts and labeled components such as a WORX device, power controller, and landroid.

1. KRMILO
2. KONTAKTNA PRIKLOPA
3. BAZA ZA POLNJENJE
4. NIZKONAPETOSTNI KABEL
5. TRAKOVA NAPAJALNIKA
6. POKROV MEHANIZMA ZA NASTAVLJANJE VIŠINE REZANJA TRAVE
7. DOSTOPNA TOČKA – ZA ODPIRANJE POKROVA MEHANIZMA ZA NASTAVLJANJE VIŠINE REZANJA TRAVE
8. GUMB ZA IZKLOP
9. OKNO TIPKOVNICE
10. PODNOŽJE Landroid ^® L
11. ZADNJE POGONSKO KOLO
12. SENZOR ZA DEŽ
13. ROČAJ
14. GLAVNO OGIŠJE - VSEBUJE MOTOR, ELEKTRONIKO IN AKUMULATOR.
15. AKUMULATOR
16. REZALNI KOLUT
17. REZILO
18. SPREDNJE KOLO
19. TIPKOVNICA
20. ZASLON
21. TIPKA ON/OFF (VKLOP/IZKLOP)
22. NAPAJALNI ADAPTER
23. ŽICA ZA OMEJITEV
24. KLINI ZA ŽICO
25. KLINI ZA PRITRDITEV BAZE ZA POLNJENJE
26. MERILNIK RAZDALJE OD MEJE KOŠNJE
27. ŠEST ROBI KLJUČ

3. Predstavitev naprave Landroid ^® L

Architectural sketch of a modern building with parked cars and a small robot, surrounded by trees and outdoor furniture (no text or symbols)

Top-down architectural layout diagram showing a central building surrounded by geometric pathways and surrounding plants (no text or symbols)

A

3.2 Kako moj Landroid®L ve, kam mora iti?

Technical illustration of a device casing with internal components and a close-up view of its lid (no text or symbols)

B

Illustration of a robotic arm with signal waves approaching a grassy field (no text or symbols)

C

Illustration of a hand pressing down on a device's control panel with arrows indicating action (no text or symbols)

D

Illustration of a hand placing a small object into a tray with a circular button, no text or symbols present

E

Povzetek:

Diagram of a hand inserting a device into a car's front panel, showing mechanical components and a circular component (no text or symbols)

F

Diagram showing a hand pressing a button on a vehicle's side panel, with an inset dial view highlighting the 20-40 range.

G

Diagram of a mechanical or structural assembly with layered components and intersecting lines (no text or symbols)

H

Diagram showing four different types of cable or wire connection setups labeled 1 to 4, with numbered annotations.

I

Technical diagram of a mechanical assembly showing internal components and a close-up view of a component (no text or labels)

K

7.2 Skrbite, da bo naprava vedno čista

Line drawing of a robotic lawn mower with spray nozzle emitting mist (no text or symbols)

L

Top-down technical diagram of a mechanical device with labeled components (no readable text or symbols)

M1

Image of a mobile phone with a digital display showing status bar and control buttons

M2

Technical illustration of a mechanical assembly with a hand inserting a component into a housing (no text or symbols visible)

N

Technical illustration of a mechanical assembly with exploded view and internal components (no text or symbols)

①

Varovanje Okolja

[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
1
|
|
|
|
[Non-Text]

WORX

it's your nature

Copyright © 2015, Positec. All Rights Reserved.

AR01157100
