Sherpa 40 - Power bank GOAL ZERO - Free user manual and instructions

Product Type	External portable battery
Brand	Goal Zero
Model	Sherpa 40
Dimensions	19 x 10.67 x 1.1 cm
Weight	380 g (13.4 oz)
Battery capacity	Approximately 3-4 charges for smartphone, 1-2 for tablet
USB output ports	2 USB ports 5V, up to 2.4A each (12W max), total 4.8A shared
Input port	Micro USB 5V, up to 2.4A (12W max)
Included cables	Lightning, USB-C, Micro USB (stored internally)
Compatible solar panel	Nomad 14 Plus (sold separately) – charge time: 8h in full sun
Operating temperature	0 to 40°C (32 to 104°F)
Certifications	Not specified
Warranty	12 months (activable online at goalzero.com/warranty)
Standby battery life	At least 3 months
Maintenance and cleaning	Wipe with a dry cloth; avoid moisture and extreme temperatures
Safety	Auto shut-off when device is full; built-in charge detection
Usage	Charge smartphones, tablets, action cameras and other USB devices

Frequently Asked Questions - Sherpa 40 GOAL ZERO

What can I charge with the Sherpa 40?

The Sherpa 40 can charge most phones several times (3 to 4 charges) and up to a full charge for most tablets (1 to 2 charges). The two USB ports provide up to 4.8A total, so you can charge two devices simultaneously.

How do I charge my devices with the Sherpa 40?

Select the cable compatible with your device (Lightning, USB-C or Micro USB provided), plug it into one of the USB ports, then press the battery indicator button to start charging. The Sherpa 40 automatically shuts off when the device is fully charged.

How long does it take to charge a phone with the Sherpa 40?

It depends on your phone, but on average, a full charge takes about 2 hours or more.

How long does the Sherpa 40 battery hold its charge when not in use?

The Sherpa 40 holds its charge for at least 3 months. For battery health, it is recommended to use it regularly and recharge it every 3 to 6 months if stored for long periods.

How do I check the charge level of the Sherpa 40?

Press the battery indicator button (near the ports) to turn on the LED lights that indicate the remaining charge level.

Which cables are included with the Sherpa 40?

The Sherpa 40 comes with three cables stored in an integrated compartment: Lightning (for iPhone/iPad), USB-C (for modern devices), and Micro USB (for older devices).

Can I charge the Sherpa 40 while charging a device?

Yes, the Sherpa 40 supports pass-through: you can charge it via the Micro USB port while using the USB ports to charge your devices simultaneously.

Is the Sherpa 40 compatible with a solar panel?

Yes, it is compatible with the Goal Zero Nomad 14 Plus solar panel (sold separately). In full sun, a full charge takes about 8 hours via the panel's USB port.

What is the recommended operating temperature?

The Sherpa 40 operates correctly between 0°C and 40°C (32°F to 104°F). Avoid exposing it to extreme temperatures to preserve the battery.

How do I maintain and clean the Sherpa 40?

Clean it with a dry, soft cloth. Do not use liquids or abrasive products. Store it in a dry, temperate place away from dust and moisture.

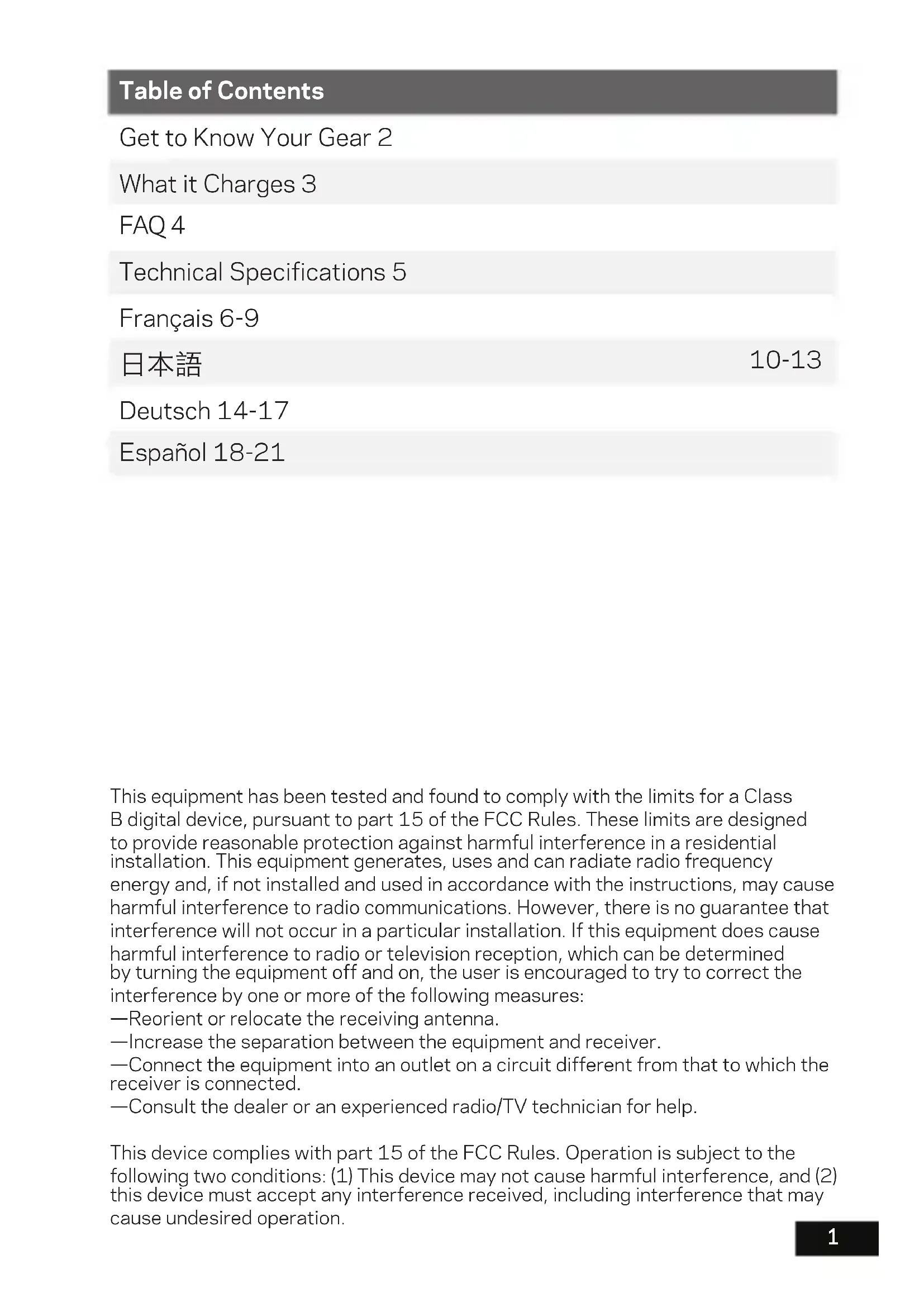

USER MANUAL Sherpa 40 GOAL ZERO

Technical Specifications 5

Français 6-9

日本語

10-13

Deutsch 14-17

Espanol 18-21

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Micro-USB cable

For charging

the Sherpa

Battery Indicator

Lights/On Button

Press it to check the battery level or to begin charging

1: 25% charge
2: 50% charge
3: 75% charge
4: 100% charge

2.4A USB Output Included Cables + Built-in Storage

Lightning®

USB-C

Micro-USB

WHAT IT CHARGES

Sherpa 40 is designed to give multiple recharges on most phones and up to one full recharge on most tablets. With 4.8A shared between the two USB ports, you can even recharge two devices at once.

WHAT IT POWERS

POV Camera 5 Recharges

Phone 3-4 Recharges

Tablet 1-2 Recharges

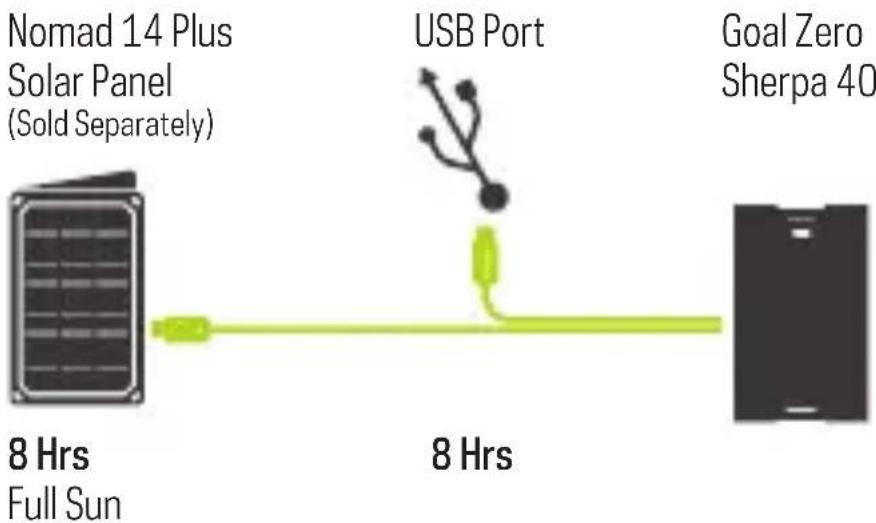

HOW IT WORKS

FREQUENTLY ASKED QUESTIONS

What can I charge with Sherpa 40?

Sherpa 40 is designed to give multiple recharges on most phones and up to one full recharge on most tablets. With 4.8A shared between the two USB ports, you can even recharge two devices at once.

How do I charge my gear?

Plug in and turn it on. Simply select the cable that works with your device, plug in, and push the Battery Indicator to power up. Sherpa 40 senses when the device is full and will automatically shut off.

How long will Sherpa 40 take to charge a phone?

It really depends on your device. On average you're looking at 2 hours or so for a full recharge on a phone.

How long will a charged Sherpa 40 last?

At least 3 months just sitting around. That being said, the best thing to do to keep any battery healthy is to use it. Sherpa 40 is meant to go with you everywhere, be that friend you can always count on to help you out of a situation. If you plan on storing Sherpa 40 for long periods of time, we recommend charging it every 3-6 months.

TECHNICAL SPECIFICATIONS

Sherpa 40

Ports

Center USB Port (output)

5V, up to 2.4A (12W max), regulated

Side USB port (output)

5V, up to 2.4A (12W max), regulated

Micro USB port (input) 5V, up to 2.4A (12W max)

General

Weight 13.4oz (380g)

Dimensions 7.5 × 4.2 × 0.45 in (19 x 10.67 x 1.1cm)

Operating usage temp.

32-104 F (0-40 C)

Certs

Warranty 12 months

Be sure to activate your warranty at goalzero.com/warranty

APPRENDE À CONNAÎTRÉ VOTRE ÉQUIPEMENT

Câble Micro USB

Pour recharger

le Sherpa

1:25% charge
2 : 50% charge
3:75% charge
4 : 100% charge

Sortie USB 2,4A

Designed in the U.S.A.

Made in China

Goal Zero Sherpa is a trademark of Goal Zero.

Apple® and Lightning® are trademarks of Apple Inc, in the U. S. and other countries. "Made for iPod", "Made for iPhone", "Made for iPad" means that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance. iPad, iPhone, iPod classic, iPod nano, iPod touch, and Retina are trademarks of Apple Inc., registered in the U.S. and other countries. iPad Air, iPad mini, and Lightning are trademarks of Apple Inc.
