CHG6400W - Food Processor BEKO - Free user manual and instructions

Product type	Electric mini chopper
Brand	Beko
Model	CHG6400W
Power supply	220-240 V ~ 50/60 Hz
Power	400 W
Bowl capacity	Glass bowl, useful capacity approx. 0.5 L
Functions	Chopping, Pulse function
Control	Maintained on/off button
Bowl material	Glass
Blade material	Stainless steel
Non-slip feet	Yes, rubber
Spatula included	Yes
Dishwasher safe parts	Glass bowl, blade, inner lid (upper part)
Motor unit cleaning	Damp cloth, do not immerse
Safety	Stops if lid is not properly fixed; do not touch blade with bare hands
Max continuous operating time	10 seconds, then 1 minute of cooling
Dimensions (approx.)	Height 20 cm, diameter 15 cm
Weight (approx.)	1.2 kg
Warranty	Manufacturer's warranty (refer to manual for details)

Frequently Asked Questions - CHG6400W BEKO

What is the power of the Beko CHG6400W?

The Beko CHG6400W food processor has a power of 400 W.

What are the supported electrical voltages?

It operates on a power supply of 220-240 V and a frequency of 50/60 Hz.

Can I chop ice cubes or coffee beans with this appliance?

No, it is not recommended to chop very hard foods such as ice cubes, coffee beans, or bones, as this could damage the blades.

How to use the Pulse function?

Press the On/Off button intermittently to activate the Pulse function. This allows for more controlled chopping.

Are the bowl and blade dishwasher safe?

Yes, the glass bowl, blade, and inner lid are dishwasher safe, preferably in the top rack.

What is the maximum continuous running time?

Do not operate the appliance for more than 10 seconds continuously. Let it cool for at least 1 minute before next use.

How to clean the motor unit?

Never immerse the motor unit in water. Clean it with a damp cloth and wipe it thoroughly.

Does the appliance stop if the lid is not properly fixed?

Yes, if the inner lid is not correctly fixed, the motor unit cannot be attached and the appliance will not operate as a safety feature.

What foods can be chopped with the Beko CHG6400W?

You can chop vegetables, fruits, cooked meat, almonds, etc. The maximum recommended quantity is about 400 g for beef.

How to store the appliance after use?

Unplug it, clean and dry all parts. Wrap the cord under the motor unit and store it in a cool, dry place, out of reach of children.

USER MANUAL CHG6400W BEKO

Please read this user manual first!

Dear Customers,

Thank you for selecting an Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various section of this manual:

i	Important information and useful hints about usage.
!	WARNING:Warnings for dangerous situations concerning the safety of life and property.
	Materials are intended to be in contact with food.
	Do not immerse the appliance, power cord or power plug in water or in other liquids.
	Protection class against electric shock

This product has been produced in environmentally-friendly, state-of-the-art facilities.

CONTENTS

ENGLISH	4-9
DEUTSCH	10-18
FRANÇAIS	19-27
TÜRKçe	28-35
ESPÁÑOL	36-44
POLSKI	45-53
HRVATSKI	54-63
ROMANIAN	64-72
SERBIAN 73-80
ITALIANO	81-91

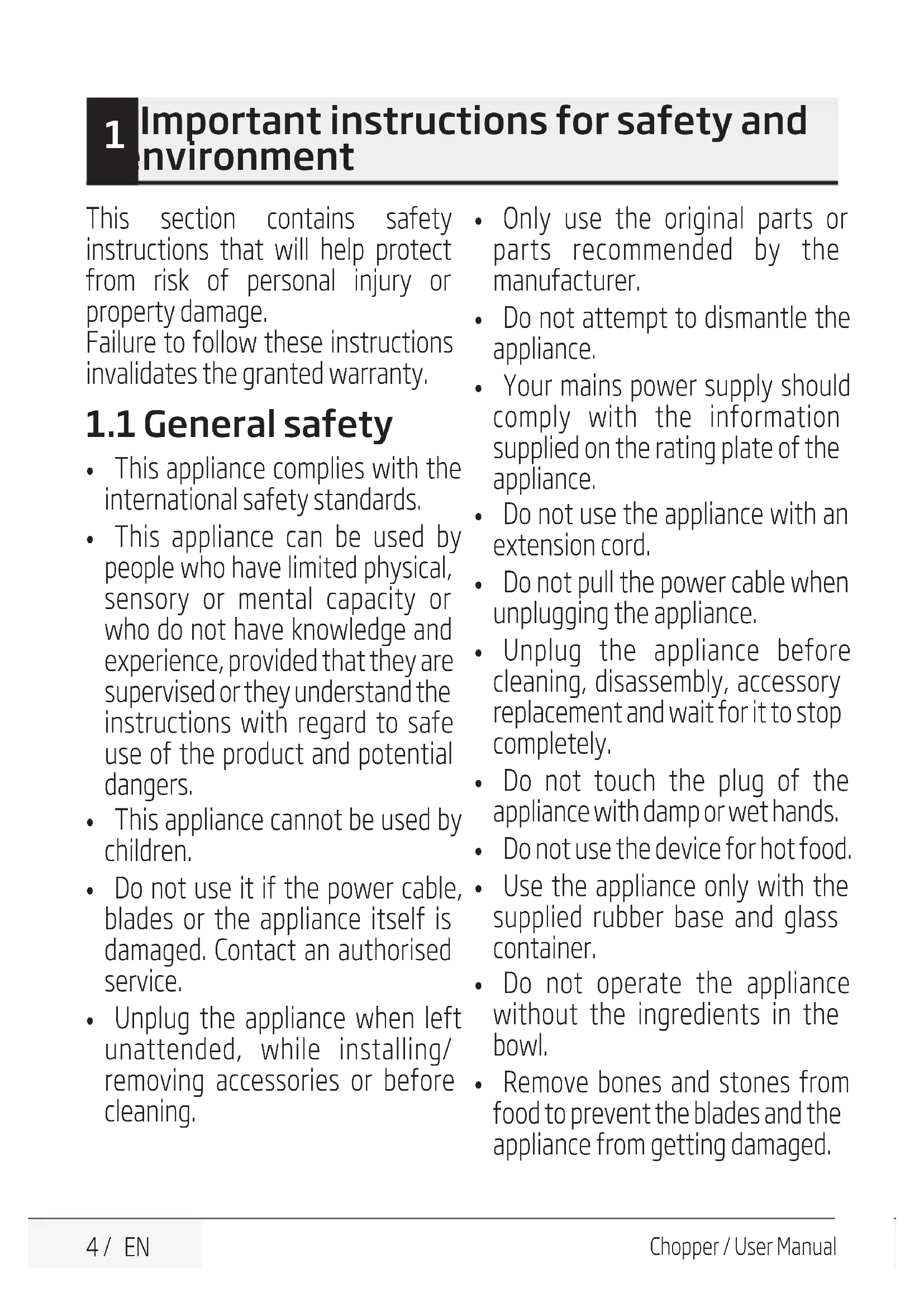

1 Important instructions for safety and environment

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• This appliance complies with the international safety standards.
• This appliance can be used by people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, provided that they are supervised or they understand the instructions with regard to safe use of the product and potential dangers.
• This appliance cannot be used by children.
• Do not use it if the power cable, blades or the appliance itself is damaged. Contact an authorised service.

• Unplug the appliance when left unattended, while installing/ removing accessories or before cleaning.

• Only use the original parts or parts recommended by the manufacturer.

• Do not attempt to dismantle the appliance.
• Your mains power supply should comply with the information supplied on the rating plate of the appliance.
• Do not use the appliance with an extension cord.
• Do not pull the power cable when unplugging the appliance.
• Unplug the appliance before cleaning, disassembly, accessory replacement and wait for it to stop completely.
• Do not touch the plug of the appliance with damp or wet hands.
• Do not use the device for hot food.
• Use the appliance only with the supplied rubber base and glass container.
• Do not operate the appliance without the ingredients in the bowl.
• Remove bones and stones from food to prevent the blades and the appliance from getting damaged.

1 Important instructions for safety and environment

• This appliance is not suitable for dry or hard foods as this will quickly cause the blades to become dull.
• To prevent overheating, do not use the appliance continuously for more than 10 seconds. Leave to cool for 1 minute in between each 10 seconds of operation.
• Follow all warnings to prevent injuries due to incorrect use.
• When emptying the container, during cleaning and grabbing chopping blades with bare hands serious injuries could result due to incorrect use. Use caution and hold the chopping blade only from its plastic section.
• After cleaning, dry the appliance and all parts before connecting it to mains supply and before attaching the parts.
• Do not immerse the appliance, power cable, or power plug in water or any other liquids.
• Do not operate or place any part of this appliance or its parts on or near hot surfaces.

• If you keep the packaging materials, store them out of the reach of children.

• Keep the appliance out of the reach of children.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic

and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do

not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Chopper

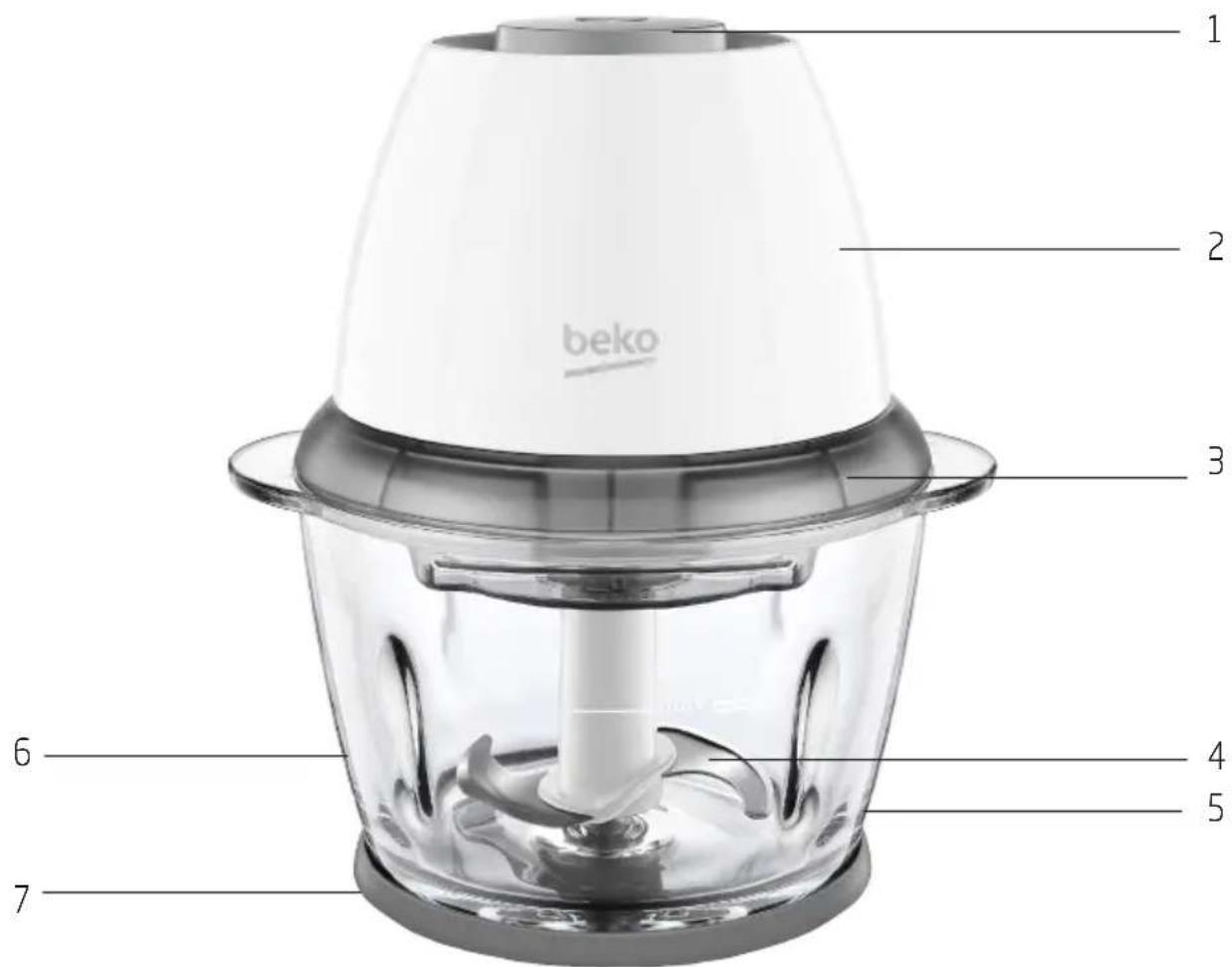

2.1 Overview

1. Operation switch
2. Base unit
3. Inner lid
4. Chopping blade
5. Glass bowl
6. Fixed shaft
7. Non-slip rubber pad

Spatula

2.2 Technical data

Power supply: 220 - 240V^,50 / 60Hz

Power: 400 W

Technical and design modifications reserved.

The values which are declared in the markings affixed on your appliance or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

3 Recipe idea

3.1 Recipe idea Salsa

Ingredients:

• 3 tomatoes, seeded
• 1 red onion
  1 garlic clove
  1 red bell pepper
• 1 jalapeño chilli pepper, seeded
• 2 tablespoons fresh cilantro
• 1 / 2 teaspoon salt
• 2pcs egg white+420g icing sugar

Preparation:

Peel the onion and place with the garlic, bell pepper and chilli pepper into the bowl of the appliance and pulse until the ingredients are coarsely chopped. Gradually add the tomatoes, cilantro and salt and pulse a few times until the ingredients are thoroughly mixed.

3.2 Maximum quantities and processing time

Refer to the table for processing time and maximum quantities.

Ingredients Maximum quantity Processing time
Onion 250 g 10 sec
Banana 290 g 9 sec
Carrot 260 g 9 sec
Almond 200 g 7 sec
Cooked Potato 310 g 7 sec
Beef 400 g 15 sec
Icing (egg white + icing sugar) Egg white: 2 pcs Icing sugar: 420 g 10 sec

4 Operation

Your chopper has been designed for processing small quantities of food and should not be used for any other purpose.

Do not chop extremely hard ingredients such as coffee beans, nutmeg, grains, ice or bones. Remove stalks from herbs, shells from nuts and bones, tendons and gristle from meat.

The appliance should be unplugged when not in use.

4.1 Preparation

1. Remove all packaging and sticker materials and dispose of them according to the applicable local regulations.
2. Before using the appliance for the first time, clean the appliance (See the "Cleaning and care" section).
3. Cut the food into small pieces before using the appliance.
4. Always keep the glass bowl (5) on the non-slip rubber pad (7).

4.2 Chopping

WARNING: Do not touch the chopping blade with your bare hands.

1. Place the chopping blade (4) on the fixed shaft (6) in the glass bowl (5).

2. Put the food that you would like to prepare in the glass bowl (5).

3. Fit the inner lid (3) on the glass bowl (5). Make sure to place the inner lid (3) properly, otherwise the base unit (2) will not be fit on the inner lid (3) and chopping process can't be operated.

4. Mount the base unit (2) on the inner lid (3) on the bowl (5).
5. Insert the plug into the wall socket.
6. Press and hold the operation switch (1). - The appliance starts operating.

You can press the operation switch (1) intermittently to activate the "PULSE" function of the appliance. You can obtain a better quality of chopping with the "PULSE" function.

1. Release the operation switch (1) to finish the operation. Disconnect the plug from the wall socket.

Do not operate the appliance continuously for more than 10 seconds.

If the ingredients stick to the sides of the bowl, scrape them off with the spatula and continue the chopping operation.

1. Remove the base unit (2) and the inner lid (3). Take out chopping blade (4) carefully. Remove food from the glass bowl (5).

WARNING: Do not touch the blade with your bare hands. The blade is very sharp.

5 Information

5.1 Cleaning and care

WARNING: Never use petrol solvents, abrasive cleaners, metal objects or hard brushes to clean the appliance.

WARNING: Do not touch the chopping blade with your bare hands. The blades are very sharp. Use a brush!

1. Turn the appliance off and disconnect it from wall socket.
2. Let the appliance cool down completely.
3. Use a soft damp cloth to clean the exterior of the base unit (2) and then wipe it dry.
4. The glass bowl (5), chopping blade (4), and inner lid (3) can be washed in the dishwasher on the upper shelf.
5. Before storing, clean and dry the chopping blade(4).

WARNING: Never put the base unit (2) or power cord in water or any other liquids and never hold them under running water.

Before using the appliance after cleaning, dry all parts carefully using a soft towel.

5.2 Storage

If you do not plan to use the appliance for a long period of time, please store it carefully.
- Make sure the appliance is unplugged, cooled down and completely dry.
- Do not wrap the power cord around the appliance.
- Store it in a cool, dry place.
- Make sure the appliance is always kept out of the reach of children.

5.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
• Dropping the appliance will render it non-operational or cause permanent damage.

Peel the onion and place with the garlic, bell pepper and chilli pepper into the bowl of the appliance and pulse until the ingredients are coarsely chopped. Gradually add the tomatoes, cilantro and salt and pulse a few times until the ingredients are thoroughly mixed. Napomene

3.2 Maksimalne količine i vrijeme obrade

Zavrijeme obradeimaksimalne količine,pogledajte tablicu.

Hrana Preporučena količina	Preporučeno vrijeme
Luk 250 g 10 s
Banana 290 g 9 s
Mrkva 260 g 9 s
Badem 200 g 7 s
Kuhani krumpir 310 g 7 s
Govedina 400 g 15 s
Glazura (bjelanjak + šeće za glazuru)	Bjelanjak: 2 komada Šeće za glazuru 420 g	10 s
