Brand	TP-Link
Model	M7300
Category	Mobile 4G router (MiFi)
Network type	4G LTE
Wi-Fi standard	Wi-Fi 802.11 b/g/n
Max number of connected devices	10
Power supply	Rechargeable lithium-ion battery, charges via micro USB port (5V/1A charger recommended)
Management	tpMiFi app (iOS and Android) and web interface (http://tplinkmifi.net)
SIM card type	Nano/Micro SIM with included Mini SIM adapter
External storage	Micro SD card slot
Wireless security	WPA2 encryption, Wi-Fi password customization, SIM PIN lock
Warranty	3-year limited TP-Link warranty
Safety instructions	Keep away from water, fire, humidity; do not disassemble; use recommended charger; risk of explosion if battery replaced with incorrect model
Compatible operating systems	Any device with Wi-Fi (Windows, macOS, iOS, Android, etc.)
Standby power	Automatic Wi-Fi shutdown after 10 minutes of no connection to save power

Frequently Asked Questions - M7300 TP-LINK

Is there an alternative to using the tpMiFi app?

Yes, you can manage the MiFi via its web administration page. Connect your device to the MiFi Wi-Fi network, open a browser and type http://tplinkmifi.net or http://192.168.0.1. Enter admin as the default password and click Login.

What if I cannot access the web administration page?

Check that your device is connected to the MiFi Wi-Fi network. Make sure you have correctly entered http://tplinkmifi.net or http://192.168.0.1. Also verify that your device is set to obtain an IP address automatically.

What if I cannot access the Internet?

Several possible causes:
1. Check the PIN code status: log into the administration interface and unlock the SIM card if it is blocked.
2. Check APN settings: go to Connection > View profile details and confirm your operator's information.
3. Enable data roaming if you are in a roaming area.
4. Make sure mobile data is enabled in Connection.
5. Check the data limit in Device > Data usage.

How to restore the MiFi to factory settings?

With the MiFi powered on, remove the cover and use a paperclip or tip to press and hold the RESET button until the Power Off message appears or the LEDs flash briefly. This erases all settings and requires reconfiguration.

How to install the SIM card and battery?

Remove the back cover. Insert the SIM card (Nano/Micro with included Mini SIM adapter) into the slot, then the battery. Replace the cover. Note the default Wi-Fi SSID and password located under the cover.

How to charge the MiFi?

Method 1 (recommended): plug the included charger into the micro USB port. Method 2: connect it to a computer via a USB cable. Prefer a 5V charger for optimal charging.

How to change the Wi-Fi network name and password?

Log into the administration interface via the tpMiFi app or web page. Go to Wi-Fi settings and change the SSID and security key. Confirm to apply changes.

Why does the Wi-Fi turn off automatically?

To save power, the MiFi automatically turns off the Wi-Fi if no device is connected for at least 10 minutes. Press the power button to restore the connection.

Can I use a micro SD card with the M7300?

Yes, the MiFi has a micro SD card slot (not included). It can be used for file storage, accessible over the Wi-Fi network.

What if I forgot the administrator password?

If you forgot the password, you must restore the MiFi to factory settings (see corresponding question). This will reset the password to default admin, but will also erase all your settings.

USER MANUAL M7300 TP-LINK

TTLINK TECHNOLOGIES CO. LTD. South Building llons 135 and 2800rs 1-1) Centre Science & Technology Park

Shenming Ad, Karhan, Sperderer, China

Specifications are subject to change without notice. IP-INKI is registered trademark of IP-INKI LLC (INO, ORGS) CO., LLC. Other brands and product names are trademarks or registered trademarks of their respective Holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from IPLINK LICHNOLOGICS CO., LTD. Copyright 2016 IPLINK LICHNOLOGICS CO., LTD. All rights reserved.

Quick Installation Guide

Mobile Wi-Fi

CONTENTS

01 / Deutsch
05 / English
09 / Espanol
13 / Eληνικα
17 / Français
21 / Italiano
25 / Portugues
29 / Suomi
33 /Nederlands
37 / Svenska
41 / Norsk
45 / Dansk
49 / Türkçe

Deutsch

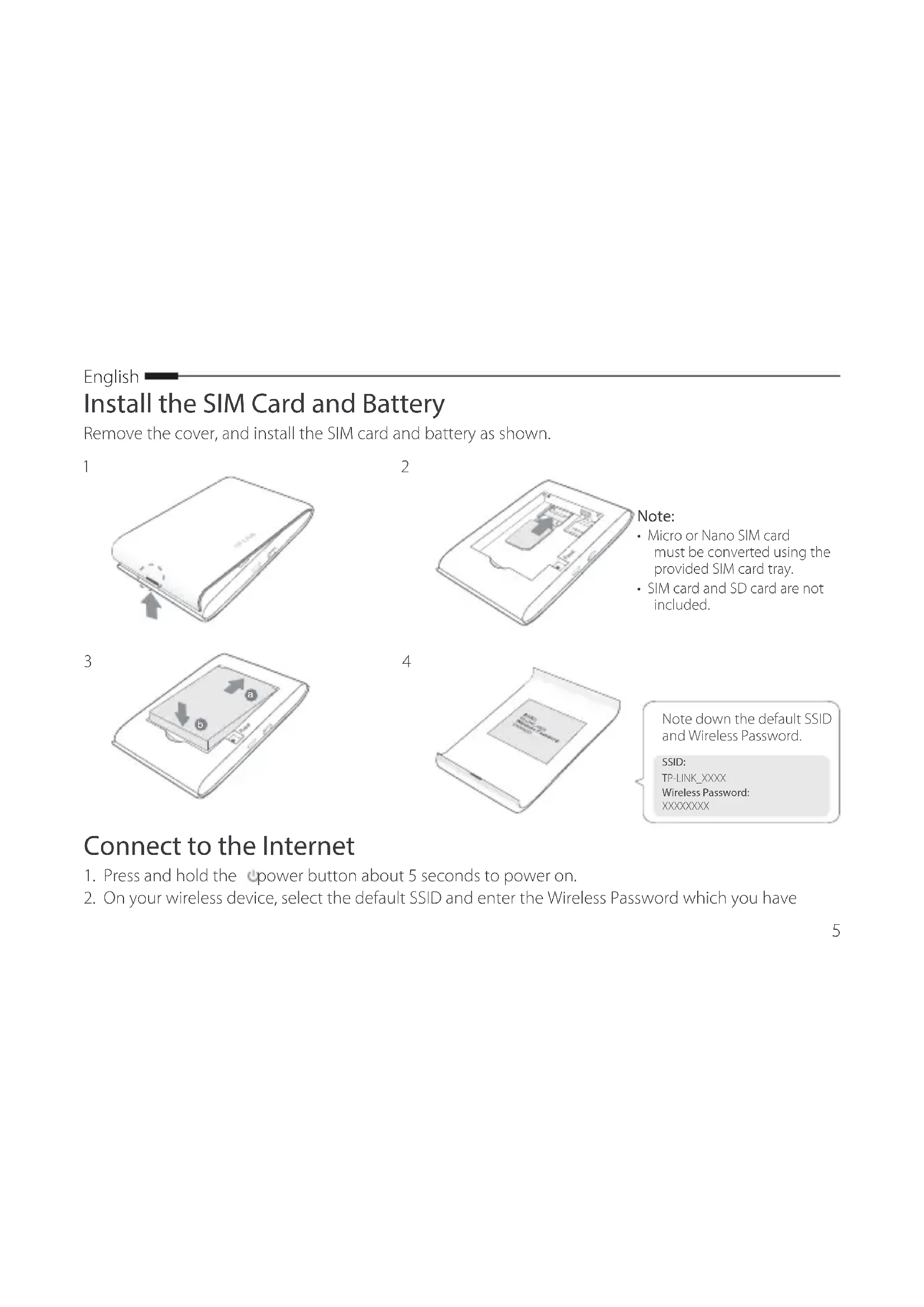

Install the SIM Card and Battery

Remove the cover, and install the SIM card and battery as shown.

1

2

Note:

• Micro or Nano SIM card must be converted using the provided SIM card tray.
• SIM card and SD card are not included.

3

4

Note down the default SSID and Wireless Password.

SSID:

TP-LINKXXXXX

Wireless Password:

XXXXXX

Connect to the Internet

1. Press and hold the power button about 5 seconds to power on.
2. On your wireless device, select the default SSID and enter the Wireless Password which you have

noted down.

Note: We highly recommend that you change the default wireless name and password for network security.

Enjoy!

Note:

If you can't access the Internet, please refer to FAQ > Q3.
- For power saving, the Mobile Wi-Fi will turn off the Wi-Fi connection if no wireless devices are connected to the Mobile Wi-Fi for 10 minutes. Press the power button to resume the Wi-Fi connection.

Charging Your Mobile Wi-Fi

Method 1: Via a Wall Outlet (Recommended)

Method 2: Via a Computer

tpMiFi App

Download the tpMiFi App (for iOS and Android) to conveniently manage your Mobile Wi-Fi.

1. Search for the tpMiFi App from the Apple Store or Google Play, or scan the QR code.
2. Connect your wireless device to the Mobile Wi-Fi.

English

1. Launch tpMiFi and enter admin to log in.

FAQ(Frequently Asked Questions)

Q1. Is there any other alternative to manage the Mobile Wi-Fi besides the tpMiFi app?

A. You can manage the Mobile Wi-Fi by using its web-management page.

1. Connect your Wi-Fi device to the Mobile Wi-Fi's wireless network.
2. Open your web browser and type http://tplinkmifi.net or http://192.168.0.1 in the address bar, then enter the default password admin, and click Login.

Q2. What should I do if I cannot log into the web-management page?

• Verify that your device is connected to the Mobile Wi-Fi.
• Verify that you have entered http://tplinkmifi.net or http://192.168.0.1 correctly.
• Verify that your device is set to obtain an IP address automatically.

Q3. What should I do if I cannot access the Internet?

A1. Check PIN status

Refer to Q1 to log into the web-management page on your phone. If the current SIM card status is "PIN Locked", you will need to unlock it using the PIN code.

A2. Verify the ISP parameters

1. Refer to Q1 to log into the web-management page on your phone. Go to Dial-up > View Profile Details and verify the parameters (i.e. APN,Username,and Password) provided by your ISP.
2. If not, return to the Dial-up page and create a new profile with the correct information, then choose the new created profile from the Profile List.

A3. Check the Data Roaming settings

1. If your SIM card is operated in a roaming service area, refer to Q1 to log in to the web-management page

on your phone.

1. Go to Dial-up and enable the Data Roaming option.

A4. Check Mobile Data

Refer to Q1 to log into the web-management page on your phone. Go to Dial-up to verify that Mobile Data is On. If not, enable this option.

A5. Check Data Limit

Refer to Q1 to log into the web-management page on your phone. Go to Device > Data Usage Settings to check whether your data usage has exceeded the Total/Monthly allowance.

Q4. How do I restore the Mobile Wi-Fi to its factory default settings?

• With the Mobile Wi-Fi is powered on, remove the cover. Use a pin to press and hold the RESET button until the "Power Off" appears on the screen OR all LEDs turn on momentarily.

Note: Restoring the Mobile Wi-Fi to its factory defaults will clear all previous settings and you have to reconfigure it.

Safety Information

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended.
• Do not use the device where wireless devices are not allowed.

CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

English

Espanol

Instalar la Tarjeta SIM y la Bateria

1. Vá a Dial-up e ative a opçao Data Roaming.

Wireless Password: XXXXXXXXX

Internet'e Baglanin

When a product has a power on/off button, the power on/off button is one way to turn-off the product. For products without the on/off button, the only way to completely turn-off the product is to disconnect the product or the power adapter from the power source. The disconnected device shall remain readily operable.

Do not open this product or attempt to service it; it may expose you to dangerous high voltage or other risks. Opening a sealed component or sealed product/s will void the warranty. For product servicing, please contact us.

Do not operate this product near water.

TP-LINK Three Years Limited Product Warranty

For TP-LINK Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES, REMEDIES AND CONDITIONS.

TP-LINK warrants the TP-LINK branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-LINK's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.
