Product type	Refrigerator with freezer compartment
Brand	Candy
Model	FR CBO 150 AG
Total capacity (estimated)	150 L
Refrigerator volume (estimated)	120 L
Freezer volume (estimated)	30 L
Power supply	220-240 V / 50 Hz
Adjustable thermostat	Yes, positions 1 (stop) to 5 (maximum cold)
Automatic defrosting of the refrigerator	Yes, automatic each time the compressor stops
Freezer compartment	Yes, upper part
Freezing function	Yes, food must remain for 24 h
Reversible door opening direction	Yes, procedure described in the manual
Built-in installation	Yes, with provided accessories
Door gasket for furniture	Provided, to be fixed on the side opposite the hinges
Furniture door mounting accessories	Slides, screws, drive device
Ventilation grille required	Yes, for condenser ventilation
Open door indicator (freezer)	Yes, colored, visible if door is not properly closed
Recommended maintenance	Regularly clean the water drainage area
Rating plate	Provided at the back of the appliance
Recommended ambient temperature	Avoid very hot rooms

Frequently Asked Questions - FR CBO 150 AG CANDY

How to adjust the refrigerator temperature?

Turn the thermostat knob located inside the refrigerator, top right. Positions range from 1 (minimum cold) to 5 (maximum cold). The recommended position is 2 or 3. Position 0 turns off the appliance.

How to defrost the refrigerator?

The refrigerator defrosts automatically as soon as the compressor stops. You may see some frost or water droplets at the bottom. Make sure to keep the water drainage area clean.

What to do if frost forms in the refrigerator?

If the ambient temperature is very high, the appliance may run continuously and form frost. Reduce the thermostat setting to a lower position (1 or 2) to limit this.

How to reverse the door opening direction?

Remove the pin from the bottom right hinge and reinstall it on the bottom left hinge. Then reassemble the hinges and doors starting from the bottom (steps 1-2-3). For the freezer, disassemble the bottom right hinge, position the door and screw the hinge to the left.

How to install the appliance in a built-in column?

Attach the provided gasket to the side opposite the hinges. Insert the appliance into the column, secure the top and bottom with the provided screws, then place the ventilation grille at the top. Ensure the top plate is properly in place.

How to attach the furniture door to the refrigerator door?

Use the provided slides: attach the slide to the furniture door about 20 mm from the outer edge. Open both doors, place the drive device into the slide, adjust on the refrigerator door, mark the fixing points, drill with a 2.5 mm drill bit and screw.

What does the colored indicator on the freezer door mean?

The colored indicator for door opening is not visible if the door is properly closed. If it is visible, the door is not properly closed.

How long does it take to freeze food?

Food must remain for 24 hours in the freezer to reach the desired freezing level.

How to clean the refrigerator?

Regularly clean the water drainage area at the bottom of the refrigerator. Make sure food does not touch the bottom or side walls.

Where is the thermostat and how to use it?

The thermostat is located inside the refrigerator, top right. Turn the knob to positions 1 to 5 to adjust the temperature. Position 0 turns off the appliance.

USER MANUAL FR CBO 150 AG CANDY

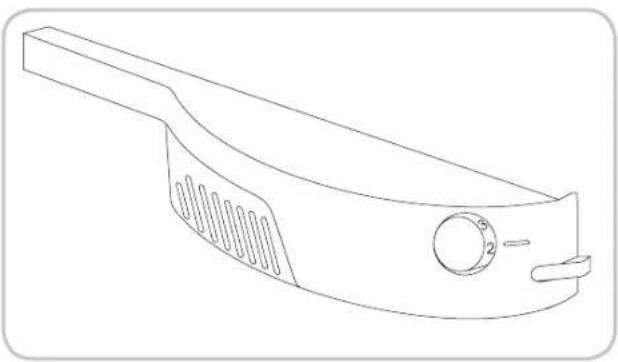

In order to access and adjust the temperature of the fridge and freezer, it is necessary to turn the dial on the thermostat box.

The thermostat box is placed inside the fridge on the top right-hand side.

Setting the dial to 0^ will turn the appliance off. Reduce the temperature by turning the dial from position 1 to 5. We recommend you set the temperature to 2 or 3.

DEFROSTING

Important: If the room temperature is very warm, the appliance may work continuously and a layer of frost will deposit on the back of the fridge compartment. In this case it is necessary to turn the dial to lower settings (1-2).

The fridge compartment is automatically defrosted when the compressor is Inactive.

A small amount of frost or drops of water on the back of the fridge compartment.

Make sure the water outlet is always clean. Make sure foods do not touch the back or sides of the fridge compartment.

N.B. This is the rating plate. If you need to contact our Service Department in the event of faults, remember to give them the information on the plate.

OPENING OF THE DOORS

Remove the pin and the corresponding bush of the top crossbar.

Remove the top door.

Remove the pin of the bottom right-hand side hinge and remount it on the bottom left-hand side hinge.

Reassemble the hinges and doors working from bottom to top 1 2-3.

FREEZER COMPARTMENT

Some products are equipped with a freezer compartment. The following notes are specific to this type of products.

FREEZING

This product is equipped with a section of the top part of the product (see quick guide). Food requires 24 hours storage in the freezer compartment to reach the desired level of freezing.

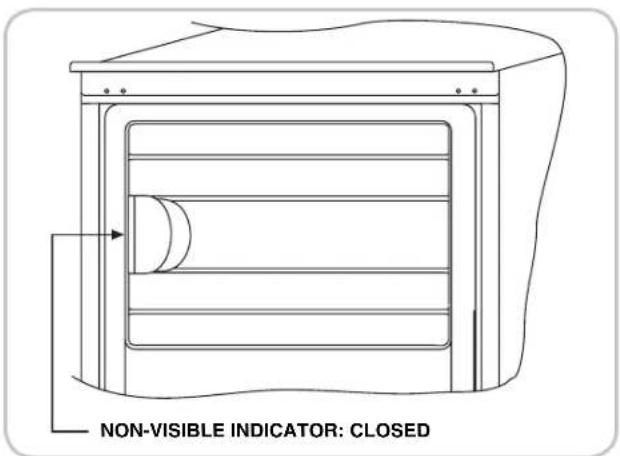

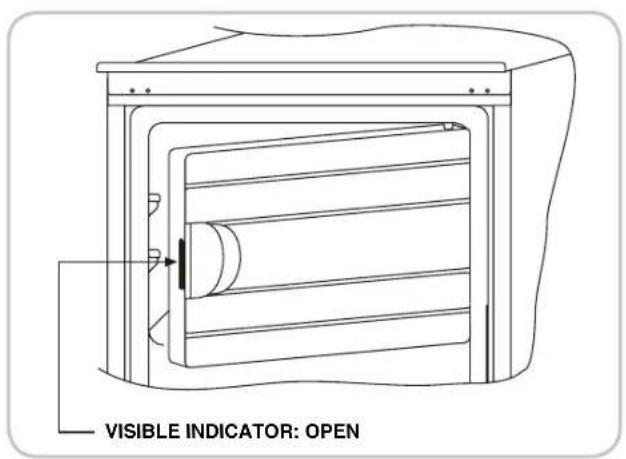

N.B. In order to make sure that the freezer door is properly closed, check that the coloured door opening indicator is not visible.

REVERSING THE OPENING OF THE FREEZER COMPARTMENT

Disassemble the bottom right-hand hinge.

Position the door and hinge first and then screw the latter to the product.

Unscrew the hook positioned on the left-hand side of the freezer compartment.

Screw the hook on the right-hand side of the freezer compartment.

Remove the hole cover plugs, as indicated in the figure.

Put the appliance in an upright position and wait two hours before turning it on.

Insert the plugs as indicated in the fi gure.

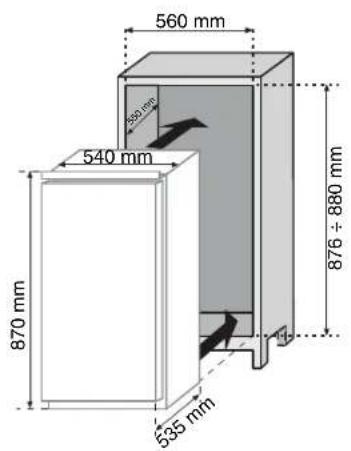

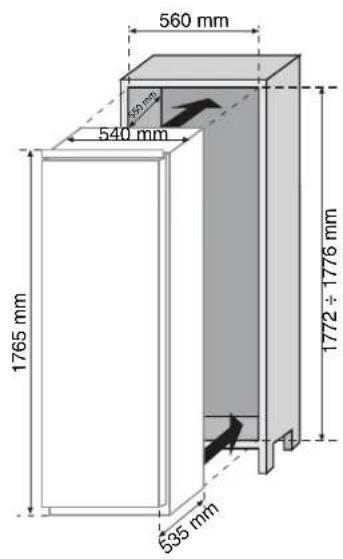

SIZE OF THE APPLIANCE AND HOUSING UNIT

INSTALLATION OF THE APPLIANCE IN THE COLUMN

Fasten the gasket equipped with the appliance on the opposite side of the hinges.

1

Insert the appliance in the column, placing it on the opposite side of the hinges.

2

fi ts perfectly into the cabinet.

3

Fasten the top part of the appliance to the cabinet, using the screws provided.

4

Fasten the bottom part of the appliance with the screws provided.

5

Apply the ventilation grill.Make sure that the top plate of the cabinet

6

COUPLING OF THE BUILT-IN COLUMN PANELS TO THE DOORS OF THE APPLIANCE

The appliance is equipped with coupling devices for the appliance doors with the column panels (drive sleds).

Fasten the sled in the inner part of the built-in column panel at the desired height and at approx. 20mm from the outer wire of the door.

1

Open the doors of the built-in column and the fridge. Position the built-in loader in the slide, then fit it into the fridge door.

2

Mark the fixing points for the screws and drill with a bit of a diameter of 2.5.

3

Connect the appliance door to the cabinet panel having the sled slots as references.

4

PRECAUTIONS FOR THE CORRECT FUNCTIONING

Once the product has been built in, position the rear part of the column in contact with the wall so as to prevent access to the compressor compartment.

For the product to operate correctly it is essential to allow adequate air circulation so as to cool down the condenser located in the rear part of the appliance.

For this reason, the column must be equipped with a rear chimney, whose upper opening must not be blocked and with a front slot which will be covered with a ventilation grill.

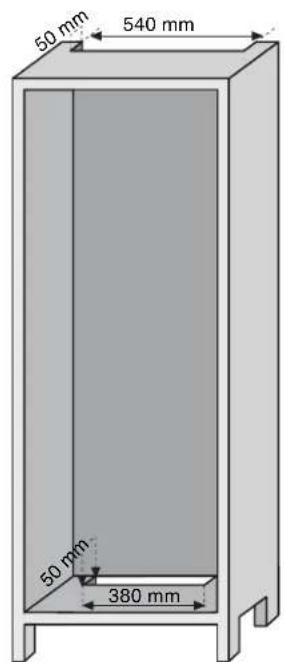

Dimensions of the column lock-pickings.

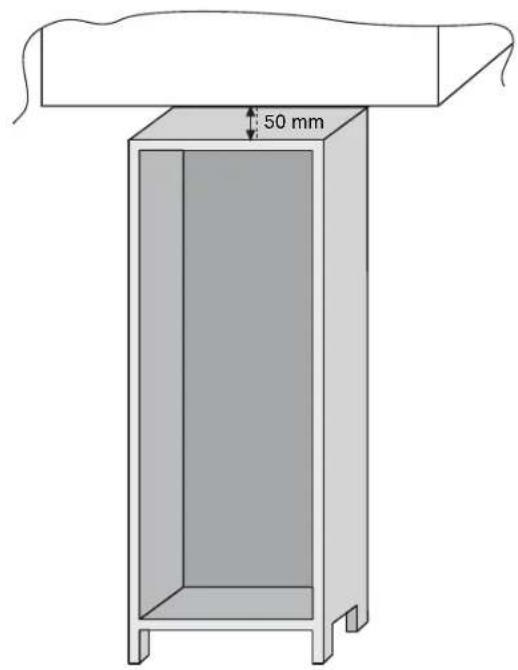

Dimensions of the gap to be left between the column and the ceiling.

REFRIGERATEUR TOUT UTILE ET 4*

THERMOSTAT INVERSOR LE

SPEISESCHRANK & KÜHLSCHRANK

TToTOBETHOTNVPaKaI TOePwKa KaTOnIV BiWote ToeVTeO tN OuaKeuH.

Eeipowto akyiotpo TIO Eivai ToTTOBtnevo OTN apotepi TIAupa TO BAlauou KAtauuucn.

Biodote To aykiotpo Otn Dejia TLeupa Tou Taaloukatauucn.

Apaieote Ta Tmuata kauyns沃ov otov, OTwG paiveta otnv Eikova.

TOTTOBEMOTE m ouokceun o opbia eon kai TEPIEVEET DUO WpEg pivn th eoeite OEaoupyia.

TOnoTeHnTe Ta TmuaTa OTWc paivetai Otny EIKOVA.

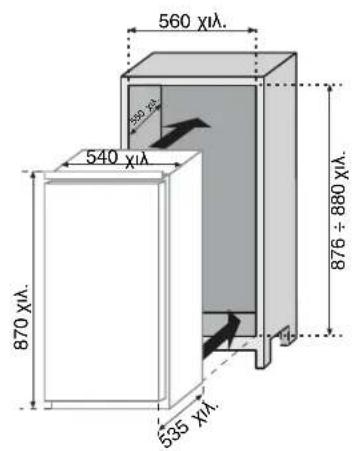

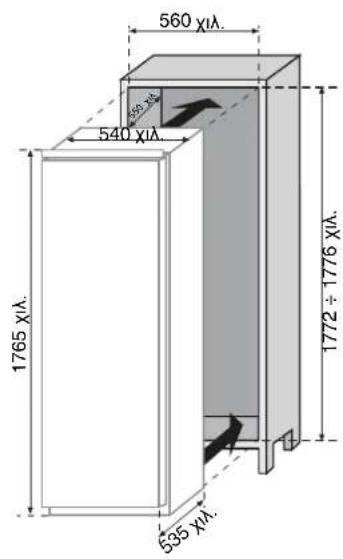

AIAZATAEIZ THE ΣYΣKEYHΣ KAI THE MONADAA Σ ENTOIXI ΣMOY
