• SMP (Series Multi-Stage Protection) with EVS (Extreme Voltage Shutdown)

• LiFT (Linear Filtering Technology) with zero ground contamination

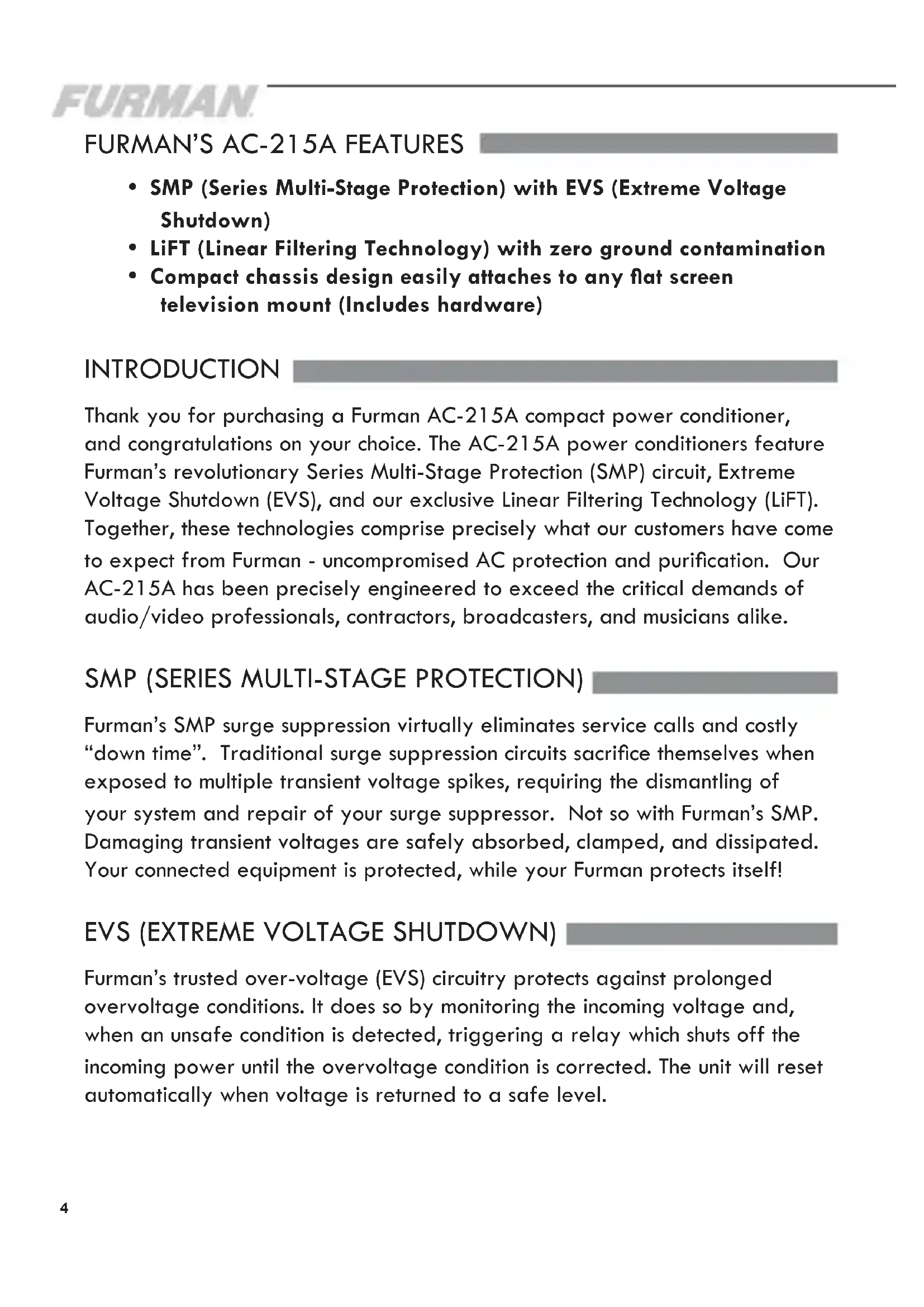

• Compact chassis design easily attaches to any at screen television mount (Includes hardware) INTRODUCTION Thank you for purchasing a Furman AC-215A compact power conditioner, and congratulations on your choice. The AC-215A power conditioners feature Furman’s revolutionary Series Multi-Stage Protection (SMP) circuit, Extreme Voltage Shutdown (EVS), and our exclusive Linear Filtering Technology (LiFT). Together, these technologies comprise precisely what our customers have come to expect from Furman - uncompromised AC protection and purication. Our AC-215A has been precisely engineered to exceed the critical demands of audio/video professionals, contractors, broadcasters, and musicians alike. SMP (SERIES MULTI-STAGE PROTECTION) Furman’s SMP surge suppression virtually eliminates service calls and costly “down time”. Traditional surge suppression circuits sacrice themselves when exposed to multiple transient voltage spikes, requiring the dismantling of your system and repair of your surge suppressor. Not so with Furman’s SMP. Damaging transient voltages are safely absorbed, clamped, and dissipated. Your connected equipment is protected, while your Furman protects itself! EVS (EXTREME VOLTAGE SHUTDOWN) Furman’s trusted over-voltage (EVS) circuitry protects against prolonged overvoltage conditions. It does so by monitoring the incoming voltage and, when an unsafe condition is detected, triggering a relay which shuts off the incoming power until the overvoltage condition is corrected. The unit will reset automatically when voltage is returned to a safe level.FRANÇAIS ENGLISH ESPAÑOL

LiFT (LINEAR FILTERING TECHNOLOGY) Unfortunately, traditional AC power conditioners have been designed for unrealistic laboratory conditions. Prior technologies, whether multiple-pole or conventional series-mode lters, could actually harm audio and video performance more than they help, due to the resonant peaking of their antiquated, non-linear designs. Under certain conditions, these designs can actually add more than 10 dB of noise to the incoming AC line! Worse still, lost digital data, the need to reboot digital presets, or destruction of sensitive digital converters are frequently caused by excessive voltage spikes and AC noise contaminating the equipment ground. Furman’s LiFT takes a different approach, ensuring optimal performance through linear AC noise ltering with no ground contamination. SAFETY INFORMATION To obtain best results from your Furman AC-215A Power Conditioner, please be sure to read this manual carefully before using. WARNING To reduce the risk of electrical shock, do not expose this equipment to rain or moisture. Dangerous high voltages are present inside the enclosure. Do not remove the covers. There are no user serviceable parts inside. Refer servicing to qualied personnel only.

IMPORTANT SAFETY INSTRUCTIONS

1. Please read and observe all safety and operating instructions before

installing your unit. Retain these instructions for future reference.

2. Your unit should not be used near water – for example, near a bathtub,

washbowl, kitchen sink, laundry tub, in a wet basement, near a swimming pool, etc.

3. Do not place your unit near heat sources such as radiators, heat registers,

stoves or other appliances that produce heat.

4. The unit should only be connected to a 120 VAC, 60Hz grounded electrical

outlet. Do not defeat the ground or change polarization of the power plug.

5. Route the power cord and other cables so that they are not likely to

be walked on, tripped over, or stressed. Pay particular attention to the6 condition of the cords and cables at the plugs, and the point where they exit your unit. To prevent risk of re or injury, damaged cords and cables should be replaced immediately.

6. Clean your unit with a damp cloth only. Do not use solvents or abrasive

cleaners. Never pour liquid on or into the unit.

7. Your unit should be serviced by qualied service personnel when:

• The power supply cord or the plug has been frayed, kinked, or cut.

• Objects have fallen or liquid has spilled into the unit.

• The unit has been exposed to rain or other moisture.

• The unit does not appear to operate normally or exhibits a marked change in performance.

• The unit has been dropped, or the enclosure damaged.

8. Your unit requires that a safety ground be present for proper operation.

Any attempt to operate the unit without a safety ground is considered improper operation and could invalidate the warranty.

9. Do not attempt to service your unit beyond what is described in this manual.

All other servicing should be referred to qualied service personnel. OPERATION

EXTREME VOLTAGE SHUTDOWN INDICATOR

The Extreme Voltage Shutdown LED is normally off. If an input voltage in excess of 137VAC is sensed, either on initial power-up or during normal operation, the AC-215A will shut off power and this indicator will light. NOTE: If the mains power is above the high cutoff voltage and has caused the unit to remove power from its outlets, it cannot restore power until the mains power returns to a lower nominal level. If the main power remains high, check the source of the problem, and if necessary, change the AC source.

PROTECTION OK INDICATOR

Although the Furman SMP circuit assures protection from transient voltage spikes and surges, nature has a way of occasionally creating electrical forces that are beyond the capabilities of any TVSS device to absorb without some degree of damage. In the rare instance that this occurs, the green “Protection OK” LED indicator located on your front panel will turn off. If this happens,FRANÇAIS ENGLISH ESPAÑOL

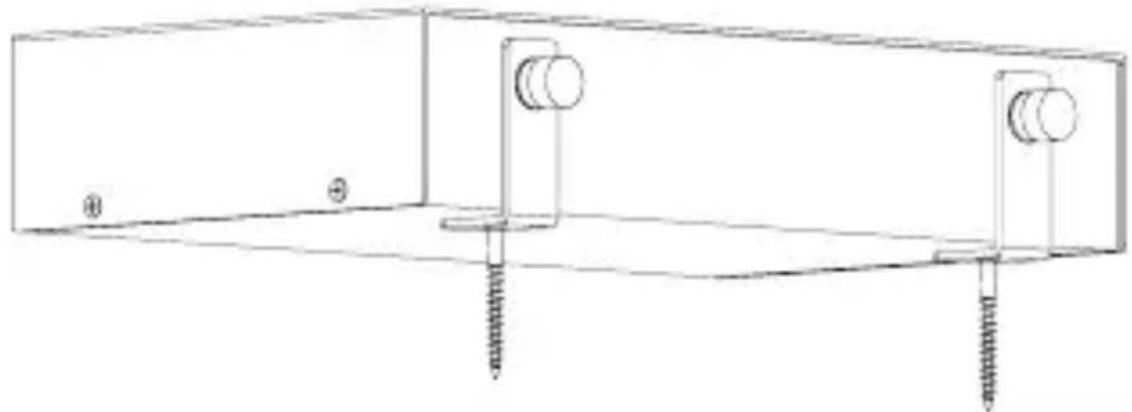

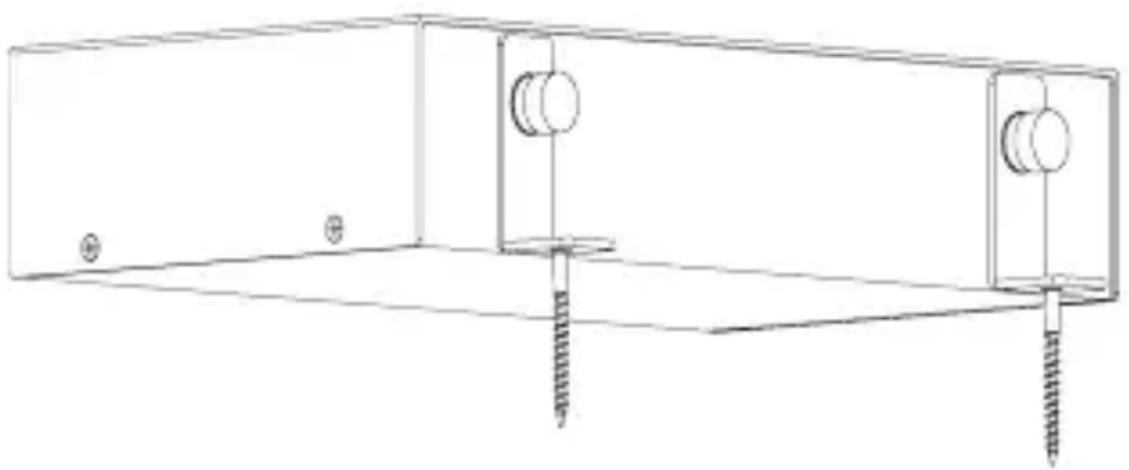

some level of protection from voltage surges will remain, but the Furman’s clamping voltage rating will be compromised. The unit must be returned to Furman Sound, or an authorized Furman Service center for repair. TROUBLESHOOTING Symptom: No power to the AC outlets. Possible Cause: Circuit breaker has tripped due to excessive load Action Needed: Unplug one piece of equipment from the AC-215A and push the re-set tab into the circuit breaker bezel. Symptom: No power to the AC outlets, even after the circuit breaker has been re-set. Possible Cause: Protection devices are damaged. Action Needed: Contact the Furman Service Department at (800) 421-1587. Symptom: Extreme Voltage (EVS) indicator lit. Possible Cause: Input voltage is outside of nominal operation levels. This may be caused by wiring faults at your location or downed power lines. Action Needed: Unit will automatically reset and resume operation once the problem has been corrected. INSTALLATION The AC-215A can be conveniently and inconspicuously mounted within an equipment rack or on the rear panel of your video display, using the included brackets. Refer to the illustrations below for instructions.8 The brackets can be positioned facing in or out as shown to best allow for different types of installations. SERVICE If you require technical support or equipment service, please contact the Furman Service Department at (800) 421-1587. You may also email info@ furmansound.com. All equipment being returned for repair must have a Return Authorization (RA) number. To get an RA number, please call the Furman Customer Service Department. Before returning any equipment for repair, please be sure that it is adequately packed and cushioned against damage in shipment, and that it is insured. We suggest that you save the original packaging and use it to ship the product for servicing. Also, please provide a note giving your name, address, phone number, RA number and a description of the problem.

3 YEAR LIMITED WARRANTY

SAVE YOUR SALES RECEIPT! The receipt is your proof of purchase and con- rms the product was purchased at an authorized Furman dealer. It will need to be submitted to Furman in order to process any warranty claims. Furman, a brand of Nortek Security & Control LLC, warrants its AC-215A (the “Product”) as follows: Furman warrants to the original purchaser of the product that the product sold hereunder will be free from defects in material and workmanship for a period of three years from the date of purchase. If the product does not conform to this Limited Warranty during the warranty period (as herein above specied), purchaser shall notify Furman of the claimed defects by calling (800) 421-1587 or via email (info@furmansound. com.). If the defects are of such type and nature as to be covered by thisFRANÇAIS ENGLISH ESPAÑOL

warranty, Furman shall authorize purchaser to return the product to Furman headquarters. Warranty claims MUST be accompanied by a copy of the original purchase invoice or receipt showing the purchase date. Shipping charges to Furman headquarters must be prepaid by the purchaser of the product. Furman shall, at its own expense, furnish a replacement product or, at Furman’s option, repair the defective product. Return shipping charges back to purchaser will be paid by Furman. CONNECTED EQUIPMENT WARRANTY: Furman’s Connected Equipment Warranty covers equipment that is damaged by transient voltage (an “Occurrence”) while properly connected through the Furman AC-215A to a properly wired AC power line with a protective ground in an indoor location. Furman’s Connected Equipment Warranty is limited to the amount of the deductible on the Purchaser’s personal property insurance policy up to $500.00. In order to make a claim for this Connected Equipment Warranty, the Purchaser must forward a copy of his/her personal property insurance claim for the damaged equipment to Furman and complete the Furman Connected Equipment Warranty claim form (call Furman at (760) 438- 7000 to obtain the form). Furman reserves the right to review the damaged Furman product, the damaged connected equipment, and the site where the damage occurred. All cost of shipping damaged equipment to Furman for inspection shall be borne solely by the Purchaser. Damaged equipment must remain available for inspection until the claim is nalized. The Connected Equipment Warranty is also in effect for a period of three years unless the Purchaser does not complete the warranty registration within fteen days from date of purchase, at which time, the Connected Equipment Warranty period is also reduced to one year from the date of purchase. All warranties contained herein are null and void if: the Furman Surge Protector in use during the occurrence is not provided to Furman for inspection upon Furman’s request at the sole expense of the Purchaser, Furman determines that the Furman Surge Protector has been opened, improperly installed, altered in any way or tampered with, Furman determines that the damage did not result from the Occurrence or that no Occurrence in fact took place or Furman determines that the connected equipment was not used under normal operating conditions or in accordance with Manufacturer’s instructions for the connected equipment. All Furman Surge Protectors must be plugged directly into a properly wired AC power line with a protective ground and must10 not be “daisy-chained” together in serial fashion with other power strips, UPS’s, other surge protectors, three-to-two-prong adapters, or extension cords. Any such installation voids this warranty. The Furman warranty only protects against damage to properly connected equipment where Furman has determined, at its sole discretion, that the damage resulted from an Occurrence and does not protect against acts of God (other than lightning) such as ood, earthquake, war, terrorism, vandalism, theft, normal-use wear and tear, erosion, depletion, obsolescence, abuse, damage due to low-voltage disturbances (i.e. brownouts or sags), non-authorized program, or system equipment modication or alteration. Do not use this product in anyway with a generator, heater, sump pump, water-related device, life support device, medical device, automobile, motorcycle, or golf-cart battery charger. To be used indoors only and in dry areas. All warranties contained herein are null and void if used in anyway with any of the aforementioned devices. THE FOREGOING IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Furman does not warrant against damages or defects arising out of improper use or abnormal handling of the product, or against defects or damages arising from improper installation. This warranty shall be cancelable by Furman at its sole discretion if the product is modied in any way without written authorization from Furman or Nortek Security & Control LLC. This warranty also does not apply to products upon which repairs have been affected or attempted by persons other than pursuant to written authorization by Furman or Nortek Security & Control LLC. THIS WARRANTY IS EXCLUSIVE. The sole and exclusive obligation of Furman shall be to repair or replace the defective product in the manner and for the period provided above. Furman shall not have any other obligation with respect to the products or any part thereof, whether based on contract, tort, strict liability or otherwise. Under no circumstances, whether based on this Limited Warranty or otherwise, shall Furman be liable for incidental, special, or consequential damages. This Limited Warranty states the entire obligation of Furman with respect to the product. If any part of this Limited Warranty is determined to be void or illegal, the remainder shall remain in full force and effect.FRANÇAIS ENGLISH ESPAÑOL

AC Current Capacity Input: 10 Amp capacity required Output: 10 Amp RMS (both outlets combined) AC Noise Attenuation, Transverse (Differential) Mode >40dB @ 100kHz >50dB @ 500kHz (linear attenuation curve from 0.05 to 100Ω line impedance) Transient Voltage Surge Suppression 120VAC Series Multi-Stage Protection Non-Sacricial with Zero Ground Contamination 188V peak clamping @ 6000V/3000A input Extreme Voltage Shutdown 137 VAC typically Dimensions & Weight 1.75” (H) x 5” (W) x 8.5” (D), 3 lbs. Safety Agency Listing CSA

POWER CORD INLET SECURITY CLAMP

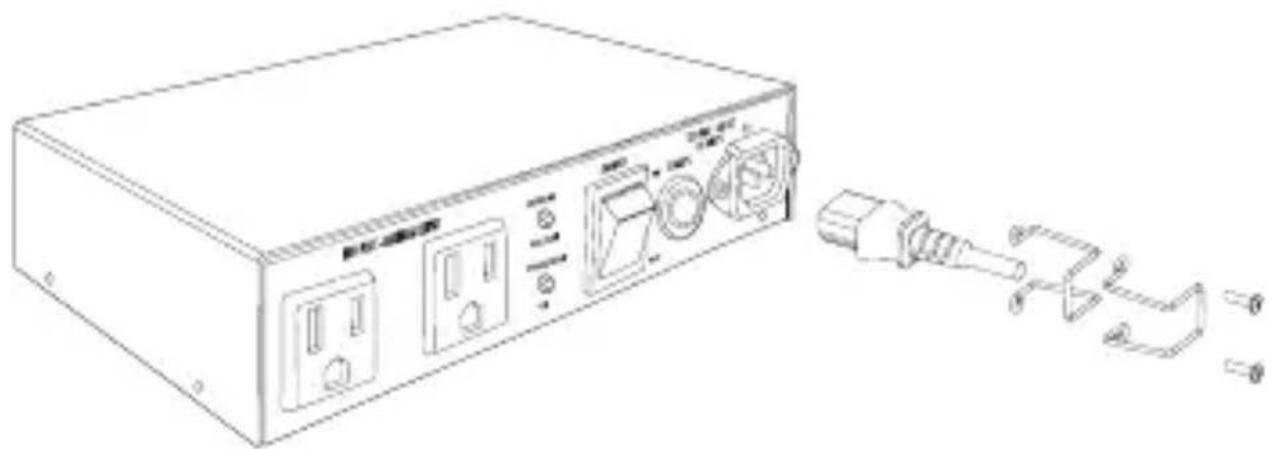

To attach or detach the AC power cord security clamp, simply assemble or disassemble as shown in the above illustration. Place clamp together as shown, and secure screws in the provided holes to lock the power cord in place. Loosen screws and remove clamp from unit to detach.12 CARACTÉRISTIQUES DU AC-215A DE FURMAN
