USER MANUAL Sniper Ice Hockey Goal EXIT

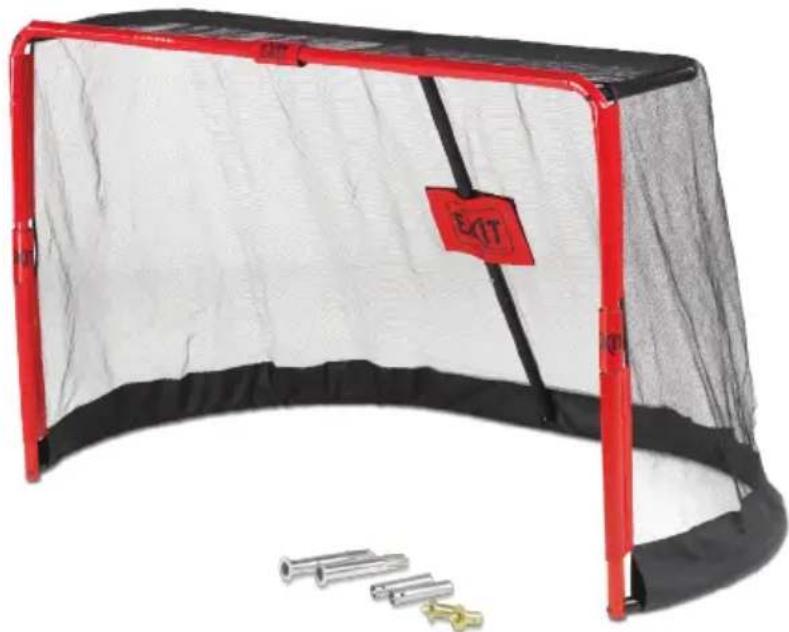

Red and black sports net with metal pins and a 'EXIT' tag, no visible text or symbols on the net itself.

Sniper Ice Hockey Goal

English4

Deutsch8

Nederlands12

Français16

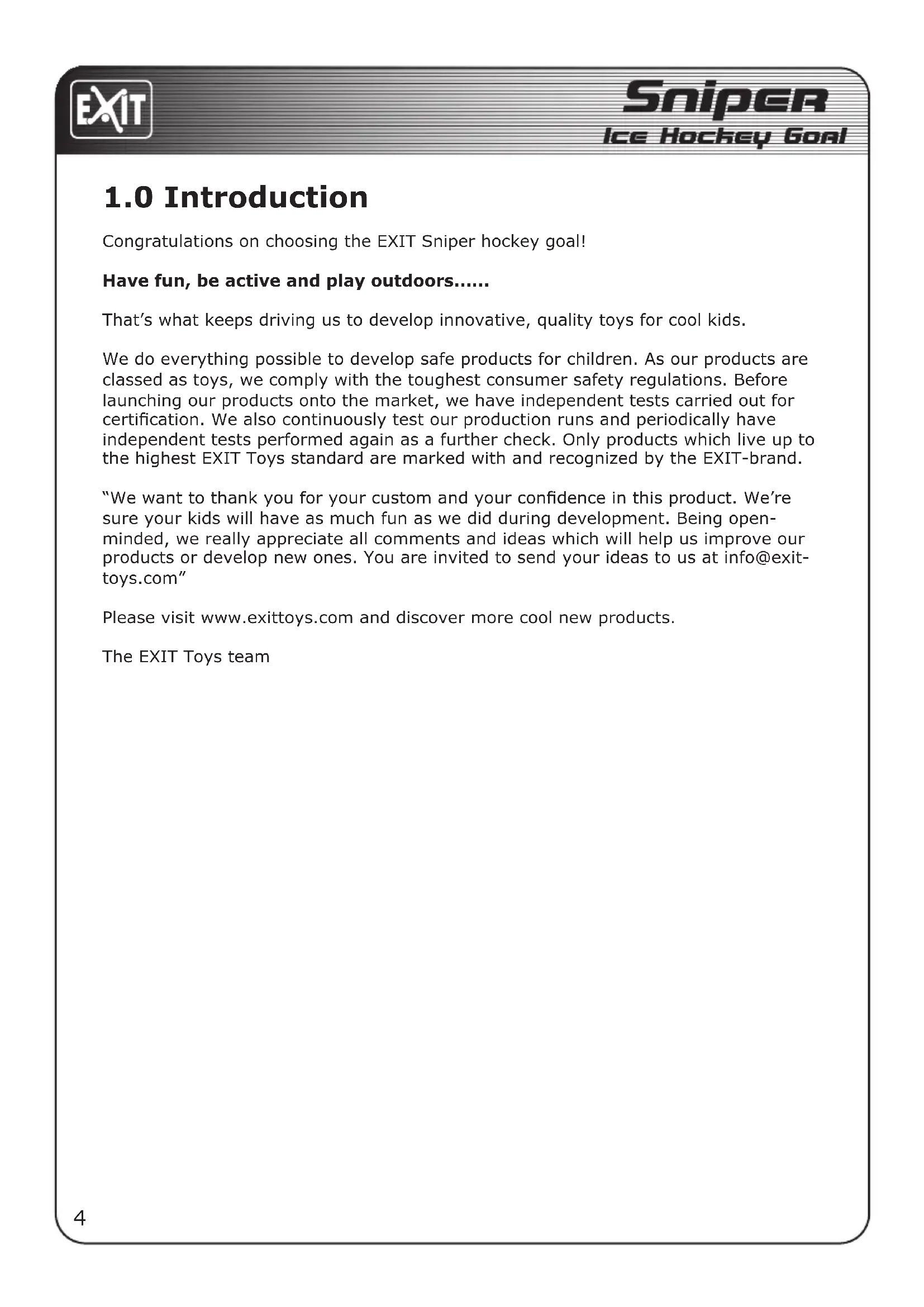

1.0 Introduction

Congratulations on choosing the EXIT Sniper hockey goal!

Have fun, be active and play outdoors.....

That's what keeps driving us to develop innovative, quality toys for cool kids.

We do everything possible to develop safe products for children. As our products are classed as toys, we comply with the toughest consumer safety regulations. Before launching our products onto the market, we have independent tests carried out for certification. We also continuously test our production runs and periodically have independent tests performed again as a further check. Only products which live up to the highest EXIT Toys standard are marked with and recognized by the EXIT-brand.

"We want to thank you for your custom and your confidence in this product. We're sure your kids will have as much fun as we did during development. Being open-minded, we really appreciate all comments and ideas which will help us improve our products or develop new ones. You are invited to send your ideas to us at [e-mail]"

Please visit www.exittoys.com and discover more cool new products.

The EXIT Toys team

2.0 Warnings for safe use:

To simplify the assembly, please read the following instructions before beginning. It will be helpful to have an additional person assist in the assembly process.

Keep this manual for future reference.

• Adult supervision is required at all times when the hockey goal is used by children.
• To reduce risk of entanglement, keep small children away from net area at all times.
• When properly assembled and used as intended, this hockey goal is designed to provide many hours of playing enjoyment.
• Never let children climb on the hockey goal as this can result in goal falling over causing serious injury or death.
• The metal frame of the hockey goal will conduct electricity. Lights, extension cords, and all such electrical equipment must never be allowed to come in contact with the hockey goal.
• Inspect the hockey goal before each use. Make sure the strips and all parts are correctly and securely positioned and attached. Tighten any loose hardware. Replace any worn, defective, or missing parts.
• Wear comfortable clothing free of hooks, snaps, drawstrings or anything which may snag or catch in the hockey goal mesh. Remove jewelry, necklaces, and earrings.
• Read all instructions and complete all assembly before using.

WARNING

ALWAYS ANCHOR GOAL

Unsecured Goal can fall over causing serious injury or death

3.0 Assembly and Installation Instructions

• Adequate overhead clearance is essential. Provide clearance for wires, tree limbs, and other possible hazards.
• Lateral clearance is essential. Place the Goal away from walls, structures, fences, and other play areas. Maintain a clear space on all sides of the goal. A minimum of 3m from frame edge is recommended.
• The goal is heavy, two able-bodied adults are required to set it up.
• Never set-up the goal in heavy rain, wind or storm conditions, especially storms. It is recommended that the goal be taken apart and stored.
• When moving the assembled goal, have at least two people evenly the frame to lift the goal off the ground.
• Place the goal on a level surface before use.
• Secure the goal against unauthorized and unsupervised use.

4.0 Care and Maintenance Instructions

Inspect the goal before each use and replace any worn, defective, or missing parts.

The following conditions could present potential hazards:

1. Missing, improperly positioned, or insecurely attached barriers or enclosure
2. Punctures, frays, tears, or holes worn in the goal mesh.
3. A bent or broken frame.
4. Sharp protrusions on the frame or suspension.
5. Loosened or missing hardware, system.

5.0 Guarantee Conditions & Service

The owner of this product has the following guarantees on the product:

• 2 years from date of purchase on the frame (regular use).
• A 3-month guarantee is given on the other parts (regular use).
- The guarantee only applies for material/construction errors of the product and/or parts thereof.

The guarantee is not applicable and/or is invalidated in the following cases:

• The goal has been handled without due care, has been involved in an accident, or has been fitted with non-approved parts.
• The product has not been assembled as per instructions or has not been correctly maintained.
• Parts fitted afterwards do not match the product's technical specifications or original parts have not been used or have not been fitted correctly.
• The goal is used for professional purposes (hire, schools, etc.).
  • Technical repairs to the product were not carried out professionally.
• Replacement of parts were not carried out on time.

The owner of the product can only claim a guarantee by presenting the original bill for the purchase to Dutch Toys Group or the dealer from whom the product was bought.

If the claim under the guarantee is refused, then all costs incurred must be paid by the owner.

Guarantee is not transferable to third parties.

1.0 Einführung

2 Rear bent tube 2 pcs

3 Back bot tom tube 1pc

4 Red left lower tube 1pcs 5 Red front side post 2pcs Lenght h: 572m m Lenght h: 572m m

Length: 572m m

6 Red right lower tube 1pcs Length h: 572m m

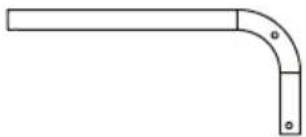

Simple line drawing of a bent pipe or elbow joint with mounting holes (no text or symbols)

7 Front left bent tube 1 pcs 9 Front right bent tube 1 pcs 8 Front cross Beam 1 pcs

Simple line drawing of a bent pipe or elbow joint (no text or symbols)

10 Rear left bent tube 1pcs

(865mm)

11 Rear cross beam 1pcs (962mm)

Simple line drawing of a bent pipe or elbow joint (no text or symbols)

12 Rear right bent tube 1pcs

14 Back side post 1pcs (780mm)

13 Bolt and Washer 5pcs

15 Black side post 1pcs Lenght h: 572m m

16 Foam 3pcs

17 Sm all Logo 1pcs

18 Sm all Logo 2pcs

24 Big logo 2pcs

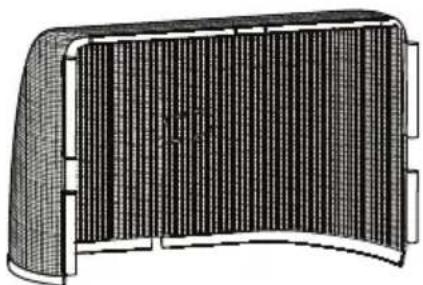

Technical illustration of a heat exchanger or cooling unit with mesh insulation and curved duct (no text or symbols)

22 Net 1pc

19 Ice spike 2pcs

21 Ground spike 2pcs

20 Anchor tube 2pcs

23 Allen Wrench 1pc

Assembly steps / Montageschritte / Montage / Assemblée

1. EN: Attach each Front bent tube (1) to the each Rear bent tube(2) as shown.

1. EN: Slip the Back bottom tube (3) into the Net (22) bottom sleeves, then insert the each Front bent tube (1) and the each Rear bent tube (2) into the Net(22) bottom sleeves as shown. Attach the each Rear bent tube (2) to the Back bottom tube (3) as shown.

Technical diagram of a curved panel or enclosure with grid pattern and labeled components (no text or symbols present)

1. EN: Attach the Red Left lower tube (4) to the Red front side post (5) as shown. Then attach the Red right lower tube (6) to the Red front side post (5) as shown.

1. EN: Slip the step 3 assemble into the side sleeves on the Net (22) as shown. Attach the Red lower tube (4) and Red right lower tube (6) to the Front bent tube (1) with two M8X55 Bolts and two M8 Washers (13).

1. EN: Attach the Front left bent tube (7) to the Front cross beam (8) as shown.

1. EN: Slip the step 5 assemblies into the front sleeves on the Net (22) as shown. Then attach the Front left bent tube (7) and the Front right bent tube (9) to the each Red front side post (5) until the button snap into place as shown.

1. EN: Attach the Rear cross beam (11) to the Rear left bent tube (10) and the Rear right bent tube (12) as shown.

1. EN: Attach the Rear left bent tube (10) to the Front left bent tube (7), then the rear right bent (12) to the Front right bent tube (9) with two M8X55mm Bolts and two M8 washers (13) as shown. Do not tighten the Bolts.

Technical diagram of a curved structural component with numbered parts labeled 7, 9, 10, 12, and 13.

1. EN: Firstly attach the Black side post (15) to the Back bottom tube (3), then attach Back side post (14) the Black side post (15) and the Rear cross beam (11) with the M8X55mm Bolt and M8 Washer (13) as shown.

Technical diagram of a mechanical component with numbered parts labeled 11, 13, 14, 15, and 3.

1. EN: Install three Foams(16) as shown.

Technical diagram of a curved panel or enclosure with labeled components, showing internal structure and assembly details.

1. EN: Wrap the three Foams (16) with the small logos (17+18). Then apply Big logo (24) on front and back side of Net (22).

Remove two M8X55 Bolts and two M8 Washers (13). Insert each Ice Spike (19) into the Red left lower tube (4) and the Red right lower tube (6), then attach the Red lower tube (4) and Red right lower tube (6) to the Front bent tube (1) with two M8X55 Bolts and two M8 Washers (13).

Technical line drawing of a curved structural component with grid pattern and mounting feet (no text or symbols)

12.2EN: Anchoring on soft surfaces (sand/grass):

If you use outdoors, select a flat surface of the ground or grass, make sure the assembly unit is away at least 3m from other structures or obstructions. Remove two M8X55 Bolts and two M8 Washers (13) and Then insert Anchor Tube (20) into the Red left lower tube (4) and the Red right lower tube (6). Make sure the button snap into place.

Drive the two Ground spikes (21) which match two Anchor Tubes (20) with steel or rubber mallet, and then insert Anchor Tube (20) into Ground Spike (13) as shown.

EN: Congratulations! Your EXIT Sniper Ice Hockey Goal is ready to use!

Red and black soccer field net with metal pins and a red 'EXIT' tag, no visible text or symbols on the net itself.

Notes / Notizen / Notities / Notes

Red and black sports net with a red 'EXIT' tag, surrounded by small metal pins and a yellow tool (no text or symbols on the net itself)
