USER MANUAL Twist 305 cm EXIT

EXIT TOYS.COM

User manual Gebrauchsanweisung Gebruikshandleiding Mode d'emploi

TWIST EXIT TRAMPOLINE GAME TRAMPOLINE GAME REVERSIBLE PADDING SAFETY EN71-14 FIRST

Trampoline + Safety Net

06FT / 0183cm

08FT / 0244cm

ø10Ft / ø305cm

012FT / 0366cm

014Ft / 0427cm

Simple line drawing of a rectangular box with a circular base and ring, no text or symbols present.

3D wireframe diagram of a cube with internal circular structure (no text or symbols)

3D wireframe diagram of a circular container with octagonal top and bottom edges (no text or symbols)

CE

WARNING

CHOKING HAZARD small parts

Adult assembly required retain for future reference

English4

Deutsch24

Nederlands44

Français64

1.0 Introduction

Congratulations on choosing a EXIT Twist Trampoline!

Have fun, be active and play outdoors.....

That's what keeps driving us to develop innovative, quality toys for cool kids.

We do everything possible to develop safe products for children. As our products are classed as toys, we comply with the toughest consumer safety regulations. Before launching our products onto the market, we have independent tests carried out for certification. We also continuously test our production runs and periodically have independent tests performed again as a further check. Only products which live up to the highest EXIT Toys standard are marked with and recognized by the EXIT-brand.

"We want to thank you for your custom and your confidence in this product. We're sure your kids will have as much fun as we did during development. Being open-minded, we really appreciate all comments and ideas which will help us improve our products or develop new ones. You are invited to send your ideas to us at [e-mail]"

Please visit www.exittoys.com and discover more cool new products.

The EXIT Toys team

2.0 Guidelines for safe use

Using your product as instructed in this manual will eliminate virtually all hazards. However, please bear in mind that children have a natural urge to play and that this may lead to unforeseen dangerous situations for which the manufacturer cannot be held responsible. Teach your children how to use the product and point out possible dangers to them.

Before assembling and using the product, please read and observe these main warnings:

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

WARNING

To avoid serious injury:

0-3

• Read and understand the manual before use.
  • WARNING: Only for domestic use
• WARNING: CHOKING HAZARD! - Small parts. Not for Children under 3 years old.
• Protect children

- Prevent falls and strangulation - Exit through the door only, and use caution.

- Assist young children in and out of Safety net.

• WARNING: Only one user at a time; danger of collision!
- WARNING: Do not perform summersaults or other difficult jumps!
• WARNING: Empty your pockets before use of the trampoline!

Continuous adult supervision is required.

Don't use the trampoline when it's wet.

• The trampoline is to be assembled by an adult prior to use.
- In case of missing or broken parts, please contact place of purchase for assistance.
• We are not liable for any injuries that may occur when using the trampoline.

Max. User weight:•

6ft: 80kg. / 8ft: 90kg. / 10ft: 100 kg. / 12ft: 120kg. / 14ft: 120 kg.

2.1 Warnings for safe use:

- BEFORE YOU BEGIN USING YOUR TRAMPOLINE: Read and understand the information provided in this manual. As with all physical sports and activities there is the risk of participants receiving an injury. To ensure your future enjoyment and the prevention of injury, be sure to follow appropriate safety rules and tips.

- ALWAYS CONSULT A DOCTOR/PHYSICIAN BEFORE PERFORMING ANY KIND OF PHYSICAL ACTIVITY.

- ALWAYS CHECK YOUR TRAMPOLINE BEFORE USE, PAYING SPECIFIC ATTENTION TO ALL THE BOLTS, JUMP MAT AND PADS POSITION. DON'T USE IF ANY PARTS ARE MISSING OR LOOK LIKE THEY SHOW WEAR AND TEAR.

- ALWAYS ENSURE THAT THE TRAMPOLINE IS USED BY ONLY ONE PERSON AT A TIME.

- ALWAYS ENSURE THAT WHENEVER THE TRAMPOLINE IS USED BY ANYONE AT ANY SKILL LEVEL THAT DO SO UNDER SUPERVISION.

- Stop exercising immediately should you feel unwell or if you feel pain in your joints and muscles. Dizziness is a sign of fatigue and you should stop bouncing and lay down on the ground should you feel dizzy.

- When using this trampoline ensure appropriate clothing is worn, preferably sports wear and socks. NEVER WEAR SHOES ON THE MAT.

- Please be warned that trampoline is spring based and will allow the user to jump to a greater height than that on the ground, so please bear this in mind and ensure that you are comfortable bouncing at low heights first.

- Proper assembly, care and maintenance of product, safety tips, warnings, and proper techniques for jumping on your trampoline are included in this manual for your safety and an extended product life span. All users and supervisors should therefore familiarize themselves with these instructions. Anybody who chooses to use the trampoline must be aware of their own limitations with regards to performing skills on this trampoline.

- Trampoline should be assembled on grass or BSI approved safety matting.

• This product is intended for home use only.

2.2 Use of the trampoline

INITIALLY, you should get accustomed to your trampoline and understand how much spring is in each bounce. The focus at this point should be body position and technique until each skill can be completed with ease and control.

3D rendered model of a seated human figure in motion, no text or symbols visible

• BEFORE YOU TRY TO JUMP TOO HIGH the technique for stopping should be learnt as this will help prevent injury should you feel you are jumping out of control.
• As the user lands on the bed, the knees should be bent so that they stop and absorb the spring in the mat. The position is shown in the image to the left. Arms are held out for increased level of balance.
• This skill is used when the trampoline user wishes to stop bouncing on the trampoline due to fatigue, loss of control, etc.

Simple line drawing of a person jumping over a table with motion arrows (no text or symbols)

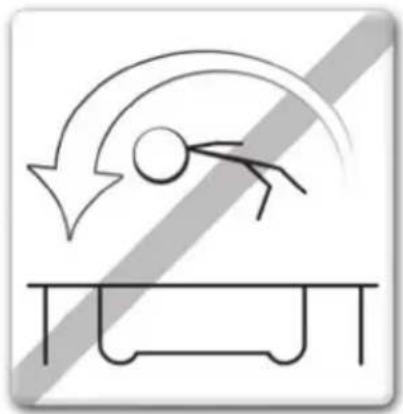

SOMERSAULTS (FLIPS): DO NOT PERFORM somersaults of any type (backwards or forwards) on this trampoline. If you make a mistake when trying to perform a somersault, you could land on your head or neck. This will increase your chances of your neck or back being broken, which could result in death or paralysis

Simple line drawing of two stick figures on a table, one standing and one lying down (no text or symbols)

FOREIGN OBJECTS : DO NOT use the trampoline if there are pets ,other people ,or any objects underneath the trampoline .This will increase the chances of an injury occurring ,DO NOT hold any foreign objects in your hand and DO NOT place any objects on the trampoline while in use. DO NOT place the trampoline under over-hanging objects like tree branches, wires, etc as these will increase your chances of being injured.

Two crossed wrench and screwdriver tools (no text or symbols)

POOR MAINTENANCE OF TRAMPOLINE: A trampoline in poor condition will increase your risk of being injured. Please inspect the trampoline before each use for bent steel tubes, torn mat, loose or broken springs and overall stability of the trampoline.

Simple line drawing of a person standing on a bench with a diagonal line extending from above (no text or symbols)

WEATHER CONDITIONS: Please be aware of the weather conditions when using the trampoline. Don't use the trampoline when it's wet. If it is too windy, the user could lose control.

Simple black padlock icon on white background (no text or symbols)

RESTRICTING ACCESS: When the trampoline is not in use, always store the access ladder in a secure place so that unsupervised children can not play on the trampoline.

2.3 Tips to reduce the risk of accidents

Simple line drawing of a person standing on a table with arrows indicating direction (no text or symbols)

Simple line drawing of a stick figure standing on a table with height arrows indicating vertical distance (no text or symbols)

Simple line drawing of a person falling off a ball with motion arrows, above a table (no text or symbols)

In order to reduce the risk of accident the "TRAMPOLINE USER" should:

• Always remain in control of their jumps and body position at all times.
- Not attempt to perform skills that are beyond their own level of competence.
- Read and understand the jump by taking off and landing in the middle of the trampoline.
- Always control their jump by taking off and landing in the middle of the trampoline.
- Always jump vertically and refrain from bouncing towards the springs in any direction.
- Always consult a professionally certified trampoline instructor before attempting anything beyond basic techniques.

In order to reduce the risk of accident the "SUPERVISOR" should:

• Fully understand and enforce all the safety rules and guidelines.
• Advise the trampoline user and provide knowledge in what they are doing right and wrong to ensure the safety of trampoline user.
• Be aware and advise the trampoline user of all the safety warnings.

IMPORTANT: If the Trampoline can not be supervised there should be a method for securing it and preventing anyone from using the product until supervision is available.

2.4 Trampoline Safety Instructions

ADVISORY PRECAUTIONS WHILST USING THE TRAMPOLINE

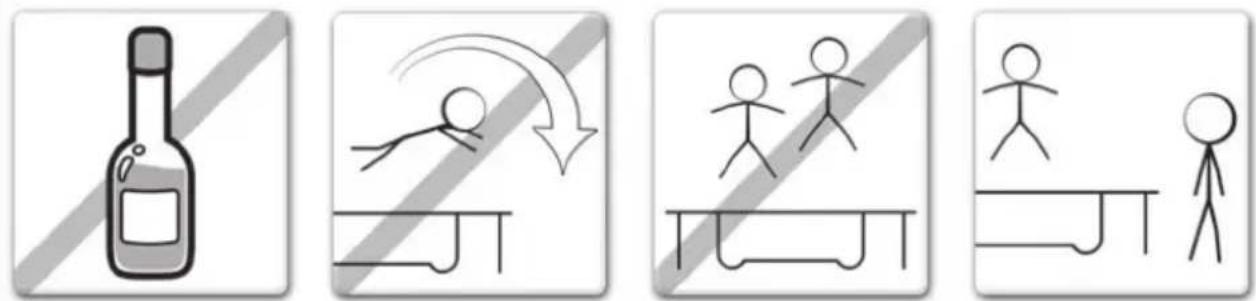

Four-step diagram illustrating a bottle, stick figure jumping, group interaction, and human figure interacting with a table.

• Do not use trampoline if you have consumed alcohol or narcotic substances
• You should climb on and off the trampoline in a controlled and careful manner. Never jump onto or off the trampoline and never use the trampoline as a means to bounce onto or into another object.
• Always learn the basic bounce and master each type of bounce before trying more difficult types of bounces. Review the basic skills section to learn how to do the basics.
  • To stop your bounce, flex your knees when you land on your feet.
• Always be in control when you are bouncing on the trampoline. A controlled jump is when you land at the same spot that you took off from. If at any time you feel out of control, stop bouncing immediately.
• Do not jump or bounce for prolonged periods of time of too high for a number of jumps. Keep your eyes on the mat to maintain control. If you do not, you could lose your balance.
• Never have more than 1 person on the trampoline at any one time.

ADVISORY PRECAUTIONS WHILST SUPERVISING TRAMPOLINE

IMPORTANT: Familiarise yourself with the basic jumps and safety rules. To prevent and reduce the risk of injuries, ensure that all safety rules are enforced and the new users learn the basic bounces before trying more advanced techniques.

• ALL USERS need to be supervised, regardless of skill level or age.
• Never use the trampoline when it is wet, damaged, dirty or wore out. The trampoline should be inspected before use.
• Keep all objects that could interfere during use away from the trampoline at all times. Be aware of what is overhead, underneath and around the trampoline.
• To prevent unsupervised and unauthorized use, the trampoline should be secured at all time.

2.5 Accident classification & identification

Simple line drawing of a person falling with an arrow indicating motion, no text or symbols present

MOUNTING AND DISMOUNTING:

Be very careful when getting on and off the trampoline. DO NOT mount the trampoline by grabbing the frame pad, stepping onto the springs or by jumping onto the mat of the trampoline from an object(eg. A deck, roof ,or ladder ).This is considered highly dangerous. DO NOT dismount by jumping off the trampoline and landing on the ground. If small children are playing on the trampoline, they may need help in mounting and dismounting

Simple line drawing of a bottle with a label, crossed by a diagonal line (no text or symbols)

USE OF ALCOHOL OR DRUGS:

DO NOT consume any alcohol or take any drugs (this includes medication that could affect the users co-ordination) when using this trampoline. This is considered highly dangerous since these foreign substances impair your judgements, reaction time and overall physical co-ordination.

Simple line drawing of two stick figures standing above a table with a horizontal bar (no text or symbols)

MULTIPLE USERS:

Only one user at a time; danger of collision!

Illustration of a coiled spring with a loop, crossed by diagonal lines (no text or symbols)

STRIKING THE SPRING FRAME:

When playing on the trampoline, STAY in the centre of the trampoline mat. This will reduce the risk of being injured by landing on the spring frame. Always keep the frame pads covering the frame of the trampoline. DO NOT jump or step onto the frame pad directly since it is not intended to support the weight of a person.

Simple line drawing of a person falling from above a table with an arrow indicating motion (no text or symbols)

LOSS OF CONTROL:

DO NOT try difficult maneuvers until you have mastered the basics. If you do not follow these guidelines, you increase the risk of someone being injured.

WARNING: Take a break every 10 minutes.

3.0 Trampoline techniques

Basic Skills

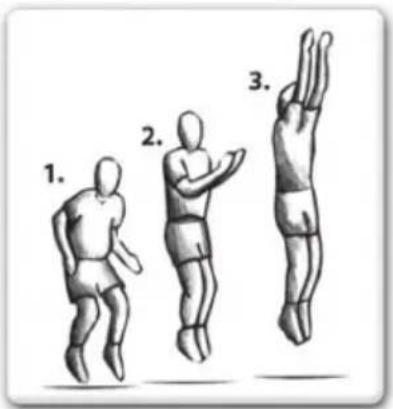

BASIC SKILL 1: The basic bounce

1. 2. 3.

• Start from a standing position, with feet shoulder width apart head up and eyes on the trampoline bed.
• Swing arms forward and up above head in a circular motion.
• Bring legs and feet together in mid-air position and point toes.
• Land back on the mat with feet shoulder width apart (same as start position).
• Why not try moving onto the next skill once comfortable and proficient.

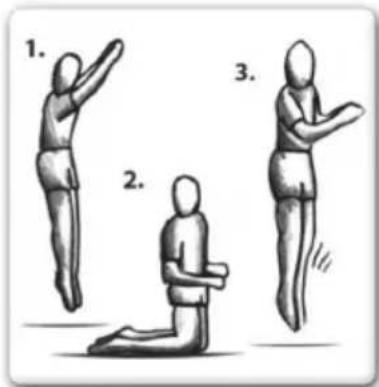

BASIC SKILL 2: The Knee Drop

• Start with a low basic bounce (as detailed in BASIC SKILL 1).
• Land on knees shoulder width apart, keeping back straight and a strong body position using arms out to the side or in front to maintain balance.
• Bounce back to basic bounce position by using bounce momentum and swinging arms above head.
• Once mastered at this height try bouncing a little higher, but remember to always stay in control of your height.

1. 2. 3.

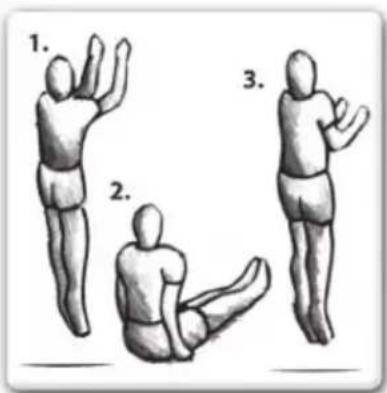

BASIC SKILL 3: The Seat Drop

Illustration of three human figures in various postures, showing different poses and movements (no text or symbols)

• Start with a low basic bounce (BASIC SKILL 1) in the normal position.
• Land with legs out straight in front of you, with hands either side of your hips and back straight in a strong body position.
• Use the bounce momentum aided with a push from hands to return to a standing position.
• Once mastered at this height try bouncing a little higher, but remember to always stay in control of your height.

IMPORTANT: Please consult a trained trampoline instructor before attempting any more advanced skills to ensure highest possible safety levels are

Advanced Skills

ADVANCED SKILL 1: The basic bounce

Illustration of three sequential human body postures in different poses: forward bend, forward forward bend, and forward forward bend (no text or symbols)

• Start with a low basic bounce (BASIC SKILL1) in the normal position.
• Land on your hands and knees at the same time, ensure that back is horizontal to the bounce mat and hands & legs are shoulder width apart also.
• Use the momentum of bounce and push off hands to regain the standing position.
• Once mastered at this height try bouncing a little higher, but remember to always stay in control of your height.
• Try moving onto the next skill once comfortable and proficient.

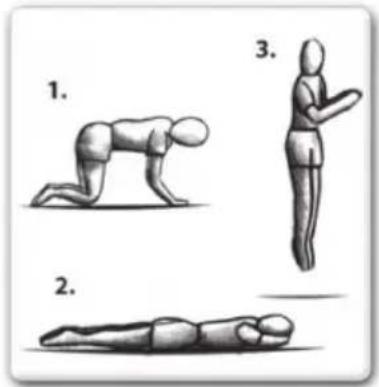

ADVANCED SKILL 2: Hands and Knees to Front Drop

• Land on your hands and knees at the same time, ensure the back is horizontal to the bounce mat and hands & legs are shoulder width apart also.
• Maintain strong body position with back horizontal to mat and straighten legs behind and fold arms in front of face in mid-air ready to land on the mat in a lying down position.
• Ensure the landing is done with all of body touching the mat at same time.
• Push off hands and recover the standing position.
• Once mastered at this height try bouncing a little higher, but remember to always stay in control of your height. Trying moving onto the next skill once comfortable and proficient.

Illustration showing three sequential poses of a human figure: kneeling, standing, and lying (no text or symbols)

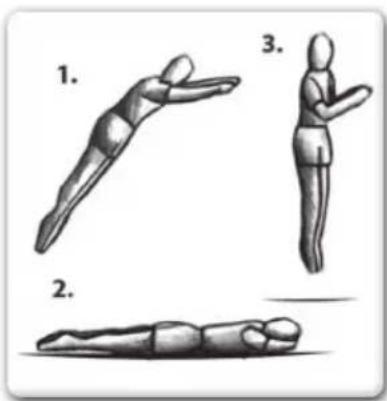

ADVANCED SKILL 3: The Front Drop

Illustration of three sequential human body poses: diving, standing, and lying (no text or symbols)

• Start with a low basic bounce (BASIC SKILL 1) in the normal position.
• Maintain strong body position with back horizontal to mat and straighten legs behind and fold arms in front of face in mid-air ready to land on the mat in a lying down position.
• Ensure the landing is done with all of body touching the mat at the same time.
• Push off hands and recover the standing position.
• Once mastered at this height try bouncing a little higher, but remember to always stay in control of your height.

IMPORTANT: Should you wish to progress any further and learn more advanced techniques for trampoline, please consult a qualified and registered instructor.

4.0 General Information

• It is not necessary to break-down the trampoline during winter.
• Self-securing nuts and screws are suitable only for one time setting-up, and must be replaced after breakdown of the trampoline and/or safetynet.
• The safetynet has a minimum durability of 5 years after purchasing.
• It is recommended to place the trampolines on a flat and level surface with at least 2 m distance to other superstructures, or barriers, e.g. fence, garage, house, tree branches, washing lines, or electrical cables.
• The trampoline shall not be placed over hard surfaces like asphalt, concrete etc.
  Exchange defective parts according to the supplier's recommendation.
• Changes to the trampoline (e.g. addition of an accessory) must be done according to the supplier's instruction.

5.0 Trampoline Assembly

STEP BY STEP CONSTRUCTION

Only assemble by adult.

To assemble this trampoline all you need is our special spring loading tool provided with this product. During periods of non-use, this trampoline can be easily disassembled and stored. Please read the assembly instructions before beginning to assemble the product.

Please refer to the table for part descriptions and numbers. The assembly instruction use these descriptions and numbers as reference.

Make sure you have all parts listed. If you are missing any parts, please contact place of purchase.

Please use gloves to protect your hands from pinch points during assembly. When you are ready to start, make sure that you have plenty of space and a clean dry area for assembly.

Parts list Trampoline

Part.Nr.	Description 6ft 8ft 10ft 12ft 14ft
1 Top tube	with Socket 4 4 6 8 8
2 Top tube	with T-joint 4 4 - - -

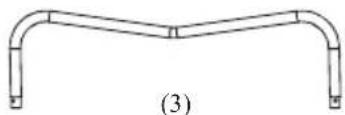

3 Leg Brace	4 4 3 4 4
4 Leg extension	- 8 6 8 8
5 Mat 1 1	1 1 1
6	Spring	40	48	54	72	80

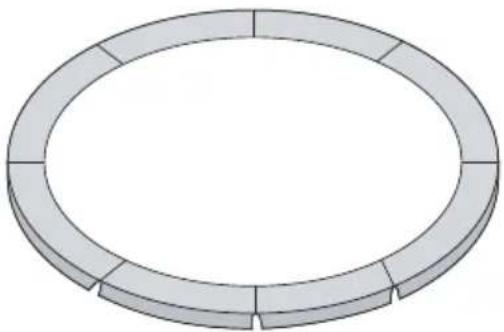

7 Pad	1 1 1	1 1
8 Tool	1 1 1	1 1
9 Warning	label	1 1 1	1 1

Enclosed are the current specifications and product features available at time of printing, however, changes may be made in equipment, availability, specifications and features without notice.

(1)

(2)

(4)

Simple geometric diagram showing a large oval with a central cross and a small square at the center (no text or symbols)

(5)

(6)

(8)

(9)

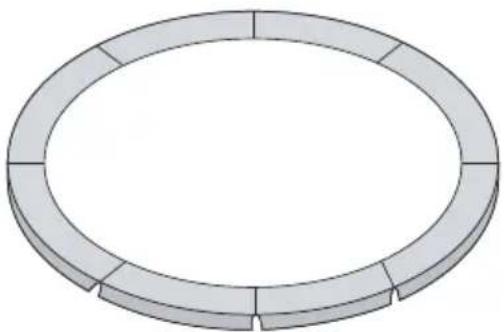

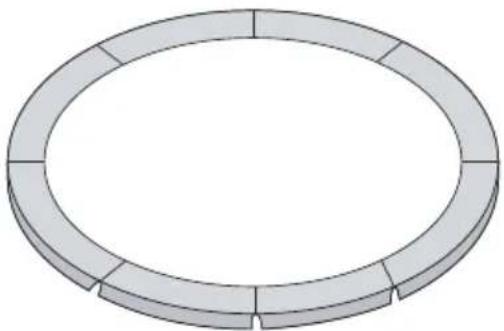

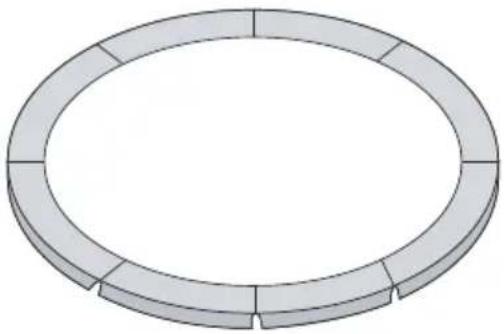

Simple 3D diagram of a circular ring structure with segmented segments (no text or symbols)

(7)

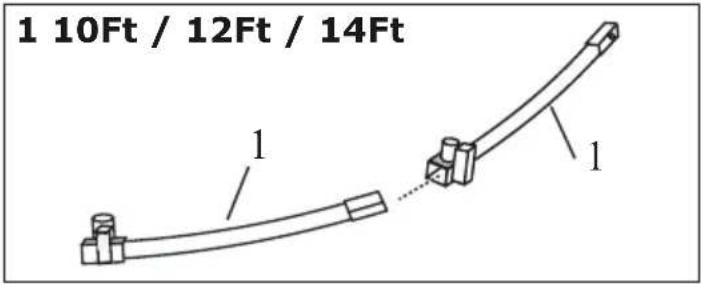

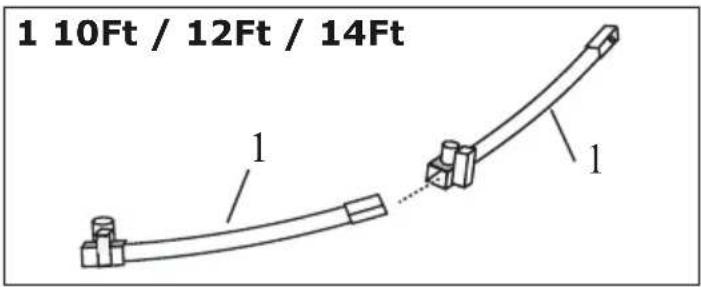

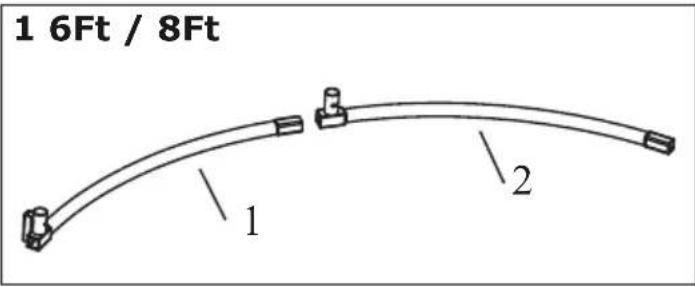

STEP 1

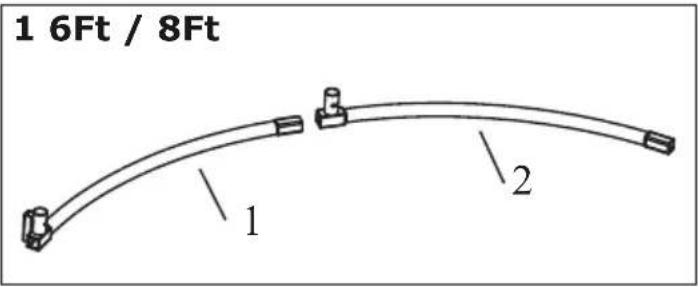

1 6Ft / 8Ft 1 2

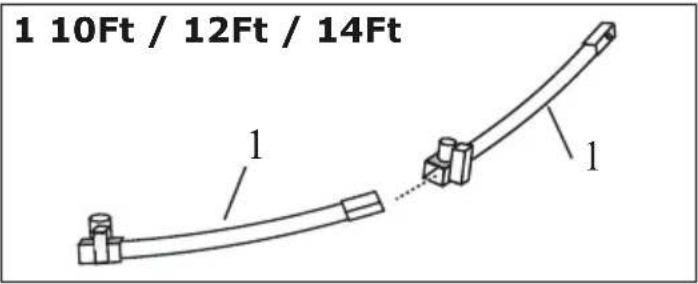

1 10Ft / 12Ft / 14Ft 1 1

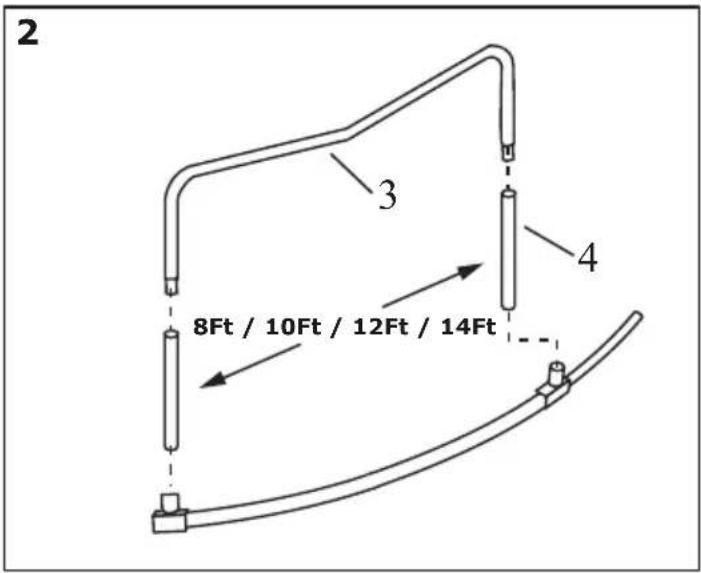

STEP 2

2 3 4 8Ft / 10Ft / 12Ft / 14Ft

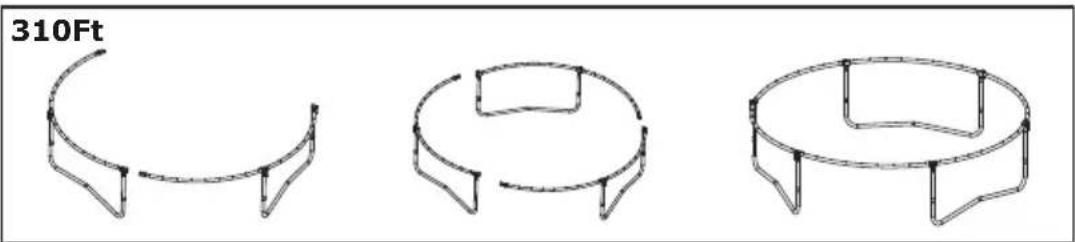

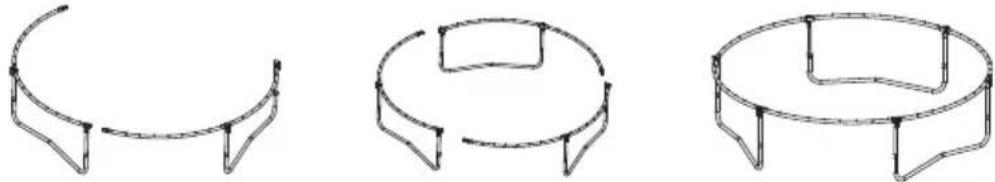

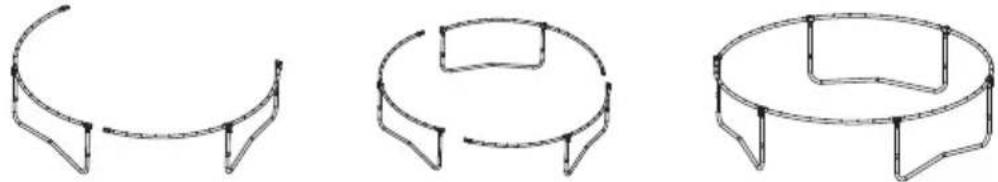

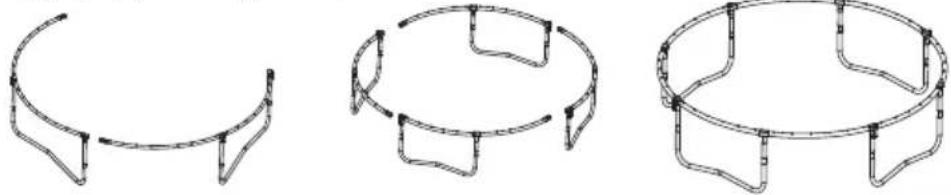

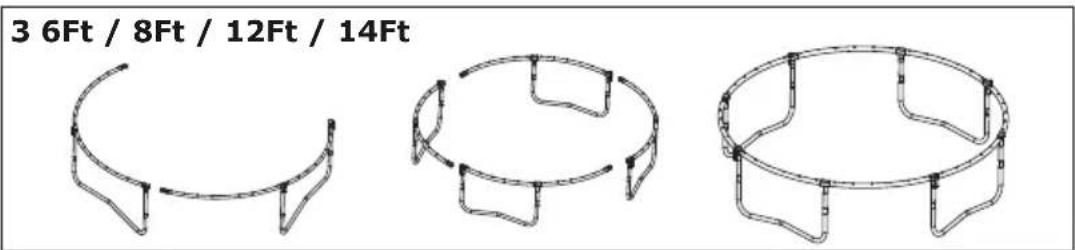

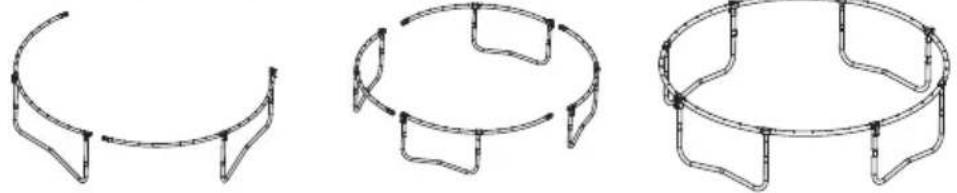

STEP 3

3 6Ft / 8Ft / 12Ft / 14Ft

310Ft

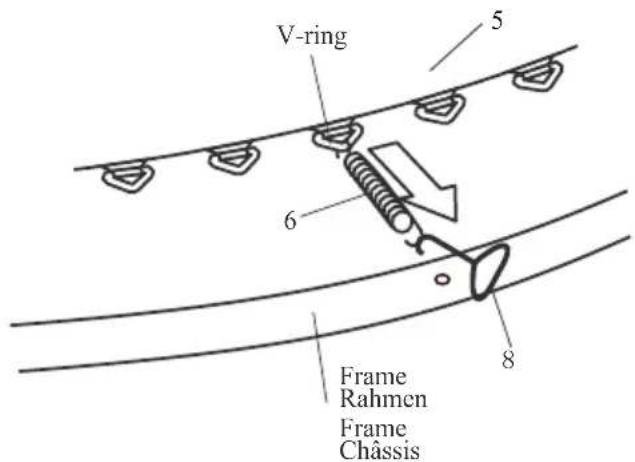

STEP 4

Caution: It is wise to wear leather gloves while attaching the Springs. Be careful where you place your hands as the Springs and frame joints can pinch.

Attach the Springs (6) as follows: Hook one end of a Spring (8) into a V-ring sewn on the Jump mat. Hook a Spring tool (8) shown as the inset drawing in next to the free end of the Spring(6). Pull it by the spring tool(8) until it reaches the frame. Push the end of the Spring into a hole in the frame. Unhook the Spring tool. the first spring will be attached.

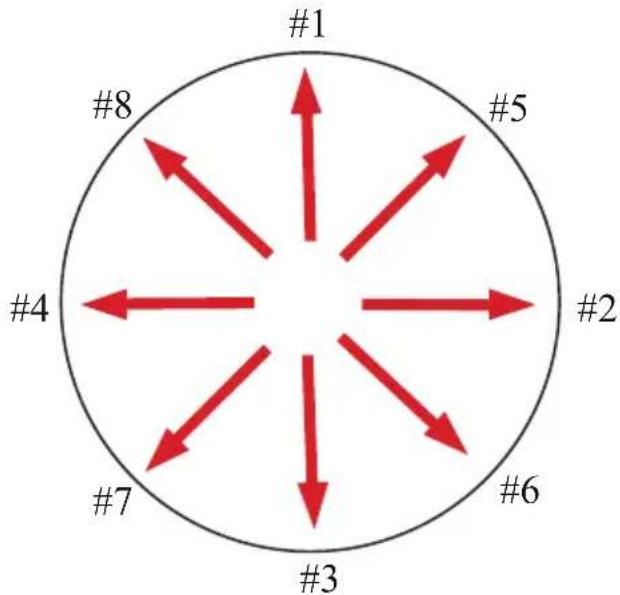

Follow the diagram to install each spring in the correct order. After the first spring (#1) has been attached to both mat and frame attach the second spring (#2), the third (#3), etc.. Make sure to count the holes in the frame and V-rings of the mat in the appropriate position. Continue following the order until the first 8 springs have been attached. Be sure to match the correct mat ring to the correct frame hole. After the first 8 springs have been attached continue to attach all remaining springs to the mat and frame in any order.

Note: The spring has a large hook which attaches to the frame and a small hook which attaches to the mat ring.

Safety Notice:

as you attach Springs, carefully count the V-rings and frame holes. If a V-ring or a hole is skipped, reattach the spring in the proper position.

4

V-ring 5 6 Frame Rahmen Frame Châssis 8

	#1#2#3#4#5#6#7#8
6ft	12010	3051	52535
8ft	124	1236	6183	042
10ft	127	1341	6223	650
12ft	136	1854	9274	563
14ft	140	2060	1030	5070

WARNING!! : Please be careful where your hands and other parts of the body are placed as the connector points and spring attachments can create hand or body traps.

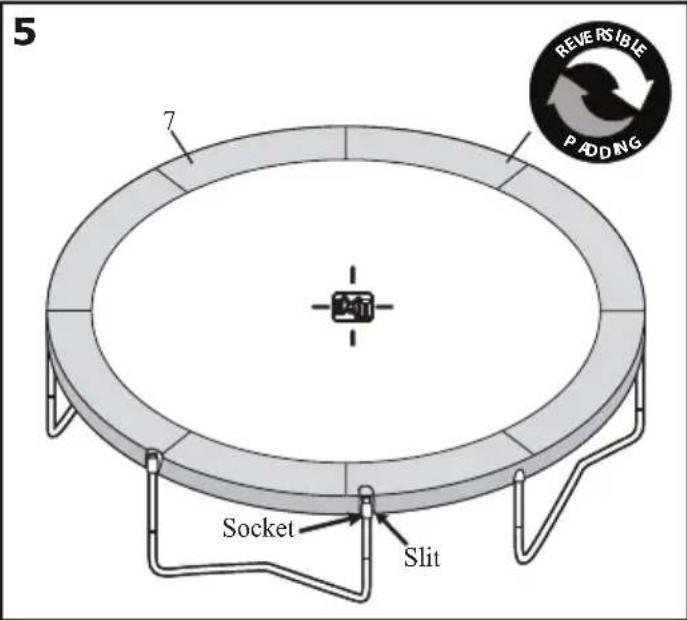

STEP 5

Lay the frame Pad (7) on the frame. Adjust the position of the Frame Pad so that the slits are directly above the Socket, as shown.

Caution: Do not use the trampoline without the Frame Pad (7). The Frame Pad is designed to reduce the possibility of injuries due to jumpers coming in contact with the trampoline frame. If you do not have a Frame Pad, contact your dealer to obtain one. Properly install the Frame Pad before using the trampoline.

5 7 Reversible PADDING Socket Slit

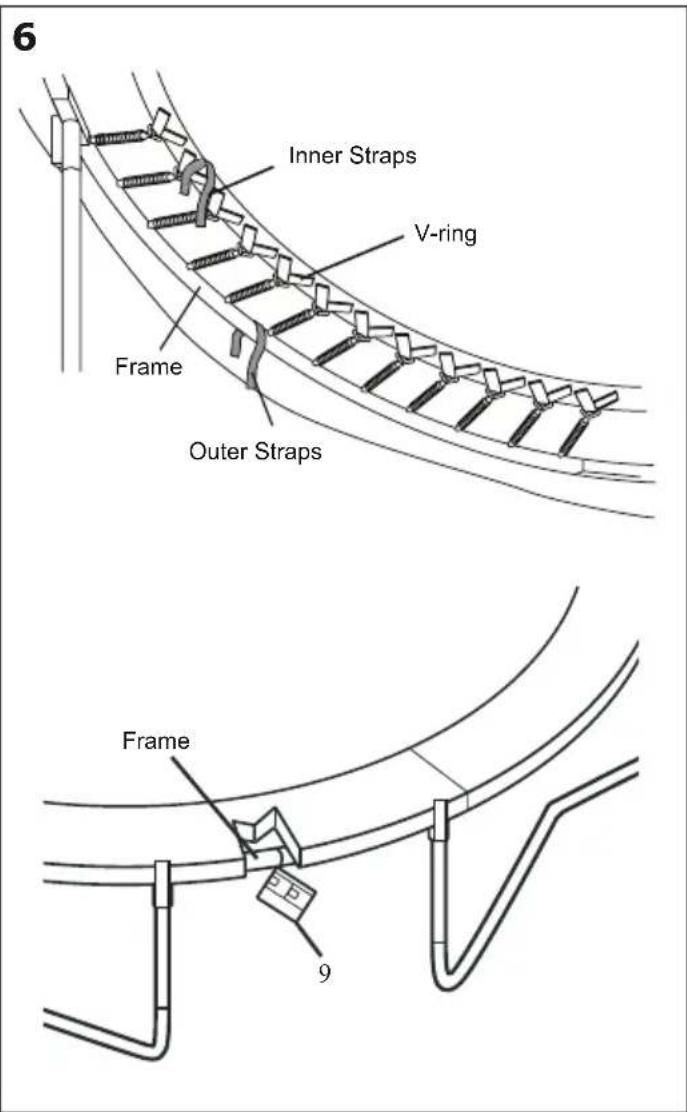

STEP 6

Look underneath the trampoline. Locate the straps attached to the underside of the frame pad. Position each outer strap so that one strap is on each side of the frame as shown. Tie the outside straps sewn to the Pad Joints to each side of the frame as shown and attach the inner straps to the near V-rings.

Repeat this step with the remaining straps (not shown).

Notice: If you purchase the enclosure please attach the mat and the net together before attaching the strap to the frame and V-rings.

Using the included plastic tie, attach the warning label (9) to the frame near the point where jumpers will climb onto and off the trampoline.

6 Inner Straps V-ring Frame Outer Straps Frame 9

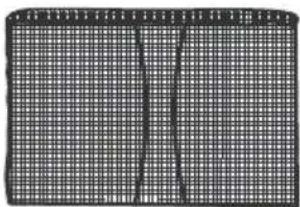

Parts list Safetynet

Part.Nr.	Description 6ft 8ft 10ft 12ft 14ft
1 Upper tube	4 4 6 8 8
2 Lower tube	4 4 6 8 8
3 Foam 8	8 12 16 16
4 End-cap	4 4 6 8 8
5 Pole cap	4 4 6 8 8
6 Net 1 1	1 1 1
7 M5x45mm	4 4 6 8 8

Enclosed are the current specifications and product features available at time of printing, however, changes may be made in equipment, availability, specifications and features without notice.

Simple line drawing of a cylindrical object with a circular end marked (no text or symbols)

Grid of black-and-white QR code tiles with binary digits, no readable text or symbols beyond the matrix pattern

(6)

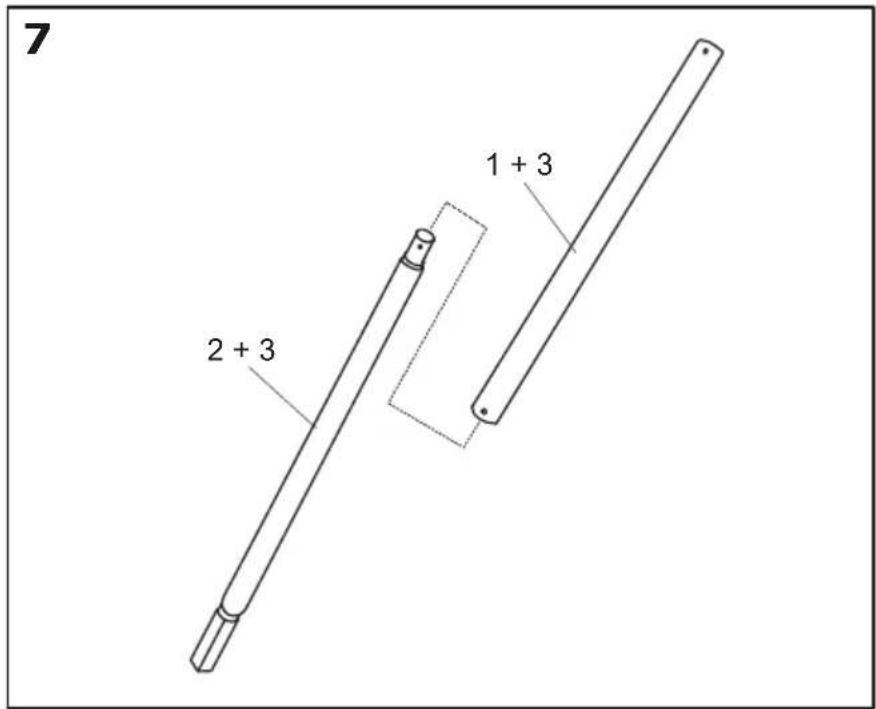

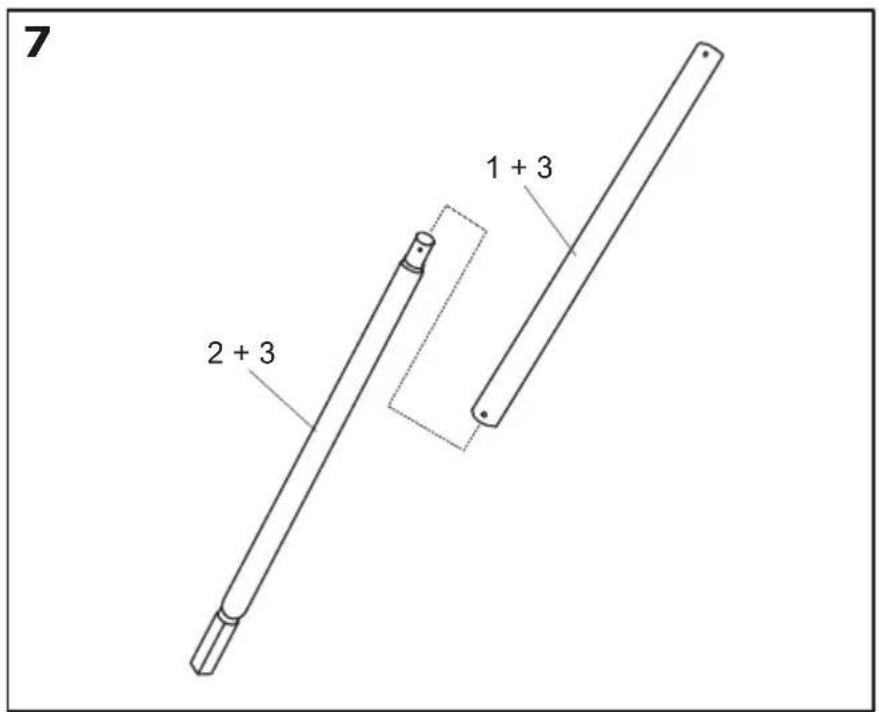

STEP 7

7 2 + 3 1 + 3

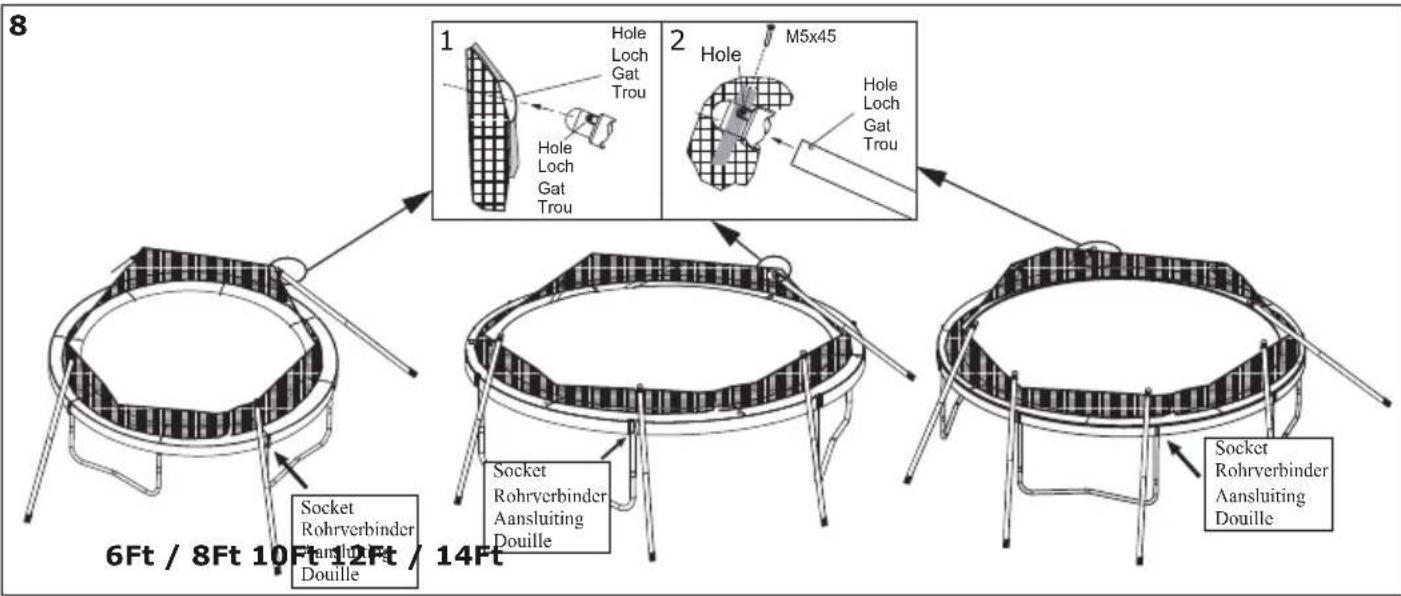

STEP 8

8 1 Hole Loch Gat Trou Hole Loch Gat Trou 2 Hole M5x45 Hole Loch Gat Trou 6Ft / 8Ft 10Ft 12Ft / 14Ft Socket Rohrverbinder Aansluiting Douille Socket Rohrverbinder Aansluiting Douille Socket Rohrverbinder Aansluiting Douille

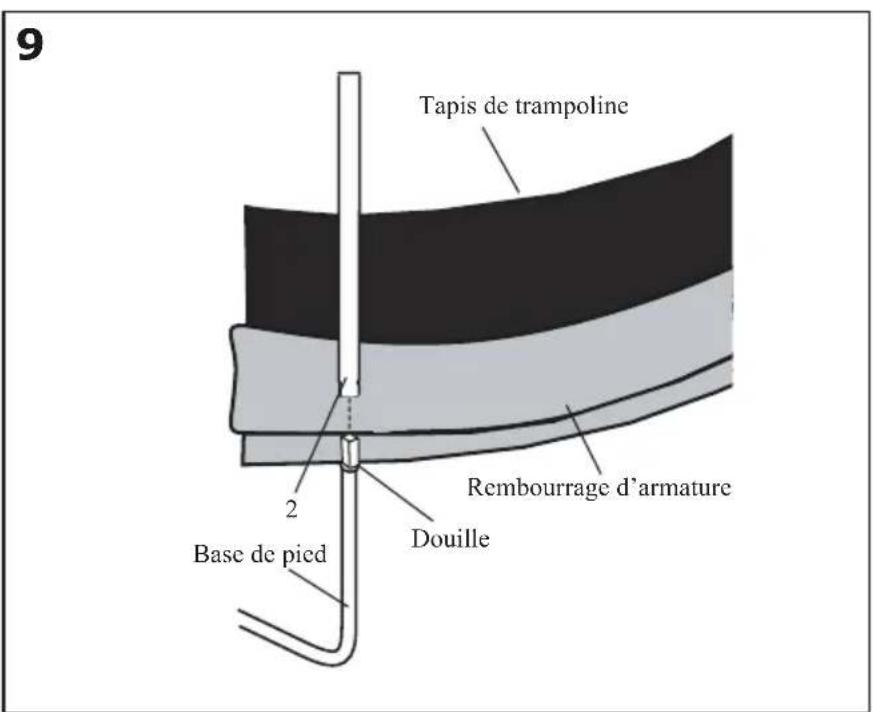

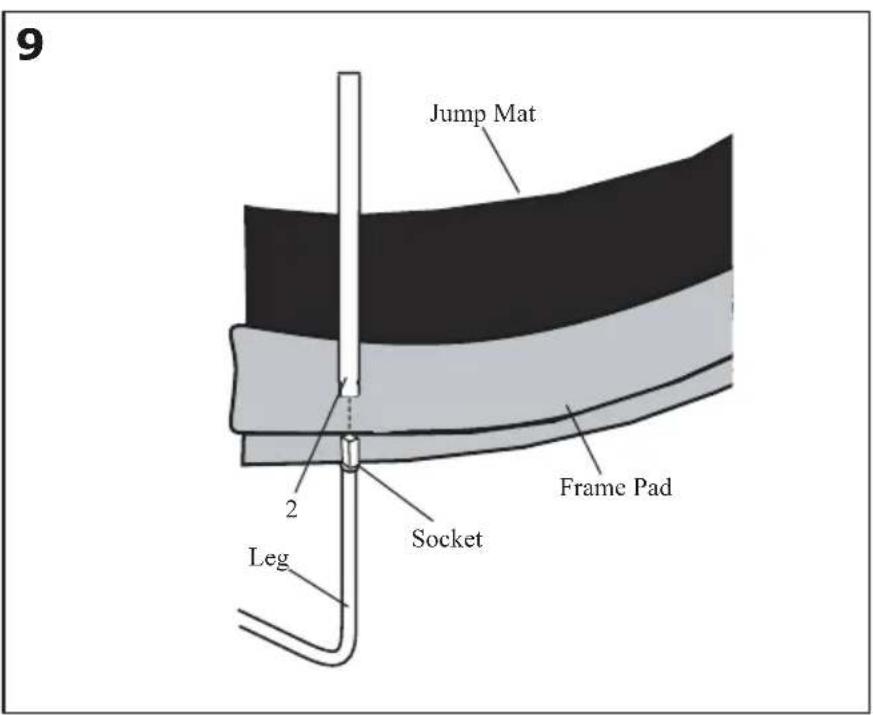

STEP 9

9 Jump Mat Frame Pad Socket 2 Leg

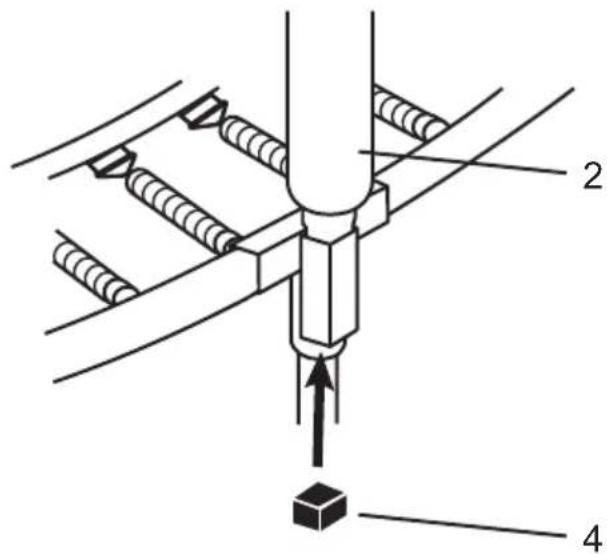

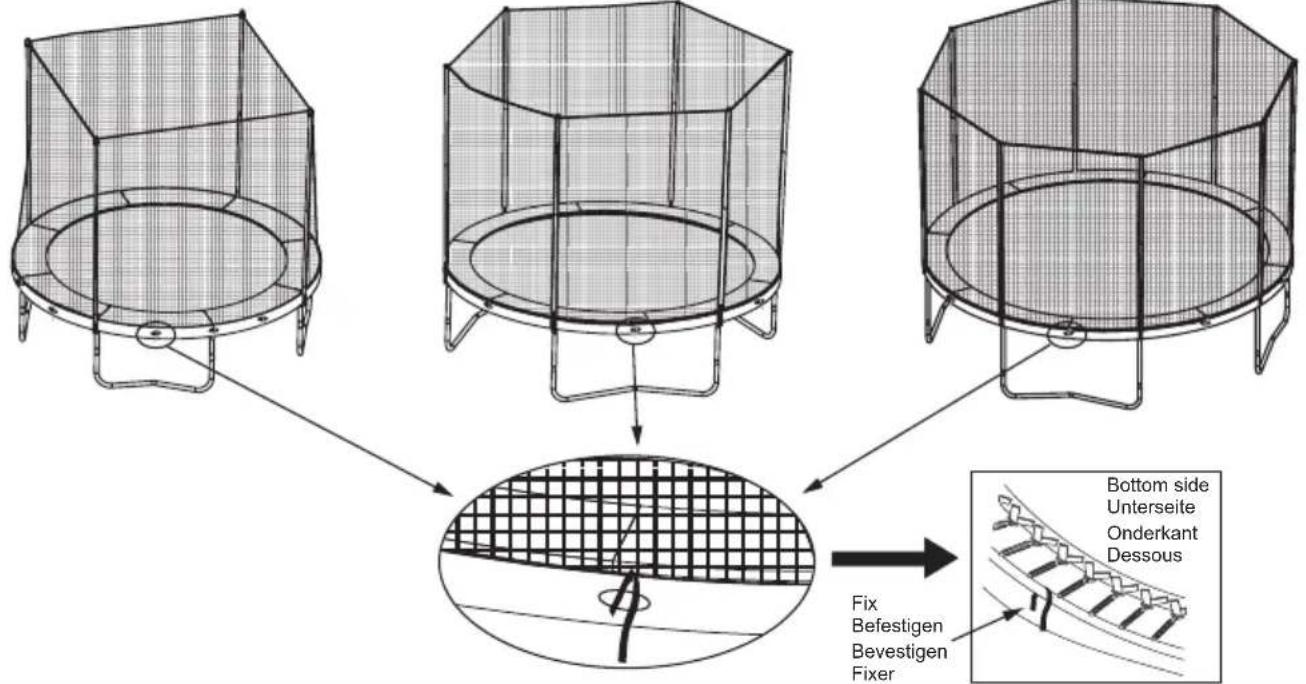

STEP 10

10
6Ft / 8Ft 10Ft 12Ft / 14Ft

Bottom side Unterseite Onderkant Dessous Fix Befestigen Bevestigen Fixer

STEP 11

11

Technical diagram showing a mechanical assembly with labeled parts 2 and 4, including a central component and directional arrow.

Congratulations! Your trampoline is now fully assembled (put together).

6.0 CARE AND MAINTENANCE

This trampoline was designed and manufactured with quality materials and craftsmanship. If proper care and maintenance is provided, it will provide all jumpers with years of exercise, fun, and enjoyment as well as reduce the risk of injury. Please follow the guidelines listed below:

This trampoline is designed to withhold a certain amount of weight and use. Please make sure that only one person at any one time uses the trampoline. Jumpers should either wear socks, gymnastics shoes, or be barefoot when using the trampoline. Please be aware that street shoes or tennis shoes should NOT be worn while using the trampoline. In order to prevent the trampoline mat from getting cut or damaged please do not allow any pets onto the mat. Also, jumpers should remove all sharp objects from their person prior to using the trampoline. Any type of sharp or pointed objects should be kept off the trampoline mat at all times.

Maintenance instructions

It is particularly important to follow the following maintenance instructions at the beginning of each season and periodically during the use season:

• It is necessary to determine whether all nuts and bolts are tight, and if necessary they are tightened;
• It shall be verified that all spring-loaded connections (locking pin) are undamaged and not move while playing;
• Any cover screws and sharp edges must be checked and replaced if necessary;
  • The maintenance manual shall be kept

Always inspect the trampoline before each use for worn, abused or missing parts. A number of conditions could arise that may increase your chances of getting injured. Please be aware of:

• Punctures, holes, or tears in the trampoline mat
• Sagging trampoline mat
• Loose stitching or any kind of deterioration of the mat
• Bent or broken frame parts, such as the legs
  • Broken, missing, or damaged springs
• Damaged, missing, or insecurely attached frame pad
• Protrusions of any types (especially sharp types) on the frame, springs, or mat

IF YOU FIND ANY OF THE PREVIOUS CONDITIONS, OR ANYTHING ELSE THAT YOU FEEL COULD CAUSE HARM TO ANY USER, THE TRAMPOLINE SHOULD BE DISASSEMBLED OR SECURED FROM USE UNTIL THE CONDITION(S) HAS BEEN RESOLVED.

WINDY CONDITIONS

In severe wind situations, the trampoline can be blown about. If you expect windy weather conditions, the trampoline should be moved to a sheltered area or disassembled. Another option is to tie the round, outside portion (top frame) of the trampoline to the ground using ropes and stakes. To ensure security, at least three (3) tie downs should be used.

MOVING THE TRAMPOLINE

If you need to move the trampoline, two people should be used. All connector points should be wrapped secured with weather resistant tape, such as duct tape. This will keep the frame intact during the move and prevent the connector points from dislocating and separating. When moving, lift the trampoline slightly of the ground and keep it horizontal to the ground. For any type of other move, you should disassemble the trampoline.

7.0 Warranty

1. After the date of the purchase invoice, the owner of the EXIT Twist trampoline has a:

2. 2-year warranty on the breaking of the frame

3. 1-year warranty on the springs
4. 1-year warranty on the protective surround pad and the jump mat.

5. 1 year warranty on the tearing of the net

6. The warranty applies only to the material and construction defects with respect to this product or its components.

7. The warranty becomes defunct if:

8. This product is used incorrectly and/or carelessly and is used in such a way that it does not comply with its purpose.

9. This product is not assembled and maintained according to the instruction booklet.
10. Technical repairs to this product are not carried out professionally.
11. Parts, which are mounted afterwards, do not comply with the technical specifications of the product concerned or are mounted incorrectly.
12. Defects are a result of climatic influences such as corrosion, UV rays or normal disintegration.
13. The product is rented out or was made available to various unspecified persons in any other manner.
14. EXIT Toys will repair or replace according to its choice all material and construction defects that have been ascertained by EXIT Toys during the warranty period.
15. The owner of the EXIT Toys Trampoline is only entitled to the warranty by presenting the product for inspection at a EXIT Toys dealer. It should be handed to the EXIT Toys dealer, accompanied by the original purchase invoice.
16. In case of material and construction defects that have been ascertained by EXIT Toys, the product or its components will be repaired or replaced – according to its choice – free of charge during the warranty period mentioned in Article 1.
17. If the claim for warranty is not justifiable, all the costs are at the expense of the owner.
18. This warranty cannot be transferred to third parties.
19. The trampoline is designed for personal use. It is not permitted to rent out or place the trampoline in public areas like schools or day-care centres. The guarantee and any other liabilities shall expire if the playhouse is rented out or used in public areas.

Notes / Notizen / Notities / Notes

1.0 Einführung

3D rendered human figure sitting on a curved surface (no text or symbols)

Simple line drawing of a person jumping over a table with motion arrows (no text or symbols)

Simple line drawing of two stick figures on a table, one standing and one lying down (no text or symbols)

Icon of a wrench and screwdriver (no text or symbols)

Simple line drawing of a stick figure standing on a bench with a diagonal line above, no text or symbols present.

Simple line drawing of a person standing on a table with arrows indicating direction (no text or symbols)

Simple line drawing of a stick figure standing on a table with two upward arrows indicating vertical motion (no text or symbols)

Simple line drawing of a person falling off a ball with motion arrows, above a table (no text or symbols)

Simple line drawing of a person falling with motion arrows and a horizontal bar, no text or symbols present.

Simple line drawing of a bottle with a stopper, crossed out by a diagonal line (no text or symbols)

KONSUM VON ALKOHOL ODER DROGEN:

Simple line drawing of two stick figures standing on a table with a diagonal line above (no text or symbols)

MEHRERE USER:

Illustration of a coiled spring with a loop, crossed by a diagonal line (no text or symbols)

Simple line drawing of a person jumping over a table with motion arrows (no text or symbols)

KONTROLLVERLUST:

Three sequential illustrations of human figures in various poses, showing different postures (no text or symbols)

Illustration of three sequential human body postures in different poses (stretch, forward bend, forward bend), no text or symbols present.

Illustration of three sequential human body poses: diving, standing, and lying (no text or symbols)

Simple geometric diagram showing a large oval with a central cross and a small square at the center (no text or symbols)

(5)

(6)

(8)

(9)

Simple 3D diagram of a circular ring structure with segmented segments (no text or symbols)

(7)

Schritt 1

1 6Ft / 8Ft 1 2

1 10Ft / 12Ft / 14Ft 1 1

Schritt 2

2 3 4 8Ft / 10Ft / 12Ft / 14Ft

Schritt 3

3 6Ft / 8Ft / 12Ft / 14Ft

Three identical wireframe diagrams of circular mechanical components with internal brackets, shown from different angles (no text or symbols)

310Ft

Three simple line drawings of curved structural components, no text or symbols present

Schritt 4

	#1#2#3#4#5#6#7#8
6ft	12010	3051	52535
8ft	124	1236	6183	042
10ft	127	1341	6223	650
12ft	136	1854	9274	563
14ft	140	2060	1030	5070

Simple line drawing of a cylindrical object with a circular end, labeled (3) at the bottom (no text or symbols on the object itself)

Grid-patterned fabric or textile with no visible text, symbols, or markings

(6)

Schritt 7

7 2 + 3 1 + 3

Schritt 8

8 1 Hole Loch Gat Trou Hole Loch Gat Trou 2 Hole M5x45 Hole Loch Gat Trou 6Ft / 8Ft 10Ft 12Ft / 14Ft Socket Rohrverbinder Aansluiting Douille Socket Rohrverbinder Aansluiting Douille Socket Rohrverbinder Aansluiting Douille

Schritt 9

Technical diagram showing a mechanical assembly with labeled parts 2 and 4, including a central component and directional arrow.

Yellow triangular warning sign with black exclamation mark symbol

WAARSCHUWING

3D rendered model of a seated human figure in motion, no text or symbols visible

Simple line drawing of a person jumping over a table with motion arrows (no text or symbols)

Simple line drawing of two stick figures on a table, one standing and one lying down (no text or symbols)

Two crossed wrench and screwdriver tools (no text or symbols)

Simple line drawing of a person standing on a bench with a diagonal line extending from above (no text or symbols)

Simple line drawing of a person standing on a table with arrows indicating direction (no text or symbols)

Simple line drawing of a stick figure standing on a table with height arrows indicating vertical distance (no text or symbols)

Simple line drawing of a person falling off a ball with motion arrows, above a table (no text or symbols)

Simple line drawing of a person falling with an arrow indicating motion, no text or symbols present

OP- EN AFKLIMMEN:

Simple line drawing of a bottle with a label, crossed by a diagonal line (no text or symbols)

GEBRUIK VAN ALCOHOL OF DRUGS:

Simple line drawing of two stick figures standing above a table with a horizontal bar (no text or symbols)

MEERDERE GEBRUIKERS:

Illustration of a coiled spring with a loop, crossed by diagonal lines (no text or symbols)

IN AANRAKING KOMEN MET FRAME EN VEREN:

Simple line drawing of a person falling from above a table with an arrow indicating motion (no text or symbols)

CONTROLEVERLIES:

WAARSCHUWING: neem elke 10 minuten even pauze.

3.0 TRAMPOLINETECHNIEKEN

BASISVAARDIGHEDEN

BASISVAARDIGHEID 1: de basissprong

1. 2. 3.

Illustration of three human figures in various postures, showing different poses and movements (no text or symbols)

Three sequential illustrations of a human figure in different postures: forward bend, forward stretch, and forward bend (no text or symbols)

Illustration of three different human body poses: diving, standing, and lying (no text or symbols)

STAP VOOR STAP OPBOUW

Simple line drawing of a V-shaped pipe or support structure with two ends and a central notch, labeled (3) below (no text or symbols on the diagram itself)

(4)

Simple geometric diagram showing a large oval with a central cross and a small square at the center (no text or symbols)

(5)

(6)

(8)

(9)

Simple 3D diagram of a circular ring structure with segmented segments (no text or symbols)

(7)

Stap 1

1 6Ft / 8Ft 1 2

1 10Ft / 12Ft / 14Ft 1 1

Stap 2

2 3 4 8Ft / 10Ft / 12Ft / 14Ft

Stap 3

3 6Ft / 8Ft / 12Ft / 14Ft

310Ft

Stap 4

	#1#2#3#4#5#6#7#8
6ft	12010	3051	52535
8ft	124	1236	6183	042
10ft	127	1341	6223	650
12ft	136	1854	9274	563
14ft	140	2060	1030	5070

Simple line drawing of a long rectangular object with no text or symbols

Simple line drawing of a cylindrical object with a circular end, labeled (3) at the bottom (no text or symbols on the object itself)

Grid-patterned fabric or textile with no visible text, symbols, or markings

(6)

Stap 7

7 2 + 3 1 + 3

Stap 8

8 1 Hole Loch Gat Trou Hole Loch Gat Trou 2 Hole M5x45 Hole Loch Gat Trou Socket Rohrverbinder Aansluiting Douille Socket Rohrverbinder Aansluiting Douille 6Ft / 8Ft 10Ft 12Ft / 14Ft

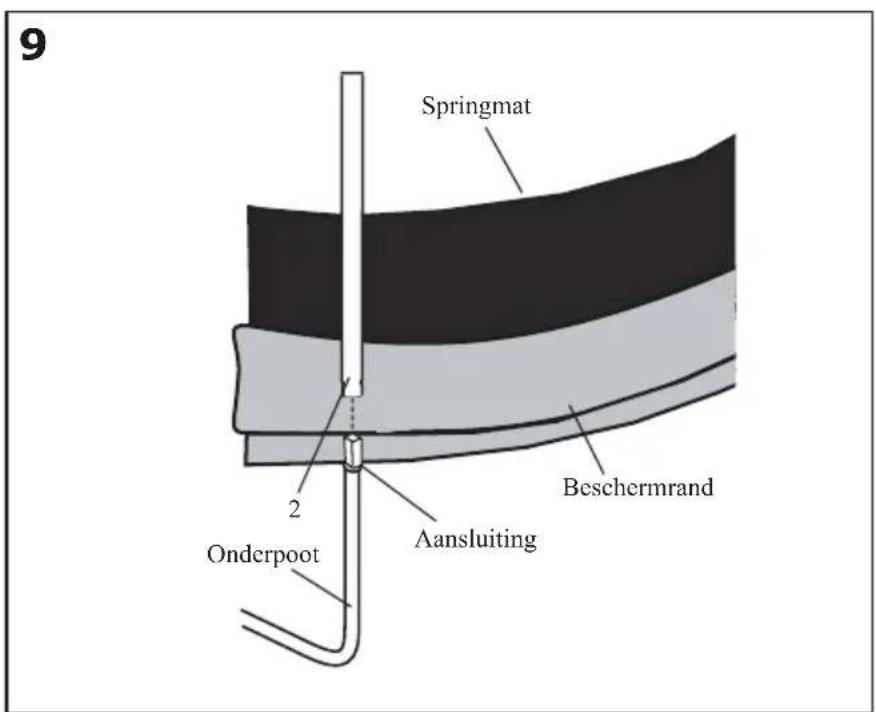

Stap 9

9 Springmat Beschermrand Aansluiting Onderpoot 2

Stap 10

10
6Ft / 8Ft 10Ft 12Ft / 14Ft

Bottom side Unterseite Onderkant Dessous Fix Befestigen Bevestigen Fixer

Stap 11

11

Technical diagram showing a mechanical assembly with labeled parts 2 and 4, including a central component and directional arrow.

3D rendered model of a seated human figure in motion, no text or symbols visible

Simple line drawing of a person jumping over a table with motion arrows (no text or symbols)

Simple line drawing of two stick figures standing on a table, one above the other (no text or symbols)

Two crossed wrench and screwdriver tools (no text or symbols)

Simple line drawing of a person standing on a bench with a diagonal line extending upward, no text or symbols present.

Simple line drawing of a person standing on a table with arrows indicating direction (no text or symbols)

Simple line drawing of a stick figure standing on a table with height arrows indicating vertical distance (no text or symbols)

Simple line drawing of a person falling off a ball with motion arrows, above a table (no text or symbols)

Simple line drawing of a person falling with an arrow and a horizontal bar, no text or symbols present.

MONTAGE ET DÉMONTAGE :

Simple line drawing of a bottle with a stopper, crossed out by a diagonal line (no text or symbols)

CONSOMMATION D'ALCOOL ET DE DROGUE :

Simple line drawing of two stick figures standing on a table with a diagonal line above (no text or symbols)

Illustration of a coiled spring with a loop, crossed by a diagonal line (no text or symbols)

HEURT CONTRE L'ARMATURE DES RESSORTS:

Simple line drawing of a person jumping over a table with motion arrows (no text or symbols)

PERTE DE CONTRÔLE :

Illustration of three human figures in various postures, showing different poses and movements (no text or symbols)

Illustration of three sequential human figure poses: forward bend, forward bend forward, and forward bend forward (no text or symbols)

Illustration of three different human body poses: diving, standing, and lying (no text or symbols)

Simple line drawing of a U-shaped pipe or support structure with no text or symbols

(3)

(4)

Simple geometric diagram showing a central square with a dashed cross and an oval border (no text or symbols)

(5)

(6)

(8)

(9)

Simple 3D diagram of a circular ring structure with segmented segments (no text or symbols)

(7)

ÉTAPE 1

1 6Ft / 8Ft 1 2

1 10Ft / 12Ft / 14Ft 1 1

ÉTAPE 2

2 3 4 8Ft / 10Ft / 12Ft / 14Ft

ÉTAPE 3
3 6Ft / 8Ft / 12Ft / 14Ft

Three identical wireframe diagrams of circular mechanical components with internal brackets, shown from different angles (no text or symbols)

310Ft

Three simple line drawings of curved structural elements, no text or symbols present

ÉTAPE 4

	#1#2#3#4#5#6#7#8
6ft	12010	3051	52535
8ft	124	1236	6183	042
10ft	127	1341	6223	650
12ft	136	1854	9274	563
14ft	140	2060	1030	5070

Simple line drawing of a cylindrical object with a circular end, labeled (3) at the bottom (no text or symbols on the object itself)

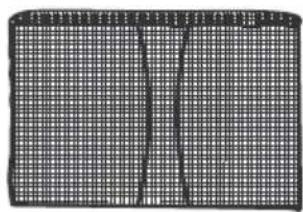

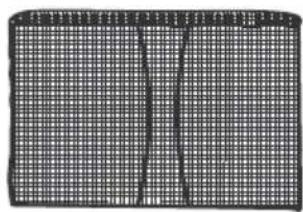

Grid-patterned fabric or textile with no visible text, symbols, or markings

(6)

ÉTAPE 7

7 2 + 3 1 + 3

ÉTAPE 8

8 1 Hole Loch Gat Trou Hole Loch Gat Trou 2 Hole M5x45 Hole Loch Gat Trou 6Ft / 8Ft 10Ft 12Ft / 14Ft Socket Rohrverbinder Aansluiting Douille Socket Rohrverbinder Aansluiting Douille Socket Rohrverbinder Aansluiting Douille

ÉTAPE 9

Technical diagram showing a mechanical assembly with labeled parts 2 and 4, including a central component and directional arrow.

Illustration of two round trays with numbered circular markers and directional labels like 'EXIT' and 'EXIT'.

Trampoline + Safety Net

06FT / 0183cm

08Ft / 0244cm

∅10FT / ∅305cm

012Ft / 0366cm

014Ft / 0427cm

Contact:

Dutch Toys Group

EXIT is a registered trade mark of Dutch Toys Group
