Product Type	Unmanaged Network Switch
Brand	TP-Link
Model	TLSF1008D
Number of Ports	8 RJ45 ports 10/100/1000 Mbps
Power Supply	External power adapter (5 V DC, switch without on/off button)
Dimensions	158 x 100 x 25 mm
Weight	Approximately 400 g
Housing Material	Metal
Mounting	Desktop (rubber feet included) or 19-inch rack (brackets included)
Ventilation	Passive (fanless)
Main Features	Auto-negotiation, auto-MDI/MDIX, IEEE 802.3x flow control, MAC address table, loop detection
LED Indicators	Power, per port (link/activity)
Operating Temperature	0 °C to 40 °C
Operating Humidity	10% to 90% RH non-condensing
Maintenance and Cleaning	Disconnect power before cleaning; use a soft dry cloth. Do not use solvents.
Safety	Do not open or repair yourself; disconnect to cut off power; use in a dry and well-ventilated place.
Spare Parts and Repairability	No user-serviceable parts. In case of failure, contact TP-Link support.
Warranty	TP-Link limited warranty (duration indicated on packaging)
Box Contents	Switch, power adapter, mounting brackets, rubber feet, quick installation guide

Frequently Asked Questions - TLSF1008D TP-LINK

How to connect the TLSF1008D switch?

Connect an Ethernet cable from your router or modem to one of the switch ports. Then connect your devices (PC, printer, etc.) to the other ports. Finally, power the switch with the provided power adapter.

Does the switch require configuration?

No, the TLSF1008D is an unmanaged switch. It works immediately after connection: it automatically detects speeds and transmission modes.

What if the power LED does not light up?

Check that the power adapter is properly connected to the switch and to a working electrical outlet. Try another outlet if needed. If the problem persists, the adapter may be defective.

Can I mount the switch in a rack?

Yes, the TLSF1008D comes with mounting brackets. Attach them to each side of the switch using the provided screws, then screw the assembly into a 19-inch rack with suitable bolts (not included).

Is the switch compatible with Category 5 Ethernet cables?

Yes, it works with Cat5, Cat5e, or Cat6 cables. For Gigabit (1000 Mbps), it is recommended to use at least Cat5e.

How to clean the switch?

First disconnect the power. Use a soft dry cloth to wipe the casing. Do not use chemicals or liquids.

What is the warranty of the TLSF1008D?

TP-Link offers a limited warranty against defects in materials and workmanship. The exact duration is indicated on the product packaging. Keep your proof of purchase.

Can I use the switch outdoors?

No, the TLSF1008D is designed for indoor use only. Expose it to temperatures between 0 °C and 40 °C, and relative humidity from 10% to 90% non-condensing.

Are the ports auto-MDI/MDIX?

Yes, all ports automatically detect the cable type (straight or crossover). You can therefore use either one indifferently.

How to reset the switch?

The TLSF1008D has no reset button. Since it is unmanaged, there is no configuration to reset. In case of problems, unplug and replug the power.

USER MANUAL TLSF1008D TP-LINK

Unmanaged Rackmount Switch

CONTENTS

Deutsch. 01
English. 04
Espanol. 07
Elambdaviká. 10
Francais 13
Italiano 16
Portugues. 19
Suomi 22
Nederlands. 25
Svenska. 28
Norsk. 31
Dansk 34
Türkge. 37

Installation

- Tischmontage

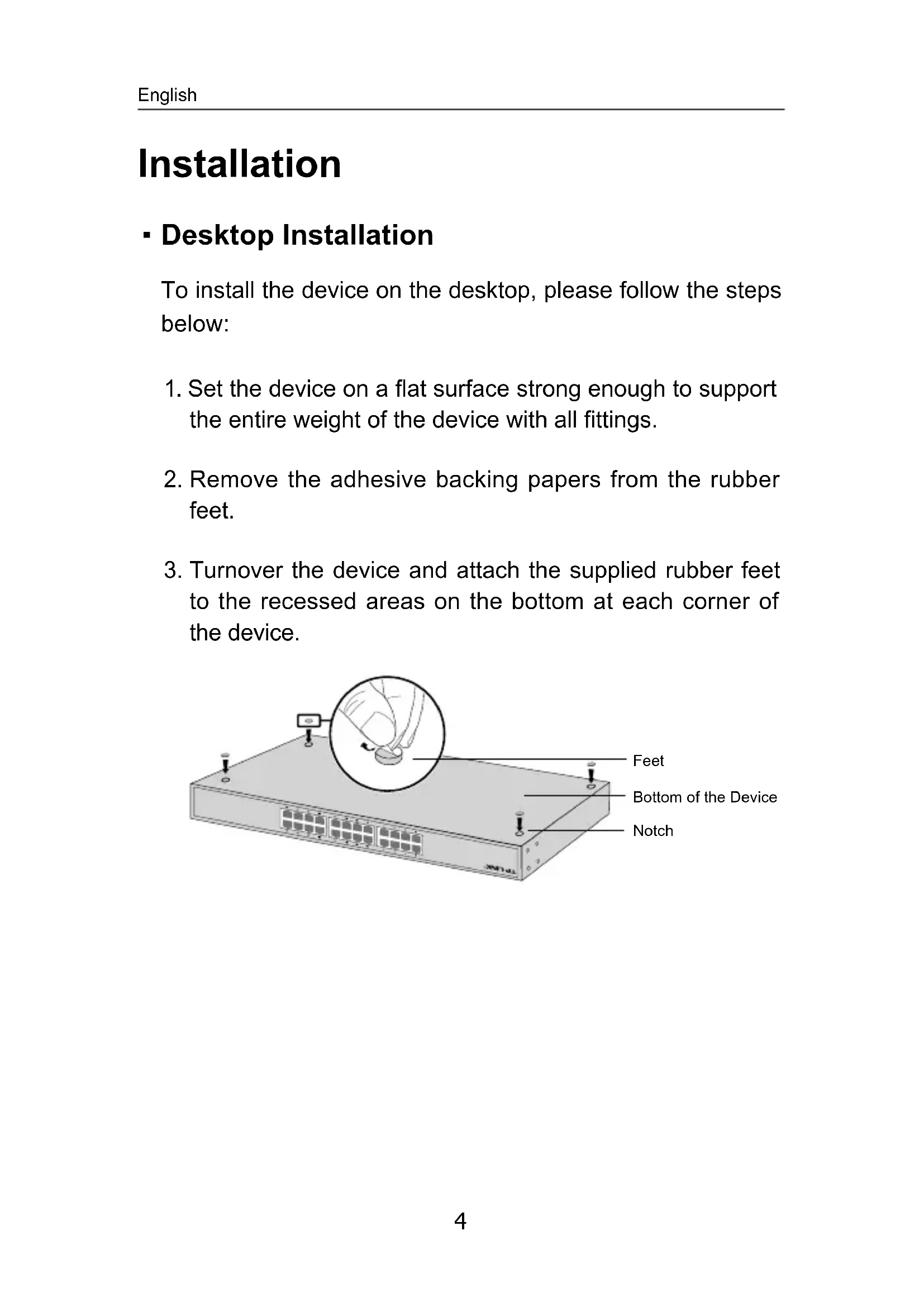

- Desktop Installation

To install the device on the desktop, please follow the steps below:

1. Set the device on a flat surface strong enough to support the entire weight of the device with all fittings.
2. Remove the adhesive backing papers from the rubber feet.

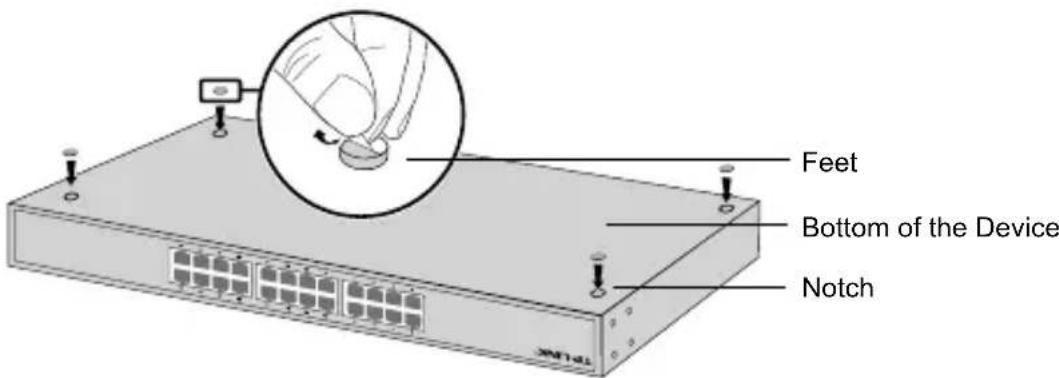

3. Turnover the device and attach the supplied rubber feet to the recessed areas on the bottom at each corner of the device.

- Rack Installation

To install the device in a rack, follow the instructions described below:

1. Check the grounding and stability of the rack.
2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws.

1. After the brackets are attached to the device, use suitable screws (not provided) to secure the brackets to the rack.

Connection

- Ethernet Port

Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shown.

- Power On

Plug the female connector of the provided power cord into the power socket of the device, and the male connector into a power outlet.

Instalación

- Desktop-installation

Foratt installeraenhetenpàdatorn,folj stegen nedan:

• When a product has a power on/off button, the power on/off button is one way to turn-off the product. For products without the on/off button, the only way to completely turn-off the product is to disconnect the product or the power adapter from the power source. The disconnected device shall remain readily operable.
• Do not open this product or attempt to service it; it may expose you to dangerous high voltage or other risks. Opening a sealed component or sealed product/s will void the warranty. For product servicing, please contact us.
• Do not operate this product near water.

TP-LINK Limited Product Warranty

For TP-LINK Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES, REMEDIES AND CONDITIONS.

TP-LINK warrants the TP-LINK branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-LINK's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.
