Brand	TP-Link
Model	TLWPA4225
Product type	Powerline adapter with Wi-Fi extender
Dimensions (approx.)	10 x 6 x 3 cm
Weight (approx.)	200 g
Power supply	Direct wall plug, 100-240 V~50/60 Hz
Power consumption	Less than 5 W in operation
Network interface	1 Ethernet RJ-45 port 10/100/1000 Mbps
Powerline standard	HomePlug AV2, up to 1200 Mbps
Wi-Fi	Dual band 2.4 GHz and 5 GHz, up to 300 + 867 Mbps
Buttons	Pair, WPS, Reset
Main functions	Network extension via powerline (PLC), Wi-Fi repeater, copying Wi-Fi settings via WPS, secure pairing
Maintenance and cleaning	Unplug the device before cleaning; use a soft, dry cloth
Safety	Do not plug into a power strip, do not expose to water or fire, do not open
Spare parts and repairability	Not user-repairable; no spare parts available
General information	Limited 3-year warranty; compliant with EU directives; support via tpPLC app or web interface

Frequently Asked Questions - TLWPA4225 TP-LINK

How do I reset my TP-Link TLWPA4225 Powerline adapter?

Press and hold the Reset button with a pointed object (paperclip) for about 5 seconds until all LEDs turn off and then back on. The reset is then complete.

What should I do if I have no Internet access via the Powerline network?

Check that all adapters are on the same electrical circuit. Make sure the PLC LED is on (solid green). If it is off or red, re-pair the devices. Also check that the Ethernet cable is properly connected to the router and that your Internet connection works.

How do I copy the Wi-Fi settings from my router to the Powerline extender?

Place the extender near the router. Press the WPS button on the router, then within 2 minutes, press the Wi-Fi button on the extender for 1 second. The Wi-Fi LEDs flash and then stay on: the copy is successful.

Why is the PLC LED flashing red?

A red or flashing PLC LED indicates poor signal quality. Move the adapter to another power outlet, preferably on the same circuit. Avoid power strips and devices that cause interference (hair dryer, air conditioner).

Can I add multiple Powerline adapters to the same network?

Yes, you can add other compatible adapters by pairing them with the existing one. To do this, press the Pair button on the already connected adapter, then press it on the new one within 2 minutes.

What should I do if my extender does not reconnect after moving it?

Make sure the new outlet is on the same electrical circuit as the other adapters. Re-pair it if necessary. Keep it away from powerful electrical devices that may cause interference.

Is it possible to configure Wi-Fi without using the WPS button?

Yes, you can configure Wi-Fi via the extender's web interface or via the tpPLC app (available on iOS and Android). You can also manually copy the SSID and password from the router.

Does my Powerline adapter work with any router?

Yes, it is compatible with most routers that have an Ethernet port. For copying Wi-Fi settings via WPS, the router must support this function.

How do I know if my adapter is properly paired?

The PLC LED (plug icon) should be solid green. If it is off or flashing, the pairing failed. Repeat the pairing procedure with the Pair button.

Can I plug the adapter into a surge-protected power strip?

No, it is recommended to plug the adapter directly into a wall outlet. Power strips, especially with filters, can degrade the Powerline signal. If you must use a power strip, plug it into the pass-through outlet (if available).

USER MANUAL TLWPA4225 TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science

& Technology Park, Shennan Rd, Nanshan, Shenzhen, China

TP-Link UK Limited Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

TP-Link Hellas Ltd. Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link

Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any

derivative such as transition, transformation, or adaptation without permission from IP-Link Technologies Co. Ltd. Copyright © 2018 IP-Link Technologies Co. Ltd. All rights reserved.

MADE IN CHINA

7106507825 REV2.1.1

tp-link

Quick Installation Guide

Powerline Extender

CONTENTS

01 / Deutsch
05 / English
09 / Español
13 / Ελληνικά
17 / Français
21 / Italiano
25 / Português
29 / Suomi
33 / Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

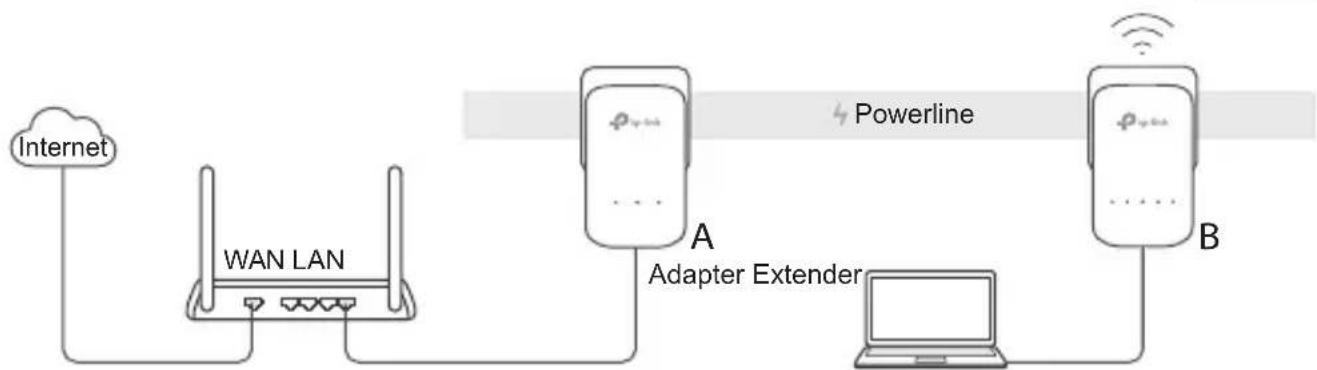


1. Connect the adapter to a LAN port of your router using an Ethernet cable.
2. Plug the powerline devices into the wall outlets near each other and on the same electrical circuit.
3. Pair the powerline devices.

A. Press the Pair button on the powerline adapter for 1 second. The Power LED starts blinking.

* If the Power LED does not blink, press the Pair button again.

B. Within 2 minutes, press the Pair button on the powerline extender for 1 second. The Power LED ⏻ starts blinking. When the Powerline LED turns on, it's done.

English

1. Relocate the powerline extender to a new location. Connect to the Wi-Fi using the SSID and password on the product label.

* A blinking or red Powerline LED 🔒 indicates poor signal strength. Move the extender to another location.

1. Enjoy!

Tips: You can add more powerline devices to the existing powerline network by pairing these devices.

Attention

- Plug the powerline devices directly into the wall outlets but not the power strips.

- For passthrough powerline devices, plug the power strips into the integrated electrical sockets of the powerline devices.

Copy Wi-Fi Settings from Router to Extender

If your router supports WPS, you can follow the steps below to automatically copy the router's Wi-Fi settings (SSID and password) to the powerline extender.

1. Plug in the powerline extender near your router. Press the WPS button on your router.
2. Within 2 minutes, press the Wi-Fi button on the extender for 1 second.
3. When the 2.4GHz Wi-Fi LED and 5GHz Wi-Fi LED on the extender blink quickly for 3 seconds, and then stay on, it's done!

* 5GHz Wi-Fi is not available on single-band products. For multiple-band products, the powerline extender copies by default both 2.4GHz and 5GHz wireless settings at the same time. If it fails to copy both, your router may be only able to clone one band at a time. Please check your router's manual for support.

Note: The wireless settings can also be configured through the powerline extender's web interface or through the tpPLC app. You can download the app from the App Store or Google Play, or simply scan the QR code.

English

FAQ (Frequently Asked Questions)

Q1. How do I reset my powerline extender?

A. With the extender powered on, press and hold the Reset button (use a pin if it is a hole) until all LEDs turn off. When all LEDs turn on again, the reset process is complete.

Q2. How to troubleshoot if there is no internet connection in my powerline network?

A1. Make sure all adapters and extenders are on the same electrical circuit.

A2. Make sure all Powerline LEDs 📋 are on. If not, pair your adapters and extenders again.

A3. Make sure all hardware connections are correctly and securely connected.

A4. Check if you have an internet connection by connecting the computer directly to the modem or router.

Q3. What can I do if a successfully-paired extender does not reconnect after being relocated?

A1. Make sure all powerline devices are on the same electrical circuit.

A2. Pair it again with another adapter or extender, and make sure the Powerline LED is on before relocating it.

A3. Check for possible interference, such as washers, air conditioners or other household appliances that may be too close to one of the powerline adapters or extenders.

Español

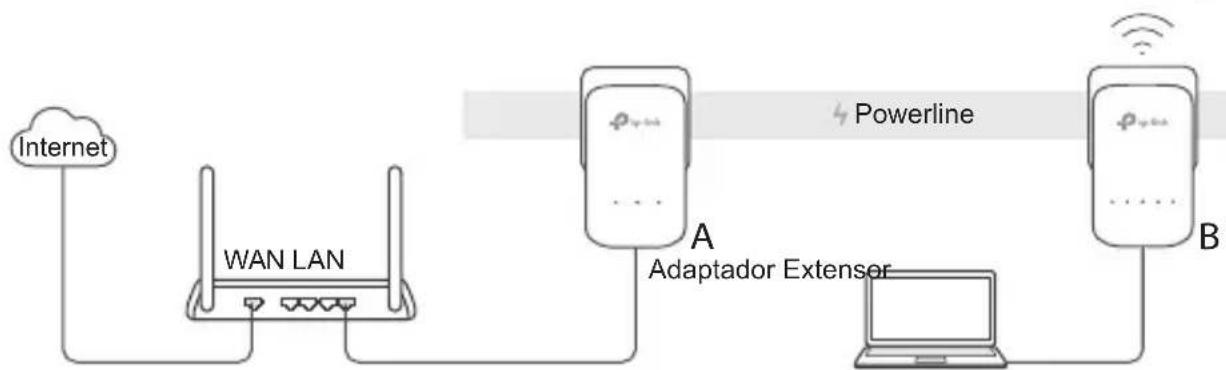


Français

Italiano

Domande Frequenti

Português

FAQ (Perguntas Frequentes)

Suomi

Svenska

Norsk

Dansk

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.

Español

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use the device where wireless devices are not allowed.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.
• Plug the powerline devices directly into the wall outlets but not the power strips.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.
