Product Type	Multi-function vehicle flashlight
Brand	AEG
Model	ML 3
Dimensions	Approx. 19 x 17.5 (or 27) x 12 cm
Weight	480 g
Power supply	NiMH battery 3.6 V / 800 mAh
Mains charger	230 V AC / 50 Hz, output 6 V DC / 300 mA
Car charger	12 V DC (cigarette lighter socket)
Maximum charging time	7 hours
Battery life	Up to 3 hours
Light source	Power LED
Lighting modes	Floodlight (main), reading light, warning (flashing red light)
Special features	Integrated seatbelt cutter, tilting handle, storage compartment, carrying strap
Protection class	IP20 (not waterproof)
Operating temperature	-5 °C to +40 °C
Storage temperature	+5 °C to +50 °C
Included accessories	230 V charger, 12 V car charging cable, seatbelt cutter
Maintenance	Clean with a soft, dry cloth; do not use aggressive detergents
Storage	Clean, dry place away from sunlight; recharge the battery every 3 months if not in use
Safety	Do not look directly into the beam; do not use in explosive atmospheres; disconnect before cleaning
Repairability	Built-in battery not user-replaceable; contact a professional for any repairs

Frequently Asked Questions - ML 3 AEG

How to recharge the ML 3 lamp?

Remove the cap, insert the charging cable into the lamp's socket, then plug the 230 V charger into a mains socket or the car cable into a 12 V cigarette lighter socket. The red indicator flashes during charging and turns off when the battery is fully charged (approx. 7 hours).

What is the battery life?

The battery life can reach up to 3 hours of continuous use. In cold weather (below 0 °C), capacity decreases, reducing the battery life.

How to use the seatbelt cutter?

The seatbelt cutter is a safety accessory for quickly cutting seatbelts or clothing in an emergency. Do not use on hard materials and keep out of reach of children.

How to tilt the handle?

Press the locking button on the handle, turn the handle counterclockwise to the desired position, then release the button to lock it in place.

Can I use the lamp while charging?

No, the lamp automatically turns off when the charging cable is plugged in. After unplugging, it resumes the last selected mode.

Is the lamp waterproof?

No, the protection rating is IP20: it is not waterproof and should not be used in a humid environment or submerged.

How to turn on the reading light or warning light?

Remove the cap, then set the On/Off switch to position II for the reading light or I for the warning light (flashing red light). Replace the cap. To turn off, set the switch to 0.

What to do if the lamp does not turn on?

Check that the battery is charged. If it is discharged, recharge it for 7 hours. If the problem persists, contact a professional; do not attempt to open it yourself.

How to maintain the lamp?

Clean it with a soft, dry cloth. Do not use solvents or aggressive detergents. If you do not use it for more than 3 months, recharge the battery to prevent it from fully discharging.

Is the battery replaceable?

The NiMH battery is built-in and not designed to be replaced by the user. In case of defect, contact an authorized service.

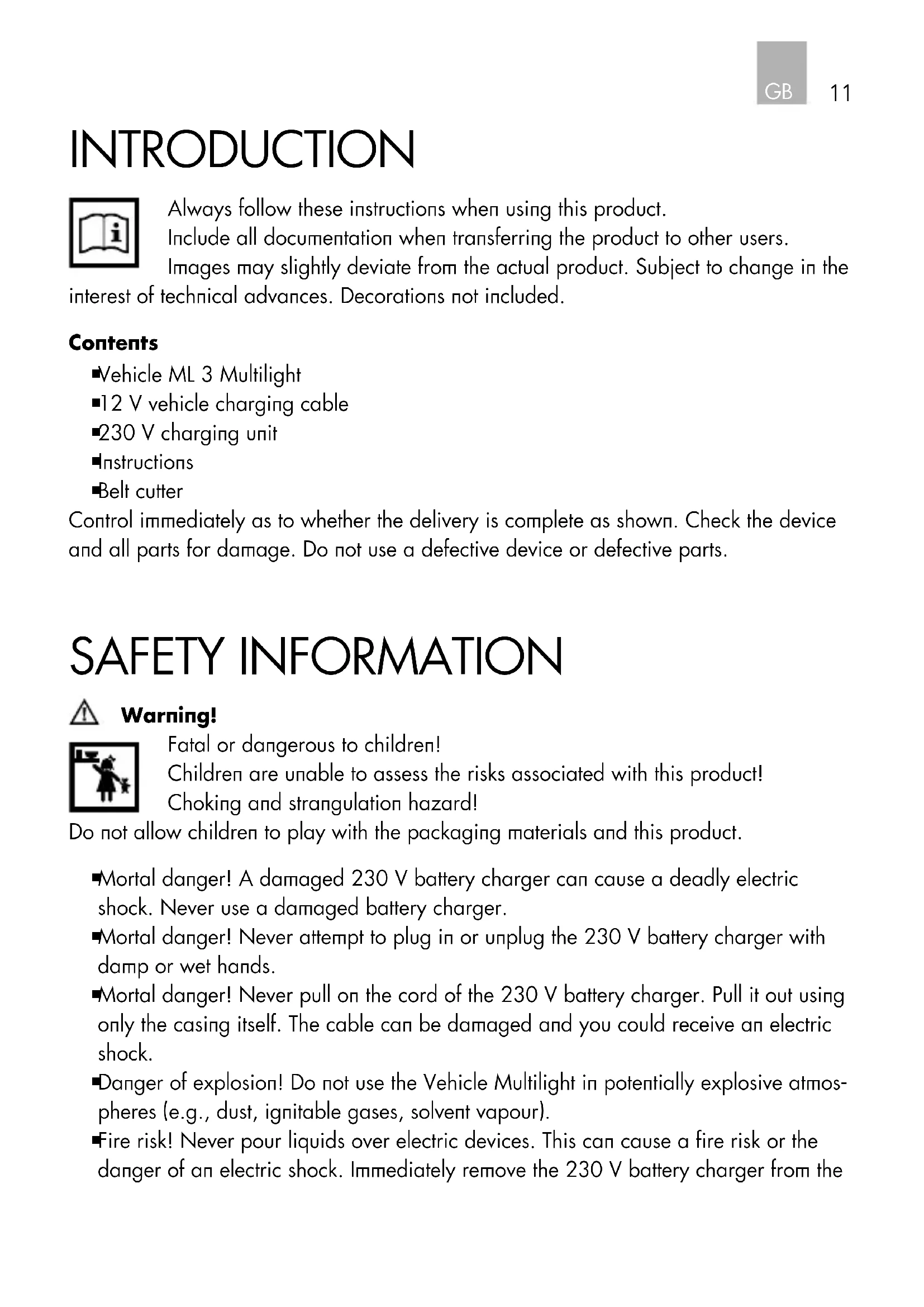

USER MANUAL ML 3 AEG

Always follow these instructions when using this product.

Include all documentation when transferring the product to other users.

Images may slightly deviate from the actual product. Subject to change in the

interest of technical advances. Decorations not included.

Contents

Vehicle ML 3 Multilight
12 V vehicle charging cable
230 V charging unit
Instructions
Belt cutter

Control immediately as to whether the delivery is complete as shown. Check the device and all parts for damage. Do not use a defective device or defective parts.

SAFETY INFORMATION

Warning!

Fatal or dangerous to children!

Children are unable to assess the risks associated with this product!

Choking and strangulation hazard!

Do not allow children to play with the packaging materials and this product.

Mortal danger! A damaged 230 V battery charger can cause a deadly electric shock. Never use a damaged battery charger.
Mortal danger! Never attempt to plug in or unplug the 230 V battery charger with damp or wet hands.
Mortal danger! Never pull on the cord of the 230 V battery charger. Pull it out using only the casing itself. The cable can be damaged and you could receive an electric shock.
Danger of explosion! Do not use the Vehicle Multilight in potentially explosive atmospheres (e.g., dust, ignitable gases, solvent vapour).
Fire risk! Never pour liquids over electric devices. This can cause a fire risk or the danger of an electric shock. Immediately remove the 230V battery charger from the

mains if liquid has been spilt. Do not use the Vehicle Multilight and request assistance from specialist staff.

Fire risk! Remove the charging unit from the mains when the Vehicle Multilight is fully charged or is not required for use.
Fire risk! Cease using the Vehicle Multilight immediately if smoke exudes from the unit, or if it smells unusual.
Fire risk! The Vehicle Multilight may be charged only using the 230 V charging unit provided, in connection with a 230 V / 50 hertz mains socket or with a 12 V vehicle charging cable from a 12 V vehicle socket.
Injury and accident danger! If you transport the Vehicle Multilight within a vehicle, keep it in the boot or in a suitable compartment so that it does not risk getting damaged by sudden vehicle movement.
Injury danger! Do not look directly into the beam of light or shine the beam into the eyes of other people. This can cause temporary blindness or damage the retina.
Injury danger! Do not attempt to change, open or manipulate the Vehicle Multilight as this can increase the danger factor.
Warning! The Vehicle Multilight is not waterproof and not for use in humid surroundings.
Injury danger! Do not expose the charger to fire or to extreme heat. Doing this can cause the charger to burst or explode.
Danger of acid burns! A damaged charger can leak corrosive vapour or liquid. If this occurs, make sure that a fresh air supply is restored and wash the affected areas of the skin thoroughly with water and soap. Allow an expert to check the charger and the Vehicle Multilight.

PRODUCT DESCRIPTION

Area of application and performance features

The Vehicle Multilight is a practical aid for all repair jobs around the car, and will assist during breakdowns as well as during your leisure time activities. The Vehicle Multilight has been designed for general lighting in a mobile application. Any other use is not designated and will lead to a disclaimer of liability.

The essential performance features are:

3 in 1 light: Hand floodlight - flashing warning light - reading light
LED technology for a high luminous efficiency with low energy consumption
Rechargeable battery operation makes mobile use possible, independent of cables and plug sockets
Including charging cable for home and vehicle
Adjustable hand grip
Includes carry-strap
Practical storage compartment for accessories
Handy size
Including belt cutter for emergency life-saving

Accessories: Belt Cutter

The belt cutter is not a toy and should be kept out of the reach of children.
- Do not use a broken or damaged belt cutter, e.g., if it has been damaged or deformed by heat. The exposed blade can cause serious injury.

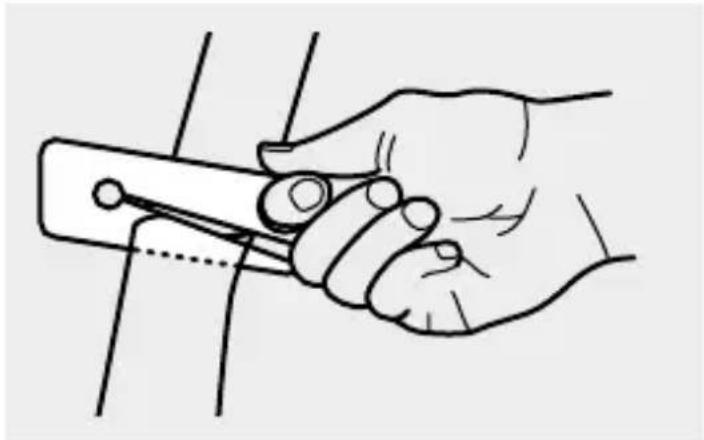

Areas of application:

For the speedy cutting of seat belts and items of clothing of persons involved in traffic accidents.
For cutting other materials such as textiles, gauze bandages, foil or lashing straps.

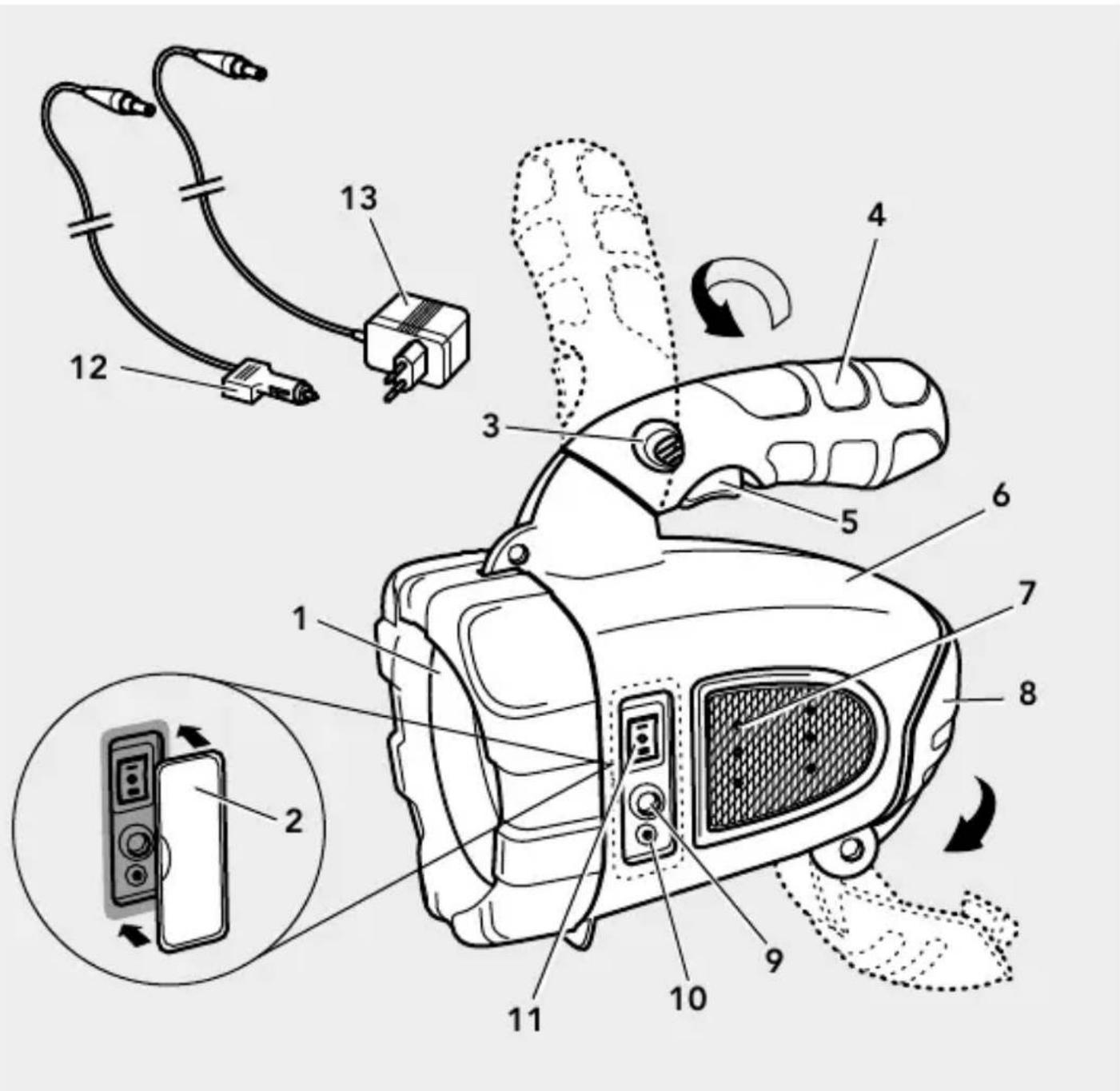

Product Overview

1. Floodlight
2. Covering
3. Ratchet knob
4. Handle (swivel connection)
5. On/Off switch for headlamp
6. Casing

7. Reading light / Flashing warning light (red)

8. Storage compartment

9. Charging socket
10. Charge display control light
11. On/Off switch for reading light and flashing warning light (red)
12. 12 V vehicle charging cable
13. 230 V charging mains adapter

USE

Please check the re every use for possible damage. Never use a damaged product.

Charging

Charge the battery fully before initial use. When the battery is completely charged, the Vehicle Multilight is ready to use.

1. Remove the Covering [2].
2. Plug the selected charging cable into the Charging socket [9] of the Vehicle Multi-light.
3. Plug the 230 V Charging mains adapter [13] into the mains or the Vehicle charging cable [12] into a 12 V vehicle socket.
4. Remove the charging cable when the battery has been fully charged (this will be indicated by the Charge control light [10]). Warning: Lengthy charging via a 12 V vehicle socket will run the vehicle battery down!
5. Replace the Covering [2].

Charge display control light [10] (red):

Lights up when the battery is being charged
Switches off when the charging process is complete and the battery is fully charged.

Switching the Headlamp on or off:

Press the On/Off switch [5] on the Handle [4].

Switching the Reading light on:

Remove the Covering [2].

Switch the On/Off switch [11] to Position II.

Replace the Covering [2].

Switching the Flashing warning light on:

Remove the Covering [2].

Switch the On/Off switch [11] to Position I.

Replace the Covering [2].

Switching the Reading light / Flashing warning light off:

1. Remove the Covering [2].
2. Switch the On/Off switch [11] to Position 0.
3. Replace the Covering [2].

Note:

Plugging the Charging cable into the Charging socket [9] will automatically switch off the Vehicle Multilight. As soon as the Charging cable is unplugged, the Vehicle Multilight will return to the state in which it was last active (Headlamp, Reading light or Flashing warning light).

Swivelling Handle

For optimum use and for space-saving storage, the Vehicle Multilight Handle [4] can be swivelled into two different positions.

1. Press the Ratchet knob [3].
2. Turn the handle anti-clockwise and release the Ratchet knob. The Handle will lock into the desired position.

MAINTENANCE AND SERVICE

Caution!

Never use a damaged product (e.g., worn cable, cracked casing).

If the product is damaged and requires repair, or other problems with the product arise, always consult the staff at the place of purchase or other certified specialist personnel.

Always disconnect the 230V charging mains adapter from the mains before attempting to clean or check the Vehicle Multilight.

Care

• Rechargeable batteries lose their power over time. Charge the batteries every three months if you are not using the Vehicle Multilight regularly.
  Clean the product with a soft, dry cloth. Do not use aggressive cleaning agents or solvents to clean the unit.
  Do not dip the Vehicle Multilight into liquids.
  Store the Vehicle Multilight in a clean, dark and dry place.

Technical Data

Illuminant Power LED
Energy supply Rechargeable battery (NiMH) / 3.6 V / 800 mAh
230 V mains charging unit Input voltage: 230 V AC / 50 Hz / 3.6 W Max. Output voltage: 6 V DC / 300 mA
12 V Vehicle charging cable Input voltage: 12 V DC
Duration of charge max. 7 h
Duration of charge up to 3 hours	Note: The rechargeable battery function will decrease at low temperatures (under 0 °C). The lighting duration will correspondingly decrease.
Working temperature	-5 °C up to +40 °C
Storage temperature	+5 °C up to +50 °C
Dimensions approx. 19 x 17.5	(or 27) x 12 cm
Weight 480 g
Protection class IP 20 according to DIN EN 60529

Disposal

Do not dispose of packaging or the product through your household waste! The product and packaging are made from recyclable materials (plastics, metals, paper).

If the product is no longer suitable for use dispose of it in an environmentally friendly manner in accordance with your local ordinances.

Service

Should you have any questions regarding commissioning or operating in spite of studying these operating instructions, or if a problem should occur against all expectations, please get in contact with your specialist supplier.
