RingFlash 200 - Photography Lighting Amplicom - Free user manual and instructions

Product Type	Telephone ringer amplifier with flashing light and vibrator
Brand	Amplicom
Model	RingFlash 200
Dimensions (approx.)	15 x 10 x 5 cm
Weight (approx.)	200 g
Power supply	12V mains adapter (included)
Main functions	Amplified ringer (3 tones), flashing light, external vibrator, STOP button, alarm mode (4 combinations sound + flash + vibrator), Doorbell (wireless bell), volume adjustment
Telephone compatibility	Standard telephone line (RJ11 jack)
Included accessories	Adaptation plug, telephone cable, 12V battery (for Doorbell), screws and wall plugs, manual
Number of ringtones	3
Alarm modes	4 modes: sound only, flash + sound, vibrator + sound, flash + vibrator + sound
Number of Doorbells supported	2 (with coding by switches)
Wall mounting	Yes (U-shaped slots, screws not supplied)
Maintenance and cleaning	Soft lint-free cloth, no solvents
Safety	Do not open, use only the supplied adapter
Warranty	2 years (excluding batteries and external damage)
Telephone support	0826 805 674 (indigo number not premium rate)
Manufacturer website	www.amplicom.eu

Frequently Asked Questions - RingFlash 200 Amplicom

How to adjust the ringer of my RingFlash 200?

Use the pull switch on the left side of the device to choose from the 3 available ringtones. Move it to position 1, 2 or 3.

How to pair the Doorbell with the RingFlash 200?

The Doorbell is preconfigured as Bell 1. If you have two bells, you can switch to Bell 2 by moving the internal switches. The STOP button LED then turns green instead of red. The codes of the 8 switches under the RingFlash and in the Doorbell must match.

What to do if the ringer does not work?

Check that the mains adapter is plugged in and the telephone socket is connected. If the start-up beep is not heard, disconnect the power for 1 minute then reconnect. Make sure the alarm mode is not set to '0' (off).

How to use the external vibrator?

Plug a compatible vibrating accessory into the socket marked '((o))' on the back of the device. Set the alarm mode to include the vibrator (positions 3, 5, 6 or 7 of the selector).

Can I mount the RingFlash 200 on the wall?

Yes, use the U-shaped slots under the base. Fix it with suitable screws and wall plugs (not supplied).

How to change the Doorbell tone?

Move the pull switch on the left side to select tone 1 or 2. You can test it by pressing the Doorbell button.

What to do if the STOP button LED stays on?

This is normal after pressing the Doorbell: the LED stays on for 1 minute then goes off. You can press STOP to turn it off immediately.

How to clean my device?

Use a soft, dry, lint-free cloth. Never use cleaning products or solvents.

What to do in case of compatibility issues with other devices?

Under the RingFlash device, you will find 8 switches (under a cover). Change their setting, then open the Doorbell and set the 8 internal switches in the same way. This usually resolves interference.

How to get the full manual in French?

You can download the PDF manual for free from notice-facile.com or from the official site www.amplicom.eu. A translation service is also available on notice-facile.com.

USER MANUAL RingFlash 200 Amplicom

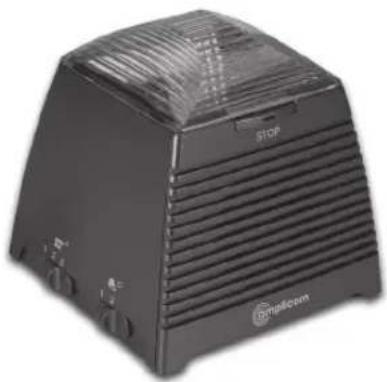

Black portable electronic device with ventilation grilles and a stop button (no visible text or symbols)

Black square electronic device with ventilation grilles and a 'STOP' label, no visible text or symbols on the device itself.

Bedienungsanleitung

Mode d'emploi

Operating Instructions

Gebruiksaanwijzing

RingFlash 100/200

@mplicom

RingFlash 100/200

Operating Instructions 25

Diagram of an electronic device rear panel showing internal components and a battery symbol (no text or labels)

Diagram of an electronic device rear panel with internal components and a battery symbol (no text or labels)

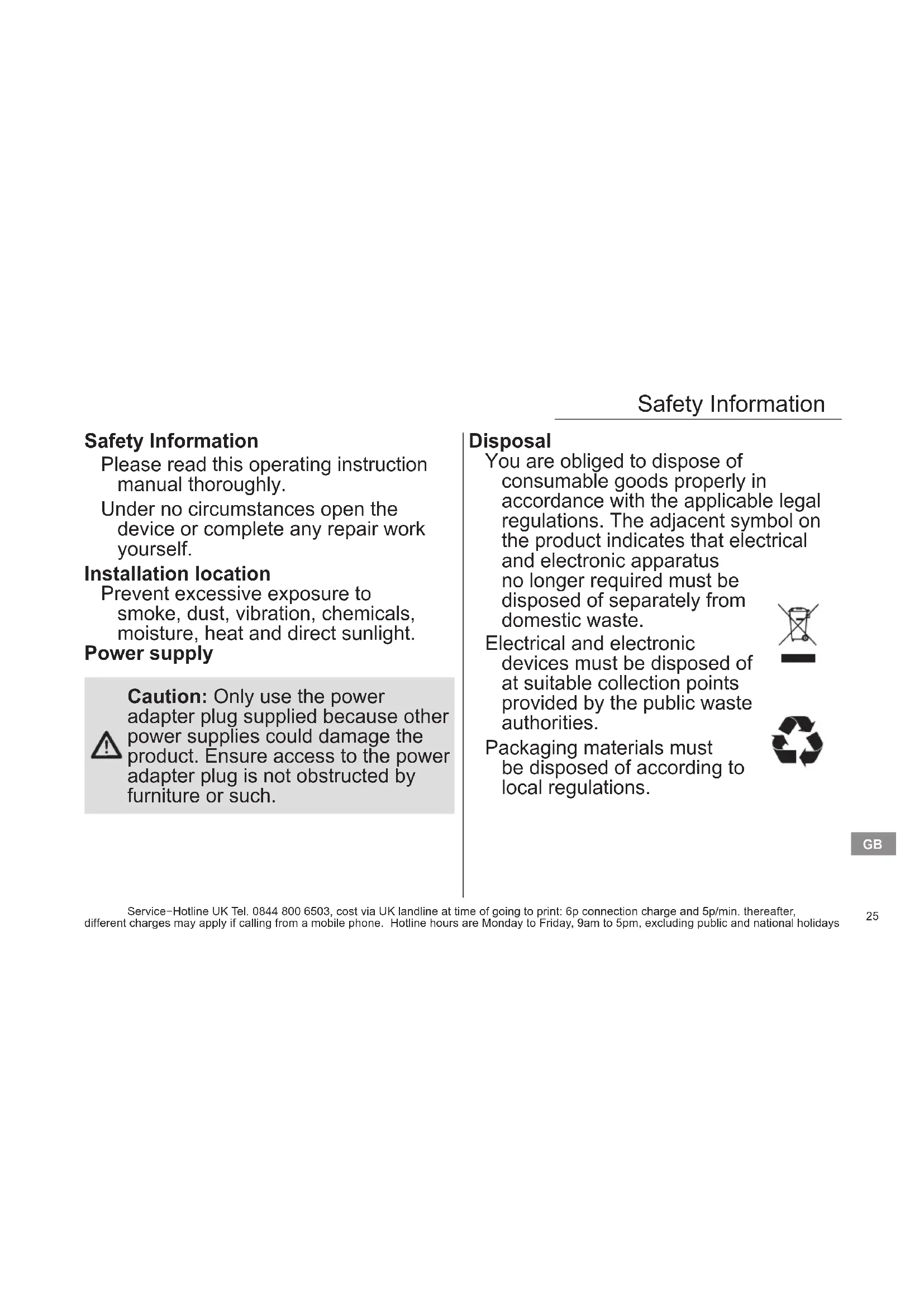

Please read this operating instruction manual thoroughly.

Under no circumstances open the device or complete any repair work yourself.

Installation location

Prevent excessive exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight.

Power supply

Caution: Only use the power adapter plug supplied because other power supplies could damage the product. Ensure access to the power adapter plug is not obstructed by furniture or such.

Disposal

You are obliged to dispose of consumable goods properly in accordance with the applicable legal regulations. The adjacent symbol on the product indicates that electrical and electronic apparatus no longer required must be disposed of separately from domestic waste.

Electrical and electronic devices must be disposed of at suitable collection points provided by the public waste authorities.

Packaging materials must be disposed of according to local regulations.

Starting Up

Starting Up

Check the contents of the package

Contents RF100 RF200
RingFlash unit 1 1
Power adaptor plug 1 1
Telephone connection cable	1	1
Doorbell unit 0 1
12 Volt battery 0 1
Fixing screws and wall plugs	0	4
Operating Manual 1 1

Connecting the base

Connect the base as illustrated in the diagram. For reasons of safety, only use the power adaptor plug and telephone connection cable supplied.

As soon as you switch the mains power on, the RingFlash unit will beep to confirm that it has been installed correctly. If you do not hear a beep, please unplug the power connection, wait for 1 minute and then plug in the power again.

GB

Connecting the doorbell unit (RingFlash 200 only)

Remove the 4 screws from the back of the Doorbell.

The Doorbell has a default setting of Bell 1, if you wish to change this to Bell 2, please move the switches inside the Doorbell to the positions indicated below.

Bell 1

The stop indicator button on the RingFlash unit will be red when the Doorbell is pressed.

The stop indicator button on the RingFlash unit will be green when the Doorbell is pressed.

Bell 2

Insert the 12 Volt battery supplied, taking note to position the battery the correct way around. Replace the back cover, position and tighten the 4 screws.

Diagram of an electronic device rear panel with labeled ports and a battery, showing internal components and signal flow arrows.

You only need to change the Bell setting if you have more than one Doorbell connected to your RingFlash unit. The two options are provided so that you will know from the colour of the light on the STOP button which Doorbell has been pressed and which Door to answer.

Unclip the front cover of the Doorbell by placing a small coin into the slot at either end of the doorbell and twisting. Using the 4 screws and wall plugs provided, attach the Doorbell outside your front door.

Service–Hotline UK Tel. [phone], cost via UK landline at time of going to print: 6p connection charge and 5p/min. thereafter, different charges may apply if calling from a mobile phone. Hotline hours are Monday to Friday, 9am to 5pm, excluding public and national holidays

Starting Up

Shaker

You can plug a shaker accessory (not included) into the socket ‘((o)’ on the back of the RingFlash unit. The shaker will then vibrate when you receive an incoming call.

For details of where to purchase a compatible Shaker, please go to www. amplicom.eu.

Your RingFlash 100/200

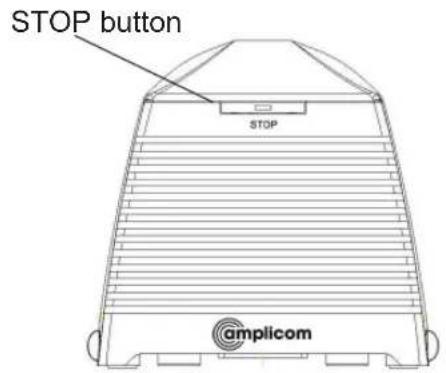

STOP button STOP ampicom

Front view

Telephone to RingFlash socket Shaker socket Telephone line connection to wall socket Power adaptor socket

Rear view

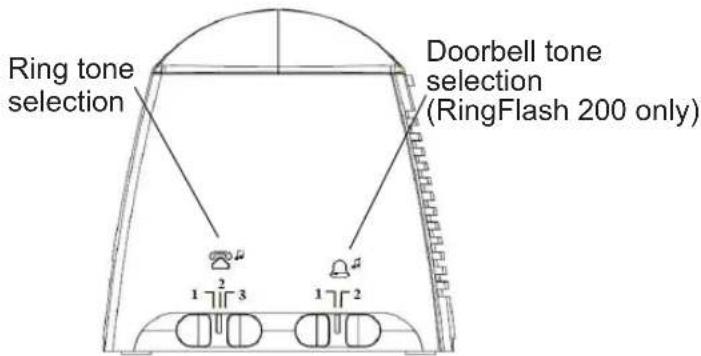

Ring tone selection Doorbell tone selection (RingFlash 200 only) 1 2 3 1 2

Left side

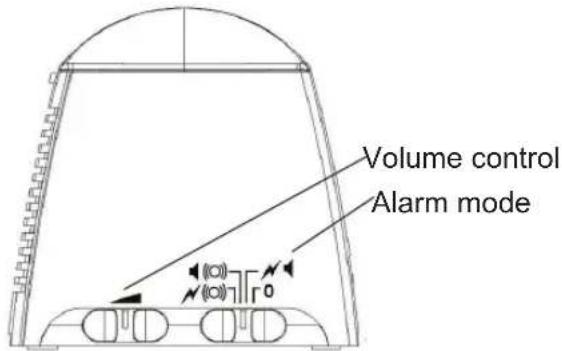

Volume control Alarm mode

Right side

Service-Hotline UK Tel. [phone], cost via UK landline at time of going to print: 6p connection charge and 5p/min. thereafter, different charges may apply if calling from a mobile phone. Hotline hours are Monday to Friday, 9am to 5pm, excluding public and national holidays

Using your RingFlash 100/200

Set the ring tone

Your RingFlash unit has 3 ring tones to choose from. Just move the slider switch on the left hand side of your product to select ring tone 1, 2 or 3.

Set the Doorbell tone (RingFlash 200 only)

You can choose from two different Doorbell tones, just move the slider on the left hand side of your product to select Doorbell tone 1 or 2.

Set the alarm mode

There are 4 alarm modes to choose from. Please use the slider on the right hand side of the product to select one of the following alarm modes.

Mode Ring alarm Bell alarm

0 Off Bell sound from
		the speaker
√◀	Strobe light and speaker	Bell sound from speaker and strobe light
◀(○)	Speaker and external shaker	Bell sound from speaker and external shaker
√(○)	Strobe light and external shaker	Bell sound from speaker, strobe light and external shaker

Stop the ring alarm

Press the STOP button on the front of the unit to stop the ring alarm for that call, even if the telephone line continues to ring. The ring alarm will return to its original setting for the next call.

Using your RingFlash 100/200

Using the Doorbell (RingFlash 200 only)

Press the Doorbell button, the red light in the button will turn on. The RingFlash unit will sound the Doorbell tone that you have set (tone 1 or tone 2).

Press the STOP button on the RingFlash unit to stop the Doorbell tone. The red light on the Doorbell button will remain on for 1 minute and then turn off.

Compatibility with other local devices (RingFlash 200 only)

When using the RingFlash 200 and Doorbell there may occasionally be a compatibility problem with other local devices. You can change the code underneath the RingFlash unit and inside the doorbell to solve this problem.

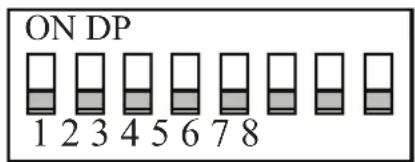

Underneath the RingFlash unit you will find 8 little switches underneath a cover. You can change the setting of these switches to overcome any local compatibility issues.

When you have changed the setting of the 8 switches on the RingFlash unit you will need to change the 8 switches inside the Doorbell to match.

Unscrew the Doorbell from outside the Front Door. Remove the 4 screws from the back of the Doorbell. Inside you will see 8 little switches, change the setting of these switches to match those on the RingFlash unit.

ON DP 1 2 3 4 5 6 7 8

Service–Hotline UK Tel. [phone], cost via UK landline at time of going to print: 6p connection charge and 5p/min. thereafter, different charges may apply if calling from a mobile phone. Hotline hours are Monday to Friday, 9am to 5pm, excluding public and national holidays

Using your RingFlash 100/200

Replace the back cover, position and tighten the 4 screws. Refix the Doorbell outside your front door as before.

Wallmounting

Using appropriate screws and wall plugs (not supplied), you can wallmount your RingFlash unit using the keyholes on the base.

Service Hotline

In the case of technical problems, you can contact our hotline service, UK Tel. [phone] (cost via UK landline at time of going to print: 6p connection charge and 5p/min, thereafter, different charges may apply if calling from a mobile phone). Hotline hours are Monday to Friday, 9am to 5pm, excluding public and national holidays. In the case of claims under the terms of the guarantee, contact your sales outlet. There is a 2 year period of guarantee.

Maintenance/Guarantee

Maintenance/Guarantee

Maintenance

Clean the product surfaces with a soft, fluff-free cloth

Never use cleaning agents or solvents

Guarantee

AMPLICOM equipment is produced and tested according to the latest production methods. The implementation of carefully chosen materials and highly developed technologies ensure trouble-free functioning and a long service life. The terms of the guarantee do not apply where the cause of the equipment malfunction is the fault of the telephone network operator or any interposed private branch extension system. The terms of guarantee do not apply to the rechargeable batteries or power packs used in the products. The period of guarantee is 24 months from the date of purchase.

All deficiencies resulting from material of production faults which occur during the period of guarantee will be eliminated free of charge. Rights to claims under the terms of guarantee are annulled following intervention by the purchaser or third parties. Damage caused as a result of improper handling or operation, incorrect positioning or storing, improper connection or installation, Acts of God or other external influence are not covered by the terms of guarantee. In the case of complaints, we reserve the right to repair or replace defect parts of provide a replacement device. Replacement parts or devices become our property.

Rights to compensation in the case of damage are excluded where there is no evidence or intent or gross negligence by the manufacturer.

If your equipment shows signs of defect during the period of guarantee, please return it to the sales outlet in which you

Service–Hotline UK Tel. [phone], cost via UK landline at time of going to print: 6p connection charge and 5p/min. thereafter, different charges may apply if calling from a mobile phone. Hotline hours are Monday to Friday, 9am to 5pm, excluding public and national holidays

Maintenance/Guarantee

purchased the AMPLICOM equipment together with the purchase receipt. All rights to claims under the terms of the guarantee in accordance with this agreement must be asserted exclusively with regard to your sales outlet.

Two years after the purchase and transfer of our products, claims under the terms of guarantee can no longer be asserted.

Declaration of Conformity

This device fulfils the requirements stipulated in the EU directive: 1999/5 EU directive on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity.

Conformity with the above mentioned directive is confirmed by the CE symbol on the device.

To view the complete Declaration of Conformity, please refer to the free download available on our website www. amplicom.eu.

mplicom

Distributed by: Audioline GmbH, D-41460 Neuss

Important Notes on the Guarantee

Important Notes on the Guarantee

The period of guarantee for the AMPLICOM product begins on the date of purchase.

Rights to claims under the terms of guarantee relate to deficiencies resulting from material or production faults. Rights to claims under the terms of guarantee are annulled following intervention by the purchaser or third parties. Damage caused as a result of improper handling or operation, normal wear and tear, incorrect positioning or storing, improper connection or installation, Acts of God or other external influence are not covered by the terms of guarantee.

CLAIMS UNDER THE TERMS OF GUARANTEE MAY ONLY BE ASSERTED TO THE RETAILER WHERE THE EQUIPMENT WAS PURCHASED, WHEREBY THE PURCHASE RECEIPT MUST ALSO BE SUBMITTED.

TO PREVENT UNNECESSARY LONG DELAYS, PLEASE DO NOT SEND

EQUIPMENT UNDER COMPLAINT TO OUR OFFICE ADDRESS.

IN THE CASE OF QUESTIONS CONCERNING OPERATION OR THE

TERMS OF GUARANTEE, PLEASE RE-

FER TO THE OPERATING MANUAL

OR CONTACT OUR HOTLINE:

0844 800 6503

AUDIOLINE GmbH

Neuss

Internet: www.amplicom.eu

E-mail: [e-mail]

Diagram of an electronic device rear panel with internal components and a battery symbol (no text or labels)
