| Product type | Electric tea maker (samovar) |
| Brand | BEEM |
| Model | Samovar 2017 |
| Type number | S 2.3.17 |
| Dimensions (L x W x H) | 48.5 x 27.3 x 30.7 cm |
| Net weight | approx. 2.2 kg |
| Voltage / Frequency | 220-240 V~ / 50-60 Hz |
| Power consumption | 1500 W |
| Water tank capacity | 3.0 L |
| Teapot capacity | 1.2 L |
| Temperature ranges | WARM (60-70°C), HOT (85-95°C), BOIL (100°C), alternating heating (95-100°C) |
| Functions | Heating with thermostat, service tap (pulse and continuous), dry-run protection, indicator light |
| Main material | Stainless steel |
| Included accessories | 1.2 L teapot with filter, lids, service tap, integrated power cord |
| Cleaning | Damp cloth, removable parts dishwasher-safe, descaling every 1-2 weeks |
| Protection class | I |
| Warranty | 2 years (domestic use), 6 months (professional use) |
| Spare parts available | Filter, teapot, rotary switch, service tap, lever, small parts kit |
| Intended use | Preparation of tea and hot beverages for non-commercial use |
| Safety | Do not heat liquids other than water, do not open the lid during boiling, dry-run protection |
Frequently Asked Questions - Samowar 2017 BEEM
User questions about Samowar 2017 BEEM
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric tea maker in PDF format for free! Find your manual Samowar 2017 - BEEM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Samowar 2017 by BEEM.

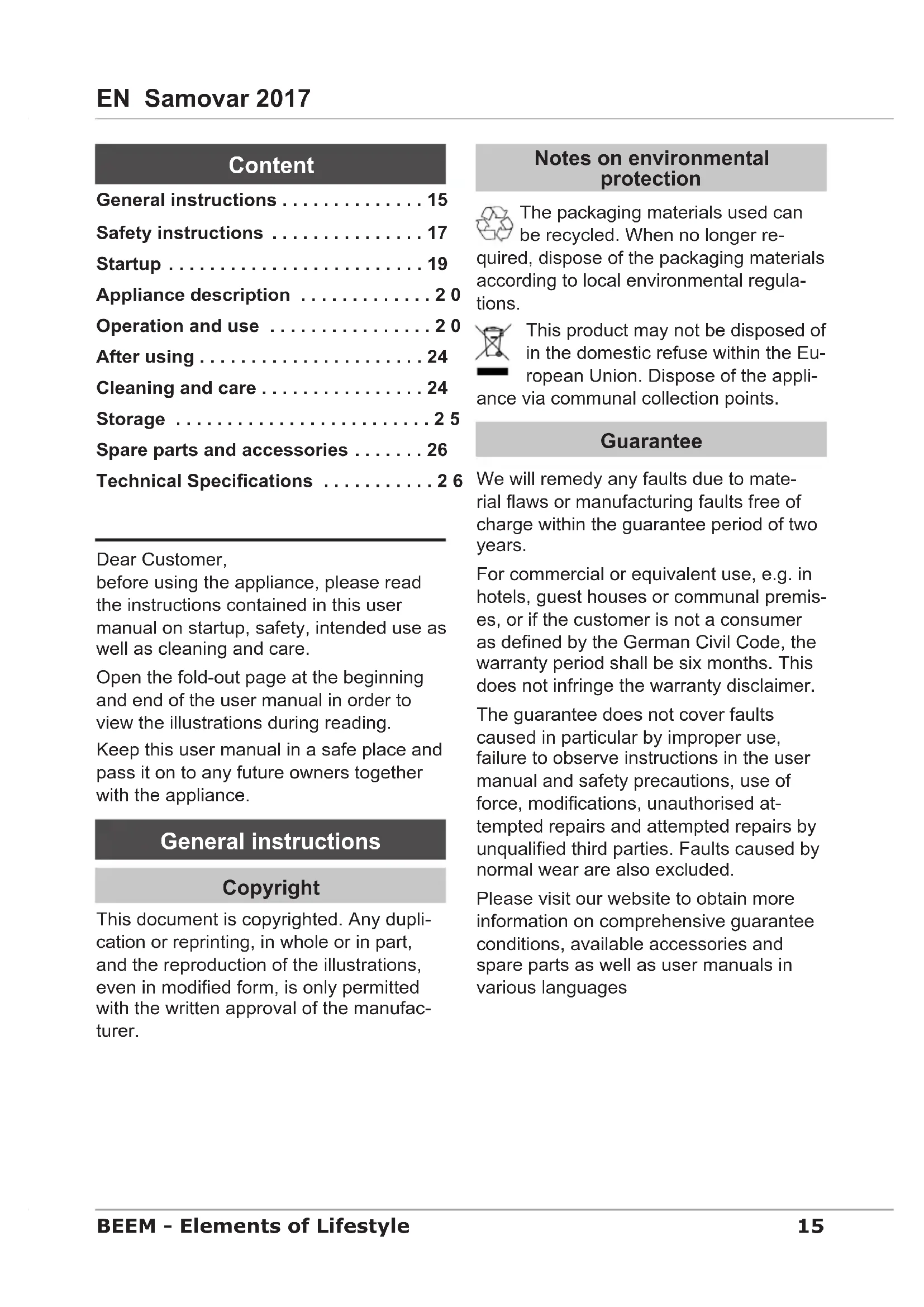

USER MANUAL Samowar 2017 BEEM
General instructions 15
Safety instructions 17
Startup 19
Appliance description 20
Operation and use 20
After using 24
Cleaning and care 24
Storage 25
Spare parts and accessories 26
Technical Specifications 26
Dear Customer,
before using the appliance, please read the instructions contained in this user manual on startup, safety, intended use as well as cleaning and care.
Open the fold-out page at the beginning and end of the user manual in order to view the illustrations during reading.
Keep this user manual in a safe place and pass it on to any future owners together with the appliance.
General instructions
Copyright
This document is copyrighted. Any duplication or reprinting, in whole or in part, and the reproduction of the illustrations, even in modified form, is only permitted with the written approval of the manufacturer.
Notes on environmental protection
The packaging materials used can be recycled. When no longer required, dispose of the packaging materials according to local environmental regulations.
This product may not be disposed of in the domestic refuse within the European Union. Dispose of the appliance via communal collection points.
Guarantee
We will remedy any faults due to material flaws or manufacturing faults free of charge within the guarantee period of two years.
For commercial or equivalent use, e.g. in hotels, guest houses or communal premises, or if the customer is not a consumer as defined by the German Civil Code, the warranty period shall be six months. This does not infringe the warranty disclaimer.
The guarantee does not cover faults caused in particular by improper use, failure to observe instructions in the user manual and safety precautions, use of force, modifications, unauthorised attempted repairs and attempted repairs by unqualified third parties. Faults caused by normal wear are also excluded.
Please visit our website to obtain more information on comprehensive guarantee conditions, available accessories and spare parts as well as user manuals in various languages
Symbols used
DANGER
This indicates an imminent hazardous situation, which could lead to severe physical injury or death.
Follow these instructions to avoid danger.
WARNING
This indicates a possible hazardous situation, which could lead to severe physical injury or death.
Follow these instructions to avoid danger.
CAUTION
This indicates a potentially hazardous situation, which could lead to minor injuries or material damage.
Follow these instructions to avoid danger.
NOTE
A note contains additional information to simplify the use of the appliance.
Intended use
This appliance is intended primarily for non-commercial use in closed rooms for brewing tea and other hot drinks.
Any use other than previously stated is considered as improper use.
WARNING
If not used for its intended purpose and/or used in any other way, the appliance may be or become a source of danger.
Use the appliance only for its intended purpose.
Observe the procedures described in this user manual.
No claims of any kind will be accepted for damage resulting from use of the appliance for other than its intended purpose.
The risk must be borne solely by the user. If used commercially, please pay attention to the changes in the guarantee period.
Limitation of liability
All technical information, data and instructions contained in this user manual represent the latest status at the time of printing.
No claims can be made based on the specifications, illustrations and descriptions of this user manual.
The manufacturer assumes no liability for damage or injury resulting from failure to observe the user manual, use for other than the intended purpose, unprofessional repairs, unauthorised modifications or use of non-approved spare parts and/or consumables.
Declaration of Conformity
BEEM hereby declares that this appliance complies with the fundamental requirements and other relevant provisions of 2006/95/EC and 2004/108/EC directives. The full declaration of conformity can be found under www.beem.de.
Safety instructions
Inspect the appliance for visible signs of damage before use. Do not use a damaged appliance.
This appliance is not intended for use by persons (including children) with restricted physical, sensory or mental capabilities or with insufficient experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions on the use of the appliance from such a person.
Children must be supervised to ensure that they do not play with the appliance.
Store the appliance and accessory parts out of the reach of children.
Do not leave the appliance unattended during operation.
Only allow repairs to the appliance to be carried out by an authorised specialist or by the works customer service; this particularly applies to replacing a damaged connecting cable. Unqualified repairs can lead to considerable danger for the user. They will also invalidate the guarantee.
Defective parts may only be replaced with original spare parts. Only original spare parts guarantee that the safety requirements are met.
Only use spare parts from the manu-facturer or spare parts that are specifically recommended by the manufacturer. The guarantee will otherwise be invalidated.
Do not use this appliance together with an external timer or a separate remote control system.
DANGER
Danger from electric current!
Do not use the appliance if the mains cable or mains plug is damaged.
Do not open the housing of the ap- pliance. Danger from electric current if live connections are touched and/ or the electrical and mechanical configuration is changed.
Never immerse the appliance or the mains plug in water or other liquids.
Pull the plug out of the mains socket, if you are not using the appliance, if a malfunction occurs during operation, before you clean the appliance.
Risk of suffocation!
Never play with packaging material. Risk of suffocation.
WARNING
Never heat any other liquids in the appliance other than water.
Danger from hot steam and hot water!
Never fill the appliance above the maximum mark.
Do not open the lid of the water tank while water is boiling; spurting hot water and escaping steam can lead to scalding.
Danger to health from germs!
The water tank of the appliance must be emptied, cleaned and disinfected at regular intervals to avoid cultivation of dangerous germs.
CAUTION
Do not use sharp objects or abrasive cleaning agents to clean the surfaces.
Never lift or move the appliance with the mains cable.
Do not pull the connecting cable to remove the plug from the mains socket.
Never operate the appliance when the jug is empty.
Requirements for the place of use
For safe and trouble-free operation of the appliance, the place of operation must satisfy the following requirements:
Place the appliance on a firm, dry, flat, waterproof and heat-resistant surface.
Do not install the appliance in a hot, wet or very humid environment.
The mains socket must be easily accessible and allow fast disconnection in the event of an emergency.
The surface finishes on furniture may contain substances that can be detrimental to the rubber feet of the appliance. If necessary, place a mat under the feet of the appliance.
Electrical connection
For safe and trouble-free operation of the appliance, the following instructions must be observed for the electrical connection:
Before connecting the appliance, compare the connection data (voltage and frequency) on the rating plate with those of your mains power supply. The data must correspond in order to avoid damage to the appliance. If in doubt, ask your electrical appliance retailer.
The mains socket must be protected by at least a 10 A automatic circuit breaker.
Ensure that the mains lead is undamaged and is not laid over sharp edges.
The mains cable must not be pulled tightly, bent or come into contact with hot surfaces.
Route the cable to prevent risk of tripping.
The electrical safety of the appliance is only assured when it is connected to a properly installed protective earth (PE) conductor system. Connection to a mains socket without PE conductor is forbidden. If in doubt, the electrical system must be checked by a qualified electrician. The manufacturer assumes no liability for injury or damage caused by a missing or interrupted protective earth conductor.
Startup
Unpacking
Remove the appliance, all accessory parts and the user manual from the box.
Remove all packaging materials and protective foils from the product and the accessories before using it for the first time.
NOTE
Do not remove the rating plate or any warning signs on the appliance. If possible, keep the original packaging during the guarantee period in order to be able to pack the appliance properly in the event of a guarantee claim. Transport damage will invalidate the guarantee.
Check the delivery contents
Check for visible signs of damage or missing items.
Report incomplete or damaged contents to your supplier immediately.
Prior to first use
Familiarise yourself with the appliance and the accessories using this instruction manual before using the appliance for the first time.
Before using for the first time, clean the appliance and accessories as described in the section Cleaning and care (page 24).
Appliance description
(See illustration on the left fold-out page)
Tea strainer, teapot1
Lid, teapot2
Teapot handle3
Teapot, 1.2 I4
Steam outlet5
Water tank handle6
Water tank, 3.0 I7
Rotary knob8
Non-slip rubber feet9
Base with integrated connecting cable 10 and cable storage compartment
Indicator light11
Connecting cable with mains plug12
Dispensing tap13
14 Dispensing tap lever
15 Max. filling level mark
16 Water tank cover
17 Water tank cover handle
18 User manual (not illustrated)
Indicator light (11)
The appliance is equipped with an indicator light to indicate heating activity.
When the water is being heated, the indicator light goes on.
The indicator light goes on intermittently while keeping warm and intermittent boiling.
Operation and use
Switching the appliance on/off
The appliance is turned on and off via the rotary knob (8). The appliance is switched off when the switch is at the OFF position.
Turn the rotary knob (8) to HOT or WARM for normal operation. Setting the rotary knob to BOIL heats the water as fast as possible.
For intermittent boiling, wait until the water has initially boiled and then turn the rotary knob (8) down until the indicator light extinguishes. The appliance keeps the water heated at a temperature between approx. 95^ - 100^ .
Rotary knob (8)
| Level | Function | |
| OFF | The appliance is switched off | |
| WARM | Warm water: | Water temperature: approx. 60 °C – 70 °C |
| HOT | Hot water: | Water temperature: approx. 85 °C – 95 °C |
| BOIL | Boiling water: | Rotary knob (8) up to the stop; Water temperature: approx. 100 °C |
| BOIL | Intermittent boiling | After the water has boiled, turn back the rotary knob (8) by half a turn. Water temperature: approx. 95 °C – 100 °C |
Heating water
CAUTION
Make sure that the rotary knob (8) is turned to the OFF position. Then insert the plug into the mains socket.
To heat up water, proceed as follows:
Fill the water tank with the desired quantity of fresh water. Pay attention the maximum filling level (15).
Close the lid of the water tank and subsequently put the teapot on top of it.
Turn the rotary knob clockwise until the desired setting is reached.
The thermostat allows individual setting of the water temperature. You have the choice between the following settings: warm, hot, boiling water and intermittent boiling as described in the section Rotary knob (page 20).
Boiling
If you turn the rotary knob (8) until it stops at the the BOIL position, the water is boiled quickly. If you leave the switch at this position, the water will continue boiling until it has completely evaporated.
Intermittent boiling
After the water has boiled, turn the rotary knob (8) back until the indicator light (11) extinguishes. This switches the appliance to intermittent boiling. The appliance then switches itself on again and starts heating when the water temperature drops. The thermostat then controls the power supply as required and saves energy. The thermostat cycle switches the indicator light (11) on and off.
Refilling with water
WARNING
Filling up the hot container can cause steam to escape and lead to scalding!
Turn the rotary knob (8) clockwise until it stops at the OFF position.
Allow the appliance to cool down for a few minutes before refilling with water.
NOTE
If you forget to fill with water, the boil-dry protection will switch off the appliance.
Then fill the appliance again with water.
Operating the dispensing tap
Touch mode
Press the lever (14) downwards. The dispensing tap (13) opens. To close the dispensing tap again, release the lever.
Continuous operation
Push the lever (14) fully backwards. It locks in this position. The dispensing tap (13) opens. To close the dispensing tap again, push the lever forwards.
Switching off the appliance
To switch the appliance off, proceed as follows:
Turn the rotary knob (8) anticlockwise until it stops at the OFF position. The indicator light extinguishes.
Pull the plug out of the mains socket.
Serving suggestions
Brewing tea according to the oriental "Samovar principle"
Tea is not just tea. Strictly speaking, tea is only a water infusion of the tea plant camellia sinensis. This infusion can be black or green tea. A distinction must be made between this and tea-like products such as the so-called herbal and fruit teas.
Therefore, brewing tea is not always just brewing tea. In order to preserve valuable ingredients and the taste, teas are brewed with water at different temperatures and allowed to steep for different lengths of time. For example, green tea is preferably brewed with water heated to 85^ C. In every case, the brewing instructions on the packaging should be observed.
Black tea
To brew black tea, proceed as follows:
Fill the water tank with water.
Fill the teapot with tea leaves (approx. one teaspoon per cup) or tea bags (1 tea bag for approx. 1 - 2 cups).
Close the lid of the water tank and subsequently put the teapot on top of it. The teapot is then warmed up at the same time.
Boil the water in the water tank (see section Heating water, page 21).
Take the teapot off the water tank.
NOTE
Condensation may drip off the bottom of the teapot.
Pour boiling water from the water tank over the tea.
NOTE
The more tea leaves or tea bags and the less water you fill the teapot, the stronger the tea concentration will be (professionals enjoy an infusion with precise 2.86 g of tea in a cup). It is preferable to use slightly more tea so that a real concentration is produced in the teapot.
Place the teapot with the tea concentration on the water tank again. The steam rising from the water tank keeps the tea in the teapot at exactly the temperature it needs to "steep".
After the desired steeping time, serve the tea from the teapot.
Pour the tea concentration from the teapot into your glass and top up with water from the water tank. This allows you to adjust the strength and taste of your tea.
You can leave the teapot standing on the water tank while the appliance is in operation so that you can add hot tea and hot water at any time.
Turn the rotary knob to intermittent boiling (a little higher than the HOT position but not until it stops) so that the water remains hot without continuing to boil. The indicator light goes on and off intermittently.
Green tea
Green tea can also be brewed in the Samovar. It should not normally be infused with boiling water since it may then taste slightly bitter. Depending on the type, the ideal water temperature is between 50^ - 70^ . Most green teas develop their optimum taste at around 70^ . The higher the quality of the green tea, the lower the optimum water temperature. High-quality teas are brewed with hot water at a temperature between 50^ - 60^ .
Normal green teas need to steep for approximately 1 - 3 minutes, whereas high-quality green teas only need to steep for approximately 1 - 112 minutes.
NOTE
If you use tea bags, add the number as specified by the manufacturer.
The amount of green tea is always less than black tea. Use roughly 1 g per 100 ml or 1 level teaspoon for 200 ml water. You can specify the strength of the concentration yourself.
To brew green tea, proceed as follows:
Boil the water in the water tank (see section Heating water, page 21).
Warm up the cups by filling them with a little hot water (the teapot was already warmed up by placing it on the water tank during the boiling process).
Turn the rotary knob to the (8) WARM position (according to the type of tea) and allow the water to cool down slightly (roughly 5 - 6 minutes).
Now pour hot water from the water tank over the tea.
Place the teapot onto the water tank as previously described so that the tea remains hot and continue according to the instructions for brewing black tea (see section Black tea, page 22).
Herbal tea
CAUTION
Germs in herbal tea mixtures can represent a health risk if the tea is not brewed properly.
Always pour boiling water over herbal, fruit, rooibos and spice teas (loose and in tea bags) and allow to steep for at least 5 - 10 minutes! This is the only method for ensuring that the tea is safe to drink!
Do not allow freshly brewed herbal tea to stand for several hours.
In rare cases, herbal tea mixtures may contain germs such as salmonella that are normally killed off when heated over a prolonged period. If not properly brewed, they can become a health risk, particularly for children.
Do not allow freshly brewed herbal tea to stand for several hours. Although the germs are killed off by the boiling water, the spores in the tea can survive. These can germinate in the warm water. Herbal teas are brewed in the same way as black tea (see section Black tea, page 22).
Hot instant drinks
To prepare hot instant drinks such as instant coffee, add the appropriate amount to the cup. Subsequently pour hot from the Samovar into the cup.
After using
Switch off the appliance and pull the plug out of the mains socket. Rinse the jug and the accessories used with water.
Clean the appliance and the accessories used as described in the section Cleaning and care.
Cleaning and care
Before beginning cleaning work, pay attention to the safety instructions in the section Safety (page 17).
Cleaning
Empty the appliance after every use.
Clean the appliance with a damp cloth and with a little washing-up liquid if necessary.
Rinse the appliance with clear water and dry it.
The removable parts can be cleaned in a dishwasher.
Dscaling
Depending on the frequency of use and the water quality, the water tank has to be descaled roughly every 1 - 2 weeks.
CAUTION
When the bottom of the water tank is scaled, the resulting heat accumulation can cause damage.
To descale the water tank, proceed as follows:
Fill the water tank with a mixture of water and a little descaling solution or vinegar essence and allow the mixture to boil briefly.
Allow the descending mixture to work for some time.
Shake the tank a few times and then pour out the descending solution together with the dissolved scale residues. Allow some of the descending solution to run through the dispensing tap in order to descale this also.
Rinse out with clear water and allow this also to run through the dispensing tap.
Repeat the process, if necessary.
We recommend using INOX-METAL-POLISH from Beem for regular maintenance and the removal of difficult stains from stainless steel surfaces. This polish restores appliances to their original shine. INOX-METAL-POLISH is available in tubes and is suitable for pots as well as for other objects made of stainless steel, chromium, brass, copper, aluminium, silver and also hard plastics. INOX-METAL-POLISH is used in factories for polishing stainless steel. You can obtain INOX-METAL-POLISH from your retailer or by phoning us or visiting our website at www.beem.de.
Storage
If you do not intend to use the appliance for a longer period of time, clean it as described in the section Cleaning and care (page 24) to prevent mould from building up. Mould can damage the appliance and cause spots that cannot be removed.
Spare parts and accessories
| Item* Article No. Designation | |
| 1 970 303 004 Tea strainer for 1.2 litre teapot | |
| 4 900 461 031 Teapot complete with strainer | |
| 8 970 003 008 Rotary knob for setting the temperature | |
| 13 970 003 009 Dispensing tap, complete, black | |
| 14 970 300 008 Dispensing tap lever, black | |
| 970 300 007 Small parts set for dispensing tap |
Technical Specifications
| Model Samovar 2017 | |
| Type number | S 2.3.17 |
| Dimensions 48.5 x 27.3 x 30.7 cm | |
| Main set approx. net weight 2.2 kg | |
| Operating voltage 220 – 240 V~ | |
| Mains frequency 50 – 60 Hz | |
| Power consumption 1500 W | |
| Teapot capacity 1.2 l | |
| Water tank capacity 3.0 l | |
| Protection class | I |
| Type of protection | IPX0 |
Contenance
Remarques generales 27
Reservoir a eau de 3,0 I7
Suggestions de service
Elements of Lifestyle
BEEM GmbH
Subject to printing error.
For service in other countries contact your local dealer.
