Air Joy Cool - Fan BEEM - Free user manual and instructions

Brand	BEEM
Model	Air Joy Cool
Product type	Bladeless fan with remote control
Dimensions (L x W x H)	305 x 270 x 355 mm
Net weight	approx. 2 kg
Input voltage	220-240 V~
Power consumption	32 W
Mains frequency	50/60 Hz
Protection class	II
Protection type	IPX0
Airflow adjustment	Continuous via wheel
Rotation function	Yes (on/off button)
Timer	60 and 120 minutes
Remote control	Yes (batteries not included)
Wall mounting	Possible (bracket optional)
Cleaning	Dry or slightly damp cloth, soft brush for slots
Spare parts available	Remote control (ref. 900 895 001), wall bracket (ref. 900 895 006)
Warranty	Extended manufacturer warranty on some products
First use	Remove all packaging materials and protective films
Safety	Do not immerse, do not open the housing, disconnect before cleaning

Frequently Asked Questions - Air Joy Cool BEEM

How to use the remote control of the Air Joy Cool fan?

The remote control allows you to control all electrical functions: turning on/off, increasing/decreasing airflow, turning on/off the rotation movement, and activating the timer (60 or 120 minutes). Make sure there is no obstacle between the remote control and the device. Each action is confirmed by an acoustic signal. Insert the batteries (not supplied) respecting the polarity.

How to adjust the fan speed?

The adjustment is done continuously via the wheel located on the control panel. Turn it clockwise to increase the flow and counterclockwise to reduce it. The remote control also allows you to increase or decrease the flow in steps.

How to use the timer?

During operation, press the 60 button on the remote control for a 60-minute timer, or the 120 button for 120 minutes. The device will turn off automatically at the end of the countdown. To deactivate the timer, press the same button again.

How to install the wall bracket?

Screw the provided mounting plate to the wall using the three screws, with the retaining elements facing upwards. Then hang the device onto the plate. Adjust the airflow as desired, then plug in the device and turn it on. The wall bracket is sold separately (ref. 900 895 006).

How to clean the Air Joy Cool fan?

Before cleaning, unplug the power cord. Wipe the device with a dry or slightly damp cloth. For the air slots, use a soft brush to remove dust. Never use sharp objects or aggressive detergents. Do not work with tools in the air slots and never immerse the device in water.

What to do if the fan does not turn on?

First check that the plug is properly connected and that the automatic circuit breaker has not tripped. If the problem persists, reduce the number of devices on the same electrical circuit. If nothing works, contact after-sales service.

What to do if the airflow is too weak?

This may be due to impurities in the air inlets or in the air slot. Gently clean these areas with a soft brush as described in the cleaning section. If the problem persists, contact after-sales service.

How to store the fan?

If you do not use the device for an extended period, unplug it and clean it. Store it in a dry, clean, frost-free place, away from direct sunlight.

Can I use the fan in a bathroom?

The device has IPX0 protection, meaning it is not protected against moisture. It should not be used in a bathroom, shower, or near a water source. Avoid any contact with water to prevent electrical hazards.

How to direct the airflow?

The airflow is directed by tilting the device via the foot with tilt adjustment. Hold the foot with one hand and change the tilt with the other hand. To avoid damage, perform this adjustment only when the rotation movement is stopped.

USER MANUAL Air Joy Cool BEEM

Elements of Lifestyle

Bedienungsanleitung

User Manual

Instructions de service

Fanless ventilator with remote control

Open the fold-out page at the beginning and end of the user manual in order to view the illustrations during reading.

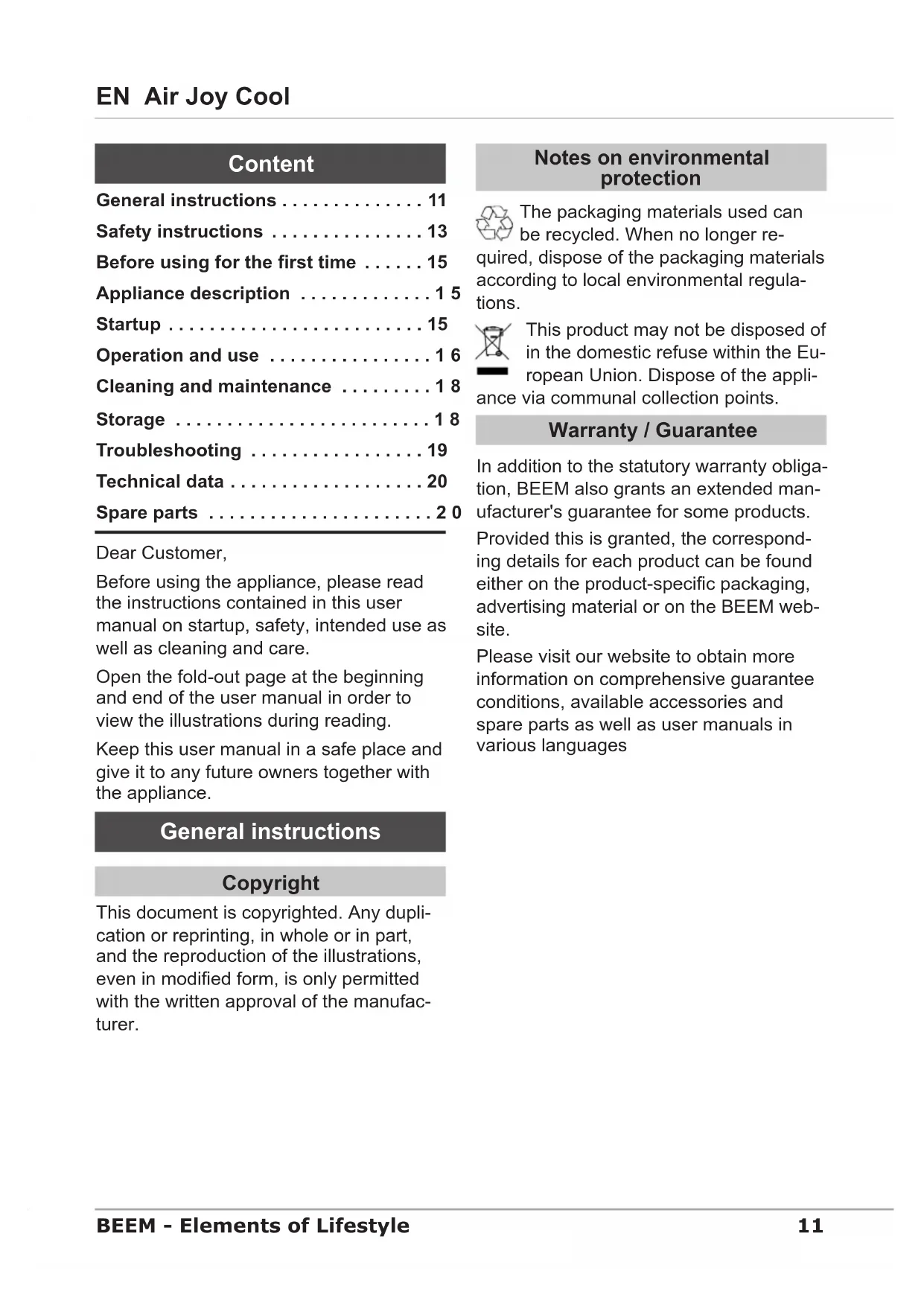

General instructions ..... 11

Safety instructions .... 13

Before using for the first time ..... 15

Appliance description ..... 1 5

Startup 15

Operation and use 16

Cleaning and maintenance ..... 1 8

Storage 18

Troubleshooting 19

Technical data 20

Spare parts 20

Dear Customer,

Before using the appliance, please read the instructions contained in this user manual on startup, safety, intended use as well as cleaning and care.

Open the fold-out page at the beginning and end of the user manual in order to view the illustrations during reading.

Keep this user manual in a safe place and give it to any future owners together with the appliance.

General instructions

Copyright

This document is copyrighted. Any duplication or reprinting, in whole or in part, and the reproduction of the illustrations, even in modified form, is only permitted with the written approval of the manufacturer.

Notes on environmental protection

The packaging materials used can be recycled. When no longer re-d, dispose of the packaging materials rding to local environmental regula-

This product may not be disposed of in the domestic refuse within the European Union. Dispose of the appli-via communal collection points.

Warranty / Guarantee

In addition to the statutory warranty obligation, BEEM also grants an extended manufacturer's guarantee for some products.

Provided this is granted, the corresponding details for each product can be found either on the product-specific packaging, advertising material or on the BEEM website.

Please visit our website to obtain more information on comprehensive guarantee conditions, available accessories and spare parts as well as user manuals in various languages

Symbols used

DANGER

This indicates an imminent hazardous situation, which could lead to severe physical injury or death.

Follow these instructions to avoid danger.

WARNING

This indicates a possible hazardous situation, which could lead to severe physical injury or death.

Follow these instructions to avoid ▶ danger.

ATTENTION

This indicates a potentially hazardous situation, which could lead to minor injuries or material damage.

Follow these instructions to avoid ▶ danger.

NOTE

A note contains additional information to simplify the use of the appliance.

Intended use

This machine is intended primarily for non-commercial use in closed rooms for creating a continuously variable air flow. Any use other than previously stated is considered as improper use.

WARNING

If not used for its intended purpose and/or used in any other way, the appliance may be or become a source of danger.

Use the appliance only for its intended purpose.

Observe the procedures described in this user manual.

No claims of any kind will be accepted for damage resulting from use of the appliance for other than its intended purpose.

The risk must be borne solely by the user.

Limitation of liability

We assume no liability for damage or follow-up damage in the case of:

failure to observe the instructions in ■ the user manual,

use for other than the intended pur- ■ pose,

improper or unsuitable handling, ■

incorrectly performed repairs, ■

unauthorised modifications, ■

use of non-approved parts or spare ■ parts,

use of unsuitable supplementary or accessory parts.

Declaration of Conformity

BEEM hereby declares that this appliance complies with the fundamental requirements and other relevant provisions of 2006/95/EC and 2004/108/EC and und 2009/125/EC directives.

Safety instructions

Inspect the appliance for visible signs of damage before use. Do not use a damaged appliance.

This appliance is not intended for use by persons (including children) with restricted physical, sensory or mental capabilities or with insufficient experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions on the use of the appliance from such a person.

Children must be supervised to ensure that they do not play with the appli- ance.

Store the appliance out of the reach of children.

Only allow repairs to the appliance ■ to be carried out by an authorised specialist or by the works customer service; this particularly applies to replacing a damaged connecting cable. Unqualified repairs can lead to considerable danger for the user. This will also invalidate the warranty or guarantee.

Repairs to the appliance during the ■ warranty or guarantee period may only be carried out by service centres authorised by the manufacturer, otherwise no guarantee or warranty claim can be made in the case of damage and follow-up faults.

Only replace defective components with original spare parts. Only original spare parts guarantee that the safety requirements are met.

DANGER

Danger of electric current!

Do not use the appliance if the mains cable or mains plug is damaged.

Do not open the housing of the appliance. Danger from electric current if live connections are touched and/or the electrical and mechanical configuration is changed.

Never immerse the appliance or the mains cable into water or other liquids.

Pull the plug out of the mains socket, if you are not using the appliance, – if a malfunction occurs during operation, before you clean the appliance.

Risk of suffocation!

Never play with packaging material. Risk of suffocation.

WARNING

Fire risk from aerosol formation.

Do not spray air freshener into the air flow.

Do place the appliance in front of an automatic air freshener atomizer system.

ATTENTION

Do not pull the connecting cable ▶ to remove the plug from the mains socket.

Do not put objects into the openings or ventilation grilles.

Keep the appliance free from dust, fluff, hair and above all, anything that could restrict the air flow.

Do not use sharp objects or abrasive/polishing cleaning agents to clean the surfaces.

Do not move the appliance by grip-ping the air ring.

Requirements for the place of use

For safe and trouble-free operation of the appliance, the installation location must satisfy the following requirements:

Place the appliance on a firm, dry, flat and waterproof surface.

Do not install the appliance in a hot, wet or very humid environment.

The mains socket must be easily accessible and allow fast disconnection in the event of an emergency.

The surface finishes on furniture may contain substances that can be detrimental to the feet of the appliance. If necessary, place a mat under the feet of the appliance.

Electrical connection

For safe and trouble-free operation of the appliance, the following instructions on the electrical connection must be observed:

Before connecting the appliance, ■ compare the connection data (voltage and frequency) on the rating plate with those of your mains power supply. This data must correspond in order to avoid damage to the appliance. If in doubt, ask your electrical appliance retailer.

The mains socket must be protected by at least a 10 A automatic circuit breaker.

Ensure that the mains cable is undamaged and is not laid over sharp edges.

■The mains cable must not be pulled tightly, bent or come into contact with hot surfaces.

■Route the mains cable to prevent risk of tripping.

■The electrical safety of the appliance is only assured when it is connected to a properly installed protective earth (PE) conductor system. Connection to a mains socket without PE conductor is forbidden. If in doubt, the electrical system must be checked by a qualified electrician. The manufacturer assumes no liability for injury or damage caused by a missing or interrupted protective earth conductor.

Before using for the first time

Unpacking

Remove the appliance and the user manual from the box.

Remove all packaging materials and protective foils from the product and the accessories before using it for the first time.

NOTE

Do not remove the rating plate or any warning signs on the appliance. If possible, keep the original packaging during the warranty or guarantee period in order to be able to pack the appliance properly in the event of a guarantee claim. Transport damage will invalidate the warranty or guarantee.

Checking the delivery contents

Check for visible signs of damage or missing items.

Report incomplete or damaged con- tents to your supplier immediately.

Appliance description

(See illustration on the left fold-out page)

Air ring1

Air slot2

Foot with inclination adjustment3

Remote control (without batteries)4

Operating panel with blue indicator light5

Wall mounting (not illustrated)6

User manual (not illustrated)7

Operating panel

Symbol Function

Switching the appliance ON/OFF

Setting the continuous air flow.

Switch rotation movement ON/OFF

Startup

◆lug the appliance into the mains socket.
◆ insert the batteries (not supplied) into the remote control according to correct polarity.

Operation and use

Switching the appliance on/off

The appliance is switched on and off by pressing the ⏻ button on the operating panel (5).

To switch on the appliance, press the

button on the operating panel. The blue indicator lamp lights up.

To switch off the appliance, press the

button again. The blue indicator lamp extinguishes.

Setting the air flow

Continuous setting of the air flow takes place via the regulator button on the operating panel (5).

Turn the regulator clockwise to set a stronger air flow.

Turn the regulator anticlockwise to set a weaker air flow.

Rotating movement ON/OFF switch (image A1)

Switching the rotating movement on and off takes place via the button on the operating panel (5).

Directing the air flow (see images B1 and B2)

The direction of the airflow is set via the inclination adjustment on the foot (3).

NOTE

Only direct the airflow when the rotating movement is switched off.

Hold the foot tight with one hand. ◆

Change the inclination of the appli- 1ance with the other hand until the desired airflow angle has been set (images B1 and B2).

Operating with the remote control

You can control all electrical functions of the appliance with the remote control.

Symbol Function

	Switching the appliance ON/OFF
	Increase airflow
	Decrease airflow
	Switch rotation movement ON/OFF
	Timer, 60 minutes
	Timer, 120 minutes

NOTE

Make sure that there is an unob-structed view between the appliance and the remote control in order to control it with the remote control.

All settings made via the remote control are confirmed by a signal tone.

Timer function

The appliance is equipped with a timer function. To activate this, proceed as follows:

During operation, press the Ⓞ60 button on the remote control. The appliance switches itself off automatically after 60 minutes.

To deactivate the timer, press the ◆ button again.

To activate the timer for 120 minutes, press the 120 button. To deactivate this function, press the 120 button.

Wall mounting (image C1)

It is possible to mount the appliance on a wall. To do this, proceed as follows:

Screw the mounting plate to the wall with the three screws supplied so that the holding elements point upwards.

Hang the appliance onto the mounting ◆ plate.

Direct the airflow.

Connect the appliance to the mains ◆ and switch it on.

Cleaning and maintenance

Before beginning any work, pay attention to the safety instructions in the section Safety instructions (page 13)!

Cleaning the appliance

Pull the plug out of the mains socket.

Wipe the appliance with a dry or ◆ slightly damp cloth.

Eliminate contamination

Check the air inlets and the air slot (2) for free flow.

Eliminate contamination such as dirt or dust particles with a soft brush.

ATTENTION

Do not work on the air slots with tools or clean with wet cloths.

Storage

If you do not intend to use the appliance for a longer period of time, unplug it from the mains and clean it as described in the section Cleaning and maintenance (page 18).

Store the appliance in a dry, clean and frost-free place which is protected against direct sunlight.

Troubleshooting

The following table will help you locate and eliminate minor faults:

Fault Possible cause Remedy
The indicator lamp does not light up after switching on.	Plug not inserted into socket. Insert plug.
	Automatic circuit breaker in electrical distribution board tripped.	Switch on the automatic circuit breaker again.
The automatic circuit breaker in the electrical distribution board trips.	Too many appliances connected to the same power circuit.	Reduce the number of appliances on the power circuit.
	No fault detected.	Contact customer service.
The airflow is too weak.	There is contamination in the air inlets or between the air slots.	Eliminate possible contamination as described in the section Cleaning and maintenance (page 18).

NOTE

If you cannot resolve the problem with the steps described above, please contact customer service.

Technical data

Model	Fanless ventilator with remote control Air Joy Cool
Type number	Silver M39.001	Black M39.002
Dimensions (overall)	305 x 270 x 355 mm (L x W x H)
Approx. net weight. 2 kg
Input voltage 220 - 240 V~
Power 32 W
Mains frequency 50/60 Hz
Protection class II
Degree of protection IPX0

Spare parts

Item* Article No. Designation

4 900 895 001 Remote control (without batteries)

- 900 895 006 Wall mounting with fixing material

* numbering according to the description of the appliance

Sommaire

Support mural (sans figure)6

Montage mural (figure C1)

3D rendering of a mechanical component with curved arrows indicating rotational motion (no text or symbols)

Exterior view of a modern office building (no signage)

Metallic device with a curved handle and circular base, showing a black arrow indicating rotation (no text or symbols visible)

Close-up of a metallic wall-mounted air conditioner unit mounted on a white wall, with no visible text or symbols.

Kundendienststelle:

Customer service:

Elements of Lifestyle

BEEM

Subject to printing error.

Subject to technical modifications.

For service in other countries contact your local dealer.
