Frequently Asked Questions - SABD 3.6 Li A1 SILVERCREST

How to assemble the SilverCrest SABD 3.6 Li A1 cordless electric broom?

Assemble the 3 parts of the handle by inserting the oval stops into the holes. Slide the grip onto the handle until it clicks into place. Place the assembled handle into the stand of the device. Slide the dust bin until it locks onto the unlock button.

How to charge the broom for the first time?

Before first use, fully charge the battery for approximately 5 hours. Make sure the device is off. Open the dust cover of the charging port, connect the charger, then plug it into the mains. The red charge indicator lights up; it turns green when charging is complete.

What is the runtime of the broom and how long does charging take?

The runtime is approximately 50 minutes depending on the floor type. The full charge time is approximately 5 hours for an empty battery.

How to clean the dust bin?

Press the unlock button to detach the dust bin. Empty it and put it back, ensuring it clicks into place. It is recommended to empty it after each use to maintain performance.

How to clean the roller brush if it is clogged?

Turn the device over and push the small lock to remove the side cover. Remove the roller brush, clean dirt from both sides of the bristles, then reassemble by sliding one side onto the motor shaft and replacing the cover.

What to do if the broom does not start?

First check if the battery is discharged; recharge it. If the problem persists, the device may be defective; contact after-sales service.

The roller brush makes an abnormal noise, what to do?

If the roller brush is very noisy, it is probably clogged or incorrectly assembled. Clean it and check that it is properly installed. If the noise persists, contact after-sales service.

What are the important safety precautions?

Never charge with a damaged charger. Do not use the device on wet floors or to vacuum gravel. Do not allow children under 8 years old to use it without supervision. Never immerse the device in water. Use only the provided charger.

How to dispose of the broom and battery?

The device and the battery must be disposed of separately. Remove the battery from the device before disposal (follow the disassembly steps in the manual). Take the device to an approved collection point or through your municipality's recycling service. The battery must be recycled at a designated collection point.

What is the warranty and how to contact after-sales service?

The warranty is 3 years from the date of purchase. To claim it, call after-sales service at 0800 919270 (France) or send an email to [e-mail]. Keep the receipt as proof of purchase.

USER MANUAL SABD 3.6 Li A1 SILVERCREST

Operating instructions

FR BE

BALAI ÉLECTRIQUE SANS FIL

Mode d'emploi

DE AT CH

AKKU-BESEN

Bedienungsanleitung

DK

BATTERIDREVEN KOST

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DK

GB/IE Operating instructions Page 1

DK	Betjeningsvejledning	Side	9
FR/BE Mode d'emploi Page 17
NL/BE Gebruiksaanwijzing Pagina 25
DE/AT/CH Bedienungsanleitung Seite 33

A ① ② ③

B 5 6 4 SilverChest 7 8

D 12

C 9 10 SILVER CREST® MABO 3.6 U.A1 Rechargeable Floor Sweeger Input: 5V DC mm 500mA Battery: 3.7V 8-40A mm 1300mAh Manufacturer: 2014-07 IAN:100114 S.INL00091 WEEE SILVERCREST® KOMPERNADO H.CNIN RUNGESTA02 21 HABIT BECHUM DEEMAY www.kimpermada.com 11 SilverCREST® CE ⑪

Contents

Introduction 2

Intended use 2

Package contents....2

Appliance description 2

Technical data 2

Safety guidelines....3

Before initial use ....4

Assembly of the cordless sweeper 4

Charging the battery....4

Working with the cordless sweeper ....5

Cleaning and care ....5

Housing....5

Dirt container 5

Rotary brush 5

Storage....6

Troubleshooting....6

Warranty and service....6

Disposal 7

Disposal of the appliance....7

Disposal of batteries 7

Disposal of packaging 7

Importer....7

Introduction

Congratulations on the purchase of your new appliance.

You have selected a high-quality product.

The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all handling and safety guidelines.

Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner(s).

Intended use

This appliance is intended only for sweeping dry dirt in dry closed rooms.

The appliance is intended exclusively for domestic use.

Not for commercial use! Use the appliance only as described in this manual.

Package contents

■ Rechargeable Floor Sweeper
Charger
■ Handle (3 elements and grip)
■ Operating instructions

Appliance description

Figure A:

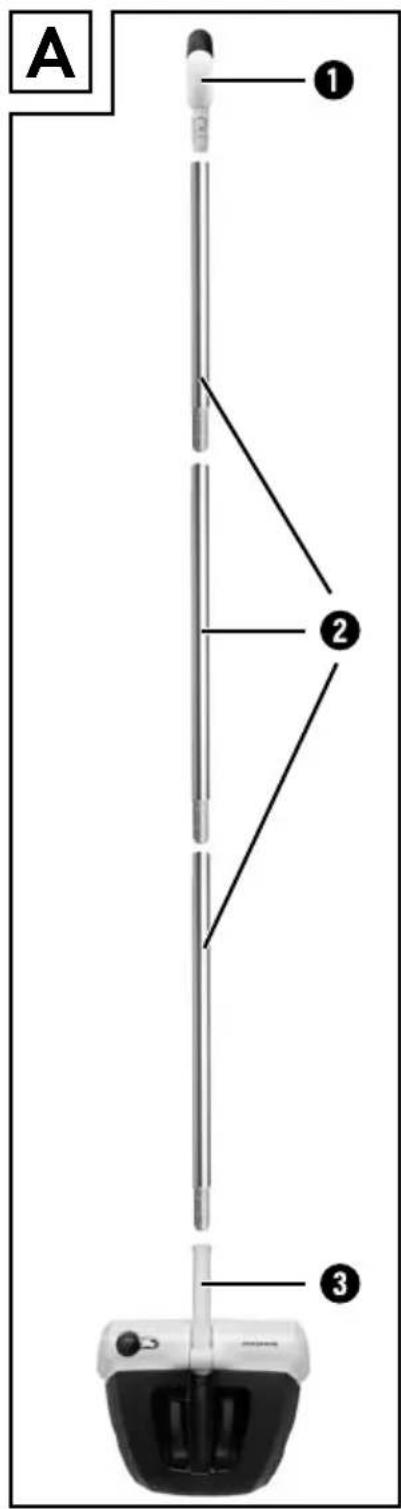

① Grip
② Handle (3 elements)
③ Holder

Figure B:

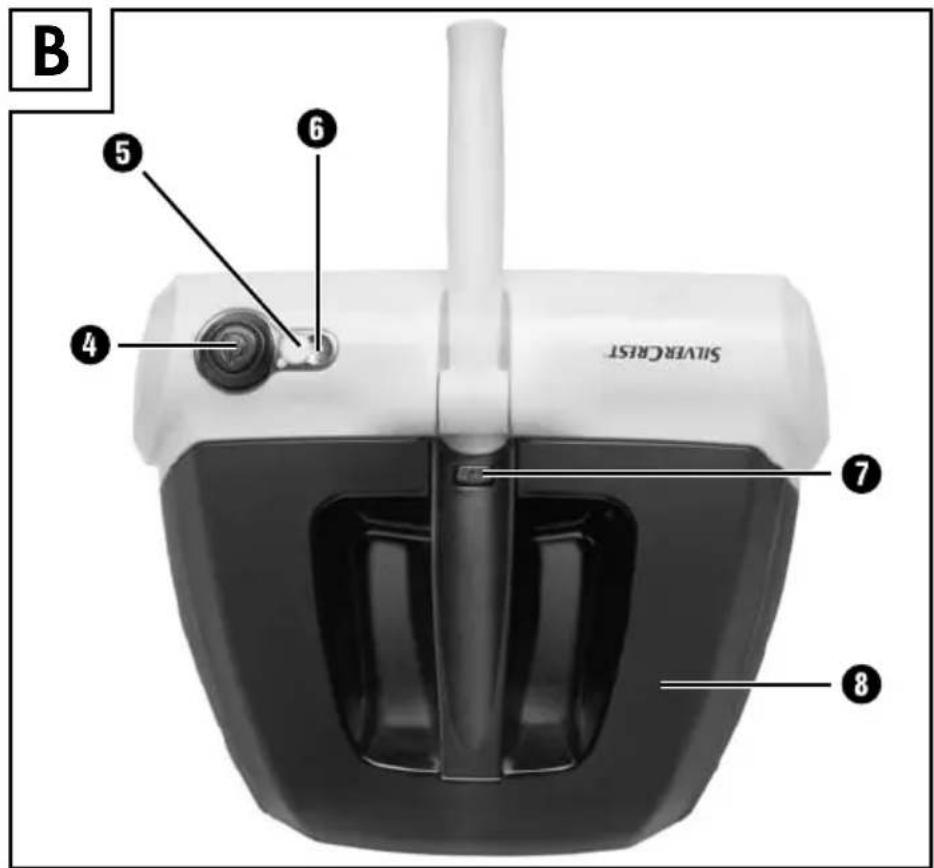

4 Switch
⑤ Charging socket (with dust cover)
6 Charge indicator
⑦ Release knob
8 Dirt container

Figure C:

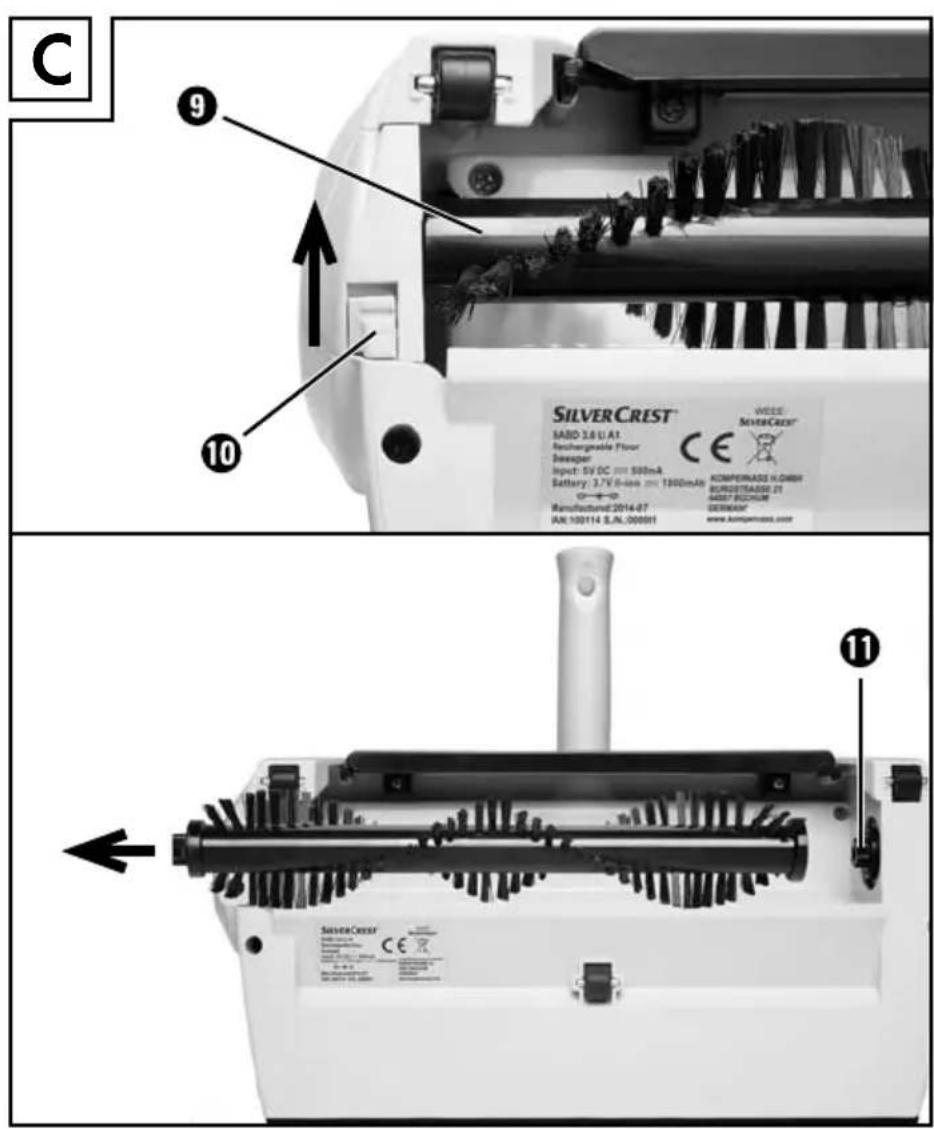

9 Rotary brush

10 Catch

11 Drive shaft

Figure D:

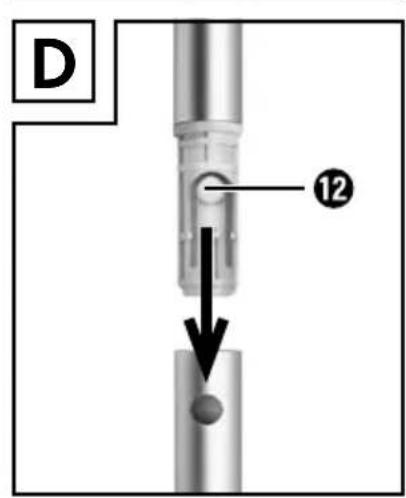

12 Locking studs

Technical data

Charger

Input: 100 - 240 V

\~

50/60 Hz,

0.3 A max.

Output:

5 = 500 mA V

Type designation: SABD 3.6 Li A1-1

Protection class: II /

Manufacturer:

Kompernass

GmbH

Cordless sweeper

Input voltage/current: 5 V

= 500 ~mA

Battery working voltage: 3.7 V

Battery:

High-capacity

Li-ion battery

1 × 3.7 V, 1800 mAh

Charging time with

empty battery:

5 hrs.

Operating time with full

battery charge (depending

on floor covering):

approx. 50 min.

Protection class: III /

Safety guidelines

DANGER - ELECTRIC SHOCK!

▶ Never charge the appliance with a damaged power adapter! To avoid risks, replace a damaged power adapter immediately. To do this, contact Customer Services.
▶ To avoid risks, arrange to have damaged power cables and/or plugs replaced as soon as possible by a qualified specialist.
▶ Ensure that the power cable does not become wet or moist during use. Route the cable in such a way that it cannot be crushed or damaged.

WARNING! RISK OF INJURY!

▶ Operate the appliance only with the supplied accessories.
- Do not use the appliance to sweep exposed concrete, gravel or similar surfaces.
▶ Do not use the appliance to clean deep-pile carpets or wet floor coverings.
This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks.
▶ Children must not use the appliance as a plaything.
- Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.
▶ Only use this appliance for its intended purpose as described in this operating instructions.
This product contains rechargeable batteries. Do not throw the batteries into a fi re and do not subject them to high temperatures. There is a risk of explosion!
▶ Do not use the appliance as a toy.
▶ Never leave children unsupervised in the vicinity of the appliance!

ATTENTION! PROPERTY DAMAGE!

▶ Charge the appliance only with the supplied mains adapter/charger (type SABD 3.6 Li A1-1)!
▶ Only this cordless sweeper may be charged with the supplied battery charger; the charger is not suitable for other batteries.
▶ Never try to recharge non-rechargeable batteries.

Before initial use

■ Remove all packaging materials from the appliance. Including the plastic safety catch that secures the switch ④ from accidental activation during transportation.

Assembly of the cordless sweeper

■ Attach the handle ②:

• put the 3 handle elements ② together so that the oval locking studs ⑫ click into the holes.
• Press the grip ① into the handle so that the locking stud on the grip ① protrudes into the hole in the handle ②.
• Push the assembled handle ② with the locking stud ⑫ into the holder ③ on the appliance.

■ Push the dirt container ⑧ onto the appliance so that the release knob ⑦ clicks into place.

Charging the battery

To ensure that the battery reaches its full performance potential, it is necessary to charge the battery for around 5 hours before the first use. Further charges will take up to 5 hours depending on the discharge level of the battery.

With a fully charged battery, the appliance provides an operating time of 50 minutes before recharging will be again required.

ATTENTION! MATERIAL DAMAGE!

▶ Use only the supplied charger.
▶ Operate the appliance only with the built-in battery.
▶ Never attempt to remove the battery to recharge it.
▶ Do not attempt to open the battery housing or dismantle the battery. This will destroy it.
1) To charge the battery, ensure that the cordless sweeper is switched off. Switch it off using the switch ④ if required.

NOTE

Do not use the cordless sweeper when it is connected to the charger.

2) Open the dust cover that closes the charging socket ⑤.
3) Insert the plug of the battery charger into the charging socket ⑤ of the appliance and then attach the mains plug to a mains power outlet.
4) While the battery is charging, the charge indicator ⑥ lights up red. If this is not the case, check the connectors and whether the cordless sweeper is switched off.
5) Once the battery is fully charged, the charge indicator ⑥ lights up green. You can now use the appliance with full power again.
6) First unplug the charger from the mains power socket and then the charger plug from the charging socket ⑤ on the appliance.
7) Close the charging socket ⑤ with the dust cover.

Working with the cordless sweeper

WARNING! RISK OF INJURY!

Hold the end of the rotary brush ⑨, the rod and the appliance openings away from your face and body.

NOTE

Never use the appliance without the dirt container 8 attached. The dirt will simply be swirled up!

■ Press the switch ④ to switch the cordless sweeper on.
■ Move the cordless sweeper across the floor.
By pressing the switch ④ again, you will turn the appliance off.

You can leave the handle ② engaged in the vertical position during breaks.

NOTE

On some kinds of carpets, the cordless sweeper may clatter or jump. If this is the case, work slowly and in the opposite direction.

Cleaning and care

DANGER - ELECTRIC SHOCK!

Do not clean the appliance while charging it. Always disconnect the battery charger from the mains power socket before cleaning the appliance!
NEVER immerse the appliance in water or any other liquid!

WARNING! RISK OF INJURY!

Ensure that the appliance is not accidentally switched on without the dirt container ⑧ attached or while cleaning the rotary brush ⑨. Risk of injury!

ATTENTION! MATERIAL DAMAGE!

▶ Do not use abrasive or aggressive cleaning materials. These may damage the surfaces of your appliance.

Housing

■ Wipe off the housing of the appliance with a damp cloth. If required, use a mild detergent on the cloth.
■ Ensure that the appliance is completely dry before reconnecting it with the battery charger.

Dirt container

To ensure that the performance of the cordless sweeper does not deteriorate, empty the dirt container ⑧ after every use.

■ Press the release knob ⑦ of the dirt container ⑧ to detach it from the appliance.
Pull the dirt container ⑧ off the appliance while keeping the release knob ⑦ pressed.
■ Empty the dirt container ⑧ and push it back onto the appliance so that it sits firmly on the appliance and clicks into place on the release knob ⑦.

Rotary brush

If the rotary brush ⑨ stops turning because of a severe dirt accumulation or because threads have caught around it, proceed as follows:

Remove the rotary brush ⑨:

1) Turn the cordless sweeper around and hold it so that the fl at side with the rotary brush ⑨ is facing you.
2) Push the small catch ⑩ back so that the cover can be removed at the side.
3) Remove the cover.
4) Pull the rotary brush ⚙ out of the appliance.

5) Remove any dirt (on both sides of the brush bristles) and clean the rotary brush ⑨.

Replace the rotary brush ⑨.

1) Push one side of the rotary brush ⑨ onto the drive shaft ⑪.
2) Push the square end of the rotary brush ⑨ into the housing so that the rotary brush ⑨ sits straight in the housing again.
3) Replace the cover on the housing and push the catch 10 back so that the cover sits firmly in place.

Storage

ATTENTION! MATERIAL DAMAGE!

▶ Ensure that the appliance is switched off before putting it away. Otherwise the battery could be damaged by excessive discharging.

■ Store the cleaned appliance in a clean, dust-free and dry place.

Troubleshooting

The appliance will not start.

■ The battery is discharged. Recharge the appliance.

■ The appliance is defective. Contact Customer Service.

The rotary brush ⑨ generates loud noises when revolving.

■ The rotary brush ⑨ is soiled. Clean the rotary brush ⑨.

■ The rotary brush ⑨ is not inserted properly. Check whether the rotary brush ⑨ is correctly fitted and correct the fitting if required.

Warranty and service

You are provided a 3-year warranty on this appliance, valid from the date of purchase. This appliance has been manufactured with care and inspected meticulously prior to delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact your Customer Service unit by telephone. This is the only way to guarantee free return of your goods.

The warranty only covers claims for material and manufacturing defects, not for damage sustained during carriage, components subject to wear and tear or damage to fragile components such as switches or batteries. This appliance is intended solely for private use and not for commercial purposes.

The warranty shall be deemed void in the case of misuse or improper handling, use of force and interventions which have not been carried out by one of our authorised Service centres.

Your statutory rights are not restricted by this warranty.

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking, but no later than two days after the date of purchase. Repairs effected after expiry of the warranty period shall be subject to charge.

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 100114

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 100114

Hotline availability:

Monday to Friday 08:00 - 20:00 (CET)

Disposal

The appliance and the batteries must be disposed of separately.

Disposal of the appliance

Under no circumstances should the appliance be disposed of in standard household waste. This product is subject to the provisions of European Directive 2012/19/EU.

Dispose of the appliance via an approved waste disposal company or your municipal waste disposal facility. Please observe applicable regulations. Please contact your waste disposal centre if you are in any doubt.

Disposal of batteries

of in the household waste. Consumers are required by law to dispose of batteries at a collection point provided by their local community or at a retail store.

The purpose of this obligation is to ensure that batteries are disposed of in an environmentally sound manner. Only dispose of batteries when they are fully discharged.

To dispose of the appliance in an environmentally friendly way, you must remove the battery from the appliance:

DANGER - ELECTRIC SHOCK!

▶ Disconnect the appliance from the mains power supply when you remove the battery!!

ATTENTION! MATERIAL DAMAGE!

▶ Remove the battery from the appliance only if you want to scrap/dispose of the appliance! The appliance is permanently defective after you have removed the battery!

1) Remove the dirt collector ⑧.
2) Turn the cordless sweeper around and hold it so that the fl at side with the rotary brush ⑨ is facing you.
3) Remove the rotary brush ⑨ as described in Chapter "Cleaning and Care".
4) Use a fl at object such as a screwdriver to lever out the two small external rollers. Unscrew the screws beneath.
5) Unscrew the 2 Phillips screws from the black plastic cover and then remove it.
6) Unscrew the remaining 3 Phillips screws from the plastic part beneath and then remove it. You can now see the drive belt.
7) Remove the drive belt at the side and pull the drive gear upwards out of the rail.
8) Unscrew the 4 Phillips screws on the motor block and remove the cover of the motor block.
9) Snip the cables to the battery and remove the battery for environmentally friendly disposal.

Disposal of packaging

The packaging for this product is made from environmentally friendly material and can be disposed of at your local recycling plant.

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Indholdsfortegnelse

Indledning 10

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Table des matières

Introduction 18

Usage conforme ....18

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhoud

Inleiding....26

WAARSCHUWING! LETSELGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einleitung ....34

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND / GERMANY

www.kompernass.com

Last Information Update · Tilstand af information · Version des informations

Stand van de informatie · Stand der Informationen:

07 / 2014 · Ident.-No.: SABD3.6LiA1-042014-2
