USER MANUAL DVM8050 VELLEMAN

DIGITAL LUXMETER DIGITALE LUXMETER LUXMÈTRE NUMÉRIQUE LUXÓMETRO DIGITAL DIGITALES LUXMETER LUKSOMIERZ CYFROWY

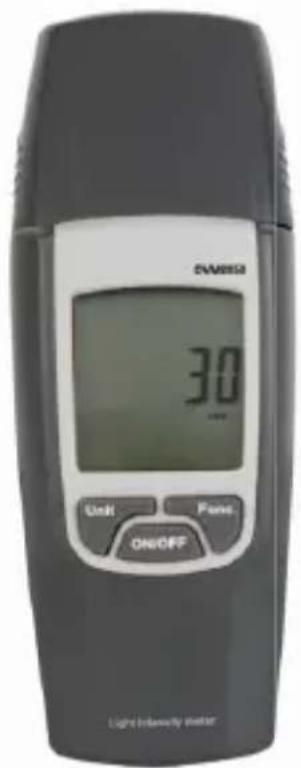

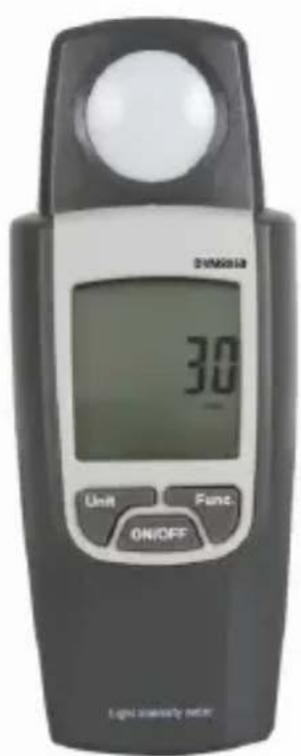

ON/OFF 30 Unit Power Light Intensity Meter

SVM658 30 Unit Func. ON/OFF Light university notes

Close-up of a black plastic electronic component with a U-shaped cutout (no text or symbols visible)

USER MANUAL	4
GEBRUIKERSHANDLEIDING	7
NOTICE D'EMPLOI	10
MANUAL DEL USUARIO	13
BEDIENUNGSANLEITUNG	16
INSTRUKCJA OBSŁUGI	19

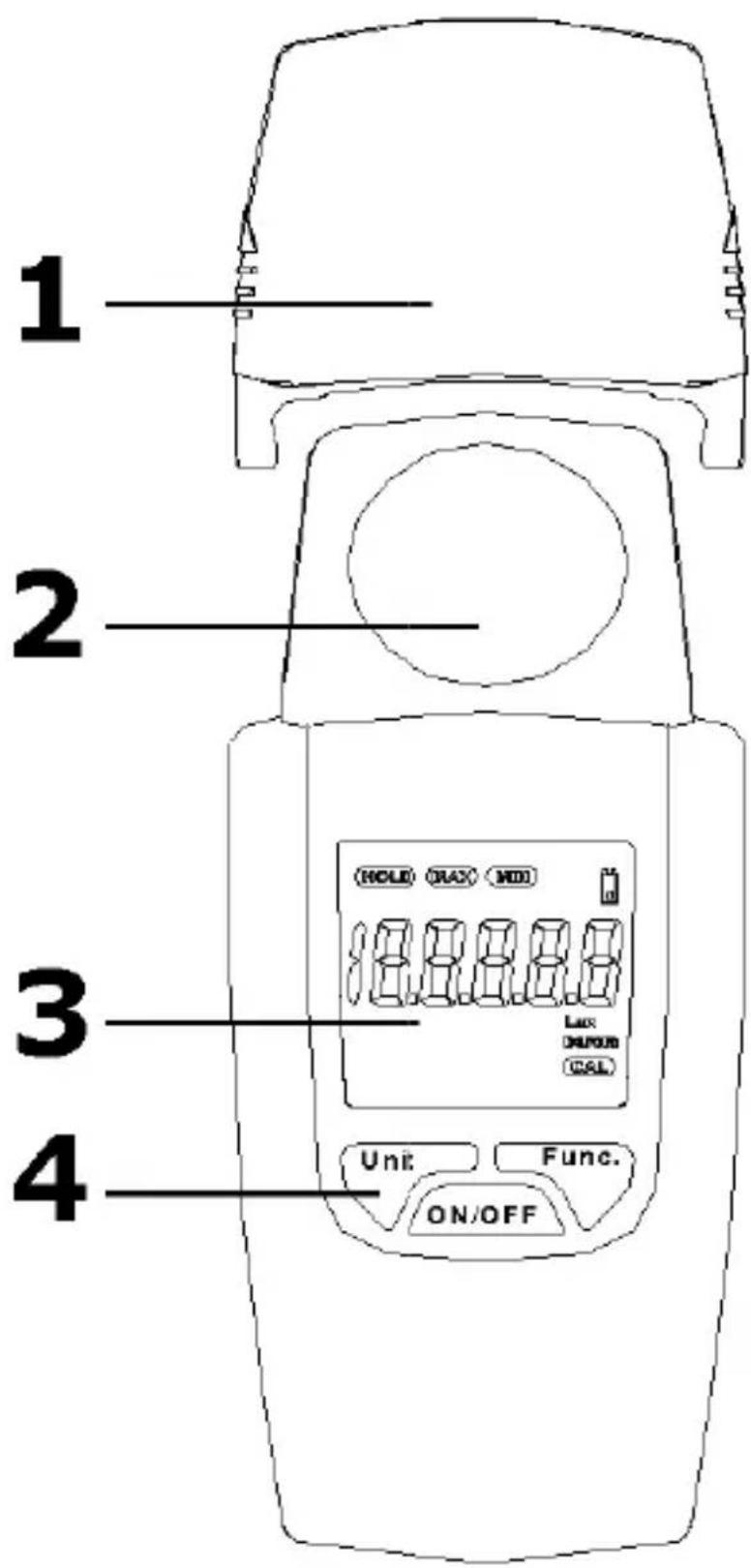

1 2 3 4 HCLE ORAX MDI Lax DUPON GSL Unit Func. ON/OFF

1	Sen sor cover
2	Sen sor
3	LCD display
4	Function keys

1	besc hermdop
2	sens or
3	lcd- scherm
4	func tlietoetsen

B A HOLD MAX MIN C G D E fte Lux F

A	h old mode
B	m ax mode
C	m in mode
D	m esured value
E	u nit foot-candle
F	u nit lux
G	b attery indicator

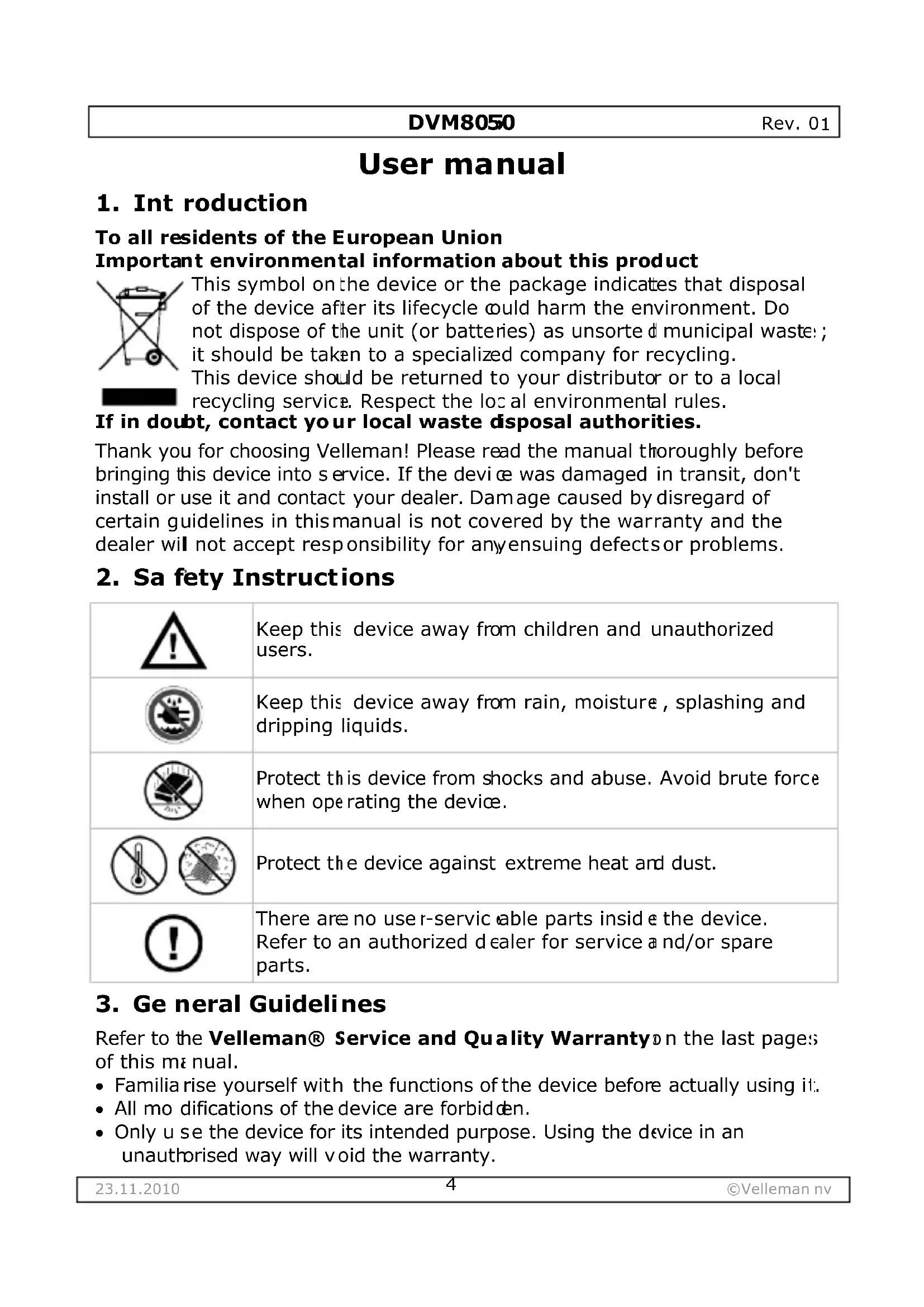

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, don't install or use it and contact your dealer. Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

2. Safety Instructions

	Keep this device away from children and unauthorized users.
	Keep this device away from rain, moisture, splashing and dripping liquids.
	Protect this device from shocks and abuse. Avoid brute force when operating the device.
	Protect the device against extreme heat and dust.
	There are no user-servicable parts inside the device. Refer to an authorized dealer for service and/or spare parts.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

• Familia rise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.

4. Features

• 6 digits LCD
• auto power-off
• comes with: storage box, wristlet, batteries, user manual
• optional telescopic tripod (not incl.): CAMB17

5. Use

Refer to the illustrations on pages 2 and 3 of this manual.

• Remove the sensor cover [1] by releasing the screw at the back of the device and sliding the cover upwards.
• Press the ON/OFF button to switch the device on. Press and hold ±2s to switch it off.
• The device powers off automatically after ±20min. To disable auto-power off, press and hold the Unit button and press the ON/OFF button. Press the Unit button to toggle between AP ON and AP OFF and press the ON/OFF button. The setting is applied when the device is switched on again. To re-enable auto-power off switch the device off and repeat this procedure.

- Press the Unit button to switch from lux to ftc (foot-candle) and back.

Note: 1ftc ≈ 10.764 lux

• For correct measurement hold the luxmeter horizontal with the light sensor [2] facing upwards.
• Press the Func. button to go into hold-mode [A]. The current measurement remains on the display.
• Press the Func. button again to show the maximum measured value [B].
• Press the Func. button again to show the minimum measured value [C].
• To reset the maximum and minimum values, while in min-mode, press and hold the Func. button for ±2s.
• Press and hold the Unit button for ±2s to switch on the backlight. Press and hold again for ±2s to switch it off. The backlight will switch off automatically after ±60s.
• When the battery indicator [G] is shown, replace the batteries (see §8).
  • Always place the sensor cover [1] back when the device is not in use.

6. Operation tips

• Keep the sensor [2] clean. Do not scratch it while doing so.
• Do not measure outside of the operating range ('OL' is displayed on the LCD) and do not measure in places with high humidity. Refer to the technical specifications for more details.
• Consider mounting the device on a tripod (not incl.) for longer and more stable measurements.
• Make sure the device is at ambient temperature for accurate measurements.
• Remove the batteries when the device is not used for a long time.

7. Ma intenance

- Wipe the device regularly with a moist, lint-free cloth. Do not use alcohol or solvents. DO NOT submerge the device in any liquid..

8. Batteries

• To replace the batteries, make sure the device is switched off.
• Open the battery cover at the back by sliding it downwards (away from the sensor).
• Take out the old batteries and replace them with 3 new and identical 1.5V AAA batteries following the polarity markings inside the battery compartment.
• Slide the battery cover back in place.

Do not puncture or throw batteries in fire. Dispose of batteries in accordance with local regulations. Do not attempt to recharge non-rechargeable batteries. Keep batteries away from children.

9. Technical specifications

LCD display	€ digits
parameters	lux (lm/m2), foot candle (lm/ft2)
measuring range	(~90000 lux (0~8300 ftc)
resolution	1 lux (0~90000 lux), 0.1 ftc (0~8300 ft-c)
accuracy	= (3% + 30 digits)
sample rate	1x/s
operating temperature	(°C ~ +50°C (32°F~122°F)
storage temperature	-20°C ~ +60°C (-4°F~140°F)
humidity	(~ 80% RH
power supply	1 x 1.5V AAA batteries (incl.)
auto power-off	= 20 min.
dimensions	121 x 60 x 30mm
weight	= 180g

Use this device with original accessories only. Velleman mv cannot be held responsible in the event of damage or injury resulted from (incorrect) use of this device.

For moreinfo concerning this product, please visit our website www.velleman.eu.

The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

This manual is copyrighted. The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

B A HOLD MAX MIN C G D E ftc Lux F

Velleman® Service and Quality Warranty

Velleman® has over 35 years of experience in the electronics world and distributes its products in more than 85 countries. All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion. You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;
• frequently replaced consumable goods, parts or accessories such as batteries, lamps, rubber parts, drive belts... (unlimited list);
• flaws resulting from fire, water damage, lightning, accident, natural disaster, etc. ...;
• flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;
• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);
• damage resulting from an inappropriate packing and shipping of the article;

• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
  • Repairs occurring after warranty expiration are subject to shipping costs.
• The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
