JC4000 - Juicer Waring Commercial - Free user manual and instructions

Product Type	Juice Extractor
Brand	Waring Commercial
Model	JC4000
Usage	Commercial
Power Supply	120 V ~ 60 Hz (UL models) / 230 V ~ 50 Hz (CE models)
Motor Type	Induction, direct drive, lifetime lubrication, ball bearing, capacitor start
Motor Base Material	Polycarbonate
Power Cord	3 conductors with ground wire
Certifications	UL (120 V), CE (230 V)
Included Parts	Splash guard (series 4000), reamer, filter, bowl, motor base
Protection Feature	Thermal overload protection against overload and overheating, automatic shut-off, reset after cooling
Cleaning removable parts	Rinse under running water immediately after use
Cleaning the motor base	Wipe with a soft cloth or damp sponge; do not immerse
Safety	Unplug before assembly/disassembly or cleaning; avoid contact with reamer while in operation; do not use with damaged cord
Warranty	1 year from date of purchase (USA and Canada)
After-sales service	Waring Approved Service Center
Fruit Types	Citrus fruits (cut in half)
Motor lubrication	No maintenance required; lifetime lubrication
Reamer	Removable, suitable for citrus
Filter	Removable, included

Frequently Asked Questions - JC4000 Waring Commercial

How to assemble the JC4000 juicer?

Make sure the appliance is unplugged. Place the bowl on the motor base, spout facing forward. Insert the filter into the bowl. Position the reamer on the drive shaft and push firmly. Finally, place the splash guard (4000 models) on the bowl.

How to clean the parts after each use?

Unplug the appliance. Disassemble all removable parts: splash guard, reamer, filter, bowl. Rinse them under running water immediately. Do not use abrasive cleaners. Wipe the motor base with a damp cloth, never immerse it.

What to do if the motor stops suddenly during use?

The appliance is equipped with a thermal overload protector against overload or overheating. Set the switch to OFF (0), unplug the cord, and allow the appliance to cool to room temperature. Plug back in and set to ON (1) to resume.

Can I wash the motor base with water?

No, never immerse the motor base in water or any other liquid. Clean it only with a soft cloth or damp sponge. Immersion may cause electric shock or damage the appliance.

What types of fruit can I use with the JC4000?

This juicer is designed for citrus fruits (oranges, lemons, grapefruits, etc.). Cut the fruit in half before pressing on the reamer. Do not use other types of hard or fibrous fruits.

How to maintain the juicer motor?

The motor is lifetime lubricated and requires no greasing or oiling. No periodic maintenance is required. If a problem occurs, contact an authorized service center.

What to do if the power cord is damaged?

Do not use the appliance. The cord must be replaced only by the manufacturer's authorized importer or an authorized service center. Do not attempt to repair it yourself.

What is the warranty of the Waring Commercial JC4000?

The warranty is for one year from the date of purchase against defects in material and workmanship, for use in the United States and Canada. It does not cover normal wear, overload, or unauthorized repairs.

Where can I get spare parts or have my appliance repaired?

For spare parts or repairs (out of warranty), contact the Waring Service Center in Torrington, CT, or an authorized repair center. Contact information is in the manual.

Can I use the appliance without the splash guard?

The splash guard is a safety accessory supplied with series 4000 models. It is recommended to use it to avoid splashes. Its absence may result in juice splashes.

USER MANUAL JC4000 Waring Commercial

Heavy-Duty Citrus Juicer

Operating Manual Manual de Operación Mode d'Emploi Bedienungsanleitung Gebruiksaanwijzingen Istruzioni per l'Utilizzo

For your safety and continued enjoyment of this product, always read the instruction book carefully before using.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS.

1. To protect against risk of electrical shock do not put Motor Housing in water or other liquids.
2. Unplug from outlet when not in use, before assembling or disassembling, and before cleaning.
3. Avoid contacting moving parts.
4. Do not operate any appliance with a damaged cord or plug that has been dropped or damaged in any manner.
5. The use of any attachments not recommended by the manufacturer may cause fire, electrical shock or injury.
6. Do not let cord hang over edge of table or counter, or touch hot surfaces.
7. Set power switch to the OFF (0) position after each use of your Citrus Juicer.
8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

NOTE: This operating manual applies to the 3000-series and 4000-series and JX40 series juicers.

SAVE THESE INSTRUCTIONS

SPECIFICATIONS

○ RATINGS 120 VAC 60 HZ SINGLE PHASE
230V \~ 50 HZ SINGLE PHASE

○ MOTOR PERMANENTLY LUBRICATED, BALL-BEARING CAPACITOR-START DIRECT DRIVE INDUCTION TYPE

○ HOUSING POLYCARBONATE

○ CORD THREE CONDUCTOR GROUNDED CORD.

○ UL LISTED 120 VAC MODELS ONLY CE APPROVED FOR 230V 50HZ

NOTE: USE OF AN ADAPTER IS NOT PERMITTED IN CANADA AND EUROPE.

DISASSEMBLY-ASSEMBLY INSTRUCTIONS

IMPORTANT: Citrus Juicer should be unplugged from outlet when disassembling or assembling parts.

DISASSEMBLING: (SEE FIG. 1)

1. After removing your Citrus Juicer from the box, familiarize yourself with the parts by disassembling the unit while referring to FIG. 1.
2. Pull off Splash Hood (4000 series only), Reamer and Strainer.
3. Lift Bowl off Motor Housing.

ASSEMBLING: (SEE FIG. 1)

1. Place Bowl on Motor Housing with spout facing front and resting in notch of motor housing.
2. Place Strainer inside of Bowl.
3. Place Reamer on Drive Shaft, and push down firmly to seat.
4. Put Splash Hood on top of Bowl (4000 series only).

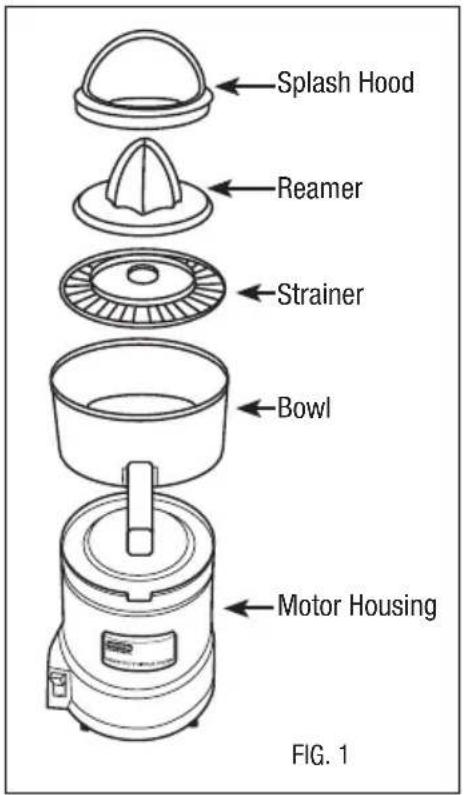

Splash Hood Reamer Strainer Bowl Motor Housing FIG. 1

CLEANING INSTRUCTIONS

Clean Juicer immediately after each use, and prior to initial use as follows:

1. UNPLUG POWER CORD.
2. Separate all removable parts according to disassembly instructions.
3. Rinse removable parts thoroughly under running water.
4. Wipe external surfaces of Motor Housing with a soft cloth or sponge, dampened with water.

DO NOT IMMERSE MOTOR HOUSING IN WATER.

OPERATION

1. With power cord unplugged, assemble all parts per assembly instructions.
2. Plug power cord into appropriate electrical outlet.
3. Set the power switch to the ON (1) position, and allow a few seconds for motor to reach full speed.
4. Place halved citrus fruit on rotating reamer, and push down firmly.

NOTE: Your juicer is equipped with a protective device which will interrupt power and stop the motor if the juicer becomes overloaded or overheated for any reason. Should this occur, perform the following steps in the indicated sequence:

1. Set the power switch to the OFF (0) position.

2. Unplug the power cord.

3. Allow juicer to cool to room temperature.
4. Plug in power cord.
5. Set the power switch to the ON (1) position, and continue juicing.

CAUTION: KEEP FINGERS FROM CONTACT WITH ROTATING REAMER

MAINTENANCE

- MOTOR

The motor requires no greasing or oiling. Sealed-in lubrication gives the unit lifetime smooth operation.

- POWER SUPPLY CORD

The power supply cord should not be replaced by the end user. The power supply cord should only be replaced by the manufacturer's authorized importer (or, in the United States and Canada, by an authorized service center). For repairs or further questions, please contact the manufacturer's authorized importer (or, in the United States and Canada, an authorized service center)

LIMITED 1 YEAR WARRANTY

Waring warrants every new WARING ^® COMMERCIAL PRODUCT to be free from defects in material and workmanship for a period of one year from the date of purchase when used with foodstuffs, non-abrasive liquids (other than detergents) and non-abrasive semi-liquids, providing it has not been subject to loads in excess of the indicated rating.

Under this warranty, the Waring ^® Commercial Division will repair or replace any part which, upon our examination, is defective in materials or workmanship, provided the product is delivered prepaid to the Waring ^® Service Center at 314 Ella T. Grasso Avenue, Torrington, CT 06790, or any Factory Approved Service Center.

This warranty does not: a) apply to any product which has become worn, defective, damaged or broken due to use or due to repairs or servicing by other than the Waring® Service Center or a Factory Approved Service Center or due to abuse, misuse, overloading or tampering; b) cover consequential damages of any kind.

The one year warranty is applicable only to appliances used in the United States and Canada; this supersedes all other express product warranty or guaranty statements.

For Waring ^® products sold outside of the U.S. and Canada, the warranty is the responsibility of the local importer or distributor. This warranty may vary according to local regulations.

WARNING: This warranty is VOID if appliance is used on Direct Current (DC).

SERVICE

Should service on this product in the United States or Canada be required at any time, call or write to:

Waring Service Center • P.O. Box 3201, 314 Ella T. Grasso Avenue, Torrington, CT 06790

Tel. [phone] • Fax [phone]

or

Nearest Authorized Service Center

Replacement parts for Waring "Out of Warranty" repairs are obtainable at the above address.

WARING Service Center • P.O. Box 3201, 314 Ella T. Grasso Avenue, Torrington, CT 06790
