JE2000 - Juicer Waring Commercial - Free user manual and instructions

Brand	Waring Commercial
Model	JE2000
Product Type	Juicer
Category	Commercial Juicer
Dimensions (L x W x H)	12 x 8 x 16 inches
Weight	20 lbs
Power Supply	120V, 60Hz
Power Consumption	600 Watts
Motor Type	Induction motor
Speed Settings	Single speed
Juice Capacity	50 oz
Pulp Container Capacity	80 oz
Feeding Chute Size	Whole fruit, up to 3 inches diameter
Housing Material	Stainless steel and die-cast metal
Strainer Material	Stainless steel micro mesh
Dishwasher Safe Parts	Yes, all removable parts
Safety Features	Safety lock arm, non-slip feet
Warranty	1 year limited warranty
Included Accessories	Pusher, pulp container, juice container
Certifications	NSF, UL
Country of Origin	USA
Noise Level	70 dB
Color	Silver/Black
Usage	Commercial and heavy-duty home use

Frequently Asked Questions - JE2000 Waring Commercial

How do I operate the Waring Commercial JE2000 juicer?

Ensure all parts are assembled correctly, plug into a grounded outlet, and push the power switch to ON. Feed fruits or vegetables through the chute using the pusher. Do not force food; let the motor do the work.

Can I juice whole fruits like apples or oranges?

Yes, the JE2000 has a large chute that accommodates whole apples and oranges up to 3 inches in diameter. Cut larger fruits into pieces that fit.

How do I clean the juicer?

Disassemble the parts and rinse immediately after use. All removable parts are dishwasher safe. The stainless steel strainer can be cleaned with a brush. Wipe the motor base with a damp cloth.

What safety features does the JE2000 have?

It includes a safety lock arm that must be properly locked for the motor to start. Non-slip feet ensure stability during operation.

Why is the juicer not starting?

Check that the safety lock arm is fully engaged and that the pulp container and cover are correctly positioned. Ensure the power cord is plugged in and the switch is ON.

Can I juice leafy greens like spinach or kale?

Yes, but it is recommended to roll them into balls or combine with other fruits for better extraction. The JE2000 handles leafy greens efficiently.

What is the warranty on this juicer?

The Waring Commercial JE2000 comes with a 1-year limited warranty covering defects in materials and workmanship. Warranty may vary by region.

How loud is the JE2000 during operation?

The noise level is approximately 70 dB, comparable to a standard vacuum cleaner. It is typical for a commercial-grade juicer.

Can I purchase replacement parts like the strainer or pusher?

Yes, replacement parts are available through Waring Commercial customer service or authorized dealers. Common parts include the stainless steel strainer and pusher.

Is the JE2000 suitable for continuous commercial use?

Yes, it is designed for heavy-duty commercial use. The induction motor and metal construction provide durability for high-volume juicing.

USER MANUAL JE2000 Waring Commercial

Black-and-white photo of a Varing Commercial juice extractor with a white brush and handle (no text or symbols on the device itself)

JE2000
JUICE EXTRACTOR
WITH PULP EJECTOR

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS.

2. To protect against risk of electrical shock do not put motor base housing, shown in Figure A of your manual, in water or other liquid.

3. Close supervision is necessary when any appliance is used by or near children.

4. Always unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.

5. Avoid contacting moving parts.

6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment.

7. The use of any attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter, or touch hot surfaces.

10. Always make sure juicer lid is secure beneath latching bar before motor is turned on. Do not loosen lid while Juice Extractor is in operation.

11. Be sure to turn switch to “off” position after each use of your Juice Extractor. Make sure the motor stops completely and is unplugged before disassembling,

12. Do not put your fingers or other foreign objects into the Juice Extractor opening while it is in operation. If food becomes lodged in opening, use food plunger or another piece of fruit or vegetable to push it down. Do not push with fingers. When this method is not possible, turn the motor off and disassemble juicer to remove the remaining food.

SAVE THESE INSTRUCTIONS

For your record, Product ____

please fill in this Serial No.

information for Date of Purchase

future use. Purchased from

Catalog No. ____

CONTENTS

Page

Wonderful New Nutritional Experience....3

Operating Instructions 4

Cleaning & Disassembly 5

Figure A. 6

Tips for Juicing Properly 7-8

Suggestions for Juice Combinations 9

Uses of Pulp 9

Parts List....9

Exploded Diagram of JE2000 10

Parts & Service List....11-12

A WONDERFUL NEW NUTRITIONAL EXPERIENCE

Raw juices derived from fresh fruits and vegetables are invaluable in helping maintain a balanced diet. Raw juice is highly assimilable and contains, in its most natural and complete form, precious vitamins and minerals, bioflavonoids and enzymes. In addition, nutritional authorities state that raw juice is food in easily digested form.

For best results, use your Waring ^® Commercial Juice Extractor in the manner recommended in this instruction manual.

For new consumers, because of the cleansing and rebuilding properties contained in juices, it is recommended that you initially consume juices in small amounts the first week, and then gradually increase amounts as you can comfortably enjoy them in accordance with juice book recommendations.

Vegetable juices can be mixed, but if fruit juices are added, do not use more than one kind. It is recommended that fruit juices be taken alone, between meals, and at room temperature.

For further information on the consumption of juices, we recommend that you visit your health food store and pick up one of the many juice books available on this subject.

The Waring® Commercial Juice Extractor is the result of years of intensive research and scientific developments, and we feel sure you will be delighted with its precise performance.

OPERATING INSTRUCTIONS

GENERAL INFORMATION

The fruits or vegetables should be introduced into the machine after the machine is running. When the machine is connected, use only the plunger (017974) to process fruits and vegetables, do not use hands. The juices are kept pure by insuring that all parts in direct contact with food are manufactured from the highest quality stainless steel.

At the end of each juicing process we suggest that you add a wedge of lemon to the juices because it helps to keep them from discoloring.

Care should be exercised when handling the strainer (017963), as dropping or rough treatment in the sink can damage its balance or precision screen material.

VERY IMPORTANT

Before using the machine, check that it is plugged into a 120V AC electrical supply with grounded outlet.

Before using the machine, we also suggest that you wash the following parts with hot water and mild detergent:

a. Plunger (017974)
b. Cover with Pulp Deflector (017972)
c. Filter Strainer (017963), Shredder (017971), Shredder Hub Screw (017977) removable with the Tool (017978)
d. Bowl with Spout (017964)
e. Pulp Container (017973)

ATTENTION: The Top Housing unit should be cleaned only with a wet sponge.

ASSEMBLY

Ensure that the cover with pulp deflector (017972), the shredder (017971), the shredder hub screw (017977) and the bowl with spout (017964) are securely assembled with the bar clamp (017966).

CLEANING & DISASSEMBLY

CLEANING

a. Unplug the machine from electrical outlet.
b. Disassemble all the washable pieces of the machine and rinse in cold water.
Note: Never immerse or pour water on the lower part of machine containing motor – clean motor housing using only a wet sponge.
c. It is sufficient to put each piece under cold water. Should the machine remain unused for a long time without being washed, use warm water, mild detergent and scrub strainer with cleaning brush provided.
d. Important: When using some types of fruits or vegetables, especially carrots, a layer may form which can gradually close the filter. It is necessary to soak the Filter Strainer (017963) at least once a week overnight in water with dishwasher detergent (e.g. 8 tablespoons of “Cascade” or equivalent per gallon).

DISASSEMBLY (See Fig. A)

1. Remove plunger.
2. Unlock lock toggle bar (Rotate Up) and remove cover with pulp deflector.
3. Remove shredder and filter strainer by removing shredder hub screw, turning it counterclockwise using tool (017978).
   Note: Gently holding the top rim of the filter strainer with the opposite hand is usually sufficient for undoing shredder hub screw, but if screw has become stuck, we have provided a locking button.

The locking button must be firmly pressed and filter strainer rotated until button engages. This will lock rotary shaft while required torque is applied with Shredder Hub tool to break shredder hub screw loose.

1. Once the screw is removed, shredder, filter strainer and bowl with spout are easily removed simultaneously by lifting vertically off the bowl.

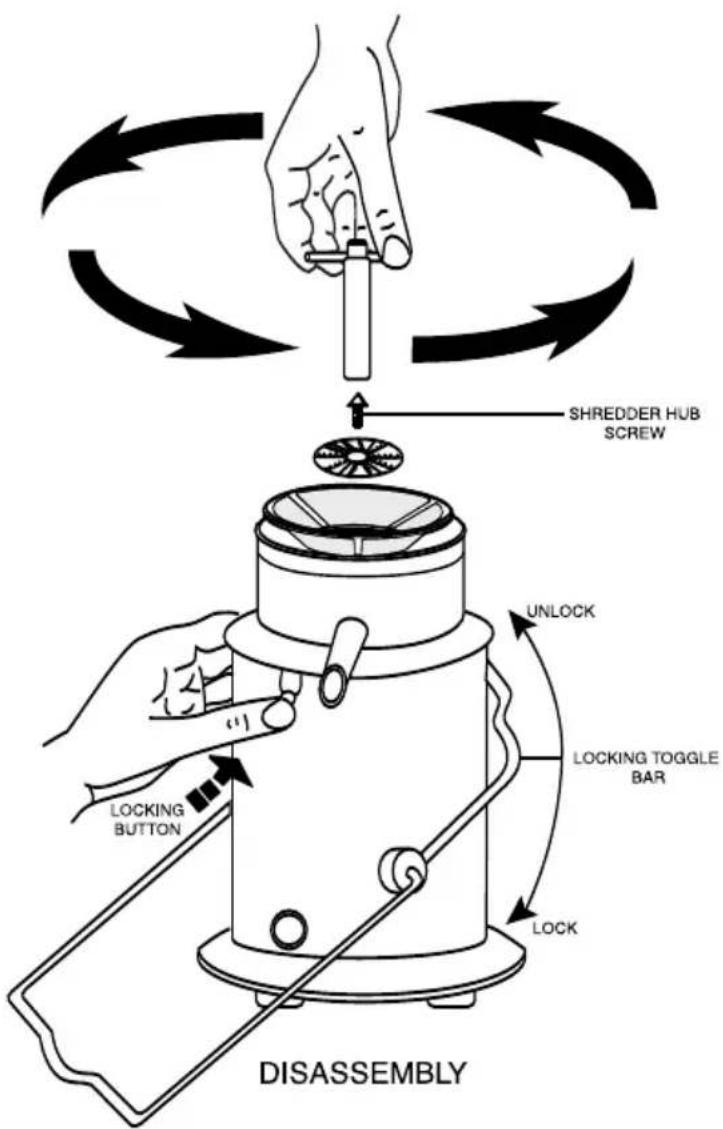

FIGURE A

Note:

1. To loosen shredder hub screw, gently hold top rim of the filter and turn shredder hub screw counterclockwise, using tool. However, if this becomes difficult, push and hold locking button.
2. To disassemble unit, place bar over top cover and hold lock toggle bar in upward position to unlock or in downward position to lock.
3. This machine has a safety interlock and will not run unless locking toggle bar is in a downward position.

TIPS FOR JUICING PROPERLY

The Waring® Commercial Juice Extractor is a precision machine and the following hints will help you obtain optimum performance. Vegetables should always be fresh and crisp. All fruits and vegetables should be fed through the feeder chute. Cut all vegetables in the largest pieces possible for feeding. With hard fruits and vegetables (carrots, beets, celery, etc.) we recommend a steady, light push. With softer fruits and vegetables (apples, cucumbers), we recommend a slow, even feeding motion to allow the skins to be torn apart completely. The Waring® Juice Extractor is a centrifugal pulp-ejecting type juicer; by following the instructions above, you can avoid juicer vibration.

PREPARATION OF FRUITS AND VEGETABLES

Fruit or vegetable should be washed before being used. (It is necessary to wash the vegetable or fruit in order to remove foreign matter and pesticides).

The fruit or vegetable should be cut before being introduced into the machine, in order to simplify the work (for instance the apple in four pieces). It is necessary to remove the pits from the fruit (for instance, peaches, cherries, etc.). For citrus fruit, we recommend removing skins. Otherwise, juice will have a bitter taste.

THE VITAMIN & MINERAL CONTENT OF MOST POPULAR JUICES AND "HOW TO JUICE"

We have listed some of the most popular fruits and vegetables used for juicing. Of course, there may be fruits or vegetables we have not listed, so please apply the following instructions to any similar fruit or vegetable.

CARROT JUICE A, B, C and G

Potassium, Iron, Magnesium, Calcium, Manganese, Sodium, Silicon and Iodine Carrot juice, the favorite of many people, can be mixed with most any other juice to make a tasty blend. Carrots should be scrubbed with a vegetable brush. Do not peel or cut into small pieces. Leave carrots whole, and cut them only if they are too large to fit into the feeder chute. For best juice extraction, carrots should be juiced at room temperature rather than cold. Carrot juice should be consumed as soon as it is made, or can be stored in the refrigerator for use the same day. Add a few drops of orange or lemon juice, to keep its color much longer.

CABBAGE JUICE A, B, C, G and U

Chlorine, Calcium, Sodium and Iron

After washing, cut into wedges that can be fed into the juicer.

CELERY JUICE A, B, C and E

Potassium, Calcium and Sulphur

Separate stalks and push into juicer with leaf end first.

BEET JUICE A, B, C and G

Sodium, Iron, Calcium, Potassium and Chlorine

Wash thoroughly; cut into sections to fit entry tube.

Beet tops may also be juiced. See instruction for leafy vegetable juices.

CUCUMBER JUICE B, B2, C

Potassium, Calcium, Sodium, Sulphur and Chlorine

Wash thoroughly, quarter the cucumber lengthwise and use a slow, even motion to feed. Peel if desired.

LEAFY VEGETABLE Parsley, Lettuce, Spinach, Turnip Greens, Dandelion, JUICE Watercress, etc.

Wash thoroughly, then wrap in a dry towel and refrigerate until greens become crisp. When ready for juicing, twist and roll into a small ball and use plunger to feed.

These should be juiced first when making a combination with other vegetables.

APPLE JUICE A, B1, B2 and C

Magnesium, Iron, Silicon, Potassium, Phosphorus, Sodium, Calcium, Sulphur and Chlorine

Wash thoroughly. It is not necessary to peel or core apples, but we recommend removing the stem. Cut

into sections to fit entry tube. Hard, firm apples produce the best juice.

CITRUS JUICES Orange, Grapefruit, Lemons, etc.

Large source of Vitamin C, Pectin and Bioflavonoids, especially in white portion under peel.

Note: Very soft fruits and vegetables such as tomatoes, peaches, and grapes can be juiced; however, they should be alternately juiced with firmer fruits and vegetables.

SUGGESTIONS FOR JUICE COMBINATIONS

Many of our customers frequently request recipes and suggestions for tasty combinations of juices. This is very much a matter of individual taste, since ideas of taste-tempting juice combinations vary considerably.

Most everyone enjoys juices in their fresh form just as they come from the Juice Extractor. If this is not the case with you, you can combine different juices in proportions to suit your taste. After experimenting with different juices, everyone will find the combinations that are right for them.

Vegetables and fruit cocktails can be consumed at any time. Nothing surpasses them for helping to quicken energy, and they are delicious, nutritious drinks.

Following are some tips on tasty combinations that are being used and recommended by many of our happy Juice Extractor users. For something new and exciting, you will want to try these recipes.

1. 2/3 Carrot Juice with 1/3 Celery Juice. For improved flavor, add a few drops of lemon juice
2. 1/2 Carrot Juice - 1/2 Apple Juice
3. 3/4 Carrot Juice - 1/4 Cabbage Juice
4. 2/3 Celery Juice - 1/3 Apple Juice
5. 5 oz. Carrot Juice - 2 oz. Cucumber - 1 oz. Beet Juice
6. 4 oz. Carrot Juice - 3 oz. Celery Juice - 1 oz. Parsley (or any leafy green)
7. 4 oz. Orange Juice - 4 oz. Grapefruit Juice - 1 oz. Lemon Juice
8. 6 oz. Apple Juice - 8 oz. Carrot Juice - 2 oz. Spinach Juice
9. 2 oz. Carrot Juice - 4 oz. Apple Juice - 2 oz. Cabbage Juice
10. 7 oz. Celery Juice - 1 oz. Lemon Juice
11. 4 oz. Apple Juice - 4 oz. Orange Juice

As you use your Waring® Commercial Juice Extractor, you may come up with new combinations that you want to share. We would love to hear from you concerning any delightful new discoveries you make. You may contact us at [e-mail].

USES OF PULP

With the Waring ^® Commercial Juice Extractor, nothing is wasted.

Pulp may be used for flavoring in soups, casseroles, breads, cakes, cookies, sauces, salads, and JELL-O® brand gelatin molds. Many people also use the pulp as compost for gardens, shrubbery, flowers and plants.

WARING COMMERCIAL®

PARTS LIST

If for any reason parts are to be ordered, please do so by name and part number as listed. Parts may be ordered from any Authorized Service Center. Be sure to give Model and Serial number from bottom of machine when ordering.

CATALOG MODEL P.O. BOX 3201

JE2000 31JE54 314 ELLA T. GRASSO AVENUE

TORRINGTON, CT 06790

TEL # [phone]

FAX # [phone]

EMAIL: [e-mail]

Illustration# Part# Description

1 017974 Plunger Assy.
2 017976 Entry Tube
3 017983 Set Screw (3 Req.'d)
4 017972 Cover with Pulp Deflector
5 017977 Shredder Hub Screw
6 017971 Shredder
7 017963 Filter Strainer
8 017978 Tool shredder hub screw
9 017964 Bowl with Spout
10 017970 O Ring Seal
11 017966 Bar Clamp
12 017987 Locking Toggle
13 017982 Safety Switch
14 017988 Spring safety switch (2 Req.'d)
15 017980 Motor 1/2 hp
16 017981 Motor Brush (2 Req.'d)
17 023530 Capacitor
18 017967 Lock Stop Button
19 019624 Top Housing
20 019620 Push Button Switch
21 000150W Cord Set
22 017984 Foot (5 Req.'d)
23 017962 Cleaning Brush
24 017973 Pulp Container one gallon

ITEMS NOT SHOWN

019619 - Strain Relief/push button switch 013092 - Lower Bearing

019179 - Upper Bearing

017986 - Screw (5 Req'd)

018772 - Screen/bottom of unit

FOR SERVICE OR PARTS, SEND TO:

Waring Service Center

P.O. Box 3201

314 Ella T. Grasso Avenue

Torrington, CT 06790

Tel # [phone]

Fax # [phone]

Email: [e-mail]

Or any Authorized Waring Service Center.

314 Ella T. Grasso Ave.

Torrington, CT 06790

www.waringproducts.com

017954

RV030011
