USER MANUAL KFK 45411 A2 NF Koenic

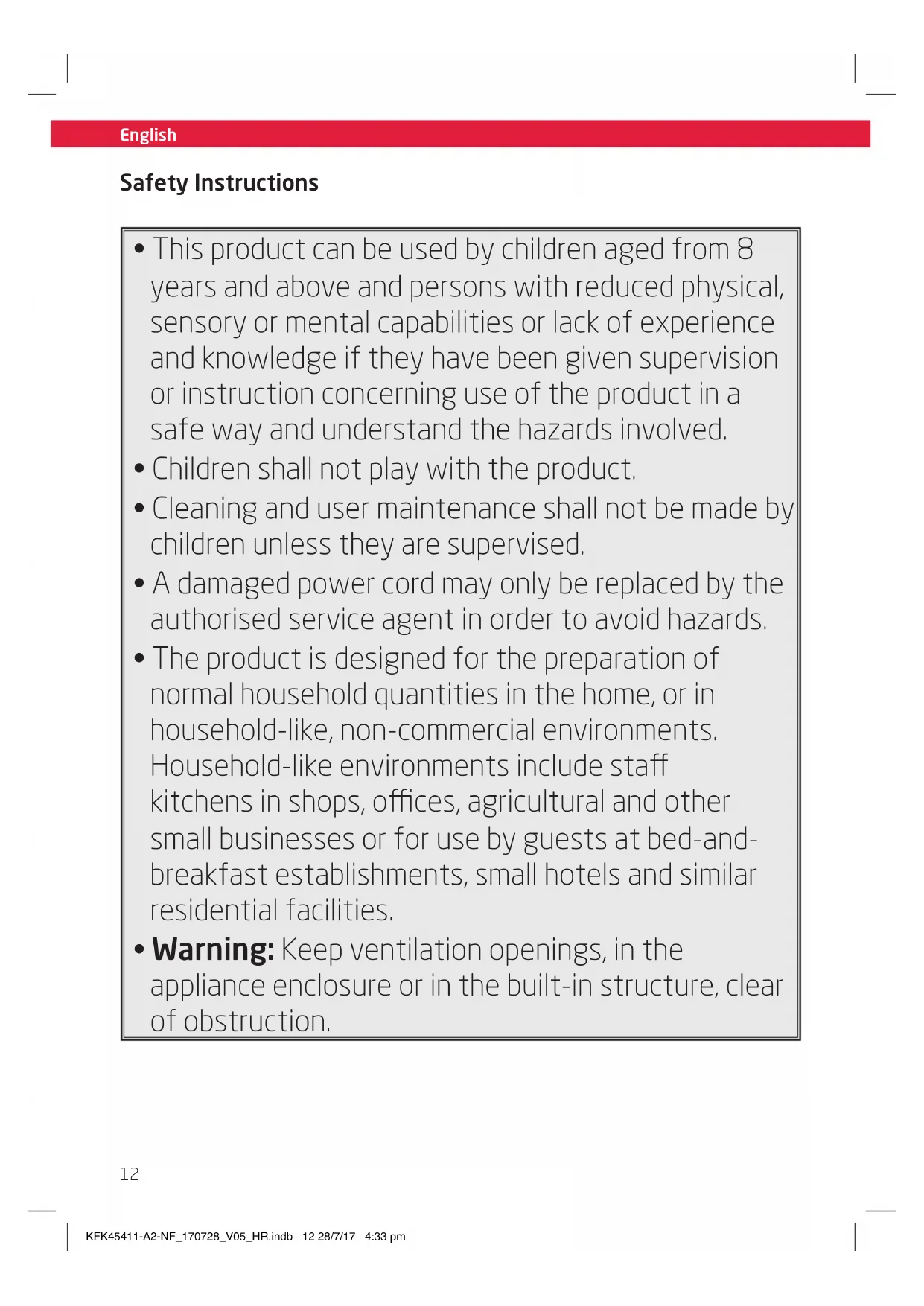

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

• Children shall not play with the product.

• Cleaning and user maintenance shall not be made by children unless they are supervised.

• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.

• The product is designed for the preparation of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include sta kitchens in shops, oces, agricultural and other small businesses or for use by guests at bed-and- breakfast establishments, small hotels and similar residential facilities.

• Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. KFK45411-A2-NF_170728_V05_HR.indb 12 28/7/17 4:33 pmEnglish

• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Warning: Do not damage the refrigerant circuit.

• Warning: Do not use electrical appliances inside the food storage compartments of the product, unless they are of the type recommended by the manufacturer.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this product.

• The lamp is not replaceable.

• Follow the instructions in the chapter Cleaning and care. KFK45411-A2-NF_170728_V05_HR.indb 13 28/7/17 4:33 pmEnglish

thoroughly. It contains important information for your safety as well as for the use and maintenance of the equipment.

2. Do not place any objects on top of the

3. Never immerse electrical parts of the

product in water during cleaning or operation. Never hold the product under running water.

4. Do not under any circumstances attempt

to repair the product yourself. For servicing and repairs, please consult an authorised service agent.

5. The mains voltage must match the

information on the rating label of the product.

6. Only unplug from the power socket can

separate the product completely from the mains.

7. Avoid damages to the power cord that may

be caused by kinks or contact with sharp corners.

8. Keep this product including power cord and

power plug away from all heat sources like for example, ovens, hot plates and other heat-producing products/objects.

9. Only unplug from the power socket by the

plug itself. Do not pull on the cord.

10. Unplug the product ...

- when the product is not being used, - in case of malfunctions, - before attaching / detaching accessories and - before cleaning the product.

11. Use this product in dry indoor areas only

12. This product is not intended for commercial

use. It is designed for household use only.

13. Make sure that electrical components, live

parts and the power cord do not become wet.

14. Use accessories supplied with the device or

recommended by the manufacturer only!

15. Do not cover the product while in use. Fire

hazard! KFK45411-A2-NF_170728_V05_HR.indb 14 28/7/17 4:33 pm15 English Congratulations! Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference. Intended use This product is suitable for refrigerating and freezing food and beverages only. Any other use may damage the device or cause injuries. The product is only intended to be used in private households and shall not be used for commercial purposes. The Imtron GmbH assumes no liability for damages to the product, for property damages or for personal injuries due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer’s specified purpose. Before first time use Carefully remove the product and accessories from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center. Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately. After unpacking, please refer to chapter Cleaning and care. Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information. Content 1 x Fridge and freezer combination 1 x Set for reversing the doors 1 x Set handles with fixing material 2 x Egg holders for 6 eggs each 1 x Ice cube tray 1 x User manual Part list

Temperature and function control panel with display

Indicator LED of fast-freezing function super

Display for refrigerator temperature

Vegetable compartment

Power cord with plug (not shown)

Adjustable feet, front

• Set for changing the door stops (not shown)

• 2x handles with fixing material (not shown)

• 2x egg holders for 6 eggs each (not shown)

Place the unit on a level and stable surface. Keep the minimum distances to all sides. Fig.

Unevenness can be compensated with the adjustable front feet. Fig.

The refrigerator is equipped with three glass shelves, which, if desired can be removed by pulling them forward. The lower glass shelf can be used in two dierent heights. Operation Fig.

Plug in the power plug into an appropriate mains socket outlet. Note: Allow the product to precool for about 2-3 hours before putting in the food. Freezer mode Fig.

Press the Freezer button to set the freezer temperature from -16 to -24 ° C in 2 ° C temperature steps. Fig.

Pressing the Freezer button for at least 3 seconds activates the quick freeze function (super) and the indicator lights up. This causes food to freeze more quickly. The function is automatically switched o after 26 hours or can also be switched o manually by pressing the button Freezer. The freezer then returns to the previous setting. Fridge mode Fig.

Press the Fridge button to set the temperature of the refrigerator from 2, 3, 4, 6 to 8 ° C. Holiday mode Fig.

Pressing the Fridge button for at least 3 seconds activates the holiday function and the indicator lights up. This increases the cooling temperature to 15 ° C to minimize energy consumption. Caution

• Do not store any food in refrigerator if this function is activated.

• The function can be switched o by pressing the Fridge button. The refrigerator then returns to the previous setting. Adjust the sides of the doors Note:

• If necessary, and if the premises require it, the mounting of the doors can be changed. To do this, follow all the following instructions in the given order.

• The following tools are required: Socket wrench 8 mm, wrench 8mm, phillips screwdriver, slotted screwdriver. Due to the uniqueness of the appropriate tools, those are not mentioned separately in the following instructions.

• For this work a dierent stop holder and cover are needed, which are provided with the unit.

• For safety, remove the three door trays to prevent them from being damaged. KFK45411-A2-NF_170728_V05_HR.indb 16 28/7/17 4:33 pm17 English Top door

Pull o the top cover and the corner cap.

To remove the covers, if necessary, use a plastic card or spatula to remove the caps. During unscrewing hold the refrigerator door or it might be damaged. Remove the two screws on the top hinge.

Pull out the door and place it on a soft and clean surface.

Remove the two screws, the stop holder and the stop.

Attach the supplied stop holder and the stop and screw both to the left side of the door. Bottom door

Hold the freezer door and remove the two screws on the middle hinge.

Pull the freezer door upwards and place it on a soft and clean surface.

Remove the two screws, the stop holder and the stop.

Screw the stop holder and the stop on the left side of the door.

Remove the three blind caps from the freezer compartment and insert them into the open holes. Refrigerator bottom Caution Pull out the mains plug!

Tilt the refrigerator so you can work at the bottom or place the refrigerator fully on its back. Make sure the back is placed on a soft and clean surface. Unscrew the feet on both sides. Loosen the screws and remove both plates.

Remove the door hinge bolt and screw it into the adjacent hole.

Replace both plates so that the right-hand hinge plate is located on the left and screw both plates to the bottom. Screw the feet into the plates on both sides. Place the refrigerator back on its feet and adjust them if necessary. KFK45411-A2-NF_170728_V05_HR.indb 17 28/7/17 4:33 pm18 English Mounting the door Caution After you have placed the refrigerator upright on its feet, wait for 2 hours before you connect it to the mains to permit the cooling system to regain full capacity.

Place the freezer door on the lower hinge. Turn the middle hinge and insert the bolt into the left hole of the freezer door and screw the hinge firmly. The freezer door is now fixed. Check for correct function and fitting.

Unscrew the bolt from the top hinge. Turn the hinge, insert and screw in the bolt from the other side again through the hole.

Clip the additional cover (provided) into the top hinge.

Place the hole provided on the left side of the refrigerator door onto the bolt of the middle hinge and hold the door firmly. Insert the top hinge bolt into the left hole provided on the top of the refrigerator door. Screw the upper hinge to the refrigerator. Check for correct function and fitting. Clip on the matching front caps to the hinges.

Clip on the top cover to the refrigerator door.

If necessary, handles can be attached to the refrigerator and freezer door. Remove the protective caps. Fix the handles, with the extra screws provided, to the sides of the refrigerator and freezer door. Insert the extra protective caps provided on the screw heads. Energy saving tips

• Do not place the product in the vicinity of a heat source (radiator or kitchen stove, etc.).

• Ensure unobstructed air flow around the refrigerator and freezer.

• If an ice layer has built, defrost the unit. A thick ice layer aects the transmission of the cold, thus the energy consumption will be increased.

• When opening and taking out food, only open the door shortly. A shorter door opening time causes less ice to deposit on the freezer walls.

• Select the temperature regulator setting according to the of filling amount of the product.

• Use drawers, baskets or shelves to store the food. If the energy of the product is used eciently, the energy consumption can be minimized. KFK45411-A2-NF_170728_V05_HR.indb 18 28/7/17 4:33 pm19 English Decommissioning If a longer break should occur during operation of the refrigerator, the following steps must be carried out:

• Clean the interior of the freezer compartment and let it dry.

• Carefully clean all the accessories (vegetable containers, door compartments, glass shelves, etc.)

• Let the door open to avoid the formation of unpleasant odors and mold. Technical data Voltage : 220-240 V~ Frequency : 50 Hz Rated current : 0.5 A Energy Consumption kWh/24h : 0.625 kWh/year : 228 Ambient temperature : 10°C-43°C Net capacity of refrigerator : 200 L Net capacity of freezer : 85 L Measurement (HxWxD): 595×653×1780 mm Depth with door open : 1200 mm This product is intended to be used in climate classes from SN to T. Climate class Ambient temperature SN +10 to +32 °C S +16 to +32 °C ST +16 to +38 °C T +16 to +43 °C Cleaning and care Warning

• Unplug the product before cleaning.

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning materials and tools may scratch the surface(s).

• Never use oil or grease on the door seal. This will make it porous over time.

• Do not use steam cleaning equipment. The steam may come in contact with electrical parts of the product, causing a short circuit.

• Clean the product’s exterior surfaces with a slightly damp cloth and then dry them thoroughly.

• Make sure that no water enters the product interior (for example, through the switch).

• Wipe the door seal with clean water only, and dry it thoroughly afterwards.

• Removable parts e.g. glass shelves, can be taken out for cleaning. KFK45411-A2-NF_170728_V05_HR.indb 19 28/7/17 4:33 pm20 English Troubleshooting If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer. Problem Possible causes Solution Product does not work •Interrupted power supply •Check the power supply Temperature in the compartments is not low enough.

• The door is not closed firmly or it is opened to often.

• Re-arrange the food so that the door can be closed firmly.

• The ambient temperature is lower than 10 °C or higher than 43 °C

• The product is intended to be operated in an ambient temperature of 10°C to 43°C Water gathers in the lower part of the compartment

• The food comes in contact with the rear wall of the compartment

• Move away the food or container from the rear wall The interior lamp doesn’t shine

Energy consumption “XYZ” kWh per year, based on the standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.

• Storage volume of each compartment

h Temperature of other compartment -- i Frost free for which compartment Cooling and freezing compartment j Power cut safe “X” h 16 k Freezing capacity in kg/24h 12

Climate class This appliance is intended to be used at an ambient temperature between “X” °C and “X” °C SN, N, ST, T m Noise emissions 42 n Intended for built in (yes/no) No KFK45411-A2-NF_170728_V05_HR.indb 58 28/7/17 4:33 pm59 Español Ficha del producto
