USER MANUAL A410 Ardo
A 500 5,0 Kg2,5 Kg1,0 Kg
The machine offers a wide selection of temperatures that can be selected beforehand according to the wash program required (see “PROGRAMME TABLE”). To change the temperature setting, simply rotate button (I) to the required value. In order to effect a cold wash, rotate the knob to the ( ) symbol. LOAD IMBALANCE CHECK DURING SPINNING: This washing machine is fi tted with a special electronic load balancing control system. Before each spin, the system makes sure that the clothes are distributed as uniformly as possible in the drum. If the washing is not distributed evenly, the fi nal spin speed is reduced for safety reasons, while if the load is drastically out of balance, the spin is not effected.

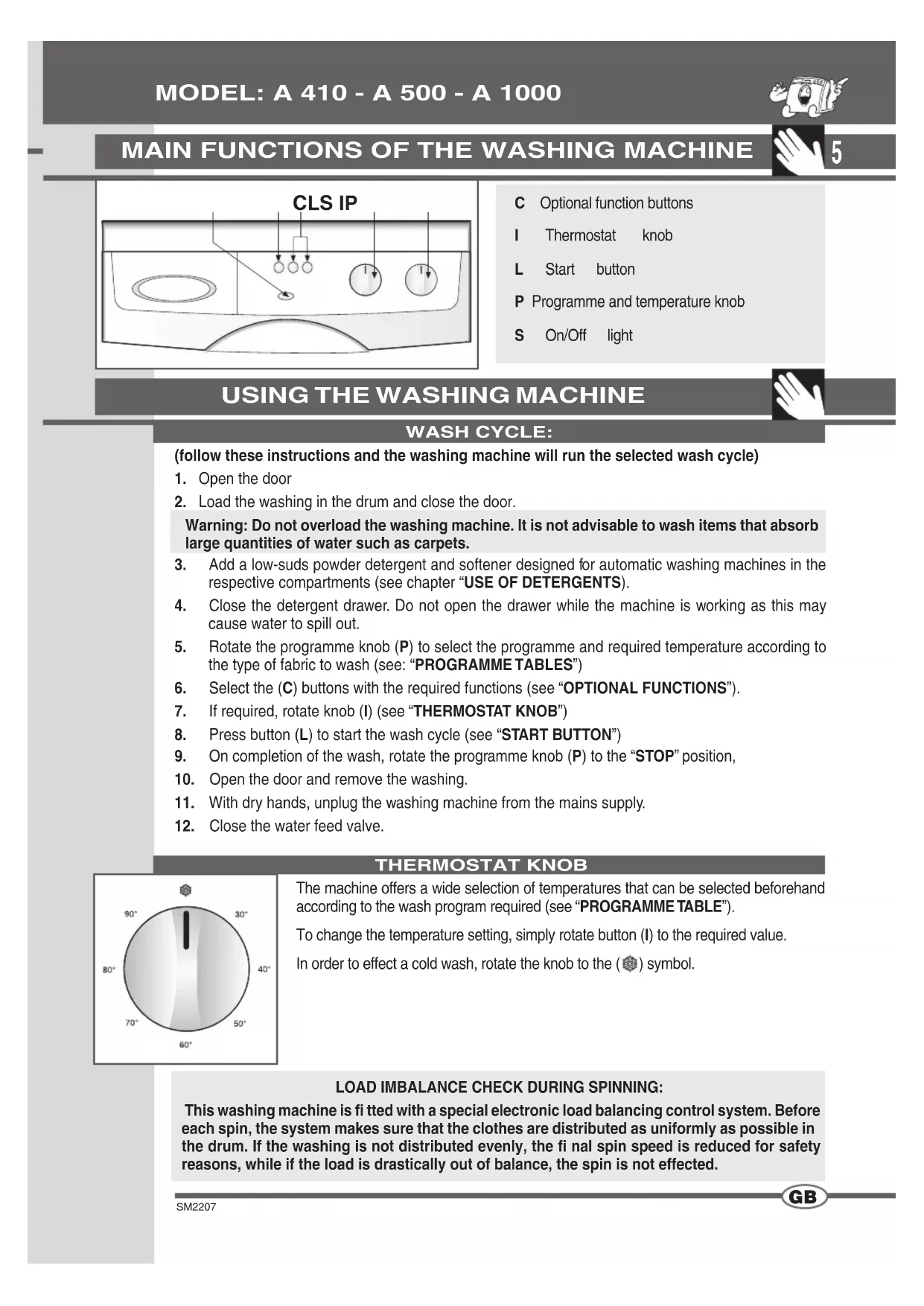

MAIN FUNCTIONS OF THE WASHING MACHINE
(follow these instructions and the washing machine will run the selected wash cycle)
2. Load the washing in the drum and close the door.
Warning: Do not overload the washing machine. It is not advisable to wash items that absorb
large quantities of water such as carpets.
3. Add a low-suds powder detergent and softener designed for automatic washing machines in the
respective compartments (see chapter “USE OF DETERGENTS).
4. Close the detergent drawer. Do not open the drawer while the machine is working as this may
cause water to spill out.
5. Rotate the programme knob (P) to select the programme and required temperature according to
the type of fabric to wash (see: “PROGRAMME TABLES”)
6. Select the (C) buttons with the required functions (see “OPTIONAL FUNCTIONS”).
7. If required, rotate knob (I) (see “THERMOSTAT KNOB”)
8. Press button (L) to start the wash cycle (see “START BUTTON”)
9. On completion of the wash, rotate the programme knob (P) to the “STOP” position,
10. Open the door and remove the washing.
11. With dry hands, unplug the washing machine from the mains supply.
12. Close the water feed valve.
WASH CYCLE: THERMOSTAT KNOB6 SM2207
USING THE WASHING MACHINE
STOP INDICATOR LIGHT: The indicator light is off when the programme knob is in the STOP position. The indicator light in permanently lit during the execution of the programme. The indicator light fl ashes slowly when the programme has fi nished.PROGRAMME KNOB “STOP”: OPTIONAL FUNCTIONS Press this button to execute a short wash of maximum temperature 40°C and ap- proximately 10 minutes. duration This function can only be used on the “COTTON”, “SYNTHETICS” and “DAILY” programmes. N.B. When this option is used, the detergent must also be added to the appropriate pre-wash compartment.PRE-WASH:The stop function resets the washing machine. If, for any reason, you want to change the wash programme or add more washing to the load during the wash cycle, simply place the programme knob in position “STOP”. Then re-position the knob on the new programme and press the “START” button.Warning!! Only use this function if strictly necessary and then only if the program to reset has been running for less than 3 minutes. Before opening the door after a reset, wait 2 minutes for the locking mechanism to release.Press this button to start the wash cycle.NO SPIN:When this button is pressed, the washing machine will effect a wash cycle without spinning.N.B. The use of this function depends on the type of programme selected. Consequently, if the wash programme does not include this function, the button cannot be enabled (see PROGRAMME TABLE). START BUTTON:7 SM2207 PROGRAMME TABLES
PROGRAMME KNOB MAXIMUM WASH
WOOL Heavily soiled white cottonfabrics with organic stains.Colourfast synthetic fabricsthat are heavily soiled.Delicate cotton, viscous andmixed delicate fabrics.Machine washable wool.
- Reference programme for energy classifi cation purposes in accordance with standard EN
*** The “wool cycle” programme of this washing machine has been approved by Woolmark for washing items labelled “machine washable wool” and bearing The Woolmark Company symbols. Follow the instructions reported on the label sewn into the clothing item and those supplied by the washing machine manufacturer. M0402-M0403-M0404-M0405.
“EASY LOGIC” TECHNOLOGY
The electronic washing machine is equipped with an “EASY LOGIC” system that automatically recognises the quantity of washing loaded. The machine can thus regulate the amount of water to use for the wash and proportion the wash time accordingly, thus saving water, time and energy. In the case where the amount of washing is less than the maximum recommended load (see technical characteristics table), the quantity of water used for the wash will be reduced by 2 litres for each kg less of washing. In the case of a half-load or less, the machine will automatically carry out one rinse less than that programmed. N.B. N.B. The “EASY LOGIC” function is only active for cotton programmes.8 SM2207 TECHNICAL CHARACTERISTICS min. 0.05 MPa - max. 1 MPaWidth cm:Height cm:Depth cm:Dimensions:Max. spin: (rpm)Maximumrecommended loadduring washing:Water pressureMax. absorbed power / Electrical connectionsee characteristics plate MODEL 5,0 Kg2,5 Kg1,0 Kg
A 500 5,0 Kg2,5 Kg1,0 Kg
