USER MANUAL CMP 562 USB Trevi

WARNING: DO NOT OPEN THE SET. NEITHER CONTROLS OR SPARE PARTS TO BE USED BY THE USE ARE TO BE FOUND INSIDE IT. APPLY TO AUTHORISED TREVI CENTERS FOR SERVICE OPERATIONS.

ATTENTION

RISQUE DE DECHARGES ELECTRIQUES NE PAS EXPOSER A LA PLUIE ET A L'HUMIDITE

ACHTUNG

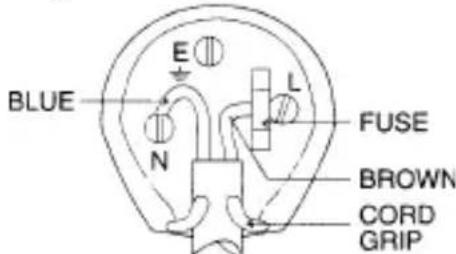

The wires in this mains lead are coloured in accordance with the following wiring codes:

Blue: Neutral

Brown:Live

The wires in this mains lead must be connected to the terminals in the plug as follows:

Blue wire: N or Black

Brown wire: L or Red

Neither wire is to be connected to the earth (E or W) terminal of three-pin plug.

Should the fuse fail in the plug remove the plug form the wall socket and replace the fuse with a 3 Amp. ASTA approved BS 1362 fuse.

ATTENZIONE

Questo symbolo

riportato sul retro

Radio FM: 87.5 - 108.0 MHz

SEZIONE CD

within the triangle is a warning sign alerting you of "dangerous voltage" inside the product.

ELECTRIC SHOCK

This symbol on the

back of the unit and

in this manual indicates the presence in this equipment components operating at high voltage, do not open it to avoid the risk of electric shock.

CAUTIONS ON LASER

This device is equipped

with a reading system with

laser beam. Although the laser is low power and with a safety device that prevents the operation of the door is open always adhere to the following guidelines:

Do not approach the eye to the lens of the laser with the device opened, the danger of damage to the retina.

Do not attempt to dismantle or tamper with the laser unit, danger of absorption of radiation.

NOTES ON USE

This is a precision electronic appliance; avoid using it in the following cases:

• Near strong heat sources, such as central heating plants or stoves.
• In very humid places such as bathrooms, swimming pools, etc.
• In very dusty places.
• In places subject to strong vibrations.
• Position the appliance in such a way that there is always enough room for free air circulation (at least 5 cm).
• Do not block the air inlets.
• If any liquid enters the appliance, unplug it immediately from the socket and take it to the nearest TREVI authorised service centre.
• Before switching on the appliance, always check that the power cable and the connection cable are properly installed.
• No naked flame sources, such as lighted candles, should be placed on this.
• The apparatus shall not be exposed to dripping or splashing water and no objects filled with liquid, such as vases, it should be placed on the unit.
• Read and save this manual

CARE AND MAINTENANCE

Use a slightly damp soft cloth for cleaning. Do not use solvents and abrasive substances.

IMPORTANT

This device is designed for home use (not professional use). This appliance has been carefully built to ensure long-lasting perfect performance. However, should any inconvenience occur, please contact your local authorised TREVI Service Centre.

TREVI follows a policy of ongoing research and development. Therefore products may have different features from those described.

ENGLISH

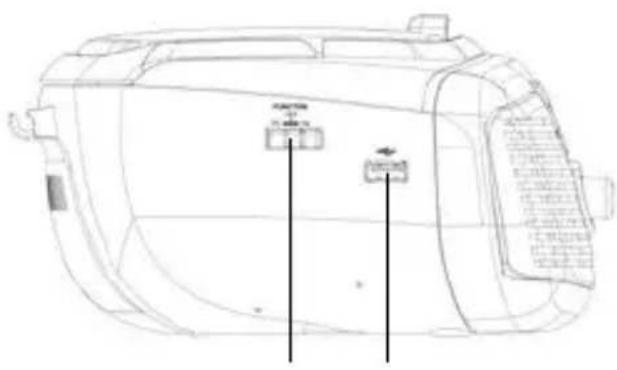

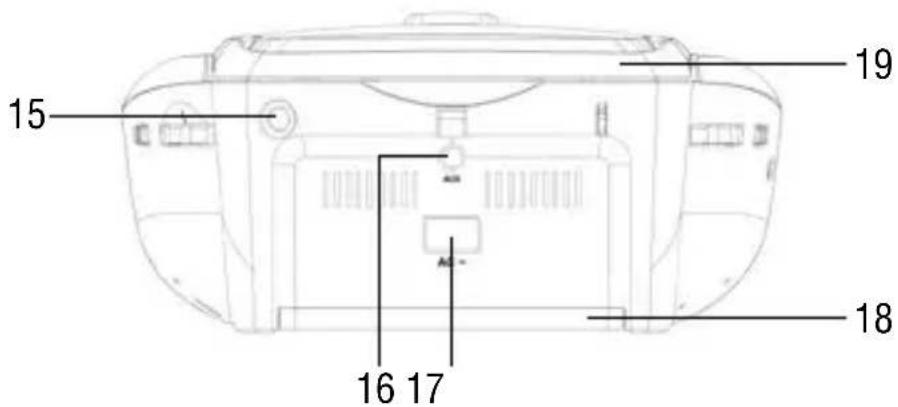

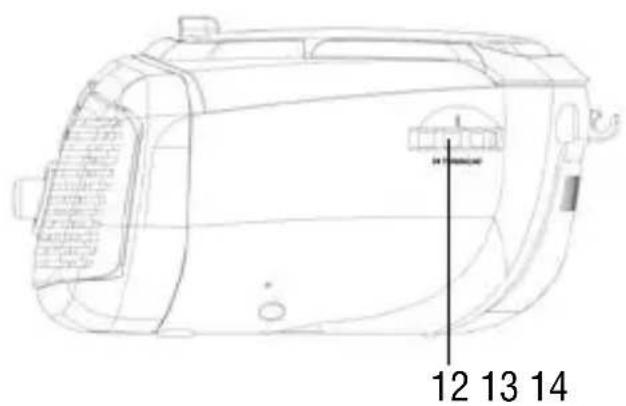

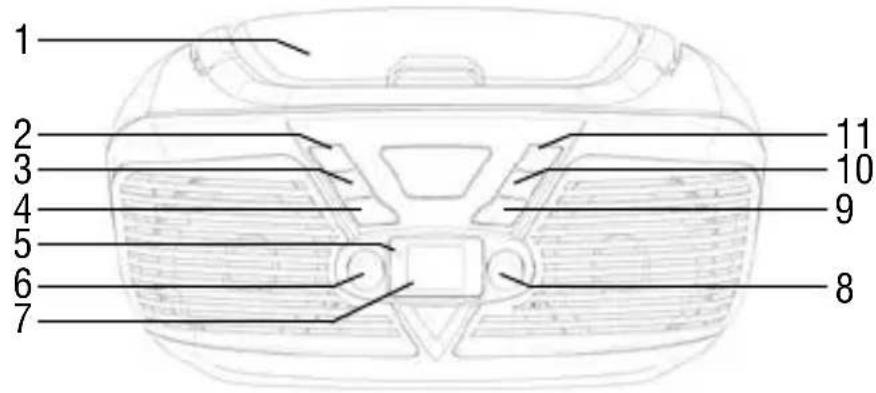

LOCATION OF CONTROLS

CMP 562 USB

1. CD DOOR
2. RPT (REPEAT) button
3. LAST button
4. , TOP button
5. POWER ON Indicator
6. VOLUME KNOB
7. LCD DISPLAY
8. BASS KNOB

9. II (Play/Pause) button

10. , NEXT button
    11.PROG button

11. TUNING KNOB/DIAL SCALE
12. SWITCH Function (CD/MP3-OFF-FM)
13. USB socket
14. Telescopic Antenna
15. AUX IN socket
16. AC SOCKET
17. BATTERY COMPARTMENT DOOR
18. HANDLE

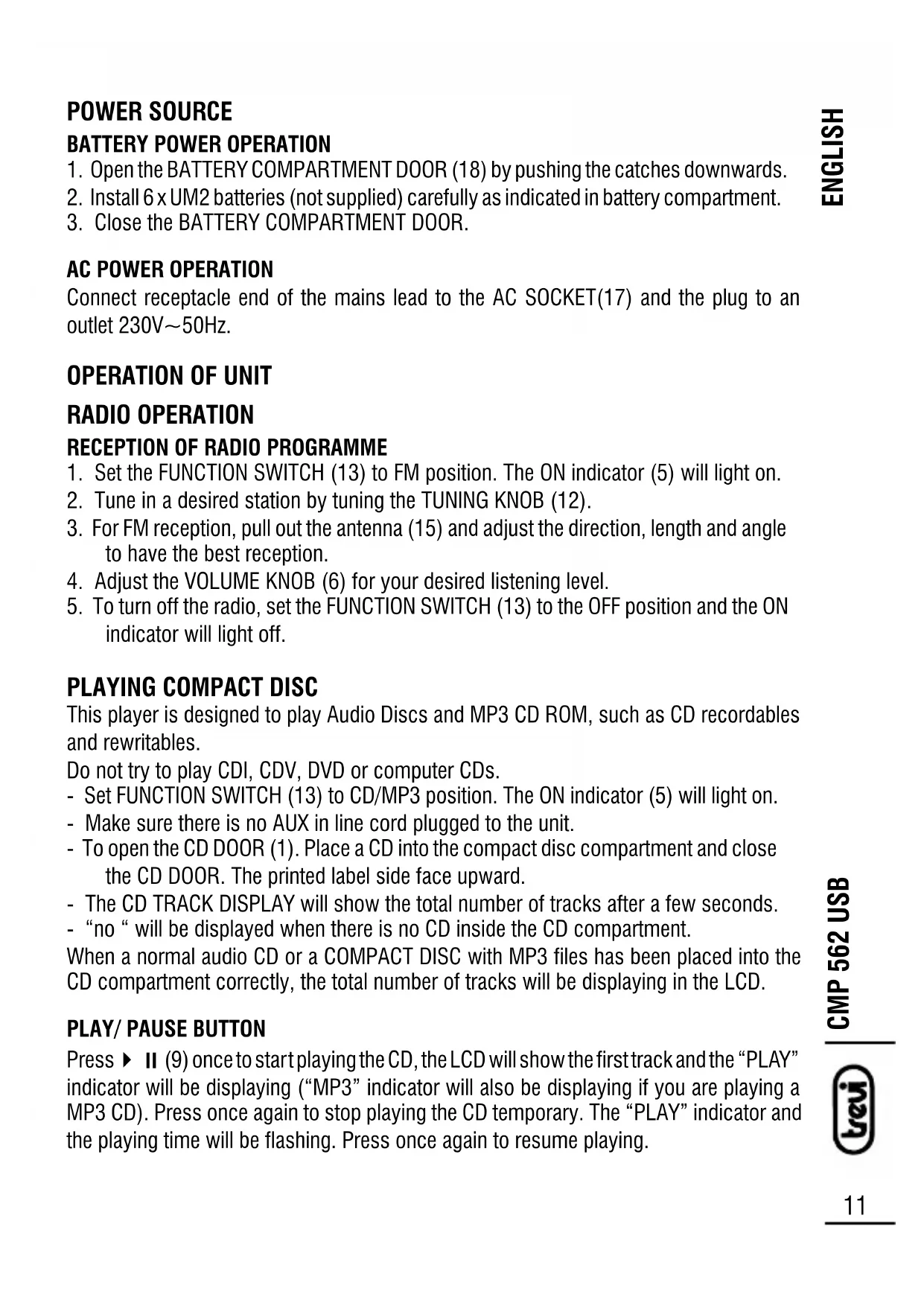

POWER SOURCE

1. Open the BATTERY COMPARTMENT DOOR (18) by pushing the catches downwards.
2. Install 6 x UM2 batteries (not supplied) carefully as indicated in battery compartment.
3. Close the BATTERY COMPARTMENT DOOR.

AC POWER OPERATION

Connect receptacle end of the mains lead to the AC SOCKET(17) and the plug to an outlet 230V 50Hz .

OPERATION OF UNIT

RADIO OPERATION

RECEPTION OF RADIO PROGRAMME

1. Set the FUNCTION SWITCH (13) to FM position. The ON indicator (5) will light on.
2. Tune in a desired station by tuning the TUNING KNOB (12).
3. For FM reception, pull out the antenna (15) and adjust the direction, length and angle to have the best reception.
4. Adjust the VOLUME KNOB (6) for your desired listening level.
5. To turn off the radio, set the FUNCTION SWITCH (13) to the OFF position and the ON indicator will light off.

PLAYING COMPACT DISC

This player is designed to play Audio Discs and MP3 CD ROM, such as CD recordables and rewritables.

Do not try to play CDI, CDV, DVD or computer CDs.

• Set FUNCTION SWITCH (13) to CD/MP3 position. The ON indicator (5) will light on.
• Make sure there is no AUX in line cord plugged to the unit.
• To open the CD DOOR (1). Place a CD into the compact disc compartment and close the CD DOOR. The printed label side face upward.
• The CD TRACK DISPLAY will show the total number of tracks after a few seconds.
• "no" will be displayed when there is no CD inside the CD compartment.

When a normal audio CD or a COMPACT DISC with MP3 files has been placed into the CD compartment correctly, the total number of tracks will be displaying in the LCD.

PLAY/ PAUSE BUTTON

Press II (9) once to start playing the CD, the LCD will show the first track and the "PLAY" indicator will be displaying ("MP3" indicator will also be displaying if you are playing a MP3 CD). Press once again to stop playing the CD temporary. The "PLAY" indicator and the playing time will be flashing. Press once again to resume playing.

STOP BUTTON

Press STOP (4) once to stop playing the CD.

SKIP UP/ SEARCH FORWARD BUTTON

Press button (10) once to skip to next track. Press and hold to search for a desired passage at high speed forward.

Release the button to resume normal play.

SKIP DOWN/ SEARCH BACKWARD BUTTON

Press button (3) once to return to the beginning of the current track. Press repeatedly to skip back to previous track.

Press and hold to search for a desired passage at high speed backward.

Release the button to resume normal play.

PLAY MODE/PROGRAM BUTTON

CD/ MP3 playing mode can only be made when the CD/ MP3 is playing.

(A) WHEN PLAYING NORMAL AUDIO CD

• Press RPT button (2) once for single track repeat playing and the “ ” indicator will be flashing.
• Press twice for all tracks repeat playing and the “ C D ” indicator will be displaying.
• Press three times for all tracks playing in a random order and the "RANDOM" indicator will be displaying.
• To cancel the repeat/ random play mode, press once or more until all the above indicators disappear.

(B) WHEN PLAYING COMPACT DISC WITH MP3 FILES

• Press RPT button (2) once for single track repeat playing and the “ ” indicator will be flashing.
• Press twice to repeat all tracks within the current playing folder. “ C “ & “FOLDER” indicators will be displaying.
• Press three times to repeat all tracks in all folders. “ C ” indicators will be displaying.
• Press four times for all tracks in the CD playing in a random order and the "RANDOM" indicator will be displaying.
• To cancel the repeat/ random play mode, press once or more until all the above indicators disappear.

PROGRAM PLAYBACK

Programming can only be made when the CD/ MP3 playing is stopped.

Programmed playback enables tracks on a disc (normal audio CD or MP3 CD) or USB to be played in the desired order.

1. Press , STOP (4) to stop the playback.
2. Press the PROG (11), "P01" indicator will be displaying in the LCD.
3. Press (10) or (3) to select the desired track no.
4. Press once the PROG (11), again to memorize the first selected track
5. Repeat steps 2 and 3 until all desired tracks are programmed.
6. Press II (Play/Pause) button (9) to start playing.
7. Press the ,TOP(4) twice to stop programmed playback.
8. Open the CD DOOR (1) or turn off the unit to clear the programmed memory.

MP3 USB FUNCTION

1. Set FUNCTION SWITCH (13) to CD/MP3.
2. Connect the USB Flash Drive into the USB port (14).
3. If the audio CD in the compartment, press and hold the II (Play/Pause) button (9) to select the USB function.
4. If USB is readable, the display will show USB and the total number of tracks after a few seconds.
5. Press the II (Play/Pause) button (9) to start playback.
6. Press the ,TOP (4) button to stop play songs. The display (7) will show the total number of tracks.
7. To use the repeat functions refer to chapter "Playing Songs" described in OPERATION PLAYING COMPACT DISC.

CAUTION:

Do not use any USB extension cable to connect the USB stick as it may cause harmful interference. In case of malfunction due to electrostatic discharge, just reset the product (reconnect the power socket) to resume normal operation.

AUX IN FUNCTION

To listen to an external audio source, you need a stereo 3.5mm plug cable (Not included)

1. Connect one end of the 3.5mm plug into the output of the audio source, and the other end of the 3.5mm plug into the AUX IN JACK.
2. Set the FUNCTION SWITCH (13) to CD/MP3. The ON indicator (5) will light on and "AUX" indicator will be displaying in the LCD (7).
3. Play the audio source.
4. Adjust the VOLUME KNOB (6) for your desired listening level. Now you can listen to the audio playing from the audio source through the unit.
5. To turn off the unit, set the FUNCTION SWITCH (13) to the OFF position.

NOTE: Remeber always unplug the 3.5mm plug cable from the unit after used.

ENGLISH

POWER SAVING

When the unit is in CD/MP3, USB or AUX-IN function, it will be off automatically after 15 minutes in following situation:

1) PLAYING CD/MP3-USB: CD/ MP3 playing is stopped.
2) AUX IN function: No sound coming from the external audio source.

There is no indication found in the LCD and the ON indicator (5) will light off when it entered power saving mode. Turn off the unit and turn on again for further use.

NOMINAL SPECIFICATIONS

GENERAL FEATURES

Power Sources: 230V ~ 50Hz

1,5V x6UM2 Batteries (not included)

Power Consumption: Standby < 0.5W

AUX-IN: Presa Jack 3.5mm

Dimensions: 235x210x105mm

RADIO FEATURES

Radio FM: 87.5 - 108.0 MHz

CD PLAYER FEATURES

Player system : Semiconductor laser

Laser beam wavelength : .... 790nm

FONCTIONNEMENT AUX-IN

Dimensions: 235x210x105mm

SECTION RADIO

PRECAUTIONS FOR CORRECT DISPOSAL OF THE PRODUCT.

The symbol shown on the equipment indicates that waste must be disposed of in "separate collection" and so the product must not be disposed of together with urban waste.

The user must take the product to special "separate waste collection centres" provided by local government, or deliver it to the retailer against the purchase of a new product.

Separate collection of waste and subsequent treatment, recycling and disposal operations promotes the production of equipment with recycled materials and limits negative effects on the environment and on health caused by improper handling of waste.

Illegal disposal of the product leads to the enforcement of administrative penalties.

RECOMMANDATIONS POUR L'ELIMINATION CORRECTE DU PRODUIT.

CONFORMITY DECLARATION EU SIMPLIFIED

Hereby TREVI Spa declares that the radio equipment type CMP 562 USB is in compliance with directive 2014/53/EU.

The full text of conformity declaration EU is available at the following internet address: www.trevi.it

Made in CHINA
