USER MANUAL Kazoo Burley

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

IMPORTANT

A LIRE ATTENTIVEMENT ET À CONSERVER POUR REFERENCE ULTERIEURE

WICHTIG

BITTE SORGFALTIG LESEN UNDFUR SPATERES NACHLESENUNBEDINGT AufbewAHREN

IMPORTANT

LEER DETENIDAMENTE Y MANTENERLAS PARA FUTURAS CONSULTAS

Burley

Piccolo® & Kazoo™

OWNER'S INSTRUCTION & SAFETY MANUAL

Contents

ENG

4

INTRODUCTION

4 Safety Guidelines
8 Box Contents
8 Burley Trailercycle Guide

ASSEMBLY & USE

9 Trailercycle Assembly
9 Hitching the Trailcycle to Your Bicycle
10 Shifter Instructions (Piccolo Only)
10 Detatching the Trailercycle
10 Dissassembly for Longer Storage

MAINTENANCE

11 Before You Ride With the Trailercycle
11 Maintaining your Burley

CUSTOMER SERVICE

11 Connect with Burley
11 Product Identification
11 Burley Limited Warranty

DEU

17

EINLEITUNG

FALURE TO COMPLY WITH THE INSTRUCTIONS AND WARNINGS IN THIS MANUAL COULD RESULT IN SERIOUS INJURY OR DEATH OF THE PASSENGER OR RIDER.

• Trailercycle shall only be pulled by a responsible adult with good bicycle riding skills that weighs at least twice the weight of the child.
• Burley trailercycles are designed for children ages 4-10 with sufficient coordination to pedal and adequate strength to hold on to the handlebars tightly. Please consult your physician if you have any questions about your child's ability to ride to safely ride a trailcycler.
  Both riders must wear helmets.
• Adjust the seat and handlebar to the correct heights for each rider. Ensure that the minimum insertion mark, or at least 21/2'' (64mm), on the seat post remain inside the frame.
  Before your passenger gets on and off the trailerecycle, come to a complete stop, straddle your bicycle and hold it securely with the brakes engaged and both feet on the ground. Never rely on a kickstand to secure the trailerecycle.
  Practice with your child in an uncongested area. Pulling the trailcycler adds length and weight to your bicycle, allow for ample time and distance to stop, start, and turn.
  Take short rides; stop frequently. Instruct your child to keep their feet on pedals and hands on handlebars at all times.
  Recommended speed limits: 15mph (24km/h) on smooth, straight roads 5mph (8km/h) when turning or on uneven roads
• Do not exceed weight limit by attaching a rack, panniers, or other cargo to the trailercycle.

Do not attach another trailercycle or trailer to the trailercycle.
- Keep the tire inflated to 30-35 PSI. Check pressure before each use. Do not use higher-pressure or knobby tires. Be sure axle nuts are properly tightened.
Do not use off-road.
Do not use at night without proper lights on both cycles.
- Avoid rocks, curbs, hard braking, and sudden swerving.
- Never use trallercycle with a motorized bicycle or vehicle.
- When trailercycle is used with a tandem, ensure that there is always an adult occupying the rear position. Failure to do so will limit braking and steering performance.
DO NOT make modifications to the trailercycle.
DO NOT allow any of the child's body, clothing, shoe laces, or toys to come in contact with any moving parts.
- It is recommended that a qualified bicycle mechanic does a safety check of the towing bicycle before attaching the triacycle.
It is recommended that a rearview mirror be used on the bicycle.
Always comply with local regulations when using the trailercycle on public roadways. Oey all local requirements for lighting. The red reflector that came with the trailercycle must remain attached and visible at all times. When coming to a stop, be sure to pull off the road

completely.

Use good judgment when deciding if weather, road, or traffic conditions are safe to use a Burley.
Use caution when riding in wet or inclement weather, allowing more distance for stopping.

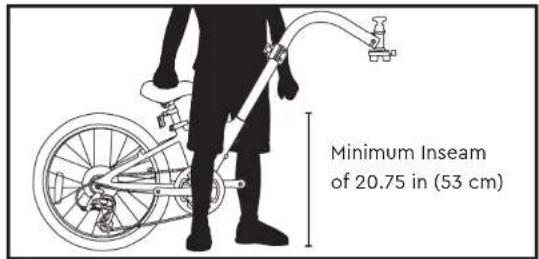

WARNHINWEIS

les routes accidentees

Maximum Weight of Child

85 lb (39 kg)

Child Age Range

4-10 years

WARNING

ALWAYS COMPLY WITH LOCAL REGULATIONS FOR MAXIMUM TRAILER WEIGHT.

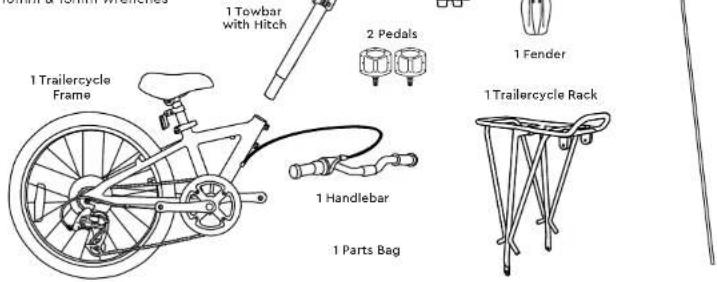

Box Contents

Required Tools (not included):
- 3mm, 4mm & 5mm hex keys - 10mm & 15mm wrenches

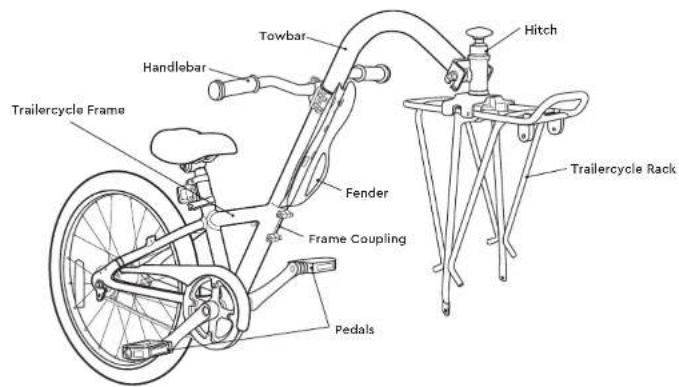

Burley Trailercycle Guide

Trailercycle Assembly

1

Insert tow bar into frame coupling and align so that detent engages in detent hole on frame as shown above. Progressively tighten clamp bolts with a 5mm hex wrench, alternating between bolts every 1-2 Nm until both bolts are at 6-8 Nm (4-6 ft-lb).

2

Mount pedals (stamped R for right and L for left) to the corresponding crank arm and tighten. Left pedal uses left hand threads (counter-clockwise to tighten).

3

Remove stem face plate, place handlebar into clamp and replace face plate. Center handlebar and tighten face plate bolts to 4-5 Nm (3-3.7 ft-lb) with a 4mm hex wrench.

4

Remove bolts on bottom of stem. Align fender with holes and fasten to trailercycle (4-5 Nm) with a 3mm hex wrench. Insert flag into flagholder (inside left dropout).

Hitching Your Trailercycle to Your Bicycle

1

Ensure your trailercycle rack is safely installed on your bicycle per the instructions provided with the rack. Slide lever to retract safety pins.

2

Set hitch on rack as shown. Ensure that lever rotates back to fully engage pins.

3

Push knob down to engage hitch with rack. Rotate knob clockwise. Fully tighten hitch knob.

IMPORTANT

KNOB MUST BE TIGHTENED AND SAFETY PINS ENGAGED BEFORE USE. DO NOT USE YOUR TRAILERCYCLE IF YOU ARE UNABLE TO SECURELY TIGHTEN KNOB OR GET FULL ENGAGEMENT OF THE SAFETY PINS.

PICCOLO & KAZOO

(Piccolo Only)
1

Shift gears only when the pedals and chain are moving forward.

Detatching the Trailercycle From Your BicycleShifter Instructions

1

Rotate knob counterclockwise until the knob is fully disengaged with the rack.

2

Slide lever to retract safety pins.

3

While retracting the safety pins lift hitch off of rack.

Dissassembly for Longer Term Storage

Remove flag from flag holder.

2

Remove stem face plate, remove handlebar and replace faceplate and bolts.

3

Loosen tow bar clamp bolts until the tow bar is able to move slightly.

4

Depress the spring detent and slide the tow arm out of the frame of the trailer cycle.

Before You Ride

Contact your authorized Burley dealer for replacement of any damaged or worn parts.

Check before each use

o Child weighs less than 85 lb (39 kg).

Adult lead cyclist weighs at least twice as much as child.

O Moose rack is securely attached to bicycle.

oTrailercycle frame coupling bolts are fully tightened.

O Hitch pivots, knob, and safety pins are securely assembled.

c Hitch is tightly attached to rack and safety pins are fully engaged.

• Handlebars, seat, and wheel are secured.

o Trailercycle tire is inflated to recommended pressure of 30-35 PSI.

o DO NOT over-inflate the tires. Failure to comply with the rated tire sidewall pressure may lead to explosion of the tire and possible injury.

Both riders are wearing helmets.

o Safety flag and reflectors are in place.

Bicycle is in good working order, especially brakes and tires.

o Trailercycle does not interfere with the braking, pedaling, or steering of the bicycle.

Check monthly

Inspect hitch for damage and loose fasteners.

o Inspect hitch pivots for smooth operation.
o Ensure hitch bolt and corresponding threads on the trailercycle rack are clean and lubricated; keep lubricant clear of bike's brake and rim surfaces.
o Ensure chain is clean and lubricated.
Check and tighten all hardware on both trailercycle and Moose rack, especially frame coupling bolts and rack mounting bolts.
o Inspect frame tubing and hardware for cracks, damage, or loose parts.
0 Inspect tire for cracks or worn spots.
o Repair or replace any damaged or worn-out parts.
o Contact your local bike shop or authorized Burley dealer for replacement parts. Only use manufacturer recommended replacement parts.

Maintenance

O Inspect chain, chaining and rear cog(s); replace if worn.
Clean and lubricate pivot points on derailleur (Piccolo only), wipe excess lubricant to prevent dirt buildup.
o Inspect derailleur cable for fraying and replace as necessary (Piccolo only).
o Adjust shifting as necessary (Piccolo only).
Ensure that chain is not loose (Kazoo only); tighten chain by moving hub back if needed.
o Check wheel for trueness; inspect for cracks at spoke hole or sidewall. Retreue or replace if necessary.
o Verify that bottom bracket spins smoothly and doesn't exhibit any play; tighten fixing bolts for crank arms.
o Disassemble bearings in hitch and hub and repack with grease if needed.
Repair or replace any worn-out parts.
o For additional maintenance, please visit one of our Dealers. Visit our store locator support web page at burley.com.

Storage

o For longer product life, store trailcycle indoors. The trailcycle should not be stored at temperatures less than -10^ (-23^) or greater than 150^ (65^) .

Connect with Burley

Whether you ride your bike all year long or are a fair weather rider, Burley shares your enthusiasm for making the most of your bike. Thank you for your business. We appreciate it.

Product Identification

If you have any questions about the model name or year of your Burley, please consult our product identification support web page at burley.com.

Burley Limited Warranty

Burley Trailcrailcles are warranted from the date of purchase against defects in materials and workmanship as follows: hitch and rock for one year, and frame for five years. Your original sale'd sales or delivery receipt showing the date of purchase is your proof of purchase. If a select in materials or workmanship is discovered during the Limited Warranty period, we will, at our sole option, repair or replace your product at no cost to you. This warranty is only valid in the country in which the product was purchased. The Limited Warranty extends only to the original retail purchaser of this product and is not transferable to anyone who obtains ownership of the product from the original purchaser. The Limited Warranty does not cover claims resulting from misuse, failure to follow the instructions, installation, improper maintenance and use, abuse alteration, involvement in an accident, and normal wear and tear. The Limited Warranty does not cover products which are used in rental operations and Burley will not be liable for any incidental or commercial damages relating to such use. TO THE GREATEST EXTENT PERMITTED BY LAW, THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTY, WrittEN OR ORAL, INCLUDING BUT NOT LIMITED TO ANY EXPRESS OR IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The duration of any implied warranties, including any implied warranty of merchantability or fitness for a particular purpose that may exist during the express warranty period are expressly limited to the limited warranty period. Some states and countries do not allow limitations on how long an implied limited warranty lasts; therefore, the above limitation and exclusions may not apply to you.

THE CUSTOMER'S EXCLUSIVE REMOY FOR BREADTH OF THIS LIMITED WARRANTY OR OF ANY IMPLIED WARRANTY OR OF ANY OTHER OBLIGATION ASRISING BY OPERATION OF LAW OR OTHERWISE SHALL BE LIMITED AS SPECIFIED HEREIN TO REPAIR OR REPLACEMENT, AT OUR SOLE OPTION. IN ANY EVENT, RESPONSIBILITY FOR SPECIAL, INDICIAL AND CONSEQUENTIAL DAMAGES IS EXPRESSLY EXCLUDING. Some states do not allow the exclusion of limitation of incidental or consequential damages, so the above limitation of exclusion may not apply to you. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the good repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This limited Warranty gives you specific legal rights, and you may have other rights that vary from state to state or country. For warranty service or replacement part information for the USA or Canada, please contact Burley directly by calling 800-51-S924 or emailing [e-mail]. For warranty service or replacement part information outside of the USA and Canada please contact the place of purchase for warranty service. Please be prepared to provide the product model, serial number and a description of the warranty issue. Some replacement parts may be available for purchase after this limited warranty expires. Please visit us at www.burley.com or call us at 541-687-1644 for more information.

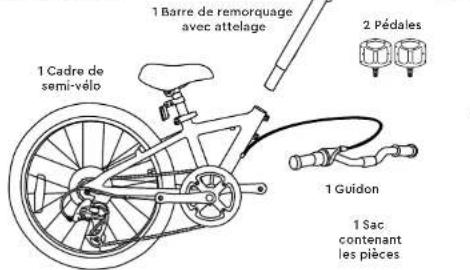

• 3mm, 4mm & 5mm clé hexagonal
• 10mm & 15mm clé

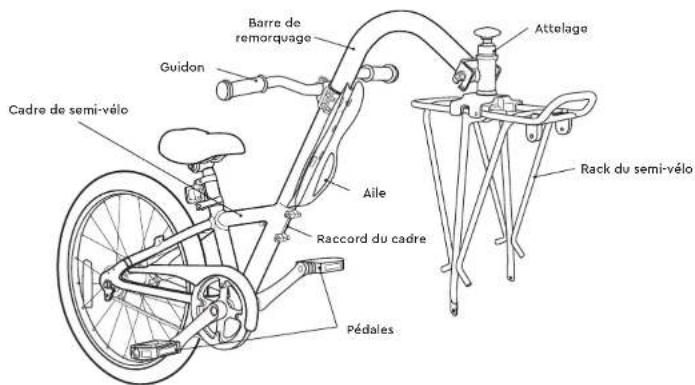

Guide du semi-velo Burley

1500 Westec Drive | Eugene, OR 97402

P.541.687.1644 or 800.423.8445 F,541.687.0436

[e-mail] | Burley.com

©2022 Burley Design LLC

"Burley" is a registered trademark of Burley Design LLC | MAN-00044_00
