USER MANUAL Design KRAMPOUZ

Instructions for use 11

Planchas electrolycas

Instruccionedesuso 19

Elektrische Planchas-Grills

MODELE DESIGN DOUBLE

Set plancha (Ref. ASP1)

Tablier (Ref. ATC1)

PROTEGER

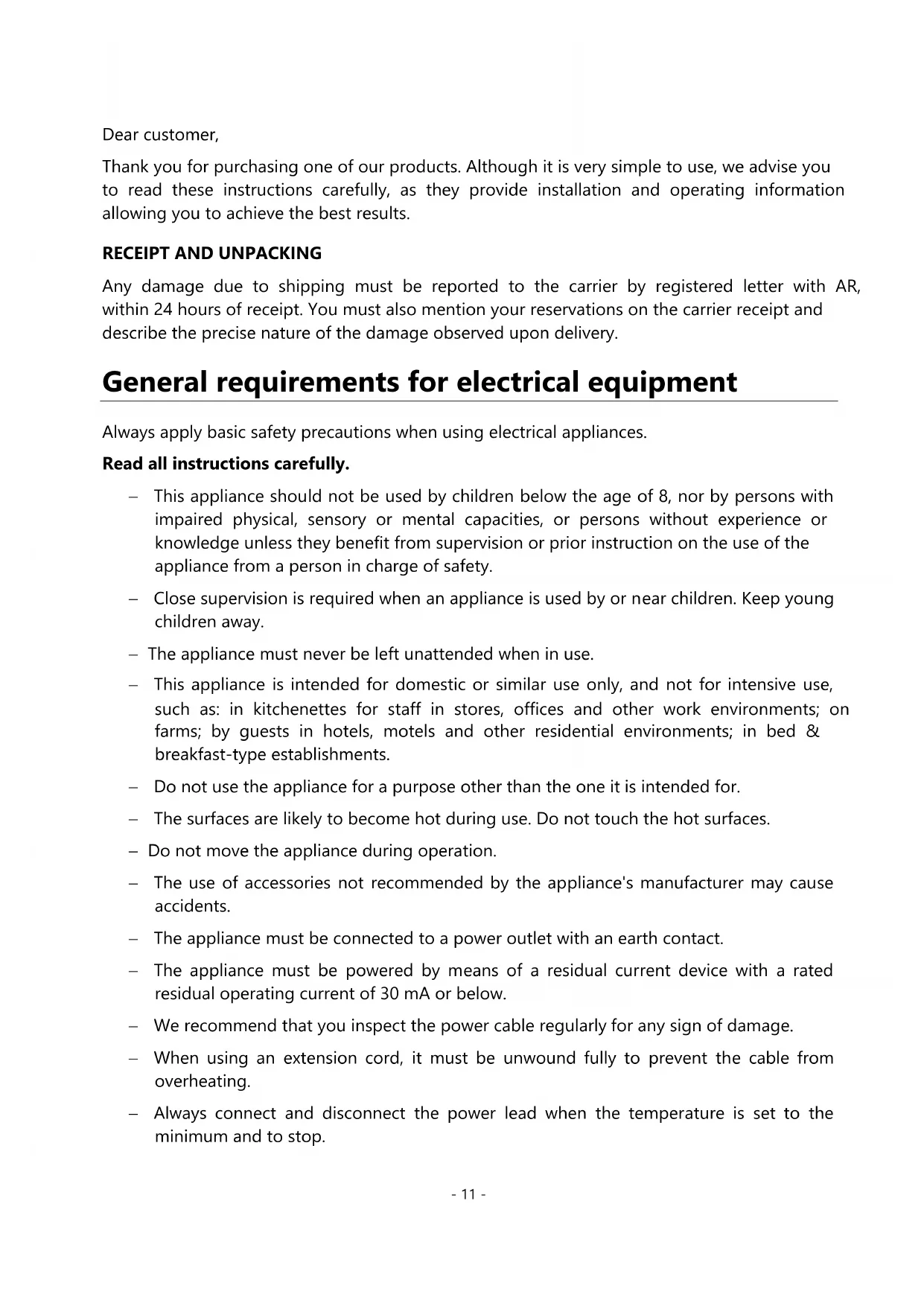

Thank you for purchasing one of our products. Although it is very simple to use, we advise you to read these instructions carefully, as they provide installation and operating information allowing you to achieve the best results.

RECEIPT AND UNPACKING

Any damage due to shipping must be reported to the carrier by registered letter with AR, within 24 hours of receipt. You must also mention your reservations on the carrier receipt and describe the precise nature of the damage observed upon delivery.

General requirements for electrical equipment

Always apply basic safety precautions when using electrical appliances.

Read all instructions carefully.

• This appliance should not be used by children below the age of 8, nor by persons with impaired physical, sensory or mental capacities, or persons without experience or knowledge unless they benefit from supervision or prior instruction on the use of the appliance from a person in charge of safety.
• Close supervision is required when an appliance is used by or near children. Keep young children away.
• The appliance must never be left unattended when in use.
• This appliance is intended for domestic or similar use only, and not for intensive use, such as: in kitchenettes for staff in stores, offices and other work environments; on farms; by guests in hotels, motels and other residential environments; in bed & breakfast-type establishments.
• Do not use the appliance for a purpose other than the one it is intended for.
• The surfaces are likely to become hot during use. Do not touch the hot surfaces.
• Do not move the appliance during operation.
• The use of accessories not recommended by the appliance's manufacturer may cause accidents.
• The appliance must be connected to a power outlet with an earth contact.
• The appliance must be powered by means of a residual current device with a rated residual operating current of 30mA or below.
• We recommend that you inspect the power cable regularly for any sign of damage.
• When using an extension cord, it must be unwound fully to prevent the cable from overheating.

• Always connect and disconnect the power lead when the temperature is set to the minimum and to stop.

• To guard against electric shocks, do not immerse the lead, connector or body of the appliance in water or any other liquid. Do not handle with wet hands.

• Do not leave the lead hanging from a table or counter.
• Do not place the appliance and its lead on or near a surface which is likely to become hot (cooking plate, gas burner, oven, etc.).
• Place the appliance on a stable and dry surface, slightly away from the edge and further than 20~cm away from any wall and heat-sensitive element.
• Caution: Do not insert aluminium foil or any other material or object between the plate and the frame (ventilation zone).
• Do not obstruct the ventilation holes in the bottom plate under the frame.
• Do not obstruct the frame's ventilation inlets.
• Warning: do not use this appliance with charcoal or an energy source other than the one it was designed for (electric power).
• Disconnect the plug when the appliance is not in use or before cleaning it.
• Leave the appliance to cool down before handling or cleaning it.
• Do not handle the appliance when hot.
• Do not clean the appliance with a high or low pressure water spray.
• Do not use chlorinated products to clean stainless steel.
• When the appliance is not in use, store it in a dry location.
• We advise you to keep the original packaging to store the appliance.
• Do not connect or use an appliance with a damaged lead or plug. If the power supply cable is damaged it must be replaced by the distributor, its after-sales service or qualified persons to avoid any danger.
• In the event of a failure, inspection and repairs must be performed by an approved technician.
• Any maintenance operations must be performed by an approved technician.
• The appliance is not intended to be operated using an external timer or a separate remote control system.

KEEP THESE INSTRUCTIONS

Technical description

CHARACTERISTICS

Stainless steel frame and cooking plate
Food-grade certified plate
- IPX4 certified appliance (total protection against water spray)
- Edges on the 4 sides
Built-in removable gravity tray
- Single phase 230 volt power supply

SINGLE DESIGN MODEL

• 1 heating zone regulated by 1 thermostat (adjustable from 50 to 300^ )
• 1 heating indicator
• Power: 1800 watts

DOUBLE DESIGN MODEL

• 2 heating zones regulated by 2 thermostats (adjustable from 50 to 300^ )
• 2 heating indicators
  Power: 2 x 1800 watts, i.e. 3600 watts

This appliance complies with the CE European Directives.

Notes

The plancha is a Spanish cooking method which involves grilling food on a plate made from cast iron, steel, aluminium or stainless steel.

This cooking method was devised in the 19^th century by pilgrims. During the celebrations held during pilgrimages, large plates were laid on embers. This method was used to cook all types of food in very large quantities.

Over time, the plancha became more sophisticated as a commonly used object. Widely used in restaurants and tapas bars, the plancha is now used, in particular, to cook tasty meals in a healthy and varied manner. This cooking method offers great benefits because it seals in the flavour of the food being cooked. The use of the plancha is simple, as the appliance only needs heating up for 10 min before cooking food.

Its intense heat sears food and grills it yet keeps the flesh, juices and aromas intact.

With its fun, laid back and relaxed feel, the plancha's natural home is outdoors. It can be used indoors under an extractor hood.

Its very simple use does not require any particular skills, and you will only really need a few utensils, such as clamps and broad spatulas to flip the food.

Installation

INSTALLATION

Place the appliance on a flat and rigid surface. Do not use it on a heat-sensitive support. Choose a worktop which is easy to maintain and lay the appliance at least 20~cm away from non heat resistant walls to reduce radiation from the plate. For optimum user comfort, the appliance must be located between 85 and 95~cm from the ground.

POWERING ON

Connect the plancha to the nearest power source (see technical specifications of the appliance). Caution! When you connect the plancha, it switches on automatically.

EXTINCTION

Turn the control and temperature levers to zero and disconnect the appliance.

Use

COOKING

Choose the cooking temperature according to the food (see cooking chart).

Preheat the plancha for 10 minutes by setting the selected temperature.

For the double Design plancha, the temperature of the two cooking zones can be adjusted independently from one another to cook two different types of food.

If necessary, coat the plate evenly with oil using a pad or brush.

Place the food on the plate and cook according to your taste.

With time, you will come to learn the most suitable temperatures for the items to be cooked according to their thickness, texture and your personal tastes.

The temperatures and times below are provided as a guide only.

	Food	Cooking temperature	Cooking time
FISH AND SEAFOOD	Fish kebabs	160 °C	15 min
	Prawns	160 °C	15 min
	Scallops	160 °C	15 min
	Salmon	160 °C	15 min
	Monkfish or cod cheek	180 °C	15 min
	Coquilles St Jacques	160 °C	15 min
	Cuttlefish, squid, octopus	220 °C	15 min
MEAT AND POULTRY	Rare T-bone steak	250 °C	about 5 min on each side
	Medium T-bone steak	220 °C	about 15 min on each side
	Rare steak	250 °C	about 1 min on each side
	Medium steak	220 °C	about 3 min on each side
	Shredded pork or veal	220 °C	20 min
	Shredded rabbit or chicken	200 °C	30 min
	Duck fillets	220 °C	1 to 3 min on each side
	Duck breasts	240 °C then 200 °C	10 min on the skin side, then 5 min on the other side
	Beef kebabs	240 °C	5 to 10 min
	Lamb cutlets or kebabs	240 °C	5 to 10 min
VEGETABLES	Mushrooms / Onions / Courgettes / Carrots / Tomatoes / Vegetable kebabs / Peppers, etc.	150 °C
FRUITS	Bananas / Apples / Pears / Peaches / Oranges / Pineapples, etc.	150 °C

ADVICE

In order to avoid making deep scratches on the plate, do not cut your food directly on it.

Do not leave kitchen utensils on the plancha, such as cutlery, wooden spoons, plastic utensils, etc.

Do not cook at too high a temperature as this may char the plate and make it difficult to clean.

The plancha can be used at the end of cooking to keep the food hot at temperatures from 50 to 100^ .

For all our recommendations for use and recipes, go to our website at www.krampouz.com.

Maintenance and cleaning

THE PLATE

The plancha's ferritic stainless steel plate has a mirrored appearance when delivered. Scratches and black spots appear soon during the normal course of use of the appliance. These are caused by using different utensils and acids present in the food. This is perfectly normal. All these scratches and spots will soon blend and the plate will have a patina and brushed appearance which will not change any more over time. This will not impair cooking in any way.

Cleaning is performed with the plancha switched off and the power lead disconnected. It is easier if the plancha is still lukewarm. Beware risks of burns.

Use a rigid spatula to remove the bulk of the juices adhering to the cooking plate by pushing them towards the juice collection tray.

Then thoroughly moisten the cooking plate to water down the remaining juices (using a sponge filled with water or by dropping ice cubes on it). Leave for a few minutes.

Use the rigid spatula to remove the remaining watered down juices by pushing them towards the juice collection tray.

Finish cleaning with an abrasive then a soft sponge.

Pour white vinegar onto the plate to remove odours and residual flavours.

After cooking salty preparations, the cooking plate must be cleaned promptly (risk of the plate being corroded by the salt). Do not use chlorinated products as these may also cause corrosion.

THE FRAME

The ferritic stainless steel frame should be cleaned with a slightly moist sponge.

It collects the cooking juices. It must be handled when cold, emptied and cleaned before it is used again.

STORAGE

Store your plancha in a dry and safe location where it will not be damaged.

Our maintenance advice is available at www.krampouz.com

Accessories

The accessories below are indispensable for your Design plancha. For more information on these accessories, go to www.krampouz.com.

INSTALL

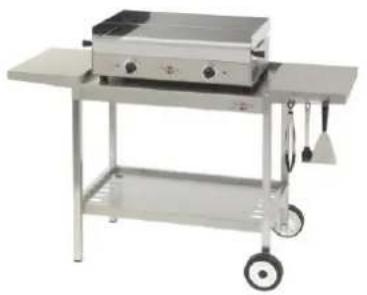

Plein air cart for double Design plancha (ref. Khea04)*

COOKING

Plancha set (Ref. ASP1)

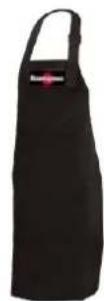

Apron (Ref. ATC1)

PROTECTING

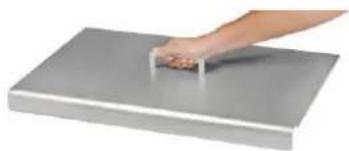

Lid for single Design plancha (Ref. ACP6)

Lid for double Design plancha (Ref. ACP5)

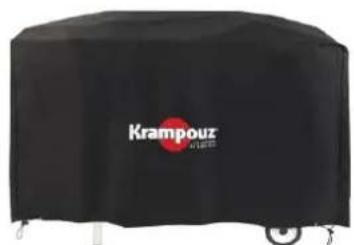

Cover for double Design plancha (Ref. AHP2)

Cover for Plein Air Cart (Ref. AHC1)**

• The plancha is sold separately.

** The PLEIN AIR cart is sold separately.

Guarantee and After-sales service

This appliance is guaranteed for 2 years. The cooking plate is guaranteed for 5 years in terms of cooking capacity.

We do our very best to ensure that our appliances reach you in perfect operating condition. If you find a fault when unpacking, report this to the shop within 48 hours.

If during this period, you observe a malfunction, refer to your retailer.

The following is excluded from the guarantee:

1. Normal wear of the product not impairing the operation of the appliance (scratches, the beginnings of superficial corrosion, black spots, impacts, colour changes, etc.)
2. Damage resulting from an abnormal event or use, a modification of the product or non compliance with the indications provided in the operating instructions.
3. Damage resulting from a professional, industrial or collective use.
4. Damage resulting from a fall or impact.

Please send us your suggestions.

Krampouz may not be held liable for damage caused to objects or persons resulting from improper installation or use of the appliance.

The crossed out bin symbol, affixed to the product or its packaging, indicates that the product must not be treated as household waste. It must be disposed of at a collection point suitable for recycling electric and electronic equipment:

• in retail points if purchasing equivalent equipment,
• in collection points made available to you locally (drop-off centre, selective collection, etc.).

By ensuring that this product is indeed scrapped appropriately, you will help to prevent potential negative consequences for the environment and human health. Material recycling will help to preserve natural resources. For any additional information about the recycling of this product, call your local authorities, your drop-off centre or the store where you purchased the product.

Krampouz SAS - Z.A. Bel Air - 29700 Pluguffan - France - Tel. [phone] -

Fax. [phone] www.krampouz.com - [e-mail]
