Product type	Powerline adapter kit (2 adapters)
Model	TL-PA8010P KIT V2
Brand	TP-Link
Max data rate	Up to 1200 Mbps
Ethernet port	1 Gigabit port per adapter
Pass-through outlet	Yes, with built-in noise filter
Security	Pair button for 128-bit AES encryption
Installation	Plug-and-play, no configuration required
Dimensions (L x W x H)	Approximately 95 x 55 x 38 mm per adapter
Weight	Approximately 130 g per adapter
Power supply	100-240 VAC, 50/60 Hz
Power consumption	Standby < 0.5 W, typical operation < 3 W
Operating temperature	0 °C to 40 °C
Operating humidity	10% to 90% RH (non-condensing)
Care and cleaning	Unplug before cleaning; use a soft, dry cloth
Safety	Do not plug into a power strip; always plug directly into a wall outlet
Spare parts and repairability	Not user-repairable; no spare parts kit available
Warranty	Limited 3-year warranty
Management software	tpPLC utility (downloadable from TP-Link website)
Compatibility	Compatible with all HomePlug AV/AV2 powerline adapters
Kit contents	2 powerline adapters, 2 RJ45 cables, quick installation guide

Frequently Asked Questions - TLPA8010P KIT V2 TP-LINK

How do I reset my powerline adapter?

Plug the adapter into a power outlet, then press and hold the Pair button for about 10 seconds until the power LED briefly turns off. Release the button; the adapter will reboot with factory settings.

Why don't I have internet access through my powerline network?

Check that all adapters are on the same electrical circuit. Make sure the Powerline LEDs are lit. Check Ethernet connections and that your computer receives a correct IP address (same subnet as the router). If the problem persists, re-pair the adapters.

What if already paired adapters do not reconnect after moving them?

Try other outlets on the same circuit. If the Powerline LED stays off, re-pair the adapters. Move adapters away from powerful electrical appliances (hair dryer, air conditioner) that may cause interference. Use the adapter's passthrough outlet to plug in such devices and filter noise.

How do I secure my powerline network?

Use the Pair button: press the Pair button on one adapter for 1 second, then within 2 minutes press the Pair button on the other adapter for 1 second. The network is now encrypted with 128-bit AES. To add more adapters, repeat the process with an already secured adapter.

Can I plug powerline adapters into a power strip?

No, it is not recommended to plug powerline adapters into a power strip as this can reduce network performance and stability. Plug them directly into a wall outlet. If the adapter has a passthrough outlet, plug the power strip into it.

How do I add a new powerline adapter to my existing network?

Plug the new adapter into an outlet near an already paired adapter. Press the Pair button on the existing adapter for 1 second, then within 2 minutes press the Pair button on the new adapter for 1 second. The Powerline LEDs will light up when pairing is successful.

What does the Powerline LED off mean?

The Powerline LED off indicates that no other powerline adapter is detected or the network is not established. Check that all adapters are plugged in and on the same circuit. If the light remains off, perform pairing or a reset.

Is it possible to update the firmware of the adapters?

Yes, you can update the firmware using the tpPLC utility downloadable from the TP-Link website. Connect the adapter to your computer, launch the utility, and follow the update instructions.

Are powerline adapters compatible with other brands?

Yes, TP-Link TL-PA8010P adapters comply with the HomePlug AV2 standard and are compatible with other HomePlug AV or AV2 adapters, regardless of brand. Performance may vary.

How do I clean my powerline adapter?

Unplug the adapter before cleaning. Use a soft, slightly damp (not wet) cloth to wipe the surface. Do not use chemical or abrasive cleaners. Make sure the adapter is dry before plugging it back in.

USER MANUAL TLPA8010P KIT V2 TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science

& Technology Park, Shennan Rd, Nanshan, Shenzhen, China

(2-144),Cardiff Road,Reading,RG1 8EW.

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any use of this technology. The use of any other products, services, or information on the Technologies Co., Ltd. Copyright © 2018 IP-Link Technologies Co., Ltd. All rights reserved.

MADE IN CHINA

7106507904REV2.1.1

tp-link

Quick Installation Guide

Powerline Adapter

CONTENTS

01 / Deutsch
05 / English
09 / Espanol
13 / Eλληνικα
17 / Français
21 / Italiano
25 / Portugues
29 / Suomi
33 /Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

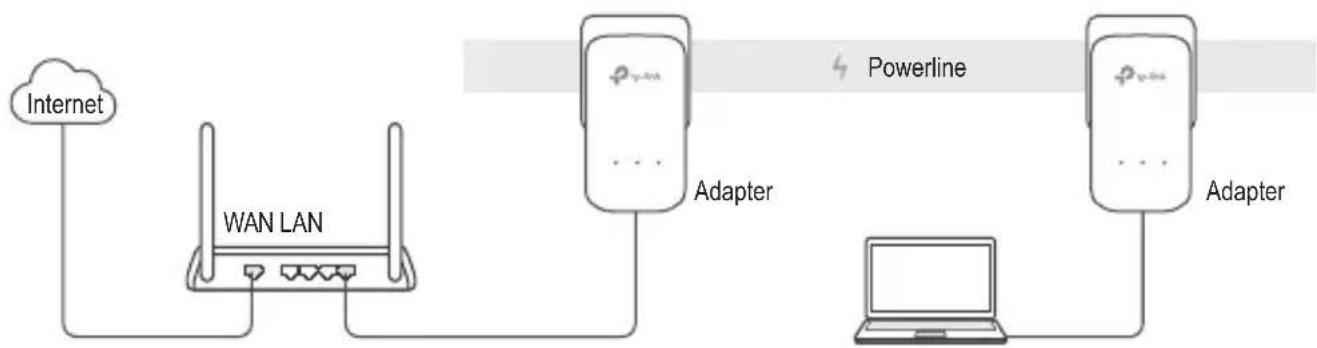

Plug and Play

1. Connect one adapter to a LAN port of your router using an Ethernet cable.
2. Plug the other adapter into the wall outlets on the same electrical circuit.
3. Wait until the Powerline LED on any adapter turns on.
4. Connect your computer to the adapter using an Ethernet cable.
5. Enjoy!

More: To add additional Powerline adapters and extenders with the default settings, simply plug them into the wall outlets on the same electrical circuit.

English

Attention

• Plug the powerline devices directly into the wall outlets but not the power strips.
• For passthrough powerline devices, plug the power strips into the integrated electrical sockets of the powerline devices.

Secure the Powerline Network with the Pair Button

Tips: We recommend that you plug in the powerline devices near each other when pairing.

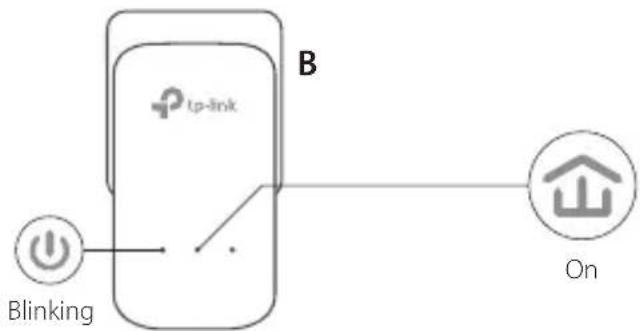

Set up a secure network:

1 Press the Pair button for 1 second on one adapter.

2 Within 2 minutes, press the Pair button for 1 second on another adapter.

3 Done.

If you have more than 2 powerline devices, repeat the steps below on each additional devices to be configured:

1 Press the Pair button for 1 second on any powerline device in the secure network.

2 Within 2 minutes, press the Pair button for 1 second on the additional powerline device.

3 Done.

FAQ (Frequently Asked Questions)

Q1. How do I reset my powerline adapter?

A1. With the powerline adapter plugged into to the electrical outlet, press and hold the Pair button until the Power LED goes off momentarily and comes back on.

A2. Use the tpPLC Utility to reset the powerline adapter.

English

Q2. How to troubleshoot if there is no internet connection in my powerline network?

A1. Make sure all powerline devices are on the same electrical circuit.
A2. Make sure all Powerline LEDs are on. If not, pair your adapters and extenders again.
A3. Make sure all hardware connections are correctly and securely connected.
A4. Check if you have an internet connection by connecting the computer directly to the modem or router.
A5. Make sure your computer's IP address is in the same segment as your router's.

Q3. What can I do if a successfully-paired powerline device does not reconnect after it has been moved to a new location?

A1. Try another socket and make sure it is on the same electrical circuit.
A2. Try to pair it again, and make sure the Powerline LED is on.
A3. Check for possible interference, such as a washer, air conditioner or other household appliances that may be too close to one of the powerline devices. Plug the appliance into the integrated electrical socket (if the powerline device has one) to remove some electrical noise.

More advanced configurations, such as firmware upgrade and QoS configuration, can be accessed through the tpPLC Utility. You can install the tpPLC Utility from the TP-Link official website.

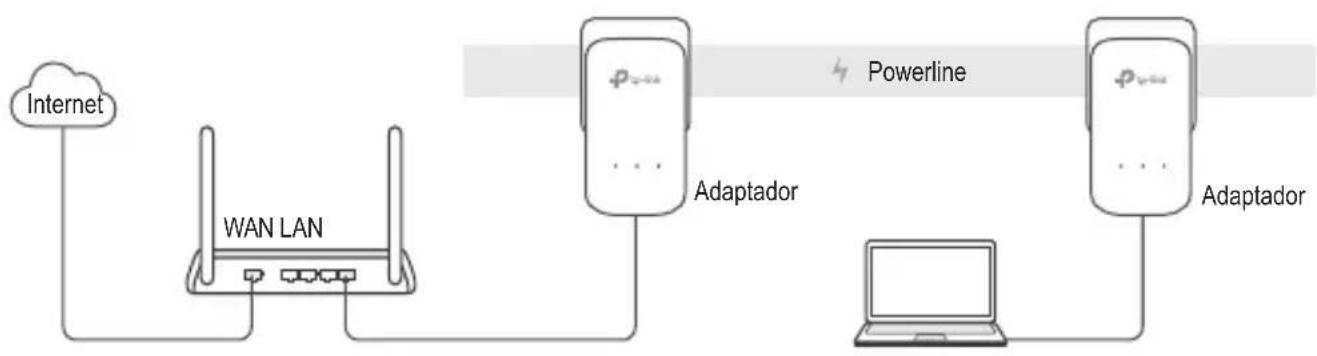

Plug and Play

TP-Link hereby declares that this device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.

Espanol

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.
• Plug the powerline devices directly into the wall outlets but not the power strips.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.
